Elmo Rietschle V-VC 40 OXY User manual

V
V Serie
V Series
Drehschieber
Rotary Vane
Edition: 1.0 ·20.09.2021 ·BA 231-OXY-EN
Operating Instructions
V-VC 40 | 50 | 75 | 100 | 150 | 202 | 303 OXY
Vacuum pump
Translation of the original Operating Instructions
Keep in a safe place for future reference!

2|www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH
Table of contents
Table of contents
1 Foreword................................................................... 4
1.1 Principles ................................................................... 4
1.2 Target group ................................................................. 4
1.3 Supplier documentation and accompanying documents .............................. 4
1.4 Directives, standards, laws ..................................................... 4
1.5 Copyright ................................................................... 4
1.6 Disclaimer .................................................................. 5
1.7 Technical terms and abbreviations ............................................... 5
2 Safety ..................................................................... 6
2.1 General..................................................................... 6
2.2 Labelling of warnings .......................................................... 6
2.3 Symbols and meaning ......................................................... 6
2.4 Intended use ................................................................ 8
2.5 Inadmissible operating modes................................................... 8
2.6 Personnel qualification and training............................................... 9
2.7 Personal protective equipment .................................................. 9
2.8 Safety-conscious working ...................................................... 10
2.9 Responsibilities of the user ..................................................... 10
2.10 Hazardous substances ........................................................ 10
2.10.1 Conveying media ..................................................... 10
2.10.2 Auxiliary materials and lubricant.......................................... 11
2.11 Safety equipment, monitored functions............................................ 11
2.12 Emergency Stop / Emergency Off ................................................ 11
2.13 Protection of environment ...................................................... 11
3 Transport and storage ........................................................ 12
3.1 Transport ................................................................... 12
3.1.1 Unpack and check the as-delivered condition............................... 12

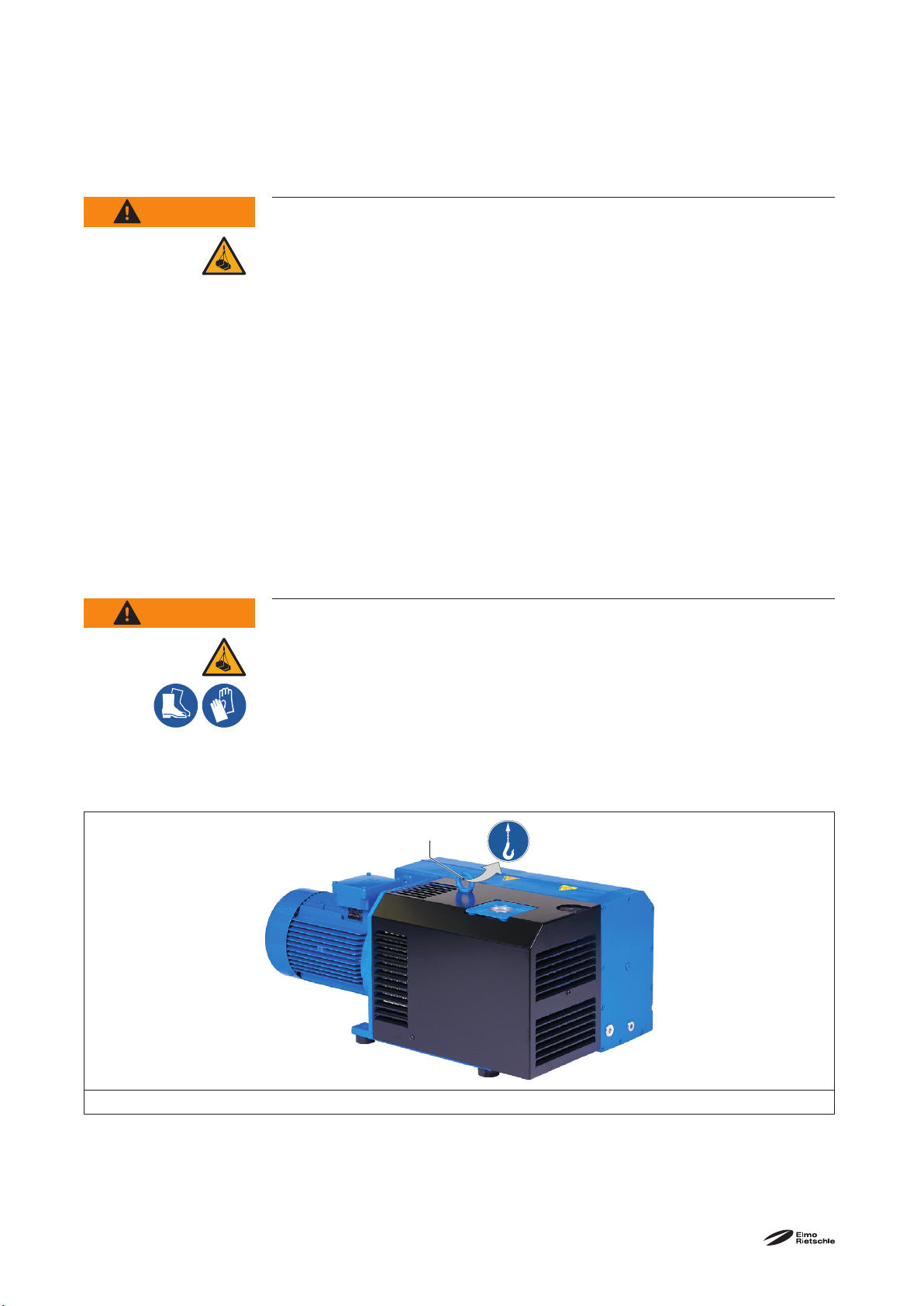

3.1.2 Lifting and transporting................................................. 12
3.2 Storage..................................................................... 13
3.2.1 Ambient conditions during storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4 Product overview and functioning .............................................. 14

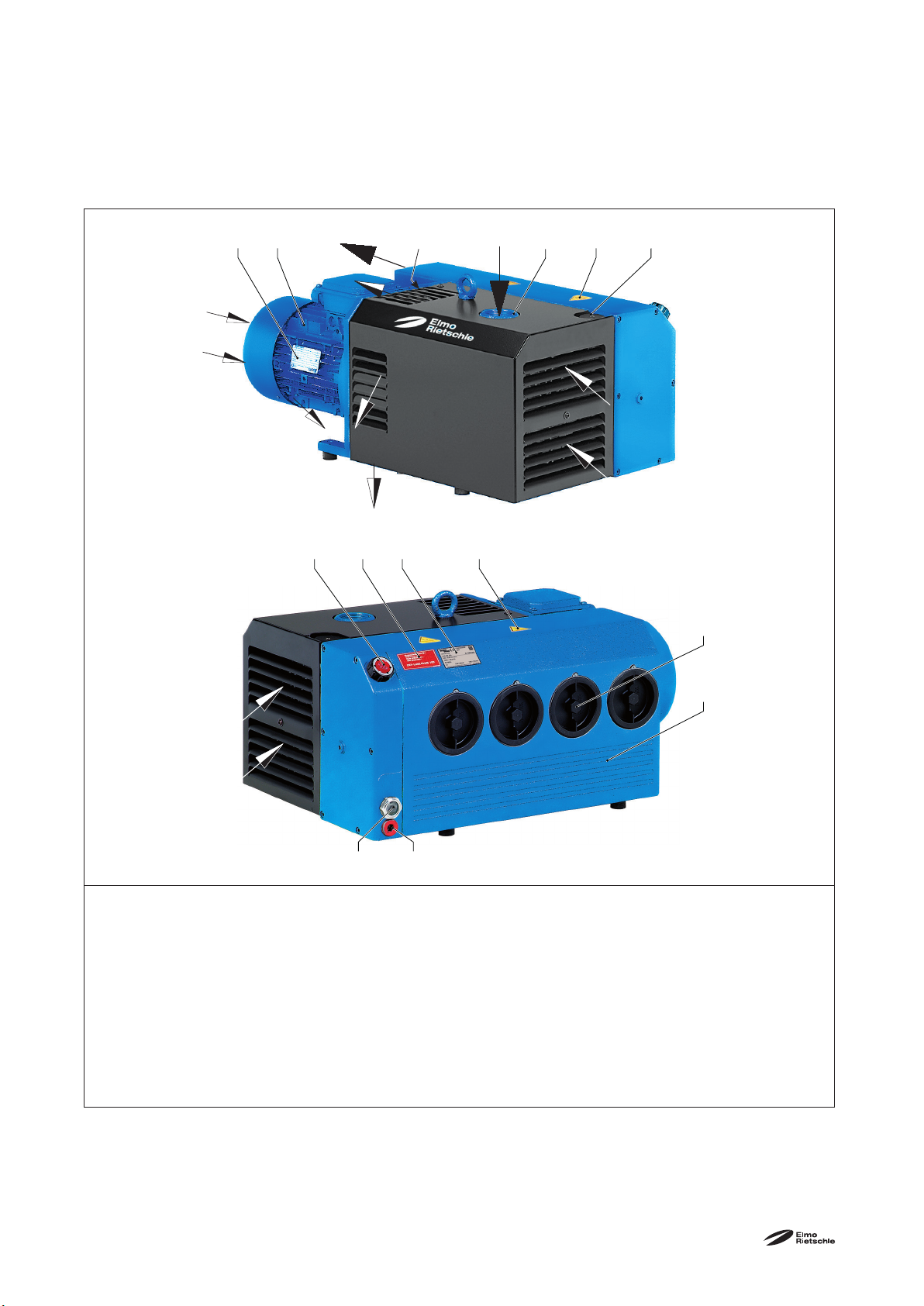

4.1 Product Overview............................................................. 14

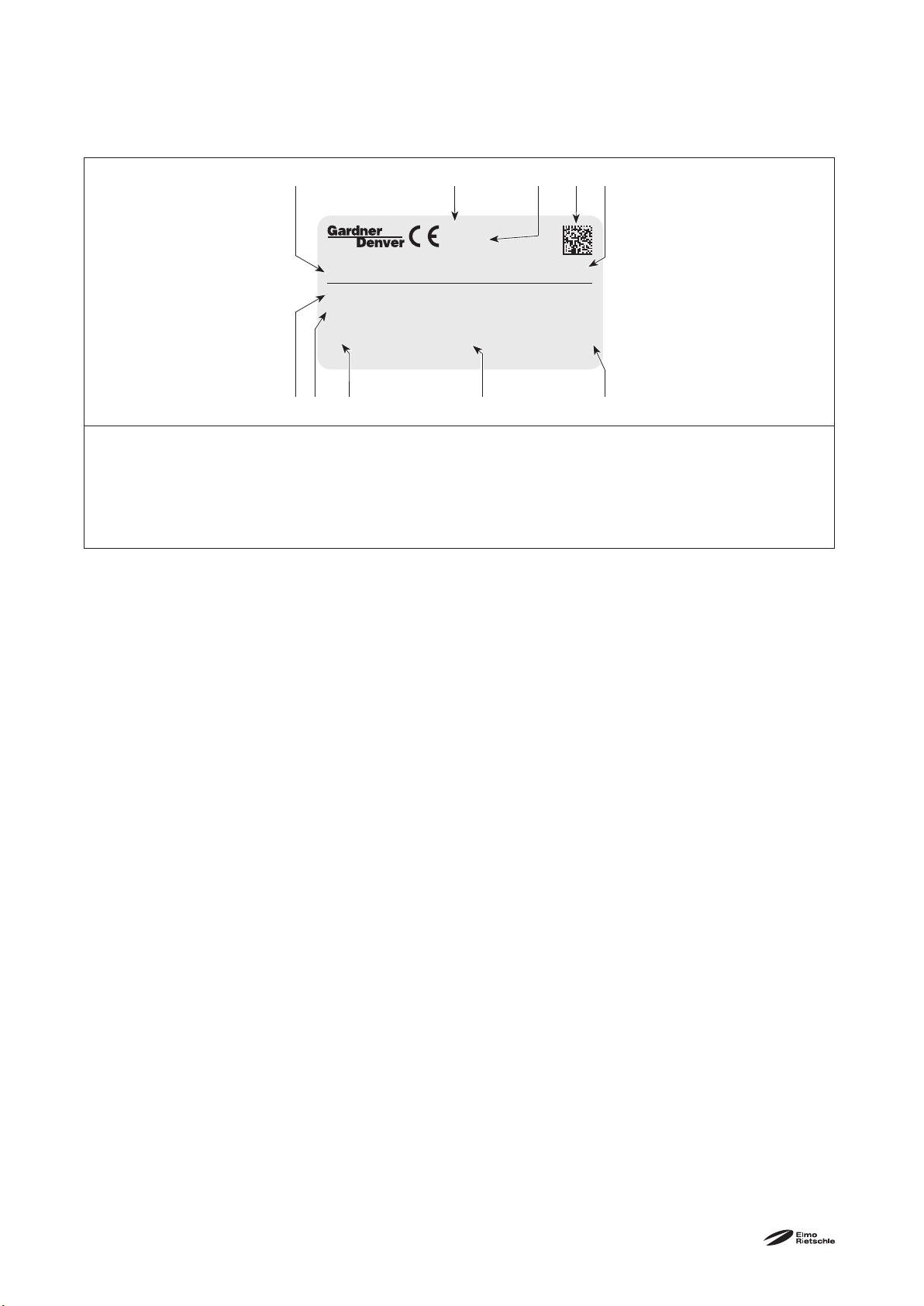

4.2 Data plate................................................................... 16
4.3 Description.................................................................. 16
4.4 Fields of application........................................................... 17
5 Installation ................................................................. 18
5.1 Preparation of installation ...................................................... 18
5.2 Installation .................................................................. 18
5.3 Connection of pipes........................................................... 19
5.4 Check lubricating oil .......................................................... 20
5.5 Connection of motor .......................................................... 20

3
www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH |
Table of contents
6 Commissioning and decommissioning .......................................... 22
6.1 Start-up .................................................................... 23
6.1.1 Installation check ..................................................... 23
6.1.2 Check the rotation direction ............................................. 23
6.2 Operation ................................................................... 23

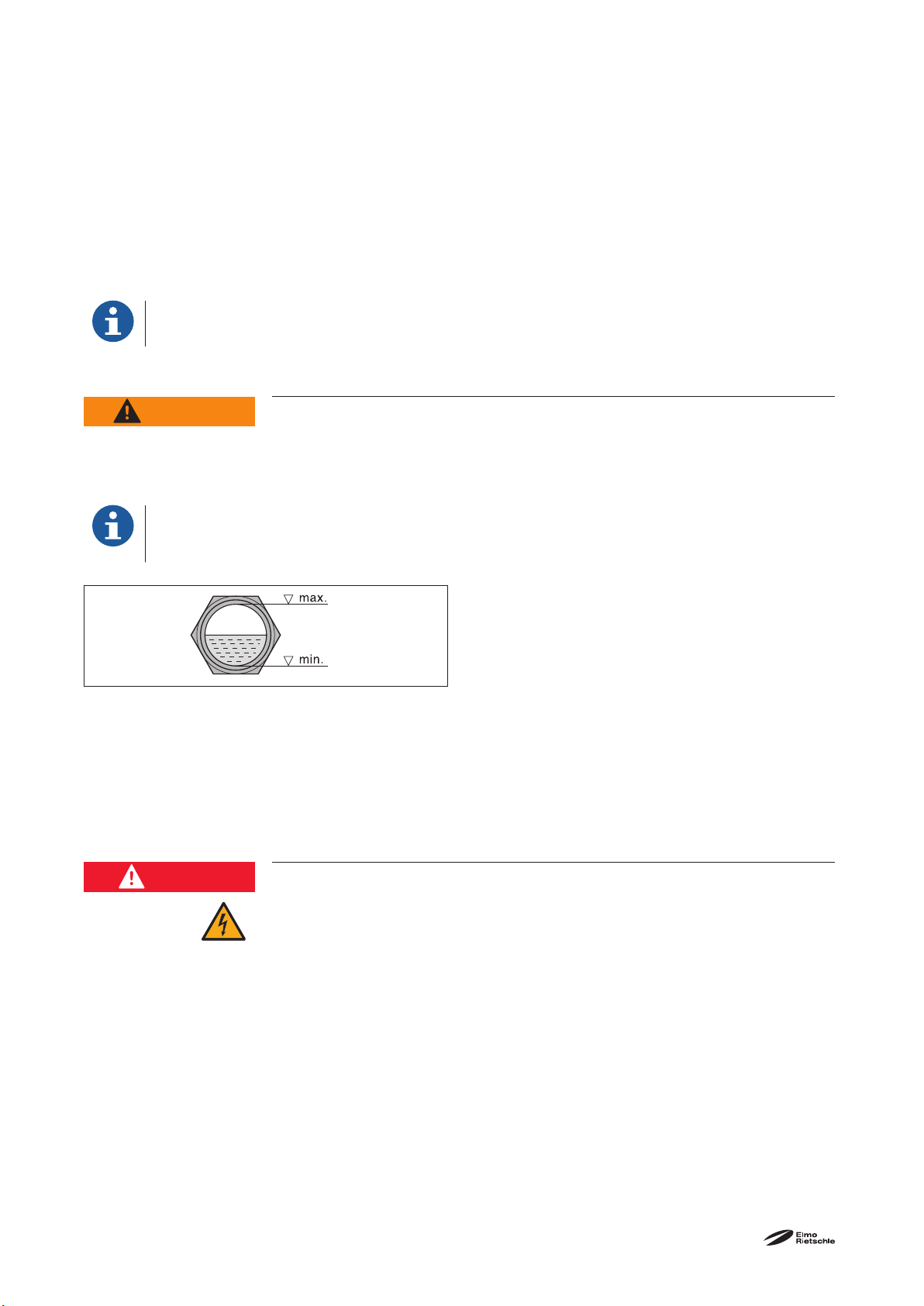

6.2.1 Check the oil level..................................................... 23
6.3 Decommissioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.3.1 Decommissioning of the machine ........................................ 24
6.3.2 Storing the machine ................................................... 24
6.4 Recommissioning............................................................. 24
7 Maintenance and repair....................................................... 25
7.1 Ensure operational safety....................................................... 25
7.2 Maintenance table ............................................................ 26
7.3 Preparing maintenance works ................................................... 26
7.4 Clean vacuum pump .......................................................... 27
7.5 Cleaning of filter .............................................................. 27
7.5.1 Clean the mesh filter in the suction flange .................................. 27
7.5.2 Clean the filter cartridge of the gas ballast valve ............................. 28
7.6 Lubricating Oil ............................................................... 28
7.6.1 Refilling of oil ........................................................ 29
7.6.2 Oil change........................................................... 29
7.7 De-oiling elements ............................................................ 30
7.8 Motor and coupling ........................................................... 31
7.8.1 Motor .............................................................. 31
7.8.2 Coupling ............................................................ 31
7.9 Repair / service .............................................................. 32
7.10 Spare parts.................................................................. 32
8 Errors...................................................................... 33
8.1 Table of malfunctions .......................................................... 33
9 Disassembly and disposal..................................................... 36
9.1 Disassembly................................................................. 36
9.2 Disposal .................................................................... 36
10 Technical Data .............................................................. 37
10.1 Technical data V-VC 40-150 OXY ................................................ 37
10.2 Technical data V-VC 202-303 OXY ............................................... 37

4|www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH
Foreword
1 Foreword
1.1 Principles
These Operating Instructions:
• are a part of the following oil-flooded rotary vane vacuum pumps of model V-VC 40 | 50 | 75 | 100 | 150 |
202 | 303 OXY.
• Describe how to use them safely and properly in all life phases and are true for all responsible persons.
• Include general information on installation, commissioning, maintenance and inspection works.
• Must be available at the place of application.
Figures presented in these Operating Instructions serve for better understanding and can deviate from the
components installed. This does not influence the validity of the details set out in the instructions.
1.2 Target group
The target group for these instructions is technically trained personnel.
1.3 Supplier documentation and accompanying documents
Document Contents No.
Supplier documentation
Operating Instructions BA 231-OXY
Declaration of Conformity C 0045
Declaration of no-objection 7.7025.003.17
Spare parts list Spare parts documents E 231
Data sheet Technical data and characteristic curves D 231
D 232-20
Info sheet Water vapour compatibility for oil-flooded vacuum pumps I 200
Info sheet Storage guideline for machines I 150
Info sheet Storage guideline for lubricants I 100
1.4 Directives, standards, laws
See Declaration of Conformity.
1.5 Copyright
These Operating Instructions are intended for the customer's internal purposes.
Unless expressly permitted, passing on to third parties, copying of these documents, except for internal pur-
poses, as well as using and providing their contents to third parties, even in excerpts, is prohibited.
Contraventions will lead to claims for damages.

5
www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH |
Foreword
1.6 Disclaimer
Please note that we cannot accept any liability for damages arising from failure to observe the instructions.
Gardner Denver Schopfheim GmbH does not assume liability for the following cases:
• Not intended use
• Not complying with these instructions
• Nonobservance of all documents and specifications belonging to the overall documentation
• Erection, operation, maintenance and repair by insufficiently qualified staff
• Modification or removing of the part or serial number
• Using spare parts that have not been approved by Gardner Denver Schopfheim GmbH
• Unauthorised modifications to the machine or the accessories supplied by Gardner Denver Schopfheim
GmbH
Please, also consider that repairs are only allowed to be done by authorised workshops using original spare
parts; otherwise our guarantee will expire.
1.7 Technical terms and abbreviations
Term Explanation
Machine Pump and motor combination ready for connection
Motor Pump drive motor
Vacuum pump Machine for creating underpressure (vacuum)
Rotary vane Design or operating principle of the machine
Suction capacity Vacuum pump, volumetric flow related to the condition in the inlet connection,
specified in m3/h
Final pressure (abs.) The maximum vacuum that a pump reaches while the inlet opening is closed,
displayed as absolute pressure in mbar (abs.)
Permanent vacuum Vacuum or the inlet pressure range, at which the pump operates in continuous
operation.
The permanent vacuum or inlet pressure is ≥ than the final vacuum and < than
the atmospheric pressure.
Noise emission Noise emitted at a specific loading state indicated as a numeric value, sound
pressure level dB(A) as per EN ISO 3744.
Abbreviation Meaning
Fig. Figure
Tab. Table
V-VC Type of vacuum pump
OXY Machine pumps for delivering gases with increased percentage of oxygen and
other oxidising agents

6|www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH
Safety
2 Safety
The manufacturer is not responsible for damage due to non-observance of the whole documentation.
2.1 General
These operating instructions contain basic instructions for installation, commissioning, maintenance and in-
spection work which must be obeyed to ensure the safe operation of the machine and prevent physical and
material damage.
Observe the safety instructions in all chapters.
The operating instructions must be read by the responsible technical personnel / user before installing and
commissioning and must be fully understood. The contents of the operating instructions must always be
available on site for the technical personnel / user. Instructions attached directly to the machine must be
obeyed and must always remain legible. For example, this applies:
• Symbols for connections
• Data plate and motor data plate
• Information signs and warning plates
The data plates on the vacuum pump may not be removed, even if the machine is resold. For all queries
about the product, please always quote the serial number.
The operating company is responsible for observing local regulations.
2.2 Labelling of warnings
Warning Danger level
DANGER ...warns of a hazardous situation, which will lead to death or life-threatening
injuries if not avoided.
WARNING ...warns of a potentially dangerous situation, which can lead to death or seri-
ous injuries if not avoided.
CAUTION …warns of a hazardous situation, which can cause slight or medium personal
injuries if not avoided.
NOTICE ...warns of a situation that can cause damages to or destruction of material
assets if not avoided.
2.3 Symbols and meaning
Symbol Explanation
ØInstructions, action
a), b),... Instructions in several steps
Results
Reference

7
www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH |
Safety
Symbol Explanation
Warning signs Obey all safety instructions with this symbol in order to avoid injury or
death.
Warns of potential risk of injury
Warns of electrical voltage
Warns of suspended loads
Warns of hot surface
Mandatory signs Obey all instructions with this symbol in order to avoid injury or death.
Observe the Operating Instructions
Wear eye protection
Wear protective gloves
Wear safety shoes
Wear ear protection
Use a dust mask
Disconnect the plant and secure it against unexpected restart
Information, note
Protection of environment

8|www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH
Safety
2.4 Intended use
If not used as intended, this can cause dangerous operating conditions and oxidizing mixtures can be
generated.
ØThe machines of the version OXY are only permitted to be operated under the conditions described
below.
ØAggressive, explosive gases hazardous to health, and organic substances must not be exhausted.
These types are suitable for the evacuation of closed systems or for a continuous vacuum within the follow-
ing intake pressure ranges:
• VC 40-75: 3 - 500 mbar (abs.)
• VC 100 / 150: 2 - 500 mbar (abs.)
• VC 202 / 303: 1 - 500 mbar (abs.)
The machine is suitable for conveying the following media:
• All non-explosive, non-combustible, non-aggressive and non-poisonous, dry gases and gas-air
mixtures
• Air or other gases with increased percentage of oxygen (content by volume 21%) and other gaseous
oxidising agents
• The inlet air may contain water vapour but no water or other liquids.
The machine must only be operated in such areas as are described in the operating instructions:
ØOnly operate the machine in technically perfect condition
ØThe machine must only be operated at an ambient temperature and inlet temperature of between 12 and
40 °C
Please contact us for temperatures outside this range.
ØMaximum permissible back pressure: +100mbar
ØFor lubrication, use the specified oil type OXY-LUBE PLUS 100 only
Any use extending beyond this use is seen as not in accordance with the intended use.
The intended use also includes the compliance with the operating data and operating agents specified in the
operating instructions, the listed maintenance works, as well as the details in the documentation issued by
the manufacturers of components and attachments.
If used under critical conditions and/or in case of any doubts, please contact the manufacturer. Non-obser-
vance can cause machine failures.
2.5 Inadmissible operating modes
• Exhausting, conveying and compressing of explosive, inflammable, aggressive, or poisonous media, e.g.
dust as per ATEX zone 20-22, as well as solvents
• Erection and operation in potentially explosive environment (explosive gas/vapour/mist-air mixtures or
dust-air mixtures or hybrid mixtures of air and flammable substances)
• Using the machine in non-commercial plants unless the necessary precautions and protective measures
are taken in the plant
• Continuous operation outside the inlet pressure range
• Operation of the machine when it is only partially assembled
• Using the machine in areas with ionising radiation
• back pressures on the outlet side of more than +100 mbar
• Modifications to machine and accessories
• Using oil that have not been approved by Gardner Denver Schopfheim GmbH
• Operation by not or not sufficiently qualified personnel

9
www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH |
Safety
2.6 Personnel qualification and training
All works are only allowed to be done by qualified and trained specialist personnel of legal age. Unauthor-
ised persons are not allowed to stay within the area of the vacuum pump and must be kept away from the
danger zone by suitable measures.
ØEnsure that people entrusted with working on the machine have read and understood these operating
instructions before starting work, particularly the safety instructions for installation, commissioning, main-
tenance and inspection work
ØResponsibilities, competences and monitoring of personnel must be regulated by the operating company.
ØThe following works are only allowed to be done by technical specialist personnel, who have been trained
and instructed for the works assigned:
• Transport only by forwarding agents
• Erection, commissioning, maintenance and inspection works, as well as troubleshooting by specialist
personnel (e.g. locksmith, mechanics)
• Works on the electrical system are only allowed to be done by electricians
ØPersonnel to be trained and laypersons may only carry out work on the machine when under the su-
pervision of authorised specialist personnel and must be instructed about possible hazards in a safety
instruction.
Specialist personnel:
Persons that can evaluate work assigned to them and evaluate possible risks as a result of their training,
knowledge and experience as well as the applicable regulations.
Qualified electrician:
Specialist personnel that has obtained an electrotechnical specialist education and is familiar with work for
setting up, operation and maintenance of electrical systems and operating material.
Unauthorised persons:
Unauthorised persons are persons who cannot appropriately prove that they are qualified, trained, or in-
structed for the works on the vacuum pump. In addition, those persons shall be seen as unauthorised who,
due to their physical, cognitive, and health abilities, are not able to recognise hazards caused by the vacuum
pump.
2.7 Personal protective equipment
The user must make sure that the required protective clothing and protective equipment is available on the
plant and used by the personnel. The national legal provisions and the national regulations for industrial
safety must be observed.
Recommended protective equipment:
Wear eye protection
Wear protective gloves
Wear safety shoes
Wear ear protection

10 |www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH
Safety
2.8 Safety-conscious working
The following safety regulations apply in addition to the safety instructions and intended use listed in these
instructions:
• Accident prevention regulations, safety and operating regulations
• Standards and laws in force
ØHot parts of the machine must not be accessible during operation or must be fitted with a guard
ØRisks arising from electrical energy must be eliminated
ØThe machine must not come into contact with flammable materials.
Risk of fire due to hot surfaces, output of hot pumped media or cooling air
2.9 Responsibilities of the user
During the whole operating period of the machine, the operating company is obliged to prove that the limits
have been met and the required maintenance and inspection works have been performed.
The user must ensure that:
• All works for installation, commissioning and maintenance are carried out by authorised and qualified
specialist personnel, who gained enough information by an in-depth study of the operating instructions
• All works on electrical equipment are done by an electrician in compliance with the regulations for electri-
cal installations
• The Operating Instructions are always available in the site of operation of the vacuum pump for the whole
life phase
• All safety instructions and signs on the vacuum pump are always complete and legible
• The operating and maintenance personnel take note of all safety instructions - especially of information
provided in these Operating Instructions - and observe them
• The personal protective equipment is available and is used by the personnel
• All safety-relevant regulations are met
• Unauthorised persons cannot enter the operating site
• Fire warning and firefighting possibilities have been installed and are active
• These Operating Instructions shall be amended by working instructions, as well as the duties to su-
pervise and report. With this they shall consider the operational distinctions. Among others, it refers to
instructions referring to:
• Organization of work
• Work procedures
• Specialist personnel assigned
In the event of accidents caused by the vacuum pump notify the Gardner Denver Schopfheim GmbH. Please
find contact data on the back page.
2.10 Hazardous substances
2.10.1 Conveying media
Machinery that may have contact to hazardous substances can cause serious burns, cauterisation or poi-
soning during disassembly, maintenance and repair work.
ØBefore using our services each time, for occupational safety and environmental protection reasons, it is
necessary to indicate and declare hazardous substances on or in the device.
ØSend the declaration of clearance filled in and signed back to Gardner Denver.
If no declaration takes place, we must assume that the device is free from such substances. In case of
doubt, our service department reserves the right to reject the acceptance until the safety has been deter-
mined without doubt.

11
www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH |
Safety
2.10.2 Auxiliary materials and lubricant
Incorrect auxiliary materials and lubricants may decompose at high temperatures. The resulting vapours may
be harmful to health and cause fires.
ØUse exclusively the recommended auxiliary materials and lubricants
ØObserve the oil recommendation sign on the pump
ØObserve the safety data sheets of the substances used
ØObserve the intended use of the substances used
ØObserve the maintenance intervals of the substances used
2.11 Safety equipment, monitored functions
Missing or non-functional safety equipment may lead to dangerous operating states and thus result in
life-threatening injuries.
ØDo not modify or bypass safety equipment and safety functions
ØCheck the function at regular intervals
2.12 Emergency Stop / Emergency Off
Missing safety equipment may lead to hazardous operating states. This can result in severe to mortal injury.
ØThe machine does not have its own Emergency Stop or Emergency Off. This must be implemented by
the user, for instance, by integration of the machine in the user's safety concept.
2.13 Protection of environment
Environmental damage may be caused by the incorrect disposal of operating material and materials. For
questions about environmental protection as well as national regulations, please consult your local disposal
company.
ØAll operating materials as well as all gases, vapours or liquids, e.g. lubricating oil escaping during opera-
tion and maintenance must be collected and disposed of in an environmentally friendly manner.

12 |www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH
Transport, storage and disposal
Fig. 1 Load handling equipment for lifting and transporting
1
1 Eyebolt
3 Transport and storage
3.1 Transport
WARNING Death by falling down or tipping over of the transported goods!
Falling or tipping over of transported goods can cause serious or fatal injuries.
Limbs can be crushed.
ØSelect the lifting device according to the total weight to be transported.
ØSecure the machine against tipping over and falling.
ØAlways attach the machine on all present load handling equipment. Attaching
at only one point is forbidden.
ØDo not stand underneath a suspended load.
ØPut the goods to be conveyed on a horizontal base
(max. inclination: 10 ° in all directions).
3.1.1 Unpack and check the as-delivered condition
a) Unpack the machine on receipt and check for transport damage.
b) Immediately notify the manufacturer of transport damages.
c) Check the scope of deliveries for completeness.
d) Dispose of the packaging in accordance with the local regulations in force.
3.1.2 Lifting and transporting
WARNING Bodily injury resulting from improper operation!
Improper operation of the lifting gear and the transported goods can cause seri-
ous or fatal injuries.
ØLift and transport the machine only on the permissible load handling
equipment.
ØLoads crosswise to the load handling equipment are not permitted.
ØAvoid impact stress.
ØWear your personal protective equipment.

13
www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH |
Transport, storage and disposal
The pump is supplied on a pallet.
a) Unload the pump using a forklift or pallet truck and transport to the installation location.
b) Tighten the eyebolt (Fig. 1/1) firmly.
c) For lifting, the machine must be suspended using the eyebolt (Fig. 1/ 1) and lifting gear.
d) Lift the pump from the pallet and align.
3.2 Storage
NOTICE Material damage caused by improper storage!
Improper storage can damage the machine.
ØObserve the storage conditions described below.
3.2.1 Ambient conditions during storage
• Dust-free
• In a dry place
• Vibration free
• Protected against sun radiation
• Storage temperature: -10°C to +60°C
• Rel. air humidity: max. 80 %
• Close the openings air-tight
The machine must be stored in a dry environment with normal air humidity. It should not be
stored for more than 6 months.
For long-term storage (more than 3 months), we recommend contacting our Elmo Rietschle
Service.
See Info "Storage instructions", page4.

14 |www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH
Setup and operation
F
F
E
B
F
E
E
FA
PP1U
MH N
L
T
KI
E
Q
DO O2
4 Product overview and functioning
4.1 Product Overview
Fig. 2 Vacuum pump V-VC 40-VC 150 OXY
AVacuum connection
BExhaust air outlet
DInlet flange with non-return valve
ECooling air inlet
FCooling air outlet
HOil filling point
IOil sight glass
KOil discharge point
LAir de-oiling element
MOil recommendation plate
NData plate
ODirection of rotation arrow
O2Information sign Oxygen (OXY)
PDrive motor
P1Motor data plate
QHot surfaces > 70 °C
TDe-oiler housing
UGas ballast valve

15
www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH |
Setup and operation
MH N
F
A
U
B
O
F
E
F
DQ
P
L
T
KI
E
F
O2 P1
Fig. 3 Vacuum pump V-VC 202 / V-VC 303 OXY
AVacuum connection
BExhaust air outlet
DInlet flange with non-return valve
ECooling air inlet
FCooling air outlet
HOil filling point
IOil sight glass
KOil discharge point
LAir de-oiling element
MOil recommendation plate
NData plate
ODirection of rotation arrow
O2Information sign Oxygen (OXY)
PDrive motor
P1Motor data plate
QHot surfaces > 70 °C
TDe-oiler housing
UGas ballast valve

16 |www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH
Setup and operation
1 Model / size (mechanical version)
2 Serial number
3 Year of construction
4 Data matrix barcode
5 Article No.
6 Speed 50Hz / 60Hz
7 Motor output 50Hz / 60Hz
8 Operating mode
9 Pumping capacity 50 Hz / 60 Hz
10 Final pressure (abs.) 50 Hz / 60 Hz
 

4





5


21
7
4 5
10
2
689
1 3
4.2 Data plate
The following information is encoded as barcode:
• Material number (MA)
• Production order (PR)
• Serial Number (SC)
4.3 Description
The V-VC 40– 303 OXY are single-stage oil, flooded rotary vane vacuum pumps. The rotary vane divides the
pump housing into several chambers whose volumes change periodically. The oil ensures for the sealing of
the gap, an optimum lubrication and the dissipation of the compression heat.
The pumps have an integrated mesh filter on the suction side and on the outlet side an oil and oil mist sep-
arator to return the oil to the oil circulation system. The vacuum pump is housed in a sound cover. A fan be-
tween the pump housing and the motor cools the air in the pump housing and causes cooling of the circu-
lating oil.
An integrated non-return valve prevents the evacuated system from being ventilated after the pump has
stopped. With standstill times longer than two minutes, the connecting line should be vent to atmospheric
pressure in order to avoid possible damages.
When the pump is at operating temperature, a standard gas ballast valve (Fig. 2/U) prevents the condensa-
tion of low quantities of water vapour inside the pump. The water vapour compatibility may vary depending
on the pump version (see Info I 200).
It is driven via a coupling by a flanged, three-phase standard motor.
To be able to distinguish them from the standard variants, the V-VC OXY pumps are blue painted.
Fig. 4 Data plate (example)

17
www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH |
Setup and operation
4.4 Fields of application
The oil-flooded rotary vane vacuum pumps V-VC OXY are suitable for sucking out of air or other gases with
increased percentage of oxygen (content by volume above 21%).
The nominal suction capacity with unrestricted suction is 40, 50, 70, 100, 150, 200 and 300 m3/h at 50Hz.
Data sheet D 231 (VC 40- 150) or D 232- 20 (VC 202-303) shows the dependency of the suction capacity on
the inlet pressure.
These types are suitable for the evacuation of closed systems or for a continuous vacuum within the follow-
ing intake pressure ranges:
• VC 40-75: 3 - 500 mbar (abs.)
• VC 100 / 150: 2 - 500 mbar (abs.)
• VC 202 / 303: 3 - 500 mbar (abs.)
If the machine is operated continuously outside these ranges there is the risk of oil leaking through the out-
let opening. When evacuating closed systems the volume to be evacuated must be no more than 2% of the
nominal pumping capacity of the vacuum pump.
For continuous operation > 100 mbar (abs.), the next higher motor output should be used.
If the unit is switched on more frequently (at regular intervals of approx. 10 times per hour) or at
higher ambient temperatures and inlet temperatures, excess temperature limit of the motor wind-
ing and the bearings may be exceeded.
Contact the manufacturer regarding such operating conditions.
Observe the ambient and intake temperature (see chapter2.4).
Observe the protection class of the motor (motor data sign).
If it is installed in the open air the unit must be protected from environmental influences, (e.g. by
a protective roof).

18 |www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH
Installation
5 Installation
WARNING Risk to due to improper installation and commissioning!
Improper or wrong installation can cause fire and serious injuries or death.
ØOnly authorised specialist personnel that have been trained about the safety
regulations for handling of oxygen plants are allowed to install and commis-
sion the pump.
ØThe regulations for safety and health at work BGR 500 issued by the profes-
sional associations (Operation of oxygen plants) or other relevant national
regulations must be met.
5.1 Preparation of installation
WARNING Risk of fire due to inadmissible oxygen concentration!
The vacuum pump OXY is not gas-tight. For freely blowing out vacuum pumps
the percentage of oxygen in the room air will be increased. Oxygen enrichment in
the room air can cause fire.
ØSufficiently vent the place of installation. The oxygen content by volume in the
room air may not exceed 21%.
Ensure the following conditions:
• Machine freely accessible from all sides
• Do not close ventilation grids and holes
• Sufficient space for installing and removing pipes and for maintenance work, particularly for the instal-
lation and deinstallation of the machine
• No influence by external vibrations
• Hot exhaust air from other machines may not be sucked in the cooling system
• Good ventilation in the installation room
• Suction flange (Fig. 2/D), Oil filling point (Fig. 2/H), Oil sight glass (Fig. 2/I), Oil drain (Fig. 2/K), Gas bal-
last (Fig. 2/U) and de-oiler housing (Fig. 2/T) must be easily accessible
• For maintenance works, provide for a space of at least 50cm around the machine.
5.2 Installation
CAUTION Burns due to hot exhaust gases!
Place the freely blowing machine in a way that hazards due to hot exhaust gases
are prevented.
This must not cause the oxygen enrichment of the room air!
NOTICE Property damage from overheating!
Due to too low cooling capacity, the machine can overheat and can be damaged.
ØEnsure for a good aeration and venting of the installation room.
Observe the ambient temperature: min. +12°C, max. +40°C
ØThe cooling air inlets and the cooling air outlets must be at least 30 cm away
from the adjacent walls. Cooling air coming out must not be sucked in again.

19
www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH |
Installation
NOTICE Property damage caused by improper installation!
Improper erection and installation can damage the machine.
ØThe machine may only be operated when it is set up horizontally
(Max. inclination: 1 ° in all directions).
ØSecure the machine against tipping over and falling.
ØThe floor must be plane and even.
ØThe bearing surface must be designed to be able to carry the weight of the
machine (see chapter10 “Technical Data”).
ØThe bearing surface must be at least the same size as the machine.
ØThe non-return valve must not be removed.
a) Align the pump at the installation location and if necessary, bolt to the substrate.
b) If available, check optional accessories for the correct mounting and correct electrical connection.
An output reduction is noticeable when installed at more than 1000m above sea level. In this case,
please contact us.
It is possible to install the machine on a firm base without anchoring. When installing on a sub-
structure we recommend fixing it with flexible buffers.
5.3 Connection of pipes
WARNING Risk of fire due to polluted inlet medium!
If pollutants are sucked in, especially organic substances, this can cause an
acute danger of fire!
ØTo protect the vacuum pump OXY, the user must install an appropriate filter
on the inlet side.
ØBefore connecting, the pipes must be cleaned and must be free from organic
substances.
WARNING Parts being ejected from over pressure!
Closing or narrowing of the exhaust air openings may lead to impermissible pres-
sure in the machine. This could result in severe or mortal injury, components may
be damaged.
ØThe exhaust air opening must not be closed or restricted.
ØNo filter may be installed on the exhaust air side.
ØCounter pressures on the outlet side are only permissible up to maximum of +
100mbar.
ØPrevent liquids from accumulating in the exhaust line.
ØBefore connecting hose or pipelines, the blind plugs at the exhaust air outlet
must be removed.
ØUse only suitable pipelines.
NOTICE Property damage due to high forces or torques!
If forces and torques during installation and operation are too high, the machine
can be damaged.
ØOnly screw in pipes by hand.
ØIf necessary, use flexible connections.

20 |www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH
Installation
Fig. 5 Oil level
The vacuum connection (Fig. 2/A) is located on the suction flange (Fig. 2/D).
a) Remove the blind plugs on the suction connection (Fig. 2/A) and exhaust air outlet (Fig. 2/B).
b) Connect the pipes with the vacuum connection (Fig. 2/A).
c) The exhausted air can be blown out through the exhaust air outlet (Fig. 2/B) or conducted away using a
hose or pipeline.
WARNING! This must not cause the oxygen enrichment of the room air!
d) Check that the maximum back pressure is not exceeded!
The suction capacity of the vacuum pump is reduced if the inlet pipe is too narrow and/or too
long.
5.4 Check lubricating oil
WARNING Risk of fire due to wrong lubricating oil!
Using the wrong lubricating oil can cause an acute danger of fire!
ØTo lubricate the vacuum pumps OXY it is only allowed to use oil type OXY-
LUBE PLUS 100 specified by Elmo Rietschle.
The pumps are delivered with first oil filling. With this, it can happen that the oil has a dark colour
due to graphite leaching. This does not have any influence on the performance of the pump.
a) Check the lubricating oil level through the oil sight glass (Fig. 2/I) and top up, if necessary.
b) Fill lubricating oil through the oil filling point (Fig. 2/H) up to the top edge of the sight glass (Fig. 2/I).
Suitable types: see chapter 7.6 “Lubricating Oil”
c) Close the oil filling point.
5.5 Connection of motor
DANGER Danger to life if the electrical installation has not been carried out profes-
sionally!
Installation that has not been carried out professionally or properly can cause
serious injuries or death. The whole electrical system can be destructed.
ØThe electrical installation must only be carried out by a qualified electrician
observing EN 60204.
ØThe main switch must be installed by the operating company.
ØThe motor must be safeguarded via a motor protection switch. This must be
installed by the operating company.
