Elmo Rietschle G Series User manual

Edition 07.2013 · 610.00280.40.000 Original operating instructions · English
Operating Instructions G-BH8
2BH851 | 2BH852

Contents
610.00280.40.000 · 07.2013 2/48 © Gardner Denver Deutschland GmbH
1
A
bout this manual ........................................................................ 4
1.1 Content of this document ............................................................... 4
1.2 Target group ................................................................................... 4
1.3 Explanation of the terms and symbols ........................................... 4
1.4 Changes in comparison to the previous version ............................ 6
1.5 Other valid documents ................................................................... 6
2 Safety and responsibility ............................................................. 7
2.1 Explanation of warning signs ......................................................... 7
2.2 Correct use of the equipment ........................................................ 7
2.3 Improper operational modes .......................................................... 7
2.4 Working in a safety-conscious manner .......................................... 8
2.5 Requirements for personnel ........................................................... 9
2.5.1 Staff qualifications and training ...................................................... 9
2.5.2 Personal protective equipment ...................................................... 10
2.6 Requirements of the operator ........................................................ 11
3 Product identification ................................................................... 12
3.1 Data plate ....................................................................................... 12
3.2 Structure ......................................................................................... 13
3.3 Options ........................................................................................... 14
3.4
A
ncillaries ....................................................................................... 14
3.5 Function principle ........................................................................... 15
3.6 EU declaration of conformity .......................................................... 16
4 Transportation and storage ......................................................... 17
4.1 Unpacking and checking the condition of delivery ........................ 17
4.2 Lifting and transporting .................................................................. 17
4.3 Storage ........................................................................................... 18
5 Mounting ....................................................................................... 19
5.1 Measures after long-term storage .................................................. 19
5.2 Mounting conditions ....................................................................... 19
5.3 Reduction of oscillations and noises .............................................. 19
5.4 Set up ............................................................................................. 20
5.4.1 Horizontal set-up on the assembly foot ......................................... 20
5.4.2 Horizontal set-up on the motor foot ............................................... 20
5.5 Fit loose silencer and accessories ................................................. 21
5.6 Connecting pipelines and hoses .................................................... 21
6 Electric power connection ........................................................... 23
6.1 General installation regulations ...................................................... 23
6.2
A
dditional installation requirements for frequency inverters .......... 24
6.3 Controls .......................................................................................... 24
6.4 Prepare the motor terminal box .................................................... 25
6.5 Connect the frequency inverter to the mains ................................. 26
6.5.1 Connect the integrated frequency inverter ..................................... 26
6.5.2 Connect the electrical cabinet inverter ........................................... 26
6.6 Connect auxiliary ventilator ............................................................ 29
6.7 Parameterize the frequency inverter .............................................. 30
6.7.1 Parameterize integrated frequency inverters ................................. 30
6.7.2 Parameterize electrical cabinet inverters ....................................... 30

Contents
© Gardner Denver Deutschland GmbH 3/48 07.2013 · 610.00280.40.000
7 Commissioning ............................................................................. 32
7.1 Measures after a long shut-down period ....................................... 32
7.2 Tests during commissioning or re-commissioning ........................ 32
7.3 Check the direction of rotation ....................................................... 32
7.4 Sensors function check .................................................................. 33
7.5 Measure the acoustic emissions .................................................... 33
7.6 Measure oscillations ....................................................................... 33
8 Operation ...................................................................................... 34
8.1 Switch on ........................................................................................ 34
8.2 Switch off ....................................................................................... 34
8.3 Switch off in emergency ................................................................. 34
9 Troubleshooting ........................................................................... 35
10 Maintenance, repairs and spare parts ....................................... 38
10.1 Maintenance ................................................................................... 38
10.2 Repairs and complaints .................................................................. 39
10.3 Ordering spare parts ...................................................................... 39
11 Decommissioning ......................................................................... 40
11.1 Decommissioning ........................................................................... 40
11.2 Disassembly ................................................................................... 40
11.3 Disposal .......................................................................................... 40
12 Technical data .............................................................................. 41
12.1 Mechanical data ............................................................................. 41
12.1.1 Weight ............................................................................................ 41
12.1.2 Connection dimensions .................................................................. 41
12.1.3 Tightening torque values ................................................................ 42
12.2 Permitted conditions for use .......................................................... 43
12.2.1 Installation height ........................................................................... 43
12.2.2 Maximum speeds ........................................................................... 43
12.2.3 Maximum temperatures ................................................................. 43
12.2.4 Permissible pressure differences between the suction and pres-
sure side in operation ..................................................................... 43
12.2.5 Pressure differences acting on the side-channel compressor ....... 44
12.2.6 Relative humidity ............................................................................ 44
12.2.7 Minimum distances for heat dissipation ......................................... 44
12.2.8 Speed of oscillation ........................................................................ 45
12.3 Electrical data ................................................................................. 45
12.3.1 Increased operating cycle frequency ............................................. 45
12.3.2 Frequency inverter parameters ...................................................... 45
12.3.3 Bimetal switch in the compressor housing .................................... 45
12.4 Pressure differences generated by the side-channel compressor . 45
12.5
A
coustic emissions ........................................................................ 46

1 About this manual
610.00280.40.000 · 07.2013 4/48 © Gardner Denver Deutschland GmbH
About this manual
Content of this document
These operating instructions:
▪is part of the side-channel compressor:
Series G-BH8
Types 2BH851 . . - . . . . . . - . .
2BH852 . . - . . . . . . - . .
▪describe the safe, proper and efficient use in all phases of its service life.
▪must always be available to personnel at the place of use.
▪Arranged in the main sections:
– About these instructions
– Safety and responsibility
– Product identification
– Transportation and storage
– Mounting
– Electric power connection
– Commissioning
– Operation
– Troubleshooting
– Maintenance, repairs and spare parts
– Decommissioning
– Technical data
The main section on safety must always be observed. The subsequent main sec-
tions can be used as a reference and can be read independently from each other.
Cross references provided must be observed.
Target group
These instructions are aimed at operating personnel, qualified personnel, electri-
cians, the operator and planner. See also Staff qualifications and training [➙9].
Explanation of the terms and symbols
In these instructions symbols and terms will be used to mean the following.
Symbol Explanation
!
Requirement, pre-requisite

One-step handling instructions
1 2 3 Multi-step handling instructions

Result
Cross reference with page reference

A
dditional information, tips
Direction of rotation arrow
Direction of conveyance arrow
General warning sign (warns of risk of injury)
Electrical voltage warning
Hot surface warning
1
1.1
1.2
1.3

About this manual 1
© Gardner Denver Deutschland GmbH 5/48 07.2013 · 610.00280.40.000
Symbol Explanation
Disconnect prior to maintenance or repai
r
Observe the instructions
Use foot protection
Use hand protection
Use eye protection
Use head protection
Use ear protection
Earth prior to use
Term Explanation
Plant Part provided by the user in which the side-channel com-
pressor is installed.
Side-channel
compressor = G-
BH8 = vacuum
pump/compressor
Ready to connect machine for the generation of a vacuum
and/or overpressure.
The side-channel compressor consists of a compressor and
motor, as well as other accessories where applicable.
Moto
r
A
synchronous motor for driving the side-channel compres-
sor.
Compresso
r
Mechanical part of side-channel compressor without motor.
Inner chamber of
the compressor
Chamber of the compressor part that conveys media.
Substructure Mounting plate, baseframe or foundation on which the G-
BH8 is constructed.
Flexible/rigid When the lowest eigenfrequency of the system, consisting
of the G-BH8 and substructure, lies at least 25% per meas-
urement direction above the rotary frequency of the G-BH8,
the substructure is considered to be rigid. All other sub-
structures are considered to be flexible.
A
ssembly envi-
ronment
Space in which the side-channel compressor is set up and
operated (this may differ from the suction environment).
Suction/discharge
environment
Chamber from which the media to be conveyed is suctioned
or in which the media to be conveyed is expelled (this may
differ from the assembly environment).
V
acuum operation Operating mode whereby the
- pressure at inlet p1 < p atm. and
- pressure at outlet p2 = p atm.
Compressor op-
eration
Operating mode whereby the
- pressure at inlet p1 = p atm. and
- pressure at outlet p2 > p atm.
Mixed operation Operating mode whereby the
- pressure at inlet p1 < p atm. and
- pressure at outlet p2 > p atm.

1 About this manual
610.00280.40.000 · 07.2013 6/48 © Gardner Denver Deutschland GmbH
Term Explanation
Integrated fre-
quency inverter =
2FC4...-1
Frequency inverter that is constructed by the manufacturer
on the side-channel compressor.
Electrical cabinet
inverter 2FC....-2
Frequency inverter that is supplied by the manufacturer and
is not fitted to the side-channel compressor.
Electrical cabinet
inverter, third-party
manufacturer
A
frequency inverter purchased by the operator that can be
used with the side-channel compressor.
Changes in comparison to the previous version
This document has been completely revised in comparison to the previous version
01.2012 in terms of the writing and the content.
Other valid documents
In addition to these instructions consider the following documents:
Document number Purpose
610.00280.40.300 Repair manual with spare parts list and exploded view drawing 2BH8
610.00116.02.000 Installation manual for the spring elements
610.44496.40.000 * Operating instructions for integrated frequency inverter for 2BH85…-…N
610.44527.21.000 * Operating instructions for adjacent frequency inverter 3.0-11 kW for 2BH85…-…T
OR
610.44526.21.000 * Operating instructions for adjacent frequency inverter 15-45 kW for 2BH85…-…T
OR
— * Operating instructions for external frequency inverter for 2BH85…-…T
610.00110.02.000 * Suction filter mounting instructions
610.00112.02.000 * In-line filter mounting instructions
610.00108.02.000 *
A
dditional silencer mounting instructions
*according to the model option or accessories
1.4
1.5

Safety and responsibility 2
© Gardner Denver Deutschland GmbH 7/48 07.2013 · 610.00280.40.000
Safetyandresponsibility
The manufacturer is not liable for damage caused by the failure to observe these
instructions and the related documents [➙6].
Explanation of warning signs
Warning sign Explanation
DANGER

Danger that failure to observe the measures could lead to
death or serious physical injuries.
WARNING

Danger that failure to observe the measures could lead to
death or serious physical injuries.
CAUTION

Danger that failure to observe the measures could lead to
minor physical injuries.
NOTICE
Danger that failure to observe the measures could lead to
material damage.
Correct use of the equipment
The G-BH8 is a continuous operation machine that is optimised for the generation
of a vacuum and pressure. The G-BH8 can be used in buildings, outside and in
dusty or damp environments. The protection class is given on the data plate (item
15).
The G-BH8 is equipped with an alternating current drive motor (asynchronous mo-
tor) for the frequency inverter operation. These motors are not suitable for mains
operation.
The G-BH8
▪should only be used within the limits defined in this documentation. In particu-
lar, the limits in the following section must be observed:
– Mounting conditions [➙19]
– Permitted conditions for use [➙43]
– Electrical data [➙45]
▪only operate when fully assembled and in a technically perfect condition.
▪can deliver the following conveyed media:
– air
– All non-explosive, non-combustible, non-abrasive and non-toxic gasses
and gas/air mixtures, after consultation with the manufacturer
Other operating conditions must be agreed with the manufacturer.
See also
Data plate [➙12]
Improper operational modes
It is forbidden to:
▪Operation in a potentially explosive area (ATEX).
▪Connection in a potentially explosive area (ATEX).
▪The conveyance of explosive, combustible, abrasive, unstable, oxidative or
toxic media, e.g. dusts, solvents, as well as of fluids and solid matter of any
type.
▪Use in non-industrial plants, unless essential precautions and protective
measures have been taken.
▪Operation on the mains without frequency inverter.
▪Mobile operation.
▪Reverse operation.
▪Use in areas with ionising or non-ionising radiation.
2
2.1
2.2
2.3

2 Safety and responsibility
610.00280.40.000 · 07.2013 8/48 © Gardner Denver Deutschland GmbH
▪Formation of condensation or liquid separation in the internal space of the G-
BH8.
▪Changes to the G-BH8 and the accessories, that have not been agreed with
the manufacturer.
▪Operation outside of the limits defined in these instructions.
▪Start-up and operation with overpressure or negative pressure from the plant.
Working in a safety-conscious manner
Work on running or energised vacuum pumps/compressors can lead to seri-
ous injuries due to body parts being drawn in or crushed or death due to
electric shock.
Work on the G-BH8 at a standstill only and in a de-energized condition.
1. Disconnect.
2. Secure it to prevent it from being switched back on.
3. Make sure that it is de-energised.
4. Earth it and short-circuit it.
5. Cover or block off adjacent parts which are still supplied with voltage.
During operation and after decommissioning, contact with hot surfaces can
lead to burns.
On the G-BH8, temperatures during operation can reach 150Ԩ[302°F]. The con-
veyed media on the pressure side (item 8) can reach up to 200°C [392°F].
1. Do not touch hot surfaces during operation.
2. Keep hot surfaces clear of highly inflammable materials.
3. Allow the G-BH8 to cool after shutting it down.
Operation with exposed parts can lead to serious injuries due to body parts
being drawn in or crushed.
1. Re-attach safety and protective devices and put them back into operation
immediately after completion of work.
2. G-BH8 should only be put into operation when fully fitted.
Changes, additions and conversions may lead to unforeseeable risks and
thus to serious injuries or death.
Changes, additions and conversions to the G-BH8 that are not described any-
where in the documentation must be authorised by the manufacturer.
Only use original parts or parts/auxiliary materials (grease, sealant) approved by
the manufacturer. The use of other parts and auxiliary materials may exempt the
manufacturer from liability for all resultant consequences.
Keep all notices attached to the G-BH8 in a clearly legible condition:
▪Labelling of connections
▪rotation arrows
▪Rating plate
▪Warning signs
2.4
Work at a standstill and
de-energised
Hot surfaces
Not fully assembled
Changes, additions and
conversions

Safety and responsibility 2
© Gardner Denver Deutschland GmbH 9/48 07.2013 · 610.00280.40.000
Requirements for personnel
Staff qualifications and training
All those who will work on the G-BH8 must have read and understood these and
all related instructions.
Personnel in training may only work on the G-BH8 under supervision of personnel
who have the required knowledge.
Only allow work on the G-BH8 to be carried out by personnel with the following
knowledge:
Work tas
k
Personnel Required knowledge
Transportation,
storage
Shipper, dealer, quali-
fied personnel for
transportation and stor-
age
▪Safe handling with lifting gear such as hoists and
fork lift trucks
A
ssembly,
start-up,
correcting faults,
shut down,
dismantling
Qualified personnel for
vacuum pumps and
compressors
▪Safe handling of tools
▪Laying and connecting pipes and hoses
▪Mounting mechanical components
▪Knowledge of vacuum pumps and compressors
Working on the electri-
cal system
Electrician ▪Understanding and safe implementation of circuit
diagrams
▪Lay and connect electrical lines
▪Connection of electrical machines, switches, sen-
sors, circuit breakers
▪Analysing and testing electrical systems
▪Assessing the effectiveness of electrical protection
measures
Parameterize the fre-
quency inverter
Qualified personnel for
frequency inverters,
operator, electricians
▪Knowledge of frequency inverters and how to set
them
Operation Operation personnel,
operator ▪Instructions for occupational safety and for han-
dling vacuum pumps and compressors
Maintenance
repair
Qualified personnel for
maintenance and repair ▪Safe handling of tools and materials
▪Disassemble and assemble vacuum pumps and
compressors
▪Assess damage to vacuum pumps and compres-
sors
Disposal Qualified personnel for
disposal ▪Decontaminating polluted materials
▪Re-use of materials and substances
▪Correct and environmentally-friendly disposal of
materials and substances
2.5
2.5.1

2 Safety and responsibility
610.00280.40.000 · 07.2013 10 /48 © Gardner Denver Deutschland GmbH
Personal protective equipment
WARNING
Danger of crushing and cutting!
Crushing and cutting of body parts due to sharp edges or falling parts on
the open G-BH8.
1. Wear protective gloves, safety footwear and safety goggles for all assembly
and disassembly, troubleshooting and maintenance work.
2. In addition, wear head protection for transportation and overhead work.
WARNING
Risk of injury!
Serious injuries due to body parts and hair being sucked or drawn in (vac-
uum) or due to projected particles (pressure).
1. Wear eye protection and tight clothes for all work when in operation.
2. Wear a hair net for long hair.
3. Remove jewellery and rings.
WARNING
Hearing damage!
Hearing damage due to time spent in the excessive noise area when there
are adverse operating conditions or noise due to suddenly ejected media at
the discharge nozzles or piping.
Wear ear protection when remaining in the excessive noise area.
2.5.2

Safety and responsibility 2
© Gardner Denver Deutschland GmbH 11 /48 07.2013 · 610.00280.40.000
Requirements of the operator
WARNING
Explosion and burst risk!
Any machine that is operated at a pressure or speed that is beyond that
which is permitted, can explode or burst and cause serious injuries due to
parts flying off and suddenly ejected conveyed media.
1. The operator must ensure that the pressure differences acting on the side-
channel compressor [➙44] are not exceeded.
2. The operator must ensure that the Maximum speeds [➙43] are not exceeded.
WARNING
Danger of suffocation!
As the G-BH8 is not 100% leak-proof, the conveyance of media other than
air can lead to suffocation.
Adhere to the safety measures described for the conveyed media used (if
necessary, check and monitor leakage rates).
The operator ensures that:
▪All work on the G-BH8 is carried out by:
– personnel that have the necessary Staff qualifications and training [➙9]
– personnel that have been sufficiently informed of these instructions and all
related documents [➙6]
▪Assignment, responsibility and supervision of personnel is regulated.
▪The content of these and locally applicable instructions are always available to
personnel.
▪Personnel are informed of the conveyed media and the emergency safety
measures, so as to prevent injuries.
▪All local and plant-specific safety measures are adhered to, such as:
– Prevention of accidents
– safety and operating regulations
– Utility company regulations
– Standards and laws
▪Hot surfaces such as pipes and hoses are inaccessible during operation are
provided with a suitable safeguard (e.g. perforated metal cover or wire cover-
ing) or are insulated.
▪Hot surfaces, such as pipes and hoses, that do not have their own safeguard,
are supplied with warning signs.
▪The free drawing in or emission of the conveyed media does not place any
personnel in danger.
▪Dangers due to electrical energy are not possible.
2.6

3 Product identification
610.00280.40.000 · 07.2013 12 /48 © Gardner Denver Deutschland GmbH
Product identification
Data plate
Made in Germany
compressor / vacuum pump
G-BH8 2BH85. . . - . . . . . . - . .
No. BN XXXXXXXX XXX /YYYY IP55
IEC/EN 60034 3~ Motor S9 TH.CL.F
. . . . kW . . . Hz . . . . V . . . . A Y
. . . . / min — xxx xxx mbar
nmax . . . . / min xxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxx
G
L
J
K
D
C
B
E
A
F
H
N
M
A
Series G Type
B Frequency H Protection class
C Motor output powe
r
J Serial number/year of manufacture
DRatedrpm K
V
oltage in star connection
E Maximum speed and optional
manufacturer information
L Current in star connection
M Serial number/year of manufacture
as QR code
F optional customer information N Pressure differences for rated rpm
N
1values with a negative sign ap-
ply to vacuum and vacuum opera-
tion
N
2values with no sign apply to
overpressure and compressor op-
eration
3
3.1

Product identification 3
© Gardner Denver Deutschland GmbH 13 /48 07.2013 · 610.00280.40.000

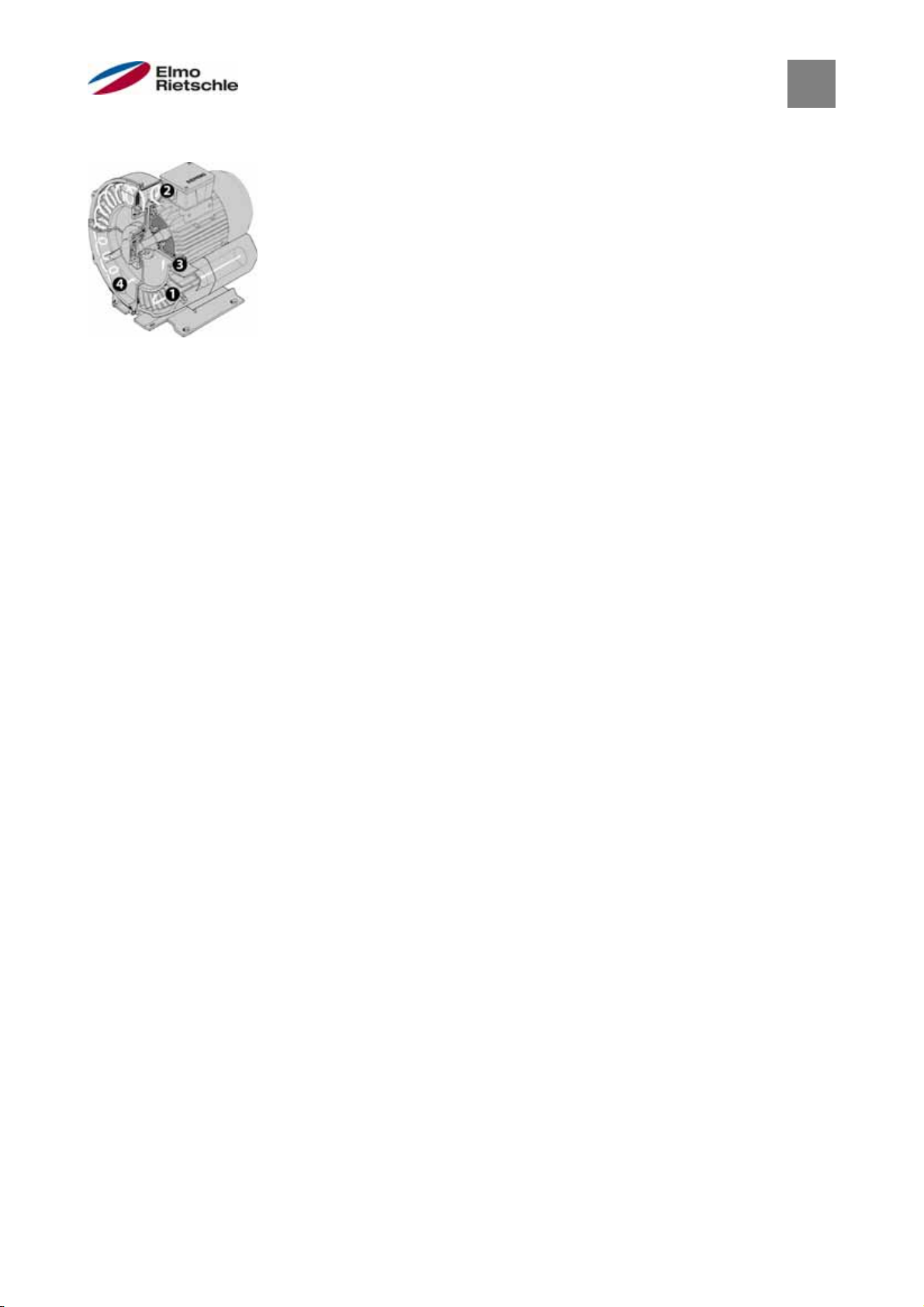

Structure
1 Pressure side elbow 11
A
uxiliary ventilator terminal boxes
2 Suction side elbow 12
A
synchronous moto
r
3 Silence
r
13 Motor terminal boxes
4 Bimetal switch in the compressor housing 14 Compressor housing
5 Direction of conveyance arrows 15 Rating plate
6 Integrated frequency inverter 2FC4...-1 16
A
ssembly foot
7 Suction side connection 17 Spring mounts
8 Discharge-side connection 18 Earth connection
9 Direction of rotation arrow, auxiliary ventilato
r
19 Lifting attachment
10
A
uxiliary ventilato
r
20 Compressor cove
r
3.2

3 Product identification
610.00280.40.000 · 07.2013 14 /48 © Gardner Denver Deutschland GmbH

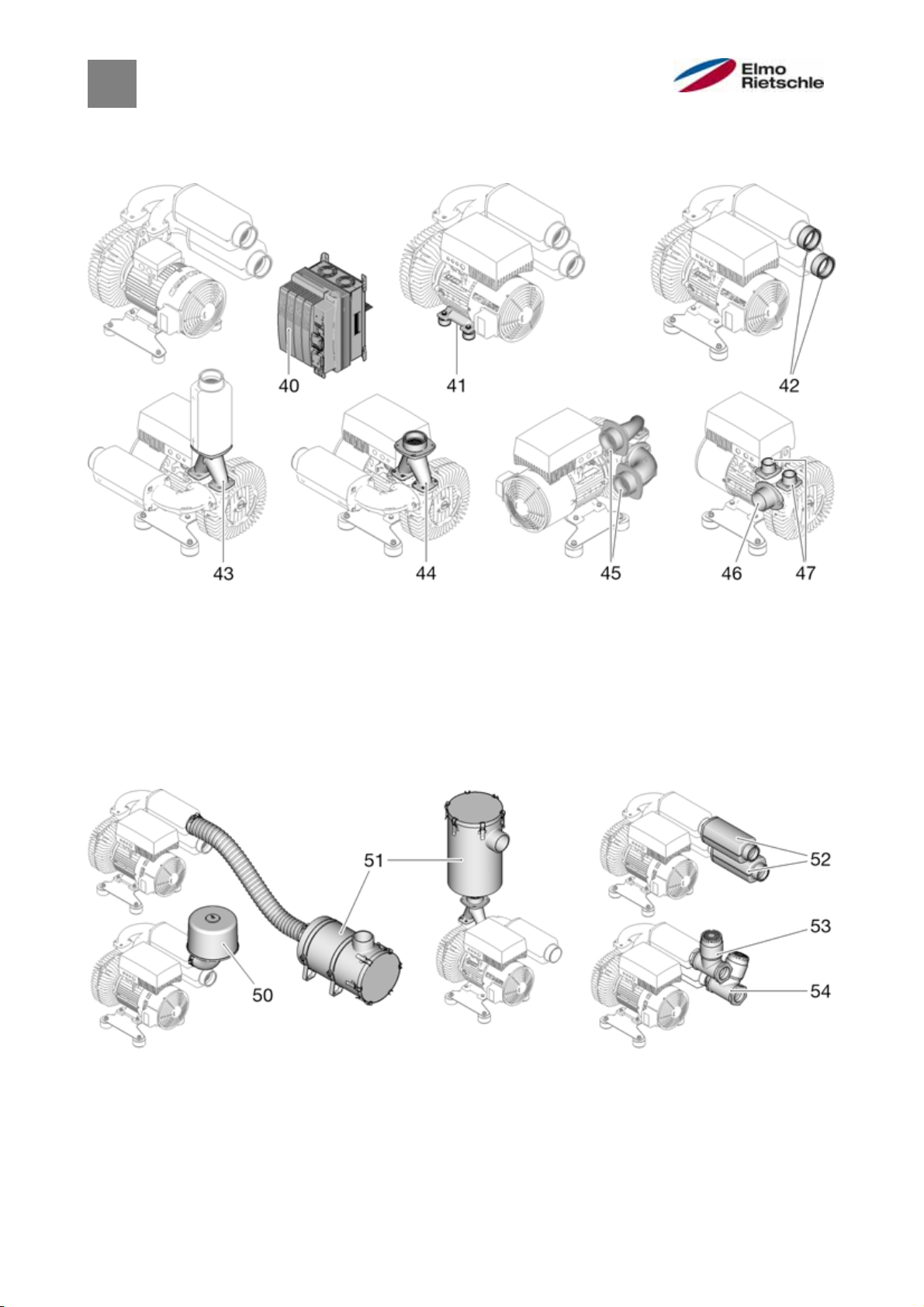

Options
The G-BH8 can be delivered with the following options
40 Electrical cabinet inverter 2FC….-2 44 Suction side with Y-pipe without silence
r
41
A
ssembly on the motor foot 45 Suction side and/or discharge side with elbow
without silencer
42 NPT thread adapte
r
46 Discharge side with hose flange without si-
lencer
43 Suction side with Y-pipe 47 Suction side with hose flange without silencer
Ancillaries
The following original accessories are available from the manufacturer
50 Suction filte
r
53
V
acuum shut-off valve
51 In-line filte
r
54 Pressure limiting valve
52
A
dditional silencers
3.3
3.4

Product identification 3
© Gardner Denver Deutschland GmbH 15 /48 07.2013 · 610.00280.40.000
Function principle
With side-channel compressors, the impeller rotates contact-free in the compres-
sor housing.
The conveyed media is suctioned through the inlet (1) and accelerated spirally in
the direction of rotation of the side channel.
The conveyed media is accelerated by the centrifugal force in the radial blades in
the direction of the side channel (2) inner wall, and from there is again supplied to
the impeller (3). As such, the conveyed media is supplied with kinetic energy in the
direction of rotation and the pressure increases.
Due to the reduced cross section on the interruptor, the conveyed media is
stripped from the blades and expelled via the outlet (4).
Side-channel compressors always show a pressure difference and as such, can
be used as vacuum pumps or compressors.
3.5

3 Product identification
610.00280.40.000 · 07.2013 16 /48 © Gardner Denver Deutschland GmbH
EU declaration of conformity
EU declaration of conformity
Manufacturer: Gardner Denver Deutschland GmbH
Industriestraße 26
97616 Bad Neustadt
Germany
Representative for the com-
pilation of technical docu-
ments:
Holger Krause
Industriestraße 26
97616 Bad Neustadt
Germany
Designation of the machine:
V
acuum pump/compressor
Series G-BH8
Types 2BH851 . . - . . . . . . - . .
2BH852 . . - . . . . . . - . .
The machine described above meets the following applicable Community harmonisation legislation:
2006/42/EC European Parliament and Council Directive 2006/42/EC from 17th May
2006 on machinery and amending Directive 95/16/EC.
2004/108/EC Directive 2004/108/EC of the European Parliament and Council from 15th
December 2004 for the application of the legal regulations of the EU
member states concerning electrical devices and repealing Directive
89/336/EEC
Harmonised standards applied:
EN 1012-1:2010 Compressors and vacuum pumps - Safety requirements- Part 1: Com-
pressors
EN 1012-2:1996 +A1:2009 Compressors and vacuum pumps - Safety requirements- Part 2: Vacuum
pumps
EN ISO 12100:2010 Safety of machinery - General principles for design - Risk assessment and
risk reduction (ISO 12100:2010)
EN 60204-1:2006 Safety of machinery - Electrical equipment of machines Part 1: General
requirements IEC 60204-1:2005 (amended)
EN 60034-1:2010/ AC: 2010 Rotating electrical machines - Part 1: Rating and performance IEC 60034-
1:2010 (amended)
Bad Neustadt, 26.07.2013
(Place and date of issue)
A
ndreas Bernklau, Product management/Authorised
signatory
Dr. Rudi Dittmar, Development
(Name and function) (Name and function)
664.00280.40.000
3.6

Transportation and storage 4
© Gardner Denver Deutschland GmbH 17 /48 07.2013 · 610.00280.40.000
Transportation andstorage
Unpacking and checking the condition of delivery
The G-BH8 is secured onto a pallet or foot plate and protected by a cardboard
box for delivery.
1. Remove the packaging.
NOTICE! First remove the transport protection on the connection open-
ings before connecting the pipes and hoses.
2. Check the G-BH8 for transport damage.
NOTICE! Report any transport damage to the manufacturer immediately.
3. Check that the G-BH8 delivered complies with the order.
4. Check that accessories delivered with it are complete.
5. Loosen the fixing screws on the assembly foot (item 17, Structure [➙13]) or
on the motor foot (item 41, Structure [➙13]).
6. Dispose of packaging material in accordance with the valid local regulations.
Lifting and transporting
WARNING
Danger of crushing and cutting!
Danger of crushing and cutting of body parts due to tipping or falling loads
during transportation.
1. The G-BH8 may only be transported horizontally.
2. The load-bearing capacity of the lifting gear and load-handling devices must
correspond to the mass [➙41] of the G-BH8.
3. Secure the G-BH8 to prevent it from toppling or falling.
4. Do not remain under supported loads.
5. Set the G-BH8 down on a horizontal surface.
NOTICE
Mechanical damage!
G-BH8 can be damaged during transportation due to impacts, tipping or
falling over.
1. The G-BH8 should not be exposed to impacts and blows during transporta-
tion.
maximum linear acceleration: 1g
2. Secure the G-BH8 from tipping or falling over.
Transportation with a crane
!All G-BH8 are equipped with a lifting attachment (item 20, Structure [➙13]).
This lifting attachment is exclusively designed for the mass of the G-BH8, in-
cluding the original accessories (except for the in-line filter, item 51, Structure
[➙13]).
1. Detach the fitted in-line filter (item 51, Structure [➙13]) before transportation
of the G-BH8.
2. Check that the lifting attachment is firmly fastened and retighten as neces-
sary.
3. Attach the crane hook to the lifting attachment.
4. Lifting and transporting the G-BH8.
5. Place the G-BH8 down and, if necessary, secure from slipping and falling.
6. Remove the crane hook after transportation.
4
4.1
4.2

4 Transportation and storage
610.00280.40.000 · 07.2013 18 /48 © Gardner Denver Deutschland GmbH
Storage
NOTICE
Mechanical damage and corrosion!
Failure to adhere to the storage conditions can lead to mechanical damage
and corrosion or can shorten the re-greasing interval.
1. Adhere to the storage conditions.
2. The maintenance intervals of the ball bearings (Maintenance [➙38]) become
shorter as the time of storage increases.
1. Connect all suction vents so that no dirt or solid particles can enter.
2. Turn the rotor once per year so as to avoid permanent standstill marks.
Storage and standstill condi-
tions
permitted values
ambient pressure atmospheric
composition of the environ-
ment
dry, dust-free atmosphere
(relatively humid < 60%)
A
mbient temperature -20Ԩto +40Ԩ-4°F to +104°F
static impacts none
j
erky impacts none
Speed of oscillation
V
eff <1.5 mm/s <0.059 in/s
4.3

Mounting 5
© Gardner Denver Deutschland GmbH 19 /48 07.2013 · 610.00280.40.000
Mounting
Measures after long-term storage
Replace ball bearings and radial shaft seal
!When the length of storage until assembly is exceeded by 4 years for the
storage conditions provided in Storage [➙18].
1. Replace the rolling bearing.
2. Clean adjacent bearing areas for open ball bearings and re-grease.
3. Replace and grease the radial shaft seal.
If the bearing conditions vary (Storage [➙18]), a reduced ball bearing service life
is to be expected.
Measuring the motor insulation resistance
Measuring the motor insulation resistance.
Value >1 kΩ per volt of measured voltage: no measures necessary.
Value ≤1 kΩ per volt of measured voltage: Dry winding.
Mounting conditions
At the place of assembly,
▪Adhere to the Permitted conditions for use [➙43].
▪No outlet air from other machines in the suction area of the motor fan or auxil-
iary ventilator.
▪Provide ventilation facilities, so that the permissible Maximum temperatures
[➙43] are not exceeded.
▪Sufficient room is provided for installation and removal of pipelines and main-
tenance and repair work, particularly for removing and installing the G-BH8.
▪Even, horizontal and stable installation surface or baseframe provided, whose
dimensions and load-bearing capacity are designed for the G-BH8.
▪The maximum tolerance for the evenness of the assembly surface is 0.5 mm
[0.197 in].
▪External oscillations >1.5 mm/s [0.06 in/s], shock loads, linear or rotary accel-
erations are not permitted.
▪When installing outdoors, protective measures against the effects of weather
such as rain, direct sunlight, lightening, snow or ice (e.g. a protective roof)
must be provided.
▪External mechanical loads are not permitted on the G-BH8 and its attach-
ments (e.g. piping without support, ascending the G-BH8 and its attachments)
▪For installation in enclosed spaces and for conveyed media other than air,
leaks from the G-BH8 must be considered.
▪When operating without silencers and direct extraction from the environment
or direct discharge into the environment, effective noise protection measures
must be provided.
Reduction of oscillations and noises
Noise emissions and vibrations can be reduced by the following measures.
▪Do not set up the G-BH8 in set-up areas that conduct or radiate sound.
▪Equip installation surfaces with intermediate layers of noise damping material.
▪Use additional silencers (accessory).
Always construct the G-BH8 flexibly on spring elements.
5
5.1
5.2
5.3

5 Mounting
610.00280.40.000 · 07.2013 20 /48 © Gardner Denver Deutschland GmbH

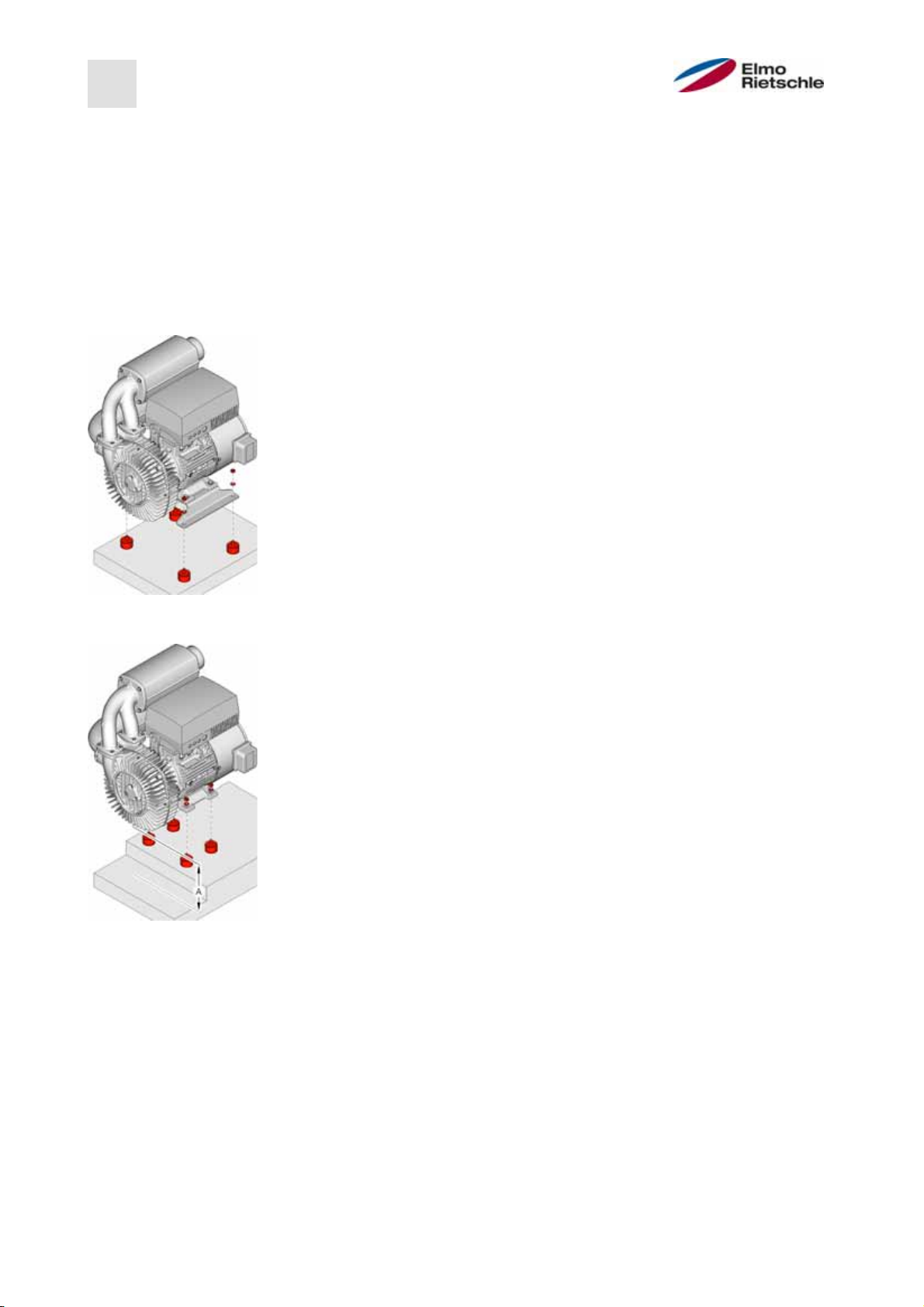

Set up
The G-BH8 must always be screwed to a fixed installation surface (e.g. floor) or a
baseframe.
Installation without spring elements is not permitted.
The following assembly options are permitted:
▪horizontally on the assembly foot (item 17, Structure [➙13]).
▪Horizontally on the assembly foot (item 41, Structure [➙13]).
Horizontal set-up on the assembly foot
1. Mark the fixing points through the holes in the assembly foot (item 17, Struc-
ture [➙13]) or referring to the dimensional drawing.
2. Lift the G-BH8 away and drill the holes for the fixing points.
3. Fit the supplied spring elements (item 18, Structure [➙13]) on the assembly
surface with suitable fixtures.
4. Fit the G-BH8 with assembly foot on the spring elements.
5. Screw the assembly foot to all fitting points using the supplied fixtures.
Horizontal set-up on the motor foot
!For assembly on the motor foot (item 41, Structure [➙13]) the compressor
must not come into contact with the assembly surface. The minimum dis-
tance Aof the compressor to the assembly surface is 30 mm (1.20 in)
1. Mark the fixing points through the holes in the motor foot or referring to the
dimensional drawing.
2. Lift the G-BH8 away and drill the holes for the fixing points.
3. Fit the supplied spring elements (item 18, Structure [➙13]) on the assembly
surface with suitable fixtures.
4. Fit the G-BH8 with motor foot on the spring elements.
5. Screw the motor foot to all fitting points using the supplied fixtures.
5.4
5.4.1
5.4.2
