Eloflex K User manual

INSTRUCTION MANUAL
ELOFLEX K
Read this documentation before using your Eloex
to make sure that you use it in a manner that is safe,
and which does not harm you, your environment or
your power wheelchair.
ENGLISH

Thank you and good luck!
Thank you for choosing an Eloflex as your aid. It means a lot to us because our vision is
to make peoples’ everyday lives a little easier and to give people with mobility impairments
more freedom. We hope you experience both with the help of your Eloflex.
We think you will be very pleased with your new power wheelchair. This user manual
contains important information on safety, use and care. We urge you to read this entire
documentation before using your Eloflex for the first time. We also suggest that you practice
driving your Eloflex on a separate, open and flat surface before using it in other contexts.
The Eloflex power wheelchair is designed for users with many different needs. The
decision as to whether Eloflex is suitable for the user is always made by the prescriber or
retailer together with the user. Eloflex assumes no responsibility for cases where the power
wheelchair is not adapted to the user's needs.
An Eloflex should primarily be used in its standard version. If the electric wheelchair needs
to be adapted or changed in any way, it may only be carried out by your centre for assistive
devices or by Eloflex. Please note that damage and errors that occur due to not following
the instructions for use or due to poor maintenance are not covered by the warranty.
Good luck and lots of pleasure with your Eloflex.
Drive carefully!
Content Page
Intended use 3
Fold it up and fold it together 4
Install the joystick controller 5
Charging instruction 5
Joystick 6
Navigate the menus 7
Change seat width 8
Adjust armrests 8
Change seat height 9
Manual driving 9
Anti-tipping devices 9
Backrest 10
Footrest 10
Transport and storage 11
Driving instructions 12-13
Safety instructions 14-15
Technical data 16
Contact 16

Type classification and intended use
Eloflex power wheelchairs have been developed for people
who have difficulty walking or cannot walk at all, but with vision,
physical and mental ability to control an power wheelchair.
The Eloflex power wheelchair is compact and flexible enough
for indoor use, but the chair is also suitable for outdoor use.
In the chapter "Technical data" at the end of this document
there is information on speed, turning radius, range,
maximum climbing ability, maximum weight for the user etc.
We encourage you to read all safety information in the "Safety
Precautions" chapter of this document.
Eloflex has been tested and approved according to
EN12184: 2014 - class B (indoor and outdoor use). Eloflex
has also been approved according to ISO-7176, IEC60601,
and the batteries have been approved according to UN38.3.
Eloflex power wheelchairs meet the applicable requirements
in MDR 2017/745.
Classification of medical equipment class 1 and CE marking
are carried out in accordance with Annex VIII Chapter III
of MDR 2017/745. Conformity assessment procedure:
Annexes II and III to MDR 2017/745. The CE marking
becomes invalid if replacement components or accessories
are used that have not been approved for this product.
Requirements
The purpose of an Eloflex power wheelchair is to
compensate for an injury or a disability, which is why it is
recommended in the following circumstances:
• If the user has the inability to walk or severely limited ability
to walk, which makes it difficult to move around in their own
home.
• If there is a need to leave the home to get out in the open
or to visit the places that are normally visited to carry out
everyday tasks.
• When the user has difficulty getting to, or performing work
or activities due to their mobility impairment.
It is suitable to use Eloflex power wheelchairs both indoors
and outdoors, if it is not possible to use manually operated
wheelchairs due to mobility problems, but it is still possible to
operate electrically operated wheelchairs in a correct way.
Accessories
Charger and bag with simple tools are available on delivery in
the storage bag under the seat.
Usability
Only use the Eloflex power wheelchair when it is in fully
functional condition. Otherwise, you put yourself and others at
risk. The following list does not include all possible situations.
It only describes certain situations that may affect the usability
of the electric wheelchair.
• Do not use the power wheelchair if the batteries are
defective or deformed
• Do not use the power wheelchair if the engine runs jerkily
or makes abnormal noise
• Do not use the power wheelchair if there appears to be
afault with the brake function
• Contact your centre for assistive devices or dealer if the
tires are worn
• Contact your centre for assistive devices or dealer if you
discover damage to the seat belt, armrest, seat, backrest,
control lever or other part of the chair
• Contact your aid centre for assistive devices or dealer if
you discover damage to the electrical system (cables,
batteries, chargers etc.)
Manufacturer's warranty
The Eloflex warranty replaces parts that are broken.
Thedamage must not be caused by the user. The warranties
do not cover damage caused by external circumstances
such as theft, mismanagement, misuse, lightning or
modification.
Useful life
The calculated useful life of an Eloflex is five years. However,
the product's useful life is largely affected by how it is used
and cared for. An Eloflex can have a significantly longer
useful life if you take care of it and only use it in line with the
information in this document.
Safety regulations and risks
READ THE DRIVING INSTRUCTIONS AND SAFETY
REGULATIONS, FROM PAGE 12, CAREFULLY BEFORE YOU
START USING YOUR ELOFLEX ELECTRIC WHEELCHAIR.
Intended use
3

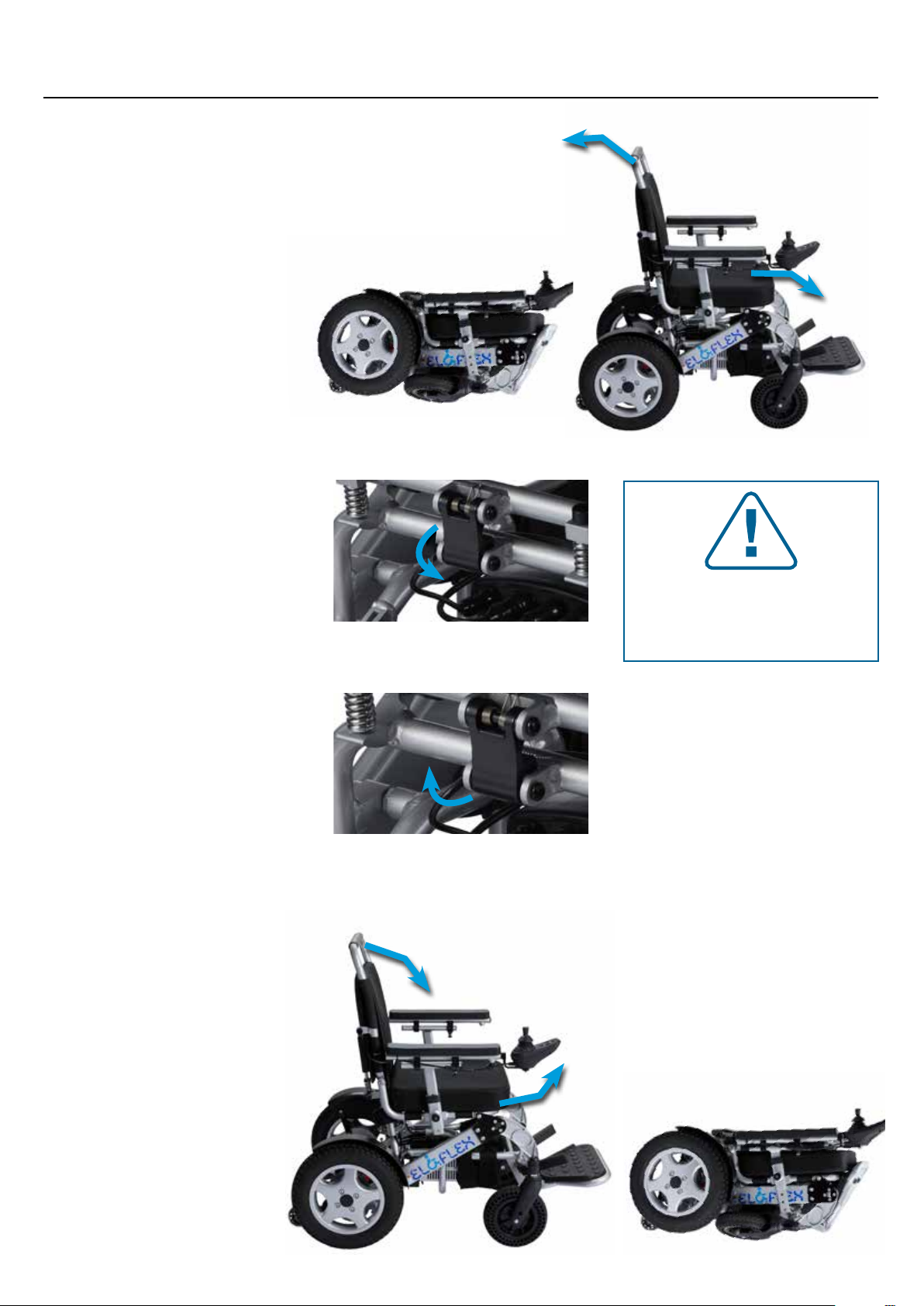

Unfold and fold it together
Unfold it
Step 1
Place the folded wheelchair on the
ground as shown on the illustration to
the right. Grasp the backrest and pull
upwards to open the chair. Hold on
with one hand on the seat cushion.
Fold up
Step 1
Open the latch as shown in the
pictures to the right.
Step 2
Place one hand on the front edge of
the seat cushion.
Grasp the upper edge of the backrest
with the other hand and fold it forward.
Press the chair together according to
the pictures on the right.
Step 2
Close the latch - this is very important!
"Click" It is very important that
you close the latch before
putting the chair into use.
4

Install joystick
Step 1
Mount the joystick in the bracket under
the armrest and tighten the screw.
Step 2
Assemble the cable connectors and
gently twist until the pins go into the
holes and the grooves in the two
connectors align. Then screw the
sleeves on each connector together.
IMPORTANT!
Be careful not to
damage or bend the
pins in the connector.
IMPORTANT!
NEVER connect the
charger directly to
the battery.
This is how you charge
Start by turning off your Eloflex. Plug
the charger into the socket on the front
of the joystick. Ensure that the position
of the contacts match each other.
Theninsert the charger's power cable
into a wall outlet.
Charging is indicated by a light on the
charger. Red light means charging is in
progress. After about three hours, the
batteries are charged to 90 percent.
The chair can now be used again.
After about 5-8 hours, the light on the
charger turns green and the batteries
are fully charged. During charging, the
charger itself gets warm, and this is
completely normal.
Charging instruction
For maximum battery life, charging
should take place for approximately
five hours when the bar on the battery
indicator on the display has gone
down three bars. The batteries are not
damaged by maintenance charging, but
for maximum useful life we recommend
that you disconnect the charger when
the batteries are fully charged.
Charging the batteries can take place
down to -10 degrees. When charging in
lower temperatures, the batteries will not
be fully charged. If your Eloflex is used
at freezing temperatures, the mileage
will be affected. At -10 degrees, for
example, mileage can be reduced by
up to 50%.
5

Power on and off
LCD
Multi-function buttons
Honk
USB contact
Joystick
Speed indicator: All white
bars = maximum speed.
Trip meter: The distance
you have driven and current
speed are shown here.
Battery check: Here it
is indicated how much
power is left in the batteries.
When the batteries are
fully charged, all bars are
white. As the batteries are
discharged, the bars go out
in turn. Charge when three
bars have gone out.
1
2
TIPS:
By means of the USB
connector on the
underside of the joystick,
you can charge your
mobile phone.
Increase/decrease speed
Joystick
On/off light
1
1
13
3
Charging socket
Light
Joystick: controls the chair's
speed and direction of travel.
Power on and off: Press to
turn your Eloflex on and off.
Honk: Push to call attention.
Increase the speed: Press to
increase the chair's maximum
speed.
Decrease the speed: Press to
decrease the chair's maximum
speed.
On/off light: Press to turn the
lights on and off.
2
2
2
6

Navigate the menus
Language
Speed unit
Volume
Return Enter
Function list
Change settings
You can change the chair's settings such as language, horn
volume and measurement units.
1. To enter the settings, press the right multifunction button. A list
of multiple choice options will then open.
2. In the multi-choice list, scroll up and down with the
speedbuttons.
3. Select function with the right multifunction key (Enter) or go
backone step with the left multifunction key (Return).
1
1
2
3
7

To adjust the width of the seat, first
loosen the screw under the seat and
adjust the width by pulling the armrest
outwards.
Change seat width
To adjust the height of the armrest, pull
the screw on the side of the armrest
outwards and then raise/lower the
armrest to the desired height. Here you
can also loosen the armrest completely
to make it easier to get in and out of
the chair.
Adjust the height of the armrest
Adjust the length of the armrest
To adjust the length of the armrest,
press the button under the armrest and
then drag the armrest horizontally to the
desired position.
8

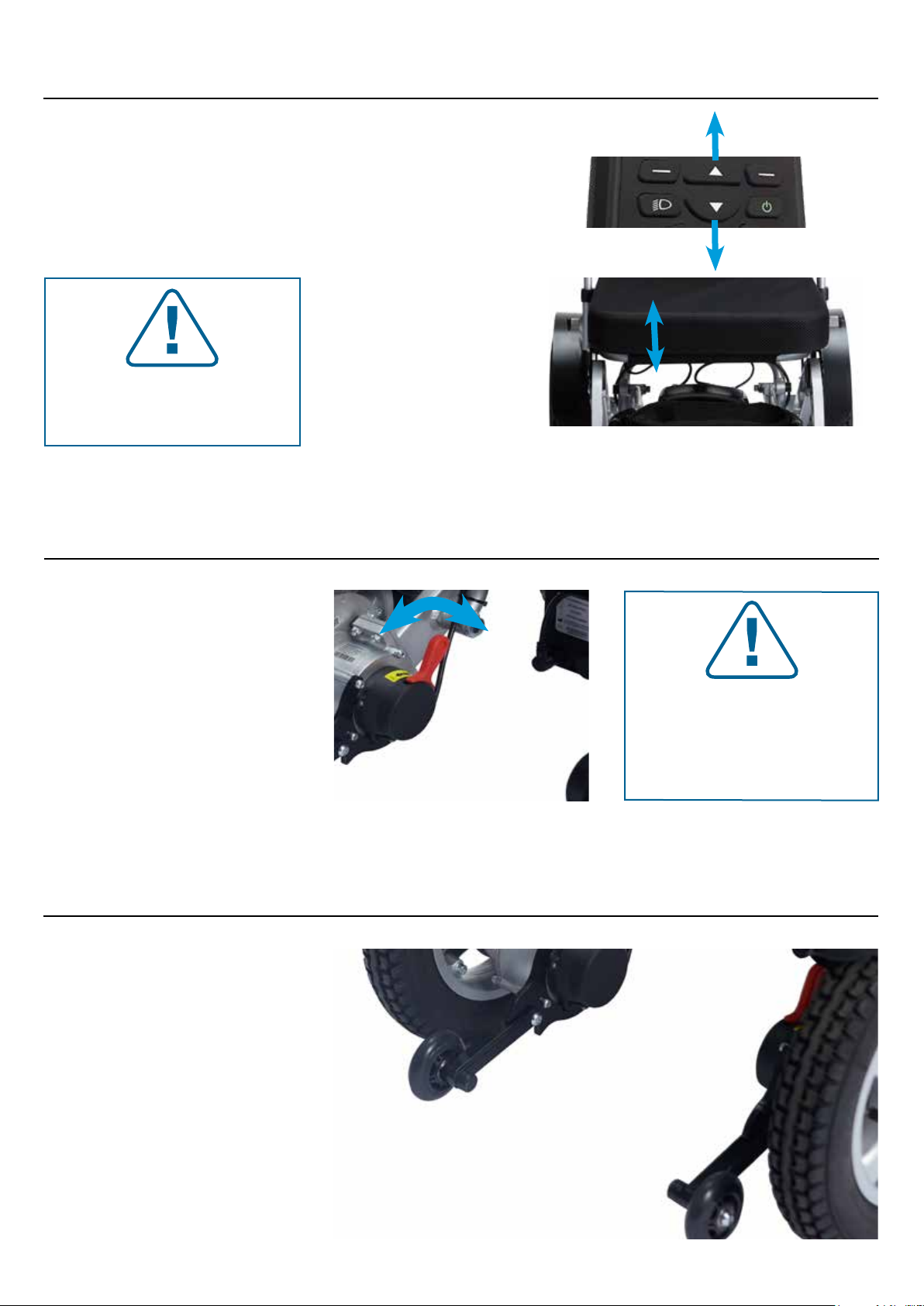

To change the height of the seat, hold
the speed button when the joystick is
on. With the upper button you raise the
seat, with the lower you lower the seat.
Continue to hold the button until you
have reached the desired height.
Change seat height
Switch off the power wheelchair with
the joystick. Then push forward the
red levers on the engines (see picture)
to disengage the magnetic brakes. In
this position, the chair can be manually
rolled freely.
Note! If the user uses the chair without
assistance, the chair's magnetic locks
must always be engaged.
Manual driving
ON OFF
IMPORTANT!
NEVER kick the red
levers. Only use
manualpower.

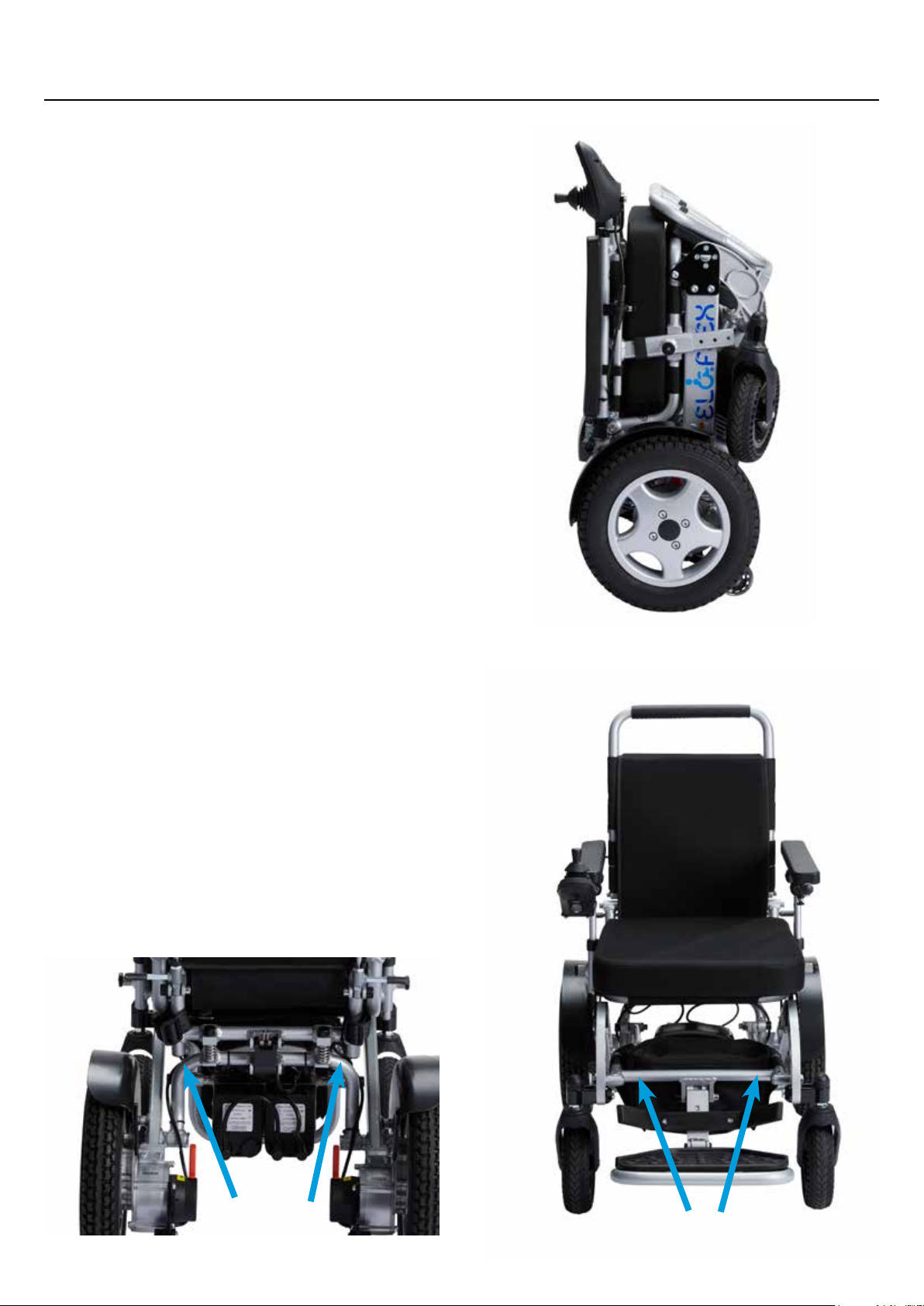

Anti-tipping devices
The anti-tipping devices have two
settings. One when you drive and one
when parked in an upright position after
being folded. They automatically fold in
when you place the chair upright in the
folded position. For optimal security, the
anti-tipping devices must always be in
the extended position with the support
wheel backwards while driving.
Change height while
stationary and not
whiledriving.
9

Adjust the backrest
Adjust the angle of the back by pushing down the levers on the
sides and position the backrest in an angled position that feels
comfortable. Then release the levers to lock the position.
You can choose between an angle between 2 and 22 degrees.
Backrest
Unscrew the screw and adjust to the
desired height.
Footrest
Adjust the footrest
For easier entry and exit, the footrest can be folded up as shown in the image below.
10

• To lift the chair, it is recommended to first fold the chair
andthen place it in an upright position. Then it is lifted.
• A folded chair can be put in the trunk of a car or placed in
awardrobe.
• If the chair is not to be used for a while, we recommend that
the batteries are fully charged before putting the chair away.
• The chair should be stored indoors in frost-free, dry and
ventilated areas. Storage temperature 0-30 degrees.
• If you are going to bring your Eloflex on an aircraft, we
recommend that you read through the information we
havecompiled on our website regarding IATA's regulations
www.eloflex.se/faq
• In case of transportation in a public transport or a bus for
disabled persons, Eloflex must be fastened to the attachment
points as shown in the pictures at the bottom. Please note
that Eloflex is not tested as a car seat. We therefore always
recommend that the user moves to the car's own seats.
Transport and storage
11

DRIVING
There is a risk of personal injury due to the wheelchair
tippingover.
• Only drive on inclines and gradients that do not
exceed the maximum permitted gradient
• Always use the anti-tipping devices when driving
withEloflex
• Driving downhill should always be done at a lower
speed
• Avoid stretches where there is a risk of icy or
slippery surfaces
• Never attempt to drive up or down stairs with your
power wheelchair
• Never drive over obstacles higher than the
recommended maximum height
• Avoid quick or jerky movements with the joystick
and sudden changes of direction while driving
Risk of being left standing in remote places.
• A user with severely reduced mobility should not
drive alone for long distances outdoors.
Risk of injury if a foot slips off the footrest and ends up under
the electric wheelchair during travel.
• Always place your feet in the centre of the footplate
while driving
Risk of injury if you collide with other objects in narrow
passages.
• Drive through narrow passages with the lowest
speed and maximum attention
There is a risk of the wheelchair tipping over if the anti-tipping
devices are dismantled, damaged or mounted in a position
that deviates from the standard mounting.
• The anti-tipping devices must always be mounted
when the electric wheelchair is used
• The anti-tipping devices only work on a firm
surface. On soft surfaces such as lawns and
snow, the anti-tipping device may lose its
effectiveness. Therefore, drive extremely carefully
on soft surfaces.
Safety instructions when driving
12

Driving
Read
The user must read these safety and driving instructions
before using the electric wheelchair from Eloflex.
Practice
Practice makes perfect. Practice driving the Eloflex with
an assistant by starting on an open flat surface, preferably
outdoors, before using your electric wheelchair with other
people, in shops or restaurants etc.
Drive forward by slowly moving the joystick forward.
Stop by releasing the joystick.
Reverse
Reverse by moving the joystick slowly backwards. To stop,
release the joystick.
Remember to always look behind you before starting to
reverse to ensure no person or object is in the way.
Spin
Spin by moving the joystick gently sideways.
Be careful not to get in the way of the sides when you spin.
Turn
Turn while driving by gently moving the joystick sideways in
the direction you want to turn.
Always slow down when turning.
Obstacle
Practice avoiding and passing obstacles. Move the
joysticksideways while driving forward to avoid obstacles.
Remember to slow down when approaching obstacles.
Fast driving
Push the joystick in the forward position if you want to
drivefast.
Remember to pull back the joystick and reduce the speed
assoon as you feel uncertain, if you are about to turn or if you
are approaching an obstacle.
Drive over obstacles
Drive slowly up to the obstacle and make sure the front
wheels are in the direction of travel. Then slowly move the
joystick forward while leaning back to drive over the obstacle.
Eloflex is tested and approved for obstacles up to a maximum
of 6 cm.
Driving on inclined surfaces
Try to drive straight up or straight down an inclined surface.
Lean slightly forward when driving uphill, and backwards
when driving downhill, to maintain your centre of gravity.
Avoiddriving sideways if possible and compensate for any
side tilt by leaning in the opposite direction. Always drive
slowly on inclined surfaces. Avoid surfaces that incline
morethan 9 degrees.
Take the elevator
Remember to check the width of the elevator door and
howquickly the door closes before entering the elevator.
Keep in mind that you may have to back out of the elevator
ifit is not large enough for you to turn around.
Drive on the road
Drive primarily on pavements, footpaths and cycle paths and
lastly on busy carriageways with your Eloflex.
Cross the carriageway
If possible, always choose to cross the road at a pedestrian
crossing. Be aware of crossing cars.
Use the bevelled part of the pavement if there is one.
Avoid curbs that are higher than 6 cm.
13

SECURITY
There is a risk of personal injury if the power wheelchair is used
for purposes other than those described in this document.
• Use the electric wheelchair only according to
the instructions in this user manual (see above,
chapter "Type classification and intended use")
There is a risk of personal injury if the power wheelchair is
used with impaired driving ability.
• Do not use the wheelchair when your ability to
drive is impaired due to, for example, illness,
medication or alcohol.
There is a risk of personal injury if the power wheelchair is
used with impaired driving ability.
• Switch off the wheelchair before getting on and off
or if there is a risk that you, another person or an
object could come into contact with the joystick
• When the engines are disengaged, the brakes
do not work. Therefore, the wheelchair may only
be pushed on level ground, never on slopes.
Never leave the wheelchair on or near slopes with
disconnected engines.
There is a risk of personal injury if the power wheelchair is
switched off during travel with, for example, the on/off button
or if a cable is torn off, as it stops with a hard jerk.
• Release the joystick when braking in an emergency.
Then the wheelchair stops automatically.
There is a risk of personal injury due to the wheelchair
tippingover.
• Do not move forward, bend forward between the
knees or lean over the edge of the wheelchair, for
example to reach objects.
• Always wear a seat belt and readjust it before
eachtrip.
• Drive as close to the new seat as possible when
transferring to another seat.
There is a risk of personal injury if the maximum permitted load
is exceeded.
• Consider the maximum permissible load (seechapter
"Technical data" at the back of this document).
• The electric wheelchair may only be used by
a single person. Never use the wheelchair to
transport more than one person at a time.
There is a risk of personal injury and damage to the
wheelchair if the locking hook that is released when folding is
not correctly fastened when the power wheelchair is used.
• If the locking hook of the electric wheelchair has not
clicked into place properly, the chair may suddenly fold
when in use, causing you to fall out of the wheelchair.
• Always ensure that the locking hook is in the correct
position before using the electric wheelchair.
There is a risk of personal injury and crushing injuries when
folding and folding up the wheelchair.
• Always fold and unfold the electric wheelchair as
described in the user manual.
• Be careful not to pinch anyone or anything when
folding and unfolding.
There is a risk of personal injury and damage to the
wheelchair if it is used in damp areas.
• The power wheelchair must not be used when
showering.
• The power wheelchair must not be used when bathing.
General safety instructions
14

Security
Cross tramway/railway tracks
Always cross the railway track straight ahead, never diagonally
from the side. Never cross railway tracks alone, always have
someone with you who can help you.
Sharp slopes
Be careful when driving on a steep incline as the chair is
at risk of tipping over. Eloflex is tested and approved for an
incline up to a maximum of 9 cm. Always have someone with
you who can help you.
High edges
Be careful when driving up of or beside a curb. Eloflex is
tested and approved for obstacles up to a maximum of 6 cm.
Always have someone with you who can help you.
Movement
We recommend that you always have someone who can help
you when moving to and from your Eloflex. Always turn off the
power before starting the move. Always raise the armrests
and footrest before moving to make it easier to get in and
outof the chair.
Do not make repairs yourself
Never attempt to repair a broken power wheelchair on your
own. If you screw or try to repair the chair yourself, the
warranty does not apply. Always contact Eloflex or the shop
or centre for assistive devices that sold/prescribed the chair.
Never modify your electric wheelchair yourself.
Not a toy
Never allow children who do not normally use an electric
wheelchair to sit in or use your Eloflex.
Cleaning
Never clean your Eloflex with running water. Only wipe it with a
damp cloth. If your Eloflex is slow to fold up and fold, you can
lubricate the joints with 5-56 or silicone spray.
Beware of heat
Never leave your Eloflex in direct sunlight or near a heat
source as the batteries may be damaged. Never be near
open flames with your Eloflex.
You can use your Eloflex from -10 degrees up to +45 degrees.
At freezing temperatures, the range can be affected by leaning
in the opposite direction. Always drive slowly on inclined
surfaces. Avoid surfaces that incline more than 9 degrees.
Storage
Keep your Eloflex out of reach of children when not in use.
The power wheelchair should be stored indoors in frost-free,
dry and ventilated areas. Storage temperature 0-30 degrees.
The charger
The charger must never be covered when used to charge
your Eloflex. The charger gets hot and there is a risk of
accident or injury.
Batteries
Never store the batteries in direct sunlight or in a place that
can reach freezing temperatures.
The batteries must be stored in a dry and ventilated place.
15

© Copyright Eloflex
This document contains information protected by copyright
and may not be copied or reproduced in whole or in part
without the written permission of Eloflex.
Eloflex reserves the right for any typographical errors in this
document and we reserve the right to make product changes.
Contact Eloflex
If you have questions or need help, we ask that you contact
your centre for assistive devices or dealer in the first instance.
If you want to have direct contact with us, you will find
contact information on our website www.eloflex.eu.
Eloflex
Hammarbacken 4B
191 49 Sollentuna, Sweden
Technical data
2021-05-08
Version 2.0
Sungo Europe B.V.
Olympisch Stadion 24, 1076DE
Amsterdam, the Netherlands
SRN:NL-AR-000000247
Kunshan Aoshida Electric Technology Co., Ltd
No. 108 Matang Road, Penglang Town, Development Zone, Kunshan City, Jiangsu
MODEL K
Load weight 26 kg without batteries
Total weight 29 kg with batteries
Range 30 km
Max user weight 90 kg
Speed 6.5 km/h
Motor 2 x bushless motors
Motor effect 2 x 250 Watt
Battery 2 x Lithium ION 10AH/24V
Battery power 2 x 240 Wh
Charging time 3 hours
Turning radius 60 cm
Wheel front 8" gel, rear 12" air
Seat height 47-52 cm
Seat width 36-44 cm
Seat depth 36 cm
Backrest Adjustable 2-22 degrees
Measures 98.5 x 55 x 89 cm
Measures folded 75x55x36 cm
