dynarex DynaRide 10233 User manual

Back Upholstery
Armrest Pad
Armrest
Side Panel
Seat Upholstery
Rigging
Footplate
Caster Fork
Front Caster
Wheel Locks
Cap Hub
Rear Wheel
Hand Grip
Rear Wheel
R180403
STABILITY Wheelchair is designed to be safe and stable
as long as center of gravity is maintained while going about
your normal activities. Care must be taken while
performing activities that shift your center of gravity in the
chair. Never reach so far that require you to shift in the seat
or bend over out of the chair. When you have to reach for
objects that require you to lean, be certain front casters are
pointing in a forward position that extends the wheel base
and will stabilize the chair.
RAMPS Be sure of your own capabilities, limitations and
strength before attempting to go up a ramp. Correct
techniques on ramp negotiation should be shown to you by
a qualified professional. Assistance is recommended when
going up or down inclines greater than 10°. If you must stop
on an incline, avoid sudden, abrupt movement when you
resume movement. Because of backward angle of the
chair, sudden abrupt movement could cause instability.
Attempting to use the wheel lock brakes could result in
accidental locking, tipping to one side, or cause a sudden
stop. Avoid changing direction when going down an incline,
as this could result in instability of tipping over.
Please read this manual carefully to ensure safe usage
and understanding of maintenance instructions.
CAUTION
LIMITED LIFETIME WARRANTY
Manufactured for: Dynarex Corporation
10 Glenshaw Street • Orangeburg, NY 10962
USA • www.dynarex.com
Made in China
Your Dynarex product is warrantied to be free of defects in
materials and workmanship for the lifetime of the product for the
original consumer purchaser. This item was built to exacting
standards and carefully inspected prior to shipment. This Limited
Lifetime Warranty is an expression of our confidence in the
materials and workmanship of our products and our assurance to
the consumer of years of dependable service.
The Warranty shall not apply under the following conditions:
problems arising from normal wear; problems arising from failure
to adhere to the product instructions; problems arising from
misuse, negligence, accident or improper operation,
maintenance or storage; problems arising from modifications or
unauthorized repairs, parts or attachments; products where the
serial number has been removed or defaced; problems with
non-durable components, such as rubber accessories, casters,
and grips, which are subject to normal wear and need periodic
replacement. Dynarex shall not be liable for any consequential or
incidental damages whatsoever. Dynarex shall repair or replace
defective products at its option. The foregoing warranty is
exclusive and in lieu of other express warranties, if any, including
the implied warranties of merchantability and fitness of a
particular purpose. The remedy for any violation of the implied
warranty shall be limited to repair or replacement of the defective
product pursuant to the terms contained herein.
If you have a question about your Dynarex device or this
warranty, please contact an authorized Dynarex dealer.
*This product meets or exceeds all federal safety and
environmental regulations.
DynaRide™
Wheelchair
SYMBOL GLOSSARY
For an explanation of symbols
used in Dynarex packaging, visit
dynarex.com/symbols.php
WARNING:
Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Reorder Nos. 10233, 10234,
10235, 10236, 19237

Wheel Lock
Shoe
Handle
Carriage Bolt
and Nut
Mounting
Positions
Rear Wheel
Wheel Lock
Hinge
Plate
Release Lever
Front Rigging
Release Lever
Front Rigging
Assembly
Footplate
Hinge
Plates
Hinge
Pins
Front Rigging
Support
Release
Button
Footplate
Assembly
Cam Lock
Lever
Adjustment
Holes
USE AND SAFETY WARNING
TO OPEN CHAIR
Open wheelchair by tilting to
one side and pushing down on
seat rail until fully opened.
TO CLOSE CHAIR
First fold foot plates to vertical
position. Grab seat with both
hands at front and back edge and
lift. Or, tilt chair to one side and lift
up on seat rail.
BACK WHEELS Large rear wheels should be inspected
at least once a month to ensure proper tightness. If wheel
wobbles or is loose, release lock nut and tighten axle bolt
slightly. Test for proper tightness by leaning chair to one
side and spin adjusted wheel.
TIRES Solid rubber tires need minimal maintenance, but
should be cleaned occasionally with a damp cloth. Replace
if tires become severely worn or cracking appears.
WHEEL LOCKS Engage both wheel locks before getting
in or out of chair, leaning forward in chair, or while in an
elevator or wheelchair lift. Locks
are engaged by pushing handle
completely forward. Adjustments
to locks are made by loosening
or tightening nut on the carriage
bolt. Wheel lock shoe should be
embedded at least ⅛″. Adjust by
sliding clamp toward rear wheel
while handle is engaged in
locked position. Tighten nut and
bolt to secure in position. Test for
correct locking action before
actual use.
FRONT CASTERS Casters should be checked periodically
and lubricated occasionally. Lubricate by removing fork and
greasing caster stem bearings and wheel bearings.
Do not adjust or operate wheelchair without carefully
reading all instructions in this manual.
Do not operate this wheelchair on roadways, streets or any
surfaces with vehicular traffic.
Do not operate on inclines without proper assistance.
When getting in and out of wheelchair or when in elevator or
wheelchair lift, wheel locks must be fully engaged.
Wheelchair should be on a smooth, stable and level area
with wheel locks engaged before transferring user in or out
of wheelchair.
Footrest should not be lower than 2½″ from the ground to
ensure clearance.
Do not stand on or apply weight to foot rests.
Rotate casters to front of the wheelchair and engage wheel
locks to help prevent wheelchair from tipping over before
reaching or leaning forward.
When trying to extend arms over back, only reach as far as
your arm can extend without having to alter your seating
position. Do not lean over or apply weight to the top of
wheelchair back. This can cause wheelchair to tip over.
DO NOT stand on wheelchair.
Reassemble fork and wheel by tightening nuts until no play
remains, but wheels roll freely. If nut is too loose, caster will
shimmy, if too tight, chair will be hard to steer.
REMOVAL OF SWING-AWAY
FOOTRESTS/LEG RESTS
Release lock by pushing on
the front rigging lever.
Swing-away foot rest/leg
rest out and sideways.
Lift to remove.
ADJUSTING LENGTH OF
FOOTREST/LEG REST
When adjusting length of
footrests or leg rests, user
should be sitting in wheelchair
with feet on the foot plates.
Loosen cam lock lever around
support assembly and push the
release button. Raise or lower
foot plate to desired position that
will provide maximum support of
thighs. Ensure release button is
fully engaged, tighten cam lock lever. Front rigging should
not be so low that it causes uncomfortable pressure to
thighs at front of seat upholstery.
ADJUSTING/ELEVATING LEG REST
Lift foot plate on leg rest assembly
to desired position. Release leg rest
assembly and it will automatically
lock into place. To lower, push the
release lever and lower foot plate
to desired position.
GENERAL CARE Wipe chrome parts with a clean, soft
cloth at least once a week. All metal parts can be cleaned
with auto wax or similar products. If exposed to moisture,
dry immediately. Do not use an abrasive cleanser that will
scratch the finish.
REMOVABLE ARMS Remove arms by depressing spring
button and lifting arms out of front and rear sockets.

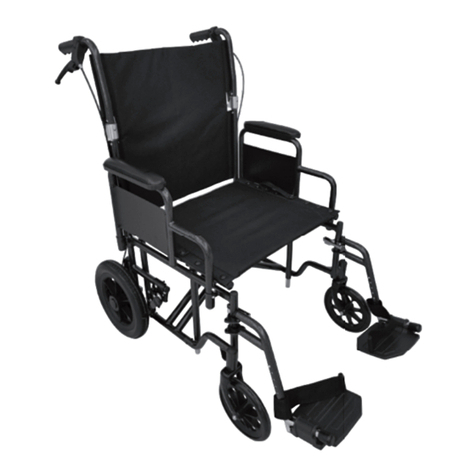

Reorder Nos. 10242
10243
10244
