Aktiv X8 User manual

X8 Paediatric
Tilt in Space Wheelchair
www.aktiv-wheelchairs.com

2.0 General operational instruction and operation
2.1 Seat installation and operation
2.1.1 There are four clips under the seat. Please click the clips into the seat tubes then use the hooks
to holds the seat tubes in place and tighten the screw.(Refer to Fig.1)
2.1.2 There is a knob under the seat and it is for the adjustment of pommel support. (Refer to Fig.1 ,
Fig2)
2.1.3 Remove the screws of the trunk support plate and make the suitable seat width.(Refer to
Fig.1,Fig.2)
2.1.4 Press the button of the trunk support and adjust the height or remove the trunk support.
(Refer to Fig.3)
C Clip
Hook
Pommel support adjusting knob
Fig. 1
Trunk support push button
Fig. 3
Fig.2

2.2 Back and headrest installation and operation
2.2.1 There are four clips under the back. Please click the clips into the back tubes then use the
hooks to holds the seat tubes in place and tighten the screw.(Refer to Fig.4)

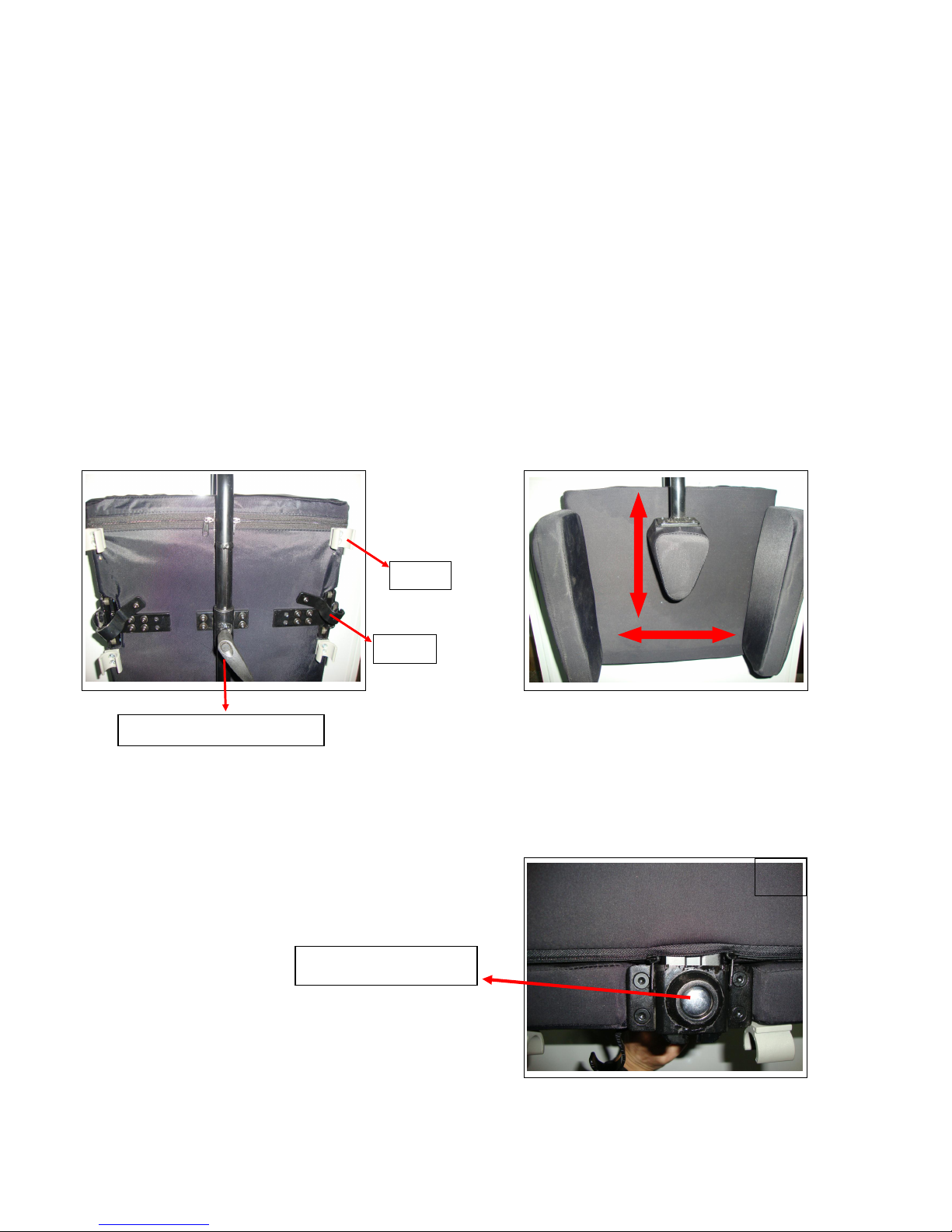

2.2.2 There are two chest supports stays on the backrest. Loosen the adjusting plate screws and
move the plate out / in to adjust the width of chest support. (Refer to Fig.4 , Fig.6)
2.2.3 Headrest pillow is a universal position design. Loosen the adjusting knobs to find best
position for the user.
Chest support adjusting plate
Fig. 4 Fig. 5
Adjusting Knob
Fig. 6

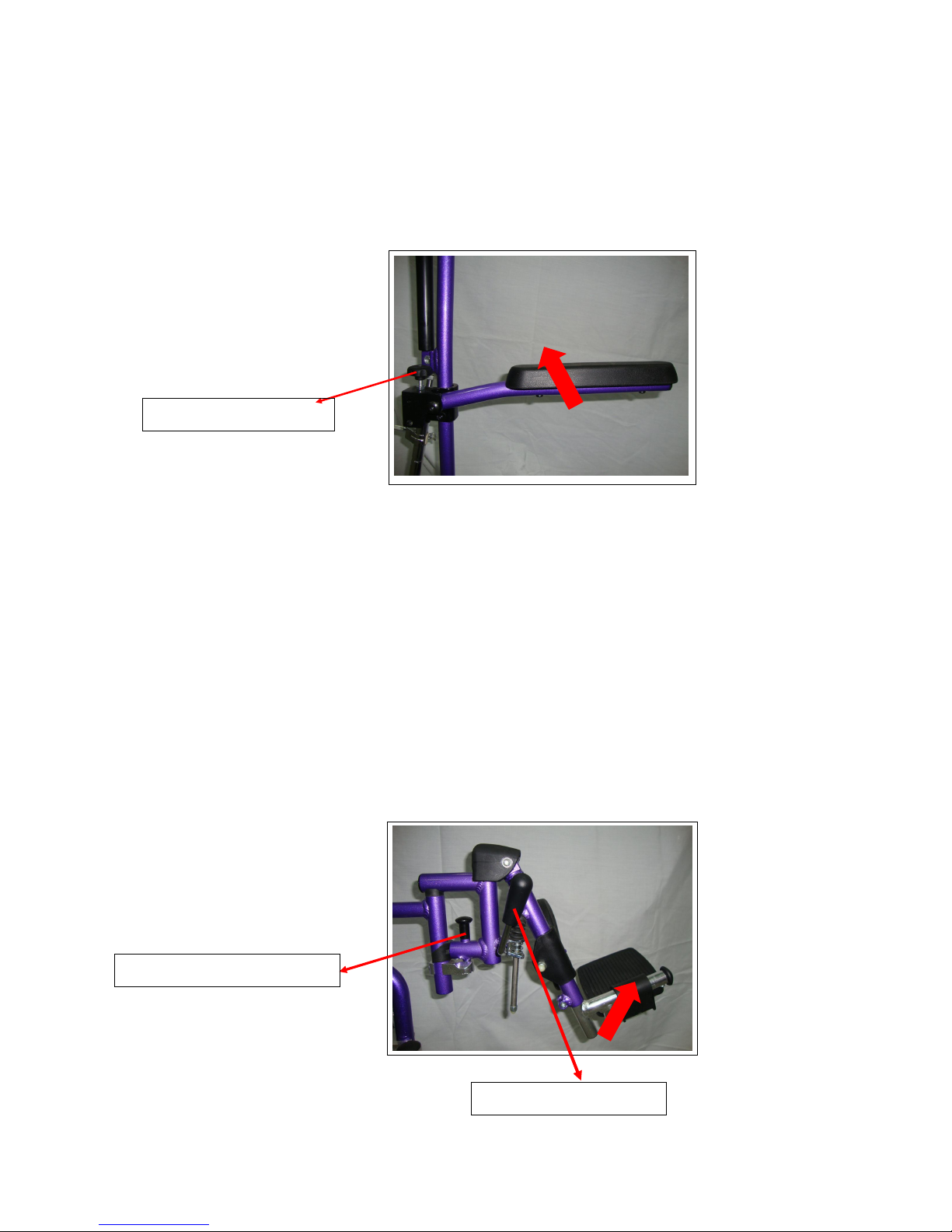

2.3 Armrest operation
2.3.1 The wheelchair is with flip back armrest.
3.2 The armrest slope can be adjusted through the knob. When tighten the knob
the and slope can be increased.(Refer to Fig.7)
Armrest slope adjusting knob
2.3 Elevating leg-rest operation(Refer to Fig.8)
Fig. 7
2.4.1 Lift the leg-rest tube to suitable position when you need elevate the leg position.
2.4.2 If you need to put down the leg position, pull the elevating leg-rest level until
you feel the position is right.
2.4.3 Pull up the knob and swing the leg-rest in /out.
2.4.3 Pull up the knob and swing the leg-rest in /out .
Fig. 8
Swing in /out and remover pull knob
Elevating leg-rest release lever

2.4 Tilt and recline operation(Refer to Fig.9)
2.4.1 Reclining function:
Press the left side small level and pull backward / push forward the back to the comfort
reclining position for the user.
2.4.2 Tilt function:
Press the right side small level and pull backward / push forward the back to the comfort
tilting position for the user.
2.4.4 WARNING!!! Don’t operate the reclining function and tilting function at the same
time.
Brake lever Brake lever
LEFT: Reclining lever RIGHT: Tilting lever
2.5 Anti-tipper operation(Refer to Fig.10)
2.51 Pull the anti-tipper length adjusting washer and
move the rod up or down to adjust the length of the anti-
tiper.
Anti-tipper length adjusting washer
Fig. 9
Fig. 10
2.6 Push bar operation(Refer to Fig.11)
2.6.1 Release the level and pull up or push down the push
bar to adjust the Push bar height.
2.6.2 When stay tilting position, you can increase the push
bar height for easier push the wheelchair.

Maintenance
To keep the wheelchair in its best condition, please proceed with the following maintenance:
1. Before using the wheelchair and during the first month of use, check all the screws if they are
tightened. If any loosen situation appears, please tighten immediately to assure the safety of the user.
Under normal use, please proceed with routine inspection every 3 months to assure all the parts are in
good condition, to check all the screws and nuts are tightened (specially the fixing nuts of rear wheels
and the brake system). If any loosen situation occurs, please adjust and tightened in time.
2. The wheelchair must be dried after using if it gets wet in rainy days. Under normal use, the wheelchair
must be cleaned often with soft cloth and applied the anti-rust wax to maintain the good condition of
this product.
3. Maintain the frame clean and dry under dry and ventilated place to avoid any rust on the parts.
4. Check often the agility of rotating parts and add little lubricants regularly.
5. Avoid any oil or acid contacts with the wheels to prevent deterioration and maintain the adequate tire
pressure (when using pneumatic tires).
6. The leather used on seat, backrest, shoulder stopper, hip stopper, armrest side boards and headrest can
all be removed to cleaning and sterilized purposes.
Safety recommendations
1. The maximum capacity for this wheelchair is for 100kg. Users over 100kg, please use carefully.
2. For self propel wheelchairs, the user should maintain an uniform speed. The recommended speed for
self propel use is at 3-5Km/h.
3. The wheelchair is recommended to be used on flat ground. If any obstacle appears, please detour to
avoid any danger of topple and fall.
4. While using the wheelchair, the user should not stand on the footrest as this act will cause danger of
topple and fall.
5. The user must assure to have good body condition before using the wheelchair on sloping ground.
The angle of the sloping ground should be no more than 10 degrees for safety considerations. If the angle
of the sloping ground is over than 10 degrees, there must be an attendant to assist the user to push the
wheelchair at the back.
6. Do not tilt or swerve while the wheelchair is being used on sloping ground. Using brakes abruptly
when going downhill is not recommended as this will cause danger of topple and fall to the front.
