Eloma Joker B Instruction manual

Eloma Combi Steamer
Joker B, Genius compact, Joker T
Joker B Genius compact Joker T
Installation and Technical Connections

1
Dear Customer,
These installation instructions apply to Eloma’s Joker B, Genius compact and Joker T electrical appliances.
Please read the installation and operating instructions in full before starting up the appliance and make
sure to pay particular attention to the safety information.
Attention!
The named standards are valid for Germany in all other countries follow the local standards and valid instructions.
Damages based on installation not complying with the directives given hereunder are not covered by warranty terms.
Check for any transport damage.
Should there any signs of transport damage, inform your dealer / freight forwarder immediately.
For information and tips please contact:
Eloma GmbH . Innovative Koch- & Backtechnik
82216 Maisach / Germany Otto-Hahn-Str. 10. Tel.: [phone] Fax: [phone]
For our cooking forum and user tips, visit our website at www.eloma.com.
User hotline: [phone]
Service
You can reach us practically around the clock, 7 days a week, 365 days a year:
Your service hotline: [phone]
For information on liability for material defects and warranty conditions, please consult our
general terms and conditions of business (T&C).
Eloma GmbH D-82216 Maisach
Appliance model:.............................
Appliance Nr.:..................................
Dealer: Installer:
Date:………………… Installed on:……………….

2
Table of contents
1. Safety information ........................................................................................................................ 4
2. Equipment set up . ....................................................................................................................... 6
2.1 Installation instructions: ...................................................................................................... 6
2.2 Recommended minimum clearance .................................................................................. 6
2.3 Noise level . ........................................................................................................................ 6
2.4 Exhaust air . ....................................................................................................................... 6

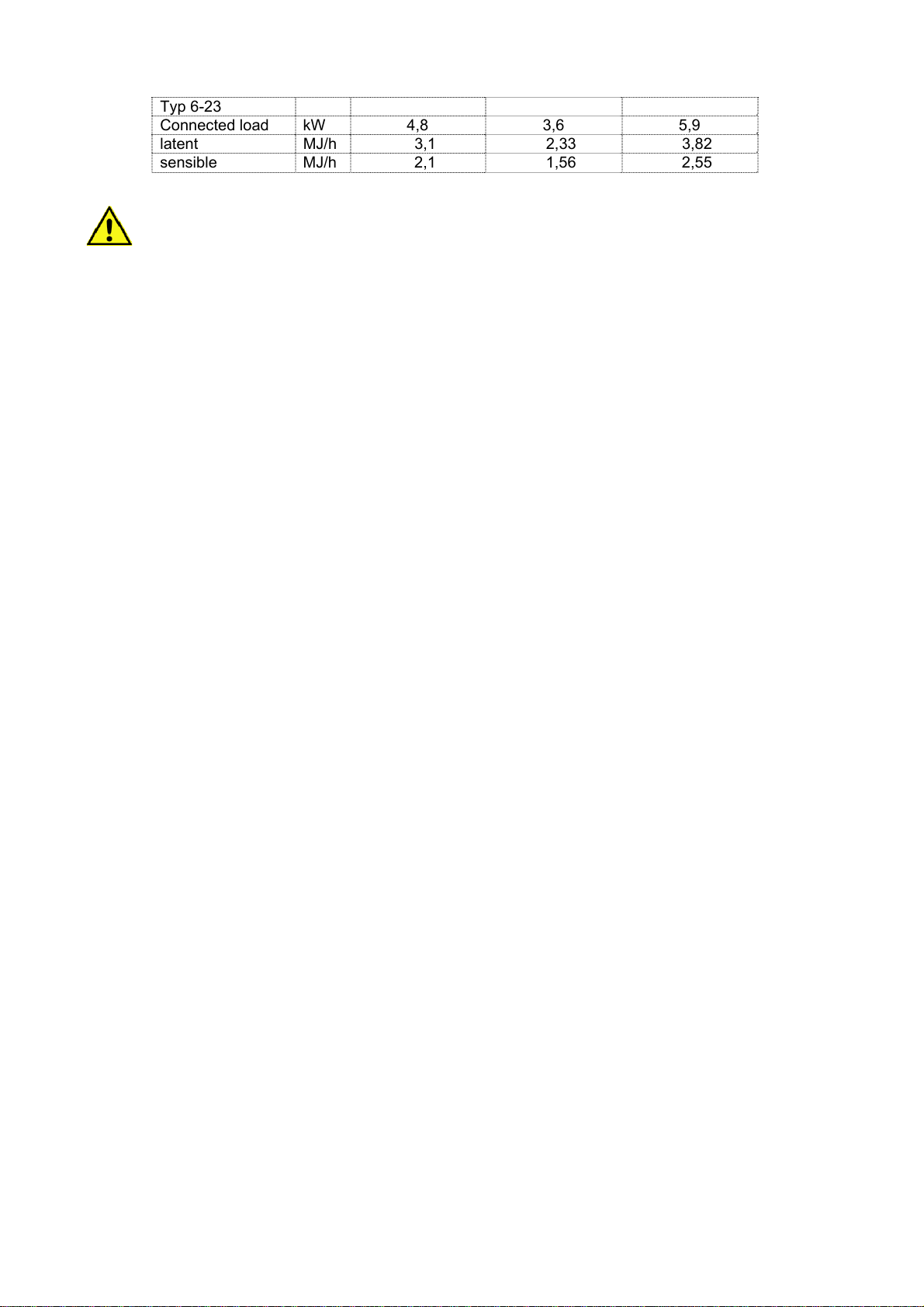

2.5 Heat emission into the area ............................................................................................... 7
3. Water supplay . ............................................................................................................................ 7
3.1 In coming water supply quality ........................................................................................... 8
3.2 Connections . ..................................................................................................................... 9

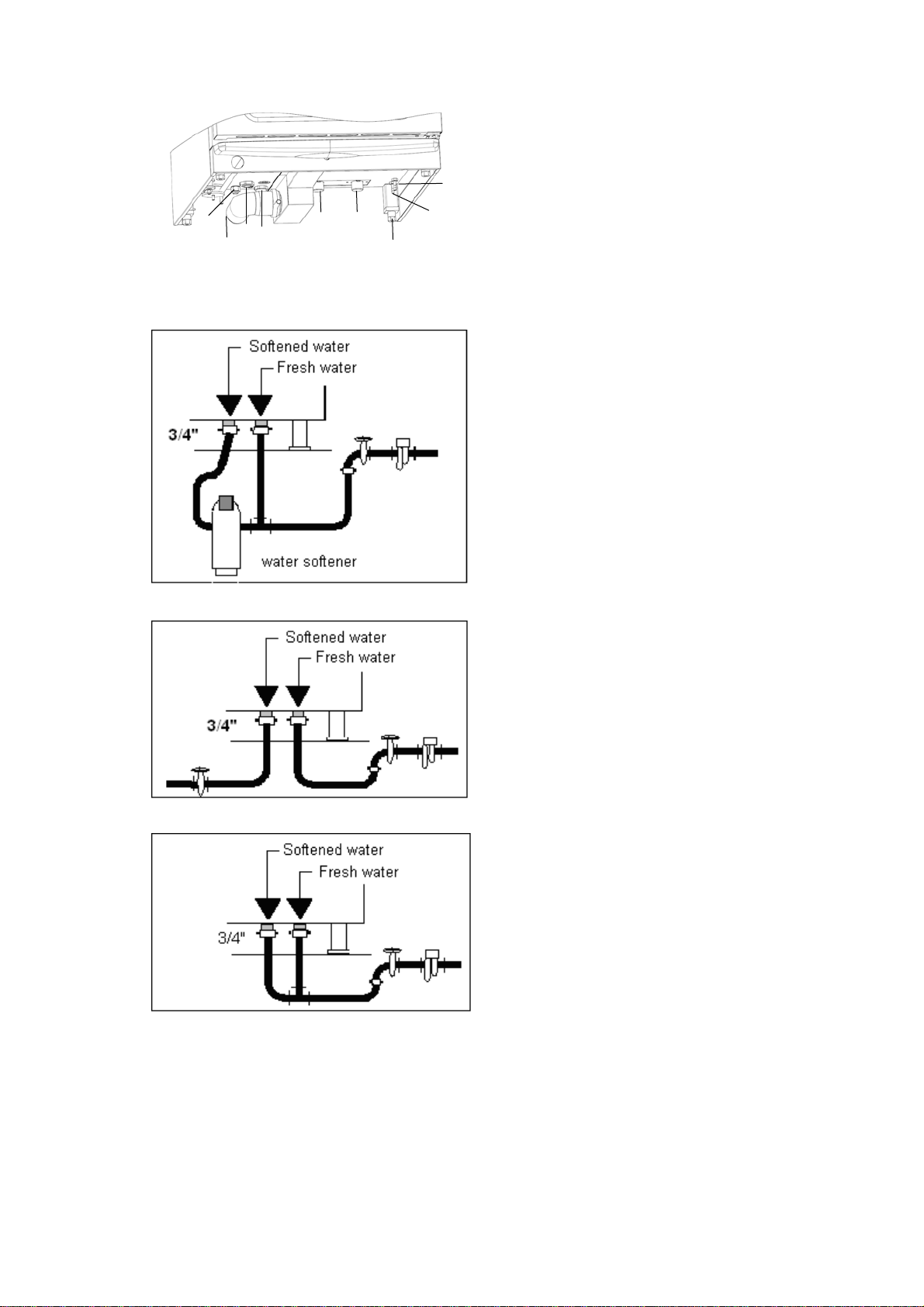

3.3 Diagrams for connection .................................................................................................... 9
3.4 Water connection for fresh water with water softener . ...................................................... 9
3.5 Water connection for Osmosis / Softened water and fresh water . .................................... 9
3.6 Water connection for Osmosis / Softened water . .............................................................. 9
3.6 Water pressure................................................................................................................. 10
3.7 Max. flow rate . ................................................................................................................. 10
4. Autoclean (Optional Equipment) ................................................................................................ 10

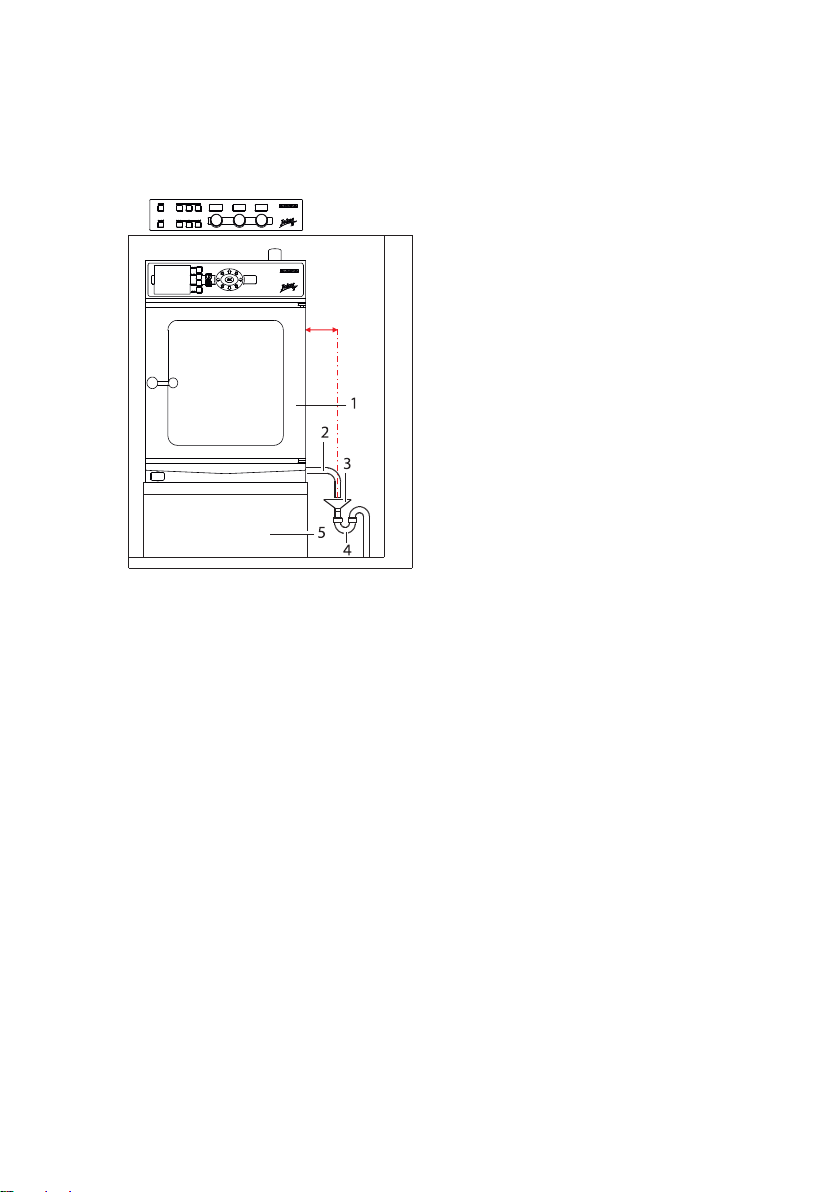

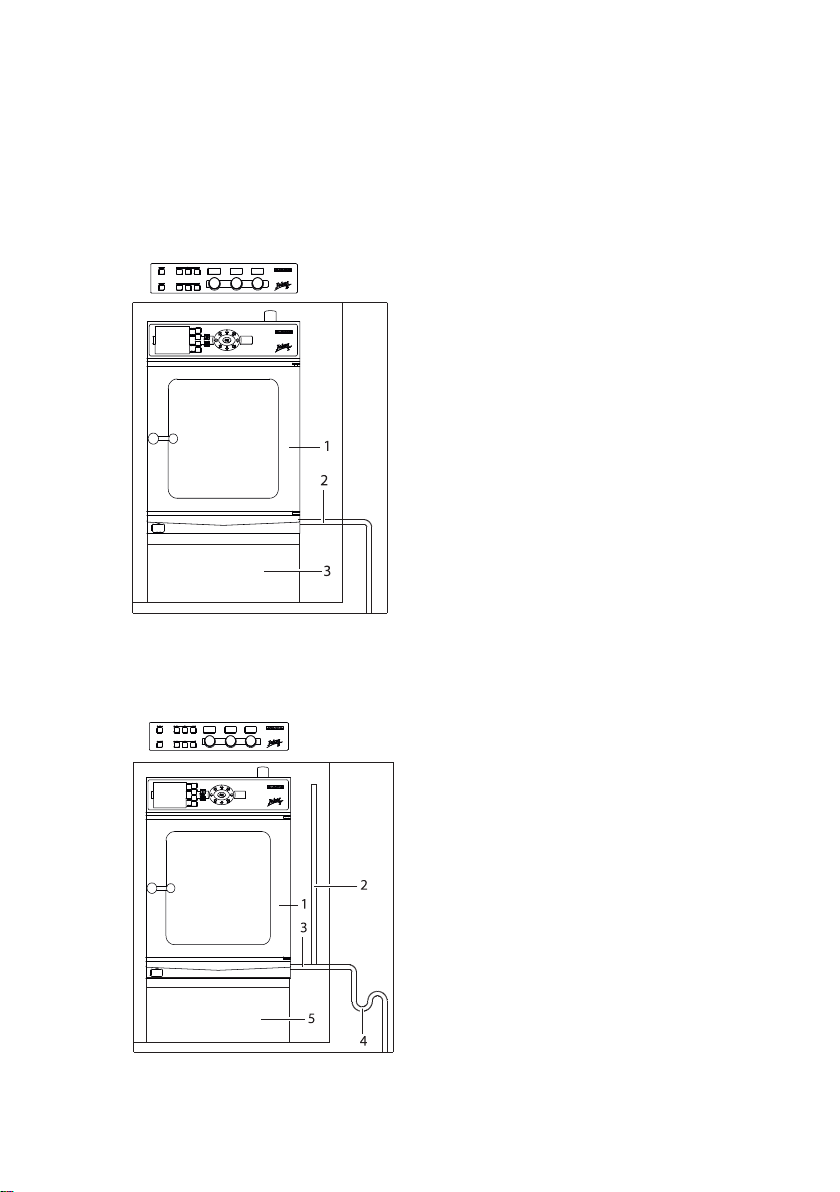

5. Drain connection . ...................................................................................................................... 11
6. Electrical connection .................................................................................................................. 12
6.1 Standard connection ........................................................................................................ 12

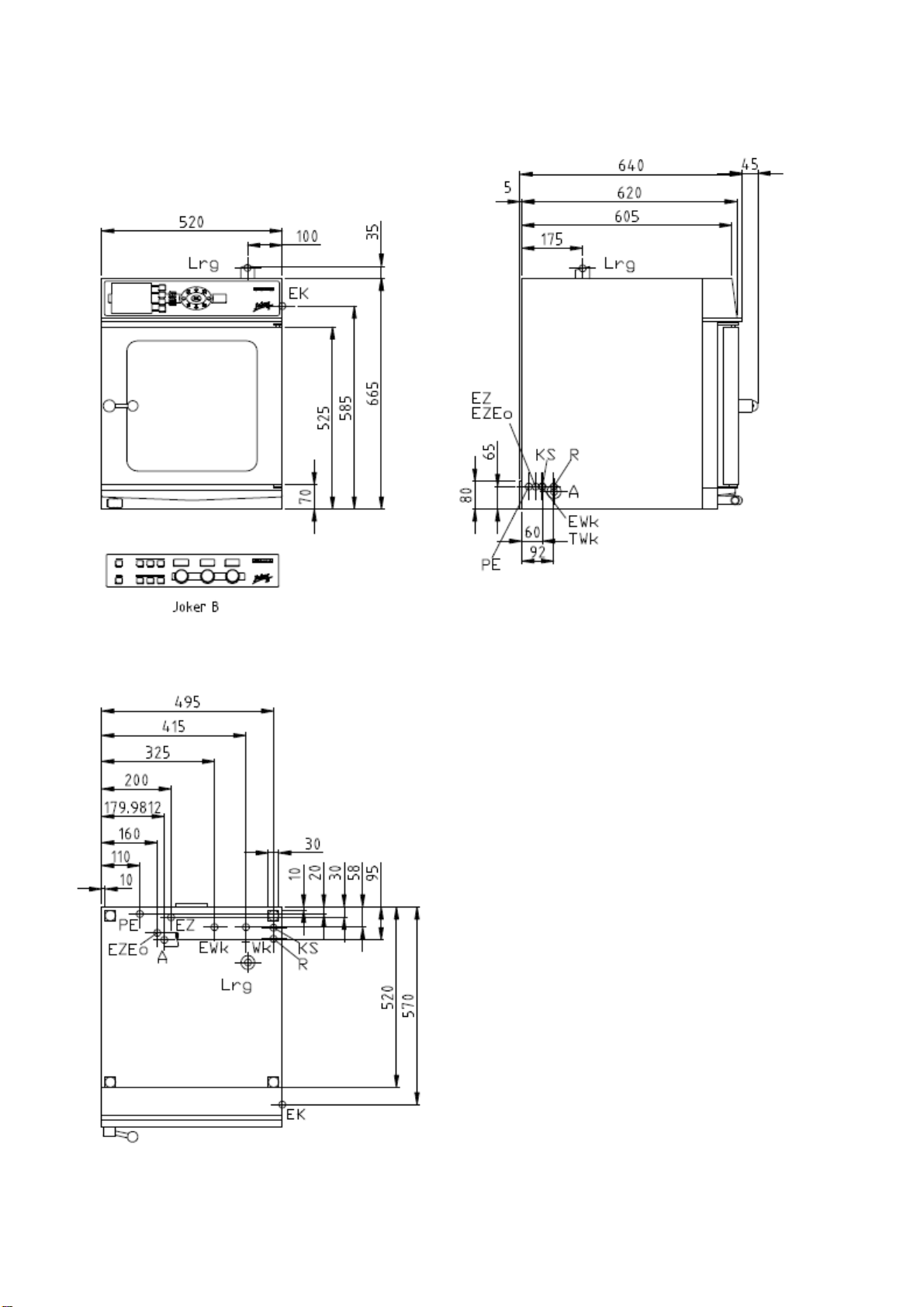

Dimensioned sketch ................................................................................................................... 13
Version 07 Article Nr. EL0510672 07/2016

3
Pictograms/symbols used
Danger! Warning! Caution
Indicates a situation presenting an
immediate danger, which, if
Indicates a potentially dangerous
situation, which, if
Indicates a potentially dangerous
situation, which, if
if not avoided, will result in
serious injury or death.
not avoided, could result in
serious injury.
not avoided, could result in minor or
moderate injury.
Caustic substances
Caution: Risk of burns
Caution: Hot steam
Caution: Hot liquid
Risk of fire
Warning: Dangerous electrical voltage
Do not dispose the combi steamer with domestic waste

4
1. Safety information
- Installing the appliance incorrectly, making incorrect settings on it or modifying
it can lead to damage, injury or even death.
- Read the installation and operating instructions for the combi steamer through carefully
before starting it up.
Use for intended purpose
- The appliance shall only be used for its intended purpose, namely the professional preparation of food.
-Eloma combi steamers are designed for use in commercial environments.
Method of operation
- The combi steamer Genuis compact, Joker T enables you to prepare food goods using the best
possible cooking chamber environment.
This means the ability to adjust temperature and humidity levels exactly as required for each type of
food good.
- At the same time, the required cooking method can be selected using the Scout feature on the
operating panel.
- The cooking chamber temperature can be set as required to between 30°C and 300°C, and the
humidity level to between 0% and 100%. The large number of setting options available enables a
wide range of cooking methods to be used.
- The combi steamer is ideal for steaming, stewing, roasting, baking, grilling, gratinating, poaching,
regenerating, defrosting and much more.
-Combi-steamer Joker B works with steam, combi-steam (combining the two media hot air and
steam) or convection (hot circulating air) depending on the cooking mode selected with steam.
- The device has three rotary knobs for input of time, temperature and core temperature.
- The cooking modes are entered with the sensor touch keys.
Operation
- Keep this manual in a place where it can be accessed by all users of the appliance at any time.
The combi steamer must only be operated
-By trained staff
- For its intended purpose as outlined in the operating instructions, and whilst in perfect working
order.
- To prevent the risk of accidents or damage to the appliance, it is essential that operating staff are
given training and health and safety briefings on a regular basis.
- If the machine is set up outside, it must be ensured that it is adequately protected from rain, thunder
storms and lightening. It must be set up on a solid foundation to ensure stability.
It must also be ensured that the machine is only accessible for qualified personnel.
The appliance must not be operated
- By children or persons with impaired physical, sensory or mental abilities, or by persons who do not
have the requisite experience and/or knowledge, unless they are being supervised by a person who
is responsible for their safety or are receiving instructions in how to use the appliance from this
person
-At an ambient temperature of < +4°C
- In toxic atmospheres or atmospheres where there is a risk of explosion
-Outdoors without protection against rain
- With food containing highly flammable ingredients (e.g. alcohol)
