EM ETREK 2107 User manual

2017
User manual

ELECTRIC MOTION
2
Summary
1. Manual introduction ..................................................................... 4
1.1 Important message from Electric Motion................................ 4
1.2 About this manual................................................................... 4
2. Safety instructions ......................................................................... 6
2.1 Regulatory use ........................................................................ 6
2.2 Operating information ............................................................ 6
2.3 Protective clothing .................................................................. 7
2.4 Environment............................................................................ 7
2.5 Location of important labels ................................................... 7
2.6 Fire hazard............................................................................... 8
2.7 Fall or accident ........................................................................ 8
3. Important notes and general information ..................................... 9
3.1 Emission information .............................................................. 9
3.2 Manufacturer's warranty and legal warranty ......................... 9
3.3 Autonomy of the vehicle......................................................... 9
3.4 Transport of the vehicle ........................................................ 10
3.5 Spare parts and accessories .................................................. 10
3.6 Lifetime optimization ............................................................ 10
3.7 Power supply......................................................................... 11
3.8 External Materials, Parts and Supplies .................................. 11
3.9 Operation under extreme conditions.................................... 11
3.10 Reception of the motorcycle ............................................... 11
4. Vehicle identification ................................................................... 12
4.1 Chassis number ..................................................................... 12
4.2 Nameplate............................................................................. 12
4.3 Engine number (references).................................................. 12
4.4 Battery number (references)................................................. 12

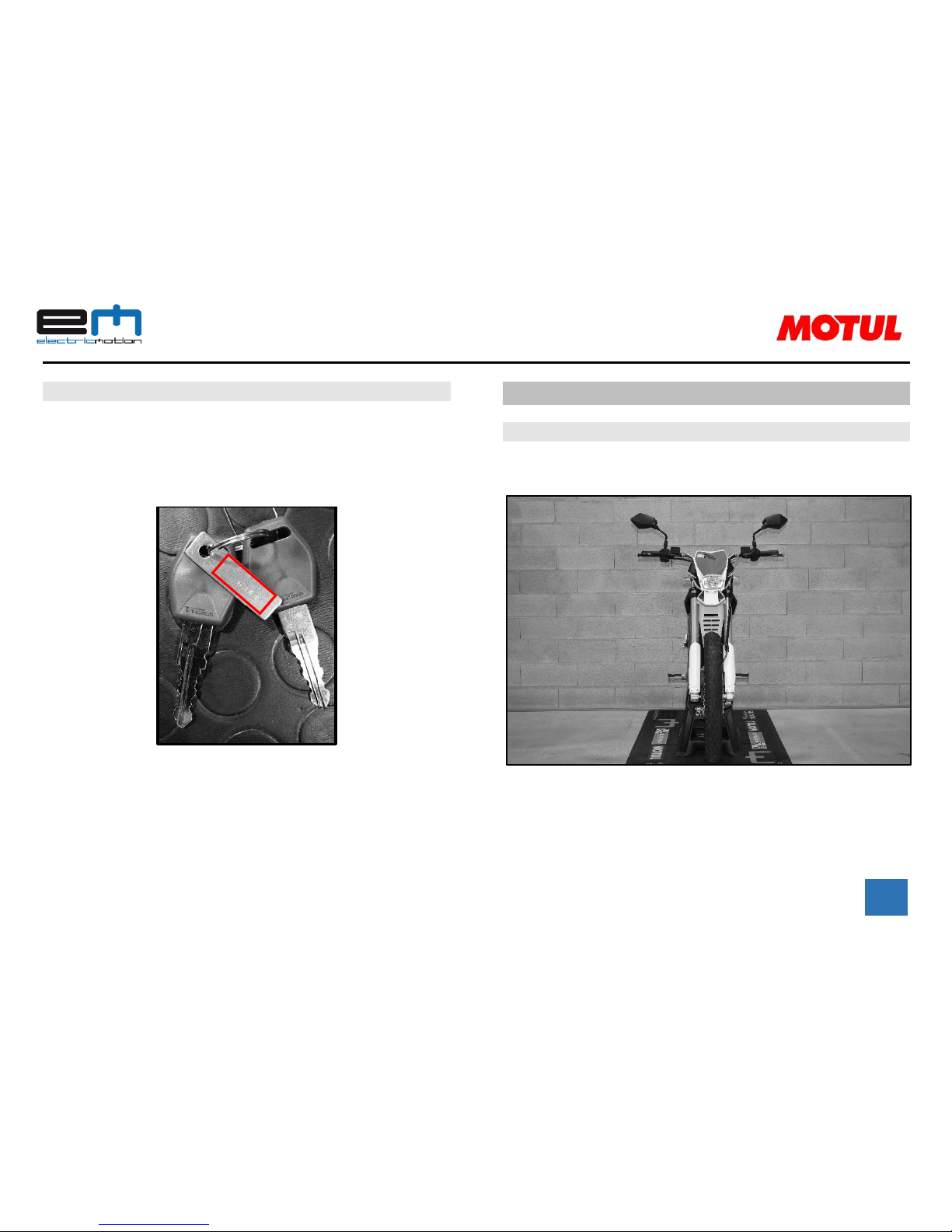

4.6 Key number ........................................................................... 13
5. Vehicle view ................................................................................. 13
5.1 Front view ............................................................................. 13

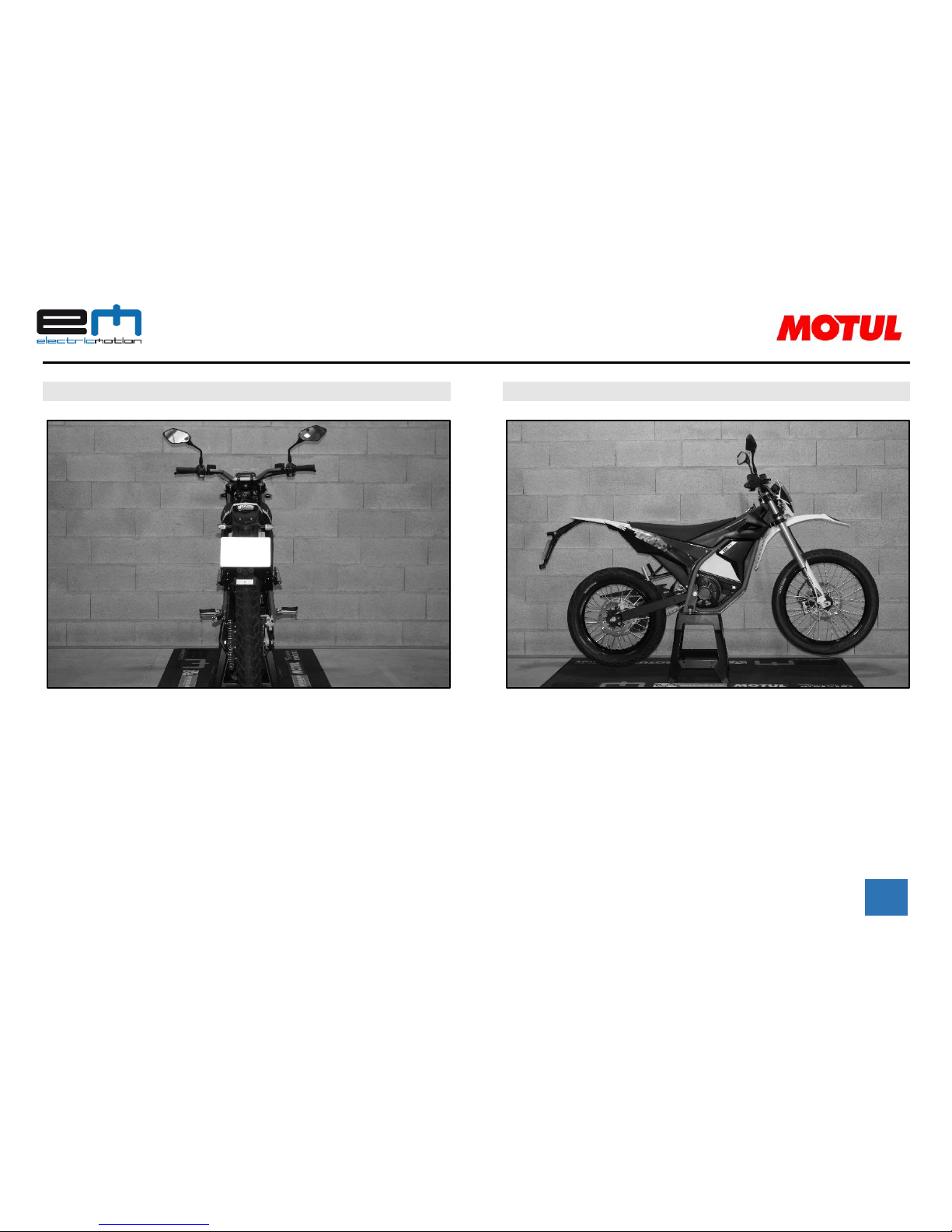

5.2 Rear view............................................................................... 14
5.3 Right view.............................................................................. 14
5.4 Left view................................................................................ 15
6. Technical data .............................................................................. 15
6.1 Engine.................................................................................... 15
6.2 Tires....................................................................................... 15
6.3 Fork ....................................................................................... 15

ELECTRIC MOTION
3
6.4 Damper ................................................................................. 15
7. Controls and Components ........................................................... 16
7.1 Front/rear braking system and adjustment .......................... 16
7.2 Throttle grip .......................................................................... 16

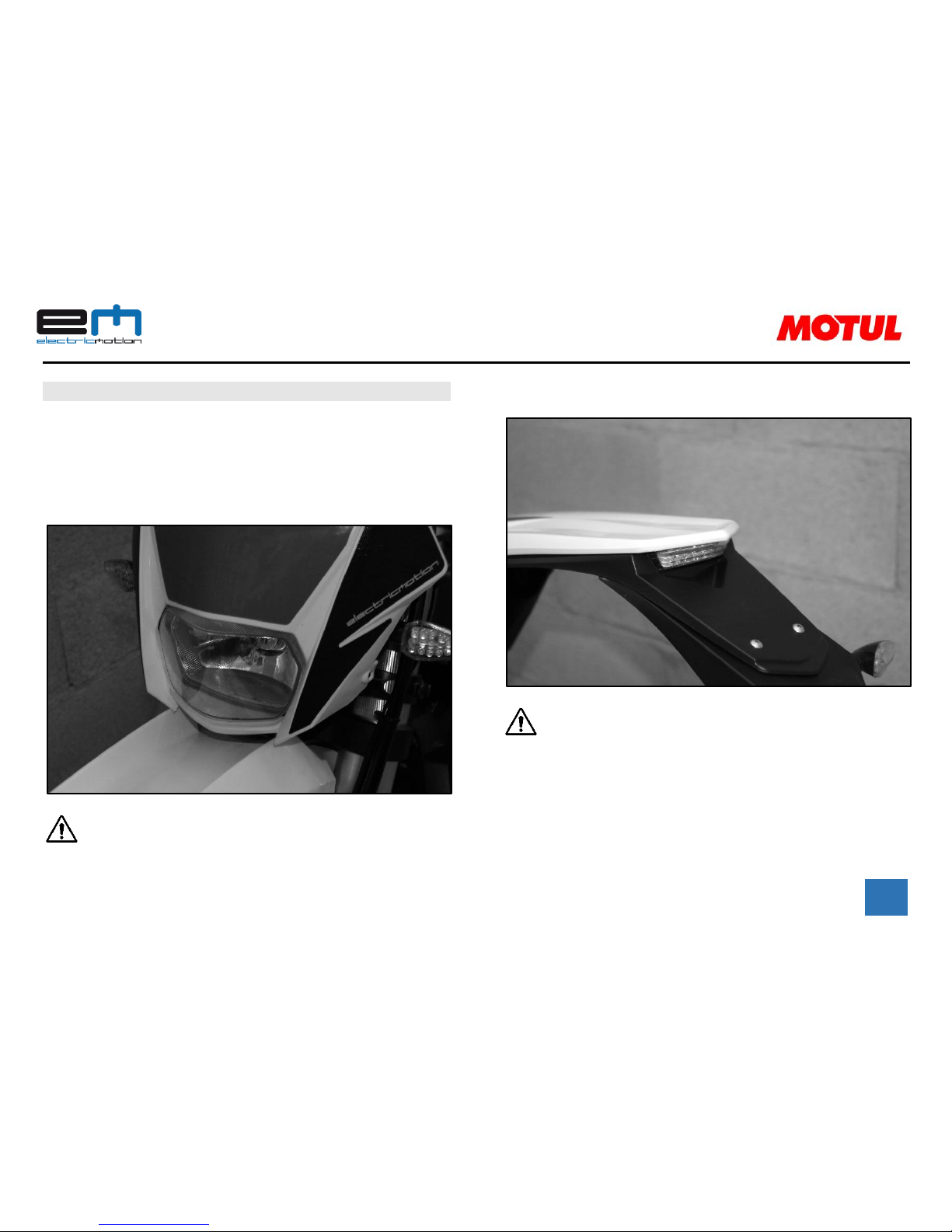

7.3 Lighting system...................................................................... 17

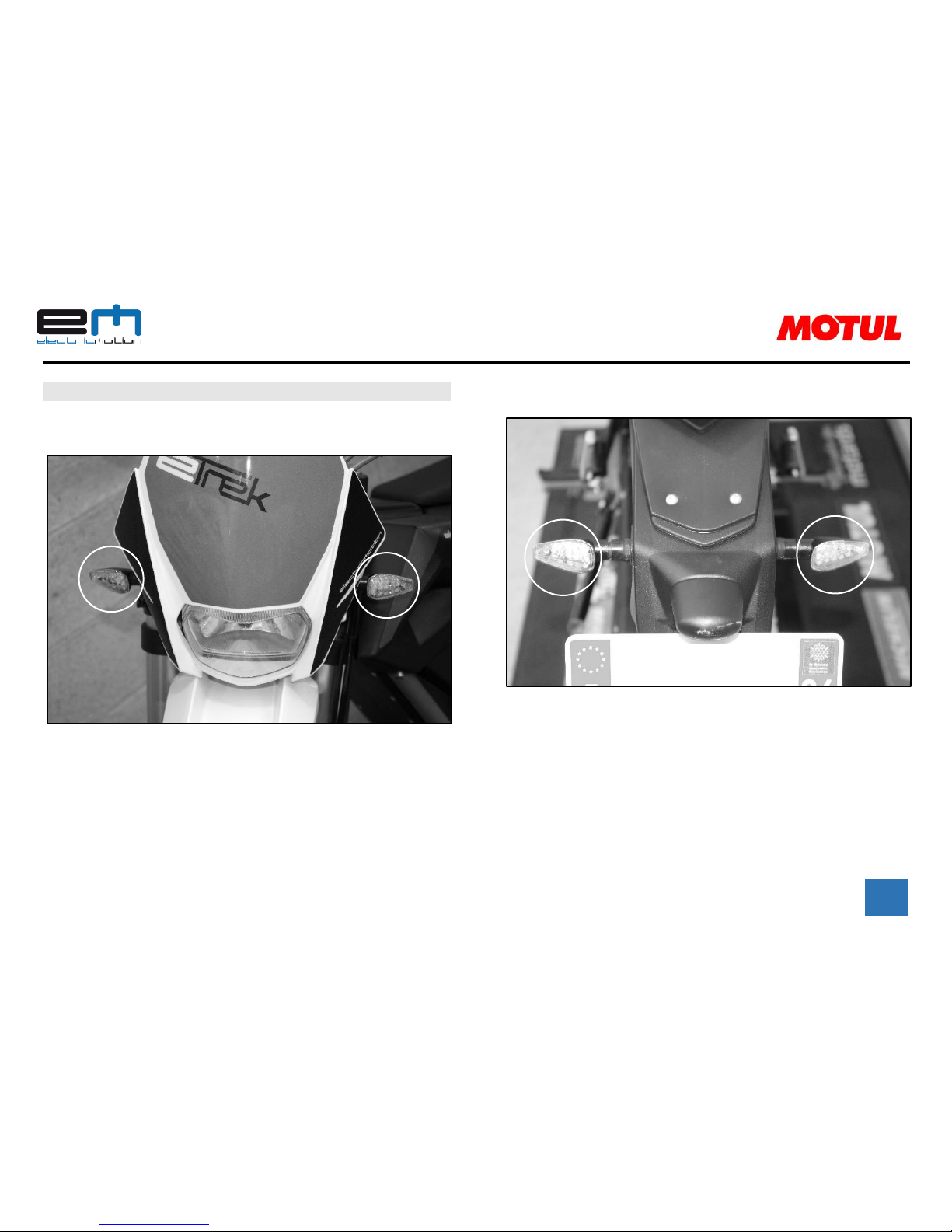

7.4 Turn signal............................................................................. 18

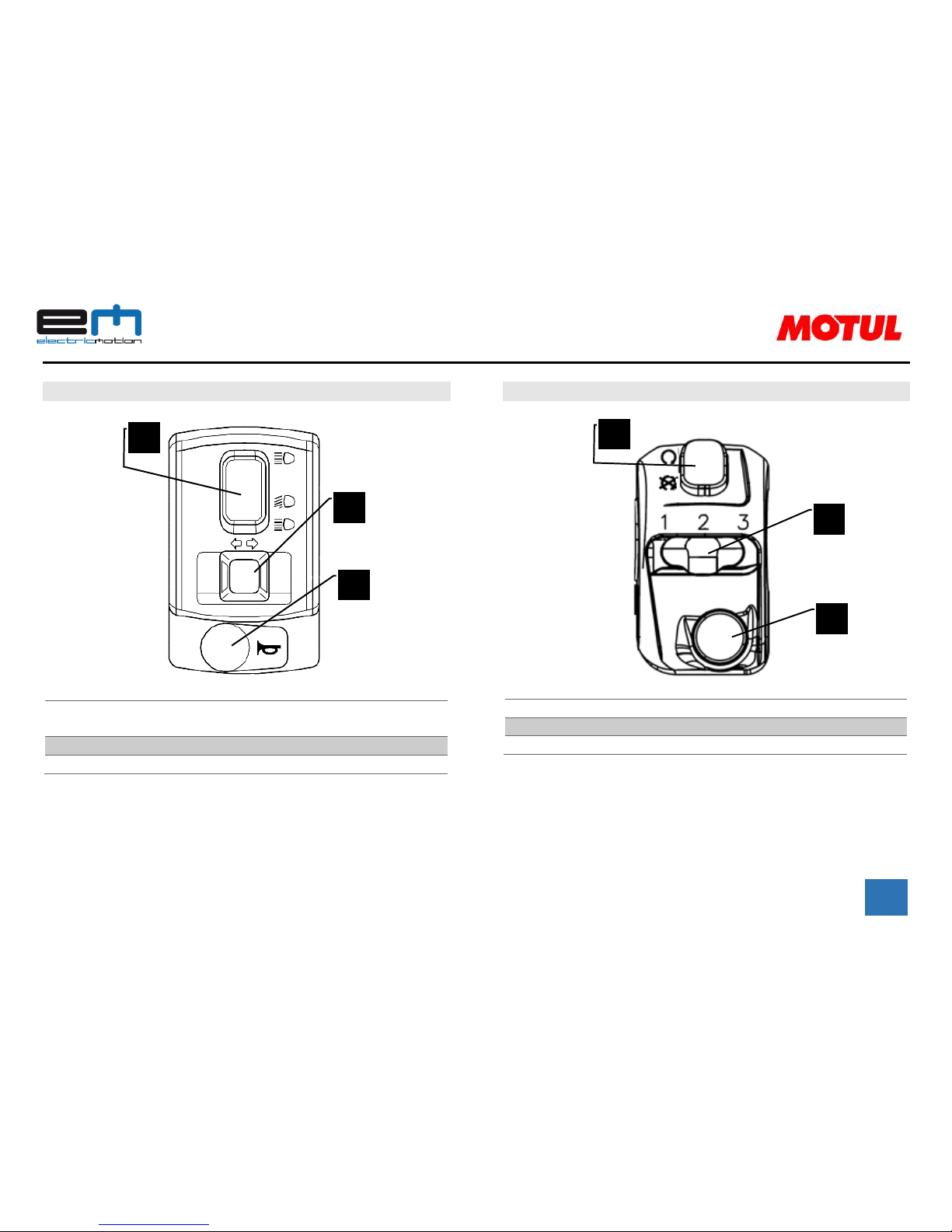

7.5 Left-hand control system ...................................................... 19
7.6 Right-hand control system .................................................... 19

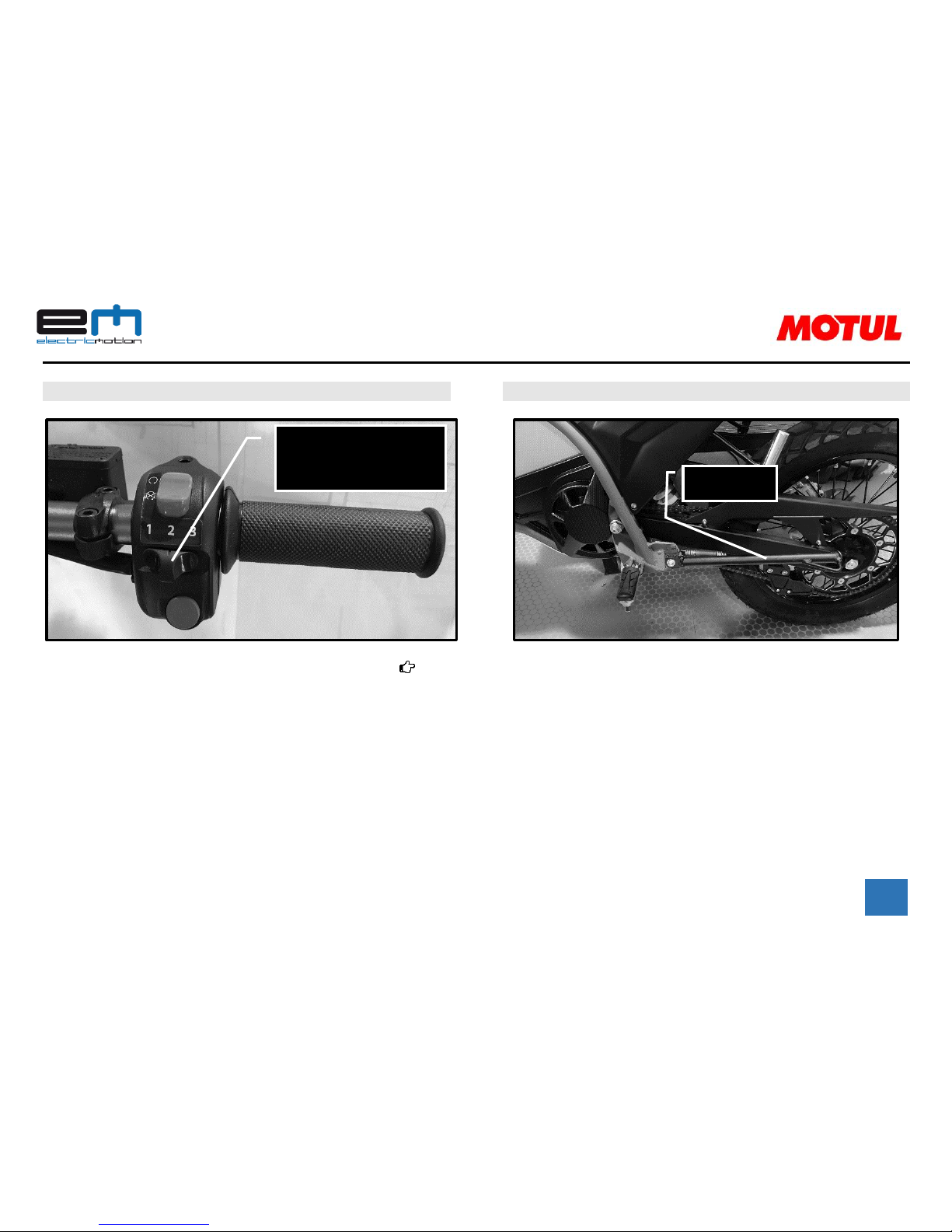

7.7 Driving Mode Selection Button ............................................. 20
7.8 Side stand.............................................................................. 20
7.9 Steering lock and unlock ....................................................... 21
7.10 Dashboard overview ........................................................... 21
7.13 Battery pack ........................................................................ 22
7.14 Battery charger ................................................................... 24
8. Commissioning............................................................................. 25
8.1 Preparation for motorcycle receipt....................................... 25
8.2 Instructions for initial commissioning ................................... 28
8.3 Battery Charging Procedure .................................................. 28
9. Vehicle use ................................................................................... 32
9.1 Control before use ................................................................ 32
9.2 Starting of the bike................................................................ 32
9.3 Motor behavior adjustment.................................................. 33
9.4 Braking .................................................................................. 34
9.5 Stop and put the stand.......................................................... 35
9.6 Cleaning the motorcycle........................................................ 35
9.7 Motorcycle storage ............................................................... 36
10. Adapting the bike to the driver .................................................. 37
18. Index.....................................................Erreur ! Signet non défini.

ELECTRIC MOTION
4
1. Manual introduction
1.1 Important message from Electric Motion
Congratulation and thank you for your purchase of our electric
motorbike Electric Motion ETrek. We welcome you in our family
devoted to electrons.
The electrical power creation process tends to become increasingly
clean and renewable, we are proud to provide you an alternative to
thermic engine allowing to contribute to solve the serious challenges
of the air pollution and the global warming that we all straight faced.
The use of this electrical motorbike requires some recommendations
and precautions that you need to know in order to enjoy all the
advantage that can offer this new clean alternative.
It is therefore imperative to read this manual which contains all the
necessary information for implementation of the motorbike.
Furthermore, this manual contains all the information to prevent
yourself and third parties of the risk and accident linked to the use of
a motorbike.
Because the Electric Motion team is in constant improvement
research, is it possible that some information contained in this
manual could be updated. In case of doubt, do not hesitate to check
our website www.electric-motion.fr and download the update. Thus,
no juridical claim can be carried out based on the information
contained in this manual.
The content of this manual will allow you to maintain your bike in
perfect working order in the most secure way possible.
1.2 About this manual
This manual only includes all the operating and maintenance
information for the ETrek model of the Electric Motion brand. Under
no circumstances should these instructions be used for the
maintenance of other models of the brand.
Keep the user manual in an easily accessible location, so that it is
readily accessible when required.
The "right" and "left" designations refer respectively to the right or
the left of the rider when he is in the driving position.
To illustrate all the maintenance operations, or to explicitly designate
elements of the motorcycle, photos were used. Since Electric Motion
is constantly looking for improvements to their product, it is possible
that certain parts of the motorcycle will change their geometry or
their colours. However, this does not affect the operational processes
explained in the manual.
The owner's manual is an important part of the vehicle. It must be
transferred from owner to owner upon resale of the vehicle.

ELECTRIC MOTION
5
In this manual, the CAUTION designation will alert you to an
object or situation that may cause injury to you or a third party or also
damage your vehicle.

ELECTRIC MOTION
6
2. Safety instructions
2.1 Regulatory use
The Electric Motion ETrek has been designed and built to withstand
mechanical stress resulting from road and off-road use.
The ETrek model is assembled in order to be homologated and thus
has all the equipment necessary for the vehicle's circulation on roads
opened to traffic. It is therefore forbidden to modify the accessories
present on the motorcycle when it is purchased. Electric Motion is not
liable for any modifications to the accessories installed on the
motorcycle.
Use only Electric Motion parts. These parts have been tested
and approved by Electric Motion. Under no circumstances should you
try to replace the motorcycle components such as the battery pack or
the engine with components of another brand, at the risk of cause
irreversible damage to your vehicle.
Electric Motion does not assume any responsibility for the adaptation
of unapproved parts.
2.2 Operating information
In order to guarantee safe operation, it is forbidden to carry out any
modification on the vehicle.
By way of example, it is thus formally prohibited to use the vehicle if
the vehicle, or one of its components, is not in a proper maintenance
state or if it is used outside the scope of the intended use. It is also
forbidden to open the motor or the battery pack.
Any modification carried out on the vehicle by the customer
does not render Electric Motion liable and voids any form of
manufacturer's warranty.
Do not use the vehicle under the influence of alcohol,
medication or drugs, or if you are not physically or mentally able to
drive.
When using the vehicle, some parts move (chain, wheels) and
become dangerous for the user. It is important to take steps to avoid
unnecessary risks.

ELECTRIC MOTION
7
2.3 Protective clothing
To contain the risks resulting from the use of the ETrek motorcycle,
on road or off road, it is necessary to be equipped with all compulsory
protective clothing.
For all trips, all the users of the motorcycle must wear the necessary
equipment (helmet, boots, gloves, trousers and jacket equipped with
protective means).
Failure to wear safety clothing or deteriorated safety clothing is
a serious safety hazard and can result in serious injury or death to the
driver and passenger of the motorcycle.
Like the driver, the passenger must also carry all the necessary
protections.
Only use protective clothing that is in perfect condition and
complies with the legal requirements of the country of use.
2.4 Environment
In order to guarantee the durability of motorcycle driving, it is
necessary to respect the rules of goodwill on the road with other
users, motorized or not. Ensure that you remain within the legal
framework of the use of a motorcycle. Be respectful to the
environment and road users, and take into account the rights of other
road users.
When the motorcycle parts are disposed of, be sure to comply with
the recycling regulations of the country of use, in particular the
battery pack.
Electrical components (motor, battery, etc.) and electrical
appliances (battery charger) should not be treated as household
waste and require strict recycling.
If you have any questions about the rules for recycling, contact
Electric Motion Customer Service.
2.5 Location of important labels
Safety instructions are present in various places on the motorcycle.
They are used to guard against certain risks associated with the
maintenance of the motorcycle and to preserve the physical integrity
of the motorcycle, its driver and its passenger.

ELECTRIC MOTION
8
1
Manufacturer label
2
Warning label
Never remove the warning labels. They allow the driver to avoid
injuring himself by exposing himself to a danger that can not be
recognized without the presence of these stickers.
2.6 Fire hazard
As long as the battery pack remains in good working condition, there
is no particular fire hazard on this vehicle. However, if the vehicle
catches fire, it is necessary to inform the fire brigade that the fire
originated from an electric vehicle with a lithium-polymer battery.
When the battery pack is damaged, it may present a fire hazard.
If the battery pack is damaged, contact Electric Motion customer
service promptly.
2.7 Fall or accident
A fall or a road accident can damage the motorcycle significantly.
After a fall, make a complete inspection of the vehicle to make sure
that the users of the motorcycle do not expose themselves to any
danger before any commissioning.
A vehicle damaged for any reason may become a danger to
users. In case of damage to the electrical components, please contact
the Electric Motion customer service promptly.
1
2

ELECTRIC MOTION
9
3. Important notes and general information
3.1 Emission information
The development of the motorbike ETrek by Electric Motion has made
it possible to obtain a clean bike that does not emit any harmful
particles for the environment. It therefore has no exhaust or
evaporation emission.
This bike does not use gasoline, engine oil or any other liquid fuel to
operate.
3.2 Manufacturer's warranty and legal warranty
All the work prescribed in the maintenance guide must be carried out
exclusively with a professional in order to retain the warranty right.
The warranty is cancelled in the event of damage resulting from
manipulation or modification on the vehicle made by a person not
certified by Electric Motion.
For additional information on the manufacturer's warranty and how
to obtain it, contact Electric Motion customer service.
3.3 Autonomy of the vehicle
The autonomy of the ETrek model is more representative when it is
reduced to a number of kilometers travelled with a full charge of the
battery. This term is called the “range” of the motorbike.
It is then easy to understand that the range of the vehicle depends on
how to use it.
The more flexible the pilot, the greater the range of the vehicle.
There are many factors affecting the range, such as speed,
acceleration, number of regenerative braking, weather conditions,
tire pressure and the payload of the assembly moved by the
motorcycle.
For the first use of your ETrek, you are advised to remain cautious to
become fully aware of the range of your vehicle according to the
driving style you are using.
After being able to make your own idea about the potential of the
ETrek model, you can adapt your piloting according to the desired
ranges.
The range values in this manual are measured according to
different standards, which may vary depending on the country of use.
In order to improve the range of your vehicle, all these characteristics
must be taken into account:

ELECTRIC MOTION
10
Low range
Important range
High speed travel
Low speed travel
Bad road condition
Good road condition
Important elevation
Low elevation
Aggressive driving
Smooth driving
Important payload
Low payload
Cold temperature
Hot temperature
Adverse weather conditions
Good weather conditions
Under inflated tires
Properly inflated tires
Poor general maintenance of
the motorcycle
Good general maintenance of
the motorcycle
3.4 Transport of the vehicle
The transport of the motorcycle can be carried out with the help of
an approved trailer or a utility vehicle.
It is important to ensure that the motorcycle is securely fastened
before transporting it on the public road.
The use of certified straps to maintain the motorcycle is
recommended to avoid any accidents related to the loss of the vehicle
on the public road.
3.5 Spare parts and accessories
For safety reasons, we recommend that users of ETrek only use spare
parts and accessories authorized and recommended by Electric-
Motion and have them fitted by a professional.
The company Electric Motion must decline any responsibility in case
of physical deterioration because of products not approved by the
brand.
For information on spare parts and their installation, contact the
Electric Motion customer service or on our website www.electric-
motion.fr.
3.6 Lifetime optimization
In order to optimize the life of the vehicle, it is important to perform
the maintenance listed in the user manual on time and in hours.
Maintaining maintenance intervals is important to keep a vehicle in
good working condition and to avoid early wear.
On the other hand, incorrect adjustment of the chassis results in
premature wear of the vehicle.
It is important to refer to the vehicle maintenance manual.

ELECTRIC MOTION
11
3.7 Power supply
The Electric Motion ETrek is powered with a lithium-polymer battery
with a nominal voltage of 51.8V and a capacity of 52Ah.
It is possible to remove and reassemble the battery pack during
certain maintenance operations. To carry out these operations, it is
important to refer to the relevant chapter.
3.8 External Materials, Parts and Supplies
To maintain your vehicle, it is important to use parts and consumables
(lubricants and maintenance products) in accordance with the
specifications given in the user manual.
3.9 Operation under extreme conditions
The ETrek is not sensitive to water and rain. However, care must be
taken to ensure that the water level does not exceed the foot-rest.
In the event of difficulties encountered on a passage of water
point (vehicle stopped), it is necessary to turn off the motorcycle to
avoid a short circuit or a breakdown of the motorcycle.
The ETrek can be used over a wide temperature range: -15°C to 55°C.
The battery life of the Etrek model depends on the operating
temperature:
Operating
temperature
(°C)
-15
-10
0
25
40
55
Decrease in
autonomy
-30%
-25%
-15%
-0%
-3%
-4%
Use of the vehicle in extreme conditions (sand, mud) leads to
premature wear of the motorcycle's consumables (chain, brake pads,
various bearings). It is then necessary to carry out the checks and the
maintenance operations more often than prescribed in the manual of
use.
3.10 Reception of the motorcycle
When receiving the ETrek model, it is necessary to perform some
operations to make the motorcycle usable (assembly of protected
parts during transport). Please refer to the corresponding chapter (8).

ELECTRIC MOTION
12
4. Vehicle identification
4.1 Chassis number
4.2 Nameplate
4.3 Engine number (references)
4.4 Battery number (references)
1
2
3
4

ELECTRIC MOTION
13
4.6 Key number
You have two keys associated with your motorcycle and only your
own. An identification plate is attached to identify the key number
that is linked to the motorcycle number. Please keep it in case of
theft, loss or breakage in order to make a duplicate.
5. Vehicle view
5.1 Front view

ELECTRIC MOTION
14
5.2 Rear view 5.3 Right view

ELECTRIC MOTION
15
5.4 Left view
6. Technical data
6.1 Engine
Motor type
BLDC permanent magnet
motor
Nominal power
6 kW
Power peak
11 kW
Maximal torque
27 N.m
Engine max speed
4500RPM
Cooling system
Air
6.2 Tires
Front tire
90-90 R21
Rear tire
110-80 R18
6.3 Fork
Fork Ø 33mm, Adjustable trigger and compression
6.4 Damper
Damper R16V Adjustable preload

ELECTRIC MOTION
16
7. Controls and Components
7.1 Front/rear braking system and adjustment
The brake lever is located on the handlebar on the right side. A CBS-
type system is used to distribute braking between the front and rear
of the vehicle.
The front brake lever acts only on the front brake.
The rear brake lever acts on the rear brake AND the front brake.
It is best to get used to this braking system at low-speed before using
it.
Before each use, check the condition of the brake system. A
faulty braking system makes you vulnerable as well as the other road
users.
7.2 Throttle grip
The throttle grip is located to the right of the handlebars.
Before each use, check the correct rotation of the throttle grip
and make sure that it comes back correctly during rotation to prevent
accidents.
Throttle grip
Front brake
lever
Front & rear
brake lever

ELECTRIC MOTION
17
7.3 Lighting system
The front lighting is on the front part of the vehicle and the rear light
is on the rear part of the vehicle.
It is necessary to use these lights when the outside brightness is low.
Front :
Front lighting system may be hot during use
Rear :
Make sure that the lighting system is always in working order.
Moving without a lighting system does not allow other users to see
you and does not allow you to see other users.
It is mandatory to have a lighting system in good working order.

ELECTRIC MOTION
18
7.4 Turn signal
Front :
Rear :

ELECTRIC MOTION
19
7.5 Left-hand control system
1
Dipped-beam headlamp and headlight switch / Headlight
switch
2
Turn signal
3
Horn
7.6 Right-hand control system
1
Emergency Stop Switch
2
Driving Mode Selection Button
3
Regenerative braking button
1
2
1
3
3
2

ELECTRIC MOTION
20
7.7 Driving Mode Selection Button
The active selection mode is displayed on the speedometer ( 7.10)
7.8 Side stand
Driving Mode Selection
Button
Stand
