eMachines E 600 User manual

Printed in Canada
760-160
POWERFUL PRODUCTS FOR PROFESSIONAL CLEANING
MANUFACTURED BY ESTEAM CLEANING SYSTEMS

2
ESTEAM CLEANING SYSTEMS
E600’s
OWNER’S MANUAL
Congratulations on your selection of a new E600 soil
extractor built in Canada by “Esteam Cleaning Systems.”
Our goal has been to produce the best high performance
line of carpet cleaning equipment on the market today.
Reading your owners’ manual will help to achieve
maximum benefit from your purchase.

3
TABLE OF CONTENTS
Page No.
Introduction to the E600 4
Specifications 5
Maintenance 6
Safety Information 7
Operating Instructions 9
Trouble Shooting 11
Schematic Diagram 15
Warranty Registration 29
Warranty 30

4
INTRODUCTION
Only the highest quality components go into our equipment, to deliver you
strength and reliability in a long life, high performance machine. The
E600’s housing is made of high impact, unbreakable polyethylene. We
are so confident in the housing that we put a lifetime warranty on this unit.
The E600’s incorporate a unique 3 stage vacuum system to produce 125
inches of water lift. To compliment the vacuum lift the E600’s come
standard with a 100 PSI diaphragm demand pump. The E600 has an
optional internal heater.
The E600’s clean water solution tank and the dirty water recovery tank
both have a 6 gallon capacity. Built into the recovery the E600’s come
standard with a high water automatic shut off. You never have to fear
overfilling your recovery tank, as the vacuums will automatically stop
extracting when the tank becomes full.

5
SPECIFICATIONS
E600’s
ELECTRICAL Single Cord 115 volt AC 15. Amp
VACUUMS 3 Stage vacuum motor
PUMP 100 PSI diaphragm demand
pump
OPTIONAL HEATER Boosts water temp. to 200ºF
VACUUM LIFT 125” of water lift
SOLUTION TANK CAPACITY 6 gallons
(clean water)
RECOVERY TANK CAPACITY 6 gallons
LENGTH 20 inches
WIDTH 16 inches
HEIGHT 28 inches
WEIGHT 55 lb.

6
MAINTENANCE
DAILY:
- Clean high-level water shut off screen inside recovery tank.
- Ensure automatic shut off float ball is working properly.
- Rinse out recovery tank after use.
- Clean dirt and obstructions from the (recovery tank) drain valve rubber
gaskets to prevent premature wear.
- Rinse out pump with clean water at conclusion of workday.
- Clean poly housing with a mild soap and water.
MONTHLY:
- Clean air inlet and check exhaust port.
YEARLY:
- We recommend that your unit be inspected by a qualified service technician
once a year.
PREVENTIVE MAINTENANCE:
Never store this unit in a place where there is a possibility of the temperature
dropping below 0ºC (32ºF).

7
SAFETY INFORMATION
1. Prior to inspection or repair of this machine, disconnect all electrical cords
rendering the machine powerless. Failure to do so could result in serious or
fatal injury.
2. Inspect unit daily for worn or damaged components e.g. frayed cord, loose
plug, or a plug with missing ground pin, etc.
3. This unit should only be operated when in an upright position on a level
surface.
4. Do not operate unit unless it is properly grounded in a 3 pin grounded outlet.
Never bend or remove ground pin from plug.
5. Ensure filters and screens are free from lint or dirt.
6. Do not run unit if vacuum motors or pump are wet. Allow sufficient time for
motors to dry before plugging unit in.
7. Do not use solvent-based cleaning products in this extractor.
8. Keep air inlet and exhaust ports free from obstructions. Blocked air inlets or
exhaust ports can cause the unit to over heat.
9. Do not use solution or recovery tanks for storing hoses, cords, or accessories.
10. When using electrical equipment around water it is important to wear rubber-
soled shoes and keep machine properly grounded at all times. Failure to do so
could result in a fatal electric shock.

8

9
OPERATING INSTRUCTIONS
1. Premix cleaning solution with hot water in a 20 litre pail. Pour mixed solution in
solution tank of unit.
NOTE: Do not mix more solution than you will need for the job.
2. Connect vacuum and solution hoses to unit.
3. Insert plug into 3 pin grounded outlet. Try to use an outlet in a hallway or
adjoining room in order to keep electrical cord out of your way.
4. We recommend the use of a liquid defoamer, to prevent the machine from
prematurely shutting off due to excess foam in the recovery tank. Turn on
vacuums and pour approximately ¼ cup of Esteam Liquid Defoamer into the
end of the vacuum hose.
5. Connect vacuum and solution hoses to carpet cleaning wand.
6. Proceed to clean carpets.
NOTE: To prevent over wetting we recommend two dry passes (vacuum only)
for every one wet pass (applying solution to carpet).
7. When the recovery tank becomes full, vacuums will automatically stop
extracting. When the vacuums have stopped extracting they will make a
distinctive high-pitched noise, as all airflow will be cut off. At this time switch
unit off. Drain the recovery tank by pulling up on drain valve on front of
machine.
NOTE: Ensure that the automatic high water shut off screen inside recovery
tank is free from any obstructions. Be sure to close drain valve before
resuming cleaning.
8. To empty solution tank remove vacuum hose from wand. Turn one vacuum on
and extract extra solution from solution tank into recovery tank, then drain
recovery tank.
NOTE: Do not completely submerge end of vacuum hose into solution. Allow
some air to enter end of vacuum hose with liquid.

10
OPERATING INSTRUCTIONS (CONTINUED)
9. When the job is completed, empty and rinse out the solution and recovery
tanks. Allow vacuum to run for 3 to 5 minutes. This will eliminate all moisture
from vacuums assuring long vacuum life.
WARNING: When using electrical equipment around water, it is important to
wear rubber-soled shoes and keep machine properly grounded at all times.
Failure to do so could result in a fatal electric shock.

11
TROUBLE SHOOTING
WARNING: Prior to inspection or repair of this machine, disconnect all
electrical cords rendering the machine powerless. Failure to do so could result
in serious or fatal injury.
PROBLEM CAUSE SOLUTION
1. Entire unit will not
operate
1. Unit not plugged in
1. Connect unit to 3 pin
grounded outlet
2. Blown fuse or breaker
for plug outlet
2. Check fuse panel for
blown fuse
3. Loose wiring
3. See dealer
2. Pump will not run
1. Switch not turned on
1. Turn on switch
2. Kink in solution hose
2. Remove kink
3. Plugged jet or quick
connect
3. Remove blockage
4. Broken Switch
4. See dealer
5. Loose wiring
5. See dealer
6. Pump defective
6. See dealer
3. Vacuums will not run
1. Switch not turned on
1. Turn on switch
2. Broken switch
2. See dealer
3. Loose wiring
3. See dealer
4. Blocked Rotor
4. See dealer

12
TROUBLE SHOOTING (CONTINUED)
PROBLEM CAUSE SOLUTION
4. Pump runs but does
not pump solution
1. Out of solution
1. Fill will solution
2. Pump inlet screen
plugged
2. Clean inlet screen
3. Pump was not properly
primed
3. Prime pump using
priming hose
4. Internal or external
solution line damaged
and leaking
4. See dealer
5. Pump runs but has
loss of pressure
1. Partial kink in solution
hose
1. Remove kink
2. Jet orifice opening on
cleaning wand is too
large
2. Total jet opening for
100 PSI should be .06 or
.08
3. Internal pump
components wearing out
3. See dealer
4. NOTE: Operation of pump using wand or hand tool
with and orifice opening less than .06 will cause
pump to cavitate and could result in premature wear
of pump components.

13
TROUBLE SHOOTING (CONTINUED)
PROBLEM CAUSE SOLUTION
6. Vacuums operate but
have poor or no suction
1. Recovery tank full
1. Drain recovery tank
2. Vacuum hose plugged
2. Remove blockage
3. Wand plugged
3. Remove blockage
4. Exhaust port blocked
4. Remove blockage
5. High level shut off float
stuck in off position
5. Turn vacuum off and
tap top of float screen
cage
6. Front drain valve left
open after draining
recovery tank
6. Close recovery tank
drain valve on front of
machine
7. Vacuums prematurely
stop extracting
1. Excess foam in
recovery tank
1. Add defoamer to
recovery tank
2. Lint or dirt on high
level shut off float screen
2. Clean high level shut
off float screen
3. Defective float ball
3. Replace float screen
cage
8. Machine spits water
out of exhaust port
1. High level shut off float
not working properly
1. Check high level shut
off float cage and ball for
proper operation
2. Foam build up in
recovery tank
2. Add defoamer to
recovery tank
9. Machine blowing
excessive amounts of
water out of exhaust
ports
1. Damaged (leaking)
recovery tank fittings
1. Immediately shut unit
down. Bring to a dealer
for service

14
TROUBLE SHOOTING (CONTINUED)
PROBLEM CAUSE SOLUTION
10. Water accumulating
in bottom electrical
component area
1. Inside solution line
leaking
1. Immediately shut unit
down. Bring unit to a
dealer for service
2. Pump leaking
2. Immediately shut unit
down. Bring unit to a
dealer for service
3. Solution or recovery
tank leaking from above
3. Immediately shut unit
down. Bring unit to a
dealer for service

15

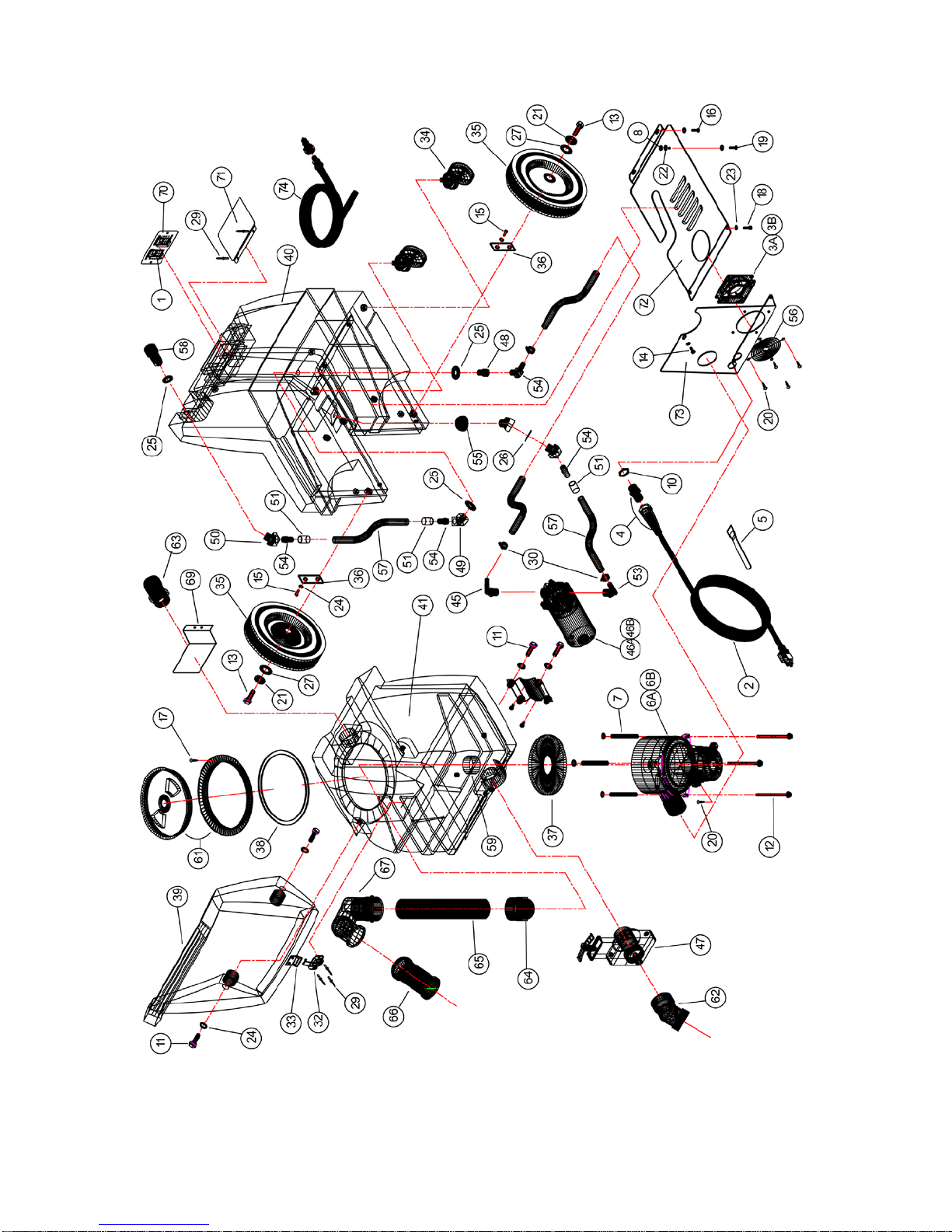

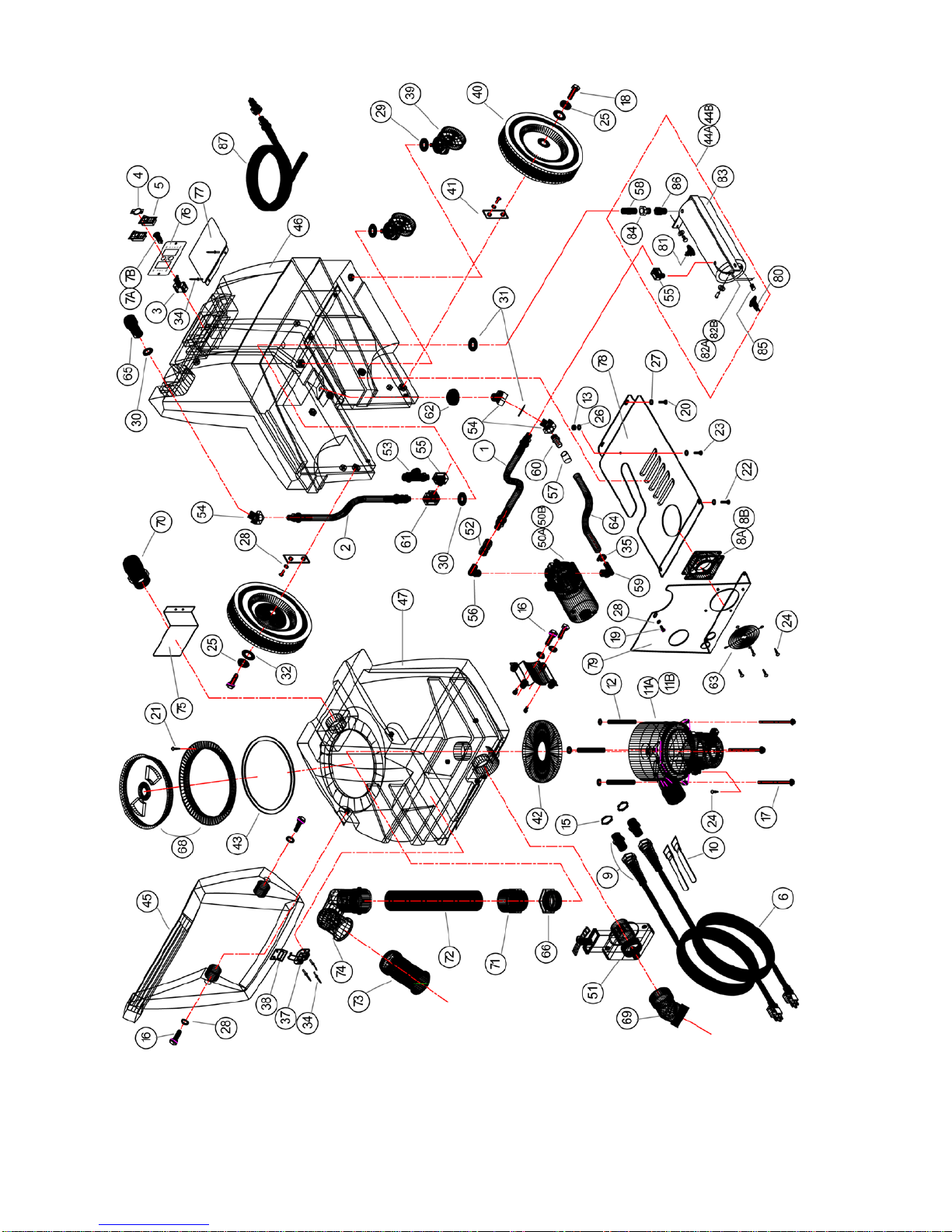

E600 & E600-20 MODELS

16
E600 & E600-20 PART LISTS
REF
PART NO.
DESCRIPTION
NOTES:
1
305-230
Switch, Rocker 20 Amp
2
315-015
Cord, 25' Black 14/3 SJTW-A
3A
333-005
Fan Muffin 4” 110v
E600
3B
333-006
Fan Muffin 4” 220v
E600-20
4
335-015
Strain Relief, 16 Gauge
5
350-005
Strap Velcro
6A
355-410
Vacuum, 3 Stg 110v
E600
6B
355-510
Vacuum, 3 Stg 220v
E600-20
7
355-219
Vac Spacer 5/16 x 3
8
400-130
Locknut, 10 x 24 Nylon SS
9
400-148
Locknut, 4 x 40 Nylon SS
Not shown
10
400-165
Locknut, 1/2"
11
405-005
Bolt, 1/4 x 3/4 GR5 Zinc
12
405-060
Bolt, 1/4 x 4 GR5 Zinc
13
405-521
Bolt Shoulder 3/8 x 2 1/4
14
405-615
CS, 1/4 x 1/2 SS (Hex HD)
15
405-620
CS, 1/4 x 3/4 SS (Hex HD)
16
410-100
MS, 8-32 x 1/4 Pan PH SS
17
410-125
SMS, 8 x 5/8 Pan Rob. S.S.
18
410-130
MS, 8-32 x 1/2 Pan PH SS
19
410-160
MS, 10-24 x 3/4 Pan PH SS
20
410-225
SMS, 10 X 1/2 Pan Rob. Zinc
21
415-050
LW, 1/2 Zinc
22
415-052
Star Washer External # 10
23
415-115
FW, 10 SS
24
415-125
FW, 1/4 SS
25
415-155
FW, 1/2 SS (Stand/Max OD)
26
415-156
FW, 1/2 SS
27
415-157
FW, 1/2 AN SS
28
415-305
FNDW, 1/4 SS
Not shown
29
420-151
Rivet, AL/AL Fullysealed #68
30
425-115
Clamp, Hose Silicone
31
435-040
Handwheel, Cross M
Not shown
32
445-012
Latch
33
445-013
Keeper
34
455-010
Caster, 2 1/2
35
455-057
Wheel, 8” Grey\Black Hub
36
465-055
BRKT, Wheel – E600
37
475-035
Gasket, Vac 5 3/4
38
475-125
Gasket 6” Access Cover-Clear
39
495-430
Handle E600 (NBLK)
40
495-435
Sol Tank E600 (NBLK)
41
495-440
Rec Tank E600 (NB)
42
498-055
Plug, 1/2 Nylon
Not shown

17
43
498-060
Plug, 3/4 Nylon
Not shown
44
498-065
Plug, 7/8 Nylon
Not shown
45
510-090
Shurflo Elbow, 90 Non-SWL (FEM. Port)
46A
511-100
Pump, 100 PSI, 112v
E600
46B
511-300
Pump, 100 PSI, 220v
E600-20
47
545-100
Dump Valve, 1 1/2"
48
555-002
ADPT, 1/4 M x 1/4 FM
49
555-182
Elbow 45, 1/4 FEM. Extruded
50
555-184
Elbow 45, Street 1/4
51
555-254
Ferrule, 3/8 Hose
52
555-324
Hose Barb 90, 3/8 Barb x 1/4 MPT
53
555-326
Hose Barb 90, 3/8 Barb x 3/8 MPT
54
555-364
Hose Barb, 3/8 Barb x 1/4 MPT
55
560-030
Screen, Acorn
56
560-325
Guard, Finger 4” Muffin Fan
57
572-041
L.P. Hose 3/8”
58
580-010
Q.C. 1/4" Fem (Closed)
59
585-025
Spin Fitting, 1 1/2
60
585-045
Nylon Spacer 1/4
Not shown
61
585-210
Clear Cover 6” C/W Ring
62
588-020
ABS Elbow 45, 1 1/2 SLP x SLP
63
590-405
PVC Hose Barb 1 1/2" x MPT
64
590-415
PVC Adpt 1 1/2", S x MPT
65
595-005
ABS Pipe, 1 1/2"
66
597-010
Float Screen Cage - Sealed
67
597-061
Adpt (RM) 30 Degree
68
703-332
Plate Decal
Not shown
69
845-020
Baffle, S/S
70
845-035
Switch Plate
71
845-055
Solution Tank Cover
72
845-060
Access Plate, Bottom
73
845-065
Access Plate, Back

18
E600-10 & E600-20-10 MODELS

19
E 600-10 & E600-20-10 PART LISTS

20
REF
PART NO.
DESCRIPTION
NOTES:
1
263-007
HP Hose 12”
2
263-008
HP Hose 18”
3
305-210
Toggle Switch
4
305-225
Switch Plate ON/OFF
5
305-230
Switch, Rocker 20 Amp
6
315-015
Cord, 25' Black 14/3 SJTW-A
7A
320-110
Lamp, Panel 110v
E600-10
7B
320-900
Lamp, Panel 220v
E600-20-10
8A
333-005
Fan Muffin 4” 110v
E600-10
8B
333-006
Fan Muffin 4” 220v
E600-20-10
9
335-015
Strain Relief, 16 Gauge
10
350-005
Strap Velcro
11A
355-410
Vacuum, 3 Stg 110v
E600-10
11B
355-510
Vacuum, 3 Stg 220v
E600-20-10
12
355-219
Vac Spacer 5/16 x 3
13
400-130
Locknut, 10 x 24 Nylon SS
14
400-148
Locknut, 4 x 40 Nylon SS
Not shown
15
400-165
Locknut, 1/2"
16
405-005
Bolt, 1/4 x 3/4 GR5 Zinc
17
405-060
Bolt, 1/4 x 4 GR5 Zinc
18
405-521
Bolt Shoulder 3/8 x 2 1/4
19
405-615
CS, 1/4 x 1/2 SS (Hex HD)
20
410-100
MS, 8-32 x 1/4 Pan PH SS
21
410-125
SMS, 8 x 5/8 Pan Rob. S.S.
22
410-130
MS, 8-32 x 1/2 Pan PH SS
23
410-160
MS, 10-24 x 3/4 Pan PH SS
24
410-225
SMS, 10 X 1/2 Pan Rob. Zinc
25
415-050
LW, 1/2 Zinc
26
415-052
Star Washer External # 10
27
415-115
FW, 10 SS
28
415-125
FW, 1/4 SS
29
415-138
3/8 Fender Washer S.S.
30
415-155
FW, 1/2 SS (Stand/Max OD)
31
415-156
FW, 1/2 SS
32
415-157
FW, 1/2 AN SS
33
415-305
FNDW, 1/4 SS
Not shown
34
420-151
Rivet, AL/AL Fullysealed #68
35
425-115
Clamp, Hose Silicone
36
435-040
Handwheel, Cross M
Not shown
37
445-012
Latch
38
445-013
Keeper
39
455-010
Caster, 2 1/2
40
455-057
Wheel, 8” Grey\Black Hub
41
465-055
BRKT, Wheel – E600
42
475-035
Gasket, Vac 5 3/4
43
475-125
Gasket 6” Access Cover-Clear
