Emaldo Power Core User Manual
Copyright©EMALDO
Contents
FULL INSTALLATION MANUAL ................................................................................................................................................. 1
EMALDO POWER CORE .............................................................................................................................................. 1
CONTENTS ................................................................................................................................................................. 3
1 SAFETY ............................................................................................................................................................. 1
1.1 APPLICABLE PERSONNEL ......................................................................................................................................... 1
1.2 IMPORTANT SAFETY WARNING - MANDATORY .............................................................................................................. 1
1.3 GENERAL SAFETY .................................................................................................................................................. 2
1.4 PERSONAL SAFETY ................................................................................................................................................. 3
1.5 EQUIPMENT SAFETY .................................................................................................................................................. 3
1.6 ELECTRICAL SAFETY .................................................................................................................................................. 5
1.7 BATTERY SAFETY ................................................................................................................................................... 5
1.8 HANDLING AND TRANSPORTATION REQUIREMENTS .................................................................................................... 11
1.9 INSTALLATION ENVIRONMENT REQUIREMENTS ........................................................................................................... 12
1.10 MECHANICAL REQUIREMENTS ...................................................................................................................................... 14
1.11 ADJUSTMENT AND TEST .............................................................................................................................................. 14
1.12 MAINTENANCE AND REPLACEMENT ............................................................................................................................... 14
2 PRODUCT INTRODUCTION .............................................................................................................................. 16
2.1 PRODUCT INTRODUCTION ..................................................................................................................................... 16
2.2 FEATURE ........................................................................................................................................................... 18
2.3 DIMENSIONS ...................................................................................................................................................... 19
2.4 APPEARANCE ..................................................................................................................................................... 19
2.5 BATTERY CA PACIT Y EXPA N SION ............................................................................................................................... 20
2.6 PARAMETERS ..................................................................................................................................................... 25
3 INSTALLATION ....................................................................................................................................................... 26
3.1 BASIC REQUIREMENTS .......................................................................................................................................... 26
3.2 CHOOSE POSITION ............................................................................................................................................... 26
3.3 INSTALLATION ENVIRONMENT ................................................................................................................................ 27
3.4 INSTALLATION SPACE ............................................................................................................................................ 28
3.5 CHECK THE OUTER PACKAGING ............................................................................................................................... 29
3.6 CHECK DELIVERED PARTS ....................................................................................................................................... 30
3.7 TOOL REQUIREMENTS .......................................................................................................................................... 30
3.8 LIST OF COMPONENTS .......................................................................................................................................... 30
3.9 INSTALLATION OF CABINET ..................................................................................................................................... 31
3.10 INSTALLATION OF BATTERY AND POWER MODULES ............................................................................................................ 34
3.11 INSTALLATION OF ADDITIONAL CABINET ......................................................................................................................... 35
4 ELECTRICAL CONNECTION .............................................................................................................................. 36

Emaldo Power Core User Manual
Copyright©EMALDO
4.1 WIRING FOR ENERGY STORAGE SYSTEM ................................................................................................................... 36
4.2 CONNECT ADDITIONAL CABINET ............................................................................................................................ 38
4.3 WIRING FOR PHOTOVOLTAIC ARRAY ......................................................................................................................... 41
4.4 CONNECT PRIMARY DISTRIBUTION BOX .................................................................................................................... 44
4.5 INSTALLATION OF ELECTRICITY METER ...................................................................................................................... 46
4.6 INSPECTION AFTER INSTALLATION ............................................................................................................................ 49
5 OPERATION .................................................................................................................................................... 50
5.1 POWER ON ....................................................................................................................................................... 50
5.2 POWER OFF ....................................................................................................................................................... 51
5.3 RESTART IOT ...................................................................................................................................................... 52
5.4 RESET IOT ......................................................................................................................................................... 53
5.5 ELECTRIC VEHICLE CHARGING ................................................................................................................................. 54
5.6 CONFIGURE VIA THE APP ...................................................................................................................................... 55
6 TROUBLESHOOTING ....................................................................................................................................... 55
6.1 SCREEN DISPLAY .................................................................................................................................................. 55
6.2 CODE AND INFORMATION ..................................................................................................................................... 56
7 SYSTEM MAINTENANCE ................................................................................................................................. 58
7.1 SYSTEM POWER-OFF ............................................................................................................................................ 58
7.2 ROUTINE MAINTENANCE ...................................................................................................................................... 60
8 FAQ ................................................................................................................................................................ 60
9 CERTIFICATION AND STANDARDS ................................................................................................................... 62
A WARRANTY SERVICE CONTENT ....................................................................................................................... 63

Emaldo Power Core User Manual
1
Copyright©EMALDO
1 Safety
1.1 Applicable personnel
Only applicable to professionals who are familiar with local regulations and standards and
electrical systems, have received professional training and are familiar with the relevant
knowledge of this product.
1.2 Important safety warning - mandatory
In order to make better use of the Manual, the following symbols are used to highlight relevant
important information. Please read the symbols and descriptions carefully.
Danger
Indicate a hazard with a high level of risk which, if not avoided, will result in
death or serious injury.
Warning
Indicate a hazard with a medium level of risk which, if not avoided, may result
in death or serious injury.
Caution
Indicate a hazard with a low level of risk which, if not avoided, may result in
moderate or minor injury.
Attention
Emphasize and supplement relevant contents, and possibly provide skills or
knacks about optimized use of the product and help you solve a problem or
save your time.
The energy storage system has been designed in strict accordance with safety regulations and
passed the test. Please follow the relevant safety regulations of the place where the equipment
is located during installation, operation and maintenance. Improper operation may cause
electric shock, resulting in equipment and property losses.
Symbols and definitions
Warning! Life risk
There are potential dangers after the operation of energy storage system. Please
take precautions when operating the energy storage system.
Warning! Risk of burns

Emaldo Power Core User Manual
2
Copyright©EMALDO
The energy storage system surface is hot, so it is forbidden to touch the
equipment when it is running; otherwise, it may cause burns.
Equipment components can be recycled according to local environmental
regulations.
This way up. Please always place the equipment in the direction indicated by the
arrow during transportation, installation and storage.
Please do not treat it as domestic garbage.
Please handle this product/package carefully, and don't tip it over or hang it.
Keep dry and protect from rain. Please do not place this product/package in an
excessively humid place.
CE mark.
After the energy storage system is powered off, the discharging of internal
components is delayed. Please wait until the equipment is completely discharged
according to the label time requirement.
Important
Indicate important installation, operation and maintenance information. Failure to
follow the information given here may result in the invalidation of the equipment
warranty.
1.3 General safety
Warning: Restricted use
This product is not suitable for life support equipment or medical equipment.
Caution: Equipment damage
Please use components or accessories produced or recommended by EMALDO
or its authorized institutions.
Important

Emaldo Power Core User Manual
3
Copyright©EMALDO
Do not attempt to install the equipment when there is any damage. Please refer
to the warranty information for specific return information.
1.4 Personal safety
Warning: Personal injury

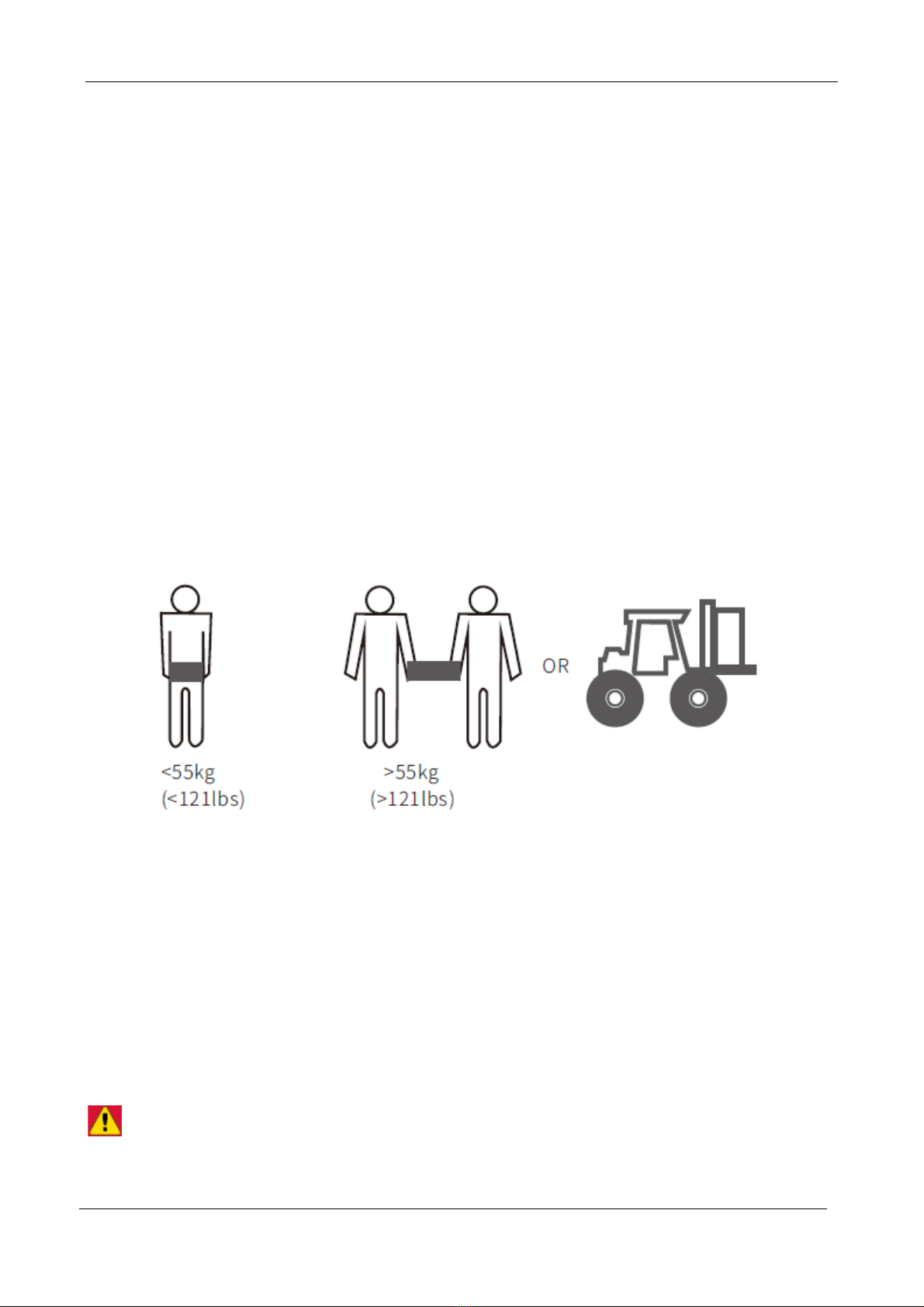

• According to the recommendations of the Occupational Safety and Health Association
(OSHA) or other local regulations, please use the safety lifting device when lifting this
equipment.
• When operating this equipment, please use standard safety equipment, such as safety
glasses, protective devices, steel-toed safety boots and helmets.
• When using electrical equipment, please follow the standard safety measures, such as
removing all jewelry, using insulation tools and wearing cotton clothes.
• Do not install or repair this equipment alone. Accompanying can help when necessary.
• Do not touch the equipment while it is running. During the operation of the energy storage
system, the temperature of some components may exceed 60°C. Please cool for at least 5
minutes after shutdown.
• Keep children, pets and other animals away from energy storage system, photovoltaic array
and power grid modules.
• If the equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
1.5 Equipment safety
Warning: Fatal voltage
• Check the system configuration and identify all possible energy sources. Before any
installation or maintenance of the equipment, make sure to disconnect all power supplies.
Use an effective voltmeter (rated voltage is at least 1000VAC and 1000VDC) to confirm the
power failure of terminals.
• Do not perform any operation other than installation instructions unless you have relevant
qualifications or follow the instructions of EMALDO technical staff.
• Solar panels can supply power with the least available ambient light. To ensure safe

Emaldo Power Core User Manual
4
Copyright©EMALDO
disconnection from the system, please install HVDC isolators, circuit breakers or accessible
fuses according to local regulations. To avoid electric shock, please turn off the main
switch of the energy storage system at least 5 minutes in advance before any installation
or maintenance.
• Please completely disconnect all power supplies before carrying out any maintenance. Do
not open the outgoing line compartment on the upper right side of the system. Do not pull
the AC/DC cable when the energy storage system is running.
Warning: Risk of burns
• During operation, the inside and outside of the cabinet will get hot. Please do not open the
cabinet or touch any internal parts. Before any maintenance operation, please allow
enough time to cool the internal components of the energy storage system.
Warning: Risk of fire
• Please do not store inflammable and explosive articles and equipment in the same room.
• Ensure that the dimensions of AC cable, DC cable and ground cable meet local
specifications. For dimensions requirements, please refer to the product brochure. Ensure
that all conductors are in good condition, and it is forbidden to use damaged or
substandard cables.
Caution: Equipment damage
• Please check thoroughly before starting the equipment to ensure that there are no tools or
equipment left.
• Ensure that the spacing requirements are strictly observed. Keep all vents open and the air
around the equipment circulating smoothly.
• Static electricity can damage sensitive electrical devices in the equipment. When touching
the equipment, please make sure to eliminate static electricity and wear appropriate
protective equipment.
• Do not open the cabinet cover of the energy storage system. In addition to operating the
terminal according to the instructions in the Manual, any other operation or replacement of
modules without EMALDO's authorization may lead to equipment damage or personal
injury, and warranty failure.

Emaldo Power Core User Manual
5
Copyright©EMALDO
• Static electricity may damage electronic components. Please take appropriate measures
during operation to prevent damage to the equipment. Failure to do so may invalidate the
warranty.
• Ensure that the output voltage of the proposed photovoltaic array is lower than the
maximum rated input voltage of the energy storage system; Otherwise, the energy storage
system may be damaged and the warranty will be invalid.
• Solar modules shall have IEC61730 A rating.
1.6 Electrical safety
Warning: Explosion, electric shock, fire disaster
• Ensure that all cables have the right size.
• Ensure that the energy storage system meets the spacing requirements.
• Ensure that the installation environment of the energy storage system is well
ventilated and there is no residue nearby.
• Smoking is prohibited near the energy storage system, and sparks or flames
are strictly prohibited.
• Use insulation tools and avoid throwing them on the energy storage system or
other electrical components.
• The battery is prohibited from charging in the frozen state.
Important
• Please use the battery type recommended by EMALDO. Please follow the manufacturer's
instructions for battery installation and maintenance.
• Properly isolate the energy storage system to resist low temperature. Discharging
batteries freeze more easily than charging batteries.
1.7 Battery safety
Important
The Company will not be responsible for abnormal equipment function or component damage,
personal safety accidents, property losses, etc. caused by the following reasons:

Emaldo Power Core User Manual
6
Copyright©EMALDO
• The battery is not charged in time due to customer's reasons, so it is stored for an
extended period, resulting in capacity loss or irreversible damage to the battery.
• Battery damage, drop, liquid leakage, etc. are caused by improper operation or failure to
connect the battery as required.
• The battery is installed on site and connected to the system, and over-discharged due to
the customer's failure to power on in time, resulting in damage.
• The user fails to set the battery operation management parameters correctly.
• The customer or the third party changes the battery usage scenario without informing the
Company. For example, the battery provided by the Company is mixed with other batteries,
including but not limited to mixing with other brands of batteries, mixing with batteries
with different rated capacities, etc.
• Direct damage is caused to the battery due to the field equipment operating environment
or external power parameters failing to meet the environmental requirements of normal
operation. For example, the actual operating temperature of the battery is too high or too
low, the power grid is unstable and power outages are frequent.
• Improper maintenance of customers causes frequent over-discharge of batteries, capacity
expansion of customers on site or long-term inability to fully charge.
• The customer fails to properly maintain the battery according to the operation manual of
the supporting equipment, including but not limited to failing to regularly check whether
the battery terminal and the cabinet are firmly connected.
• The battery is stolen.
• The battery exceeds the warranty period.
Danger
• Do not expose the battery to high temperature environment or around heating equipment,
such as sunshine, fire source, transformer and heater. Overheating of the battery may
cause fire and explosion.
• It is forbidden to disassemble, modify or destroy the battery (such as inserting foreign
objects, and immersing in water or other liquids) to avoid leakage, overheating, fire or
explosion of the battery.

Emaldo Power Core User Manual
7
Copyright©EMALDO
• The fire hazard of lithium ion/sodium ion battery energy storage system is Class A or Class
B. The following safety risks should be fully considered before battery operation:
a. Battery electrolyte is flammable, toxic and volatile.
b. The thermal runaway of the battery will produce combustible gas, as well as harmful
gases such as CO and HF.
c. There is a risk of deflagration and explosion in the accumulation of combustible gas
generated after the thermal runaway of the battery.
Personal safety
• Appropriate personal protective equipment should be worn during equipment operation. In
case of any fault that may cause personal injury or equipment damage, immediately stop
the operation, report to the person in charge, and take effective protective measures.
• Before using tools, please master the correct use of tools to avoid personal injury and
damage to equipment.
• When the equipment is running, the shell temperature is high and there is a danger of
burning. Please do not touch it.
• In order to ensure personal safety and normal use, reliable grounding should be carried out
before use.
• When the battery fails, the temperature may exceed the burn threshold of the touchable
surface, so contact should be avoided.
• Do not open or damage the battery. The released electrolyte is harmful to the skin and
eyes, and contact should be avoided.
• Do not put irrelevant items on the top of the equipment or insert them into any position of
the equipment.
• Do not place flammable items around the equipment.
• Never put the battery into fire; otherwise, it may cause explosion or endanger personal
safety.
• Do not place the battery module in water or other liquids.
• Do not short-circuit the battery terminals, which will cause combustion.

Emaldo Power Core User Manual
8
Copyright©EMALDO
• The battery may cause the danger of electric shock and large short-circuit current. When
using the battery, please pay attention to the following precautions:
a. Remove watches, rings and other metal objects.
b. Use tools with insulated handles.
c. Put on rubber gloves and boots.
d. Do not place tools or metal parts on the top of the battery.
e. Disconnect the charging power supply before connecting or disconnecting the battery
terminals.
f. Determine whether the battery is accidentally grounded. If it is accidentally grounded,
please remove the power supply from the ground.
• Do not use water or detergent to clean the electrical components inside and outside the
cabinet.
• Do not stand on, lean against or sit on the equipment.
• Do not destroy each module of the equipment.
Basic requirements
• The battery must be stored separately and in the outer packaging, so as to avoid being
mixed with other items, stored in the open air and stacked too high.
• The battery beyond the warranty period is prohibited from continuing to be used.
• Under normal circumstances, do not remove the battery packaging. If the battery needs to
be recharged, recharging is carried out by professionals as required. The battery still needs
to be put back into the package after recharging is completed.
• The battery should be carried in the direction required by the battery, and it is forbidden to
turn upside down or tilt.
• Batteries should avoid collision.
• Welding, grinding and other similar work around the battery are prohibited to avoid sparks,
arc and other fire hazards.
• Please use the battery within the operating temperature range specified in the Manual.

Emaldo Power Core User Manual
9
Copyright©EMALDO
• Do not use a damaged battery (the battery drops, or is bumped or dented in the case).
Damaged batteries may lead to the release of flammable gases. Do not store damaged
batteries near undamaged products.
• The storage location of damaged batteries should not contain flammable materials, and
non-professionals should not approach them.
• During the storage period of the damaged battery, the damaged battery should be
monitored to make sure that there are no signs such as smoke, flame, electrolyte leakage
or heating.
Battery requirements
• Before installing the battery, check whether the packaging is intact, and the battery with
damaged packaging cannot be used.
• During battery installation, pay attention to the positive and negative poles, and it is
forbidden to short-circuit the positive and negative poles of the battery.
• During installation, ensure that the terminal and cabinet seat are closely connected, and
check them regularly.
• After installing the equipment, remove the empty packaging materials in the equipment
area, such as cartons, foams, plastics and cable ties.
Danger, toxicity and abnormality emergency measures
Danger
• Danger: The battery terminal touches other metals, which may lead to heating or
electrolyte leakage. The electrolyte is flammable. If the electrolyte leaks, the battery should
be removed immediately.
• Toxicity: Steam generated by battery combustion may irritate eyes, skin and throat.
• In case of electrolyte leakage or abnormal smell, contact with leaked liquid or gas should
be avoided. Non-professionals should not approach. Contact professionals immediately.
Professionals should wear goggles, rubber gloves, gas masks, protective clothing, etc. to
prevent the harm caused by electrolyte overflow.
• Electrolyte is corrosive, and contact may cause skin irritation and chemical burns. In case of
contact with battery electrolyte, the following measures need to be taken.

Emaldo Power Core User Manual
10
Copyright©EMALDO
a. Inhalation: Evacuate the contaminated area, inhale fresh air and seek medical help
immediately.
b. Eye contact: Rinse eyes with plenty of clear water for at least 15 minutes immediately,
do not rub, and seek medical help immediately.
c. Skin contact: Wash the contact area with plenty of water and soap and seek medical
help immediately.
d. Intake: Seek medical help immediately.
Fire emergency measures
Danger
• In case of fire, the system should be powered down under the condition of ensuring safety.
• CO2, FM-200 or ABC dry powder fire extinguishers are used to extinguish the fire.
• Firefighters need to avoid contact with high-voltage components during firefighting;
otherwise, it may lead to the risk of electric shock.
• When the battery temperature is too high, it will lead to the deformation and damage of
the battery, electrolyte overflow and toxic gas leakage. Wear respiratory protection
equipment, and do not get close to it to avoid skin irritation and chemical burns.
Flood emergency measures
Danger
• Under the condition of ensuring personal safety, power down the system.
• If any part of the battery is flooded, do not touch the battery to avoid electric shock.
• Do not use flooded batteries, and contact the battery recycling company for scrapping.
Emergency measures for battery drop
Danger
• When installing the battery, if the battery drops or is strongly impacted, it may cause
damage to the inside of the equipment, so it is strictly prohibited to continue using it, or
there will be safety risks (battery leakage, electric shock injury, etc.).
• If there is obvious odor, damage, smoke and fire after the battery drops, evacuate people

Emaldo Power Core User Manual
11
Copyright©EMALDO
immediately, call the police in time, contact the professional, and the professional will use
fire-fighting facilities to extinguish the fire under the condition of ensuring safety.
• After the battery drops, if there is no obvious deformation or damage in appearance and
there is no obvious odor, smoke or fire, contact a professional to transport the battery to an
open and safe place or contact a recycling company for treatment.
Battery recycling
• Please dispose of waste batteries according to local laws and regulations, and do not treat
batteries as domestic garbage. Improper disposal of batteries may lead to environmental
pollution.
• If the battery leaks or is damaged, contact technical support or battery recycling company
for scrapping.
• When the battery is unusable beyond its service life, contact the battery recycling
company for scrapping.
• Avoid exposing waste batteries to high temperature or direct sunlight.
• Avoid exposing waste batteries to high humidity or corrosive environment.
1.8 Handling and transportation requirements
Important
• This product has passed UN38.3 (UN38.3: Section 38.3 of the sixth Revised Edition of the
Recommendations on the Transport of Dangerous Goods: Manual of Tests and Criteria)
and SN/T0370.2-2009 Rules for the Inspection of Packaging for Export Dangerous Goods -
Part 2: Performance Test and belongs to the ninth category of dangerous goods.
• Products can be sent directly to the site, and the transportation requirements such as truck
and ship must be met. The packaging boxes must be firm. During loading, unloading and
transportation, care should be taken to handle it, and moisture-proof measures should be
taken. Affected by external environment (such as temperature, transportation, and storage),
the specifications and parameters of the products shall be subject to the delivery date.
Loading and unloading requirements:
• The energy storage system should be loaded and unloaded according to the local laws,
regulations and industry standards. Rough loading and unloading will lead to short circuit

Emaldo Power Core User Manual
12
Copyright©EMALDO
or damage of the battery in the box, which may lead to battery leakage, rupture, explosion
or ignition.
Conditions for shipment:
• Before shipment, check whether the battery is intact and there is no obvious odor, smoke,
fire and other phenomena; otherwise, shipment is prohibited.
Requirements for transportation process:
• Sea transportation shall comply with IMDG CODE and the International Maritime
Dangerous Goods Code.
• Land transportation shall comply with ADR or JT T617 transportation requirements.
• Regulatory requirements of the transport regulatory authorities at the countries of
departure, transit and destination shall be met.
• The international rules for the transport of dangerous goods and the regulatory
requirements of the transport regulatory authorities of the corresponding countries shall
be observed.
During handling or transportation, it is forbidden to:
• Be directly exposed to rain and snow or fall into the water.
• Drop or have mechanical impact.
• Invert or dump.
1.9 Installation environment requirements
Important
• The operation and service life of the energy storage system are related to the operating
temperature. Please install the energy storage system at the temperature equal to or
better than the ambient temperature.
• When the ambient temperature is -20~50℃, if the system is installed in a cold
environment, the system will start the built-in thermal control system to heat the battery to
obtain better performance. The heating process will consume rechargeable power, which
means that the energy efficiency of the system will be reduced in a short time.
• If the system is stored in a cold environment (for example, 0°C) before installation, it will

Emaldo Power Core User Manual
13
Copyright©EMALDO
take some time (< 2h) for the energy storage system to be heated before charging. It is
recommended to put it in a warm place before installation to help the effective adjustment
and test.
• When the ambient temperature is over 45℃or below -10℃, the charging and discharging
power of the battery will be reduced.
• In the places with frequent natural disasters such as flood, debris flow, earthquake and
typhoon, corresponding preventive measures should be taken for installation.
• The installation location is far away from fire source and heat source, so please do not
place inflammable and explosive articles around the equipment.
• Avoid water accumulation in the installation position, keep away from water sources such
as faucet, sewer pipe and sprinkler, and avoid water seepage.
• When the equipment is running, the outlet temperature of the cabinet will be high, so
please do not install it in an easy-to-touch position.
• When the equipment is running, please do not block the vent or cooling system to prevent
high temperature from causing fire.
• Do not place the equipment in an environment of inflammable and explosive gas or
smoke, and do not carry out any operation in this environment.
• Do not install the equipment in moving scenes such as ships, trains and trucks.
• Do not use the power supply for the following purposes in the standby power scenario.
a. Medical equipment directly related to human life.
b. Control equipment such as trains and elevators, which may cause personal injury.
c. Computer systems of social and public importance.
d. The vicinity of medical equipment.
e. Equipment similar to those described above.
• The energy storage system will be corroded when installed in salt-damaged areas. Please
do not install it outdoors in salt-damaged areas. Salt-damaged area refers to the area
within 500m from the coast or affected by sea breeze. The area affected by sea breeze
varies according to meteorological conditions (such as typhoon and seasonal wind) or

Emaldo Power Core User Manual
14
Copyright©EMALDO
topography (including dams and hills).
1.10 Mechanical requirements
Drilling safety
• The following safety precautions should be considered when drilling in the wall and
ground: Goggles and protective gloves should be worn when drilling.
a. During drilling, the equipment should be shielded to prevent debris from falling into
the equipment.
b. After drilling, the debris should be cleaned in time.
Safe handling of heavy objects
• When carrying heavy objects, prepare to bear the load to avoid being crushed by heavy
objects or sprained.
• Wear protective gloves when handling equipment by hand to avoid injury.
1.11 Adjustment and test
When the equipment is powered on for the first time, the parameters need to be set correctly
by professionals. Wrong settings may cause the equipment to be inconsistent with the
certification of the country/region where it is located, which will affect the normal operation of
the equipment.
1.12 Maintenance and replacement
Danger
During the operation of the equipment, there is high voltage, which may cause electric shock,

Emaldo Power Core User Manual
15
Copyright©EMALDO
resulting in death, serious personal injury or serious property loss. Therefore, before any
maintenance work, the equipment must be powered down and operated in strict accordance
with the safety precautions listed in the Manual and other related documents.
• Maintain the equipment under the condition that you are familiar with and understand the
contents of the Manual and have suitable tools and testing devices.
• Before maintenance, first power down the equipment, and then follow the instructions of
the delayed discharging label and wait for the corresponding time to ensure that the
equipment is powered down before operating the equipment.
• During maintenance, try to avoid irrelevant personnel from entering the maintenance site.
Temporary warning signs or fences must be erected for isolation.
• If the equipment fails, please contact your dealer in time.
• The equipment can only be powered on again after the fault has been handled; otherwise,
the fault may be enlarged or the equipment may be damaged.
• Do not repair without authorization; otherwise, there will be danger of electric shock, and
the resulting failure is not within the warranty scope.
• Operation and maintenance personnel and professional technicians should be fully trained
in safe use and equipment maintenance, and should operate with adequate preventive
measures and protective equipment.
• When it is necessary to move or rewire, the power input must be cut off. After waiting for 5
minutes, the internal energy of the machine is completely discharged, and the multimeter
is used to confirm that there is no dangerous voltage in the internal parts to be repaired
before the maintenance can be started.
• Maintenance of batteries should be carried out or supervised by personnel who are
familiar with batteries and the necessary preventive measures.
• When replacing the battery, replace the same type of battery or battery pack.
• After the maintenance operation, check immediately to ensure that no tools or other parts
are left in the equipment.
• If the equipment is not used for a long time, store the battery and charge it according to
the Manual.

Emaldo Power Core User Manual
16
Copyright©EMALDO
2 Product Introduction
2.1 Product introduction

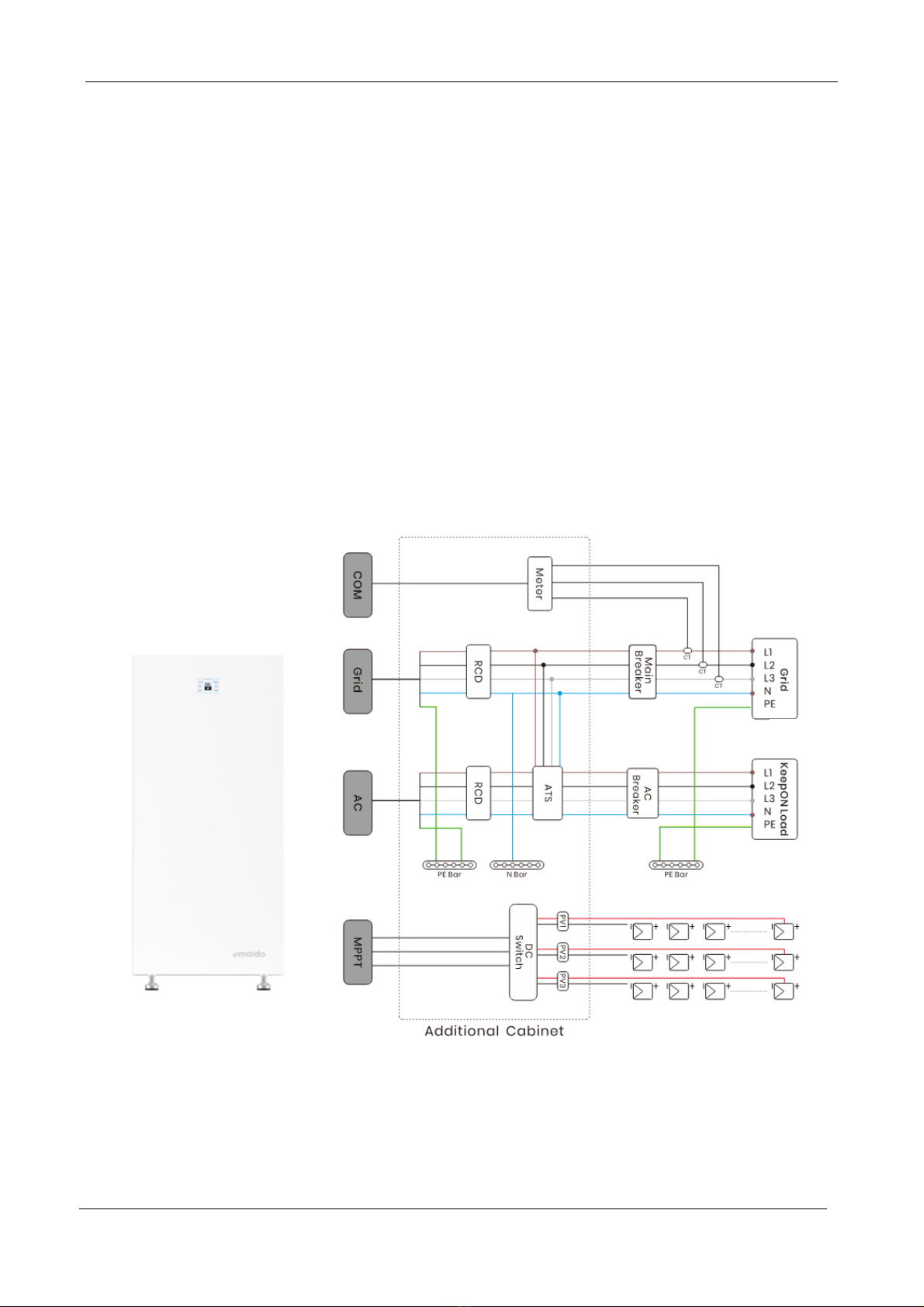

Emaldo Power Core can connect 3 photovoltaic strings and 28 battery modules and power grid,
provide new energy vehicle charging interface, and provide power supply for AC load through
AC output.
The energy generated by photovoltaic array will be transmitted to battery, power grid and/or AC
load automatically, depending on how to achieve the highest performance and the best
economic return. The goal of the system is to maximize the use of energy generated by solar
energy, while minimizing the use of power grid.
The charging interface of new energy vehicles can provide electricity for electric vehicles.
KeepON load
Emaldo Power Core can provide continuous AC power up to 10,800 W for AC load connected to
KeepON load. The system can provide up to 21,600 W AC power to start the load. A large initial
