Reference Manual
00809-0100-0775, Rev AA
March 2009
Smart Wireless THUM™ Adapter

Reference Manual
00809-0100-0775, Rev AA
March 2009
Smart Wireless THUM™ Adapter
Smart Wireless THUM Adapter
Smart Wireless THUM Adapter Hardware Revision 1
HART® Device Revision 1
Field Communicator Field Device Revision Dev v2.5 DD v4
Read this manual before working with the product. For personal and system safety, and for
optimum product performance, make sure to thoroughly understand the contents before
installing, using, or maintaining this product.
The United States has two toll-free assistance numbers and one international number.
Customer Central
1-800-999-9307 (7:00 a.m. to 7:00 P.M. CST)
National Response Center
1-800-654-7768 (24 hours a day)
Equipment service needs
International
1-[phone]
NOTICE
CAUTION
The products described in this document are NOT designed for nuclear-qualified
applications.
Using non-nuclear qualified products in applications that require nuclear-qualified hardware
or products may cause inaccurate readings.
For information on Rosemount nuclear-qualified products, contact a Emerson Process
Management Sales Representative.
The Smart Wireless THUM Adapter may be protected by one or more U.S. Patents pending. Other
foreign patents pending.

Reference Manual
00809-0100-0775, Rev AA
March 2009 Smart Wireless THUM Adapter
Explosions could result in death or serious injury:
Installation of this transmitter in an explosive environment must be in accordance
with the appropriate local, national, and international standards, codes, and
practices. Please review the approvals section of the THUM reference manual for any
restrictions associated with a safe installation.
• Before connecting a Field Communicator in an explosive atmosphere, ensure the
instruments are installed in accordance with intrinsically safe or non-incendive
field wiring practices.
Process leaks may cause harm or result in death.
• Install and tighten process connectors before applying pressure.
Electrical shock can result in death or serious injury.
• Avoid contact with the leads and terminals. High voltage that may be present on
leads can cause electrical shock.
NOTICE
NOTICE
NOTICE
The THUM and all other wireless devices should be installed only after the Smart Wireless Gateway has been installed and is
functioning properly. Wireless devices should also be powered up in order of proximity from the Gateway, beginning with the
closest. This will result in a simpler and faster network installation.

Reference Manual
00809-0100-0775, Rev AA
March 2009 Smart Wireless THUM Adapter
WARNING
Failure to follow these installation guidelines could result in death or
serious injury.
•Make sure only qualified personnel perform the installation.
Explosions could result in death or serious injury.
• Before connecting a 375 Field Communicator in an explosive atmosphere, make
sure the instruments are installed in accordance with intrinsically safe or
non-incendive field wiring practices.
• Verify that the operating atmosphere of the transmitter is consistent with the
appropriate hazardous locations certifications.
Electrical shock could cause death or serious injury.
• Use extreme caution when making contact with the leads and terminals.
Section 1 Overview
Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 1-1
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 1-2
Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 1-3
Return of Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 1-4
SAFETY
MESSAGES Instructions and procedures in this section may require special precautions to
ensure the safety of the personnel performing the operations. Information that
potentially raises safety issues is indicated by a warning symbol ( ). Please
refer to the following safety messages before performing an operation
preceded by this symbol.
Warnings

Reference Manual
00809-0100-0775, Rev AA
March 2009 Smart Wireless THUM Adapter
Overview
Manual This manual is designed to assist in the installation, operation, and
maintenance of Smart Wireless THUM Adapter.
Section 1: Overview
• Manual and Transmitter Overview
• Considerations
• Return of Materials
Section 2: Configuration
• Device Sensor Configuration
• Device Network Configuration
Section 3: Mounting
• Mount the Sensor
• Sensor Assembly/Leads
• Grounding
Section 4: Commissioning
• Network Status
• Verify Operation
Section 5: Operation and Maintenance
Appendix A: Specifications and Reference Data
• Specifications
• Dimensional drawings
• Ordering Information
Appendix B: Approvals
• Product Certifications
• Installation Drawings
Features of the Smart Wireless THUM Adapter include:
• An installation-ready solution that provides a variety of mounting
options, and transmitter configurations
• Flexibility to meet your most demanding applications
• Wireless output with >99% data reliability delivers rich HART data,
protected by industry leading security
• Works with any 2 or 4 wire HART 5.0 or new Device
• Does not affect the approval of the sub-device
Transmitter

Reference Manual
00809-0100-0775, Rev AA
March 2009 Smart Wireless THUM Adapter
Considerations
General The Smart Wireless THUM Adapter is connected to a HART sub-device. With simple HART configu-
ration, the THUM transmits the HART information from the sub-device unto the WirelessHART net-
work.
The THUM can be commissioned before or after installation. It may be
useful to commission it on the bench, before installation, to ensure proper
operation and to become familiar with its functionality. When applicable, make
sure the instruments are installed in accordance with intrinsically safe or
non-incendive field wiring practices. The device will be powered whenever THUM is
connected to a powered loop.
Location
When choosing an installation location and position, take into account the
need for access to the transmitter. For best performance, the antenna should
be vertical with some space between objects in a parallel metal plane such as
a pipe or metal framework, as the pipes or framework may adversely affect
the performance of the antenna.
THUM Power Options
The THUM has two power options; variable current, and fixed current mode.
Variable Current
Variable current mode is the mode that the THUM should be in if the current on the 4-20 mA loop can
change between 4 to 20 mA. The THUM will drop 2.25 volts at 2.5 mA and 1 volt at 25 mA. The
voltage drop is linear between these two points. The THUM will operate
according to standard specifications under this mode.
Fixed Current
Fixed current mode can only be used when the current of the loop will never fall below 20 mA. The
THUM will always drop 1 volt across the loop. If the current of the loop falls below 20 mA the
THUM, and the rest of the wireless network may not function properly.
This symbol represents protective earth grounding.
Commissioning
Mechanical
Electrical

Reference Manual
00809-0100-0775, Rev AA
March 2009 Smart Wireless THUM Adapter
RETURN OF
MATERIALS
Verify that the operating atmosphere of the transmitter is consistent with the
appropriate hazardous locations certifications.
Temperature Effects
The transmitter will operate within specifications for ambient temperatures
between –40 and 185 °F (–40 and 85 °C).
To expedite the return process in North America, call the Emerson Process
Management National Response Center toll-free at 800-654-7768. This
center, available 24 hours a day, will assist you with any needed information
or materials.
The center will ask for the following information:
• Product model
• Serial numbers
• The last process material to which the product was exposed
The center will provide
• A Return Material Authorization (RMA) number
• Instructions and procedures that are necessary to return goods that
were exposed to hazardous substances
For other locations outside North America, please contact an Emerson
Process Management sales representative for further instructions.
NOTE
If the device has been exposed to a hazardous substance, a Material Safety
Data Sheet (MSDS) must be included with the returned materials. An MSDS
is required by law to be available to people exposed to specific hazardous
substances.
Environmental

Reference Manual
00809-0100-0775, Rev AA
March 2009 Smart Wireless THUM Adapter
WARNING
Failure to follow these installation guidelines could result in death or
serious injury.
•Make sure only qualified personnel perform the installation.
Explosions could result in death or serious injury.
• Before connecting a 375 Field Communicator in an explosive atmosphere, make
sure the instruments are installed in accordance with intrinsically safe or
non-incendive field wiring practices.
• Verify that the operating atmosphere of the transmitter is consistent with the
appropriate hazardous locations certifications.
Electrical shock could cause death or serious injury.
• Use extreme caution when making contact with the leads and terminals.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
conditions: This device may not cause harmful interference, this device must accept any
interference received, including interference that may cause undesired operation.
This device must be installed to ensure a minimum antenna separation distance of 20 cm
from all persons.
Section 2 Configuration
Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2-1
Device Sensor Configuration . . . . . . . . . . . . . . . ... . . . . . . page 2-2
Device Network Configuration . . . . . . . . . . . . . .. . . . . . . . page 2-2
SAFETY
MESSAGES Instructions and procedures in this section may require special precautions to
ensure the safety of the personnel performing the operations. Information that
potentially raises safety issues is indicated by a warning symbol ( ). Please
refer to the following safety messages before performing an operation
preceded by this symbol.
Warnings

Reference Manual
00809-0100-0775, Rev AA
March 2009 Smart Wireless THUM Adapter

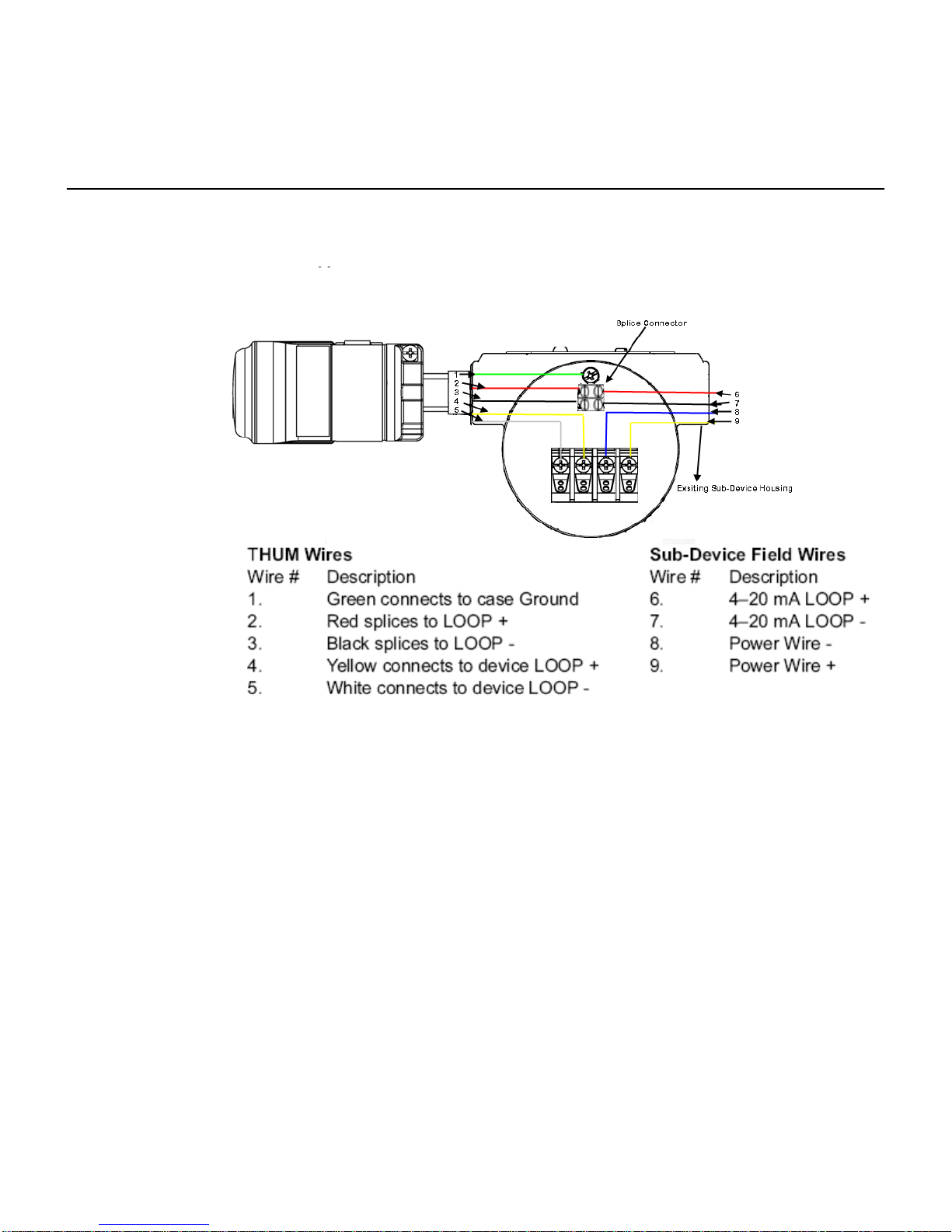

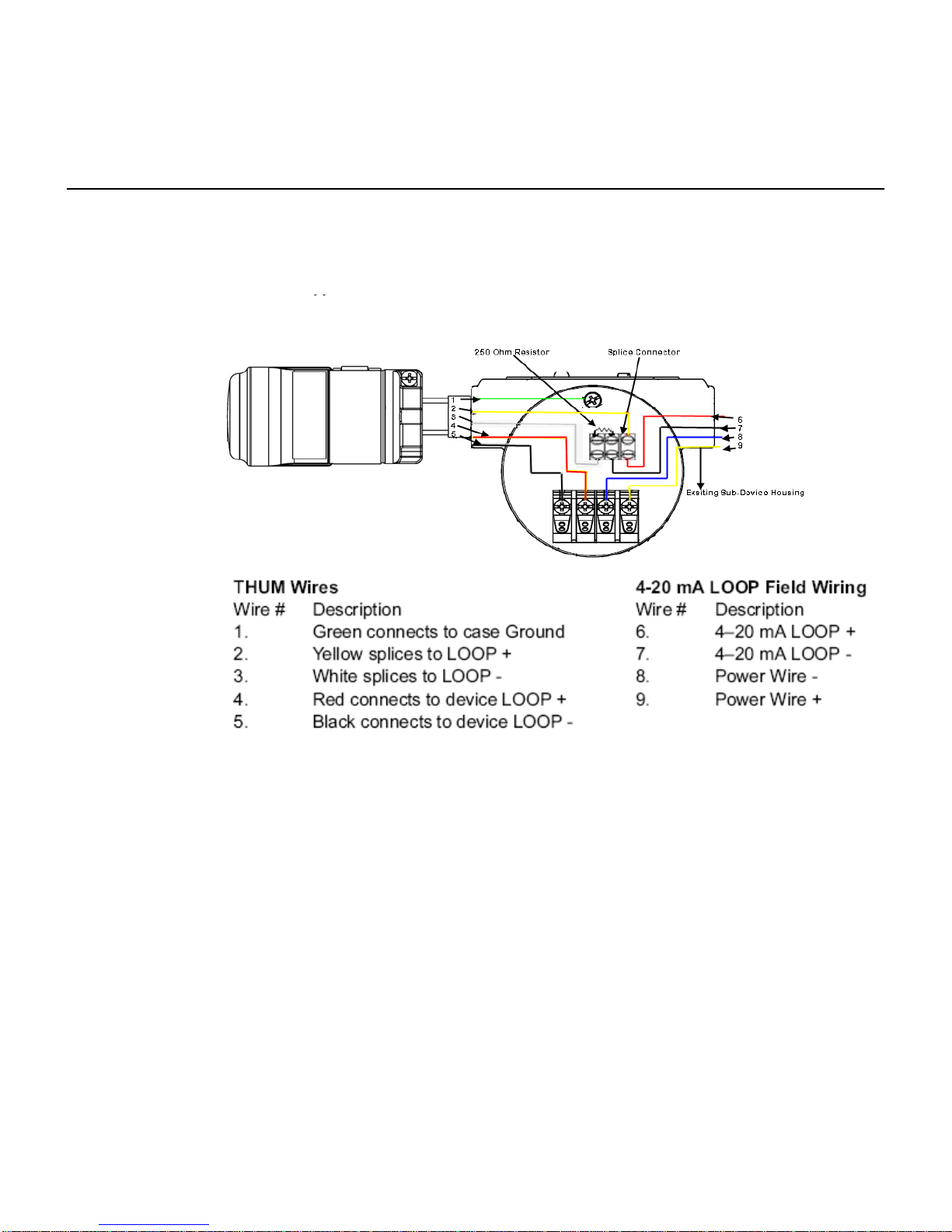

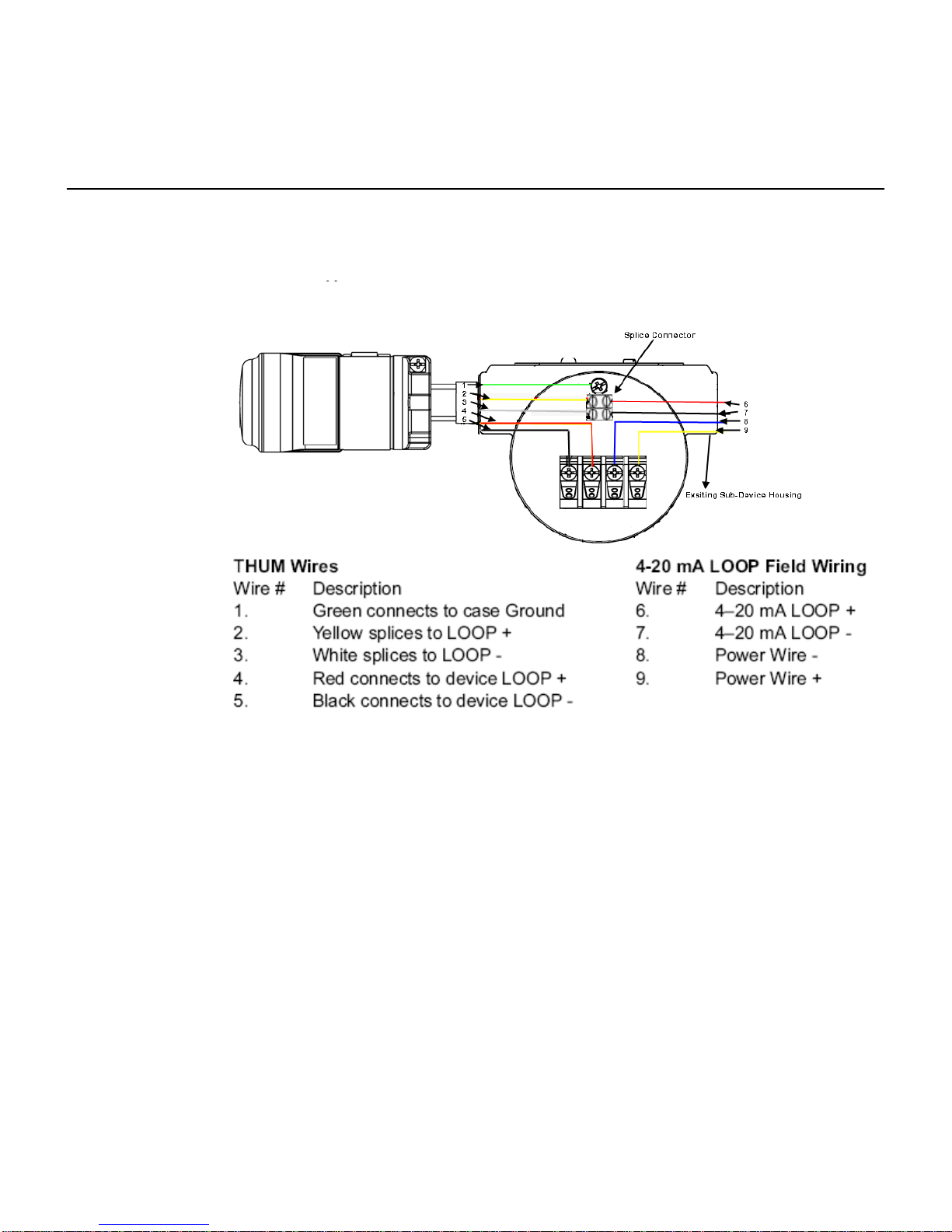

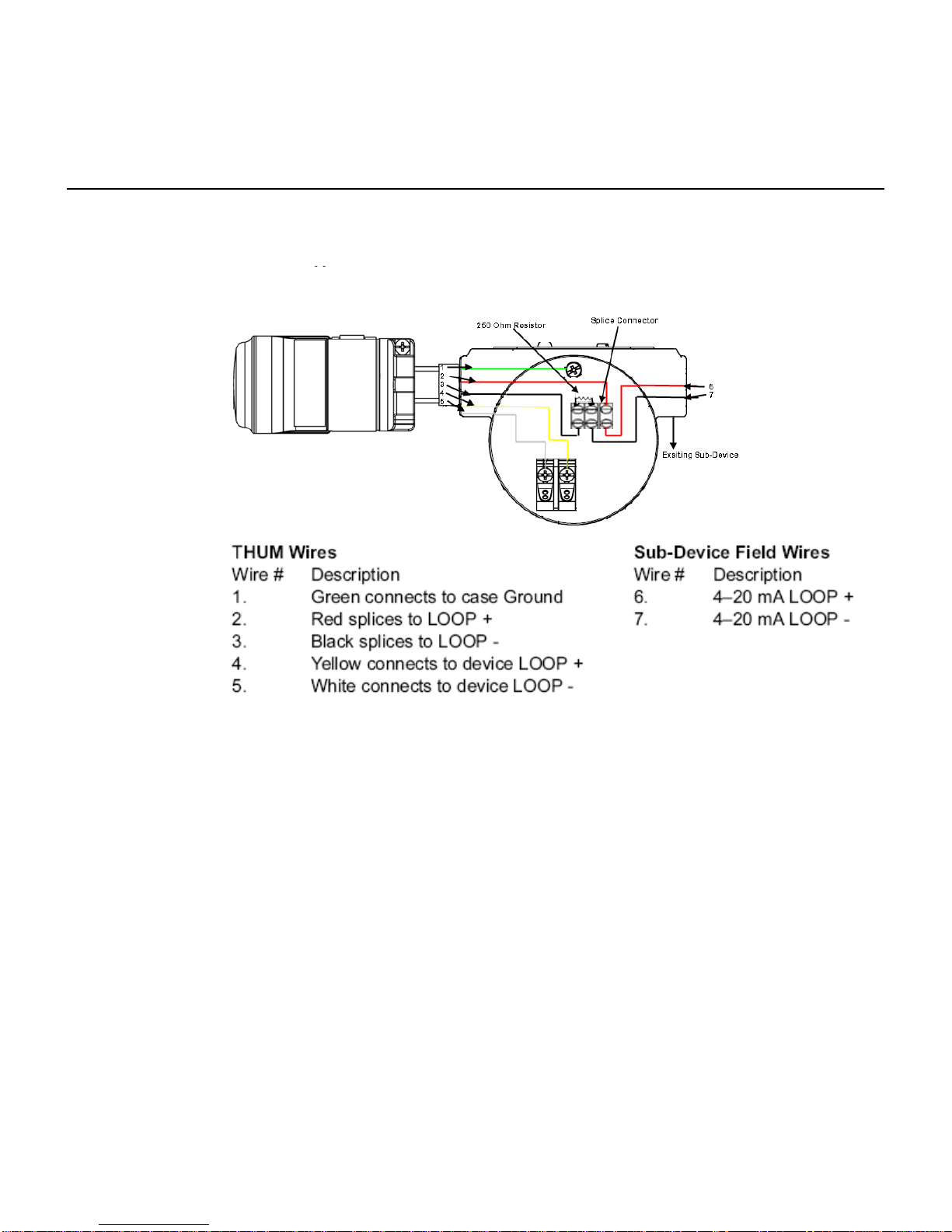

Connections The THUM is compatible with a number of sub-devices. See section 3 for details on wiring the
THUM to different types of sub-devices.
The THUM will receive any HART communication from a handheld Field Communicator, or AMS®.
In order for the THUM to receive HART communication the sub-device must be powered. When us-
ing a Field communicator polling must be turned on, the default HART address for the THUM is ad-
dress 15. When using a Field Communicator, any configuration changes must be sent to the transmit-
ter using the Send key (F2). AMS configuration changes are implemented when the Apply button is
clicked.
AMS® Wireless Configurator
AMS is capable of connecting to devices directly, using a HART modem, or with the Gateway. When
configuring on the bench with a HART modem, double click the device icon, then choose the Config-
ure/Setup tab (or right click and select Configure/Setup). Configure the device settings using the Direct
Connection menu. When configuring with the Gateway, double click the device icon then choose the
Configure/Setup tab (or right click and select Configure/Setup). Configure the device settings using the
Wireless Connection menu. To check or change sensor configuration using a 375 Field Communicator,
enter the following Fast Key Sequence: 2, 1, 3.
To communicate with the Gateway, and ultimately the Information System, the transmitter must be
configured to communicate with the wireless network. Using a Field Communicator or AMS, enter the
Network ID and Join Key so they match the Network ID and Join Key of the Gateway and the other
devices in the network. If the Network ID and Join Key are not identical, the transmitter will not com-
municate with the network. The Network ID and Join Key may be obtained from the Gateway on the
Setup>Network>Settings page on the web server. Using a 375 Field Communicator, the Network ID
can be configured by entering the Fast Key Sequence: 2, 2, 1, 1. The Join Key can also be configured
using a 375 Field Communicator with the Fast Key Sequence: 2, 2, 1, 2.
The final device network configuration piece is the Update Rate. There are three update rates for the
THUM. Each Update Rate can be configured independently of the other two. One of the Updates is
for THUM specific information such as THUM temperature and communication status. The other two
Update Rates are for sub-device information. The information that is sent for the sub-device and the
frequency that it is sent can all be changed at commissioning or at any other time. At default the Up-
date Rate for all three Updates is 1 minute. The Updates can be changed using AMS or a 375 Field
Communicator.
THUM Configuration
DEVICE NETWORK
CONFIGURATION

Reference Manual
00809-0100-0775, Rev AA
March 2009 Smart Wireless THUM Adapter
WARNING
Failure to follow these installation guidelines could result in death or
serious injury.
•Make sure only qualified personnel perform the installation.
Explosions could result in death or serious injury.
• Before connecting a 375 Field Communicator in an explosive atmosphere, make
sure the instruments are installed in accordance with intrinsically safe or
non-incendive field wiring practices.
• Verify that the operating atmosphere of the transmitter is consistent with the
appropriate hazardous locations certifications.
Electrical shock could cause death or serious injury.
• Use extreme caution when making contact with the leads and terminals.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
conditions: This device may not cause harmful interference, this device must accept any
interference received, including interference that may cause undesired operation.
This device must be installed to ensure a minimum antenna separation distance of 20 cm
from all persons.
Section 3 Mounting
Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3-1
Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3-2
Direct Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3-2
Remote Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3-4
Ground the Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . ..page 3-5
SAFETY
MESSAGES Instructions and procedures in this section may require special precautions to
ensure the safety of the personnel performing the operations. Information that
potentially raises safety issues is indicated by a warning symbol ( ). Please
refer to the following safety messages before performing an operation
preceded by this symbol.
Warnings

Reference Manual
00809-0100-0775, Rev AA
March 2009 Smart Wireless THUM Adapter
Mounting The THUM can be installed in one of two configurations: Direct Mount, where the THUM is
connected directly to the conduit entry of the sub-device, or Remote Mount, where the THUM is
mounted separate from the sub-device housing, then connected to the sub-device via conduit. Choose
the installation sequence that corresponds to the mounting configuration.
1. Install the HART® device according to standard installation practices, being sure to use
thread sealant on all connections.
2. Using the threaded conduit entry attach the THUM to the HART® device making sure to
position the THUM in a vertical position, using a 90-degree elbow, if necessary.
3. Connect the THUM to the HART® sub-device using the wiring diagrams below. See
Figures 1, 2, 3, and 4 on the following pages.
4. Close the housing cover on the HART® device, so that metal touches metal, and tighten
to safety specifications. Please note that the unit may be damaged by over tightening the
cover.
NOTE
The THUM includes two euro splice connectors. The first is a two compartment splice. The second is a
three compartment splice which contains a 250 Ohm resistor, to be used if there is not 250 Ohms of
resistance in the loop.
1. Install the HART® device according to standard installation practices, being sure to use
thread sealant on all connections.
2. Mount the THUM in a location for good wireless network communication. Make sure to mount the
THUM in a vertical position.
3. Using standard practices connect the THUM wires to the sub-device.
4. Wire the THUM to the HART® sub-device using the wiring diagrams below. See
Figures 1, 2, 3, and 4 on the following pages.
5. Close the housing cover on the HART® device, so that metal touches metal, and tighten
to safety specifications. Please note that the unit may be damaged by over tightening the
cover.
NOTE
The THUM includes two euro splice connectors. The first is a two compartment splice. The second is a
three compartment splice which contains a 250 Ohm resistor, to be used if there is not 250 Ohms of
resistance in the loop.
Direct Mount
Remount Mount

Reference Manual
00809-0100-0775, Rev AA
March 2009 Smart Wireless THUM Adapter
Wiring Figure 1. 2 Wire Sub-Device Plus THUM Wiring Diagram
NOTE:
In order for the THUM to function properly there must be 250 Ohms resistance in the
loop. If the 4–20 mA loop does not have 250 Ohms resistance, wire a 250 Ohm
resistor as shown in Figure 2.

Reference Manual
00809-0100-0775, Rev AA
March 2009 Smart Wireless THUM Adapter
Wiring Figure 2. 2 Wire Sub-Device Plus THUM Wiring Diagram with 250 Ohm Resistor
NOTE:
In order for the THUM to function properly there must be 250 Ohms resistance in the
loop. If the 4–20 mA loop does not have 250 Ohms resistance, wire a 250 Ohm
resistor as shown in Figure 2.

Reference Manual
00809-0100-0775, Rev AA
March 2009 Smart Wireless THUM Adapter
Wiring Figure 3. 4-Wire Sub-Device with Passive 4–20 mA LOOP Plus THUM Wiring Diagram
NOTE:
In order for the THUM to function properly there must be 250 Ohms resistance in the
loop. If the 4–20 mA loop does not have 250 Ohms resistance, wire a 250 Ohm
resistor as shown in Figure 4.

Reference Manual
00809-0100-0775, Rev AA
March 2009 Smart Wireless THUM Adapter
Wiring Figure 4. 4-Wire Sub-Device with Passive 4–20 mA LOOP Plus THUM Wiring Diagram with 250
Ohm resistor
NOTE:
In order for the THUM to function properly there must be 250 Ohms resistance in the
loop. If the 4–20 mA loop does not have 250 Ohms resistance, wire a 250 Ohm
resistor as shown in Figure 4.

Reference Manual
00809-0100-0775, Rev AA
March 2009 Smart Wireless THUM Adapter
Wiring Figure 5. 4-Wire Sub-Device with Active 4–20 mA LOOP Plus THUM Wiring Diagram
NOTE:
In order for the THUM to function properly there must be 250 Ohms resistance in the
loop. If the 4–20 mA loop does not have 250 Ohms resistance, wire a 250 Ohm
resistor as shown in Figure 6.

Reference Manual
00809-0100-0775, Rev AA
March 2009 Smart Wireless THUM Adapter
Wiring Figure 6. 4-Wire Sub-Device with Active 4–20 mA LOOP Plus THUM Wiring Diagram with 250
Ohm resistance
NOTE:
In order for the THUM to function properly there must be 250 Ohms resistance in the
loop. If the 4–20 mA loop does not have 250 Ohms resistance, wire a 250 Ohm
resistor as shown in Figure 6.

Reference Manual
00809-0100-0775, Rev AA
March 2009 Smart Wireless THUM Adapter
Wiring Figure 7. 4-Wire Sub-Device with no 4–20 mA LOOP Plus THUM Wiring Diagram
NOTE:
In order for the THUM to function properly there must be 250 Ohms resistance in the
loop. If the 4–20 mA loop does not have 250 Ohms resistance, wire a 250 Ohm
resistor as shown in Figure 7.

Reference Manual
00809-0100-0775, Rev AA
March 2009 Smart Wireless THUM Adapter
WARNING
Failure to follow these installation guidelines could result in death or
serious injury.
•Make sure only qualified personnel perform the installation.
Explosions could result in death or serious injury.
• Before connecting a 375 Field Communicator in an explosive atmosphere, make
sure the instruments are installed in accordance with intrinsically safe or
non-incendive field wiring practices.
• Verify that the operating atmosphere of the transmitter is consistent with the
appropriate hazardous locations certifications.
Electrical shock could cause death or serious injury.
• Use extreme caution when making contact with the leads and terminals.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
conditions: This device may not cause harmful interference, this device must accept any
interference received, including interference that may cause undesired operation.
This device must be installed to ensure a minimum antenna separation distance of 20 cm
from all persons.
Section 4 Commissioning
Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3-1
Verify Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3-2
SAFETY
MESSAGES Instructions and procedures in this section may require special precautions to
ensure the safety of the personnel performing the operations. Information that
potentially raises safety issues is indicated by a warning symbol ( ). Please
refer to the following safety messages before performing an operation
preceded by this symbol.
Warnings
