EMI AmericaSeries S1H9A User manual

S1CA/S1HA Ductless Split System Single-Zone www.enviromaster.com
1
SpecificationS and performance

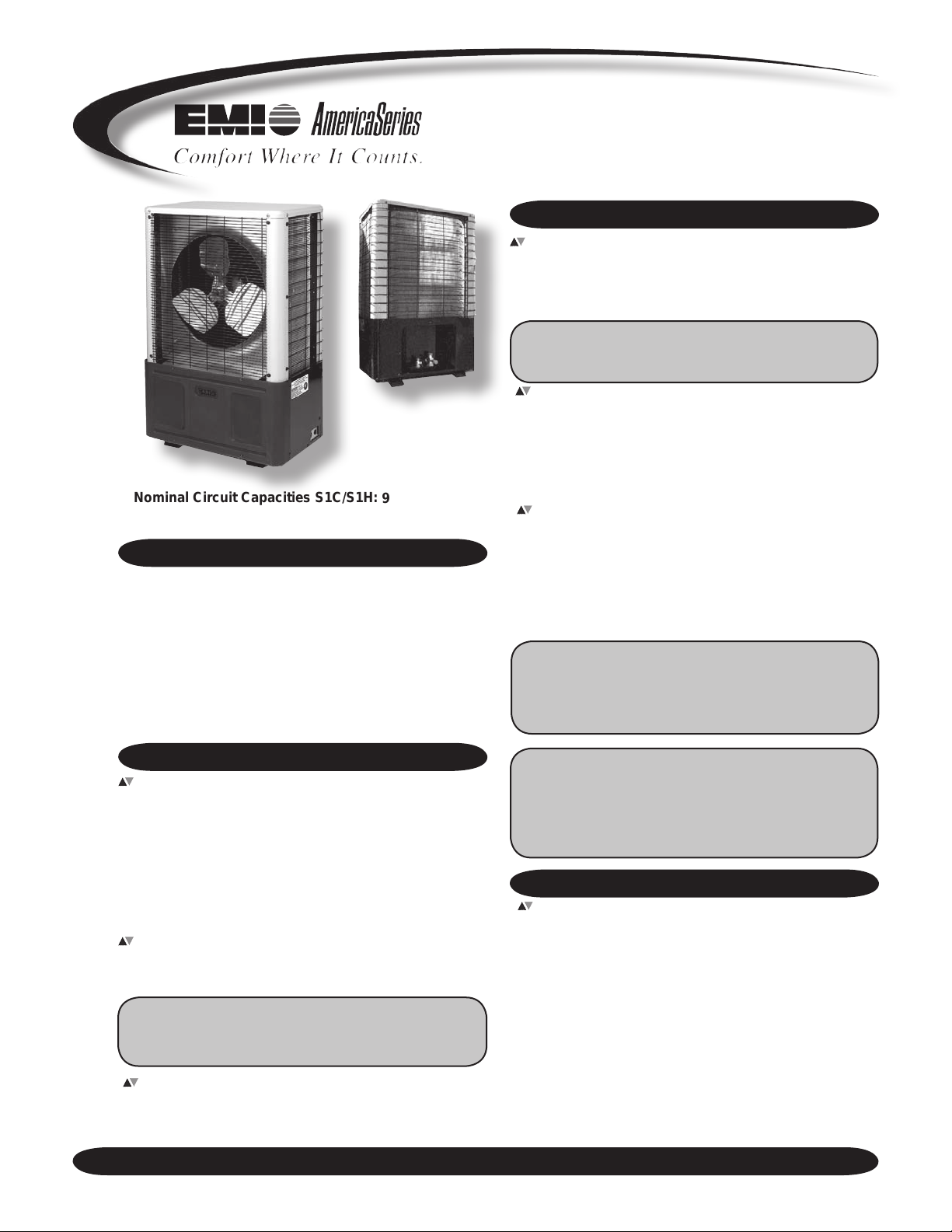

Nominal Circuit Capacities S1C/S1H: 9,000, 12,000,
18,000, 24,000 Btuh and S1C 30-36 Btuh
EMI offers the AmericaSeries S1C/S1H single zone con-
densing unit, which is designed to meet or exceed a SEER
rating of 13.0 when installed with the AmericaSeries line
of evaporators. The system is offered for straight cool and
heat pump applications and is available in nominal circuit
capacities of 9,000, 12,000, 18,000 and 24,000 Btuh for
both cooling and heat pump and 30,000-36,000 Btuh for
cooling only applications. The S1C/S1H system can be
recommended for both commercial and residential use.
S1c/S1H 9-24 and S1c 30-36
SinGLe Zone ductLeSS SpLit
condenSinG unit
P/N 240005841, Rev.A [05/08]
Low Ambient cooling operation down to 32º F are
standard on all S1H (heat pumps) factory installed
(optional on S1Cs)
• Low Ambient cooling operation down to 32º F
– Specify this option if the S1C system will be
operated in cooling mode at outside temperatures
below 60º F (Field Installed Kit)
• Low Ambient controls for operation down to
0º F for S1C and S1H systems (consult factory for
availability)
• Hard Start
• 115V (9,000-12,000 Btuh only)
• Copper/copper coils (sea coast use)
Precharged For Condenser And Evaporator:
(Charging of eld installed piping required)
• Refrigeration valves – solid brass, sweat connection,
easy to access ports
• Up to 100’ length interconnect (including 35’ verti-
cal lift)
Duratec Performance Package (09-12 only)
• Oversized suction accumulator with surge bafes and
enhanced oil management
• Factory installed solid core lter drier
• Thermostatically controlled crankcase heater
(heat pump)
• High pressure switch (heat pump)
Benet: The Duratec Performance Package allows
for the widest range of application in the Ductless
Split industry. We fully protect the compressor for a
range of outdoor ambient conditions and system ap-
plications, which extends the life of the system and
virtually eliminates failures.
SYSTEM OPTIONS
Benet: TheU-shapedcoiloptimizestheheattransfer
surface in a smaller footprint to gain optimum system
efciency.
CONDENSER STANDARD FEATURES
PRODUCT DESCRIPTION
Benet: These are the most efcient (power saving) and
durable compressors available for the widest range of
Ductless Split system applications.
Fan/Motor - Fan is a large diameter, high efciency,
three or four blade propeller (depending on capacity).
Motor is PSC type with internal overload protection.
Cabinet
• Vertically arranged side discharge
• Scratch and dent resistant injection molded front
access panel
• Powder coated (2000 hour salt spray tested) 18 and
20 gauge aluminized steel
• Recessed service valves
• Easy access hose connections at 45° from valve body
Compressor is hermetically sealed high efciency rotary
for 9,000-12,000 Btuh and reciprocating or scroll for
18,000-36,000 Btuh (depending on capacity).
Coil is U-shaped and protected by a wire coil guard.
Constructionisseamlesscoppertubingwithenhanced
aluminum ns. The tubes are mechanically expanded
for secure bonding to n shoulder.
CONDENSER STANDARD FEATURES cont.
Thermostatically controlled crankcase heater –
Thisfeatureenergizesthecrankcaseheateronlywhen
needed, removes the heater from the electrical circuit
at conditions where it’s not required, saving unneces-
sary Watts, and increasing overall system efciency.

S1CA/S1HA Ductless Split System Single-Zone www.enviromaster.com
2
PHYSICAL DIMENSIONS
Model
Size A B C
09 24" 15" 36"
12 24" 15" 36"
18 32" 15" 36"
24 32" 15" 40"
30 38” 15” 44”
36 38” 15” 48”
Easy access interconnects on back of unit
S1C/S1H SPECIFICATIONS AND DIMENSIONS
NOTE: All EMI products are subject to ongoing development. Design and specications may change without notice.
1/2” Diameter Lag Holes
AA
B
D
C
A
B
C
Electrical
Connections
MOUNTING DIMENSIONS
Model Size A B C D
S1C/S1H 9, S1C/S1H 2
4 ⅝” 14
11
/
16
” 3” 12
7
/
16
”
S1C/S1H 8, S1C/S1H 4
4 ⅝” 22
11
/
16
” 3” 12
7
/
16
”
S1C 3, S1C 6
7” 23
15
/
16
” 3” 12
7
/
16
”

S1CA/S1HA Ductless Split System Single-Zone www.enviromaster.com
3
System Performance Data: Matched With EMI AmericaSeries Indoor Units
S1C/S1H SPECIFICATIONS AND DIMENSIONS
NOTE: All EMI products are subject to ongoing development. Design and specications may change without notice.
INTERCONNECTING TUBING SPECIFICATIONS
S1 Model Max.
Length Max. Lift Liquid Line O.D. Suction Line O.D.
S1H9
100’ 35’ 1/4" 1/2"
S1H 2100’ 35’ 1/4" 1/2"
S1H 8100’ 35’ 3/8" 5/8"
S1H 4100’ 35’ 3/8" 3/4"
S1H 3100’ 35’ 3/8" 3/4"
S1H 6100’ 35’ 3/8" 3/4"
SOUND DATA
Heat
Pump
&
Cool
Size
Btuh
dBA
0 9 59
1 2 59
1 8 62
2 4 63
Cool
Only 30 68
3 6 68
SHIPPING WEIGHT
Size Btuh
Lbs.
9-12 98
18-24
156
30-36
210
S1H ELECTRICAL SPECIFICATIONS
Model # Volts/HZ/PH Fan Motor Compressor Total
AMPS Min Volt M.C.A. HACR BRKR
AMPS HP RLA LRA
S1H9A 115/60/1 1.4 0.125 6.6 39.2 8.0 104 9.7 15
S1H2A 115/60/1 1.4 0.125 8.6 48.3 10.0 104 12.2 20
S1H9D 208/230/60/1 0.8 0.125 3.4 23.0 4.2 197 5.1 15
S1H2D 208/230/60/1 0.8 0.125 4.3 27.0 5.1 197 6.2 15
S1H8D 208/230/60/1 0.8 0.125 5.4 36.0 6.2 197 7.6 15
S1H4D 208/230/60/1 0.8 0.125 8.0 53.5 8.8 197 10.8 15
S1C ELECTRICAL SPECIFICATIONS
Model # Volts/HZ/PH Fan Motor Compressor Total
AMPS Min Volt M.C.A. HACR BRKR
AMPS HP RLA LRA
S1C 9A 115/60/1 1.4 0.125 6.7 29.0 8.1 104 9.8 15
S1C 2A 115/60/1 1.4 0.125 8.4 44.0 9.8 104 11.9 20
S1C 9D 208/230/60/1 0.8 0.125 3.5 19.0 4.3 197 5.2 15
S1C 2D 208/230/60/1 0.8 0.125 4.5 21.0 5.3 197 6.4 15
S1C 8D 208/230/60/1 0.8 0.125 5.4 36.0 6.2 197 7.6 15
S1C 4D 208/230/60/1 0.8 0.125 8.0 53.5 8.8 197 10.8 15
S1C 3D 208/230/60/1 1.8 0.330 9.8 60.0 11.6 197 14.1 20
S1C 6D 208/230/60/1 1.8 0.330 11.8 78.0 13.6 197 16.6 25

CAC/CAH
System Performance Data: Matched With EMI AmericaSeries Indoor Units
S1C/S1H SPECIFICATIONS FOR SYSTEM OPTIONS
NOTE: All EMI products are subject to ongoing development. Design and specications may change without notice.
S1C/S1H Single Zone
WLC/WLH
H EAT PUMPS SYSTEM OPTIONS WITH CASSETTE UNITS
Condenser Cassette Cooling Btuh Heating Btuh SEER HSPF SHR EER COP Ref.
S1H9 CAH12 9,300 8,000 13.0 7.7 .80 12.4 3.3 R22
S1H2 CAH12 11,800 10,800 13.0 7.7 .72 11.4 3.4 R22
S1H8 CAH24 18,200 15,000 13.0 7.7 .78 12.3 3.3 R22
S1H4 CAH24 24,000 20,000 13.0 7.7 .69 11.7 3.3 R22
or
or
*Important - This system has been designed and manufactured to meet ENERGY
STAR criteria for energy efciency. However, proper refrigerant charge
and proper air ow are critical to achieve rated capacity and efciency.
Installation of this product should follow the manufacturer’s refrigerant
charging and air ow instructions. Failure to conrm proper charge
and airow may reduce energy efciency and shorten equipment
life.
Phone: [phone]
Fax: [phone] Success Drive,
Rome, NY 13440
HEAT PUMPS SYSTEM OPTIONS WITH UNIVERSAL UNITS
Condenser Universal Cooling Btuh Heating Btuh SEER HSPF SHR EER COP Ref.
S1H9 UNH09 8,800 7,800 13.0 7.7 .75 11.6 3.4 R22
S1H2 UNH12 11,600 10,200 13.0 7.7 .73 11.5 3.5 R22
S1H8 UNH24 18,000 16,400 13.0 7.7 .73 12.1 3.8 R22
S1H4 UNH24 23,000 20,600 13.0 8.3 .71 11.9 3.5 R22
COOLING SYSTEMS WITH CASSETTE UNITS
Condenser Cassette Btuh SEER SHR EER Ref.
S1C9 CAH12 9,000 13.0 .79 11.7 R22
S1C2 CAH12 12,000 13.0 .72 12.2 R22
S1C8 CAH24 18,000 13.0 .76 12.3 R22
S1C4 CAH24 23,000 13.0 .67 11.8 R22
*
S1C3 CAC36 30,000 14.0 .82 12.0 R22
S1C6 CAC36 36,000 13.0 .74 12.6 R22
COOLING SYSTEMS WITH WALL UNITS
C o n d e n s e r Wall Unit Btuh SEER SHR EER Ref.
S1C9 WLH09 9,000 13.0 .79 11.8 R22
S1C2 WLH12 12,000 13.0 .74 1 2 . 9 R22
*
S1C8 WLH24 18,000 14.0 .78 13.0
R22
S1C4 WLH24 24,000 13.0 .70 12.5 R22
S1C3 WLC36 30,000 13.0 .72 12.6 R22
S1C6 WLC36 33,600 13.0 .69 1 2 . 1 R22
UNC/UNH
or
HEAT PUMPS SYSTEM OPTIONS WITH WALL UNITS
Condenser Wall Unit Cooling Btuh Heating Btuh SEER HSPF SHR EER COP Ref.
S1H9 WLH09 9,000 8,600 13.0 8.0 .75 11.6 3.6 R22
S1H2 WLH12 11,400 10,600 13.0 8.0 .73 11.5 3.4 R22
S1H8 WLH24 18,000 16,400 13.0 7.7 .73 12.1 3.8 R22
S1H4 WLH24 23,000 20,600 13.0 8.3 .71 11.9 3.5 R22
