DA2 AUDIO CONVERTER OWNER’S MANUAL

001

Version 1.1

Welcome 002

DA2 AUDIO CONVERTER OWNER’S MANUAL

ank you for choosing EMM Labs

Front Panel & Functions

Features & Specifications

DA2 Audio Converter

003

Table Of Contents

Welcome 002

Table of Contents 003

006

007

009

Rear Panel & Functions 010

Operation 012

Infrared Remote Control 019

Safety Instructions 004

Warranty 005

DSD & DXD Audio 018

DA2 AUDIO CONVERTER OWNER’S MANUAL

Safety Instructions

Prior to Installing you new EMM Labs product please read the following safety

instructions:

• Read and follow all instructions.

• Keep these instructions.

• Do not use or install product near any sources of water, rain and/or

moisture.

• Clean using only a dry cloth.

• Install only in accordance with the manufacturer’s instructions.

• Refer all servicing to approved service personnel.

• Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including amplifiers) that produce heat.

• Do not install product outdoors or in direct sunlight.

• Leave at least 10cm or 4 inches around product to ensure proper

ventilation.

• Do not place product near strong electrical or magnetic

radiation/emissions or near a power amplifier.

This EMM Labs product must be connected to a mains socket outlet with a protective

earthing connection (grounding pin).

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT

EXPOSE THIS APPARATUS TO WATER OR MOISTURE.

EEC: This product has been designed and tested to comply with the limits set out in

EN55013, EN55020 and EN 60065:2009 (electrical safety).

004

DA2 AUDIO CONVERTER OWNER’S MANUAL

Warranty

EMM Labs warrants the DA2 product against defects in material and

workmanship under normal use and service for a period of time

specied by the product’s serial number from the date of rst

delivery to the owner. e warranty time period is 5 years. Warranty

is limited to the original owner and is non-transferable.

EMM Labs will pay for return shipping charges back to the owner

when the product is sent to EMM Labs within the rst 90 days aer

purchase (US and Canada end-users only). Otherwise, owner will be

responsible for all shipping charges to and from EMM Labs.

For all warranty claims, a copy of the original invoice must

accompany the product.

Opening the product or modifying it in any way by the owner,

including but not limited to cryogenic treatment, will void any

warranty.

Please contact EMM Labs ([email protected]) for RMA number

and shipping instructions before shipping any product to EMM Labs.

EMM Labs products are sold worldwide through authorized dealers

with restricted territories. EMM Labs product purchased from

non-authorized dealers or from a dealer selling outside his / her

authorized territory will automatically void product warranty.

DAC2X AUDIO CONVERTER OWNER’S MANUAL

005

006

DAC2X AUDIO CONVERTER

DA2 AUDIO CONVERTER

e DA2 is the rst 16xDSD/DSD1024 stereo D/A converter with a

wide variety of user selectable digital inputs. It has evolved from EMM

Labs acclaimed converter systems which are used worldwide in

professional studios to create some of the nest recordings.

e DA2 provides conversion from a wide variety of digital input

formats, including USB Audio for computers, media systems and

digital audio playback machines making it an extremely exible

converter system that can act as a standalone conversion hub to a host

of digital sources.

e DA2 has:

• Ed Meitner’s proprietary discrete Dual Dierential

16xDSD/DSD1024 DACs.

• e enhanced MDAT2 DSP upsamples and conditions digital

audio to sixteen times the SACD/DSD (45/49Mhz) samplerate.

• Proprietary MFAST technology for getting rid of source jitter.

• Proprietary Masterclock for sub-pico second jitter performance.

• Uses our exclusive aerospace grade composite laminate pcbs.

• Supports up to 24bit, 192kHz on all PCM inputs including USB

• Supports DSD and 2xDSD streaming over USB

• Supports 352 and 384DXD streaming over USB

• Supports DSD for CD/SACD playback over EMM Optilink

e DA2, when paired with an EMM Labs transport, performs as an

unparalleled CD/SACD playback system.

DA2 AUDIO CONVERTER OWNER’S MANUAL

007

Features & Specifications

Features & Specications

2-Channel D/A conversions:

• from PCM (44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz) to analog

• from PCM 352DXD and 384DXD to analog via USB

• from DSD and 2xDSD to analog via USB

• from DSD to analog via EMM Optilink (SACD/CD playback)

Supported digital input formats:

• AES/EBU

• Two COAX SPDIF

• Two TOSLINK SPDIF

• EMM Optilink

• USB Audio

Analog outputs and impedances:

• Balanced on XLR (300Ω)

• Unbalanced on RCA (150Ω)

Output levels:

• XLR outputs: 5V (+16dBu)

• RCA outputs: 2.5V (+10dBu)

Note:

1. XLR analog outputs are balanced with pin 2 hot, pin 3 cold and pin 1 ground.

2. For proper digital audio data transfer (especially high resolution PCM and DSD)

appropriate high quality TOSLINK, SPDIF, AES and USB 2.0 cables must be used.

DA2 AUDIO CONVERTER OWNER’S MANUAL

008

Features & Specifications

Features & Specications

System control via Infrared remote and serial RS-232 ports (see Appendix A)

Power supply:

• Power factor corrected

• Factory set to 100V or 115V or 230V, 50/60Hz operation

• Power consumption: 30W

• Remote control: Infrared

• Dimensions W x D x H: 438 x 400 x 161mm

• Weight: 17kg

DA2 AUDIO CONVERTER OWNER’S MANUAL

009

Front Panel & Functions

1. Standby/Power-Save button:

Toggles the operation between on and power-save mode. In power save mode the

remote control and all front panel functions become inactive.

2. Display

3. Button Bar:

Context sensitive function buttons.

DA2 AUDIO CONVERTER OWNER’S MANUAL













010

Rear Panel & Functions

1. Product model and serial number indicator:

Warranty void if model/serial number indicator is not attached to unit, missing or

damaged whereby serial number cannot be seen.

2. Main Power Switch

3. Product VOLTAGE indicator:

Indicates working voltage of the DA2. Only use with indicated line voltage.

4. Main Power connector





DA2 AUDIO CONVERTER OWNER’S MANUAL



011

Rear Panel & Functions

5. Digital Inputs (All inputs support up to 24bit, 192kHz. USB Audio input additionally

supports DXD and DSD/DSD64 and 2xDSD/DSD128 streaming):

• EMM Optilink: input for interconnection with an EMM Labs transport.

• USB Audio: USB PCM, DXD and DSD audio from computer, media player, server

• AES/EBU: AES/EBU (XLR) PCM digital audio input.

• COAX: SPDIF (RCA) format PCM digital audio input.

• PDAI: SPDIF (RCA) format PCM digital audio input.

• TOS1: SPDIF (TOSLINK) format PCM digital audio input.

• TOS2: SPDIF (TOSLINK) format PCM digital audio input.

6. Analog Line Output:

• Le and Right Balanced (XLR) Connectors

• Le and Right Un-Balanced (RCA) Connectors

• Output Line Level with 0dBfs signal on AES/EBU input:

XLR outputs: 4.6Vrms (+15.45dBu)

RCA outputs: 2.3Vrms (+9.45dBu)

7. System

Remote:

• Wired RS232: RS232 communication port. See Appendix A.

Service:

• USB data port for rmware upgrades (see separate USB update

instructions)

• RESET button used to temporarily access the backup rmware.

Only for diagnostic purposes. Should not be used during normal

operation.

DA2 AUDIO CONVERTER OWNER’S MANUAL

012

Operation

DA2 AUDIO CONVERTER OWNER’S MANUAL

Main Screen

Main screen shows input and sample rate information plus the 4 main functions:

1. Mute

Mute the DA2 by pressing the button directly below the “MUTE” function

on the display. When muted the display will show “MUTED” and it will be

highlighted.

2. Polarity

Toggle the analog output polarity by pressing the button directly below the

“POLARITY” function on the display. When polarity is inverted the display

will show “INVERTED” and it will be highlighted. Polarity inversion is

performed in the digital domain.

3. Menu

Engage the “MENU” function by pressing the button directly below it and a

a pop-up menu will open with 5 features (details in following pages):

• CONTRAST & BRIGHTNESS - DA2 display brightness and contrast controls

• ASSIGN INPUT BUTTON 1 - assigns a xed input to input button 1

• ASSIGN INPUT BUTTON 2 - assigns a xed input to input button 2

• REMOVE ASSIGNMENTS - removes input button assignments

• SAVE/RESET SETTINGS - saves DA2 settings or reverts the settings back to

factory default.

4. Input Toggle Back (◄) or Forward (►)

Toggle/scroll through the DA2 source inputs using the back (◄) button or

forward (►) button.

EXIT   ENTER

CONTRAST & BRIGHTNESS

ASSIGN INPUT BUTTON 1

ASSIGN INPUT BUTTON 2

REMOVE ASSIGNMENTS

SAVE/RESET SETTINGS

MUTE POLARITY MENU ◄ ►

USB DSD128

014

Operation

DA2 AUDIO CONVERTER OWNER’S MANUAL

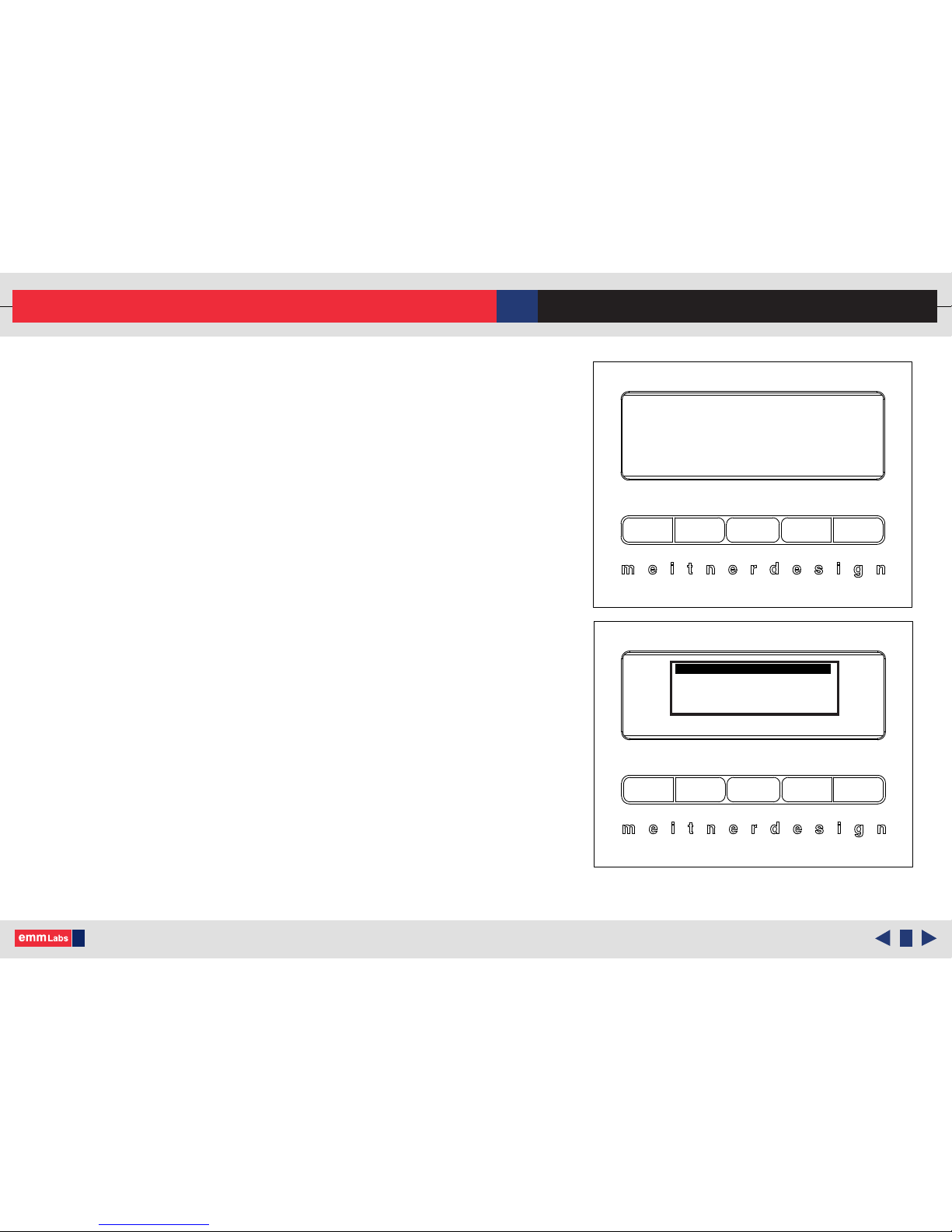

Menu Details

Use the up/down arrow keys to select one of the 5 features from the pop-up menu.

Press the “ENTER” button to select. Feature details:

1. CONTRAST & BRIGHTNESS

Use the CONTRAST & BRIGHTNESS feature to change the display brightness

and contrast settings. Starting with the brightness setting, use the le and right

arrow buttons to adjust the level of brightness then press the “SAVE” button to

save the brightness setting. Press the “NEXT” button to access the CONTRAST

control. e process to set and save the contrast setting is the same as setting the

brightness. Press the “EXIT” button to exit the CONTRAST & BRIGHTNESS

controls.

2. ASSIGN INPUT 1 & ASSIGN INPUT 2

Using the ASSIGN INPUT 1 & ASSIGN INPUT 2 feature, you can directly

assign up to two DA2 inputs to the front panel buttons rather than using the

back (◄) and forward (►) scroll/toggle buttons. First select either

ASSIGN INPUT 1 or ASSIGN INPUT 2 from the main pop-up menu. Once

selected you will be given a list of available inputs to assign to the button. Select

an input from the list by using the up () and down () scroll button. Save the

input selection to the button by pressing the “SAVE” button. You can assign one

or both inputs. If you just assign one input to a button, the other button can still

be used to scroll through the DA2’s inputs. Press the “EXIT” button to exit the

ASSIGN INPUT controls.

EXIT   SAVE

Assign

INPUT 1

EMM

USB

AES

COAX

PDAI

TOS1

TOS2

►

EXIT ◄ NEXT ► SAVE

Adjust BRIGHTNESS



014

Operation

DA2 AUDIO CONVERTER OWNER’S MANUAL

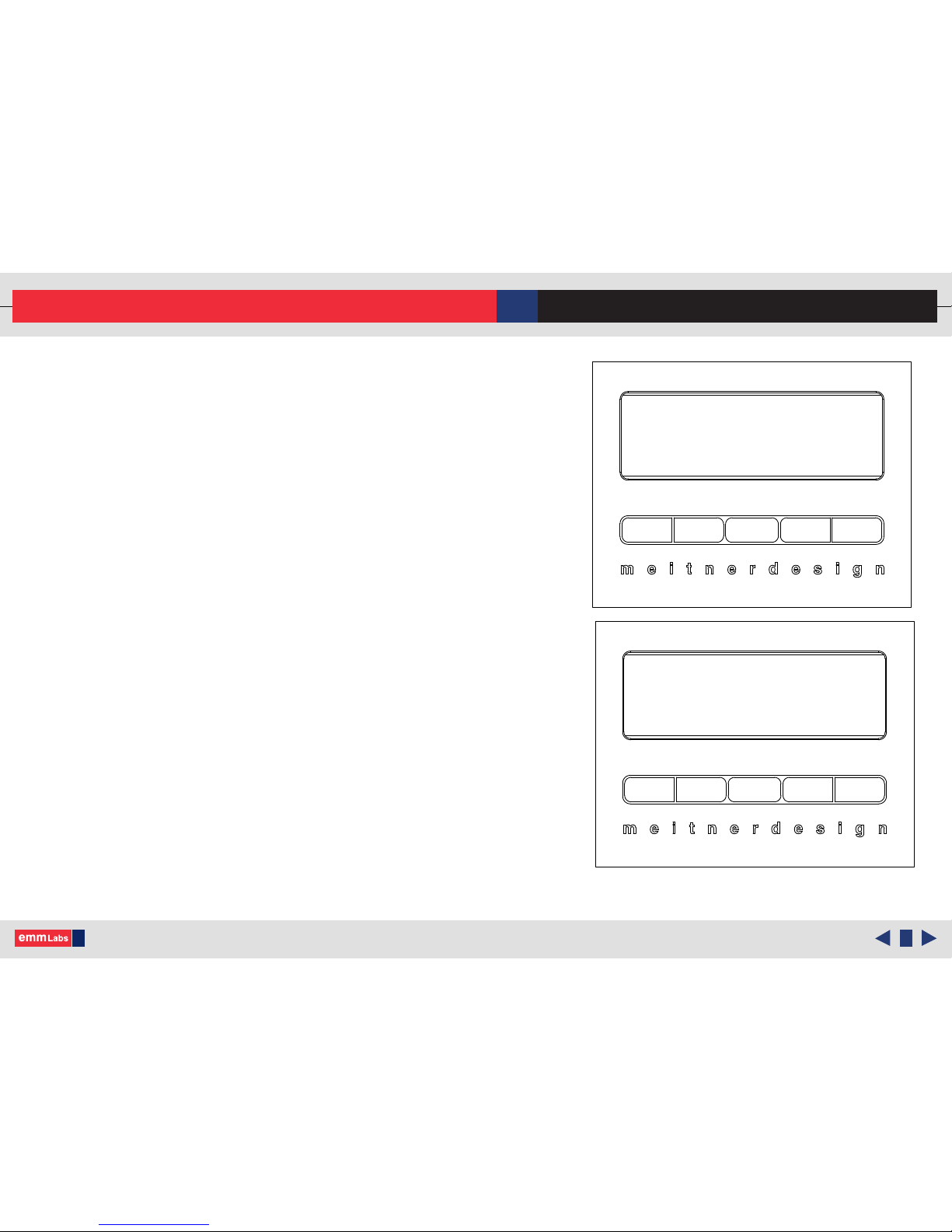

Menu Options

3. REMOVE ASSIGNMENTS

e REMOVE ASSIGNMENTS feature allows you to remove a previously

assigned inputs individually. You can also completely remove all inputs assigned.

Press the button below the input you want to remove and this will remove the

input assigned to it. To remove all assigned inputs, press the “REMOVE ALL”

button. Press the “EXIT” button to exit the REMOVE ASSIGNMENTS controls.

4. SAVE/RESET SETTINGS

Use the SAVE/RESET SETTINGS feature to save the current DA2 settings or

reset the DA2 back to factory default. Press the “SAVE” button to save all

current DA2 settings. Press the “RESET” button to reset the DA2 back to

factory defaults. Press the “EXIT” button to exit the SAVE/RESET SETTINGS

controls.

SAVE all User Settings

or RESET to factory defaults.

EXIT RESET SAVE

To remove Input Assignment

press the assigned button.

EXIT USB EMM

REMOVE

ALL

 

015

Operation

Basic Operations and Input Connections

e main screen shows the current input that is being used and sample rate. e

sample rate is shown when a valid digital audio stream is detected. If there is

nothing connected or there is no valid audio stream “NO LOCK” is displayed.

e DA2 has a host of digital inputs :

EMM Optilink (EMM) Proprietary ST glass optical connection to EMM Labs

CD/SACD transport and players like the TX2, TSDX

XDS1 V2, TSD1 and XDS1.

USB Audio (USB) USB Audio connection which supports up to

24bit 192kHz PCM, DXD 352 and 384kHz and

DSD64 and DSD128 (2xDSD) and uses USB 2.0 cables.

AES Balanced digital interface which

supports up to 24bit 192kHz and

uses XLR 110Ω digital cables.

COAX COAX SPDIF interface which

supports up to 24bit 192kHz and

uses RCA 75Ω digital cables.

PDAI Same as COAX SPDIF interface.

TOS1 TOSLINK optical interface which

supports up to 24bit 192kHz and

uses TOSLINK optical interface.

TOS2 Same as TOS1.

Connect the source digital outputs to the appropriate DA2 digital inputs and select the

appropriate input using the input toggle/scroll back (◄) or forward (►) buttons.

DA2 AUDIO CONVERTER OWNER’S MANUAL

MUTE POLARITY MENU ◄ ►

USB DSD128

016

Operation

Basic Operations and Input Connections

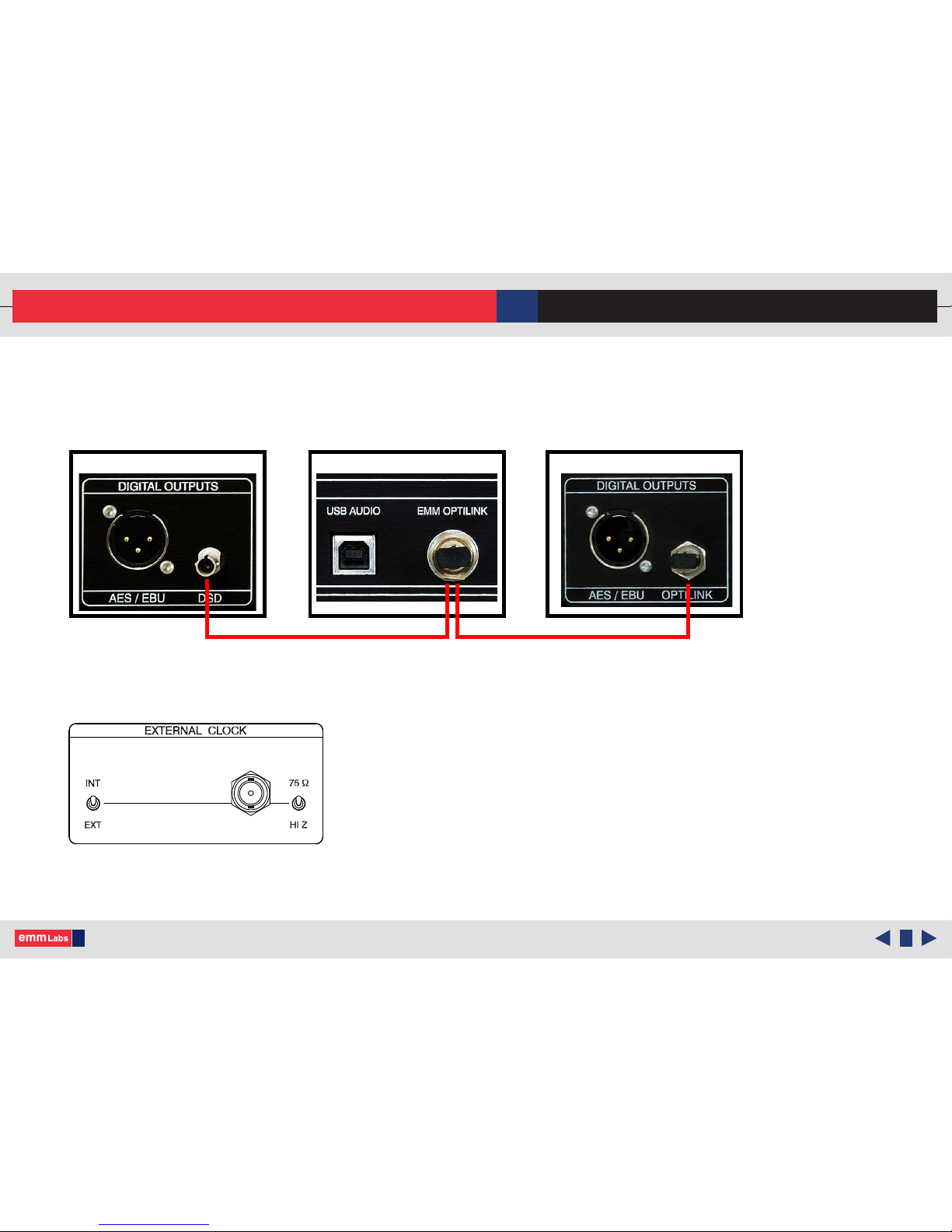

TX2 and DA2 (including TSDX and TSD1) Quick Connect:

Connect the EMM Optilink cable from the TX2 to DA2 (same for TSDX/TSD1)

Additionally for the TSD1 External Clock switch must be set to internal:

Using either the remote or the front panel of the DA2 select EMM Link.

e DA2 display should show the appropriate sample rate when locked.

TX2 TSDX/TSD1DA2

EMM Optilink Cable

DA2 AUDIO CONVERTER OWNER’S MANUAL

017

Operation

Basic Operations and Input Connections

5. DA2 USB Audio:

a. First, use only an appropriate well-sheilded certied USB 2.0* cable to connect

the DA2’s USB Audio input to any USB digital audio source component

(computer, laptop, media server etc.).

b. e DA2 USB Audio interface uses the B-type USB connector similar to

connectors used on printers. Please see image below:

c. Select the USB Audio input using front panel input selector buttons.

d. For MAC OSX systems, no driver is needed. OSX has the appropriate USB driver

already installed.

e. For Windows XP, Vista,Windows 7, 8.1 and 10 (32 or 64bit) systems install

the provided USB audio driver located on the soware CD in the folder named

“DA2 USB Audio Driver”. Read and follow the installation instructions.

f. Kernel, ASIO and WASAPI (Vista, 7, 8.1 and 10) drivers will be installed.

6. For Windows Media Player playback; in Windows Control Panel set the default sound

playback to the DA2 USB Audio device (Meitner Audio 2.0).

*Not using proper cables will cause audio issues between digital source and DAC.

DA2 AUDIO CONVERTER OWNER’S MANUAL

018

Operation DA2 AUDIO CONVERTER OWNER’S MANUAL

Basic Operations and Input Connections

7. In general for most audio applications you will be able to select the DA2 USB

Audio device (Meitner Audio 2.0) from within the application and choose the

appropriate ASIO, WASAPI or Kernel driver.

DSD and DXD Audio

1. e DA2 currently supports both DSD (DSD64), 2xDSD (DSD128) and DXD audio

streaming and conversion over USB. DSD streaming is enabled using DoP spec.

2. Please make sure that your DA2 has the latest installed rmware and drivers. If

unsure please email support@meitner.com with your DA2 serial number and our

engineers will be able to tell you if you need to update your unit.

3. DSD and 2xDSD audio les have the extension DFF and DST. DXD les are PCM 352

and 384kHz and are available in standard letypes like WAV or FLAC. You can use

any mediaplayer like JRiver and Audivarna to playback these les to the DA2.

4. Every media player will have specic soware installation instructions and setup

procedures for enabling DSD streaming. Please consult the specic soware manual.

5. Some soware manufacturers have also provided quickstart and soware setup

guides for download and online.

6. When setup correctly DSD and DXD samplerate types will be displayed on the DA2

display.

019

Infrared Remote Control

is function toggles the front panel preset display brightness

settings on DA2.

ese buttons are used to select the digital source input:

• EMM : Selects the EMM Optilink input.

• PC : Selects the USB Audio input.

• AES : Selects the AES/EBU input via balanced digital XLR

• COAX : Selects SPDIF input via digital COAX/RCA

• TOS : Toggles between the two TOSLINK SPDIF inputs,

TOS1 and TOS2.

• PDAI : Selects PDAI SPDIF digital input via COAX/RCA

Toggles the analog output polarity. Polarity inversion is performed

in the digital domain.

Mutes the DA2 outputs.

Use the transport functions shown to control an associated EMM

Labs transport when used with the DA2.

Use the VOL+, VOL- and MUTE buttons shown to control an

associated EMM Labs pre-amp when used with the DA2.

DAC:

INPUT:

POLARITY:

MUTE:

TRANSPORT:

PRE-AMP:

Infrared Remote Control

e remote control provides combined functions for both the DA2,

associated transport and some pre-amp functions. e functions that are

relevant to the DA2:

DA2 AUDIO CONVERTER OWNER’S MANUAL

Transport

Pre-amp

DAC

Table of contents

Other EMMLabs Media Converter manuals

EMMLabs

EMMLabs DAC2 User manual

EMMLabs

EMMLabs DA2 V2 User manual

EMMLabs

EMMLabs DAC6e User manual

EMMLabs

EMMLabs DAC2X User manual

Popular Media Converter manuals by other brands

exacqVision

exacqVision E Series quick start

HEIDENHAIN

HEIDENHAIN ERP 880 Mounting instructions

Renesas

Renesas RA6T2 Application note

Wohler

Wohler PANORAMAdtv HD2SD user manual

Samlexpower

Samlexpower SDC-5 owner's manual

Bome

Bome BomeBox instructions

ABB

ABB DCS8 Series Original user manual

SICK

SICK A3M60 Advanced operating instructions

HEIDENHAIN

HEIDENHAIN LIP 471R Mounting instructions

Siemens

Siemens SCALANCE X101-1 operating instructions

Lika

Lika ROTAPULS I58 Series manual

Midian Electronics

Midian Electronics VTE-1 manual

Encore Networks

Encore Networks IBR-10 installation guide

Selectone

Selectone ST-800 operating instructions

Analytic Systems

Analytic Systems VTC600 Series Operation manual

DOREMIDI

DOREMIDI MIDI To TRS Box instructions

Siko

Siko WH3650M quick start guide

DENAFRIPS

DENAFRIPS HERMES DDC owner's manual

EMMLabs DA2 User manual

Popular Media Converter manuals by other brands
