DAC2 AUDIO CONVERTER OWNER’S MANUAL

001

Version 1.3

ank you for choosing EMM Labs...

Welcome 002

DAC2 AUDIO CONVERTER OWNER’S MANUAL

Appendix A - Serial Remote Control (RS232)

Front Panel & Functions

Features & Specifications

DAC2 Audio Converter

003

Table Of Contents

Welcome 002

Warranty 004

005

006

008

Rear Panel & Functions 010

Operation 012

Infrared Remote Control 015

016

DAC2 AUDIO CONVERTER OWNER’S MANUAL

Warranty

EMM Labs warrants the DAC2 product against defects in material

and workmanship under normal use and service for a period of time

specied by the product’s serial number from the date of rst

delivery to the owner. e warranty time period is 5 years. Warranty

is limited to the original owner and is non-transferable.

EMM Labs will pay for return shipping charges back to the owner

when the product is sent to EMM Labs within the rst 90 days aer

purchase (US and Canada end-users only). Otherwise, owner will be

responsible for all shipping charges to and from EMM Labs.

For all warranty claims, a copy of the original invoice must

accompany the product.

Opening the product or modifying it in any way by the owner,

including but not limited to cryogenic treatment, will void any

warranty.

Please contact EMM Labs ([email protected]) for RMA number

and shipping instructions before shipping any product to EMM Labs.

EMM Labs products are sold worldwide through authorized dealers

with restricted territories. EMM Labs product purchased from

non-authorized dealers or from a dealer selling outside his / her

authorized territory will automatically void product warranty.

DAC2 AUDIO CONVERTER OWNER’S MANUAL

004

005

DAC2 AUDIO CONVERTER

e DAC2 is a high-performance stereo D/A converter with a wide

variety of user selectable digital inputs. It has evolved from EMM Labs

acclaimed converter systems which are used worldwide in professional

studios to create some of the nest recordings.

e DAC2 provides conversion from a wide variety of digital input

formats, including USB Audio for computers, media systems and

digital audio playback machines making it an extremely exible

converter system that can act as a standalone conversion hub to a host

of digital sources.

e DAC2 has:

• EMM Labs proprietary internal MDAT algorithm to up-sample

and condition digital audio to twice the SACD/DSD sample

rate.

• Ed Meitner’s proprietary discrete Dual Diﬀerential DAC circuit.

• Uses our exclusive aerospace grade composite laminate circuit

boards.

e DAC2, when paired with an EMM Labs transport, performs as an

unparalleled CD/SACD playback system.

DAC2 AUDIO CONVERTER OWNER’S MANUAL

006

Features & Specifications

Features & Specications

2-Channel D/A conversions:

• from PCM (44.1kHz, 48kHz, 88.2kHz, 96kHz) to analog

• from DSD to analog

Supported digital input formats:

• AES/EBU (1 connector)

• SPDIF (Coax)

• Two Optical TOSLink SPDIF

• EMM OptiLink

• USB Audio

Analog outputs and impedances:

• Balanced on XLR (100Ω)

• Unbalanced on RCA (50Ω)

User selectable levels

Low position:

• XLR outputs: 4V (+14.38dBu)

• RCA outputs: 2V (+8.353dBu)

High position:

• XLR outputs: 7.2V (+19.38dBu)

• RCA outputs: 3.6V (+13.34dBu)

Note: XLR analog outputs are balanced with pin 2 hot, pin 3 cold and pin 1 ground.

DAC2 AUDIO CONVERTER OWNER’S MANUAL

007

Features & Specifications

Features & Specications

System control via wired Infrared remote and serial RS-232 ports (see Appendix A)

Power supply:

• Power factor corrected

• Factory set to 100V or 115V or 230V, 50/60Hz operation

• Power consumption: 50W

• Remote control: Infrared

• Dimensions W x D x H: 435 x 400 x 92mm

• Weight: 12kg

DAC2 AUDIO CONVERTER OWNER’S MANUAL

008

Front Panel & Functions

DAC2 AUDIO CONVERTER OWNER’S MANUAL

  



Front Panel & Functions

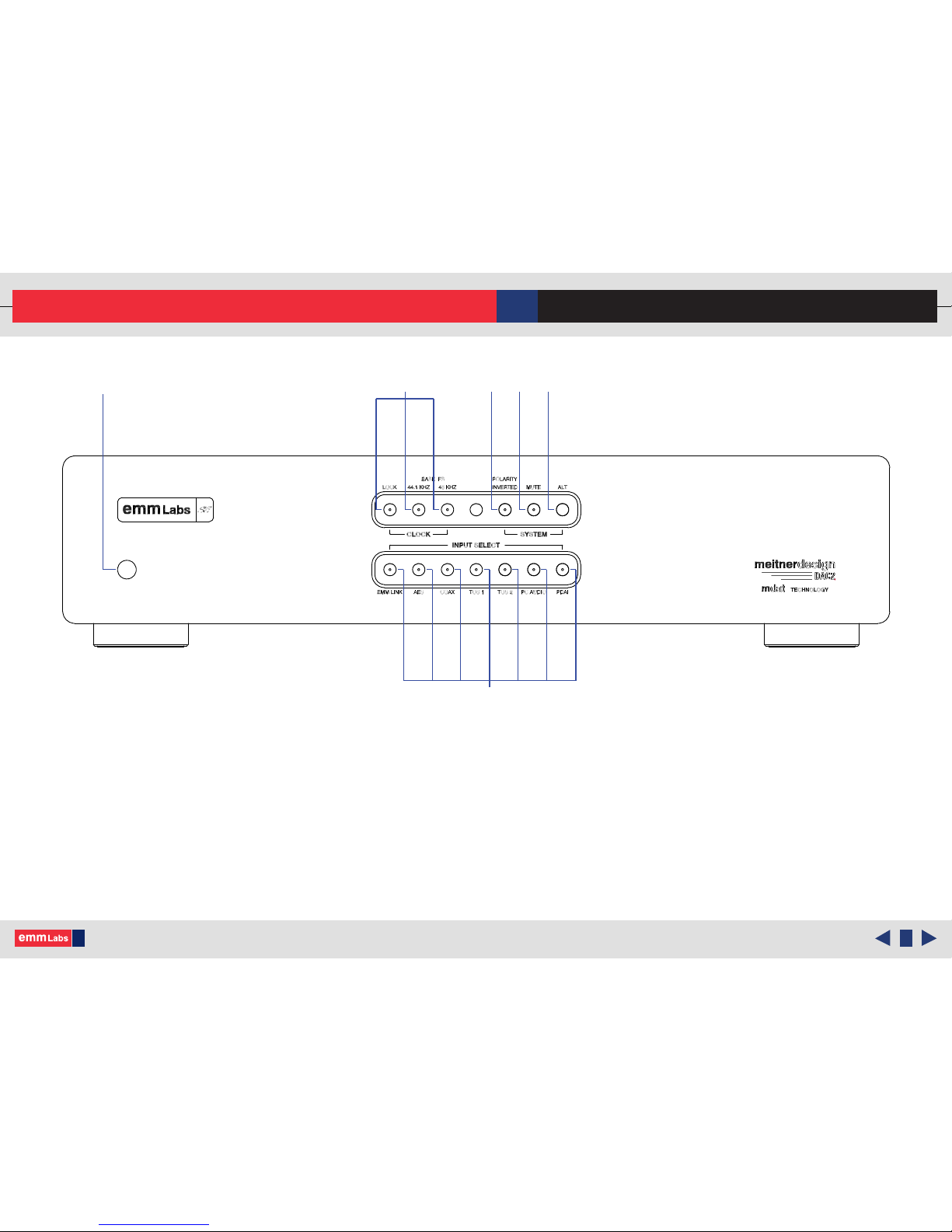

1. Standby/Power-Save button:

Toggles the operation between on and power-save mode. In power save mode the

remote control and all front panel functions become inactive.

2. Clock Control Indicators:

LOCK: is indicator is lit when the unit detects valid digital clock at the selected

digital audio input. For normal operation with digital audio inputs this indicator has

to be lit or else all audio outputs will be muted.

44.1kHz / 48kHz: ese indicate the base frequency for the selected digital audio

input. Eg. digital inputs with sample frequencies of 44.1kHz or 88.2kHz the 44.1kHz

indicator will be lit. For digital inputs with sample frequencies of 48kHz or 96kHz

the 48kHz indicator will be lit.

009

Front Panel & Functions

DAC2 AUDIO CONVERTER OWNER’S MANUAL

Front Panel & Functions

3. POLARITY INVERTED button:

When this button is lit the polarity of all analog outputs are inverted. e inversion is

performed in the digital domain.

4. MUTE button:

When lit all outputs are muted. Pushing the button again unmutes the outputs.

5. ALT button (intended for future use)

6. Digital input selector buttons:

• EMM LINK: Selects the EMM Optilink input for internconnection with an EMM

Labs transport. e cables used are ST glass (multimode) supplied with the

transport.

• AES: Selects AES/EBU (XLR) format PCM digital input . Sample rates up to 96kHz

are supported.

• COAX: Selects SPDIF (RCA) format PCM audio from COAX connector. Sample

rates up to 96kHz are supported.

• TOS1: Selects SPDIF (TOSLINK) format PCM audio from TOS1 connector. Sample

rates up to 96kHz are supported.

• TOS2: Selects SPDIF (TOSLINK) format PCM audio from TOS2 connector. Sample

rates up to 96kHz are supported.

• PC AUDIO: Selects USB PCM audio (computer, media player, media server).

44.1kHz and 48kHz sample rates are supported.

• PDAI - Switch and connector intended for future use.

PC Audio from USB input:

For best delity, care must be taken to ensure that as little processing is performed on the audio

data by the computer. In both Windows and OSX systems, the use of low-latency ASIO device

drivers are highly recommended.











010

Rear Panel & Functions

DAC2 AUDIO CONVERTER OWNER’S MANUAL

Rear Panel & Functions

1. Main Power Switch

2. Main Power connector and fuse holder:

Main fuse holder as well as included spare fuse is located within this compartment.

3. Product VOLTAGE indicator:

Indicates working voltage of the DAC2. Only use with indicated line voltage.

4. Product model and serial number indicator:

Warranty void if model/serial number indicator is not attached to unit, missing or

damaged whereby serial number cannot be seen.

011

Rear Panel & Functions

DAC2 AUDIO CONVERTER OWNER’S MANUAL

Rear Panel & Functions

5. Analog Line Output:

• Le and Right Balanced (XLR) Connectors

• Le and Right Un-Balanced (RCA) Connectors

• Level High/Low switch (Output Line Level with 0dBfs signal on AES/EBU input):

Low position: XLR outputs: 4V (+14.38dBu)

RCA outputs: 2V (+8.353dBu)

High position: XLR outputs: 7.2V (+19.38dBu)

RCA outputs: 3.6V (+13.34dBu)

6. Digital Inputs:

• EMM Optilink: input for interconnection with an EMM Labs transport.

• AES/EBU: AES/EBU (XLR) PCM digital input.

• COAX: SPDIF (RCA) format PCM audio.

• TOS1: SPDIF (TOSLINK) format PCM audio.

• TOS2: SPDIF (TOSLINK) format PCM audio.

• PC AUDIO: USB PCM audio from a computer, media player, server

• PDAI: Connector intended for future use.

7. System

Remote:

• External IR: wired infra-red communication port

• Wired RS232: RS232 communication port

Service:

• USB: soware update port please see Appendix A for details

• RESET: Used to access the backup BIOS in connection with soware

upgrades via the USB port. Should not be used during normal

operation. Please see Appendix A for details.

012

Operation

DAC2 AUDIO CONVERTER OWNER’S MANUAL

Basic Operations and Input Connections

1. Memory:

Aer 10 seconds when no button has been pushed or changed, the DAC2 memorizes

its momentary setup in permanent memory for later retrieval aer the next powerup.

It will be recalled immediately aer the unit is turned on. Each individual input

selection will keep its last conguration before powerdown.

During normal operation each input selection will immediately memorize its

conguration so that switching between dierent sources with dierent congurations

can be accomplished with a single button selection.

2. DAC2 Input Connections

Just connect the appropriate digital source output to the specic DAC2 input, on the

back of the DAC2 and select the appropriate digital source from either the front panel

buttons or the remote control.

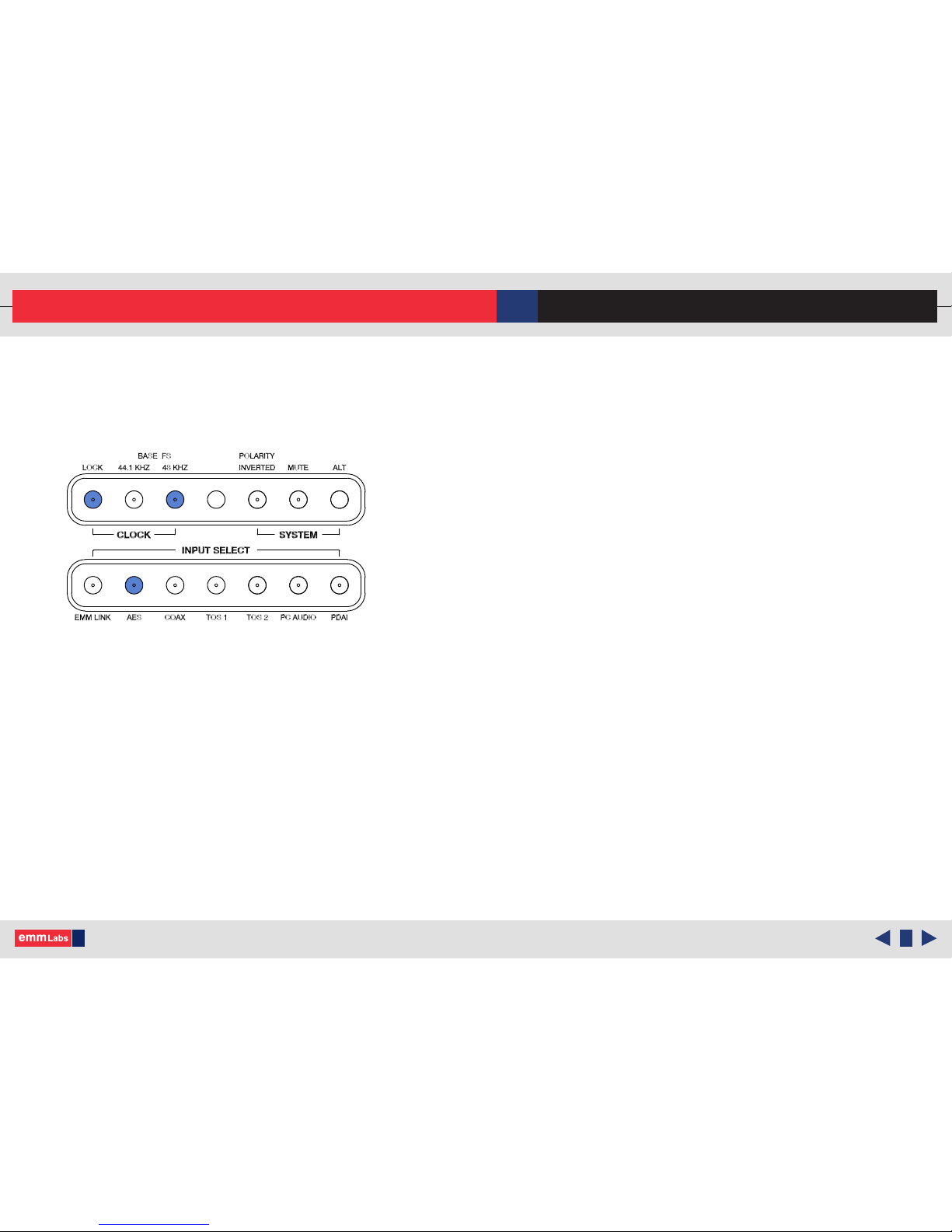

Typical front panel display when DAC2 is locked to 44.1kHz base frequency and the

013

Operation

DAC2 AUDIO CONVERTER OWNER’S MANUAL

Basic Operations and Input Connections

2. DAC2 Input Connections (cont’d):

EMM Optilink is selected as the digital source (connected to an EMM Labs

transport).

Above is another example. Here the DAC2 is connected to an AES digital source with

a base frequency of 48kHz (PCM 48kHz or 96kHz audio). For AES connections the

DAC2 uses a single AES input to carry 2 channels of PCM audio up to 96kHz.

NOTE: If the LOCK light is not ON then the DAC2 is not receiving appropriate

digital audio from the digital source. e DAC2 will automatically mute all the

outputs if it does not receive a proper digital audio signal from the selected source.

Check the source setup and cable connections for problems.

3. Using the remote and pressing the “Display DAC” button turns o all the DAC2 LEDs

except the LOCK light.

014

Operation

DAC2 AUDIO CONVERTER OWNER’S MANUAL

Basic Operations and Input Connections

4. TSD1+DAC2 Quick Connect:

Connect the EMM Optilink cable from the TSD1 to the DAC2

Make sure the TSD1 is External Clock switch is set to internal

Using either the remote or the front panel of the DAC2 select EMM Link.

e LOCK light and the 44.1kHz sync. light both should be lit on the DAC2.

TSD1 DAC2

EMM Optilink Cable

015

Infrared Remote Control

is function toggles the front panel LEDs ON or OFF on the DAC2

When in OFF mode only the LOCK LED would be lit.

ese buttons are used to select the digital source input:

• EMM : Selects the EMM Optilink input.

• AES : Selects AES/EBU format PCM digital audio via XLR

• COAX : Selects SPDIF format PCM digital audio via coax/RCA

connector

• TOS : Toggles between TOSLINK SPDIF format PCM audio

from either TOS1 or TOS2 connectors.

• USB : Selects USB PCM audio via USB interface.

• PDAI : Expansion port intended for future use.

Toggles the analog output polarity. Polarity inversion is performed

in the digital domain.

Mutes the outputs.

DAC:

INPUT:

POLARITY:

MUTE:

Infrared Remote Control

e remote control provides combined functions for both the DAC2 and

EMM Labs transport. e functions that are relevant to the DAC2:

DAC2 AUDIO CONVERTER OWNER’S MANUAL

016

Appendix A - Serial Remote Control (RS232)

DAC2 AUDIO CONVERTER OWNER’S MANUAL

Serial Remote Control (RS232)

e DAC2 is equipped with a 9-pin RS232 port for system remote control via a serial cable

(not provided by EMM Labs). Please use a standard RS232 cable. Do not use a null model

cable, as this will not work. RS232 communication port settings:

• 19,200 baud

• 8 bits

• 1 stop bit

• no ow control

• no parity bit

Commands to the DAC2

All commands sent to the DAC2 consist of 3 ASCII characters (all lowercase) followed by a

carraige return or <CR>. Repeating a <CR> will repeat the last command sent. Received

commands are not stored in a stack. ey need to be sent in intervals of at least 50ms to

allow enough time for the DAC2 to execute a command before receiving the next one.

Command Function

pol Toggles the analog output polarity

mut Mutes the outputs

emm Selects the EMM Optilink input

aes Selects AES/EBU format PCM digital audio via XLR

cox Selects SPDIF format PCM digital audio via coax/RCA connector

to1 Selects TOSLINK format PCM digital audio via TOS1 connector

to2 Selects TOSLINK format PCM digital audio via TOS2 connector

017

Appendix A - Serial Remote Control (RS232)

DAC2 AUDIO CONVERTER OWNER’S MANUAL

Commands to the DAC2 (cont`d)

Status bytes sent from DAC2

e DAC2 sends back 4 Bytes terminated with a <CR> whenever any status changes.

Byte 0 ASCII ' 0 ' - Not Used

Byte 1 ASCII ' 0 ' - Not Used

Byte 2

bit 0 Not Used

bit 1 Not Used

bit 2 Status of EMM Link input (0 when selected)

bit 3 Status of USB input (0 when selected)

bit 4 Status of AES input (0 when selected)

bit 5 Status of Coax input (0 when selected)

bit 6 Status of TOS1 input (0 when selected)

bit 7 Status of TOS2 input (0 when selected)

Byte 3

bit 0 Lock Status, 1 when locked

bit 1 Not Used

bit 2 0 when 44.1kHz selected as base sample frequency

bit 3 0 when 48kHz selected as base sample frequency

bit 4 Status of polarity of analog outputs (0 when inverted)

Command Function

usb Selects USB PCM audio via USB interface

018

Appendix A - Serial Remote Control (RS232)

DAC2 AUDIO CONVERTER OWNER’S MANUAL

Status bytes sent from DAC2 (cont`d)

Byte 3

bit 5 Not Used

bit 6 Status of mute (0 when muted)

bit 7 Not Used

Byte 4 <CR> (0x0D)

EMMLabs DAC2 User manual

Popular Media Converter manuals by other brands
