EMMO Zone S.3 User manual
1 1
EMMOM
Monta 2019
EMMO
Zone S.3
USER’S MANUAL
2
This manual contains important safety, performance and
service information. Read and understand it along with the
information provided during the on-delivery instructions
before using the product, and keep it for reference.
© 2019 Emmo Inc. All rights reserved. No texts, details, or illustrations from this Manual may be reproduced or
distributed, or become the subject of unauthorized use for commercial purposes. Should you discover any errors,
we would be grateful if you would bring them to our attention.
CAUTIONS MENU
2 3
About EMMO --------------------------------------------------- 4
Rules and Regulations of Riding an E-Bike ------------ 5
Parts overview ------------------------------------------------ 6
Switches ---------------------------------------------------------- 8
Throttle --------------------------------------------------------- 10
Lights & Signals ------------------------------------------------ 11
Speedometer --------------------------------------------------- 13
Audio system -------------------------------------------------- 14
Side kickstand ------------------------------------------------- 15
Rear view mirrors ------------------------------------------ 16
How to turn on the bike with the key ---------------- 18
How to turn on the bike with the remote ----------- 19
How to lock the steering --------------------------------- 20
How to turn on/o the circuit breaker ----------------- 22
How to charge ------------------------------------------------ 24
How to ride --------------------------------------------------- 26
Safety Instructions ------------------------------------------- 27
Maintenance --------------------------------------------------- 28
E-Bike Registration Form --------------------------------- 29
Appendix -------------------------------------------------------- 30
How to charge a lithium e-bike ------------------- 30
Charger indicator explanation ------------------ 33
CAUTIONS MENU
4
Established in 2009, Emmo Inc. is a proud Canadian venture that is
focused on creating a more sustainable future by providing high quality
electric bicycles. We oer a wide variety of e-bikes that are suitable for
leading a greener, and more stylish, way of living. Emmo e-bikes are
priced competitively with other green solutions. At Emmo, you will get
the best e-bikes and the most professional service.
ABOUT EMMO
4 5
ABOUT EMMO
According to Canada’s Motor Vehicle Safety Regulations ( MVSR ). A
qualied e-bike (dened as Power Assist Bicycle) must meet the following
requirements:
• The e-bike must have operable pedals
• Upper wattage limit for the motor is 500W.
• Maximum speed of an e-bike is 32km/h.
Other requirements include a permanently axed compliance label from
the manufacturer stating that the vehicle is a power-assisted bicycle
under statutory requirements in force at the time of manufacture. Currently,
there is no license, no insurance, and no vehicle registration required to
operate a qualied e-bike according to federal legislation. E-Bike riders
share the same rights and responsibilities as other road users.
However, provinces and local municipalities have the power to restrict the
use of e-bikes. Most provinces require the rider to wear a helmet. Some
provinces have special requirements with regard to the age limit to operate
an e-bike, the type of helmet required, even the number of wheels and
wheel size. In Ontario, typically, e-bikes are generally treated the same as
regular bicycles. According to the Ministry of Transportation of Ontario
(MTO), the age limit to operate an is 16 years old and above; the
maximum weight of the bike is 120 kilograms (265 pounds); the bike must
have a brake distance of less than 9 meters; Any modications made to
the bike’s motor tocreate speeds greater than 32km/h are prohibited.
As the rules and regulations are subject to changes in dierent provinces
and municipalities. Please check your municipal bylaw and see where you
stand.
RULES and REGULATIONS
of riding an e-bike
6

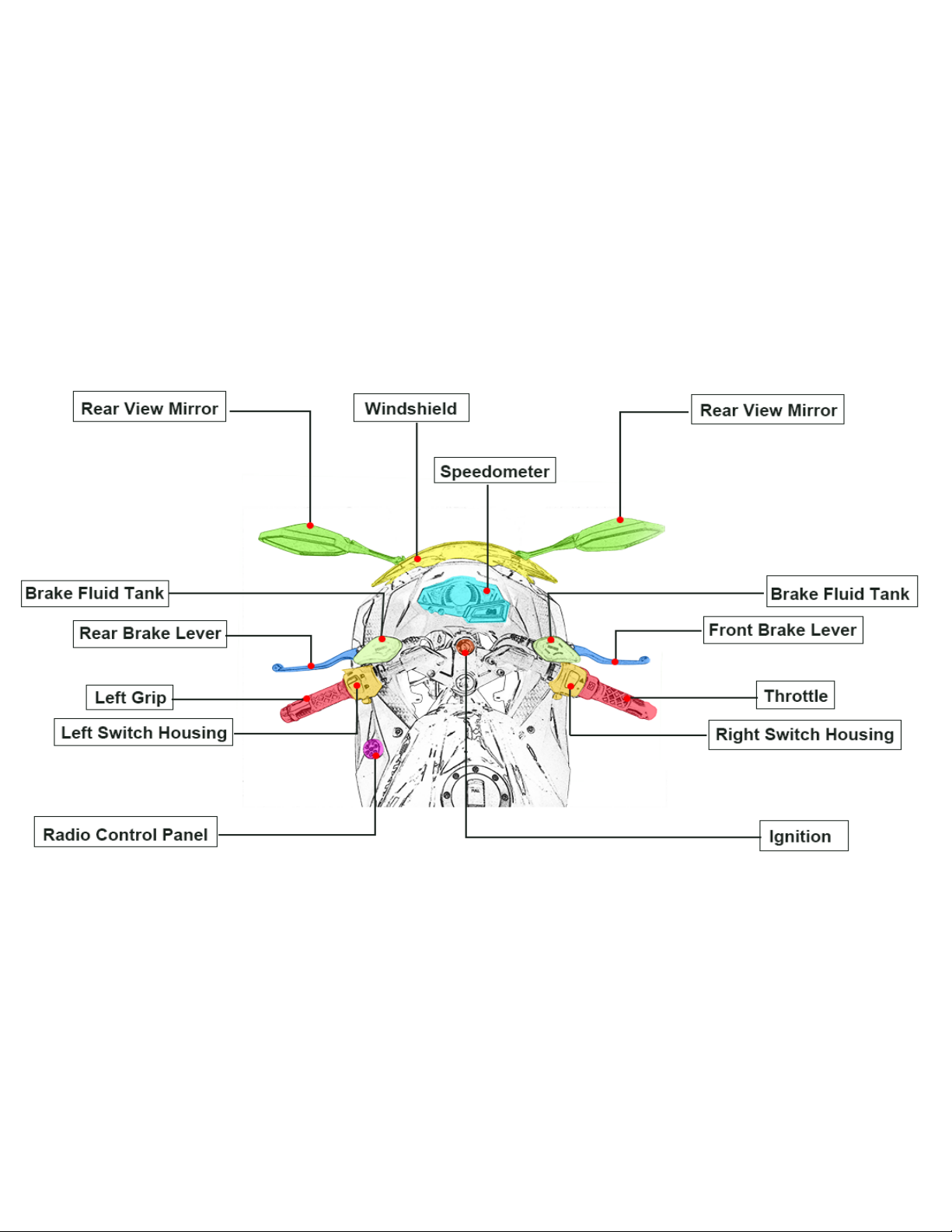

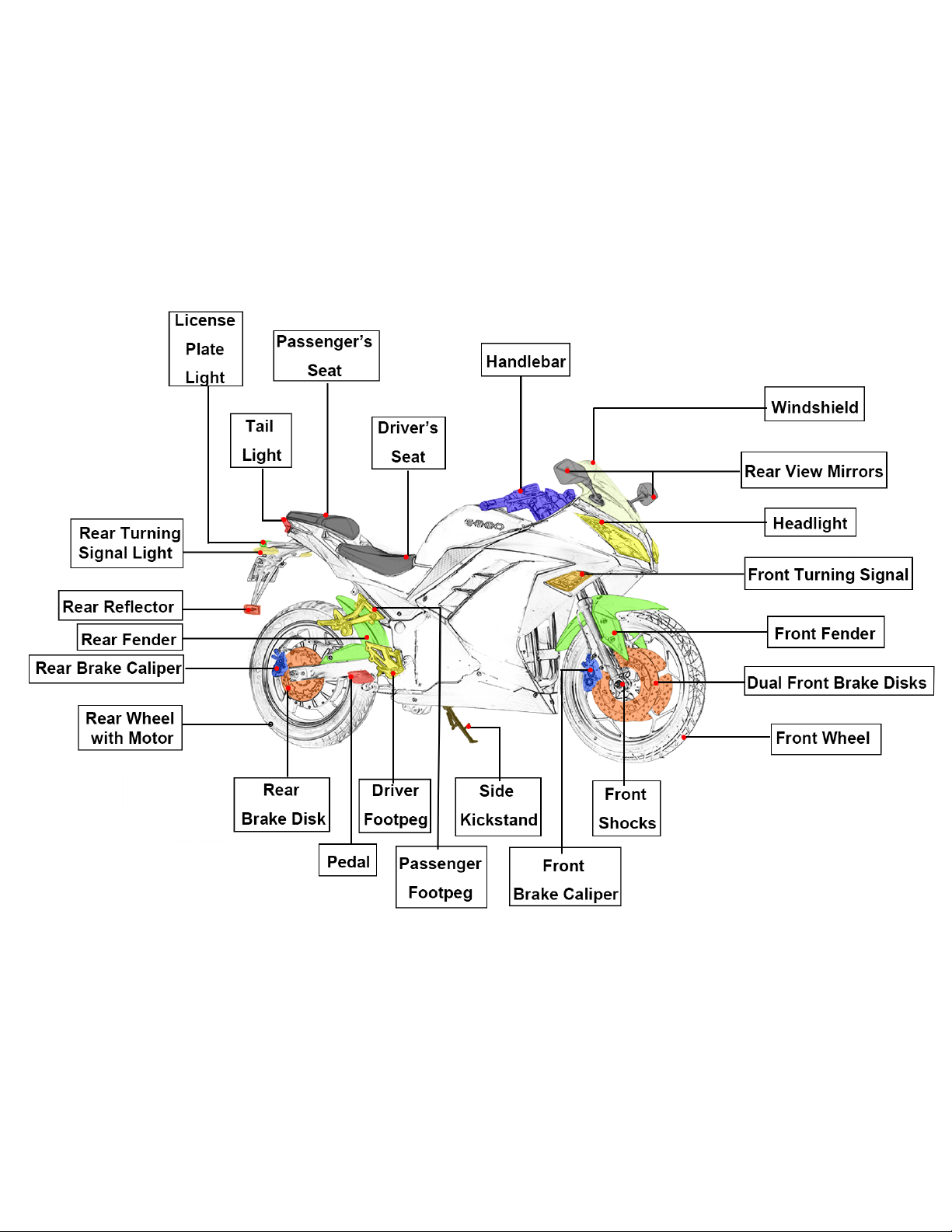

1. PARTS OVERVIEW 1. PARTS OVERVIEW
6 7
1. PARTS OVERVIEW
8
2. SWITCHES
The switch housings on the handlebar hold these switches that control the lights, signals, horn and
etc..
8 9
2. SWITCHES
The switch housings on the handlebar lhold these switches that control the lights, signals, horn and
etc..
10
3. THROTTLE

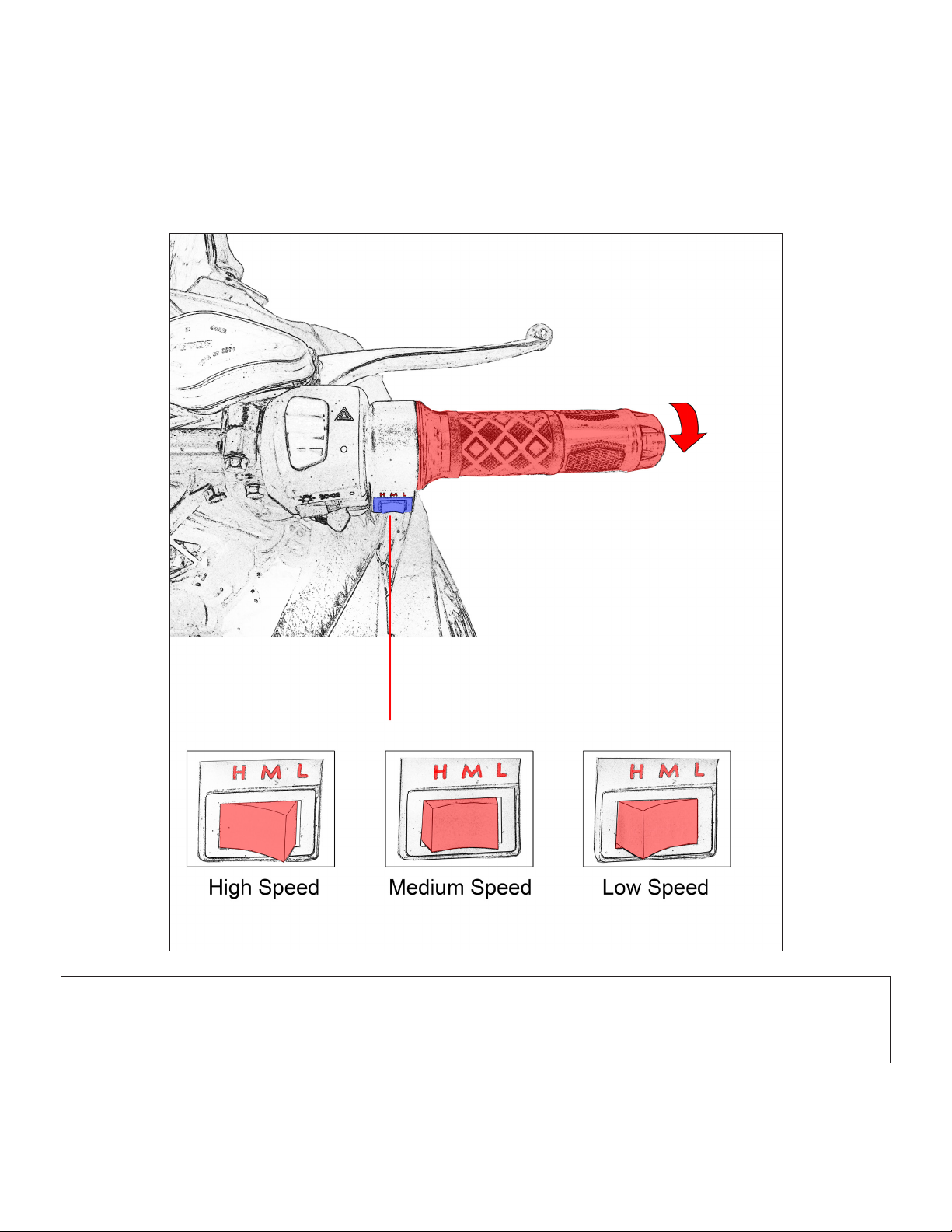

The throttle controls the speed of the e-bike. As shown below, twist the throttle towards you to
operate. With the help of the speed mode switch, you can also change the speed setting.
Warning:
• DO NOT turn the throttle if you are not ready to ride.
10 11
4. LIGHTS & SIGNALS
Turning signal lights are equipped on left and right sides, on the front and rear of the bike.
When switched on, the turning signals will ash amber light.
12
4. LIGHTS & SIGNALS

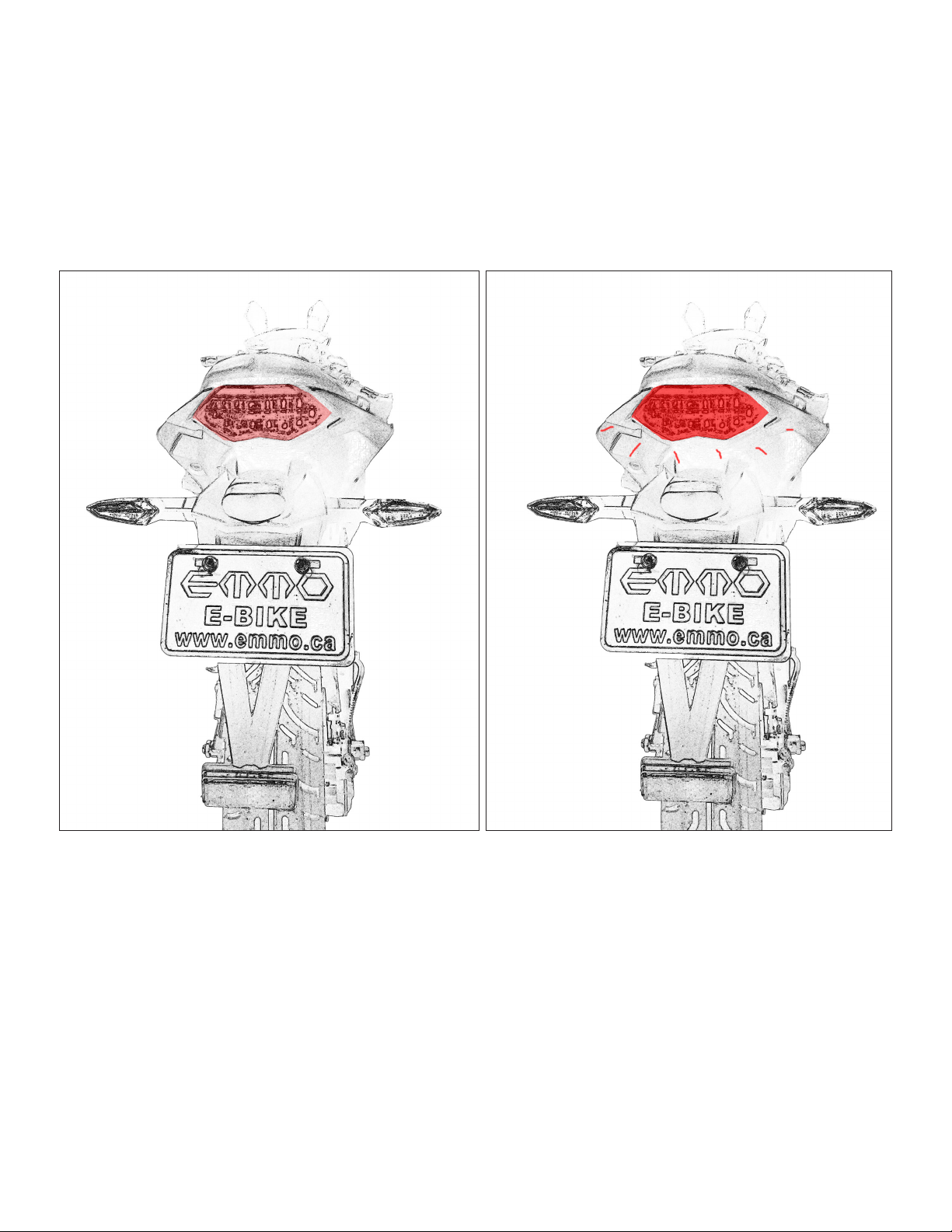

The LED tail light can be turned on by the headlight switch (refer to page 8). The tail light will be-
come brighter when either of the brake is applied, or when the side kickstand is down.
Tail Light - Normal Status Tail Light - Brake Light On
12 13
5. SPEEDOMETER

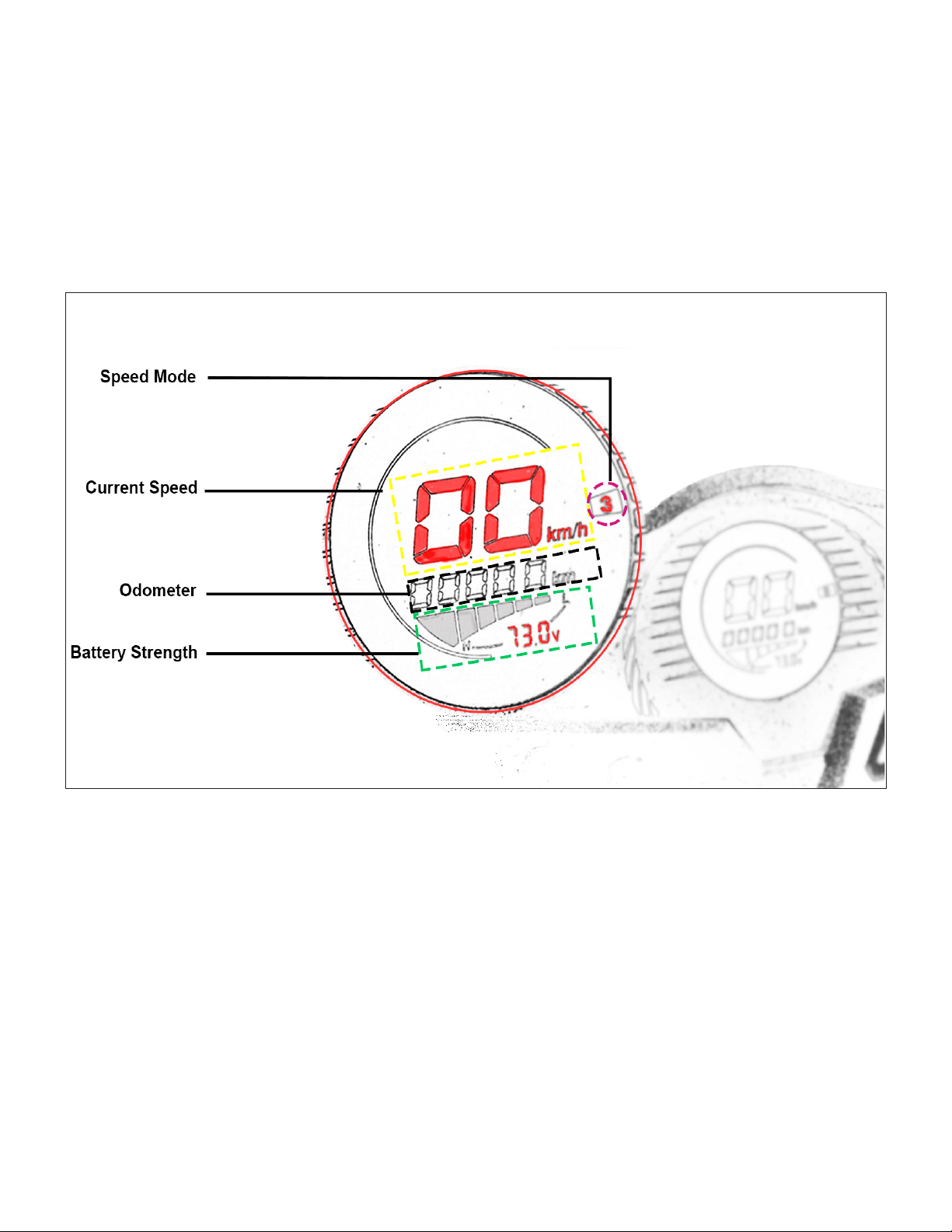

The speedometer enables you to know the working status of the bike. It provides information in-
cluding the current speed, total travel distance, battery strength, and speed mode (3=high speed
mode, 2=medium speed mode, 1=low speed mode).
14

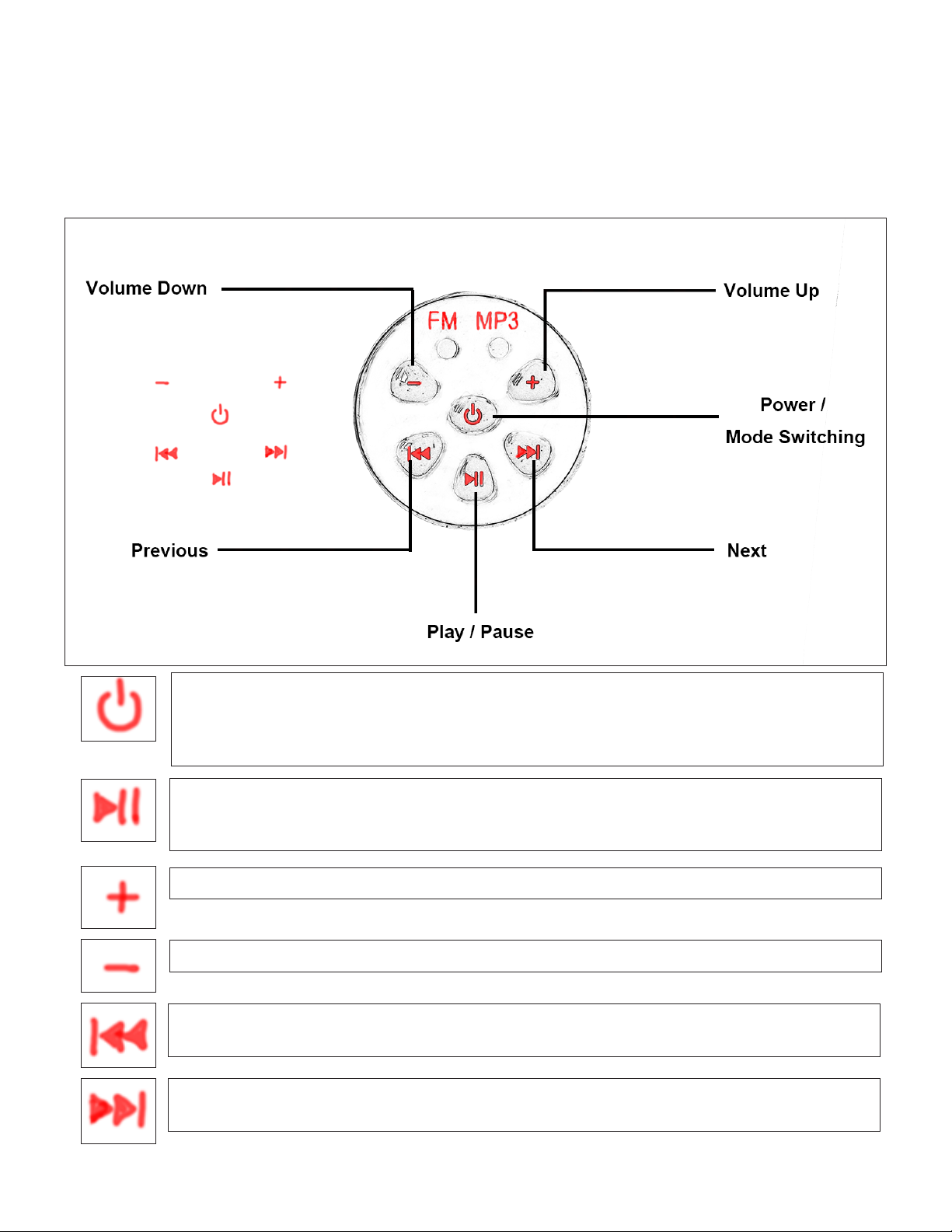

6. AUDIO SYSTEM
Press once to turn on the radio system. e MP3 mode is set by default. You can pair your
bluetooth device with the built-in MP3 player (named Electric bike) and play the music.
Press the button again to switch to FM radio mode.
Press the button again to turn it o.
In MP3 mode, press the button once to pause. Press again to continue to play.
In FM radio mode, hold the button for 5 seconds to search for available channels. Once
nished the system will stop at the rst channel.
Turn the volume up.
In MP3 mode, press the button once to play the previous song in the list.
In FM radio mode, press the button once to switch to previous channel in the list.
In MP3 mode, press the button once to play the next song in the list.
In FM radio mode, press the button once to switch to next channel in the list.
Turn the volume down.
The built-in audio system has two modes - MP3 player and FM radio.
14 15

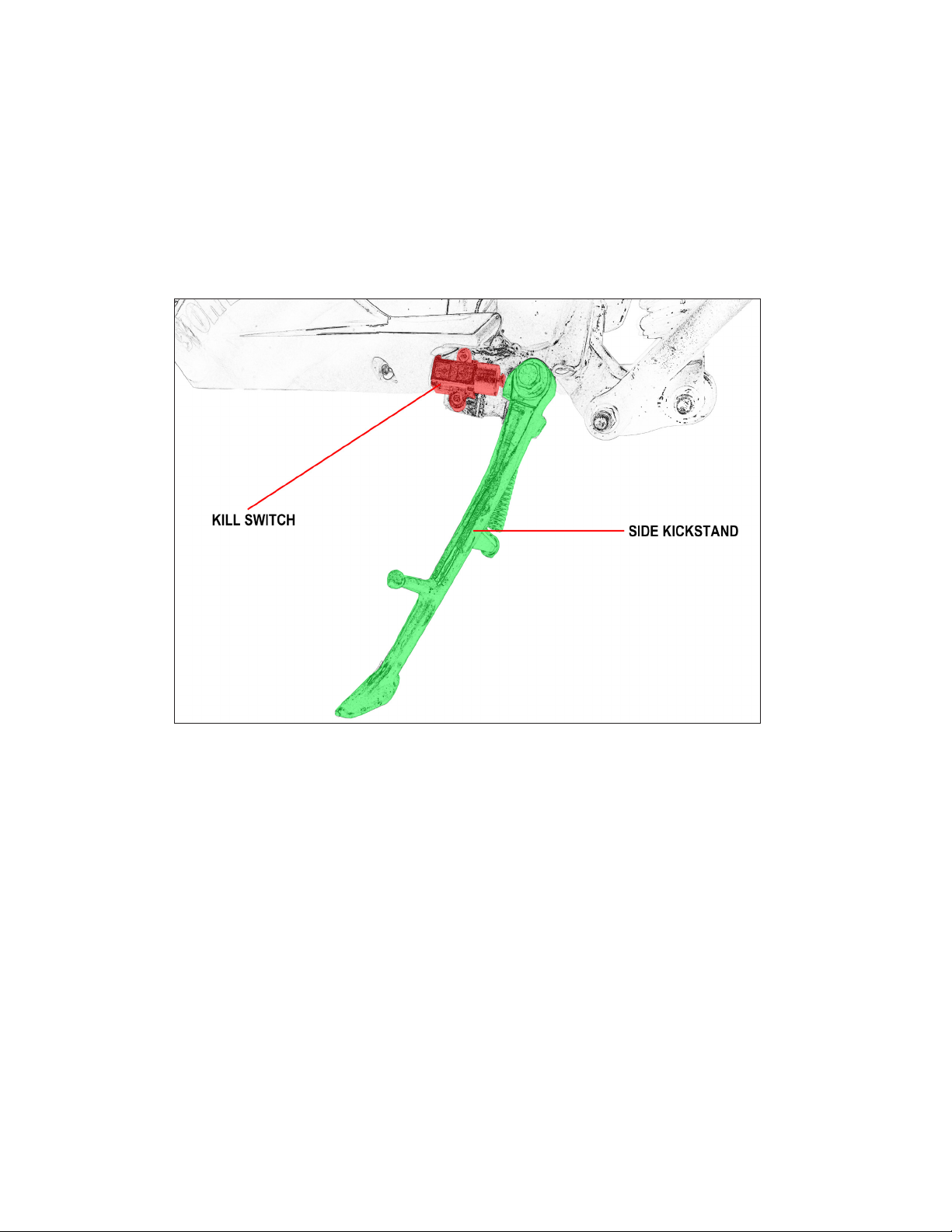

7. SIDE KICKSTAND
The side kickstand is equipped with a kill switch. The kill switch will cut o the power when the side
kickstand is down. Please remember to kick the side stand up before you start the e-bike.
16
8.REAR VIEW MIRRORS
Rear view mirrors make it safer for you to check the trac condition behind you. Please make sure
the rear view mirrors are adjusted and secured properly. Check the rear view mirrors and your blind
spots before you make a turn or overtake other vehicles.
• e mirror can be tilted up and down for approximately 15 degree from
the centreline (as showed by the red arrows).
• e mirror can also be rotated on the holding pole (as shown by the blue
arrow).
16 17
8.REAR VIEW MIRRORS

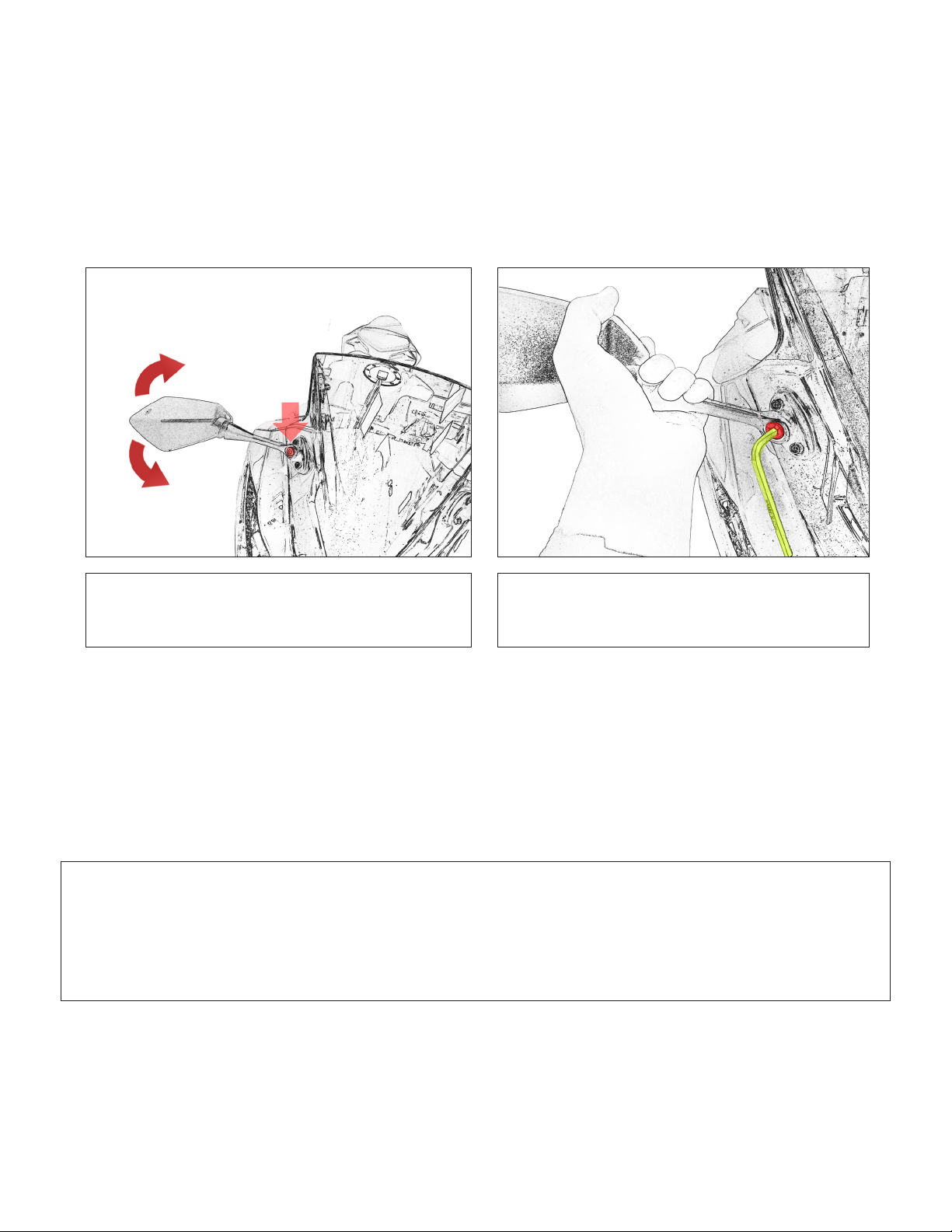

To adjust the mirrors you will need: a 6mm Allen Key (Hex Key) .
• Loosen the bolt slightly and adjust the
holding pole to a preferred position so that
you can have a good view of the rear.
• Hold the mirror rmly in place and
tightened the bolt with the allen key.
Warning:
• DO NOT adjust the mirrors while you are riding the bike.
• Be careful when you tightened the bolt to avoid damage to the
windshield and other panels.
18
9. HOW TO TURN ON THE BIKE
via the Key Ignition
Via the key ignition, you can turn on/o the bike and you can also lock the steering (refer to page
20).
• The ignition is located at the front of the bike, centre of the handlebar.
• To turn on the bike, plug in
the key and turn the key to the
right.
18 19

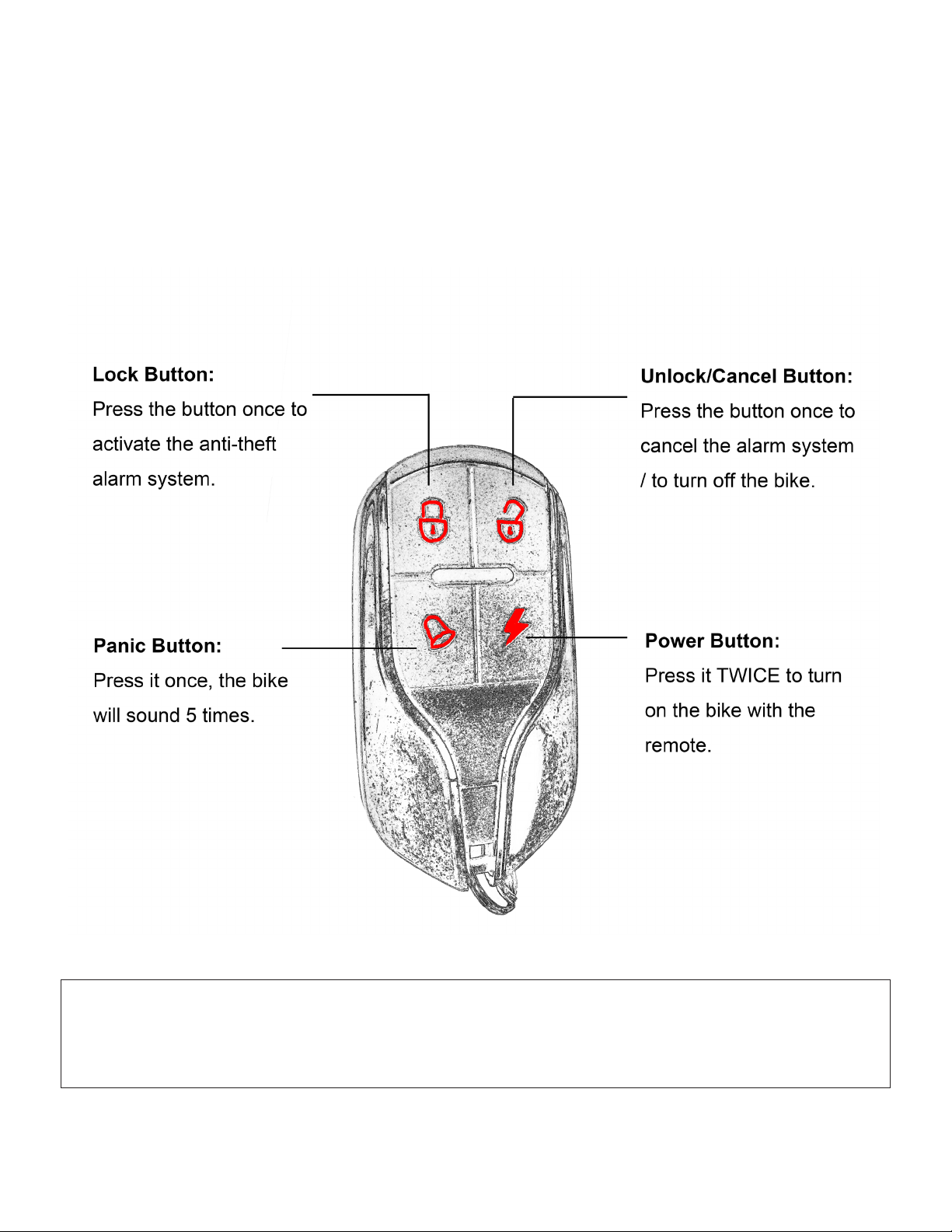

via the Remote Control
9. HOW TO TURN ON THE BIKE
Reminder:
• If the alarm system is on, please cancel the alarm before you turn on
the bike.
20
10. HOW TO LOCK THE STEERING
For the safety of your bike, it is highly recommended to lock the steering when you park your bike
in public spaces.

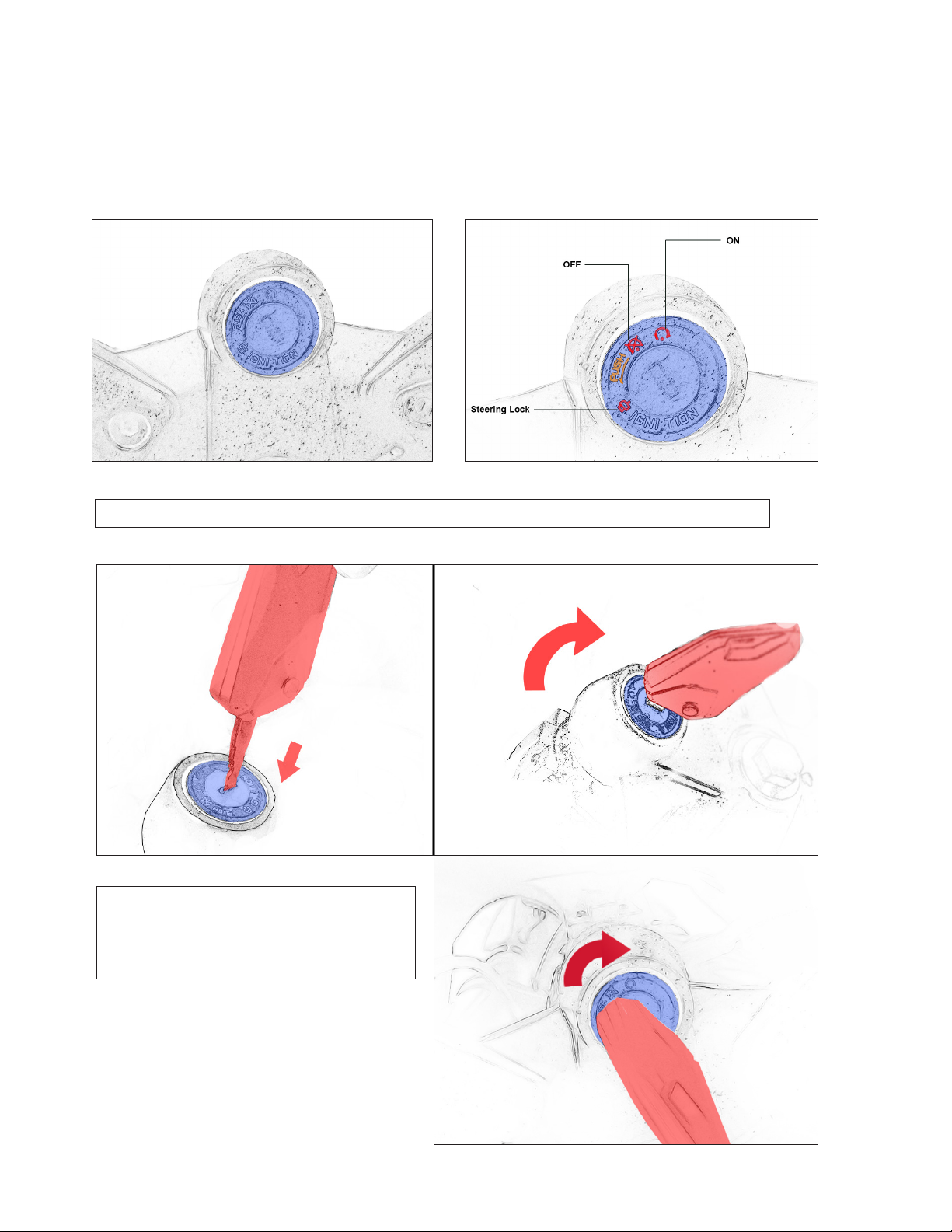

STEP 1: After the bike is turned o, turn the
handlebar to the left (anti-clockwise).
STEP 2: Plug the key into the ignition, gently push the key down and turn the key to the left
(anti-clockwise).
