Empava EMPV-12REC10 User manual

Built-In Electric Cooktop Manual
Ceramic Cooktop:
EMPV-12REC10
EMPV-24REC11
EMPV-30REC12
EMPV-30REC13
EMPV-36REC14
Induction Cooktop:
EMPV-30EC04
EMPV-36EC05
Designed and Engineered in USA
Distributed by Empava Appliances Inc.
Add: 15253 Don Julian Road, City of Industry, CA, 91745 USA
Tel:[phone]
WWW.EMPAVA.COM

2
CONTENTS:
Part 1. Safety Warnings
Part 2. Installation
Part 3. Operation Instructions
Part 4. Cleaning and Maintenance

3
Congratulations on the purchase of your
new cooktop and thank you for choosing us!
Please read all instructions carefully
before use．
Part 1. Safety Warnings
Safety Warnings
Your safety is important to us. Please
read below information carefully before
installing or using your Cooktop.
Important –Save for the local electrical
inspector’s use.
To eliminate the risk of burns or fire by
reaching over heated surface units, cabinet
storage space located above the surface units
should be avoided. If cabinet storage is to be
provided, the risk can be reduced by installing
a range hood that projects horizontally a
minimum of 5 inches beyond the bottom of
the cabinets.
Installation
Electrical Shock Hazard

4
•Disconnect the appliance from the mains
electricity supply before carrying out any work
or maintenance on it.
•Connection to a good earth wiring system is
essential and mandatory.
•Alterations to the domestic wiring system
must only be made by a qualified electrician.
•Failure to follow this advice may result in
electrical shock or death.
Cut Hazard
•Take care - panel edges are sharp.
•Failure to use caution could result in injury
or cuts.
Important safety instructions
•Read these instructions carefully before
installing or using this appliance.
•No combustible material or products should
be placed on this appliance at any time.
•Please make this information available to
the person responsible for installing the
cooktop as it could reduce your installation
costs.
•In order to avoid a hazard, this appliance
must be installed according to these

5
instructions for installation.
•This appliance is to be properly installed and
earthed only by a suitably qualified person.
•This appliance should be connected to a
circuit which incorporates an isolating switch
providing full disconnection from the power
supply.
•Failure to install the appliance correctly
could invalidate any warranty or liability
claims.
Operation and maintenance
Electrical Shock Hazard
•Do not cook on a broken or cracked cooktop.
If the cooktop surface should break or crack,
switch the appliance off immediately at the
mains power supply (wall switch) and contact
a qualified technician.
•Switch the cooktop off at the wall before
cleaning or maintenance.
•Failure to follow this advice may result in
electrical shock or death.
Health Hazard
•This appliance complies with

6
electromagnetic safety standards.
•However, persons with cardiac pacemakers
or other electrical implants (such as insulin
pumps) must consult with their doctor or
implant manufacturer before using this
appliance to make sure that their implants
will not be affected by the electromagnetic
field.
•Failure to follow this advice may result in
death.
Hot Surface Hazard
•During use, accessible parts of this
appliance will become hot enough to cause
burns.
•DO NOT TOUCH SURFACE UNITS OR AREAS
NEAR UNITS –Surface units may be hot even
though they are dark in color. Areas near
surface units may become hot enough to
cause burns. During and after use, do not
touch, or let clothing or other flammable
materials contact surface units or areas near
units until they have had sufficient time to
cool. Among these areas are (identification of
areas –for example, the cook-top and
surfaces facing the cook-top).

7
•Do not let your body, clothing or any item
other than suitable cookware contact the
ceramic glass until the surface is cool.
•Wear Proper Apparel –Loose-fitting or
hanging garments should never be worn while
using the appliance.
•Beware: Metallic objects such as knives,
forks, spoons and lids should not be placed
on the cooktop surface since they can get
hot.
•Storage in or on Appliance –Flammable
materials should not be stored or near
surface units.
•Keep children away.
•Handles of saucepans may be hot to touch.
Check saucepan handles do not overhang
other cooking zones that are on. Keep
handles out of reach of children.
•Utensil Handles Should Be Turned Inward
and Not Extend Over Adjacent Surface Units
–To reduce the risk of burns, ignition of
flammable materials, and spillage due to
unintentional contact with the utensil, the
handle of a utensil should be positioned so
that it is turned inward, and does not extend
over adjacent surface units.
•Failure to follow this advice could result in

8
burns and scalds.
Cut Hazard
•The razor-sharp blade of a cooktop scraper
is exposed when the safety cover is retracted.
Use with extreme care and always store safely
and out of reach of children.
•Failure to use caution could result in injury
or cuts.
Important safety instructions
•Never leave the appliance unattended when
in use. Boil over causes smoking and greasy
spillovers that may ignite.
•Never use your appliance as a work or
storage surface.
•Never leave any objects or utensils on the
appliance.
•Do not place or leave any magnetisable
objects (e.g. credit cards, memory cards) or
electronic devices (e.g. computers, MP3
players) near the appliance, as they may be
affected by its electromagnetic field.
• Make Sure Reflector Pans or Drip Bowls Are
in Place –Absence of these pans or bowls
during cooking may subject wiring or

9
components underneath to damage.
•Never use your appliance for warming or
heating the room.
•After use, always turn off the cooking zones
and the cooktop as described in this manual.
Do not rely on the pan detection feature to
turn off the cooking zones when you remove
the pans.
•Do not allow children to play with the
appliance or sit, stand, or climb on it.
•Do not store items of interest to children in
cabinets above the cooktop. Children climbing
on the cooktop could be seriously injured.
•Do not leave children alone or unattended in
the area where the appliance is in use. They
should never be allowed to sit or stand on any
part of the appliance.
•Children or persons with a disability which
limits their ability to use the appliance should
have a responsible and competent person to
instruct them in its use. The instructor should
be satisfied that they can use the appliance
without danger to themselves or their
surroundings.
•Do not repair or replace any part of the
appliance unless specifically recommended in

10
the manual. All other servicing should be done
by a qualified technician.
•Do not use steam cleaner to clean cooktop.
•Clean Cook-Top With Caution –If a wet
sponge or cloth is used to wipe spills on a hot
cooking area, be careful to avoid steam burn.
Some cleaners can produce noxious fumes if
applied to a hot surface.
•Do not place or drop heavy objects on
cooktop.
•Do not stand on your cooktop.
•Do not use pans with jagged edges or drag
pans across the ceramic glass surface as this
can scratch the glass.
•Do not use scourers or any other harsh
abrasive cleaning agents to clean your
cooktop, as these can scratch the ceramic
glass.
•Do Not Use Water on Grease Fires –
Smother fire or flame or use dry chemical or
foam-type extinguisher.
•Protective Liners –Do not use aluminum foil
to line surface unit drip bowls or oven
bottoms, except as suggested in the manual.
Improper installation of these liners may
result in a risk of electric shock, or fire.

11
• Do Not Soak Removable Heating Elements –
Heating elements should never be
immersed in water.
•If the power supply cable is damaged, it
must only be replaced by qualified technician.
•This appliance is intended to be used in
household and similar applications such as:
-staff kitchen areas in shops, offices and
other working environments; -farm houses;
-by clients in hotels, motels and other
residential type environments; -bed and
breakfast type environments.
•Use Proper Pan Size –This appliance is
equipped with one or more surface units of
different size. Select utensils having flat
bottoms large enough to cover the surface
unit heating element. The use of undersized
utensils will expose a portion of the heating
element to direct contact and may result in
ignition of clothing. Proper relationship of
utensil to burner will also improve
efficiency.
•Glazed Cooking Utensils –Only certain types
of glass, glass/ceramic, ceramic,
earthenware, or other glazed utensils are
suitable for range-top service without

12
breaking due to the sudden change in
temperature.
•This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
the hazards involved. Children shall not play
with the appliance. Cleaning and user
maintenance shall not be made by children
without supervision.
•WARNING: Unattended cooking on a
cooktop with fat or oil can be dangerous and
may result in fire. NEVER try to extinguish a
fire with water, but switch off the appliance
and then cover flame e.g. with a lid or a fire
blanket.
Please save this instructions for future
reference.

13
Part 2. Installation
Installation Instructions
The appliance must be installed and connected in
accordance with current regulations.
After unpacking the appliance, ensure there is no
visible damage. If it has been damaged during transit,
DO NOT USE, contact where you buy immediately.
Selection of installation equipment

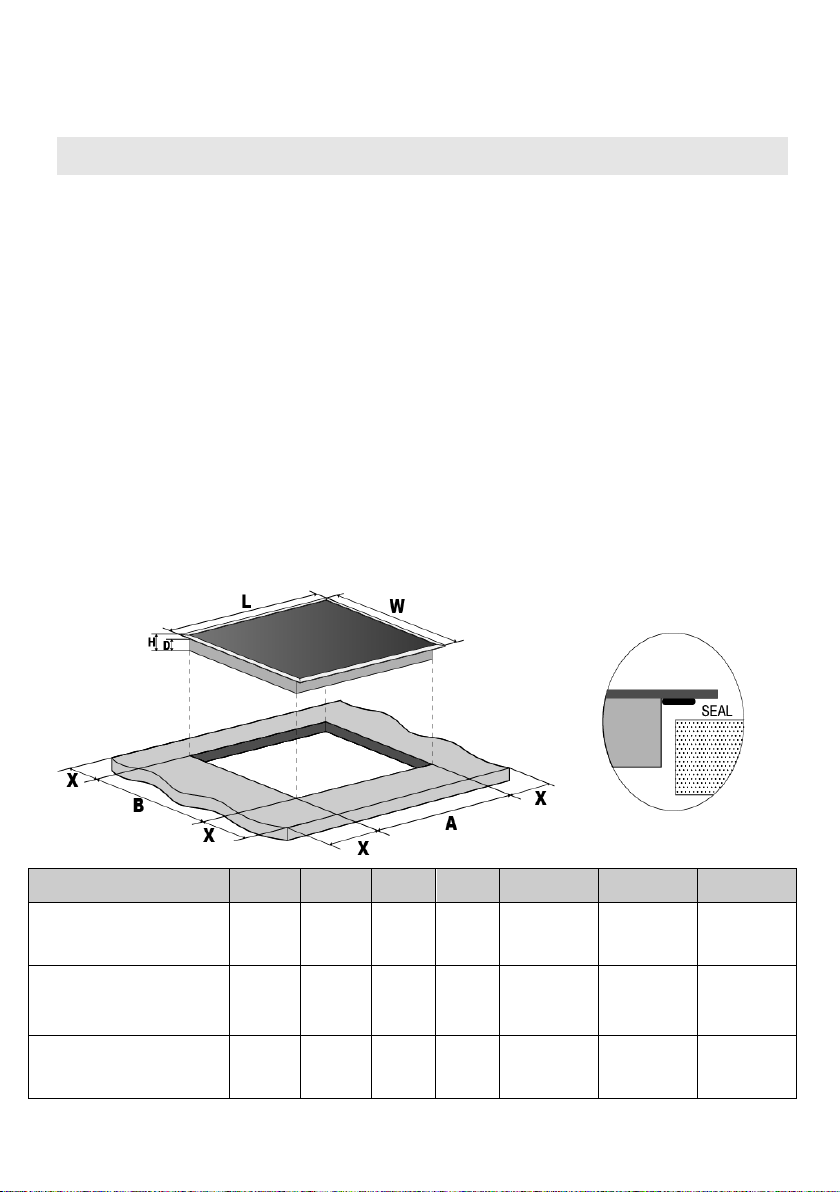

-Cut out the work surface according to the sizes shown in the drawing.
-For the purpose of installation and use, a minimum of 5 cm space shall
be preserved around the hole.
-Be sure the thickness of the work surface is at least 30mm. Please select
heat-resistant work surface material to avoid larger deformation caused
by the heat radiation from the hotplate. As shown below (measure by
unit: mm):
Model
L
W
H
D
A
B
X
EMPV-12REC10
288
520
52
48
265+5
-0
495+5
-0
50 min
EMPV-24REC11
590
520
52
48
555+5
-0
495+5
-0
50 min
EMPV-30REC12
EMPV-30REC13
770
520
52
48
745+5
-0
495+5
-0
50 min

14
EMPV-30EC04
770
520
56
52
745+5
-0
495+5
-0
50 min
EMPV-36REC14
900
520
52
48
875+5
-0
495+5
-0
50 min
EMPV-36EC05
900
520
56
52
875+5
-0
495+5
-0
50 min
Under any circumstances, make sure the electric cooktop is well ventilated and
the air inlet and outlet are not blocked. Ensure the electric cooktop is in good work
state. As shown below:
Note: The safety distance between the hotplate and the cupboard above
the hotplate should be at least 760mm.
A(mm)
B(mm)
C(mm)
D
E
760mm
50mm minimal
20mm minimal
Air intake
Air exit 5mm

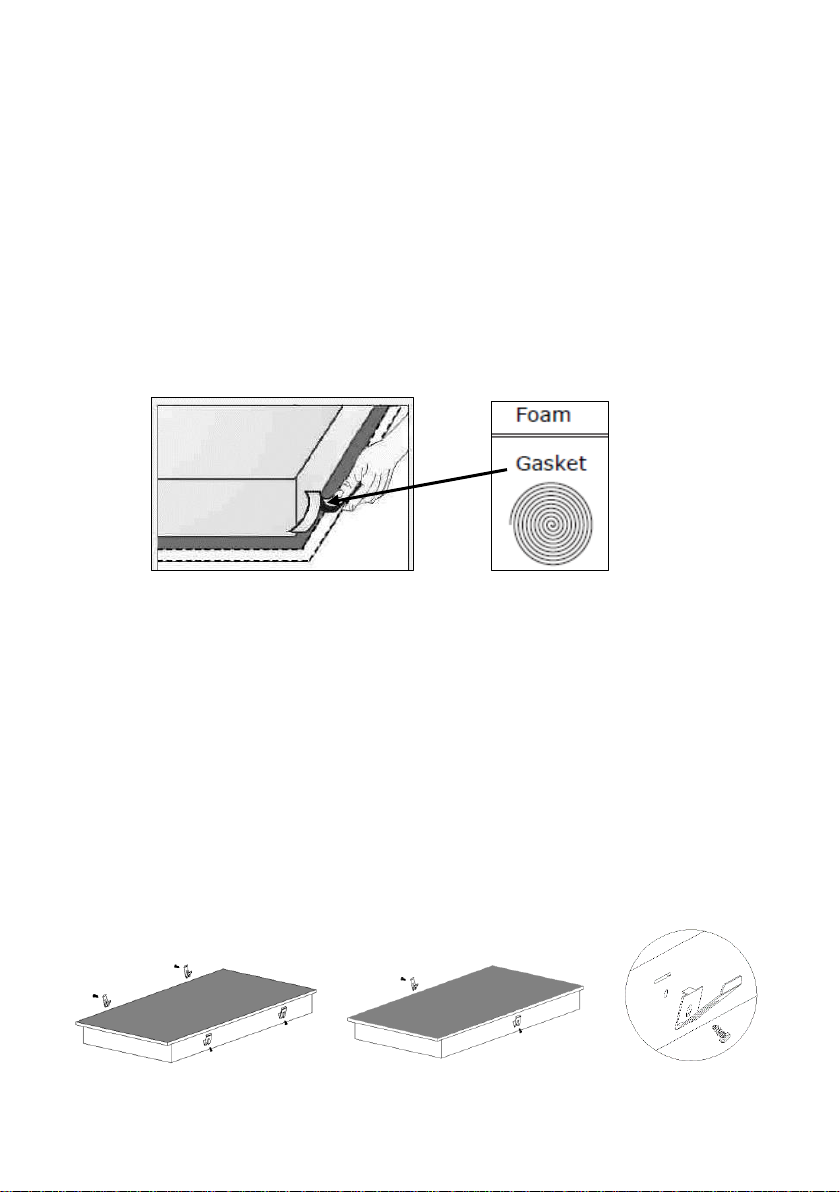

Installing the foam gasket
Before inserting the cooktop into the opening in the kitchen worktop, the supplied
foam gasket (in a plastic bag) must be attached to the lower side of the ceramic
glass.

15
Do not install the cooktop without the foam gasket!
The gasket should be attached to the cooktop in the
following method:
▪Remove the protective film from the gasket.
▪Then attach the gasket to the lower side of the glass, next to the edge.
▪The gasket must be attached along the entire length of the glass edge and
should not overlap at the corners.
▪When installing the gasket, make sure that the glass does not come into contact
with any sharp objects.
Before locating the fixing brackets
The unit should be placed on a stable, smooth surface (use the packaging). Do not
apply force onto the controls protruding from the cooktop.
Easy Fit kits
There is one easy fit kits package for each cooktop, include fixing clips and screws
(for EMPV-12REC10 total 2pcs clip and 2pcs screw, for other models total 4pcs clip
and 4pcs screw). Find the easy fit kit package first.
Fix clips to cooktop: Insert the fixing clips into fixing holes reserved on 2 sides
of housing, fix clip to housing with screw, then insert cooktop into cabinet/work
surface.

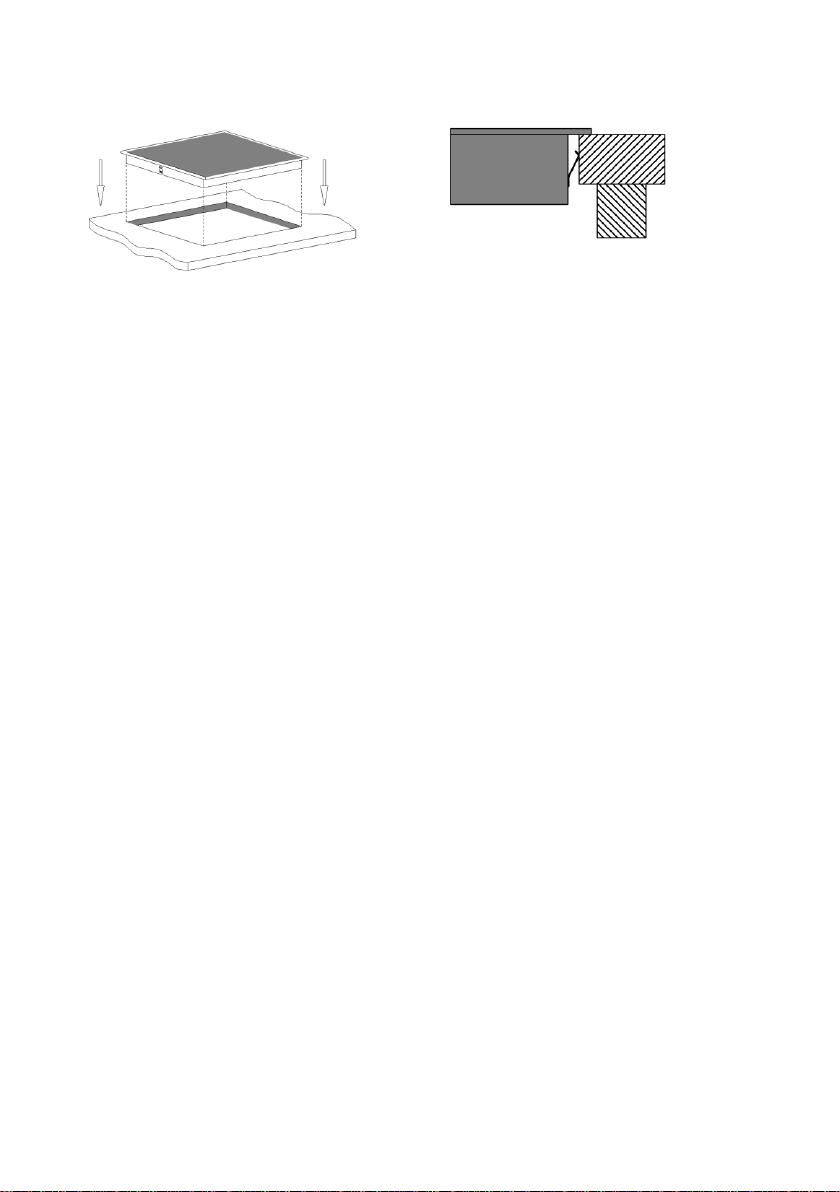

Fix cooktop to cabinet: Insert the cooktop into the cabinet/work surface as

16
below diagrams, the mounted clips on the sides can secure your cooktop sturdily.
Connecting the cooktop to the mains power supply
The power supply should be connected in compliance with the relevant standard,
or a single-pole circuit breaker. The appliance has a large power rating and
must be connected to electricity by a Qualified Electrician.
Notes:
1. If the cable is damaged or needs replacing, this should be done by an
after-sales technician using the proper tools, so as to avoid any accidents.
2. If the appliance is being connected directly to the mains supply, an omni polar
circuit breaker must be installed with a minimum gap of 3mm between the
contacts.
3. The installer must ensure that the correct electrical connection has been made
and that it complies with safety regulations.
4. The cable must not be bent or compressed.
5. The cable must be checked regularly and only replaced by qualified technician.
Cautions
1. The cooktop must be installed by qualified personnel or technicians.
Please never conduct the operation by yourself.
2. The electric cooktop shall not be mounted to cooling equipment, dishwashers
and rotary dryers.
3. The electric cooktop shall be installed such that better heat radiation can be
ensured to enhance its reliability.
4. The wall and induced heating zone above the work surface shall withstand heat.
5. To avoid any damage, the sandwich layer and adhesive must be heat resistant.
6. A steam cleaner is not to be used.
7. This electric cooktop can be connected only to a supply with system impedance
no more than 0.427 ohm. In case necessary, please consult your supply
authority for system impedance information.

17
Note: For some of the models, there might applied with a power cord with
plug. If so, you can directly plug in socket. Please keep power cord plug
out after use.
For those model power cord without plug, the method of connections
shown below.

18
Part 3. Operation Instructions
Ceramic Cooktop
Model: EMPV-12REC10
1
1
Control Panel
1. 1800W Cooking Zone
2. 1200W Cooking Zone
3. Glass plate
4. Control panel
1. Cooking Zone selection button
2. Heating level/Timer “-” button
3. Heating level/Timer “+” button
4. Child Lock control button
5. Stop & Go control button
6. Timer control button
7. ON/OFF button
1
5
1
2
3
4
2
3
4
6
7

19
Model: EMPV-24REC11
1
Control Panel
1
1. Cooking Zone selection button
2. Timer control button
3. Heating level/Timer “+” button
4. Heating level/Timer “-” button
5. Child Lock control button
6. Extended zone control button
7. Stop & Go control button
8. ON/OFF button
7
3
4
5
8
1. 1200W Cooking Zone
2. 2200/1000W Cooking Zone
3. 1800W Cooking Zone
4. 1200W Cooking Zone
5. Glass plate
6. Control panel
1
5
6
2
3
4
2
6

20

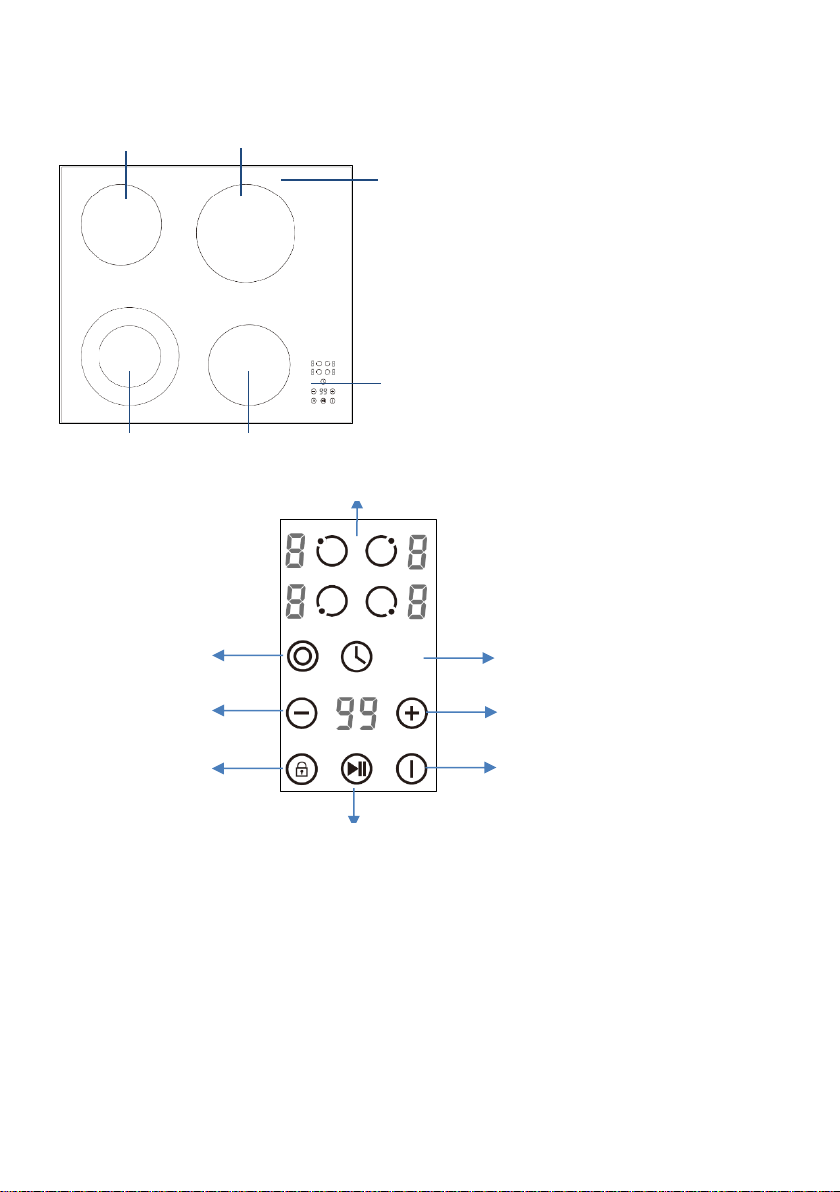

Model: EMPV-30REC12
Control Panel
1. 1800W Cooking Zone
2. 1200W Cooking Zone
3. 1200W Cooking Zone
4. 2500/1200W Cooking Zone
5. Glass plate
6. Control panel
1. Cooking Zone selection button
2. Timer control button
3. Heating level/Timer “+” button
4. Heating level/Timer “-” button
5. Child Lock control button
6. Extended zone control button
7. Stop & Go control button
8. ON/OFF button
7
1
5
6
2
2
3
4
3
4
5
8
1
6
