Empava EMPV-36EC01 Specification sheet

Induction Cooktop
Instruction Manual / Installation Manual
MODEL:
EMPV-36EC01
EMPV-30EC02 EMPV-24EC03

- 1 -
IMPORTANT INSTRUCTION
PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE
USING THE APPLIANCE.
1) Proper Installation – Be sure your appliance is properly installed and
grounded by a qualified technician.
2) Never Use Your Appliance for Warming or Heating the Room.
3) Do Not Leave Children Alone – Children should not be left alone or
unattended in area where appliance is in use. They should never be allowed to
sit or stand on any part of the appliance.
4) Wear Proper Apparel – Loose-fitting or hanging garments should never be
worn while using the appliance.
5) User Servicing – Do not repair or replace any part of the appliance unless
specifically recommended in the manual. All other servicing should be referred
to a qualified technician.
6) Storage in or on Appliance – Flammable materials should not be stored in an
oven or near surface units.
7) Do Not Use Water on Grease Fires – Smother fire or flame or use dry
chemical or foam-type extinguisher.
8) Use Only Dry Potholders – Moist or damp potholders on hot surfaces may
result in burns from steam. Do not let potholder touch hot heating elements. Do
not use a towel or other bulky cloth.
9) Use Proper Pan Size – This appliance is equipped with one or more surface
units of different size. Select utensils having flat bottoms large enough to cover
the surface unit heating element. The use of undersized utensils will expose a
portion of the heating element to direct contact and may result in ignition of
clothing. Proper relationship of utensil to burner will also improve efficiency.
10) Never Leave Surface Units Unattended at High Heat Settings – Boil-over
causes smoking and greasy spillovers that may ignite.
11) Make Sure Reflector Pans or Drip Bowls Are in Place – Absence of these
pans or bowls during cooking may subject wiring or components underneath to
damage.
12) Protective Liners – Do not use aluminum foil to line surface unit drip bowls or
oven bottoms, except as suggested in the manual. Improper installation of these

- 2 -
liners may result in a risk of electric shock, or fire.
13) Utensil Handles Should Be Turned Inward and Not Extend Over Adjacent
Surface Units – To reduce the risk of burns, ignition of flammable materials, and
spillage due to unintentional contact with the utensil, the handle of a utensil
should be positioned so that it is turned inward, and does not extend over
adjacent surface units.
14) Do Not Cook on Broken Cook-Top – If cook-top should break, cleaning
solutions and spillovers may penetrate the broken cook-top and create a risk of
electric shock. Contact a qualified technician immediately.
15) Clean Cook-Top With Caution – If a wet sponge or cloth is used to wipe
spills on a hot cooking area, be careful to avoid steam burn. Some cleaners can
produce noxious fumes if applied to a hot surface.
16) Do not place metallic objects such as knives, forks, spoons and lids on the
cooktop surface since they can get hot.
17) CAUTION: Do not store items of interest to children in cabinets above a
range or on the backguard of a range – children climbing on the range to reach
items could be seriously injured.
18) DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS – Surface
units may be hot even though they are dark in color. Areas near surface units
may become hot enough to cause burns. During and after use, do not touch, or
let clothing or other flammable materials contact surface units or areas near
units until they have had sufficient time to cool. Among these areas are
(identification of areas – for example, the cook-top and surfaces facing the
cook-top).
19) CAUTION – Light (Error Code) signals a component failure. Disconnect
power supply and call qualified serviceman. Have appliance repaired by a
qualified serviceman before using.
20) Read these instructions carefully before installing or using this appliance.
21) No combustible material or products should be placed on this appliance at
any time.
22) Please make this information available to the person responsible for
installing the appliance as it could reduce your installation costs.
23) In order to avoid a hazard, this appliance must be installed according to

- 3 -
these instructions for installation.
24)This appliance is to be properly installed and earthed only by a suitably
qualified person.
25) This appliance should be connected to a circuit which incorporates an
isolating switch providing full disconnection from the power supply.
26) WARNING: Use only cooktop guards designed by the manufacturer of the
cooking appliance or indicated by the manufacturer of the appliance in the
instructions for use as suitable or cooktop guards incorporated in the appliance.
27) The use of inappropriate guards can cause accidents.
28) Failure to install the appliance correctly could invalidate any warranty or
liability claims.
29) Regarding the details of installation, thanks to refer to the section
<Installation>.
30) Connect only to a 3-wire, 240-volt power supply; the neutral conductor is not
required for the operation of the appliance. The potential at the power supply
electrical connections shall be 150-volts-to-ground or less.
Electrical Shock Hazard
•Do not cook on a broken or cracked cooktop. If the
cooktop surface is break or crack, switch the appliance
off immediately at the mains power supply (wall switch)
and contact a qualified technician.
•Switch the cooktop off at the wall before cleaning or
maintenance.
•Failure to follow this advice may result in electrical shock
or death.
Health Hazard
•This appliance complies with electromagnetic safety
standards.
Hot Surface Hazard
•During use, accessible parts of this appliance will

- 4 -
become hot enough to cause burns.
•Do not let your body, clothing or any item other than
suitable cookware contact the ceramic glass until the
surface is cool.
•Metallic objects such as knives, forks, spoons and lids
should not be placed on the cooktop surface since they
can get hot.
•Children less than 8 years of age shall be kept away
unless continuously supervised.
•Handles of saucepans may be hot to touch. Check
saucepan handles do not overhang other cooking zones
that are on. Keep handles out of reach of children.
•Failure to follow this advice could result in burns and
scalds.
Cut Hazard
•The razor-sharp blade of a cooktop scraper is exposed
when the safety cover is retracted. Use with extreme
care and always store safely and out of reach of children.
•Failure to use caution could result in injury or cuts.
Safety instructions
•Never leave the appliance unattended when in use.
Boilover causes smoking and greasy spillovers that may
ignite.
•Never use your appliance as a work or storage surface.
•Never leave any objects or utensils on the appliance.
•Never use your appliance for warming or heating the
room.
•After use, always turn off the cooking zones and the
cooktop as described in this manual (i.e. by using the
touch controls).
•Do not allow children to play with the appliance or sit,

- 5 -
stand, or climb on it.
•Do not store items of interest to children in cabinets
above the appliance. Children climbing on the cooktop
could be seriously injured.
•Do not leave children alone or unattended in the area
where the appliance is in use.
•Children or persons with a disability which limits their
ability to use the appliance should have a responsible
and competent person to instruct them in its use. The
instructor should be satisfied that they can use the
appliance without danger to themselves or their
surroundings.
•Do not repair or replace any part of the appliance unless
specifically recommended in the manual. All other
servicing should be done by a qualified technician.
•Do not use a steam cleaner to clean your cooktop.
•Do not place or drop heavy objects on your cooktop.
•Do not stand on your cooktop.
•Do not use pans with jagged edges or drag pans across
the glass surface as this can scratch the glass.
•Do not use scourers or any other harsh abrasive
cleaning agents to clean your cooktop, as these can
scratch the ceramic glass.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
•This appliance is intended to be used in a domestic
household environment only! Commercial use of any
kind is not covered under the manufacturer's warranty!

- 6 -
•WARNING: The appliance and its accessible parts
become hot during use.
•Care should be taken to avoid touching heating
elements.
•Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children without
supervision.
•WARNING: Unattended cooking on a cooktop with fat or
oil can be dangerous and may result in fire. NEVER try to
extinguish a fire with water, but switch off the appliance
and then cover flame e.g. with a lid or a fire blanket.
•WARNING: Danger of fire: do not store items on the
cooking surfaces.
•WARNING: If the surface is cracked, switch off the
appliance to avoid the possibility of electric shock, for
cooktop surfaces of glass-ceramic or similar material
which protect live parts.
•A steam cleaner is not to be used.
•The appliance is not intended to be operated by means
of an external timer or separate remote-control system.
SAVE THESE INSTRUCTIONS
Congratulations on the purchase of your new cooktop. We recommend that
you spend some time to read this Instruction / Installation Manual in order to
fully understand how to install correctly and operate it.
Read all the safety instructions carefully before use and keep this Instruction /
Installation Manual for future reference.

- 7 -
Connecting the cooktop to the main power supply
The power supply should be connected in compliance with the relevant standard,
or a single-pole circuit breaker. The method of connection is shown as below.

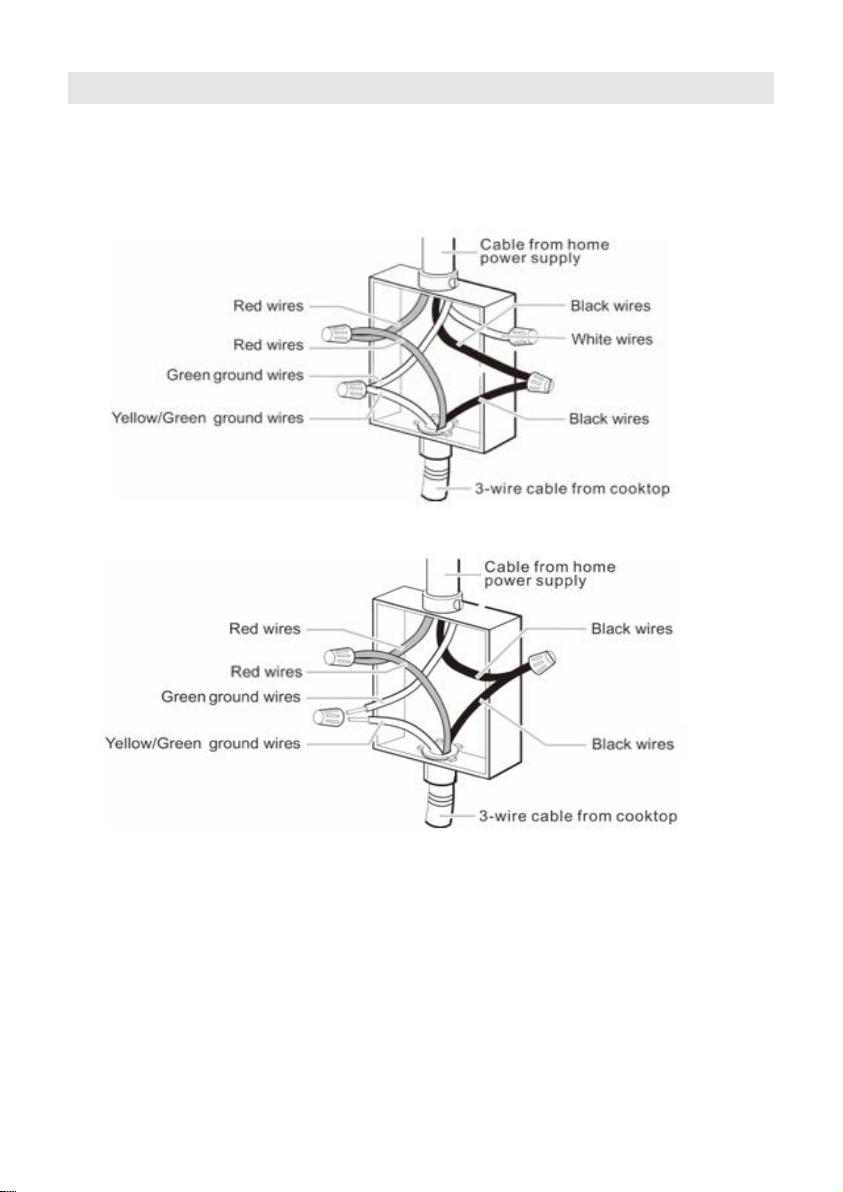

For 4-wire cable from home power supply
For 3-wire cable from home power supply
If the cable is damaged or needs replacing, this should be done by an
after-sales technician using the proper tools, so as to avoid any accidents.
If the appliance is being connected directly to the mains supply, an omnipolar
circuit breaker must be installed with a minimum gap of 0.12in between the
contacts.
The installer must ensure that the correct electrical connection has been
made and that it complies with safety regulations.
The cable must not be bent or compressed.
The cable must be checked regularly and only replaced by a proper qualified
person.

- 8 -
Product Overview
Top View
EMPV-36EC01
EMPV-30EC02
EMPV-24EC03
1. max. 1800/2100W zone
2. max. 1200/1500W zone
3. max. 2300/3700W zone
4. max. 1200/1500W zone
5. Control panel
1. max. 1800/2100W zone
2. max. 1200/1500W zone
3. max. 2300/3700W zone
4. max. 1800/2100W zone
5. max. 1200/1500W zone
6. Control panel
1. max. 2300/3000W zone
2. max. 1200/1500W zone
3. max. 1800/2100W zone
4. max. 1200/1500W zone
5. Control panel

- 9 -

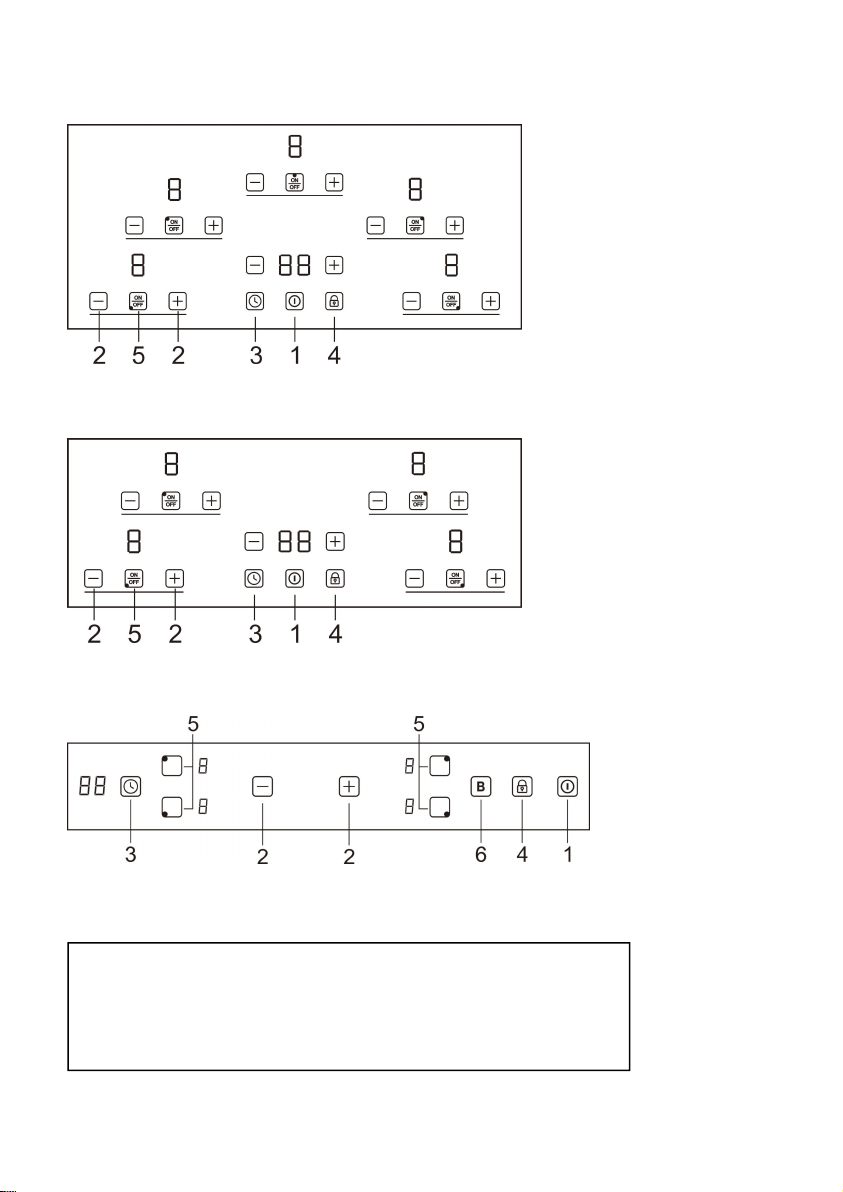

The Control Panel
EMPV-36EC01
EMPV-30EC02
EMPV-24EC03
1. ON/OFF switch 4. Child lock
2. Select power level 5. Heating zone
3. Setting the timer.6. Boost control

- 10 -
Product Information
The ceramic/induction cooktop can meet different kinds of cuisine demands
because of resistance wire heating, micro-computerized control and multi-power
selection, really the optimal choice for modern families.
The cooktop centers on customers and adopts personalized design. The
cooktop has safe and reliable performances, making your life comfortable and
enabling to fully enjoy the pleasure from life.
A Word on Induction Cooking
Induction cooking is a safe, advanced, efficient, and economical cooking
technology. It works by electromagnetic vibrations generating heat directly in the
pan, rather than indirectly through heating the glass surface. The glass becomes
hot only because the pan eventually warms it up.
Before using your New Cooktop
•Read this guide, taking special note of the ‘Safety Warnings’ section.
•Remove any protective film that may still be on your ceramic cooktop.
•Remove any protective film that may still be on your Induction cooktop.
Using the Touch Controls
•The controls respond to touch, so you don’t need to apply any pressure.
•Use the ball of your finger, not its tip.
•You will hear a beep each time a touch is registered.
•Make sure the controls are always clean, dry, and that there is no object
(e.g. a utensil or a cloth) covering them. Even a thin film of water may
make the controls difficult to operate.
iron pot
magnetic circuit
ceramic glass plate
induction coil
induced currents

- 11 -
Choosing the right Cookware

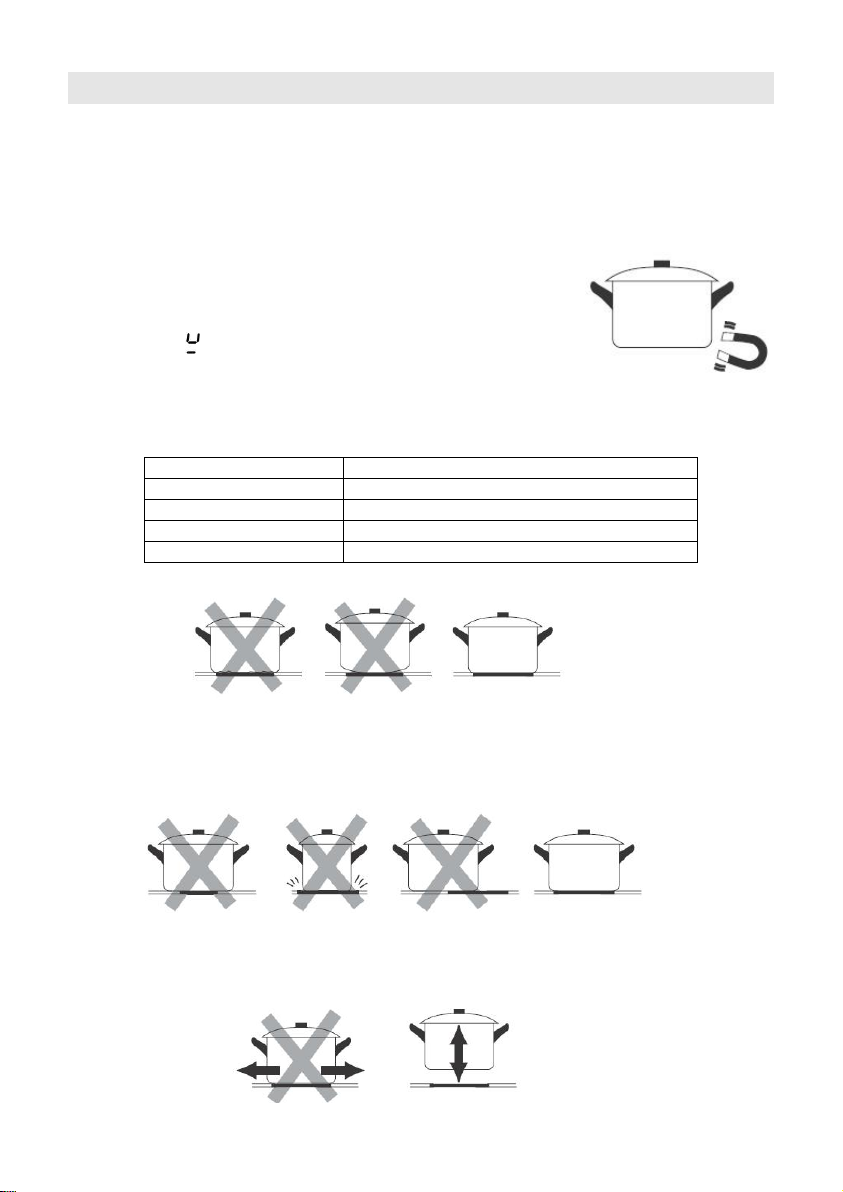

•Only use cookware with a base suitable for induction cooking. Look for
the induction symbol on the packaging or on the bottom of the pan.
•You can check whether your cookware is suitable by carrying out a
magnet test. Move a magnet towards the base of the pan. If it is
attracted, the pan is suitable for induction.
•If you do not have a magnet:
1. Put some water in the pan you want to check.
2. Follow the steps under ‘To start cooking’.
3. If does not flash in the display and the water is
heating, the pan is suitable.
•Cookware made by the following materials is not suitable: pure stainless
steel, aluminum or copper without a magnetic base, glass, wood, porcelain,
ceramic, and earthenware.
Size of burner (in)
The minimum cookware (diameter /in)
6.30
4.72
7.09
5.51
8.27
6.30
11.02
7.09
Do not use cookware with jagged edges or a curved base.
Make sure that the base of your pan is smooth, sits flat against the glass, and is
the same size as the cooking zone. Always centre your pan on the cooking
zone.
Always lift pans off the ceramic cooktop – do not slide, or they may scratch the
glass.

- 12 -
Using your Cooktop - EMPV-36EC01 / EMPV-30EC02
•After power on, the buzzer beeps once, all the indicators light up for 1 second
then go out, indicating that the cooktop has entered the state of standby
mode.

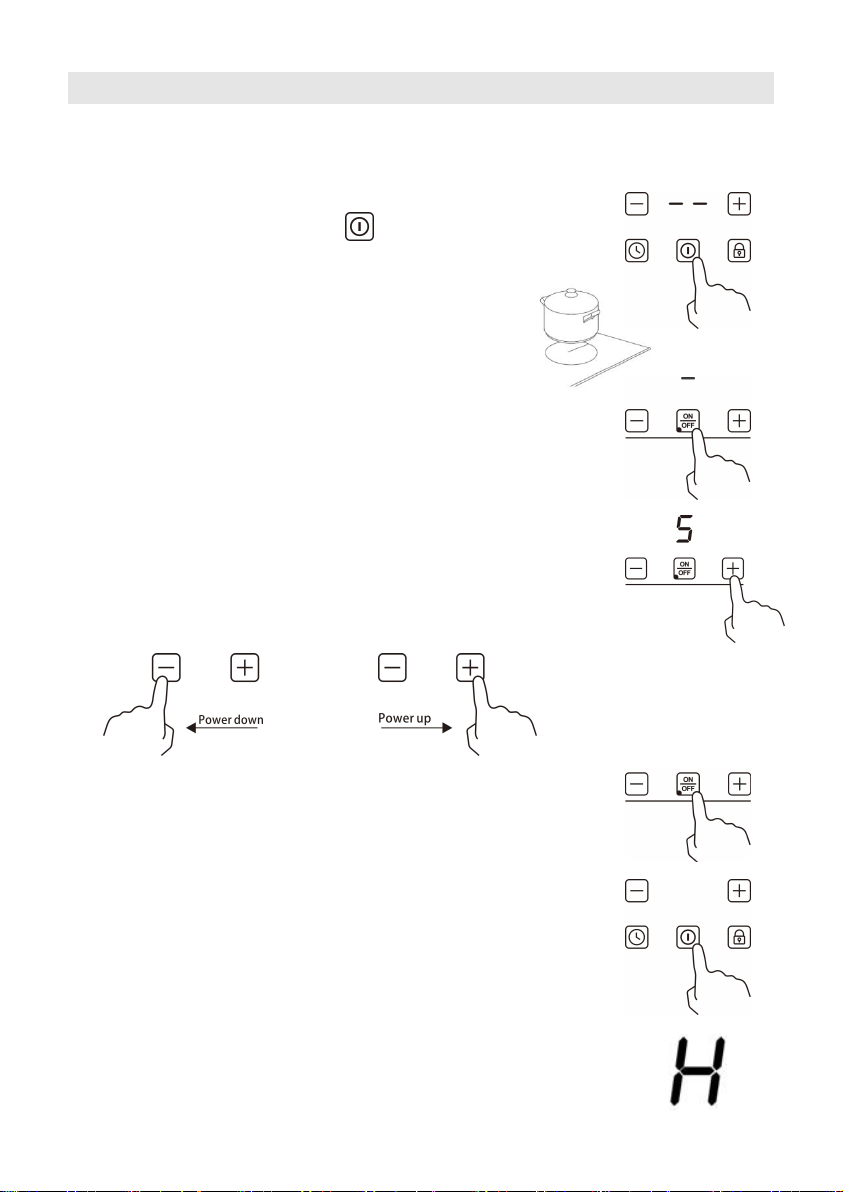

1. Touch the power ON/OFF switch, the timer
indicator show “——“.
2. Place a suitable pan on the cooking zone that
you wish to use. Make sure the bottom of the
pan and the surface of the cooking zone is clean
and dry.
3. Touching the heating zone ON/OFF control, the
heating zone indicator show “—“.
4. Select a heat setting by touching the “—” “+” control.
·If you don’t choose a heat setting within 1 minute, the
induction cooktop will automatically switch off. You will
need to start again at step 1.
·You can modify the heat setting at any time during cooking.
When you have finished cooking

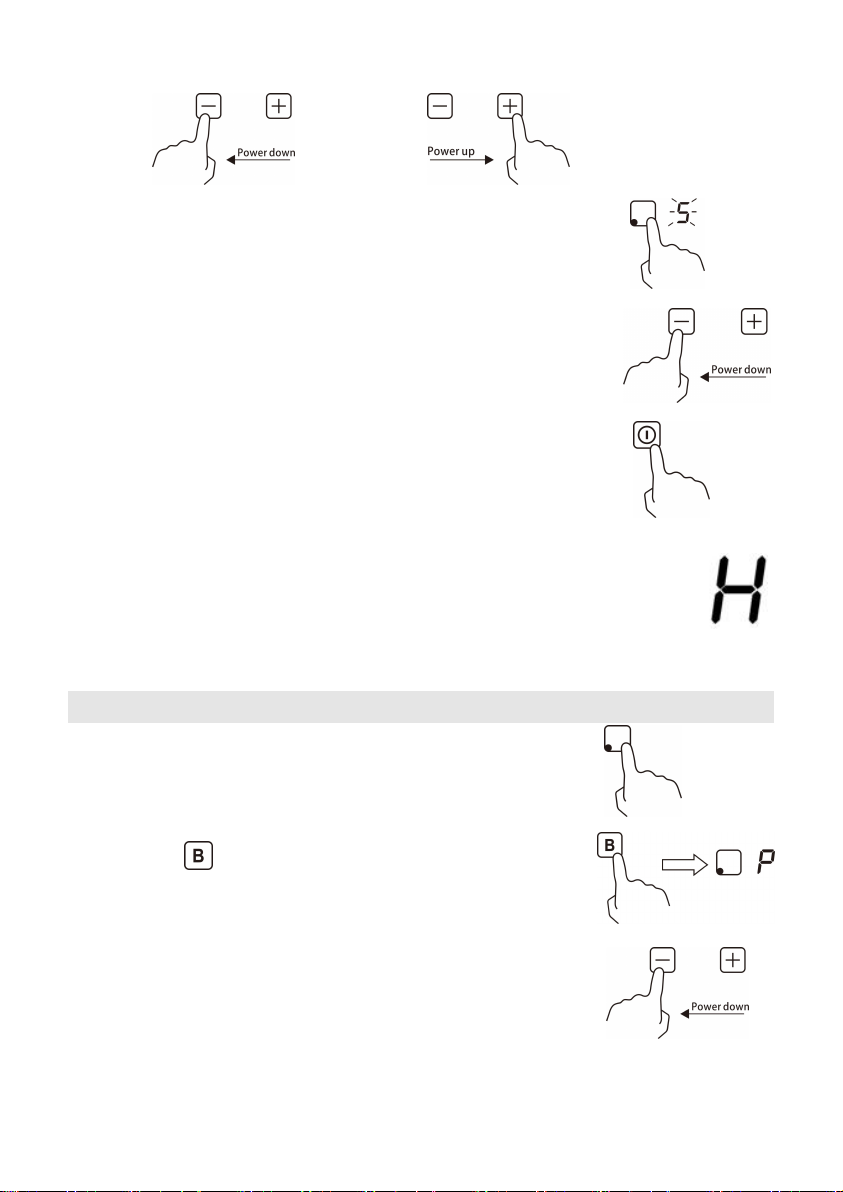

1. Turn the single heating zone off by touching the
heating zone ON/OFF control.
2. Turn the whole cooktop off by touching the power
ON/OFF control.
3. Beware of hot surfaces
“H” will show which means cooking zone is too hot to touch.
It will disappear when the surface has cooled down to a safe
temperature. It can also be used as an energy saving function if
you want to heat further pans, use the hotplate that is still hot.

- 13 -
Using Boost function- EMPV-36EC01 / EMPV-30EC02

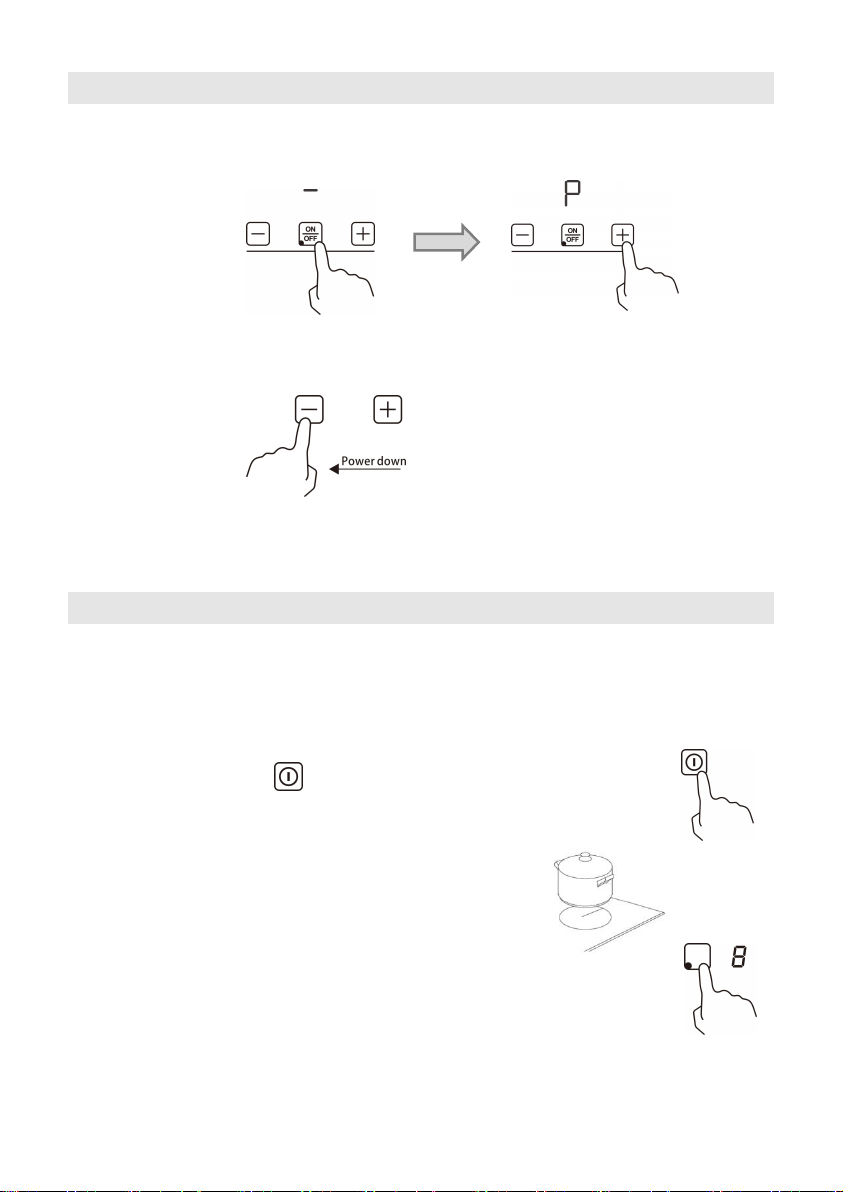

Activate the boost function
Touching the heating zone ON/OFF control and touching “ +” until power level
indication shows “P”.
Cancel Boost function
Touching the “—” to cancel the Boost function, and select the level you want to
set.
• Boost function can only last for 5 minutes, after that the zone will go to level 9
automatically.
Using your Cooktop - EMPV-24EC03
To start cooking
•After power on, the buzzer beeps once, all the indicators light up for 1 second
then go out, indicating that the cooktop has entered the state of standby
mode.
1.Touch the ON/OFF switch. all the indicators
show “– “
2.Place a suitable pan on the cooking zone that you
wish to use. Make sure the bottom of the pan and
the surface of the cooking zone is clean and dry.
3.Touching the heating zone selection control, and
an indicator next to the key will flash.
4.Select a heat setting by touching the “-” “+” control.
•If you don’t choose a heat setting within 1 minute, the induction cooktop
will automatically switch off. You will need to start again at step 1.

- 14 -
•You can modify the heat setting at any time during cooking.
When you have finished cooking
1. Touching the heating zone selection that you wish
to switch off.
2. Turn the cooking zone off by touching the “—” “+”
control, make sure the display shows”0”.
3. Turn the whole cooktop off by touching the ON/OFF
control.
4. Beware of hot surfaces
“H” will show which means cooking zone is too hot to touch.
It will disappear when the surface has cooled down to a safe
temperature. It can also be used as an energy saving function
if you want to heat further pans, use the hotplate that is still hot.
Using Boost function - EMPV-24EC03
Activate the boost function
1. Select the zone with boost function (front left zone).
2. Touching until power level indication shows “P”.
Cancel Boost function
1. Select the zone with boost function (front left zone).
2. Touching the “—” to cancel the Boost function, and select
the level you want to set.
• Boost function can only last for 5 minutes, after that the zone will go to level 9
automatically.

- 15 -
Locking the Controls
•You can lock the controls to prevent unintended use (for example children
accidentally turning the cooking zones on).
•When the controls are locked, all the controls except the ON/OFF control are
disabled.
To lock the controls

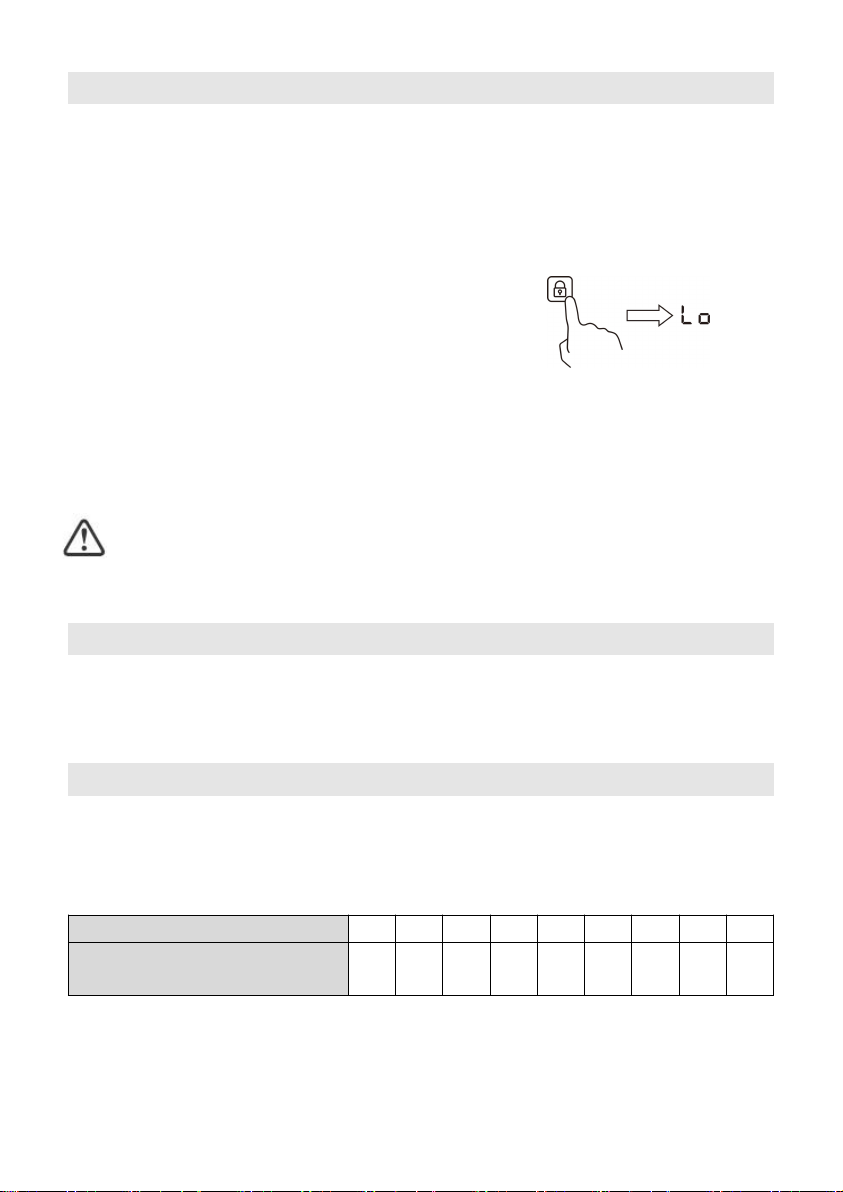

Touch the keylock control,the timer indicator will
show “Lo “.
To unlock the controls
1. Make sure the cooktop is turned on.
2. Touch and hold the keylock control for 3 seconds.
3. You can now start using your cooktop.
When the cooktop is in lock mode, all the controls are disabling except the
ON/OFF, you can always turn the cooktop off with the ON/OFF control in
an emergency, but you shall unlock the cooktop first in the next operation.
Residual Heat Warning
When the cooktop has been operating for some time, there will be some residual
heat. The letter “H” appears to warn you to keep away from it.
Auto Shutdown
Safety feature of the cooktop is auto shut down. This occurs whenever you
forget to switch off a cooking zone. The default shutdown times are shown in the
table below:
Power level
1
2
3
4
5
6
7
8
9
Default working timer
(hour)
8
8
8
4
4
4
2
2
2

- 16 -
Using the Timer
You can use the timer in two different ways:
You can use it as a minute minder. In this case, the timer will not turn any
cooking zone off when the set time is up.
You can use it as cut-off timer to turn one or more cooking zones off after
time is up.
* You can set the timer up to 99 minutes.
Using the Timer as a Minute Minder
1. Make sure the cooktop is turned on. And zone selection key is not activated
(zone indication ‘-‘is not blinking).
Note: you can set minute minder before or after cooking zone power setting
finished.

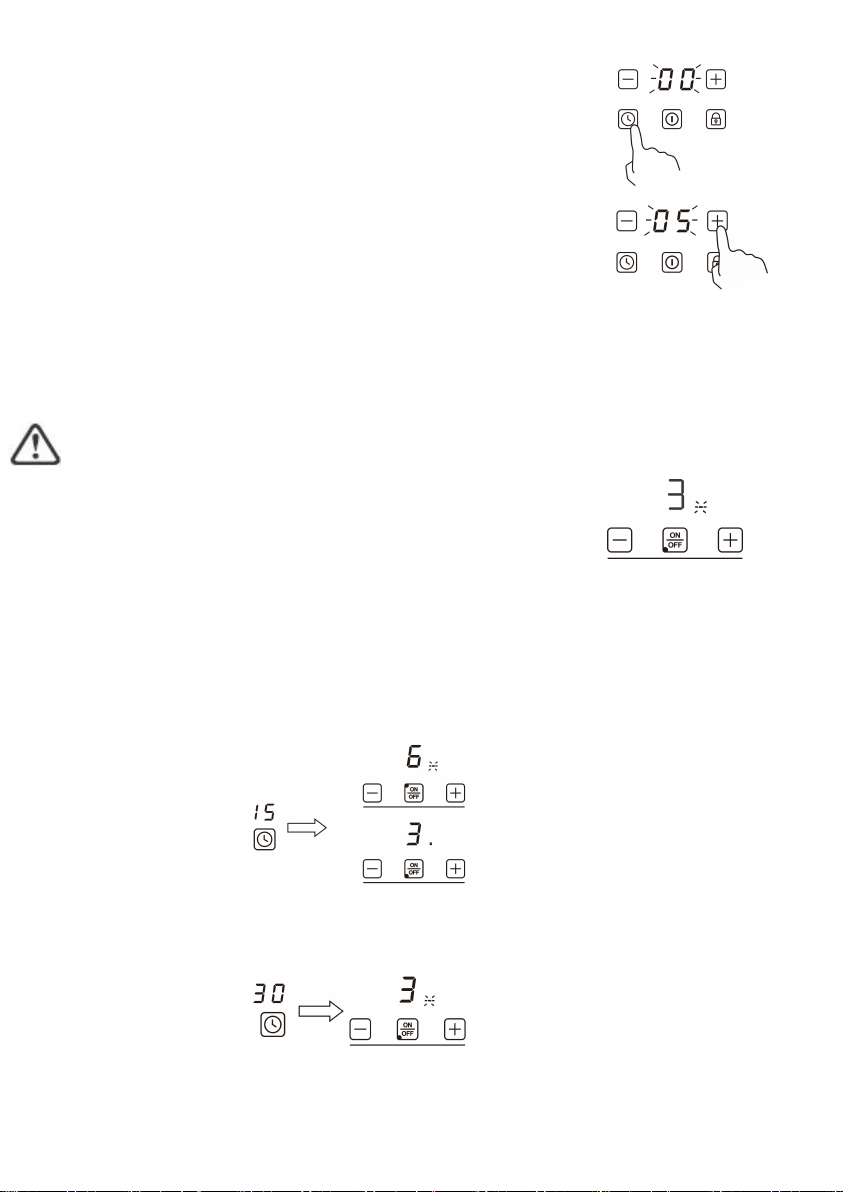

2. Touch timer key, “00” will show in the timer display
and “00” will blink.
3. Set the time from 1~99 minutes by touching the “—”
“+” control of the timer (e.g. 5)
4. When the time is set, it will begin to count down
immediately. The display will show the remaining
time.
5. Buzzer will beeps for 30 seconds and the timer indicator
shows “- - “ when the setting time finished.
Using the timer to switch off one or more cooking zones
1. Touching the heating zone that you want to set the
timer for and select the power level by touching the
“—” “+”.

- 17 -
2. Touch timer control, the “00” will show in the timer
display. and the “0” flash.
3. Set the time from 1~99 minutes by touching the “—”
“+” control of the timer (e.g. 5)
4. When the time is set, it will begin to count down immediately. The display will
show the remaining time.
NOTE: There will be a red dot in the right bottom corner of power level indication
which indicating that zone is selected.
5. When cooking timer expires, the corresponding
cooking zone will be switched off automatically.
Note: Other cooking zones will keep operating if they are turned on previously.
If the timer is set on more than one zone:
1. When you set timer for several cooking zones, red dots of the relevant
cooking zones are indicated. The timer display shows the min. timer. The dot
of the corresponding zone blinks.
(set to 15 minutes)
(set to 45 minutes)
2. Once the countdown timer expires, the corresponding zone will switch off.
Then it will show the new min. timer and the dot of corresponding zone will
flash.
Note: Touch the heating zone selection control, the corresponding timer will
be shown in the timer indicator.

- 18 -
Cancel the timer
1. Touching the “—” “+” control of heating zone that you
want to cancel the timer.
2. Touching the timer control, the indicator will flash.
3. Touch the “—” “+” at the same time to set the timer
to “00”, the timer is canceled.
Cooking Guidelines
Take care when frying as the oil and fat heat up very quickly, particularly if
you’re using Boost. At extremely high temperatures oil and fat will ignite
spontaneously and this presents a serious fire risk.
Cooking Tips
•When food comes to the boil, reduce the power setting.
•Using a lid will reduce cooking times and save energy by retaining the heat.
•Minimise the amount of liquid or fat to reduce cooking times.
•Start cooking on a high setting and reduce the setting when the food has
heated through.
Simmering, cooking rice
•Simmering occurs below boiling point, at around 85˚C, when bubbles are just
rising occasionally to the surface of the cooking liquid. It is the key to
delicious soups and tender stews because the flavours develop without
overcooking the food. You should also cook egg-based and flourthickened
sauces below boiling point.
•Some tasks, including cooking rice by the absorption method, may require a
setting higher than the lowest setting to ensure the food is cooked properly in
the time recommended.
Searing steak
To cook juicy flavoursome steaks:
1.Stand the meat at room temperature for about 20 minutes before cooking.
