Empava EMPV-30GC37 User manual

INSTRUCTION MANUAL
GAS COOKTOP
Appliance Class: 3
Empava Item #:
30 ": EMPV-30GC37 EMPV-30GC38
36" : EMPV-36GC36
Distributed by:
Empava Appliances Inc.
Add:15253 Don Julian Rd, City of Industry, CA 91745 USA
www.empava.com
Tel: [phone]
Email:[e-mail]
The instructions shall be marked with directions to the installer to leave them with
the appliance and to the consumer to retain them for future reference.

WARNING:
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
If the supply cord is damaged, it must be replaced by the manufacturer. its service agent or
similarly qualified persons in order to avoid a hazard.
The disconnection may be achieved by having the plug accessible or by incorporating a switch in
the fixed wiring in accordance with the wiring rules.
WARNING:
If the information in these instructions is not followed exactly, a fire or explosion may result causing
property damage, personal injury or death.
— Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the fire department.
— Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
1

Contents
Cooktop Description
Important Information
Operation
Maintenance and Cleaning
Troubleshooting
Instructions for the Installer
Important safety requirements
Installation
This appliance shall be installed in accordance with the regulations in force and only used in a well-
ventilated space.
Read the instructions before installing or using this appliance.
The installation must conform with local codes or, in the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.1/NFPA 54 or, in Canada, the Natural Gas and Propane Installation Code, CSA
B149.1.
The appliance, when installed, must be electrically grounded in accordance with local codes or, in the
absence of local codes, with the National Electrical Code, NFPA 70 or the Canadian Electric Code, CSA
C22.1‐02.
2

Cooktop Description
Figure 1
Figure 2
Figure 3
Total heat input: 57500Btu/hr
Total heat input: 57500Btu/hr
EMPV-30GC38
EMPV-30GC37
Total heat input:57500Btu/hr
EMPV-36GC36
Operating Instructions:
Knob 1 is for semi-rapid burner C
Knob 2 is for rapid burner B
Knob 3 is for wok burner A
Knob 4 is for rapid burner D
Knob 5 is for auxiliary burner E
1. Wok burner A—18000Btu/hr
2. Rapid burner B—12000Btu/hr
3. Semi-rapid burner C—9500Btu/hr
4. Rapid burner D—12000Btu/hr
5. Auxiliary burner E—6000Btu/hr
Operating Instructions:
Knob 1 is for semi-rapid burner D
Knob 2 is for auxiliary burner E
Knob 3 is for rapid burner C
Knob 4 is for rapid burner B
Knob 5 is for wok burner A
1. Wok burner A—18000Btu/hr
2. Rapid burner B—12000Btu/hr
3. Rapid burner C—12000Btu/hr
4. Semi-rapid burner D—9500Btu/hr
5. Auxiliary burner E—6000Btu/hr
Operating Instructions:
Knob 1 is for semi-rapid burner C
Knob 2 is for rapid burner B
Knob 3 is for wok burner A
Knob 4 is for rapid burner D
Knob 5 is for auxiliary burner E
1. Wok burner A—18000Btu/hr
2. Rapid burner B—12000Btu/hr
3. Semi-rapid burner C—9500Btu/hr
4. Rapid burner D—12000Btu/hr
5. Auxiliary burner E—6000Btu/hr
3

Important Information
Read the instructions before installing or using this appliance.
Children should be supervised to ensure that they do not play with the appliance.
These instructions are only valid if the country symbol appears on the appliance. If the symbol does not
appear on the appliance, it is necessary to refer to the technical instructions which will provide the
necessary instructions concerning modification of the appliance to the conditions of use of the country.
Installation
Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure)
and the adjustment of the appliance are compatible.
The adjustment conditions for this appliance are stated on the label (or data plate).
This appliance is not connected to a combustion products evacuation device. It shall be installed
and connected in accordance with current installation regulations. Particular attention shall be
given to the relevant requirements regarding ventilation. Read the instructions before installing or
using this appliance.
The appliance and its individual shut-off valve must be disconnected from the gas supply piping
system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5 kPa).
The appliance must be isolated from the gas supply piping system by closing its individual manual
shut-off valve during any pressure testing of the gas supply piping system at test pressures equal
to or less than 1/2 psi (3.5 kPa).
Always check for the validity of the pressure regulator. Technical specification of the pressure
regulator:
i. Refer to TECHNICAL DATA in this manual.
ii. Max. consumption: 2.5kg/h.
iii. Should be certified according to ANSI Z21.1 / CSA 1.1 and comply with local code.
This appliance must be installed and serviced by a competent person
This appliance shall be installed in accordance with the regulations in force and only used in a well-
ventilated space.
Remove all packaging before using the gas cooktop
Ensure that the gas and complies with the type stated on the rating label
Do not attempt to modify the gas cooktop in any way
For your Safety
This gas cooktop is designed to be operated by adults. Do not allow children to play near or with
the gas cooktop.
The gas cooktop gets hot when it is in use.
Children should be kept away until it has cooled.
Children can also injure themselves by pulling pans or pots off the gas cooktop.
CAUTION: This appliance is for cooking purposes only. It must not be used for other purposes, for
example, room heating.
4

When Use
This gas cooktop is intended for domestic cooking only. It is not designed for commercial or
industrial purposes.
When in use a gas cooking appliance will produce heat and moisture in the room in which it has
been installed. Ensure there is a continuous air supply, keeping air vents in good condition or
installing a cooker hood with a venting hose.
When using the gas cooktop for a long period of time, the ventilation should be improved, by
opening a window or increasing the extractor speed.
Do not use gas cooktop if it is in contact with water. Do not operate the gas cooktop with wet
hands.
Ensure the control knobs are in the closed position when not in use.
In the event of the burner flames being accidentally extinguished, the re-igniter is working normally
and the burner has not ignited within 15 seconds of ignition time, turn off the burner control and do
not attempt to re-ignite the burner for at least 1 min.
Ensure the surface of the utensil is dry and free of water drops, so as to prevent the water drops
from blocking the air outlet and unable to ignite. In case of overflow of the pot, stop using the
cooktop and clean the overflow before using. If there are other abnormalities, please contact
professional maintenance person.
Service
The gas cooktop should only be repaired or serviced by an authorized Service person and only
genuine approved spare parts should be used.
Environmental Information
After installation, please dispose of the packaging with due regard to safety and the environment.
When disposing of an old appliance, make it unusable, by cutting off the cable.
The symbol on the product or on its packaging indicates that this product may not be
treated as household waste. Instead it shall be handed over to the applicable collection point for
the recycling of electrical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling of this product. For more
detailed information about recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the product.
5

Operation
Lighting
Simply press the knob in, turn anticlockwise to ignition position (star icon).
Press the ignition device and hold the knob till the burner is ignited
Before releasing knob, ensure a flame is established.
If the burner fails to ignite, put into off position and try again.
If in case of a power failure or failure of the ignition, a match or lighting devise can be used. Care must
be taken when using this method.
The device shall not be operated for more than 15s. If after 15s the burner has not lit, stop operating the
device and open the compartment door and/ or wait at least 1 min before attempting a further ignition of
the burner.
In the event of the burner flames being accidentally extinguished, turn off the burner control and do not
attempt to re-ignite the burner for at least 1 min.
CAUTION:
Accessible parts may be hot when the cooktop is in use. Young children should be kept away.
As shown in Figure 4, place the burner onto the burner base one by one and stuck, rotate left and right
to check if the burners are in place, the burner is placed correctly when it cannot be rotated. Finally
center placed the burner cap on the burner.
If you cannot light the flame even after several attempts, check the "cap" and “crown” (see diagram –
figure 4) if they are in the correct position. To put the flame out, turn the knob to the symbol “O”
Description:
1. Burner cap
2. Burner crown
3. Burner base
4. Ignition electrode
To ensure maximum burner efficiency, you had better use pots and pans with a flat bottom fitting the
size of the burner used (see table).
Do not use rim based or convex-based vessels on the hotplate burners.
Figure 4
6

Pan dimensions
inches (mm)
Wok burner
12000Btu/hr
Rapid burner
10200Btu/hr
Semi rapid burner
6000Btu/hr
Auxiliary burner
3400Btu/hr
Outside diameter - top
≤9 (229)
≤9 (229)
≤7 (178)
≤7 (178)
Projected outside
diameter - bottom
≤8½(216)
≤8½(216)
≤6½(165)
≤6½(165)
WARNING: As soon as a liquid starts boiling, turn down the flame so that it will barely keep the liquid
simmering. If the control knobs become difficult to turn, please contact your local service center.
WARNING: Users could not use the cooking vessels on the hotplate that overlap its edges.
WARNING: All burner caps can’t be dislocated installation, otherwise it will lead to flash back on the
upper aluminum seats and cause the upper aluminum seats to melt and deform, see below figures for
correctly placing the burner caps
Figure 5
Re-ignition:
If the flame goes out for some reasons, the re-igniter device will automatically start the ignition function,
and will not stop the ignition until the burner ignites. If the burner is not ignited, turn the switch to the off
state and check whether there is gas in the gas pipe. Under normal air supply, turn the switch to the
"maximum flame" position, and then ignite again. Wait for 30 seconds when igniting; because there is
air in the gas appliance, there may be unsmooth ignition, turn the switch to the "maximum flame"
position and ignition again.
Maintenance and Cleaning
Before any maintenance or cleaning can be carried out, you must DISCONNECT the gas cooktop from
the electricity supply.
The gas cooktop is best cleaned while it is still warm; as spillage can be removed more easily than if it is
left to cool.
7

Control Panel
Sign ● = gas valve is shut off
Sign =largest flame
Sign =smallest flame
Sign = electric discharge for ignition
The Burners
The burner caps and crowns can beremoved for cleaning. Wash the burner caps and crowns using hot
soapy water, and remove marks with a mild paste cleaner. A well moistened soap impregnated steel
wool pad can be used with caution, if the marks are particularly difficult to remove.
After cleaning, be sure to wipe dry with a soft cloth.
Ignition electrode
The electric ignition is obtained through a ceramic "electrode" and a metal electrode. Keep these
components very clean, to avoid lighting difficulties, and check that the burner crown holes are not
obstructed.
Recommended maintenance instructions (we recommend cleaning every six months.):
1) Keep the electrical area clean and free of combustible materials, gasoline and other flammable gas
and liquids.
2) Does not hinder the flow of combustion and ventilation air.
3) Visually inspect the flame of the fire transmission trough, and have an icon.
A> Take off the hob.
B>Turn the knob from MAX to MIN, and check the flame status. The flame at the MIN position should
be smaller than the flame at the MAX position. The ignition needle can be burned to ensure the normal
operation of the key fire device under both MAX and MIN working conditions, as shown in the figure
below.
C>Be sure to check the flame before each use. If any abnormal state is found, please refer to
troubleshooting.
8

Trouble Shooting
Problem
Corrective action
• There is no spark when lighting the gas
• Check that the unit is plugged in and the electrical
supply is switched on
• Check that the RCCB has not tripped (if fitted)
• Check the mains fuse has not blown
• Check the burner cap and crown have been replaced
correctly, e.g. after cleaning.
• The gas ring burns unevenly
• Check the main jet is not blocked and the burner crown
is clear of food particles.
• Check the burner cap and crown have been replaced
correctly, e.g. after cleaning.
Instructions for the Installer
Overall dimensions
Model No.
Width
Depth
EMPV-30GC37,EMPV-30GC38
29.92in
20.08in
EMPV-36GC36
36.02in
20.67in
Cut out dimensions
Model No.
Width
Depth
EMPV-30GC37,EMPV-30GC38
28.62in
18.90 in
EMPV-36GC36
33.07in
18.90 in
9
For model: EMPV-30GC37, EMPV-30GC38
For model: EMPV-36GC36

Technical Data
Burner configuration
NG
LPG
Nozzles Dia. (mm)
Btu/hr
Nozzles Dia. (mm)
Btu/hr
Wok burner
2.18
18000
1.22
18000
Rapid burner
1.56
12000
1.01
12000
Semi rapid burner
1.42
9500
0.88
9500
Auxiliary burner
1.11
6000
0.72
6000
Different models have different total heat input, please refer to page 3.
Gas Type and working pressure:
NG gas pressure at 4.0 in w.c.
LPG gas pressure at 10 in w.c.
Important safety requirements
Location
The cooktops may be located in a kitchen, a kitchen/diner or bed sitting room, but not in a bathroom,
shower room or garage. Before making the cut out in the worktop ensure that there is a minimum
distance of 3.94”between the rear edge of the cooktops and the wall. A minimum distance of 3.94”
must be left between the side edges of the cooktops and any adjacent cabinets or walls. The minimum
distance combustible material can be fitted above the cooktops in line with the
edges of the cooktops is 18”. If it is fitted below 18” a space of 1.97” must be allowed from the edges of
the cooktops. The minimum distance combustible material can be fitted directly above the cooktops is
30”. Maximum depth for the overhead cabinets is 13”.The distance from the front edge of the cooktop
to the front edge of the countertop should be 3.0”.The distance between the closet should be 23.62”

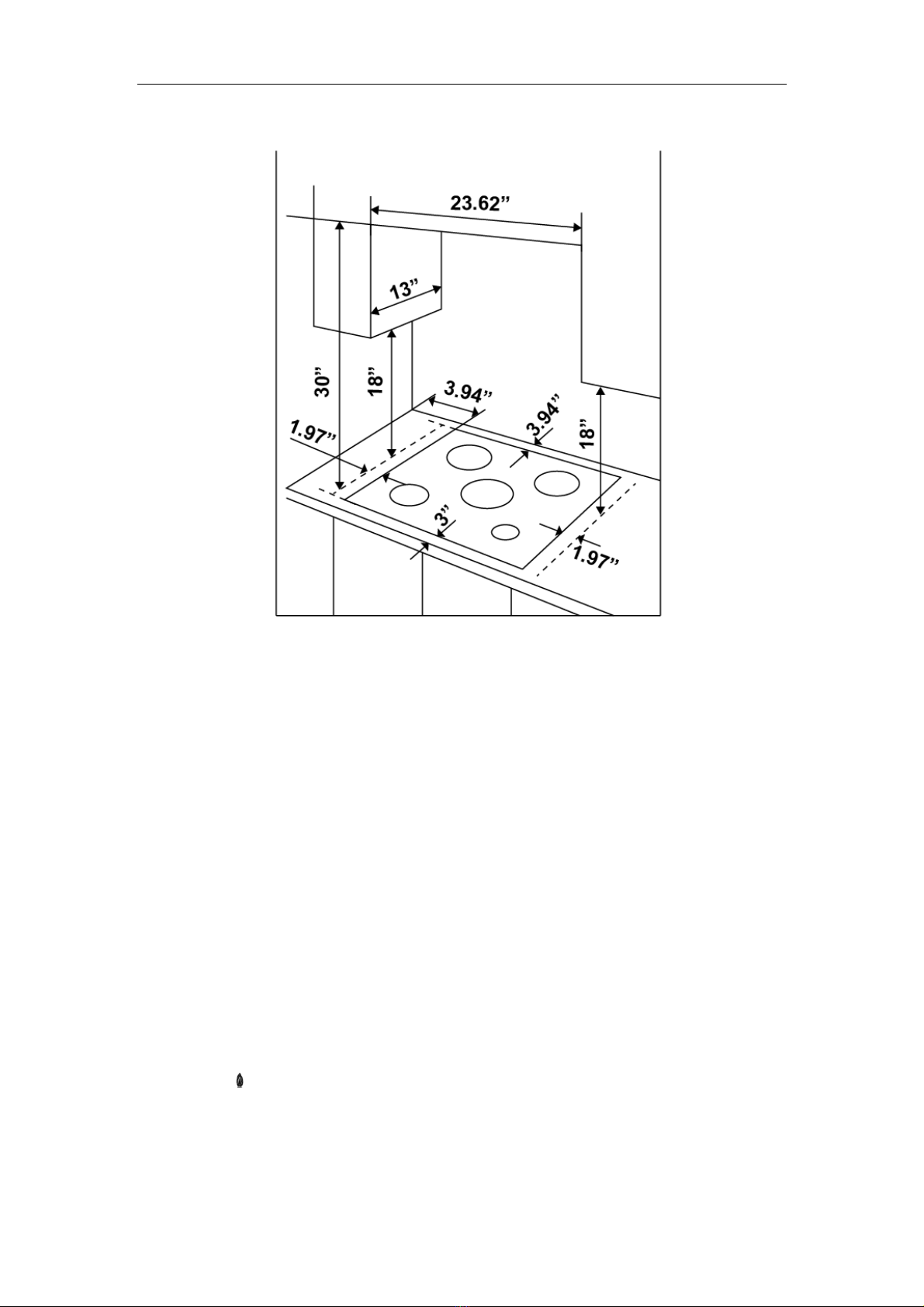

(not less than the depth of the cooktop itself) (see Figure 6)
Notice that a horizontal separation below the base of the hotplate is needed.
The minimum distance between this separation shall not exceed 5.90”.
10

Figure 6
WARNING: The use of a gas cooking appliance results in the production of heat and moisture in the
room in which it is installed. Ensure that the kitchen is well ventilated especially when the appliance is in
use. Keep natural ventilation holes open or install a mechanical ventilation device.
Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a
window, or more effective ventilation, for example increasing the level of mechanical ventilation where
present.
WARNING: The base of the appliance should be protected from contact by a horizontal partition or
plate.
A manual valve be installed in an accessible location in the gas line external to the appliance for the
purpose of turning on or shutting off gas to the appliance.

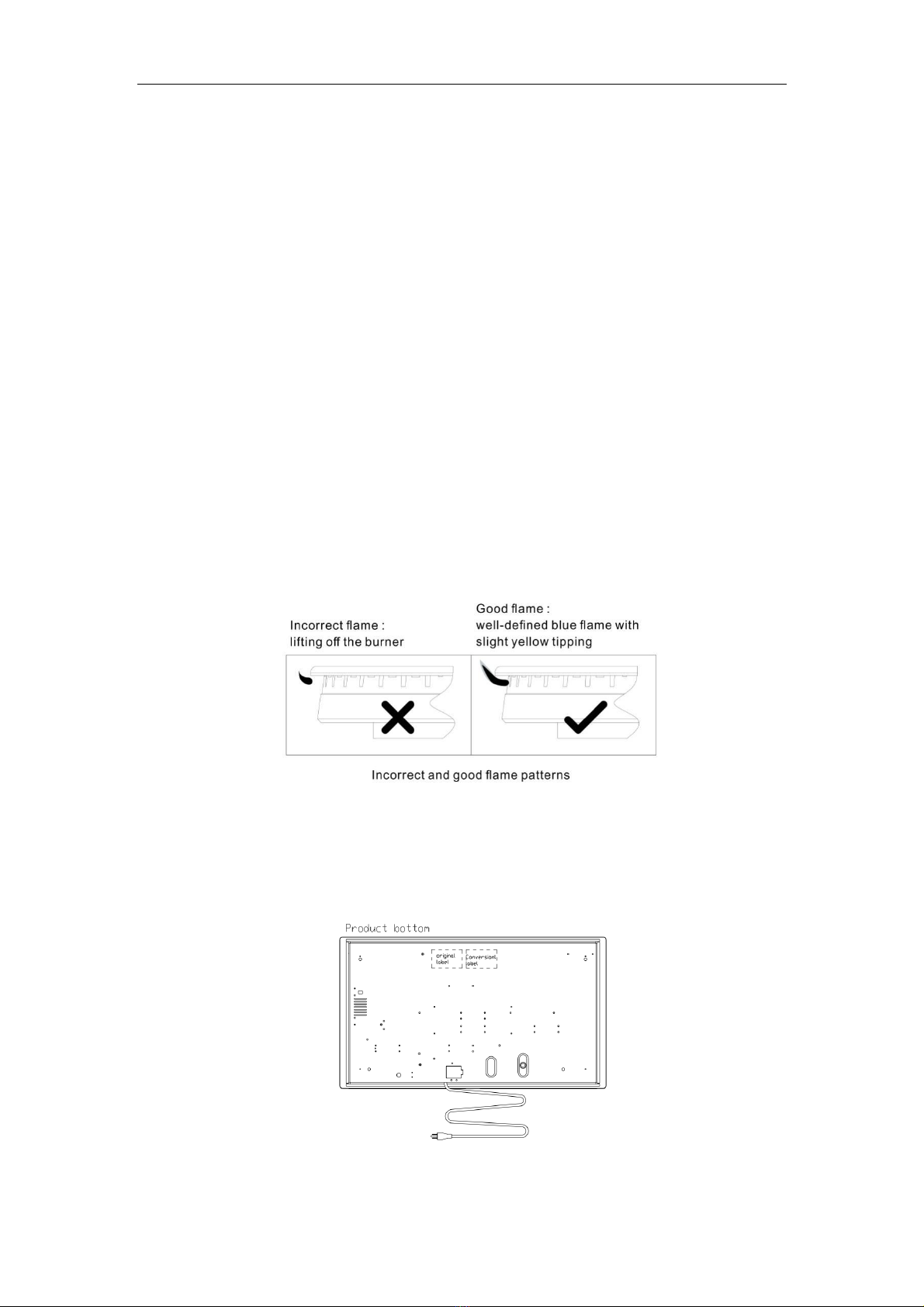

Warning：Turn the knob counterclockwise to adjust the flame, size, so that the flame does not float out of
the container rim.
If need to adjust the flame size from big to small when operation, turn the knob counterclockwise 90
degrees to the position. (See Figure 7)
11

Figure 7
When you need to change the gas cooktop, you must first close the air supply valve and the cooktop
valve, unplug the plug of models with AC power supply, only after that you can remove the connector
hose or threaded connector and then move the gas cooktop.
Warn of the potential hazards associated with storage cabinet areas above appliances. Misoperation
can cause fire.
All cord connected appliances shall include instructions relative to location of the wall receptacle and a
warning to the user to disconnect the electrical supply before servicing the appliance. Socket needs to
be installed below the cooktop surface, and away from the fire source
Gas Conversion Operating Instructions
Figure 8
Gas type
LPG
NG
Nozzles Dia. (mm)
Power (Btu/hr)
Nozzles Dia. (mm)
Power (Btu/hr)
Wok burner
1.22
18000
2.18
18000
Rapid burner
1.01
12000
1.56
12000
Semi rapid burner
0.88
9500
1.42
9500
Auxiliary burner
0.72
6000
1.11
6000
NG
LPG
Figure 9
12

1) Air supply valve and cooktop valve need to be closed, unplug the power plug for AC model.
2) When the gas pressure regulator is in NG state and need to be converted to LPG state,
counterclockwise unscrew the end cap under the gas pressure regulator, and then
counterclockwise unscrew the marked NG threaded rod, reverse the threaded rod, turn the LP
arrow upwards and tighten it to the screw cap (see Figure 8), then install the cap back to the gas
pressure regulator. The gas pressure regulator gas conversion needs to be used with the accessory
kit (See Figure 9 for detailed nozzle specifications).
3) Remove the burners, burner caps, and screw out the nozzles from the burner bases. Then install
those nozzles in the Conversion Kit bag to each burner base correspondingly. Save the orifices
removed from the appliance for future use.
4) Input inlet pressure of 11 in w.c. ( 2740Pa ), coat the nozzle joints and the gas pressure regulator
joints with moderate amounts of soapy water, there shall be no bubbling
5) Place the burner, burner cap, check if the position between the ignition pin and the burner is correct,
and then open the valve, AC model plugged in the power plug.
6) Test the outlet pressure, the pressure is required to be 10±1in w.c.. If it cannot meet the scope of
the requirements, need to unscrew the pressure regulator nut, rotate slightly to adjust the white
plastic parts inside the pressure regulator.
7) Ignition test requires that the burner can be lit in 5 seconds normally, after 1 minute the flame is
stable, there should be no liftedflame and yellow fire.
8) Similarly, when use in NG status, turn the marked NG arrow upwards and tighten it to the screw
cap (see Figure 8). Repeat the above operation. The outlet pressure requires to be 4 ± 1in w.c..
After the conversion is completed, the conversion label in the accessory bag needs to be attached next
to the original label.
13

WARNING
This conversion kit shall be installed by a qualified service agency in accordance with the
manufacturer’s instructions and all applicable codes and requirements of the authority having
jurisdiction. If the information in these instructions is not followed exactly, a fire, explosion or production
of carbon monoxidemay result causing property damage, personal injury or loss of life. The qualified
service agency is responsible for the proper installation of this kit. The installation is not proper and
complete until the operation of the converted appliance is checked as specified in the manufacturer’s
instructions supplied with the kit.
Installation
IMPORTANT:
The gas cooktop must be installed by a competent person to the relevant Gas Standards.
Please, ensure that, once the gas cooktop is installed, it is easily accessible for the engineer in the
event of a breakdown.
WHEN THE GAS COOKTOP IS FIRST INSTALLED
Once the gas cooktop has been installed, it is important to remove any protective materials, which were
put on in the factory.
Any gas installation must be carried out by a competent person.
Important: When installing the gas cooktop above a built-in oven, the oven should be placed on two
wooden strips; in the case of a joining cabinet surface, remember to leave a space of at least 1.77” x
22.05” at the back.
When installing on a built-in oven without forced ventilation, ensure that there are air inlets and outlets
for ventilating the interior of the cabinet adequately.
Pressure Regulator Installation
A: Cooktop air pipe joint
B: Pressure Regulator
C: Gas fitting
First, make sure that the pressure regulator arrow points toward the cooktop air pipe joint,
and then fasten the pressure regulator to the cooktop air pipe.
Then install the gas fitting on the other side of the pressure regulator.
(See Figure 10)
Figure 10
A
B
C
14

Gas Connection and check
D: End of fitting with 1/2 BSP male thread(See Figure 11)
Figure 11
The cooktop valve is in the closed state, open the air supply valve, coated the connector with moderate
amounts of soapy water, if there is air bubbles that it means there is leakage, tighten the connector and
test again. If repeat 3 to 4 times and there is still air bubbles, notify professionals to deal with it.
Electrical connections
Any electrical work required to install this gas cooktop should be carried out by a qualified electrician or
competent person.
Electrical supply type: AC
The GAS COOKTOP MUST BE EARTHED
If the cooktops to be connected to a 120V, 60 Hz AC electrical supply.
Before switching on, make sure the electricity supply voltage is the same as that indicated on the
cooktops rating label.
Ensure that the cooktops supply cable does not come into contact with surfaces with temperatures
higher than 50 deg. C.
WARNING
Electrical Grounding Instructions
This appliance is equipped with a three-prong grounding plug for your protection against shock
hazard and should be plugged directly into a properly grounded receptacle. Do not cut or remove
the grounding prong from this plug.
D
15

Circuit Diagram
Figure 12(for the appliance with five burners)
16

Simply fill in the fields below and
print form. Send Completed Form
to:
Customer Service:(888)-682-8882
Empava Appliances Inc.
Warranty/ Registration Dept.
15253 Don Julian Rd
City of Industry,CA,91745
WARRANTY CARD
PLEASE READ AGREEMENT BEFORE SIGNING Click Here
Keep this copy for yourself.
Product Model Number/ Name: _________________________________________
Date of Purchase: _________ Where Purchased (Store):________________________
Print Name:_________________________________________________________
Address: ___________________________________________________________
City ________________________ ST _____ ZipCode ______________________
E-mail: ____________________________________________________________
Signature:_________________________________________ Date: ____________
My signature above acknowledges that I have read, fully understand, and accept this
limitedwarranty agreement. Must return within 14 days of purchase with copy of dated
register receipt.
WARRANTY CARD COPY (For your records)
Empava Appliances Inc.
Warranty/ Registration Dept.
15253 Don Julian Rd
City of Industry,CA,91745
Product Model Number / Name:_________________________________________
Date of Purchase: _________ Where Purchased (Store):________________________
Print Name:_________________________________________________________
Address: ___________________________________________________________
City ________________________ ST _____ ZipCode ______________________
E-mail: ____________________________________________________________
Signature:_________________________________________ Date: ____________
My signature below acknowledges that I have read, fully understand, and accept this
limited warranty agreement. Must return within 14 days of purchase with copy of dated
register receipt.
