EMS FC-60-1000 Service manual

EMS Universal Power
Supply for Radio Cluster
Communicators (RCCs)
EN54-4
The FC-60-1000 Universal power supply has been
newly launched for use in EMS current and future
product ranges.
These products include the Radio Cluster
Communicator used on the FireCell range for radio
device communications.
The power supply has been developed for use in
the Fire alarm market place and as expected the
unit is fully certified to the EN54-4 standard and
has third party certification.
General Specification
WIRELESS FIRE DETECTION
©
Page 1 of 2
MK118 Issue 3 September 2015
The power supply is internally housed in
the Radio Cluster Communicator as per
previous product revisions.
Input Voltage 220-240v ac 50Hz.
6v dc output voltage to the Radio Cluster
Communicator pcb.
Charging voltage for the internal 6v 4Ah
battery.
Provides the Radio Cluster Communicator
with a 72 hour standby time.
Mounting possible in either orientation to
allow mains entry from the left or right
hand side of the product.
Can be used as a straight replacement for
previous 113117 versions of RCC power
supplies. Refer to the instruction manual
TSD042 for full details.
A full product technical specification is
shown to the rear of this document.

Installation Changes
It should be noted that for
installation ease the power supply is
now factory fitted with the 220-240v
ac mains input to the left of the
product.
Factory Fitted Mains Access
(On previous versions right hand
access was standard).

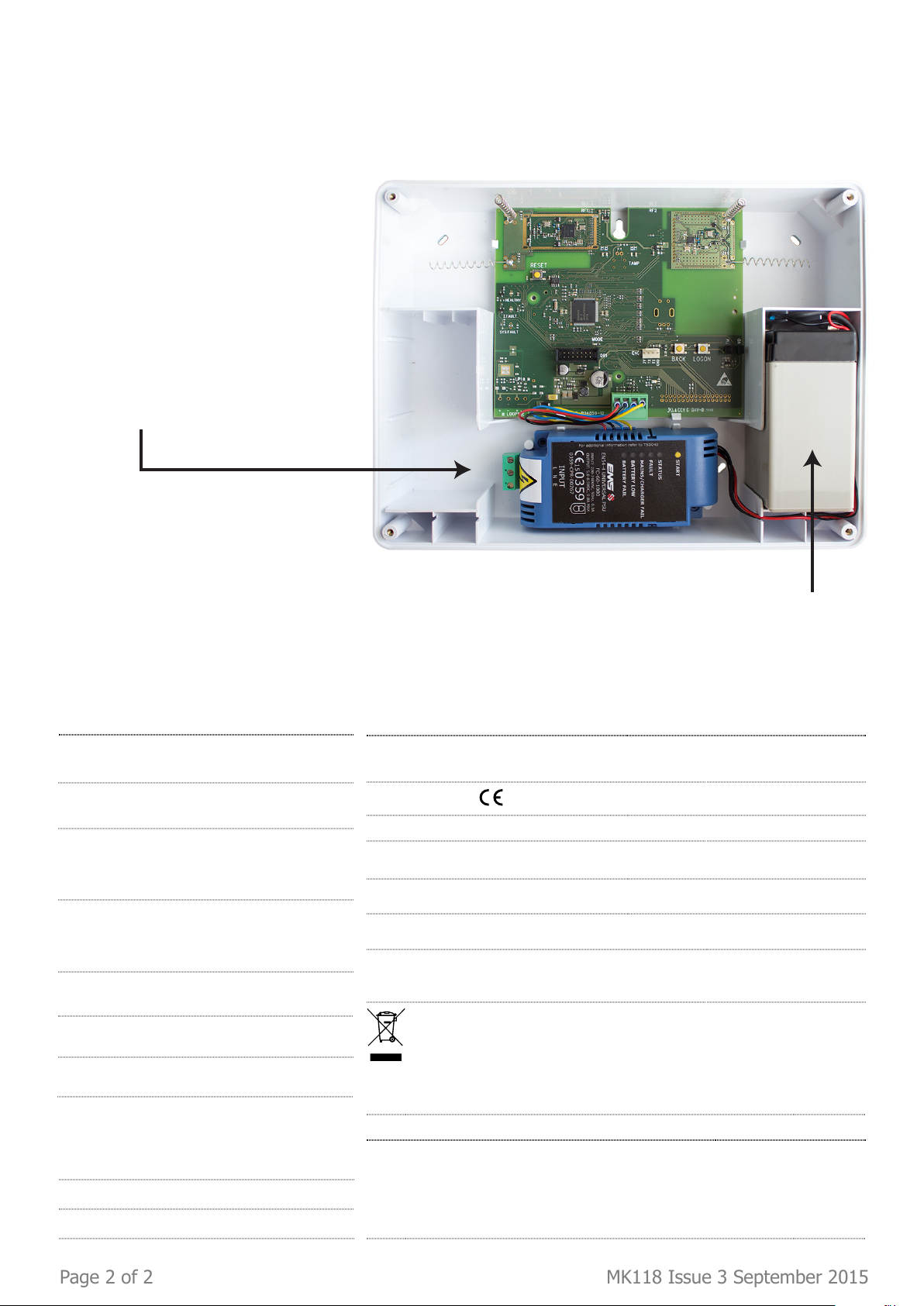

Radio Cluster Communicator
Part Number FC-555-001 in picture shown
Page 2 of 2
MK118 Issue 3 September 2015
Battery Part Number FC-006-004
Technical Data
Specication
Operating -10˚c to 50˚c (ambient)
Temperature
Power
Requirements Mains Powered 220-240V AC
Dimensions 53mm (W) 110mm (H) 39mm (D)
Min/Max
Electrical Ratings Input: 220-240V AC, 50Hz, 0.3A
Output Current: Imin 0.0 Amps,
Imaxa 0.8Amps, Imaxb 0.8Amps
Input / Output
Fuse Ratings Input: T3.15A (Non replaceable)
Output: 300mA and 750mA Max
(Resettable)
Battery Backup 1 x 6V 4Ah Yuasa NP4-6 FR, or
1 x 6V 4Ah Yucel Y4-6
Battery Standby
Time 72 hours
Maximum Battery
Internal Resistance 0.7 Ohms
Weight 150g
Application Intended for use in re detection and re alarm systems in and around
buildings. Indoor use only.
European Union EMS Security Group Ltd hereby declares that this device is in compliance
Directives with the essential requirements and other relevant provisions of
EN 50130-4:2011.
Maximum Current
Drawn from the
Battery by the
PSE with Mains
Disconnected 5mA (PSU), plus 100mA (RCC PCB)
Regulatory information
Manufacturer EMS Security Group Ltd. Technology House, Sea Street, Herne Bay, Kent,
CT6 8JZ, United Kingdom
Certication
Certication body
CPR Certicate 0359-CPR-00267
DOP
Approved to EN54-4:1998 Incorporating Amendments Nos. 1 and 2. Fire detection and
re alarm systems. Part 4: Power supply equipment.
2012/19/EU (WEEE directive): Products marked with this symbol cannot
be disposed of as unsorted municipal waste in the European Union. For
proper recycling, return this product to your local supplier upon purchase
of equivalent new equipment, or dispose of it at designated collection
points. For more information see www.recyclethis.info
Dispose of your batteries in an environmentally friendly manner according
to your local regulations.
