CAR LOCATOR
Under armed mode, press the button to active car locator function. The
siren will chirp 6 times. The parking light will flash 12 times, for you to
easily locate your car.
PANIC FUNCTION:
The transmitter can be used as a remote panic switch to manually trigger
the alarm in case of emergency.
Press and hold the button for 3 second. The alarm will immediately
sound.
To stop the alarm, press the trunk button on the remote control.
If the button is not pressed, the alarm will automatically stop after 30 seconds.
TRIGGER THE SYSTEM
When armed, your vehicle is protected as follows:
Light impact will trigger the warn-away signal.
Heavy impacts / Doors open /(if installed) Hood open / (if installed) Trunk
open / Turning on the ignition key will trigger the programmed sequence.
The starter disable relay (if installed) prevents the vehicle’s starter from
cranking. The siren, horn, parking lights, and dome light will turn on alerting
of an intrusion for 30 seconds. Then it will stop and automatic reset and re-
arm. If the any one of the sensors or detectors is still active, the alarm
system will sound a maximum of 3 times of 30 seconds cycles.
NOISE ABATEMENT CIRCUIT: Your system has a “Noise Abatement
Circuit”. It prevents annoying repetitive trigger sequences due to faulty door
pin switches or environmental conditions such as thunder, jackhammers,
airport noise, etc.
Here’s how “Noise Abatement Circuit” works: The shock sensor triggers five
times, the “Noise Abatement Circuit” will interpret this pattern of triggers as a
false alarm. After the 5th trigger, the “Noise Abatement Circuit” ignores, or
bypasses, that sensor or switch until a different sensor or switch is triggered.
TRUNK RELEASE: Press and hold button on the transmitter for two
seconds to remotely control the trunk release.
CHANNEL 4 OUTPUT:
Press the transmitter and buttons at the same time to active Channel
4function
Channel 4 is a user-programmable timer outputs. You may program the built-
in timer to send a ground signal for any time duration from 1 second to 120
seconds. For instance, this timer output may be used to turn on the headlight,
power window or sunroof. (Factory defaults setting at Pulse output.)
Stopping The Trigger Melody Sound: When the alarm is triggered, the LCD
screen will alert the user with a melody sound and a flashing trigger icon.
Press any button on the LCD remote transmitter to stop melody sound.
ANTI CAR- JACKING (Programmable)
Warning: If you don't need the carjacking function in this alarm system, be
sure to set carjacking feature “OFF”. This systems default setting is “OFF” for
all carjacking modes.
ACTIVE ANTI CAR JACKING:
1. Ignition ON, press and hold the and buttons at the same time
for 2 seconds. The parking lights will turn on for 1.5 seconds to
indicate the system has entered the anti car-jacking mode.
2. Once the system in anti car-jacking mode, the system will be
triggered when any door is opened and closed while the ignition is
“ON”.
PASSIVE ANTI CAR- JACKING: (Programmable)
It will operate as noted below:
1.Turn the ignition switch to the “ON” position and the system will arm.
2.Once the system is armed, if you are forced from the vehicle, the system
will trigger when the door is opened and closed while the ignition is “ON”.
TRIGGERING THE ANTI CAR -JACKING MODE:
A). 50 seconds after the system has been triggered. The siren will start
chirping for 15 seconds.
B). During this 15 second period of chirping, you will be alerted to push the
valet switch once to turn off the car-jacking feature. If not, it will enter a
second timer for carjacking.
C). 65 seconds after the system has been triggered, the siren will start
sounding and the parking lights will start flashing.
D). 90 seconds after the system has been triggered,
1. The siren will sound and the parking lights will flash, and
2. The starter disable will activate to prevent the vehicle from
starting.
3. It will remain active until the vehicle's battery power is
exhausted.
OVERRIDE THE SYSTEM TO TURN OFF ANTI CAR- JACKING:
Turn the ignition switch from OFF to ON, and within 10 seconds push valet
switch, the siren will stop and the system disarmed
Remote Start Operation:
WARNINGS:
As with any product that performs automatic functions, there are certain safety
precautions that you must practice and be aware of.
1. Keep the transmitter out of children’s reach.
2. Do not leave anyone in the vehicle while running on remote control.
3. Alert servicing personnel that the vehicle can be started
automatically.
4. Do not start the vehicle by remote while it’s in an enclosed area or
garage.
5. Always apply the parking brake and lock the vehicle as you exit the
vehicle.
6. The vehicle windows must be rolled up.
7. Should the unit malfunction, disconnect the fuse until the problem is
corrected.
8. The use and operations of this system is the sole responsibility of the
operator.
9. Some areas may have local ordinances that prohibit leaving a vehicle
running on public streets.
10.It is not safe to remote start the vehicle if the vehicle is parked on a
steep incline.
TO REMOTE START THE VEHICLE:
When you want to start your vehicle,
1. Press button once on the transmitter.
2. The parking light will activate to indicate the remote start received the
signal.
3. The engine will start in approximately 5 seconds.
4. Once the engine is running, after couple seconds the parking lights will
turn on and the climate controls will activate and adjust the vehicle’s interior
temperature to your preset setting. (While the vehicle is running, the
“minutes” digit on the LCD screen will flash and the will indicate countdown
timer based on the 5, 10, 20 or 30 minute run time set up by your
installation center.)
5. The vehicle will run for a programmable 5 to 30 minute cycle before
shutting down. (When the unit shuts off the countdown timer will turn off
and the transmitter will play a melody.)
NOTE: The Remote Start Unit will not start the vehicle if any one of the
following conditions exists:
1. The hood is opened.
2. The brake pedal is pressed.
3. The optional remote start enable toggle is switched to the “OFF” position.
(If installed)
4. The gear selector is in any gear other then “PARK” or “NEUTRAL”.
SAFE START (Child safety mode)
Factory default is set to press the button once on the transmitter to start
the vehicle. You can program this feature to eliminate an accidental remote
start:
1. The user presses the transmitter buttons twice within 3 seconds to
start the vehicle. or
NOTE: Contact your installing dealer to activate this feature.
OPERATE THE VEHICLE WHILE RUNNING FROM THE REMOTE START:
To operate the vehicle while the engine is running from the remote start,
Insert the ignition key and turn it to “ON” (not the start) position.
Press the brake pedal.
Note: If the brake pedal is pressed before the key is in the ON position, the
engine will shut down.
TEMPORARY STOP FEATURE:
This feature allows the vehicle to remain running after the key has been
removed from the ignition. This feature is useful for occasions when you wish
to exit and lock the vehicle for short periods of time, but would like to leave the
motor running and the climate control on.
1. Before turning off the engine, press the button once on the
transmitter and the LED indicator will flash 3 times to confirm enter.
2. Turn the ignition key to OFF position. (The engine will stay running.)
3. The engine will run until the pre-programmed time elapsed or shutdown
input is received.
TURBO CHARGE MODE:
Turbo charger mode keeps the engine running after arriving at your
destination for a programmable period of 1, 3 or 5 minutes, This allows the
vehicle’s engine time to conveniently cool down the turbo after you have
left the vehicle. For use, Please download the complete manual.

TIMER START: Please download the complete manual.
This unit can be programmed to start and run the engine every 3 hours or
punctually at the same time next morning, the engine will run for the
programmed running time and then shut down.
IMPORTANT: Timer Start should be used only in open areas, never
start and run the vehicle in on enclosed space as a garage or carport.
Please be sure you fully understand this feature before use.
TEMPERATURE CHECK
Please see advanced user menu below
TO TURN OFF THE REMOTE START:
When the engine is running (by remote start), if you want to stop it,
Press button once on the remote transmitter under the remote start mode.
Press this button twice if the unit is programmed to child safety start.
Press the brake pedal
The vehicle will shut down and turn off the parking light to indicate the
engine has stopped.
SHUT-DOWN INPUT FOR REMOTE STARTER:
If any of the following conditions exist while the system is operating, the
engine will not start or will shut down immediately:
1. The hood is opened.
2. The brake pedal is pressed.
3. The parking (hand) brake is released (For Turbo Timer Mode)
4. Engine is over-revved. {“Tachometer checking type” only}
5. The pre-programmed run time (5 /10 / 20 / 30 minutes) has elapsed.
6. Press button on the remote transmitter under remote start mode.
7. The system triggers.
8. The vehicle refused to start running after {3} unsuccessful
attempts.
ADVANCED USER’S MODE:

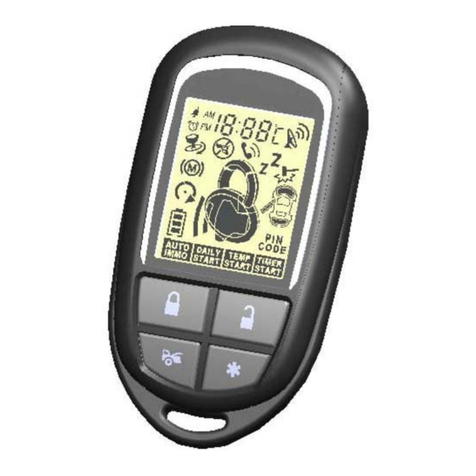

LCD REMOTE TRANSCEIVER OPERATION:
Transmitter button LCD Feature & remark
Press + Backlight turns on for 3 seconds
Press & Hold +
for 2 seconds (until 1
chirp is heard)
U 01 Press & Hold + for 2 seconds
(chirp one time )
LCD display show U: 01 = enter 1
programming of LCD Remote
Press button Press button = check the vehicle’s
status.
Press button Press button = check the system
trigger condition
Press button Press button = check the vehicle’s
temperature.
Press button PRESS button FOR OPTION OF CAR
1 / CAR 2
Press & hold button
for 2 sec. on
= Button
Lock
Press & hold button for 2 sec. Button
Lock On (1 beep) / Off (2 beep, default =
Off)
Press & hold button
for 2 sec.
Press & hold button for 2 sec. Vibrator
or Melody mode selection (default =
Melody)
Press & hold
button for 2 sec.
Press & hold button for 2 sec. Fast
Count Down Timer (Off / 10m/
20m/30m/1HR / 1.5HR / 2HR)
Press & hold button
for 2 sec.
Press & hold button for 2 sec. Button
Beep Sound mode Enable (1 beep) /
Disable (2 beeps, default = disable)
.Table 2: two beeps to confirm
Transmitter button LCD Display System feature & remark
Press & hold button
+ for 3
seconds (Two chirps
will be heard)
12 is flashing
clock time adjust
or button to decrease or
increase “Hour” digit, adjust hour
from 0 to 12.
Complete adjust “Hour, “Press
button.
00 is flashing or button - Adjusts clock
“Minute” from 0 to 59.
Press button complete clock
setting.
Alarm Clock adjust
12 is flashing
or button to decrease or
increase “Hour” digit, adjusts clock
hour from 0 to 12.
Complete adjust “Hour, “Press
button.
00 is flashing
or button - Adjusts clock
“Minute” from 0 to 59.
Press button complete Alarm
clock setting.
Count Down Timer
setting
12 is flashing
or adjust parking “Hour”
(value from 0 to 2).
Complete adjust “Hour, “Press
button.
or adjust parking “Minutes”
(value from 0 to 30).
Press button complete count -
down timer setting.
Daily start
PLEASE READ
THE COMPLETE
MANUAL FOR THIS
MODE.
NEVER REMOTE
START A VEHICLE
THAT IS PARKED
IN AN ENCLOSED
SPACE. EXTREME
CARBON DIOXIDE
DANGER
icon
flashing
or button to adjusts hour
from 0 to 12 , then press
button.
or button - Adjusts clock
“Minute” from 0 to 59.
Press button complete Daily Start
setting.
or press button (2 sec.) to activate
Daily start as indicate on LCD
display, and exit programming mode.
Press & hold button
+ for 5
seconds (chirp x 3)
Full battery
icons flash
Power Save mode : ON ? OFF
LCD remote transceiver uses “0”
current to save the battery power.
Encore Automotive Systems, LLC. All rights reserved
For Warranty information, Please go to www.encoreautomotivesystems.com
and download the complete user’s manual. For customer service, please call
us toll free @ (855) GO-ENCORE 855.463.6267. 8:00-5:00 PST Thanks for
your purchase!
Exit : Press + buttons or not press any button within 10 seconds, it will
exit remote programming mode automatically.
Low Battery Indication:
When the power of the battery weakens, it has two short “bi” sound and flash
icon while pressing the button of the LCD screen transceiver.
Stop The Trigger Melody Sound: While triggering the alarm the LCD screen
will alert user through melody sound and flashing trigger icon, press any button
on the LCD remote transmitter to stop melody sound only, the remote control
buttons will not send a command to the system.


QUICK START USERS GUIDE
If you do not understand any part of this quick start users
manual and would like the complete version, Please visit
our web site @ www.encoreautomotivesystems.com
The complete manual is necessary for advanced users and not all user
functions are covered in this quick start guide.

Timer Control
Start
Engine will start
automatically every
2 or 3 hours.
Daily Start
Engine will start
automatically at the
same time next day

Temperature Start
Engine will start
automatically when
the programmed
temperature is
reached
Valet Mode
Remote start and
alarm functions
temporarily disabled
C 3 Activate Channel
3
C 4 Activate Channel 4
12:00 Time Monitor
12:00 Alarm Clock
Alarm clock set.

Parking Meter
Parking meter
reminder time.
Low Battery
You have to change
the battery of
remote control.
+ Pressing the Star
and trunk buttons
together Briefly will
turn ON the
transmitter backlight
Power Save
(battery icon full bar
flash) 
Transmitter
Button System Function Remark
Lock Doors & Arm System
Panic function Press and Hold for 3
seconds. Press Trunk
button to stop panic function
Car Locator Press when in armed mode
-Arm and Delete The 2 Stage
Shock Sensor Press twice within 3
seconds. Pass will appear on
the remote
- Arm System and Silent Alarm
Function
Press within 3 seconds
and Hold the button
+ Silent Arming / Disarming Ignition in "off" position.
+ Active Anti Car-Jacking Mode Ignition in "on" position press
and hold for 2 seconds
Unlock Doors & Disarm System
-Two Steps Door Unlock &
Disarm System (optional) Press twice within 3 seconds.
Trunk Release (Channel 3) Press and Hold for 2 seconds
-Passive Arming By-pass While the system Disarmed.
Activate or Turn Off The
Remote Start
Press button once or -
Press Twice if set to start
safety mode
+Channel # 4 Timer Output (4) Optional
+ Turn ON the backlight Two-way remote
+ Switching code For 2nd Car
Operation. For regular remote transmitter
ACTIVE ARMING – LOCK & ARM:
1.Press button on the transmitter.
2.The siren will chirp once and parking light will flash once indicating that
the system is now armed. The vehicle’s doors will lock upon arming if
interfaced with the security system.
DEFECTIVE SENSOR REMINDER: If the siren sounds 3 chirps, then you
have left a door, trunk, or hood lid ajar.
SILENT ARMING / DISARMING: Press the transmitter and buttons
at the same time. This will arm or disarm your security system, No chirp
sound will be heard, arm / disarm confirmation will be through the vehicles
parking lights only.
SENSOR BY-PASS: Press the button two times within 5 seconds will
arm the security system and by-pass the shock sensor.
HIDDEN ALARM FUNCTION: Silent Alarm
Press the button first; within 3 seconds press the button to activate
the hidden alarm function. The security system will arm and with “Hidden
Alarm Mode” The siren / horn will be silenced even if the sensor is
triggered in the armed mode. Alarm indication will only appear on the LCD
Transmitter.
PASSIVE ARMING (Programmable)
Active arming / disarming is controlled by your security system via the
remote transmitter. This security system is equipped with an optional
Passive Arming feature which allows the security system to arm 30
seconds after the last door is closed. Operation is as follows.
1. Turn the ignition to the “OFF” position and exit the vehicle.
2. After all entrances are closed, the security system LED will flash fast for
30 seconds. If you reopen any door / hood / trunk, the security system
LED will stop flashing. It will begin flashing again once all vehicle
entrances are closed.
3. After the 30-second time has elapsed, the security system will
automatically “ARM”. The siren will chirp [1] time and the parking lights
will flash [1] time.
PASSIVE ARMING WITH PASSIVE DOOR LOCKING
The vehicle doors will automatically lock after the passive arming cycle
has been completed.
PASSIVE ARMING BY-PASS: While the system is disarmed, Press the
button twice, the system will respond with [1] chirp and LED will turn
“ON”. The security system will remain in this temporary state for as long
as you wish. To exit passive by-pass, press the transmitter or
buttons and the system will return to normal status.
ACTIVE DISARMING – UNLOCK & DISARM:
1. Press button on the transmitter.
2. The siren will chirp twice and the parking lights will flash twice
indicating that the security system is now disarmed. The vehicle’s
doors will unlock.
TAMPER DISARMING: If the alarm is triggered, upon disarm the system’s
siren will chirp 4 times, and the parking lights will flash 3 times telling you
the alarm has been triggered during the last armed state.
PATHWAY ILLUMINATION: When receiving an unlock /disarm signal, this
feature will turn the parking lights “ON” for 30 seconds and for 10 seconds
upon the lock signal. (Programmable)
AUTOMATIC RE-ARM: If this feature is selected, the security system will
automatically re-arm itself in 60 seconds after disarming with remote
transmitter. Automatic rearm will cancel if any door is opened before the 60
seconds timer has elapsed.
DISARMING WITHOUT A TRANSMITTER:
The Override function may be used if the remote transmitter is lost or
inoperative.
1. Enter the vehicle and turn the ignition switch to the 'ON’ position.
2. (Alarm will sound.)
3. Within 10 seconds push and release the valet switch. The alarm will stop
sounding and enter the disarm mode. You can now start and operate the
vehicle normally.
VALET MODE: (System is in Disarm Mode)
The valet switch allows you to temporarily bypass all alarm function,
eliminating the need to hand your transmitter to parking attendants or
garage mechanics. When the system is in valet mode, all alarm functions
and remote start functions are bypassed, however, the remote panic
feature and remote door locks will remain operational. To use the valet
mode, the system must first be disarmed either by using your remote
transmitter, or by operating the Manual Override sequence.
a). Under disarm mode, turn the ignition to “ON” position.
b). Press and hold valet switch for 2 seconds until the LED turns ON
solid. The LED will remain on as long as the system is in 'valet mode'.
Exit Valet Mode:
a). Turn ignition 'ON'.
b). Push and hold valet switch for 2 seconds, The LED will turn off
indicate the system are exiting the valet mode.


Encore E‐7
Encore E-7 LCD Remote Transceiver
STANDARD LCD ICON CONFIGURATIONS:
The lock icon will be
displayed when
system is ARMED
The unlock icon will
be displayed when
the system is
disarmed.


Driver paging
Someone is paging
you in your vehicle
Manual Gear Mode
programmed
Hood Trigger
Hood is illegally
opened (Zone 1)
Trunk Trigger
Trunk is illegally
opened (Zone 2)
Door Open
Warning
Doors are illegally
opened (Zone 3)
Sensor Trigger
Trigger on shock
Sensor 1 (Zone 4)
Ignition Trigger
Ignition switch is
illegally turned on
(Zone 5)
System trigger
Remote
Transmission
You are transmitting
to the control unit.
In – Range
Indicator
You are within the
range of the
remote control.
Anti Car-Jack
Mode Activated
Button Lock (icon
on)
Engine Cranking
Your vehicle engine
Cranking by remote
control
Engine Running
Your vehicle's
engine is running
BATTERY CHANGING:
Depending on the usage, the remote batteries should be changed at least
once a year in the one way remote and once every 4-5 months for the two-
way remote.
The 1-way remote, (E-7s) is powered by a pair of 3V, CR2016 batteries.
These batteries are available at most locations batteries are sold and can
be replaced by the user.
Battery Level Indicator (2-way remote)
The Battery Level indicator has three level indicators that serve as a visual
indication of battery charge. When the battery reaches a low charge level
that requires changing, the remote control will generate a single notification
chirp, and the Battery Level indicator will flash continuously. If the
battery voltage is LOW, the range of the remote will be reduced by 50% to
conserve battery life. The two way remote requires 2, 3 Volt CR2032
batteries. The operation lives of these batteries are affected by many
factors including, temperature, usage, back-light ON time and
programmable “in range status settings”. Do not allow these batteries to
corrode or become wet for any extended period of time.

REMOTE TRANSMITTER OPERATION:
CHIRP INDICATORS: PARKING LIGHT:
Chirp Function Parking light Function
1 chirp Arm 1 flash Arm
2 chirps Disarm 2 flashes Disarm
3 chirps Defective Reminder 3 flashes Disarm / Triggered
4 chirps Disarm / Triggered 12 flashes Car Locator
6 chirps Car Locator Constant On Under Remote Start
ALARM OPERATING CONDITION:
Siren /
Horn Parking Light LED Doors Starter
Dome
Light
1. Arming 1 or 3
Chirps 1 Flash Slow Flash Locking Disable
2. Disarming 2 or 4
Chirps 2 or 3 Flashes Unlocking Turns on
for 30 -
second
3. Trigger Alarming Flashes Slow Flash Disable Flashes
4. Passive
Starter
Disable Fast Flash Disable
5. Panic Alarming Flashes Flashes
6. Car-Jacking Alarming Flashes Disable Flashes
7. Car Locator 6 Chirps 12
Flashes Locking

