Aurora IVLX-TCW2V-C User manual

USERS GUIDE
Manual Number: 190212 | Firmware Rev: 3.20.0 or Higher
www.auroramm.com
VLX Series
VLX-TC1-CF ● VLX-TCW2H-C ● IVLX-TCW2V-C
1GbE Visual Lossless Low Latency AV over IP
VLX-TC1-CF
VLX-TCW2V-C
VLX-TCW2H-C

USERS GUIDE
www.auroramm.com
ii
SAFETY INSTRUCTIONS
Please review the following safety precautions. If this is the first time using this model, then read this manual before
installing or using the product. If the product is not functioning properly, please contact your local dealer or Aurora for
further instructions.
The lightning symbol in the triangle is used to alert you to the presence of dangerous voltage inside the product
that may be sufficient to constitute a risk of electric shock to anyone opening the case. It is also used to indicate
improper installation or handling of the product that could damage the electrical system in the product or in other
equipment attached to the product.
The exclamation point in the triangle is used to alert you to important operating and maintenance instructions.
Failure to follow these instructions could result in injury to you or damage to the product.
Be careful with electricity:
Power Outlet: To prevent electric shock, b
e sure the electrical plug used on the product power cord
matches the electrical outlet used to supply power to the Aurora product. Use the power adapter and power
connection cables designed for this unit.
Power Cord: Be sure the power cord is routed so that it will not be stepped on or pinched by heavy items.
Lightning: For protection from lightning or when the product is left unattended for a long period, disconnect
it from the power source.
Also follow these precautions:
Ventilation: Do not block ventilation slots, if applicable, on the product, or place any heavy object on top of
it. Blocking airflow could cause damage. Arrange components so that air can flow freely. Ensure that there
is adequate ventilation if the product is placed in a stand or cabinet. Put the product in a properly ventilated
area, away from direct sunlight or any source of heat.
Overheating: Avoid stacking the Aurora product on top of a hot component, such as a power amplifier.
Risk of Fire: Do not place unit on top of any easily combustible material, such as carpet or fabric.
Proper Connections: Be sure all cables and equipment are connected to the unit as described in this
manual.
Object Entry: To avoid electric shock, never stick anything in the slots on the case, or remove the cover.
Water Exposure: To reduce the risk of fire or electric shock, do not expose to rain or moisture.
Cleaning: Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
ESD: Handle this unit with proper ESC care. Failure to do so can result in failure.
FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two (2) conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
Trademarks
All trademarks in this document are the properties of their respective owners.

USERS GUIDE
www.auroramm.com
ii
TABLE OF CONTENTS
PACKAGE CONTENTS ......................................................................................................................................................... 4
OPTIONAL ACCESSORIES .................................................................................................................................................. 5
INTRODUCTION..................................................................................................................................................................... 9
About ................................................................................................................................................................................... 9
Documentation .................................................................................................................................................................... 9
Features ............................................................................................................................................................................ 10

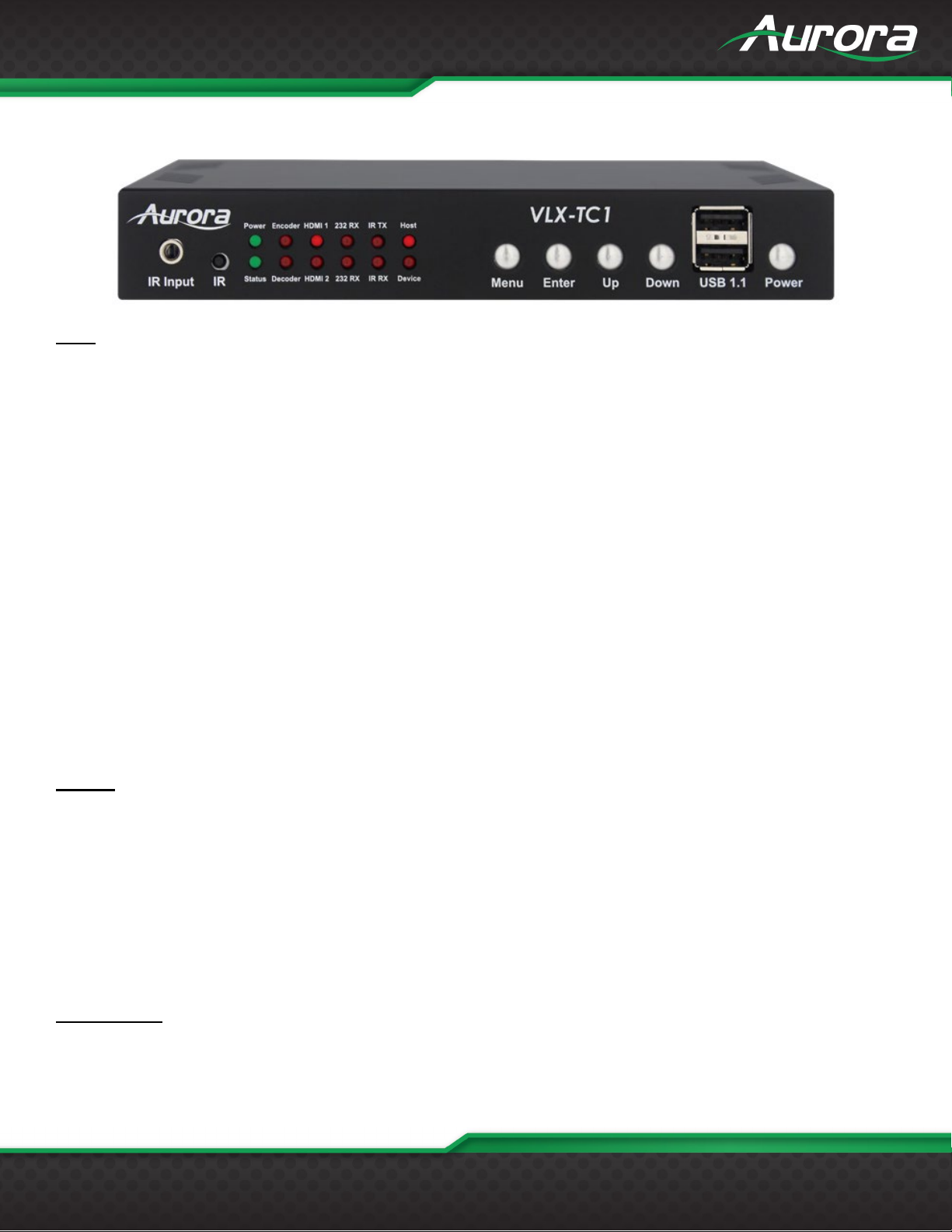

VLX-TC1-CF Front ............................................................................................................................................................ 11

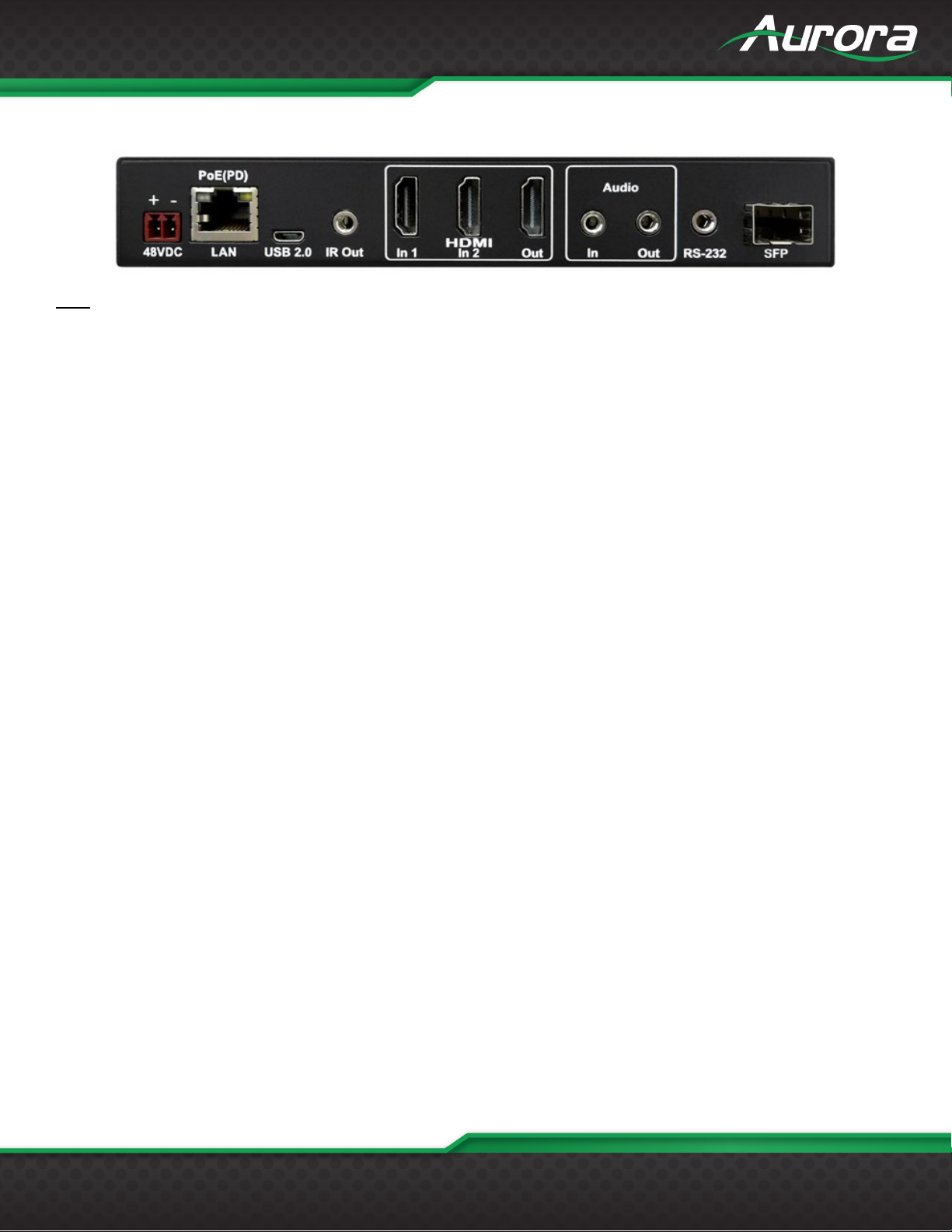

VLX-TC1-CF Rear............................................................................................................................................................. 13
VLX-TCW2H-C Front ........................................................................................................................................................ 14

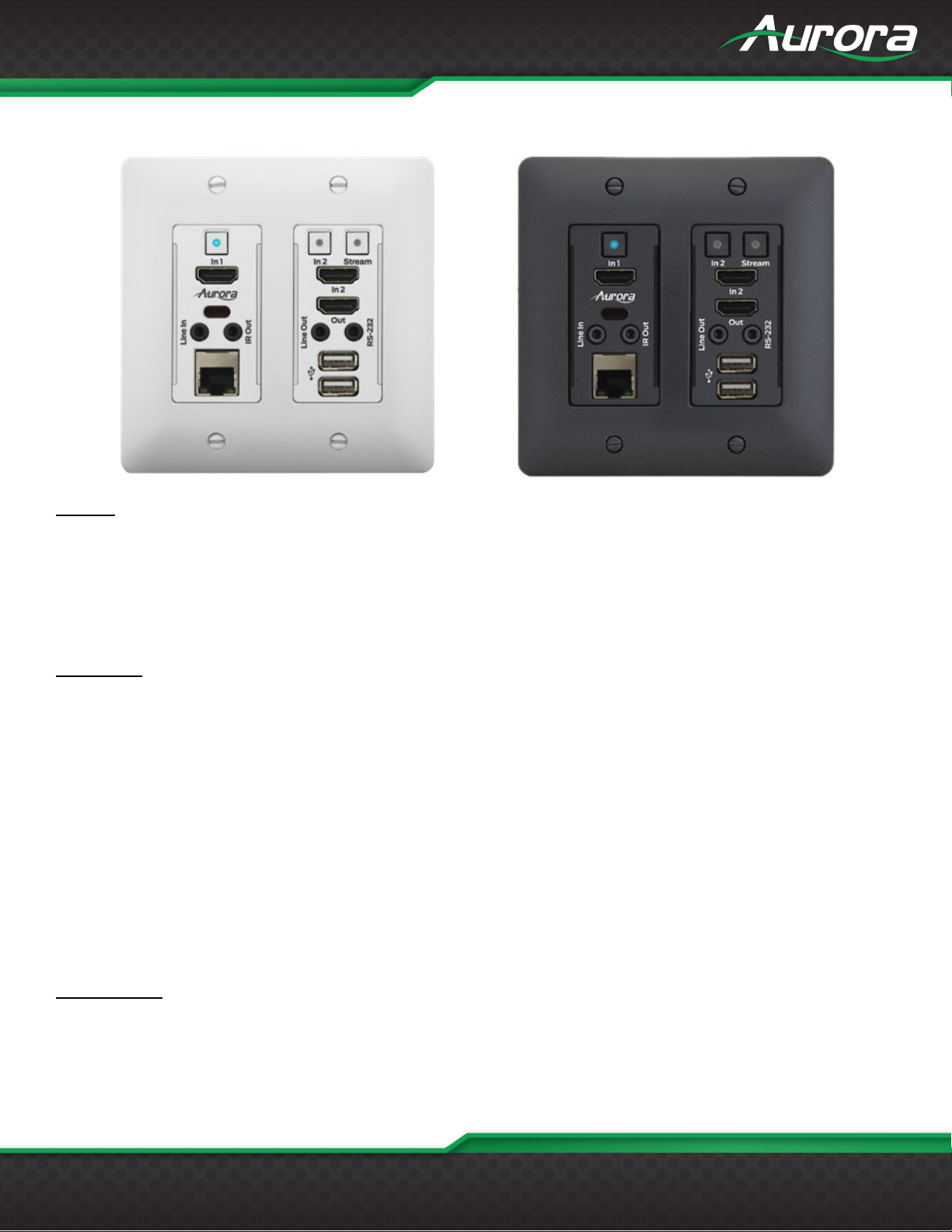

VLX-TCW2V-C Front ........................................................................................................................................................ 16
VLX-TCW2H-C and VLX-TCW2V-C Rear ........................................................................................................................ 18

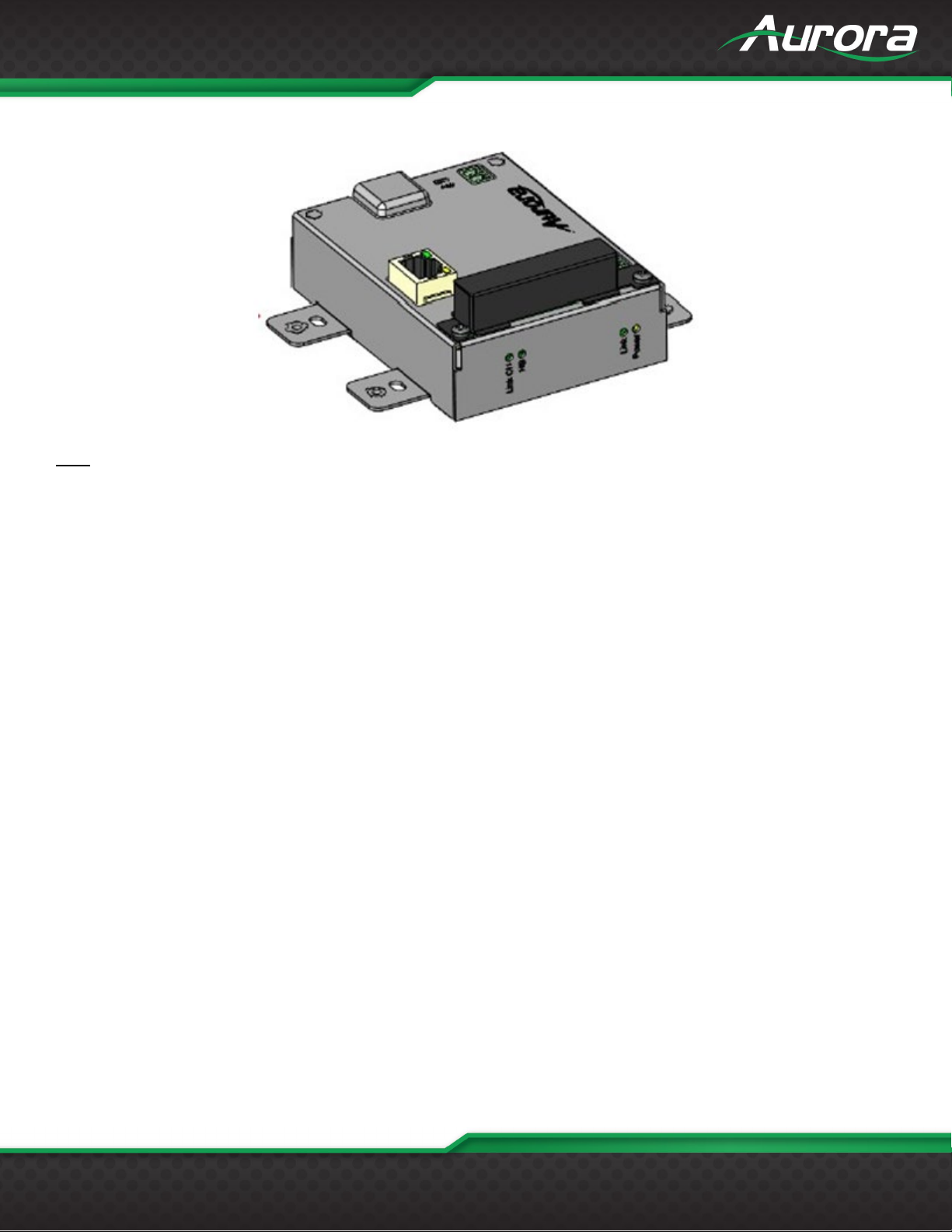

VLX-TC1-CF Dante®Option Slot ...................................................................................................................................... 19
VLX-TCW2 Wall Plate Additional Button and LED Functions........................................................................................... 20
UNDERSTANDING THE BASICS........................................................................................................................................ 21
Direct Connection with No Ethernet Switch ...................................................................................................................... 21
10GbE Ethernet Switch..................................................................................................................................................... 21
Network Infrastructure....................................................................................................................................................... 21
Isolated Network or Users Network .................................................................................................................................. 21
Controlling the VLX ........................................................................................................................................................... 21
Controlling the VLX for Redundancy................................................................................................................................. 22
EDID and its Importance ................................................................................................................................................... 22
Video Wall Capabilities ..................................................................................................................................................... 22
Ethernet Bandwidth Usage ............................................................................................................................................... 22
HARDWARE INSTALLATION ............................................................................................................................................. 24
Network Setup................................................................................................................................................................... 24
Encoder Setup................................................................................................................................................................... 24
Decoder Setup .................................................................................................................................................................. 24
Control Setup .................................................................................................................................................................... 24

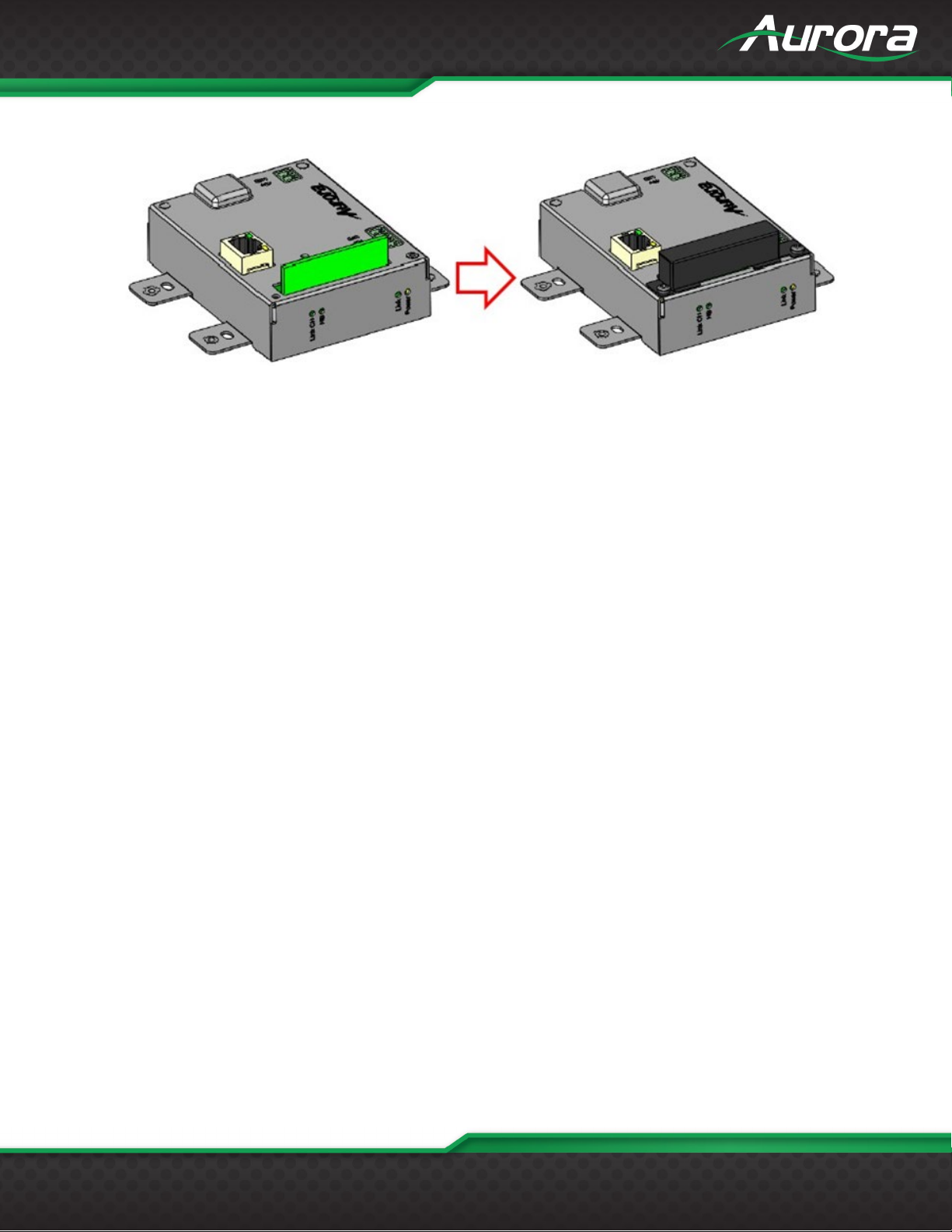

Dante®Option Card Setup ................................................................................................................................................ 25
WEB SETUP PAGES ........................................................................................................................................................... 26
Encoder Mode Web Pages ............................................................................................................................................... 26
Decoder Mode Web Pages ............................................................................................................................................... 36
APPLICATIONS.................................................................................................................................................................... 48
Example 1: VLX-TCW2 Configured as Transmitter to VLX-TC1 Configured Receiver .................................................... 48

USERS GUIDE
www.auroramm.com
iii
Example 2: VLX Multi-Room ............................................................................................................................................. 49
Example 3: Matrix – Multiple VLX to Multiple VLX............................................................................................................ 50
Example 4: Video Wall ...................................................................................................................................................... 51
Example 5: KVM Utilizing USB 2.0 ................................................................................................................................... 52
Example 6: VLX-TC1-CF with Local Ethernet Control ...................................................................................................... 53
Example 7: VLX-TC1-CF Daisy Chain .............................................................................................................................. 55
Example 8: VLX-TC1-CF Independent Dante®/AES67 Switch......................................................................................... 56
SOFTWARE.......................................................................................................................................................................... 57
IPBaseT Manager PC Control Tool .................................................................................................................................. 57
CONNECTOR PIN DEFINITION........................................................................................................................................... 59
HDMI ................................................................................................................................................................................. 59
CAT5e/6/6A....................................................................................................................................................................... 60
RS-232 .............................................................................................................................................................................. 61
IR (Infrared) ....................................................................................................................................................................... 62
APPENDIX 1 ......................................................................................................................................................................... 63
Troubleshooting ................................................................................................................................................................ 63
APPENDIX 2 ......................................................................................................................................................................... 65
Firmware Update............................................................................................................................................................... 65
APPENDIX 3 ......................................................................................................................................................................... 66
Protocol ............................................................................................................................................................................. 66
APPENDIX 4 ......................................................................................................................................................................... 67
Recommended Cabling..................................................................................................................................................... 67
APPENDIX 5 ......................................................................................................................................................................... 68
Recommended Network Switches .................................................................................................................................... 68
APPENDIX 6 ......................................................................................................................................................................... 70
Technical Specifications.................................................................................................................................................... 70
APPENDIX 7 ......................................................................................................................................................................... 72
Warranty............................................................................................................................................................................ 72

USERS GUIDE
www.auroramm.com
4
PACKAGE CONTENTS
Please make sure the following items are included within your package. Contact your dealer if any items are missing or
damaged.
Box Versions
VLX-TC1-CF
1 QTY VLX-TC1-CF 1G RJ-45/SFP Copper Transceiver Unit
2 QTY Mounting Ears and screws
Wall Plate 2 Gang Versions
VLX-TCW2V-C
1 QTY VLX-TCW2V-C 1G RJ-45 Copper Transceiver Unit with VGA and HDMI Inputs
VLX-TCW2H-C
1 QTY VLX-TCW2H-C 1G RJ-45 Copper Transceiver Unit with 2 HDMI Inputs
Power supplies are sold separately.
*Note: Go to www.auroramm.com for latest manual and firmware.

USERS GUIDE
www.auroramm.com
5
OPTIONAL ACCESSORIES
VLX-TC1-RK1
(1RU Rack Mount Holds 2 Units)
Includes 4 rails and 1 blank
VLX-TC1-RK5
(5RU Rack Mount Holds 12 Units)
Includes 24 rails and 4 blanks
VLX-TC1-BLK
(Blank Plate for Rack Mounts)
VLX-TC1-RAIL
(For VLX-TC1 Use in Rack Mounts)
IPE-DTE-1
(Dante®Option Card)
IPX-ReAX-1
(IPX-TC3 ReAX Control System Option Card)

USERS GUIDE
www.auroramm.com
6

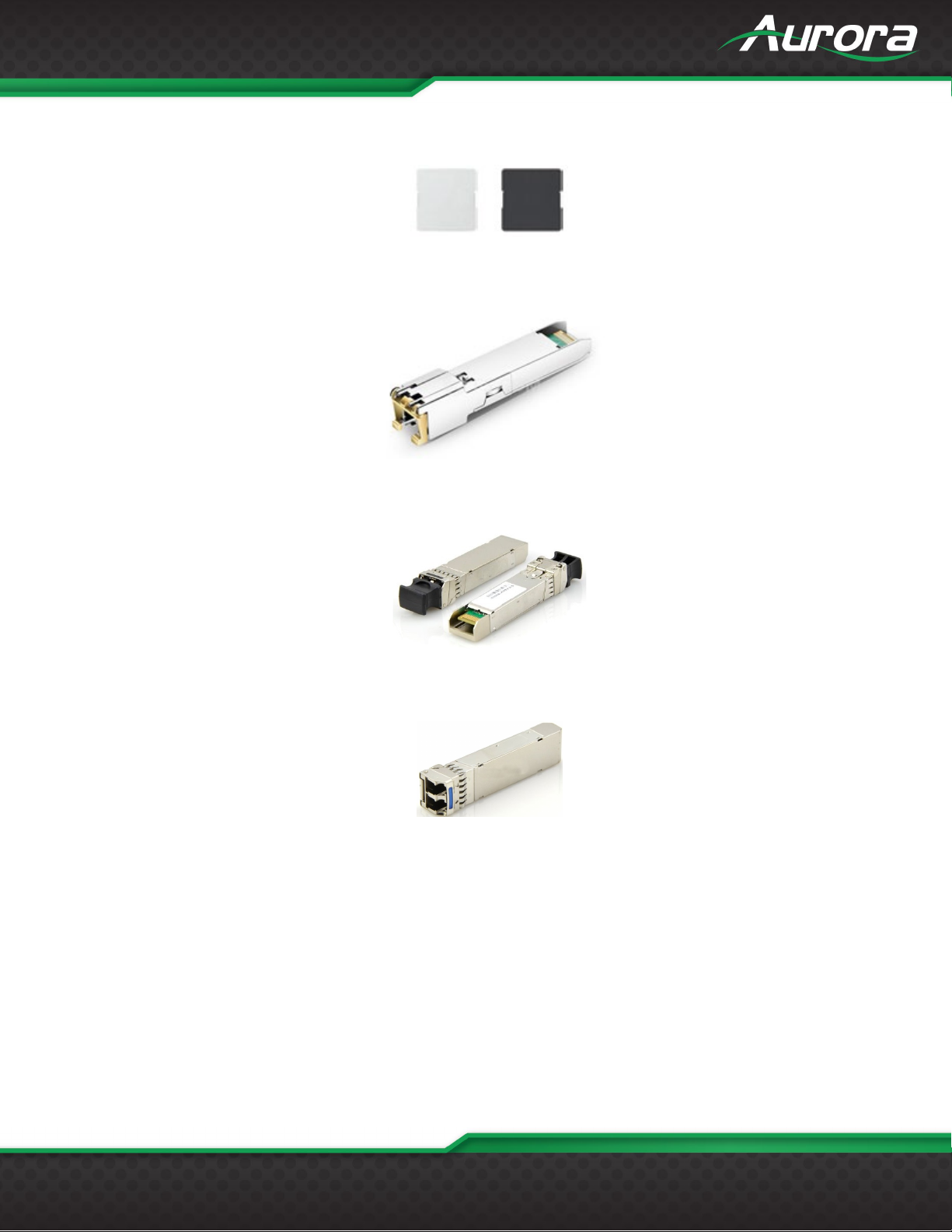

VLX-LCVR
(VLX Wall Plate LAN Port Cover)
IPX-SFP-RJ45-1
(1G RJ-45 LAN SFP Module)
IPX-SFP-1GMM-1
(1G Multi-Mode Fiber SFP Module)
IPX-SFP-1G20
(1G Single-Mode Duplex Fiber SFP Module)

USERS GUIDE
www.auroramm.com
7

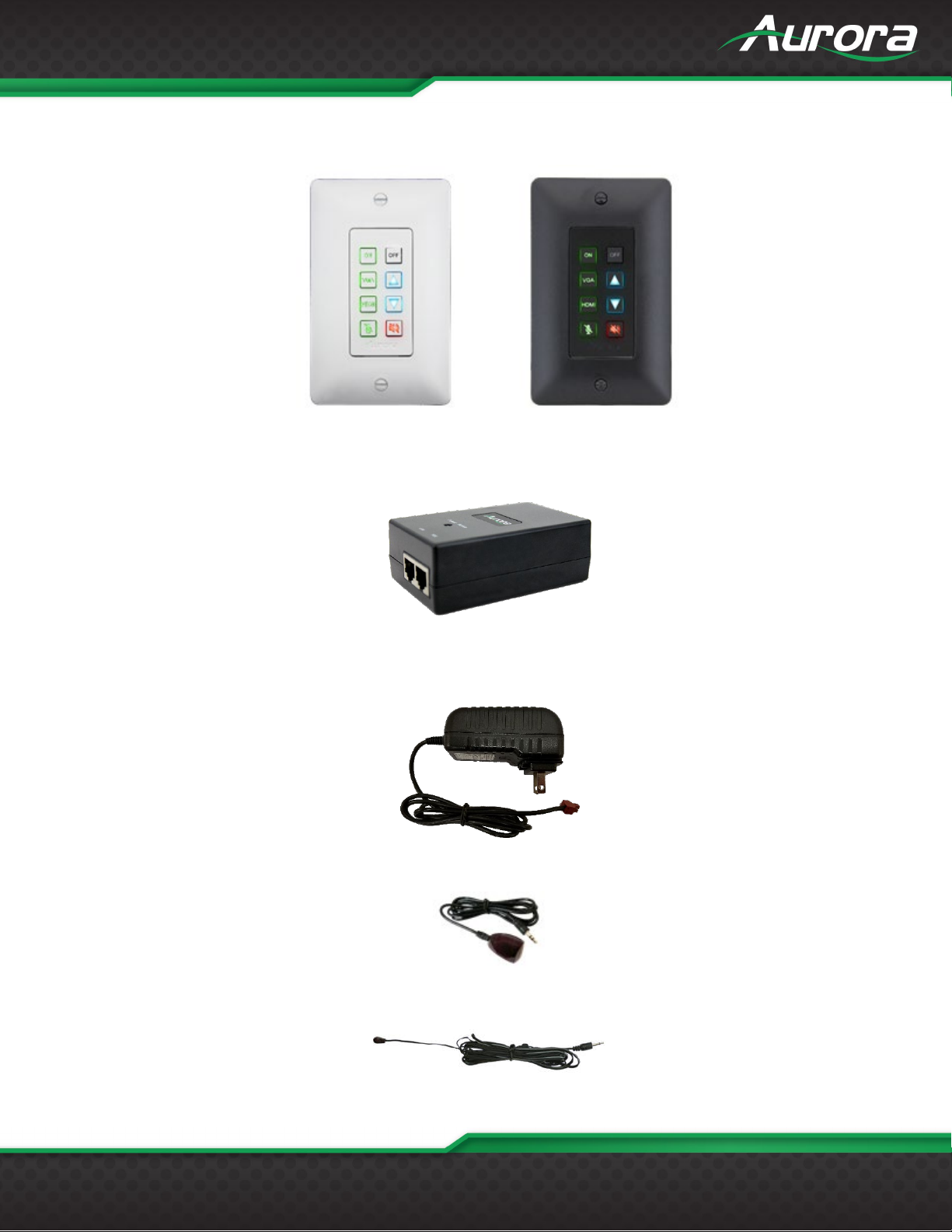

DXB-8
(8 Button Wall Plate)
PS0081-1
(48V 24 Watt PoE Injector)
Available in –US, -AU, -EU, and –UK worldwide models
PS0094-2
(48V 25 Watt Wall Supply)
Available in –US, -AU, -EU, and –UK worldwide models
IR Receiver CA0026-1
IR Emitter CA0061-1

USERS GUIDE
www.auroramm.com
8
IR Blaster CA0049-1
RS-232 Adaptor CA0052-F2T3R
(3.5mm TRS to FEMALE DB89 2-TX 3-RX)
RS-232 Adaptor CA0052-F3T2R
(3.5mm TRS to FEMALE DB89 3-TX 2-RX)
RS-232 Adaptor CA0052-M2T3R
(3.5mm TRS to MALE DB9 2-TX 3-RX)
RS-232 Adaptor CA0052-M3T2R
(3.5mm TRS to MALE DB9 3-TX 2-RX)
LVR-2G Gang Electrical Ring

USERS GUIDE
www.auroramm.com
9
INTRODUCTION
About
The VLX Series provides one of the most advanced IP Streaming solutions on the market utilizing Aurora’s IPBaseT®
technology, which synergizes various IP/AV standards to work together as one. It is the industry’s first 4K UHD
transceiver with only 1.5 Frame (25ms) latency and visually losses compression. Using a transmitter (encoder) and
receiver (decoder), respectively, used to be the standard – until now. The VLX Series box or wall plates can be set up as
either one to make installation, inventory, and troubleshooting easier.
Another industry first is the option slot to add other IP capabilities, like Dante®audio, for a more complete, distributed
system. Audio, video, data, and control can be sent securely to one or many units using off-the-shelf 1G RJ-45 Ethernet
switch. When the VLX is set up to be a transmitter, the 2 HDMI inputs (VLX-TC1-CF, VLX-TCW2H-C) or VGA/HDMI
inputs (VLX-TCW2V-2) become a source switch and the HDMI output becomes a potential loop out. When set up as a
receiver, a user can select the local HDMI inputs or an IP source. Fast-switching of the sources further enhances the
presentation (Matching source resolutions and frame-rate required). Regardless of how the VLX is set up, the audio can
be de-embedded at any location, and/or be sent to or received from a Dante® enabled device. The USB is also flexible,
working as a KVM and/or a high-speed data transfer (50Mbps) for memory sticks. Each VLX USB feature can also be set
as a host or a device. To keep the system friendly, an OSD and integrated web server are available for easy navigation
and setup of features.
Digital signage, education, corporate, and residential are just a few markets which benefit from the flexibility and low cost
of the VLX Series.
Documentation
Aurora provides many documents to support the VLX series and accessories. Below is a list of the available documents
that can be found on the download tab of the VLX products or the customer portal.
VLX Series Network Switch Recommendation and Configuration
VLX Series Protocol Guide (Available only on Customer Portal)
IPBaseT®FAQ (Frequently Asked Questions)
IPBaseT®VLX Series AV Evolution for an Industry Revolution (Features and the benefits over tradition Matrix)
IPBaseT®Brochure
IPBaseT®for Better Education
