Encore TR-150SS-15 User manual

LOW VOLTAGE TRANSFORMER INSTALLATION GUIDE
Encore Landscape Lighting
2277 Elliott Drive Troy, Michigan 48083
Website: www.encorelandscapelighting.com Email: [e-mail]
Phone: [phone] Fax: [phone]
1
THIS INSTRUCTIONS APPLY TO MODELS:
TR-150SS-15, TR-300SS-15 AND TR-600SS-15
SAFETY:
This fixture must be installed in accordance with the National Electric Code and local code specifications.
Failure to follow these codes and installation instructions will void the warranty and may result in serious
injury and/or damage to the fixture. This product is designed for above ground installation only. Keep these
instructions for future use.
WARNING! Risk of fire or electrical shock. Install the transformer at least 5 feet (1.5m) from pool or spa and at
least 10 feet (3.05m) from a fountain.
This transformer must be connected to GUCCI-protected receptacle. If the receptacle is outdoors then it must
be protected by an in-used weather-proof cover.
All transformers are indoor and outdoor rated, but we recommend the transformer be mounted outdoors. If
mounted indoors, then codes should be followed that apply to indoor wiring - especially for wires that pass
through exterior walls.
Transformer must be mounted in a vertical orientation with the bottom plate at least 1 feet from ground.
It is normal for the unit to become hot, do not allow contact with PVC or plastic sidings. In hot climates, avoid
mounting in direct sunlight, but allow photocell to be exposed to sky. Near salt-water, protect unit by
enclosing in weather-proof structure.
CIRCUIT BREAKER:
This product has a built in circuit breaker to help protect against electrical short circuits. This does not
prevent the need to use GFCI outlets marked for “wet location.” It also does not prevent the requirement to
follow all local and electrical building codes for the main circuit breaker protection.
If a circuit break occurs, immediately disconnect the transformer from the power source. Make all repairs to
the lighting system that cause the circuit breaker to trip. Once the problem has been determined and fixed,
reset the breaker by switching to the on position.

LOW VOLTAGE TRANSFORMER INSTALLATION GUIDE
Encore Landscape Lighting
2277 Elliott Drive Troy, Michigan 48083
Website: www.encorelandscapelighting.com Email: [e-mail]
Phone: [phone] Fax: [phone]
2

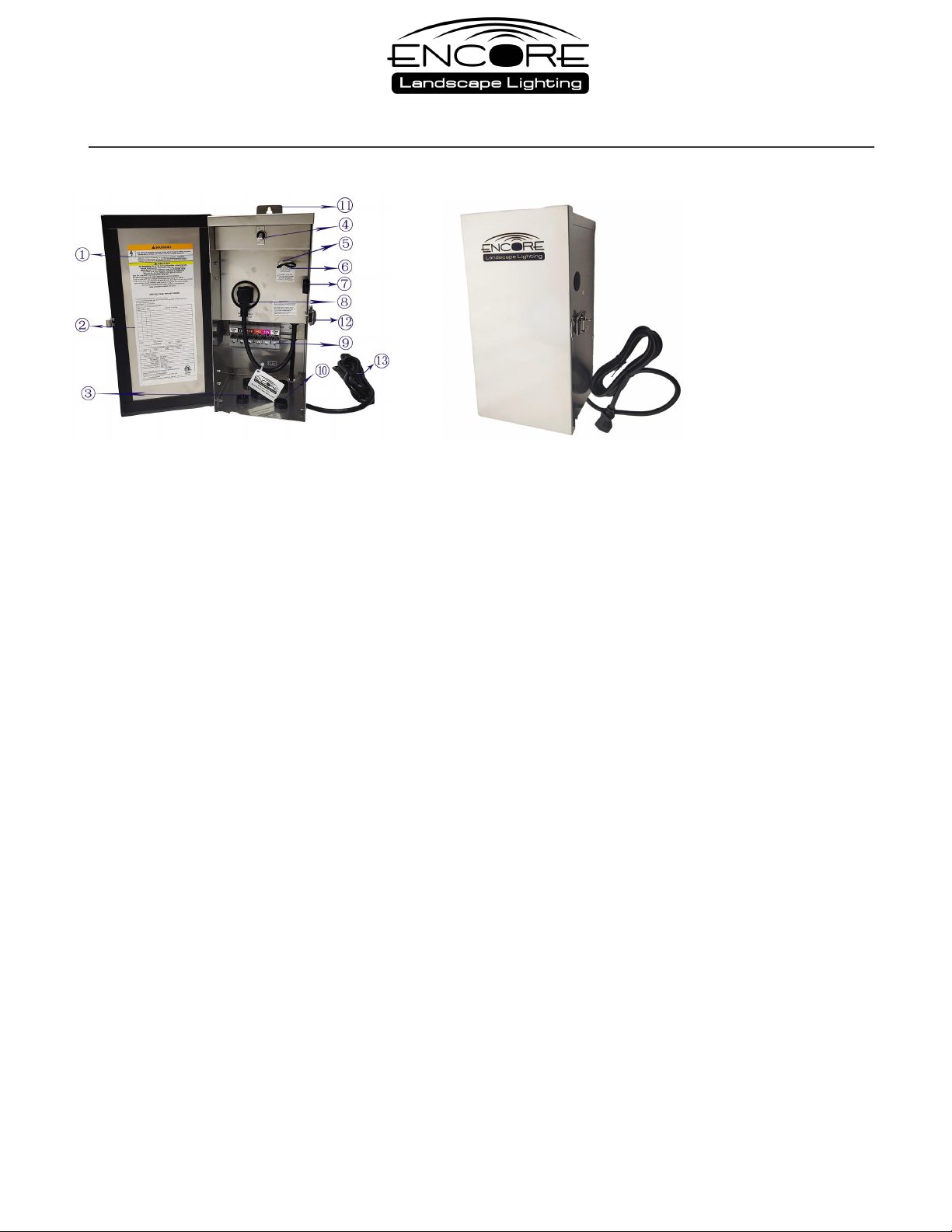

FEATURES AND CONTROLS (Below picture is basic on 300W):
① - Warning Label
② - Operating Record
③ - Conduit Cover
④ - Overload Circuit Breaker
⑤ - Photocell Plug
⑥ - Testing Loop
⑦ - Photocell Knockout
⑧ - Timer Receptacle
⑨ - Terminal Block
⑩ - Knockout
⑪ - Mounting Tab
⑫ - Lockable Latch
⑬ - Power Cord
MOUNTING TRANSFORMER:
Mount transformer to solid surface or stand using stainless steel screws and anchors (if needed) (hardware not
included). Screws will pass through keyholes. Use bubble level to ensure vertical mounting. Bottom of transformer
must be at least 1 feet above ground.
TRANSFORMER SIZING:
The total lamp VA (load) of all fixture connected to one transformer must not exceed 70% of the VA capacity of the
transformer. Therefore, the transformer selections is primarily based on Total Fixture Load:
Total Fixture Load (Watts or VA) ÷ 0.7 = Min. Transformer Capacity

LOW VOLTAGE TRANSFORMER INSTALLATION GUIDE
Encore Landscape Lighting
2277 Elliott Drive Troy, Michigan 48083
Website: www.encorelandscapelighting.com Email: [e-mail]
Phone: [phone] Fax: [phone]
3
Example: Total fixture load is 200 watts, divide by 0.7 to equal 286 watts, a 300W transformer would be ideal.
SELECT YOUR WIRE:
We recommend using 12 AWG low voltage direct landscape wire. It is important to distribute fixtures evenly
along the cable with higher wattage fixtures closer to the transformer it possible. Only use the bottom
terminals for wiring to lighting. Do not loosen the top terminals. They are for internal wiring of the
transformer.
The higher voltage terminals are for long wire runs to lights. These will help account for voltage loss along
the long run of wire.
Voltage Loss Calculation:
( _________ X _________ X 2 ) ÷ _____________ = _________
Distance (Ft.) Load (W) Cable Constant Voltage Loss
Wire Gauge
Cable Constant
Wire Gauge
Cable Constant
#18/2
1380
#12/2
7500
#16/2
2200
#10/2
11920
#14/2
3500
SELECT VOLTAGE TAPS:
Transformer are Multi-Tap - giving you a selection of voltages for your wire run connections. Selecting a higher
voltage at the transformer compensates for voltage that may be lost along wire runs.

LOW VOLTAGE TRANSFORMER INSTALLATION GUIDE
Encore Landscape Lighting
2277 Elliott Drive Troy, Michigan 48083
Website: www.encorelandscapelighting.com Email: [e-mail]
Phone: [phone] Fax: [phone]
4
INSTALL A PHOTOCELL:
Disconnect the source power to the transformer before installing the photo cell. Remove the rubber stopper
on the side of the transformer.
Remove the nut from the photo cell. Unplug the jumper connection from the transformer.
Insert the wire and connector of the photo cell through the hole in the side of the transformer. Place the
nut around the wire and screw onto the photo cell, holding the unit in position.
Plug the photocell into the now empty socket connection.

LOW VOLTAGE TRANSFORMER INSTALLATION GUIDE
Encore Landscape Lighting
2277 Elliott Drive Troy, Michigan 48083
Website: www.encorelandscapelighting.com Email: [e-mail]
Phone: [phone] Fax: [phone]
5
INSTALLING A TIMER:
Disconnect the source power from the transformer before installing the timer. Unplug the plug as shown below.
Insert that plug into the side of the timer as shown. Insert the timer into the outlet on the transformer as shown.
Follow the instructions for the timer to set the clock and on and off times or manually turn on/off your system.
CHECK THE SYSTEM:
After installing the entire low voltage system, operate the system for five minutes. On the low voltage side, all
electrical connections spots should be cool to touch. If a connection is hot to the touch, re tighten the connection
and check to ensure that the temperature decreases.
Place the transformer cover back and tighten all four provide screws on both sides.
For Questions & Support, pleases email or call ENCORE LIGHTING at
encorelandscapeligh[email protected] or 248 - 299 - 1919.
