Endress+Hauser Tankvision NXA820 User manual

Products Solutions Services
BA00426G/00/EN/15.17
71361436
Valid as of software version:
02.00.00
Operating Instructions
Tankvision
Tank Scanner NXA820, Data
Concentrator NXA821, Host Link
NXA822
System Description

Tankvision
2Endress+Hauser
Table of Contents
1 Document information . . . . . . . . . . . . . . 3
1.1 Target audience for this manual . . . . . . . . . . . . . . . 3
1.2 Version history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3 Document function . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.4 Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Basic safety instructions . . . . . . . . . . . . 5
2.1 Requirements for the personnel . . . . . . . . . . . . . . . 5
2.2 IT security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.3 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.4 Workplace safety . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.5 Operational safety . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.6 Product safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 Application . . . . . . . . . . . . . . . . . . . . . . . . 7
3.1 Inventory control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.2 Application areas . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4 Identifying the components. . . . . . . . . . 8
4.1 Nameplate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4.2 Tank Scanner NXA820 . . . . . . . . . . . . . . . . . . . . . . . 9
4.3 Data Concentrator NXA821 . . . . . . . . . . . . . . . . 10
4.4 Host Link NXA822 . . . . . . . . . . . . . . . . . . . . . . . . 12

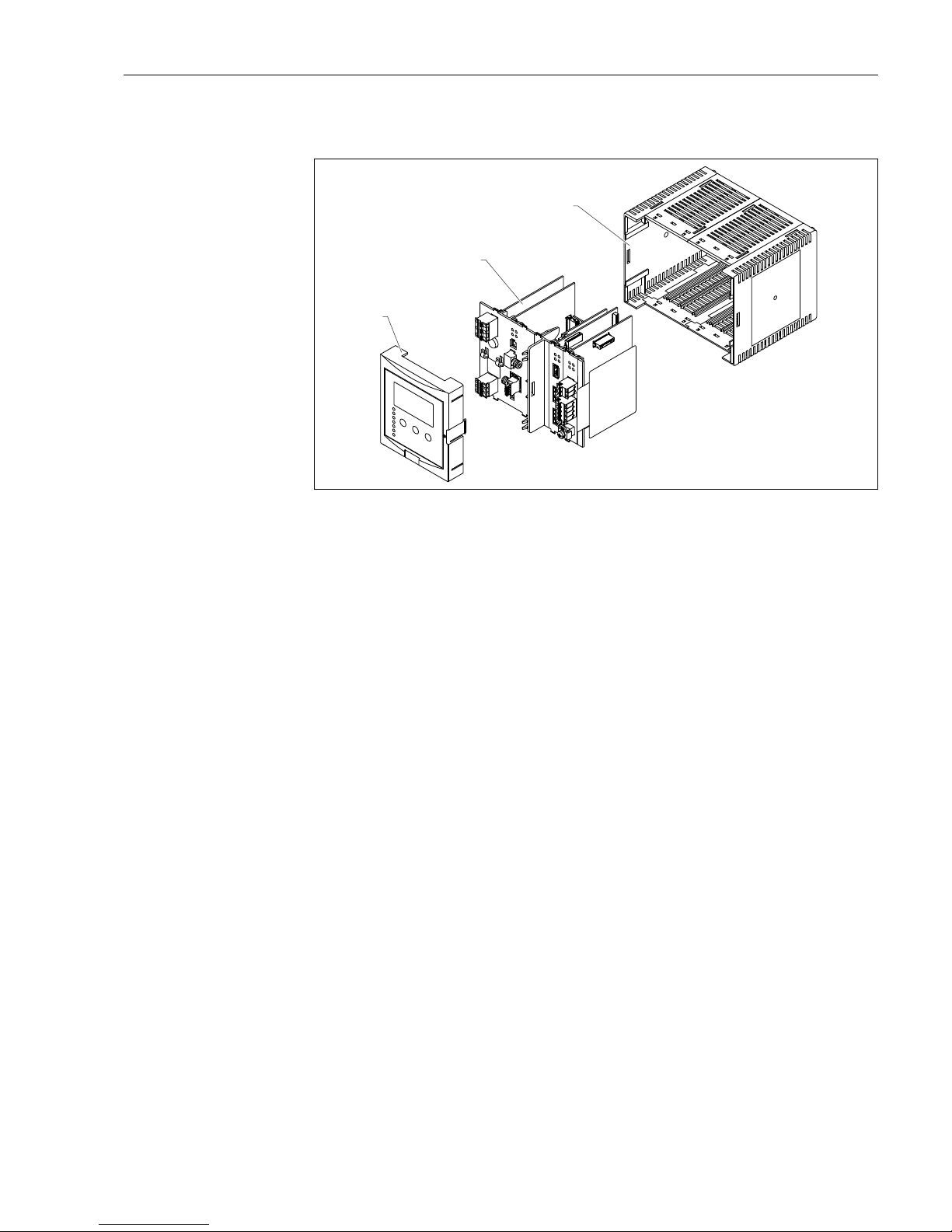

4.5 Explosion picture . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.6 Tankvision OPC Server . . . . . . . . . . . . . . . . . . . . . 13
4.7 Tankvision Printer Agent . . . . . . . . . . . . . . . . . . . 13
4.8 Tankvision Alarm Agent . . . . . . . . . . . . . . . . . . . 14
5 PC recommendations . . . . . . . . . . . . . . 15
5.1 PC connection for viewing data . . . . . . . . . . . . . . 15
5.2 Recommendations when using OPC Server,
Printer Agent or Alarm Agent . . . . . . . . . . . . . . 15
5.3 Alternations from the recommendations . . . . . 15
6 Connections to gauges and host
systems . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6.1 Field instruments and slave devices . . . . . . . . . . 16
6.2 Host Systems communication . . . . . . . . . . . . . . . 21
7 Examples. . . . . . . . . . . . . . . . . . . . . . . . . 22
7.1 System architecture . . . . . . . . . . . . . . . . . . . . . . . 22
7.2 Screen examples in Browser . . . . . . . . . . . . . . . . 23
8 Calculations . . . . . . . . . . . . . . . . . . . . . . 25
8.1 API Flow Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
8.2 GBT calculation flow chart . . . . . . . . . . . . . . . . . . 38
8.3 Mass Measurement . . . . . . . . . . . . . . . . . . . . . . . 44
8.4 Calculations for liquefied gases . . . . . . . . . . . . . . 49
8.5 CTSh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
8.6 Alcohol calculations . . . . . . . . . . . . . . . . . . . . . . . 57
8.7 JIS calculation flow charts . . . . . . . . . . . . . . . . . . 59
8.8 Annex A.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
8.9 Annex A.2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
8.10 Annex A.3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
8.11 Annex A.4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
8.12 Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

Tankvision Document information
Endress+Hauser 3
1 Document information
1.1 Target audience for this manual
This manual is giving detailed information on the system capabilities and architecture. It
supports project and sales engineers in designing the system architecture during acquisition
and execution phase. Furthermore during operation time of the system all servicing
personnel in need of detailed knowledge about the system capabilites.
This manual is not suitable for the Interface only version of NXA820.
1.2 Version history
1.3 Document function
1.3.1 Used symbols
Safety symbols
Electrical symbols
Document version Valid for SW version Changes to the previous version
BA00426G/00/EN/01.12 01.02.02-00xxx/01.04.00 Initial version
BA00426G/00/EN/13.13 01.05.00 Initial version
BA00426G/00/EN/14.15 01.06.00 Java applets replacement, new layout
BA00426G/00/EN/15.17 02.00.00 Introduced Temperature and Density
Profile
Symbol Meaning
A0011189-EN
DANGER!
This symbol alerts you to a dangerous situation. Failure to avoid this situation will
result in serious or fatal injury.
A0011190-EN
WARNING!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can
result in serious or fatal injury.
A0011191-EN
CAUTION!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can
result in minor or medium injury.
A0011192-EN
NOTICE!
This symbol contains information on procedures and other facts which do not result
in personal injury.
Symbol Meaning
A0011197
Direct current
A terminal to which DC voltage is applied or through which direct current flows.
A0011198
Alternating current
A terminal to which alternating voltage is applied or through which alternating current flows.
A0011200
Ground connection
A grounded terminal which, as far as the operator is concerned, is grounded via a grounding
system.
DANGER
WARNING
CAUTION
NOTICE
)

Document information Tankvision
4Endress+Hauser
Symbols for certain types of information
Symbols in graphics
1.4 Documentation
1.4.1 Operating instructions
A0011199
Protective ground connection
A terminal which must be connected to ground prior to establishing any other connections.
Symbol Meaning
A0011193
Tip
Indicates additional information.
A0011195
Reference to page
Refers to the corresponding page number.
, , ... Series of steps
A0018373
Result of a sequence of actions
Symbol Meaning
1, 2, 3 ... Item numbers
, , ... Series of steps
A, B, C... Views
A0011187
Hazardous area
Indicates a hazardous area.
A0011188
Indicates a non-hazardous location
Safe area (non-hazardous area)
Document number Instrument Type of Document
BA00339G/00
• Tank Scanner NXA820
• Data Concentrator NXA821
• Host Link NXA822
Description of Instrument Functions
BA00340G/00 Installation Instructions
BA00424G/00 System Description
BA00426G/00 Operator Manual
BA01137G/00 Tankvision NXA820 OPC Server User Manual
*
1.
2.
3.
1.
2.
3.
-
.

Tankvision Basic safety instructions
Endress+Hauser 5
2 Basic safety instructions
2.1 Requirements for the personnel
The personnel for installation, commissioning, diagnostics and maintenance must fulfill the
following requirements:
• Trained, qualified specialists: must have a relevant qualification for this specific function
and task
• Are authorized by the plant owner/operator
• Are familiar with federal/national regulations
• Before beginning work, the specialist staff must have read and understood the instructions
in the Operating Instructions and supplementary documentation as well as in the
certificates (depending on the application)
• Following instructions and basic conditions
The operating personnel must fulfill the following requirements:
• Being instructed and authorized according to the requirements of the task by the facility's
owner operator
• Following the instructions in these Operating Instructions
2.2 IT security
We only provide a warranty if the device is installed and used as described in the Operating
Instructions. The device is equipped with security mechanisms to protect it against any
inadvertent changes to the device settings.
IT security measures in line with operators' security standards and designed to provide
additional protection for the device and device data transfer must be implemented by the
operators themselves.
Endress+Hauser can be contacted to provide support in performing this task.
2.3 Designated use
2.3.1 Application
Tankvision is a dedicated tank inventory management system.
Components:
• Tankvision Tank Scanner NXA820
scans parameters from tank gauges and performs tank calculations
• Tankvision Data Concentrator NXA821
summarizes data from various Tank Scanners NXA820
• Tankvision Host Link NXA822
provides data to host systems (such as PLC or DCS) via Modbus
The above mentioned components are operated via a standard web browser. It does not
require any proprietary software. Tankvision is based on a distributed architecture on a Local
Area Network (LAN). Due to its modular structure it can be adjusted to any application. It is
ideally suited for small tank farms with only a couple of tanks, but also for large refineries
with hundreds of tanks.

Basic safety instructions Tankvision
6Endress+Hauser
2.4 Workplace safety
For work on and with the device:
• Wear the required personal protective equipment according to federal/national
regulations.
• Switch off the supply voltage before connecting the device.
2.5 Operational safety
Risk of injury!
• Operate the device in proper technical condition and fail-safe condition only.
• The operator is responsible for interference-free operation of the device.
Conversions to the device
Unauthorized modifications to the device are not permitted and can lead to unforeseeable
dangers
• If, despite this, modifications are required, consult with Endress+Hauser.
Repair
To ensure continued operational safety and reliability,
• Carry out repairs on the device only if they are expressly permitted.
• Observe federal/national regulations pertaining to repair of an electrical device.
• Use original spare parts and accessories from Endress+Hauser only.
2.6 Product safety
The device is designed to meet state-of-the-art safety requirements, has been tested and left
thefactory in a condition in which it is safe to operate. The device complies with the
applicable standards and regulations as listed in the EC declaration of conformity and thus
complies with the statutory requirements of the EG directives. Endress+Hauser confirms the
successful testing of the device by affixing to it the CE mark.

Tankvision Application
Endress+Hauser 7
3Application
3.1 Inventory control
By using Tankvision to monitor the tank level and stored volume of valuable liquids
remotely, owners or operators of tank farms or terminals for petroleum products and
chemicals (liquids) can visualize the volumes or mass of the stored medium in real time. The
data can be used to plan the inventory and distribution. The data can also be used to manage
tank farm operations like pumping or transferring products.
Tankvision has its unique concept using network technology. Without using proprietary
software, the users can visualize and manage their valuable liquids stored in the tanks by a
web browser.
Tankvision is a flexible and cost effective solution due to its scalable architecture. The
application coverage goes from small depots with only a few tanks up to refineries.
3.2 Application areas
• Tank farms in refineries
• Ship loading terminals
• Marketing and distribution terminals
• Pipeline terminals
• Logistic terminals for tanks storing products like crude oils, refined white and black
products, chemicals, LPGs, fuels, biofuels, alcohols

Identifying the components Tankvision
8Endress+Hauser
4 Identifying the components

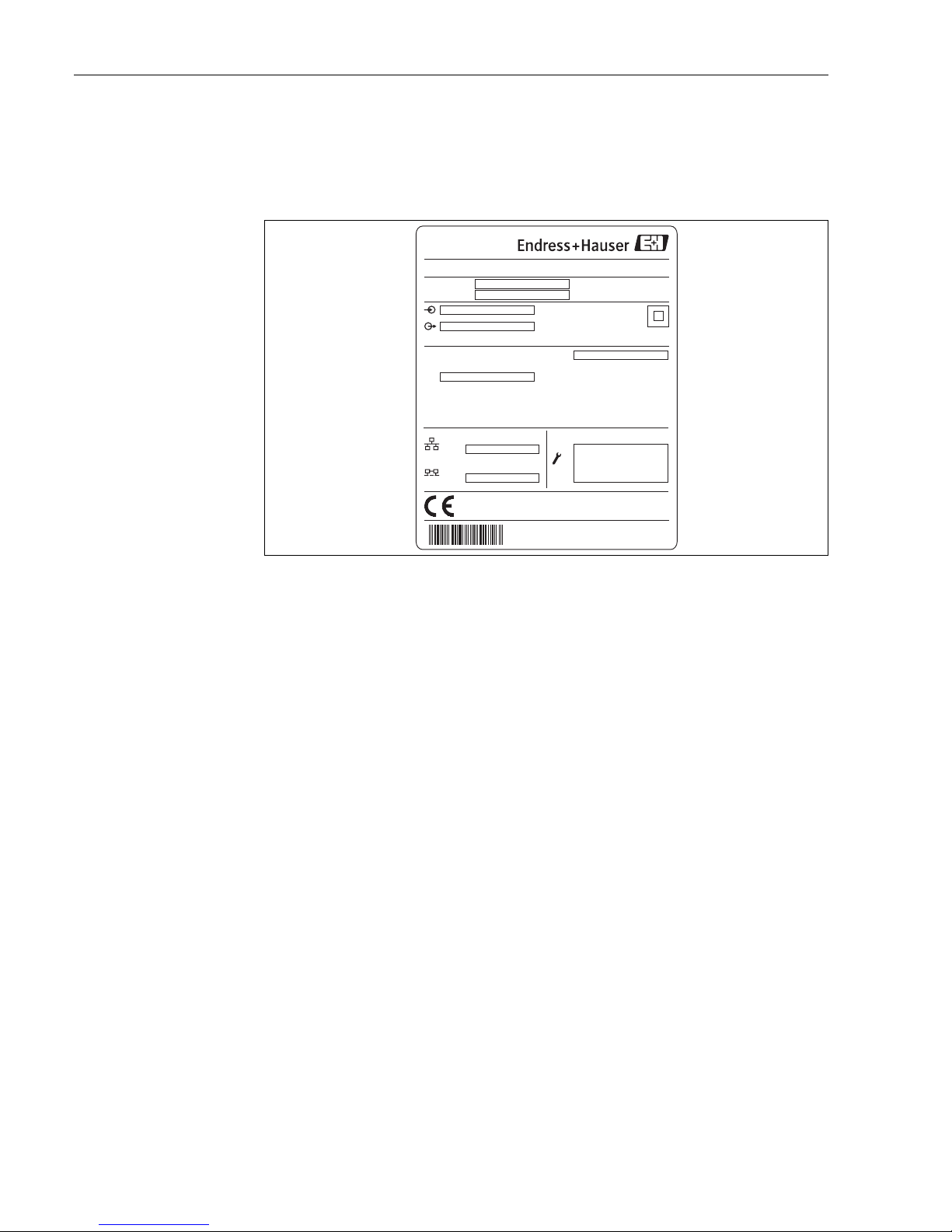

4.1 Nameplate
L00-NXA82xxx-18-00-00-yy-001
1 Order code according to the product structure
2 Serial number
3 Supply voltage
4 Type of fieldbus communication (only for Tank Scanner NXA820)
5 Degree of protection
6 Admissible ambient temperature
7 MAC address of the System LAN port
8 MAC address of the Sync Link LAN port
9 Technical data of the Service LAN port
Made in Germany
D-79689 Maulburg
Tankvision
Order Code:
Ser.-No.:
250002393--
100 (Auto-MDIX)
MAC:
100 (Auto-MDIX)
MAC:
1
2
3
4
5
6
7
8
9

Tankvision Identifying the components
Endress+Hauser 9
4.2 Tank Scanner NXA820
• The Tank Scanner NXA820 connects multiple tank gauges:
from up to 15 tanks via one field-loop. The Tank Scanner NXA820 supports different field
protocols (Modbus EIA485, Sakura V1, Whessoe WM550).
• The measured values are transmitted by the network and visualized on HTML pages.
• The Tank Scanner NXA820 can be used stand-alone for small tank farms, but also be
integrated into a large system for use in refineries.
• The Tank Scanner NXA820 is equipped with a full set of tank inventory calculations. The
calculations are based on various international standards such as API, ASTM, IP and many
others. Measured values are used to calculate volume and mass.
4.2.1 Ordering information
Detailed ordering information is available from the following sources:
• In the Product Configuration on the Endress+Hauser website: www.endress.com →Select
country →Instruments →Select device →Product page function: Configure this product
• From your Endress+Hauser Sales Center: www.endress.com/worldwide
Product Configurator - the tool for individual product configuration
• Up-to-the-minute configuration data
• Depending on the device: Direct input of measuring point-specific information such as
measuring range or operating language
• Automatic verification of exclusion criteria
• Automatic creation of the order code and its breakdown in PDF or Excel output format
• Ability to order directly in the Endress+Hauser Online Shop

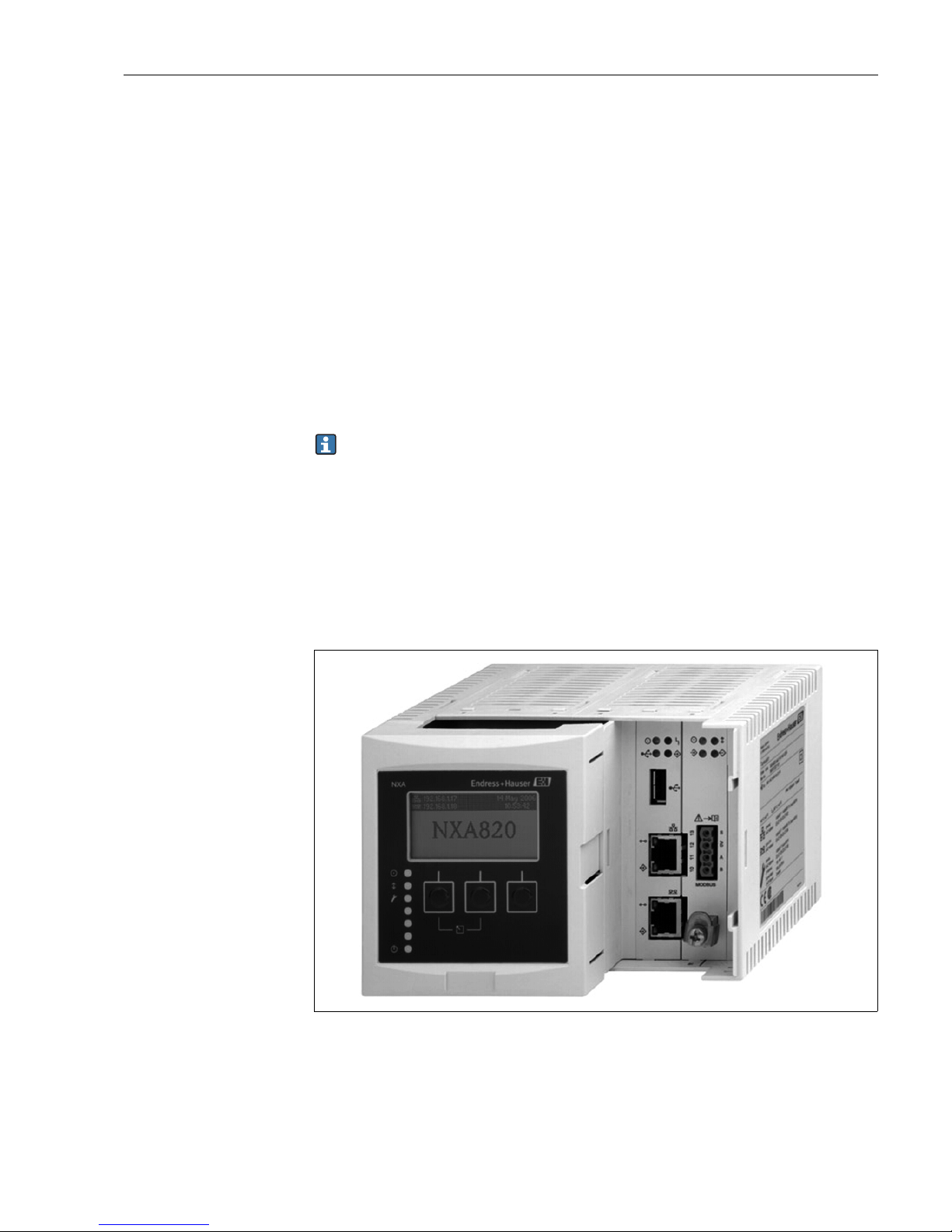

4.2.2 Product picture
L00-NXA8xxxx-10-08-06-xx-002

Identifying the components Tankvision
10 Endress+Hauser
4.3 Data Concentrator NXA821
• The NXA821 Tankvision Data Concentrator is the enhanced solution for large tank farms
and refineries. The Data Concentrator is required if:
The plant contains more than one field loop (each of which has its own Tank Scanner
NXA820) and tanks of more than one Tank Scanner NXA820 are to be grouped
• The Data Concentrator collects the data of several Tank Scanner units and enables
reconciliation and totalization of the tank data of many or all tanks in structured groups.
• Alarms and events from all connected Tank Scanners NXA820 can be shown in a common
screen. Any tank of the system can be assigned to any tank group, regardless of the Tank
Scanner it is linked to. This ensures the highest possible flexibility for the plant or tank
farm.
• An alarm pop-up shows alarms of all connected Tank Scanners NXA820 even if the web
browser is closed.
• Direct serial printer connection for report printing (W+M certified acc. PTB)
• 90 tanks (more on request) can be allocated to each Data Concentrator NXA821. Each of
these tanks must have been allocated to a Tank Scanner NXA820 beforehand.
• Tanks from up to 6 different Tank Scanners NXA820 (more on request) can be integrated
in this way.
4.3.1 Ordering information
Detailed ordering information is available from the following sources:
• In the Product Configuration on the Endress+Hauser website: www.endress.com →Select
country →Instruments →Select device →Product page function: Configure this product
• From your Endress+Hauser Sales Center: www.endress.com/worldwide
Product Configurator - the tool for individual product configuration
• Up-to-the-minute configuration data
• Depending on the device: Direct input of measuring point-specific information such as
measuring range or operating language
• Automatic verification of exclusion criteria
• Automatic creation of the order code and its breakdown in PDF or Excel output format
• Ability to order directly in the Endress+Hauser Online Shop

Tankvision Identifying the components
Endress+Hauser 11
4.3.2 Product picture
L00-NXA8xxxx-10-08-06-xx-003

Identifying the components Tankvision
12 Endress+Hauser
4.4 Host Link NXA822
• The Host Link NXA822 collects data from all Tank Scanners NXA820 on a network and
transfers them to the host system.
• The MODBUS option supports serial EIA-232(RS) and EIA-485(RS) or MODBUS TCP/IP.
The NXA822 is configured as a MODBUS slave. Supported functions are:
– Coil Status (#01)
– Holding Registers (#03)
– Input Registers (#04)
– Write Modbus Values (#06)
• The MODBUS register map is described via XML files and can easily be adapted to
individual MODBUS master requirements.
• Gauge commands for Servo Gauges
• 90 tanks (more on request) can be allocated to each Host Link NXA822. Each of these
tanks must have been allocated to a Tank Scanner NXA820 beforehand.
• Tanks from up to 6 different Tank Scanners NXA820 (more on request) can be integrated
in this way.
• Per system 2 NXA822 units can be installed.
4.4.1 Ordering information
Detailed ordering information is available from the following sources:
• In the Product Configuration on the Endress+Hauser website: www.endress.com →Select
country →Instruments →Select device →Product page function: Configure this product
• From your Endress+Hauser Sales Center: www.endress.com/worldwide
Product Configurator - the tool for individual product configuration
• Up-to-the-minute configuration data
• Depending on the device: Direct input of measuring point-specific information such as
measuring range or operating language
• Automatic verification of exclusion criteria
• Automatic creation of the order code and its breakdown in PDF or Excel output format
• Ability to order directly in the Endress+Hauser Online Shop
4.4.2 Product picture
L00-NXA8xxxx-10-08-06-xx-004

Tankvision Identifying the components
Endress+Hauser 13
4.5 Explosion picture
L00-NXA82xxx-16-00-00-xx-071
1Coverplate
2 Inner electronics
3Housing
4.6 Tankvision OPC Server
• The OPC Server is a Windows program installed on a PC connecting to NXA820 and allows
access to measured and calculated tank parameters.
• The OPC Server connects to OPC clients on the same PC or other PCs via LAN.
• The OPC Server supports browsing tanks and tank parameters on NXA820.
• The OPC Server is included in each NXA820 and can be uploaded to the PC.
• The OPC Server is based on OPC DA V3.0
4.7 Tankvision Printer Agent
• The Printer Agent is a Windows program installed on a PC, connecting to NXA820/
NXA821.
• The program is running in the background and enables (scheduled) printing reports on
connected printers.
• Up to 3 printers (directly connected to the PC or network printers) can be assigned to the
Printer Agent.
• If a printout can not be performed, a record is kept within the Printer Agent.
• The printer agent software is included in each NXA820 and can be uploaded to the PC.
1
2
3

Identifying the components Tankvision
14 Endress+Hauser
4.8 Tankvision Alarm Agent
• The Alarm Pop-Up-Agent is a Windows program installed on a PC, connecting to
NXA820/NXA821.
• The program is running in the background and scans for alarms generated in NXA820/
NXA821.
• If an alarm is present, a pop-up window opens displaying the alarm.
• The alarm can be acknowledged within this window.
• The window can only be closed if no alarm is active.
• The Alarm Agent can be uploaded from NXA820/821 to the PC.

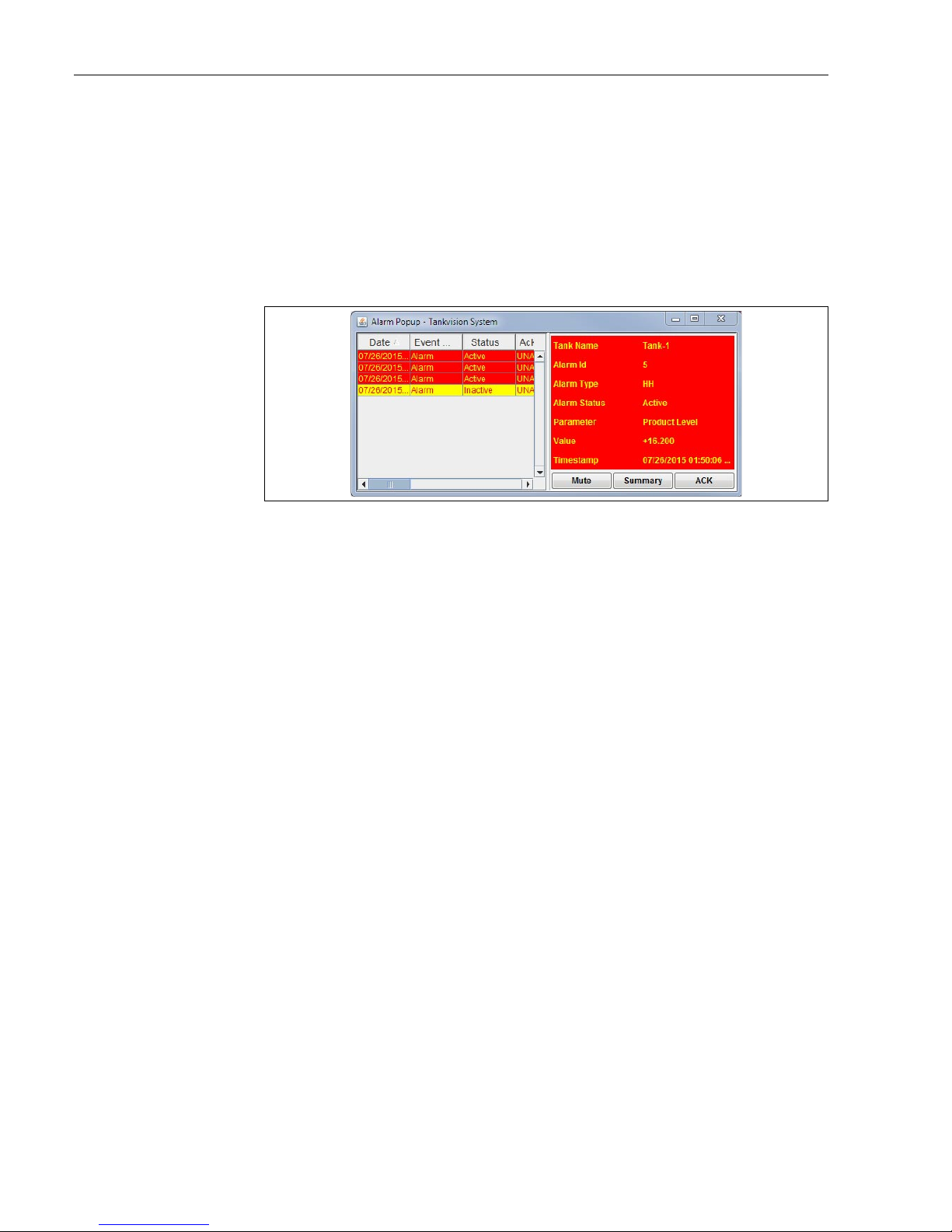

Alarm-Popup-Agent

Tankvision PC recommendations
Endress+Hauser 15
5PCrecommendations
5.1 PC connection for viewing data
Tankvision Tank Scanner NXA820, Tankvision Data Concentrator NXA821 and Tankvision
Host Link NXA822 are providing a web server to view and enter data or perform
configurations. Viewing the pages requires a web browser and JAVA runtime installed on a
PC.
PC and the Tankvision components must be connected within the same Local Area Network
(LAN) consisting out of Ethernet lines, switches and/or routers.
HUBs shall not be used. In secured systems e.g. for W&M purposes, routers cannot be
used. If company policies allow a remote connection into the LAN also enables a
remote connection to Tankvision components.
5.1.1 Recommendations PC configuration
With all on the market available web browser entering the Tankvision web server is possible.
Nevertheless the pages are optimized for Microsoft Internet Explorer (supported version IE9,
IE10 and IE11 – Compatibility Mode).
The user interface pages are optimized for a screen resolution of 1280x1024 (or higher).
5.2 Recommendations when using OPC Server,
Printer Agent or Alarm Agent
• Windows XP 32 Bit Service Pack 3, Windows7 32 Bit or Windows7 64 Bit
• Java 6 or higher
5.3 Alternations from the recommendations
Alternations to the recommendations in the previous chapters might have influences on the
proper behavior of the system especially when communication ports are used by other
programs (e.g. other OPC servers). In case of uncertainty consult Endress+Hauser.
Included Software and Operating System requirements Windows 7
(32/64 bit)
Windows Server 2008
OPC Server X X
Alarm Agent X –
Printer Agent X –
Tankvision Installation and Recovery Tool X –

Connections to gauges and host systems Tankvision
16 Endress+Hauser
6 Connections to gauges and host systems
6.1 Field instruments and slave devices
Please take care that the signal and power cables always are separated to prevent noise
and electrical interference between them.
6.1.1 Communication variants
Field instruments or other slave devices are connected to the Tankvision Tank Scanner
NXA820. The unit is available in 3 communication versions.
• Modbus RTU RS485
According to "Modbus over serial line specification and implementation guide V1.02"
published by the Modbus-IDA organization (www.modbus.org) and based upon the EIA/
TIA-485-A physical layer specification.
• Sakura V1
V1 fieldbus is a voltage mode digital communication using up to ±30 VDC.
• Whessoe WM550
The WM550 communication protocol works using a current loop principle.
Connection
Please take into consideration that the principle of current loop connection works as
follows:
The Tankvision (master) (-) signal point connects to slave 1 (+) signal point. Slave 1 (-)
signal point connects to slave 2 (+) signal point until (the last) slave N (-) signal piont
connects back to the Tankvision (master) (+) signal point closing the current loop.
Cable specification
Please ensure to follow the following recommendations for field installation of the
Tankvision with the WM550 protocol variant.
– Cable with twisted and non-shielded pairs
– Cable with at least 0.5 mm² (AWG 20) section
– Maximum total cable resistance: 250 Ω
– Cable with low capacitance
Characteristic impedance 135 to 165 Ωat measuring frequency of 3 to 20 MHz
Cable capacitance ≤30 pF/m
Core cross-section ≥0.34 mm² (AWG 22) multi-strand cable is preferred
Cable type Single twisted pair + third conductor (for common) or
Dual twisted pair (common uses second pair with wire joined together)
Cable resistance ≤110 Ω/km
Signal damping Max. 9 dB over the entire length of the cable cross-section
Shielding Copper braided shielding or combined foil and braided shielding
Cable capacitance ≤50 nF/m
Core cross-section ≥0.9 mm² (AWG 17) multi-strand cable is preferred
Cable type Twisted pair
Cable resistance ≤30 Ω/km
Shielding Copper braided shielding or combined foil and braided shielding
Insulation ≥60 VDC

Tankvision Connections to gauges and host systems
Endress+Hauser 17
6.1.2 Field devices
The following list gives an overview on possible field instruments which can be connected
directly or via system components. Nevertheless the connection possibilities are not limited
to these devices.
• Micropilot NMR8x
Micropilot NMR81 is used for custody transfer and inventory control applications with
NMi- and PTB-approvals and meets the requirements according to OIML R85 and API
3.1B. NMR81 is particularly suited for free space applications up to 70 m. The drip-off lens
antenna with 79 GHz transmitting frequency produces a sharply focused beam angle of 3°
and avoids obstacles even close to tank wall.
Micropilot NMR81 is available with Modbus RS485 and Sakura V1 output.
For more information see TI01252G/00/EN.
Micropilot NMR84 is used for custody transfer and inventory control applications with
NMi- and PTB-approvals. It meets the relevant requirements according to OIML R85 and
API 3.1B. The NMR84 free space radar with drip-off planar antenna is specifically suited
for stilling well applications. The superior drip-off antenna design with proven track
record eliminates problems caused by condensation.
Micropilot NMR84 is available with Modbus RS485 and Sakura V1 output.
For more information see TI01253G/00/EN.
• Proservo NMS8x
The intelligent tank gauge Proservo NMS80 is designed for high accuracy liquid level
measurement in custody transfer and inventory control applications with NMi- and PTB-
approvals. It meets the relevant requirements according to OIML R85 and API 3.1B. It
fulfills the exact demands of tank inventory management and loss control and is optimized
in regards of total cost saving and safe operation.
Proservo NMS8x is available with Modbus RS485 and Sakura V1 output.
For more information see TI01248G/00/EN, TI01249G/00/EN or TI01250G/00/EN.
• Tank Side Monitor NRF8x
The Tank Side Monitor NRF81 is a sensor integration and monitoring unit for bulk storage
tank gauging applications. It integrates various level, temperature and pressure tank
sensor data into a control host system. Various selectable alarms and outputs.
Tank Side Monitor NRF8x is available with Modbus RS485 and Sakura V1 output.
For more information see TI01251G/00/EN.
• Proservo NMS5/7
The Proservo NMS5/7 intelligent tank gauges are designed for high accuracy liquid level
measurement in storage and process applications. Tank mounted intelligence makes the
Proservo NMS5 ideal for single or multi-task installation, converting a wide of
measurement functions including beside others:
–Liquidlevel
–Interfacelevel
– Spot density
– Density profile
Proservo NMS5/7 is beside others available with Modbus RTU RS485, Sakura V1,
Whessoe WM550 output. For more information see TI00452G/08/EN.
• Tank Side Monitor NRF590
Cross section (mm² (AWG)) Resistance (Ω/km) Capacitance (nF/km)
Cable 1 0.5 (20) 39.2 60
Cable 2 0.75 (18) 24.6 65
Cable 3 1.3 (16) 14.2 75

Connections to gauges and host systems Tankvision
18 Endress+Hauser
The Tank Side Monitor NRF590 is a sensor integration and monitoring unit for bulk
storage tank gauging applications. It can be used with Micropilot radar or Proservo level
gauges and can be combined with other HART compatible devices.
Connects up to 6 HART devices via intrinsic safe 2 wire, for example Prothermo for average
temperature measurement and Cerabar/Deltabar for HTMS density applications. Various
industry standard communication protocols, including
–SakuraV1
– EIA-485 Modbus
– Whessoe WM550
For more information see TI00402F/00/EN.
• Micropilot S FMR53x/FMR540
The Micropilot S is used for highly accurate level measurement in storage tanks and can
be applied in custody transfer applications. It meets the relevant requirements according
to OIML R85 and API 3.1B.
The Micropilot S is communicating via the industry standard protocoll HART (Standard 5)
and can be connected to the Tankvision Tank Scanner via the Tank Side Monitor. For more
information see TI00344F/00/EN and TI00412F/00/EN.
• Prothermo NMT539
The Prothermo NMT539 is based on API (American Petroleum Institute) Manual of
Petroleum Measurement Standard, Chapter 7, and enables high accuracy temperature
measurement. At the same time, it is an intelligent average temperature sensor for tank
gauging with an optional WB capacitance sensor at the bottom of the temperature probe.
For average temperature measurement, it consists of precision multi-spot Pt100
elements. The NMT539 is a highly capable solution that provides both contant average
temperature data and water interface data via local HART® communication. For accurate
inventory measurement, it is best suited connected to Endress+Hauser’s Proservo NMS,
Micropilot NMR or Tank Side Monitor NRF with level tankg gauge (e.g. Micropilot). For
more information see TI00042G/08/EN.
• Prothero NMT532
The Prothermo NMT532 consists of an intelligent local HART® signal converter and
average temperature sensor. For average temperature measurement, it consists of
precision multi-spot Pt100 (max. 6) elements which have fixed interval (2 m (6.6 ft) or
3 m (9.8 ft)). The NMT532 is a highly capable solution for a variety of tank gauging
applications and provides constant average temperature data via local HART®
communication. For accurate inventory measurement, it is best suited connected to
Endress+Hauser’s Proservo NMS, Micropilot NMR or Tank Side Monitor NRF with level
tank gauge (e.g. Micropilot). For more information see TI00049G/08/EN.
• Micropilot M FMR2xx
The Micropilot M is used for continuous, non-contact level measurement of liquids, pastes,
slurries and solids. The measurement is not affected by changing media, temperature
changes.
– The FMR230 is especially suited for measurement in buffer and process tanks.
– The FMR231 has its strengths wherever high chemical compatibility is required.
– The FMR240 with the small 40 mm (1½") horn antenna is ideally suited for small
vessels. Additionally, it provides an accuracy of ±3 mm (0.12 in).
– The FMR244 combines the advantages of the horn antenna with high chemical
resistance.
The 80 mm (3") horn antenna is used additionally in solids.
– The FMR245 - highly resistance up to 200 °C (392 °F) and easy to clean.
The Micropilot M is communicating via the industry standard protocol HART and can be
connected to the Tankvision Tank Scanner via the Tank Side Monitor or an HART to
Modbus converter e.g. by Moore Industries. For more information see TI000345F/00/EN.
• Levelflex M FMP4x

Tankvision Connections to gauges and host systems
Endress+Hauser 19
Level Measurement - Continuous level measurement of powdery to granular bulk solids
e.g. plastic granulate and liquids.
– Measurement independent of density or bulk weight, conductivity, dielectric constant,
temperature and dust e.g. during pneumatic filling.
– Measurement is also possible in the event of foam or if the surface is very turbulent.
Interface measurement
Continuous measurement of interfaces between two liquids with very different dielectric
constants, such as in the case of oil and water for example.
The Levelflex M is communicating via the industry standard protocol HART and can be
connected to the Tankvision Tank Scanner via the Tank Side Monitor or an HART to
Modbus converter e.g. by Moore Industries. For more information see TI00358F/00/EN.
• Levelflex FMP5x
–FMP51
Premium device for level and interface measurement in liquids.
–FMP52
Premium device with coated probe for the use in aggressive liquids. Material of wetted
parts FDA listed and USP Class VI compliant.
–FMP54
Premium device for high-temperature and high-pressure applications, mainly in liquids.
Levelflex is communicating via the industry standard protocol HART and can be connected
to the Tankvision Tank Scanner via the Tank Side Monitor or an HART to Modbus
converter e.g. by Moore Industries. For more information see TI01001F/00/EN.
•CerabarM
The Cerabar M pressure transmitter is used for the following measuring tasks:
– Absolute pressure and gauge pressure in gases, steams or liquids in all areas of process
engineering and process measurement technology.
– High reference accuracy: up to ±0.15%, as PLATINUM version: ±0.075%
Cerabar M is communicating via the industry standard protocol HART and can be
connected to the Tankvision Tank Scanner via the Tank Side Monitor or Proservo.
For more information see TI000436P/00/EN.
•CerabarS
The Cerabar S pressure transmitter is used for the following measuring tasks:
– Absolute pressure and gauge pressure in gases, steams or liquids in all areas of process
engineering and process measurement technology.
– High reference accuracy: up to ±0.075%, as PLATINUM version: ±0.05%
Cerabar S is communicating via the industry standard protocol HART and can be connected
to the Tankvision Tank Scanner via the Tank Side Monitor or Proservo.
For more information see TI000383P/00/EN.
•DeltabarM
The Deltabar M differential pressure transmitter is used for the following measuring tasks:
– Flow measurement (volume or mass flow) in conjunction with primary elements in
gases, vaporss and liquids
– Level, volume or mass measurement in liquids
– Differential pressure monitoring, e.g. of filters and pumps
– High reference accuracy: up to ±0.1%, as PLATINUM version: ±0.075%
Deltabar M is communicating via the industry standard protocol HART and can be
connected to the Tankvision Tank Scanner via the Tank Side Monitor or Proservo.
For more information see TI000434P/00/EN.
•DeltabarS
The Deltabar S differential pressure transmitter is used for the following measuring tasks:
– Flow measurement (volume or mass flow) in conjunction with primary devices in gases,
vaporss and liquids
– Level, volume or mass measurement in liquids
– Differential pressure monitoring, e.g. of filters and pumps

Connections to gauges and host systems Tankvision
20 Endress+Hauser
– High reference accuracy: up to ±0.075%, as PLATINUM version: ±0.05%
Deltabar S is communicating via the industry standard protocol HART and can be
connected to the Tankvision Tank Scanner via the Tank Side Monitor or an HART to
Modbus converter e.g. by Moore Industries. For more information see TI000382P/00/EN.
•LiquicapM
The Liquicap M FMI5x compact transmitter is used for the continuous level measurement
of liquids.
– Suitable for interface measurement
Liquicap M is communicating via the industry standard protocol HART and can be
connected to the Tankvision Tank Scanner via the Tank Side Monitor or an HART to
Modbus converter e.g. by Moore Industries. For more information see TI00401F/00/EN.
• Whessoe ITGs
• Sakura Endress Float&Tape Transmitter TMD
• Sakura Endress TGM5000
• Sakura Endress TGM4000
• SWG70: Wireless HART gateway
• Modbus slave devices
As Modbus is an open protocol there are various system components available which can
be connected to Tankvision Tank Scanner. To do so the so called gauge definition file and
the Modbus map file need to be adapted to the needs. This is a standard procedure and
described in BA00339G/00/EN. Examples for such devices are HART to Modbus
converters, PLCs or other protocol converters e.g. Gauge Emulator by MHT.
Remote service access via the Endress+Hauser device configuration tool FieldCare is
supported for the following device combination:
• Tankvision Tank Scanner with Modbus or Sakura V1 communication
• Tank Side Monitor Modbus or Sakura V1 communication and SW version 02.04.00 or
later
• HART devices connected to Tank Side Monitor intrinsic safe HART bus and supporting
FDT/DTM
or
• Tankvision Tank Scanner with Modbus or Sakura V1 communication
• Proservo NMS5/7 (Modbus or Sakura V1 communication) with
– TCB-6 version 4.27E
– Graphical display operation module
– Modbus communication module COM-5, version 2.0 or
– V1 communication module COM-1 (SRAM-mounted), version 5.01
– HART devices connected to Proservo cannot be reached by FieldCare
