Enelion LUMINA LB-32-3-MGR-00 Series User manual

Installation
guide
LUMINA
3in1 modular structure — build and upgrade your dreamed solution using the same base module.
Quick installation — get your EV charger ready to work online in no more than 15 minutes of the
installation process.
enelion.com/en/help
MODEL LB-32-3-X-0-X-XX-MGR-00
MODEL LB-32-3-X-0-X-XX-GR-00

Dear
Partner
Congratulations on your purchase of the Enelion charger
and thank you for your trust.
Before installing the device, please ensure
that the box contains all of the components.
Up-to-date manuals for users
and installers always available at:
enelion.com/en/help
Please read this manual before installation
or prior to the station being commisioned.

Table of content
Introduction
ENELION LUMINA product family 4
Tools necessary for installation 5
Features 6
Technical specications 7
Safety
Safety instructions 9
21
23
Before the installation
Planning the installation 10
Installation
Installation instructions 11
Daily use and operation
How do I charge? 19
Interface LED 20
Maintenance and cleaning 20
Practical details
Customer service

ENELION LUMINA
products family
ENELION
LUMINA
CABLE
PREMIUM
ENELION
LUMINA
SOCKET
PREMIUM
ENELION
LUMINA
SOCKET
CLOSE
OPEN
ENELION
LUMINA
BACKPLATE
4

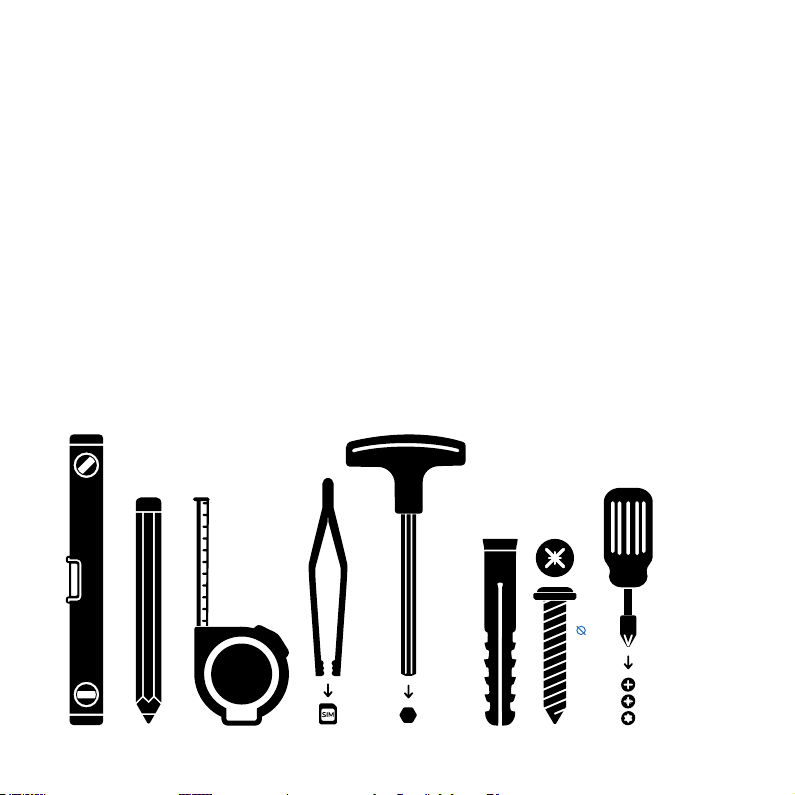

Additional tools
necessary for installation
x6 x6
5
max. 5 mm
5 mm
PH2 / PH3
PZ1 / PZ2 / PZ3
T10 / T15 / T20

Features
LED SIGNALING
ROOM FOR OPTIONAL
BACKUP POWER SUPPLY
ROOM FOR OPTIONAL
230V CEE 7/3 SOCKET
SOCKET TYPE 2
RFID
ROOM FOR OPTIONAL
CERTIFIED ENERGY METER
WI-FI
LT E
6

Technical specications
Housing Polycarbonate, Anodized aluminum*
Ingress Protection rate IP54
Impact protection (IK rate) IK10
Flammability class UL94-V0
Charging connector type Lumina Socket - Type2 Socket, Lumina Cable - Type2 connector with 4,7 m cord
Residual current protection Embedded residual current monitor - Enelion RCMB 6 mA DC
Energy metering Integrated 3-phase energy meter >99 % accuracy
Certied electricity meter (MID) Impulse* - possible to install inside the housing
User interface
multi-color LED strip EVC status indication;
Dedicated app connecting station via WiFi AP 2.4 GHz
b/g /n
Online communication unit
• Integrated LTE/4G modem
• WiFi 2.4 GHz b/g/n - direct access point to the station with an option to hide
the AP and connect the station to local Wi-Fi network
OCPP compliance with OCPP 1.6 J protocol
Authorization • built-in RFID / NFC reader - Mifare Classic / Free mode
• dedicated app connected via WiFi AP 2.4 GHz b/g/n
Current /Charging power up to 7.4 kW at 32 A 1-phase
up to 22 kW at 32 A 3-phase (TN system)
Charging voltage 3 x 400 V AC/ 230 V AC ( ±10 % )
7

Supply voltage 3 x 400 V AC/ 230 V AC ( ±10 % ) (TN/IT)
Possibility of connecting the cable from the top, bottom and the back of the station
Other features
• conguration with no additional tools
• remotely controlled schuko outlet*
• remote start / stop, delay and charging schedule
• temperature and humidity monitoring inside device
Operating temperature
-30°C / +55°C
Maximum altitude for installation 2000 m
Height 390 mm
Depth 133 mm
Width 155 mm
Depth 133 mm
Weight 3 kg / 4,2 kg (depending on device-version)
Compliance
2014/53/EU (RED)
2011/65/EU (RoHS)
2014/30/EU (EMC)
2014/35/EU (LVD)
* option
8

Safety instructions
Please read this manual before attempting to
install or commission the charger.
Safety instructions for installation
• Do not carry out outdoor installation during
precipitation or strong winds if there is a risk
that water or debris may enter the device.
• Carry out all operations described in this
manual after ensuring that there is no voltage
in the power cord.
• This product may only be installed, repaired or
serviced by an authorised electrician.
• All local, regional and national electrical
installation regulations must be observed.
• Installation must not be carried out near
explosive atmospheres or in areas where there
is a risk of running water.
• Risk to life from high electrical voltages.
• The product must be permanently installed in
its nal location.
• The product must be installed on a wall or
structure with sufcient load bearing capacity.
• The clamps on the rear panel are live when the
power circuit is closed and must never come
into direct contact with anything other than
the Lumina plug-in electronics.
• Lumina’s network SSID and password are
required for installation and conguration;
they can be found on the back of the charging
head.
Safety instructions for use
• Never use or touch the device if it is damaged
or not functioning properly.
• Always perform the recommended
maintenance, installation and any repair
work by an authorised service centre and in
accordance with local requirements.
• Do not use water to extinguish a re.
• Never clean the station with high pressure or
running water.
• Do not immerse the station in water or other
liquids.
• If the light bar on the device lights up red,
there is an error.
• Never touch the contacts of the type 2
socket/plug and never insert foreign objects
into it.
• Never use the charging cable if it is damaged
or if the connector is wet or dirty.
• Do not use extension cables or adapters in
connection with the station.
• The charging cable can only be disconnected
from the station by pulling on the plug handle,
not on the cable.
• Make sure that the charging cable does not
cause a tripping or running over hazard.
• Even though the station is designed to
withstand normal weather conditions, it
is recommended to protect it from direct
sunlight or exposure to extreme weather
conditions.
• Do not use the station near strong
electromagnetic elds or in the immediate
vicinity of radio transmitters.
9

of the wire type terminated with collets are
recommended.
• A residual current monitor (RCM) can be
integrated into the Lumina charger. This will
switch off the current to the electric vehicle if:
a residual current of 4–6 mA DC occurs. The
RCM is reset by disconnecting the charging
cable and reconnecting it.
The table above shows what charging power
you can expect from your installation.
The table is for information purposes only.
Before the
installation
• This product may only be installed, repaired
or serviced by an authorised electrician.
All local, regional and national electrical
installation regulations must be observed.It
is recommended to consider future charging
needs before installation.
• The power supply to the Enelion charging
terminal must be provided from an electrical
switchgear. The switchgear must have the
required protection in the form of a type B or C
overcurrent circuit breaker and a current rating
of 32 A or less, suitable for the conguration of
the device. To declare compliance with EN IEC
61851-1:2019-10, each charging point must also
be individually protected against Type A and
Type B residual current. This requirement must
be fullled by one of the following:
1. installation of a type B residual current
device (RCD B 30 mA/40 A) or RCD EV
(30 mA/40 A) in the switchgear,
2. installation of a residual current device type
A (RCD A 30 mA/40 A) in the switchgear
using the Enelion RCM B – Residual Current
Monitor type B provided on the charging
terminal.
• The nal selection of the protective equipment
must be made by an authorised designer or
qualied electrician.
• For maximum charging power, it is
recommended to use cables with a conductor
cross-section not exceeding 6 mm2. This
is also the maximum diameter that can be
installed in the connection terminals. For
convenient installation, exible power cords
Load Charging power
Ampere
(A)
1 phase
(kW)
3 phase
(kW)
61.4 4.1
81.6 5.5
10 2.3 6.9
13 3.0 9
16 3.7 11
20 4.6 13.8
25 5.8 1 7. 3
32 7.4 22
10

Installation
Do not carry out outdoor installation during rain
or strong winds if there is a risk that water or
debris may enter the device.
All of the operations described in this manual
should be carried out after making sure that there
is no voltage in the power cord.
This product may only be installed, repaired
or serviced by an authorised electrician. All
local, regional and national electrical installation
regulations must be observed.
In addition to the steps described on the
following pages, we recommend watching the
installation videos.
Preparation
01
In the box with the Lumina charger, you will nd
an assembly template to help you choose the
installation location and prepare the installation
holes.
We recommend that you position the station
so that the top edge of the charging station is
approximately 130 cm from the oor.
The electrical cable can be connected to the
station from above, from below and directly from
behind the station at the gland marked on the
template.
The design of the station allows both wall
and pole installation (additional installation
components required – sold separately). We
suggest that there is local WiFi network coverage
at the station installation site and/or LTE mobile
network coverage if the station is to be used
online.
11
enelion.com/en/help

Turn off the power before installation.
Connect the electrical cable.
Hang the mounting plate according to the
template.
Secure electric cable in the gland.

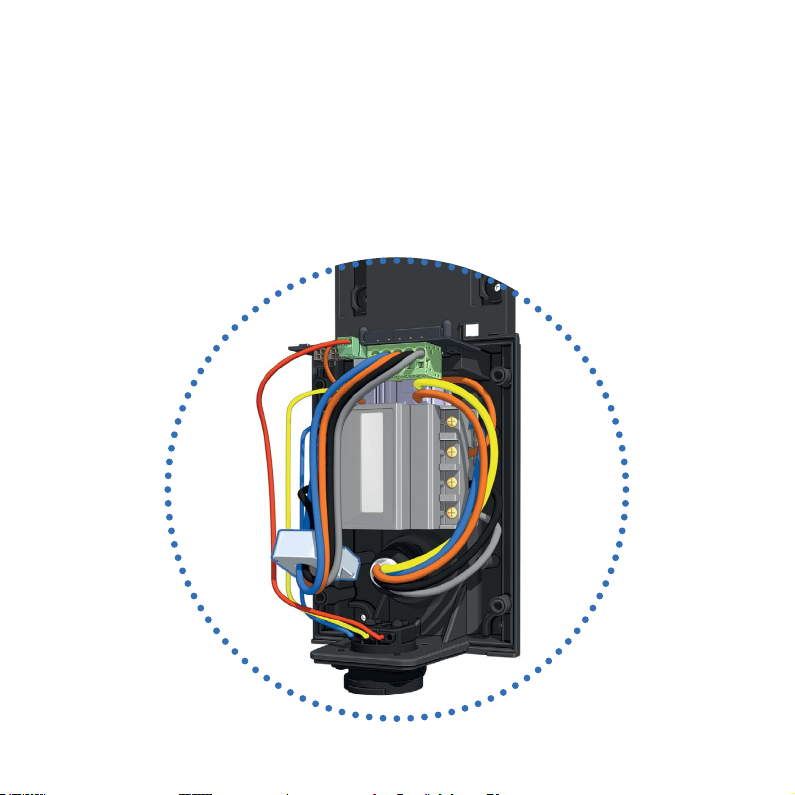

02 Electrical
connection
Installation of
mounting plate
For maximum charging power, it is recommended
to use cables with a conductor cross-section
not exceeding 6 mm2. This is also the maximum
diameter that can be installed in the connection
terminals. For convenient installation, exible
power cords of the wire type terminated with
collets are recommended.
Installation of the cables in the station cable
terminals does not require any special tools.
03
12

CAUTION! It is recommended to use the existing
colour code used in the wiring. Depending on the
standard in your country, the cable colours may
differ from those shown.
CAUTION! Before switching on the power, make
sure that the cables are connected correctly. Test
this by pulling on each wire.
After preparing the installation, close the cover.
13

02 03
Drilling holes
— inserting pins
Screwing the backplane to the wall
— tightening the cable gland
Step by step
04
01
04 05
Template leveling
— marking holes
Stripping the
insulation
from the cable
Connecting
the wires
14

15
MODEL LB-32-3-X-0-X-XX-MRG-00
Enelion Lumina with optional
230V CEE 7/3 SOCKET
and optional CERTIFIED
ENERGY METER

MODEL LB-32-3-X-0-X-XX-RG-00
Enelion Lumina with
optional 230V CEE
7/3 SOCKET
16

17
06 07
09
08 Head installation
Slide
Slide
Apply from the front
Mounting the
cover with four
screws
Mounting the
SIM card
11 Installing the
reector
Two long and two
short screws from
the bottom
Installation of
an alternative
head 10 Tightening the head
two bolts from above

Switching on the safety devices, which turns on
the voltage at the station, should be carried out
by a suitably qualied person.
Using a telephone or computer, search for the
Lumina station’s AP with the SSID listed on the
back of the charging head.
After connecting to the Lumina station’s AP with
the SSID and password given on the back of the
charging head, type the following into the address
bar of your browser: http://192.168.8.8
Access to the conguration panel is protected by
a password, which by default is: admin.
The password should be changed if necessary.
The conguration process should be carried
out according to the instructions on the panel.
Start-up
and conguration
of the station
05
18
http://192.168.8.8
http://192.168.8.8

Daily use
and operation 01 How do
I charge?
Before using the Lumina charger, ensure that
the following requirements are met:
• An authorised electrician has made the
electrical connection correctly.
• The charger is correctly congured.
• The software is up to date.
• If access control is congured, block it with
a registered RFID tag or disable it in the
conguration panel on the WiFi interface.
1. Before charging, check that the charging
cable and connector are not damaged or
contaminated, e.g. due to foreign objects or
water.
2. Connect the charging cable to the Lumina
charger and to the electric car. The charging
process starts and adapts automatically to
the electric car and the available power based
on its conguration. If the car does not start
charging, check that charging is enabled in
your car and that the connectors are correctly
connected.
19

The device is designed to operate in
temperatures from -30°C to 55°C. The
manufacturer does not guarantee the correct
operation of the charging station at temperatures
outside of the specied range. Chargers
damaged by temperatures below -30°C or above
55°C are not covered under the warranty.
The correct way to clean the charger is to wipe
the casing with a microbre cloth using a cleaner
dedicated to the plastic of the casing. Plastic
parts (the socket) should be cleaned with a
microbre cloth using a cleaning agent dedicated
to glass. Other cleaning methods (e.g. using
a wire brush) may damage the casing.
Damage caused by improper cleaning of the
device does not constitute grounds for warranty
claims.
Maintenance
Cleaning
03
04
The interface provides only basic operational
information, detailed information can be read
from the conguration panel.
Status Light type
Availability Green ashing
Charging (energy
transfer in progress)
Blue ashing from
inside towards the
edge
Charging (no energy
transfer)
Blue ashing
Warning/minor error
(the charger will
attempt to return to
its previous state)
Yellow ashing
Error Red ashing
Fatal error Steady red
Authorisation
User acceptance Running from left to
right in green
User rejection Running from left to
right in red
Authorisation pending White dot moving
from left to right
20
02 Interface LED
The Lumina charging station has an LED
interface that provides the user with basic
information:
