ENERCORP INDIRECT FIRED SPACE HEATER 4000ID Assembly instructions
READ INSTRUCTIONS CAREFULLY: Read and follow all instructions.
Place instructions in a safe place for future reference. Do not allow
anyone who has not read these instructions to assemble, light, adjust or
operate the heater.
OPERATING INSTRUCTIONS AND OWNER’S MANUAL
MODELS
4000ID 7000ID
08/08 # xxxxx
INDIRECT FIRED
SPACE HEATER
HEATSTAR
BY ENERCO
If the information in this manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury or loss of life.
WARNING:
— Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
— Service must be performed by a qualified service agency.
This is a vented space heater. It uses air (oxygen) from the area in which it is used. Adequate
combustion air and ventilation must be provided. Refer to page 5.
2
ENERCO GROUP, INC. |Indirect Fired Portable Heater Operating Instructions and Owner’s Manual
WARNING:
FIRE, BURN, INHALATION, AND EXPLOSION HAZARD.
KEEP SOLID COMBUSTIBLES, SUCH AS BUILDING MA
TERIALS, PAPER OR CARDBOARD, A SAFE DISTANCE
AWAY FROM THE HEATER AS RECOMMENDED BY THE
INSTRUCTIONS NEVER USE THE HEATER IN SPACES
WHICH DO OR MAY CONTAIN VOLATILE OR AIRBORNE
COMBUSTIBLES, OR PRODUCTS SUCH AS GASOLINE,
SOLVENTS, PAINT THINNER, DUST PARTICLES OR UN
KNOWN CHEMICALS.
WARNING:
ING THIS PRODUCT CONTAIN CARBON MONOXIDE,
A CHEMICAL KNOWN TO THE STATE OF CALIFORNIA
TO CAUSE CANCER AND BIRTH DEFECTS (OR OTHER
REPRODUCTIVE HARM).
GENERAL HAZARD WARNING:
FAILURE TO COMPLY WITH THE PRECAUTIONS AND
INSTRUCTIONS PROVIDED WITH THIS HEATER, CAN
RESULT IN DEATH, SERIOUS BODILY INJURY AND
PROPERTY LOSS OR DAMAGE FROM HAZARDS OF FIRE,
EXPLOSION, BURN, ASPHYXIATION, CARBON MONOX
IDE POISONING, AND/OR ELECTRICAL SHOCK.
ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW
THE INSTRUCTIONS SHOULD USE OR SERVICE THIS
HEATER.
IF YOU NEED ASSISTANCE OR HEATER INFORMATION
SUCH AS AN INSTRUCTIONS MANUAL, LABELS, ETC.
CONTACT THE MANUFACTURER.
WARNING:
NOT FOR HOME OR RECREATIONAL VEHICLE USE
WARNING:
YOUR SAFETY IS IMPORTANT TO YOU AND TO OTHERS,
SO PLEASE READ THESE INSTRUCTIONS BEFORE YOU
OPERATE THIS HEATER.
The State of California requires the following warning:
CONTENTS
WARNINGS..................................................................................
SPECIFICATIONS........................................................................... 3
INSTALLATION ............................................................................. 4
INSTRUCTION FOR USE................................................................ 5
VENTILATION............................................................................... 5
MAINTENANCE............................................................................ 6
TROUBLESHOOTING .................................................................... 7

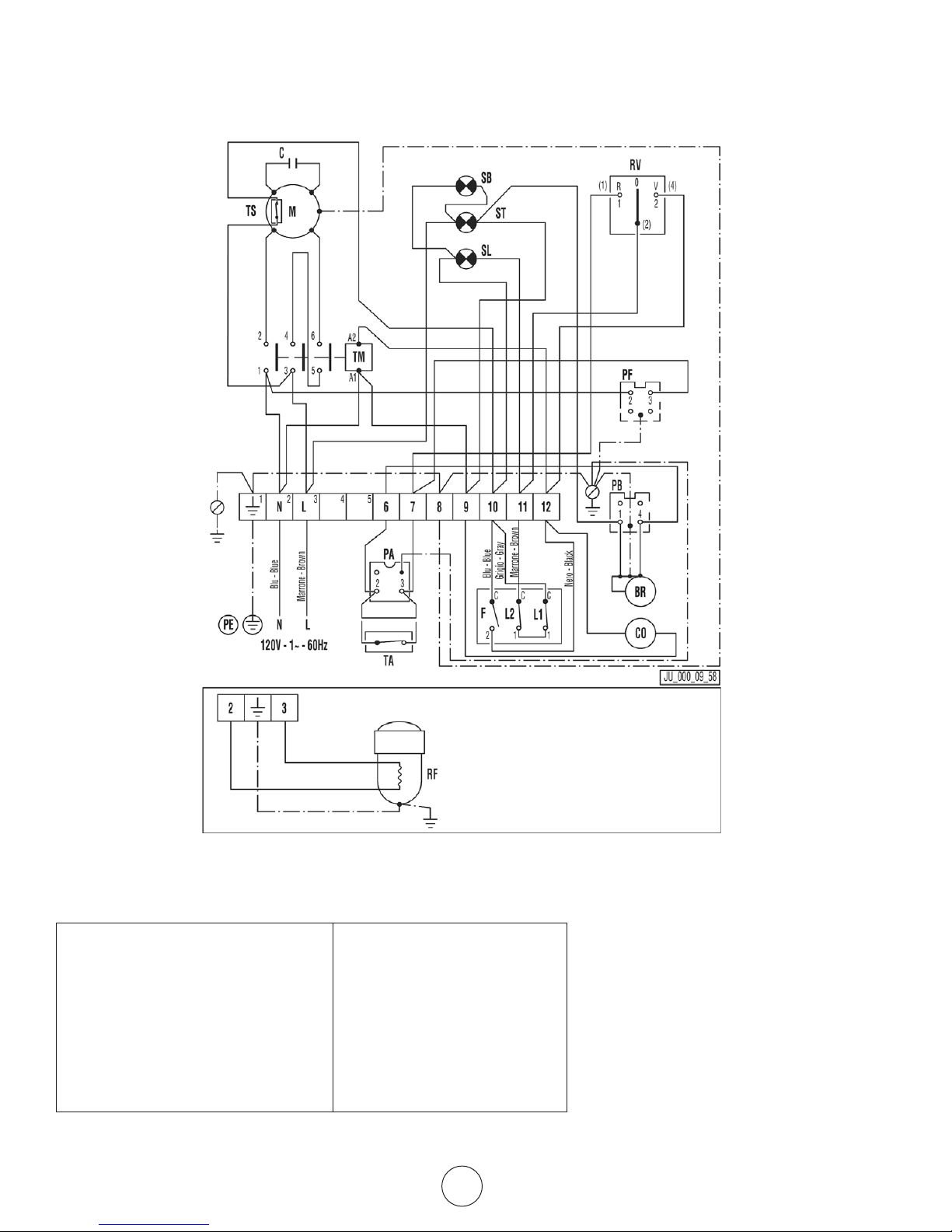

WIRING DIAGRAMS..................................................................... 8

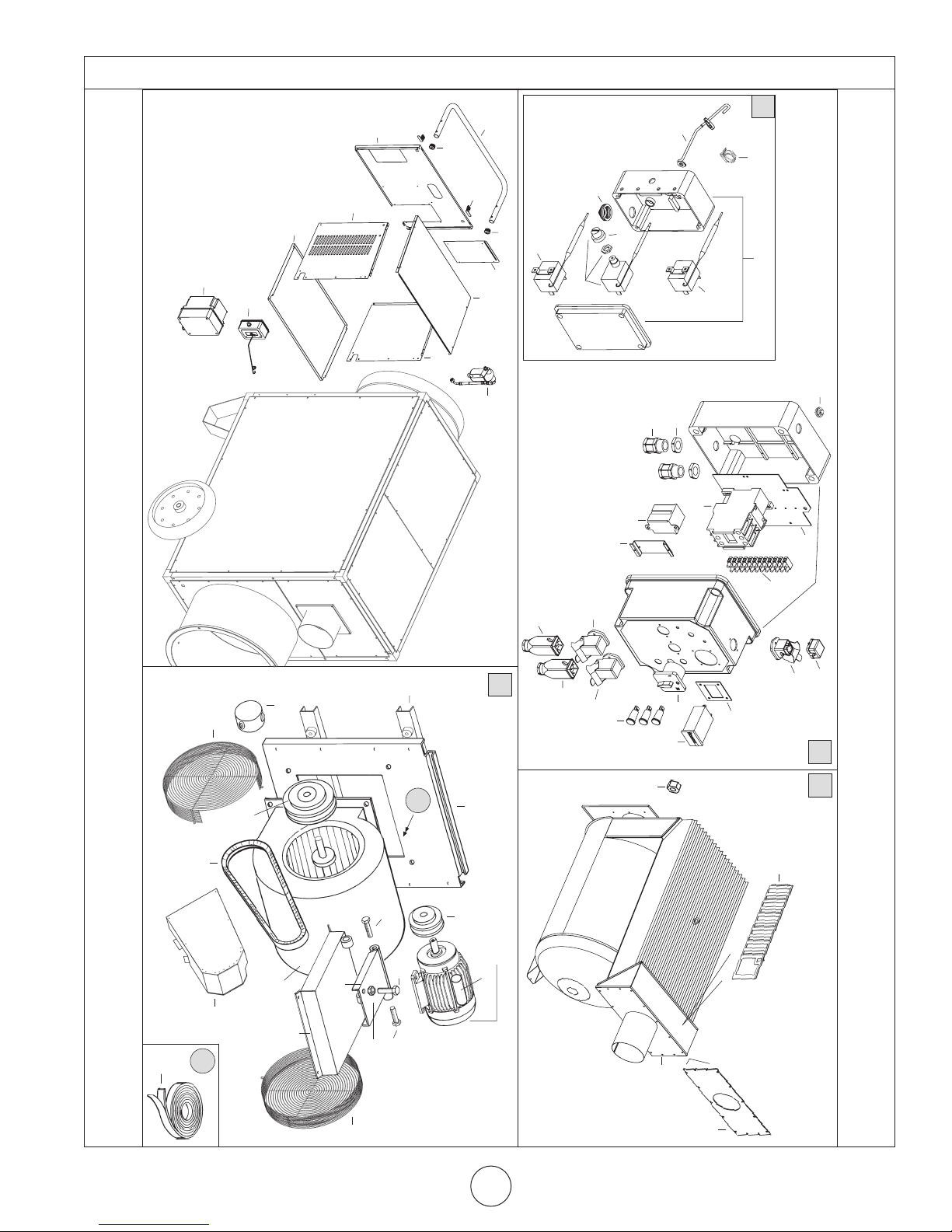

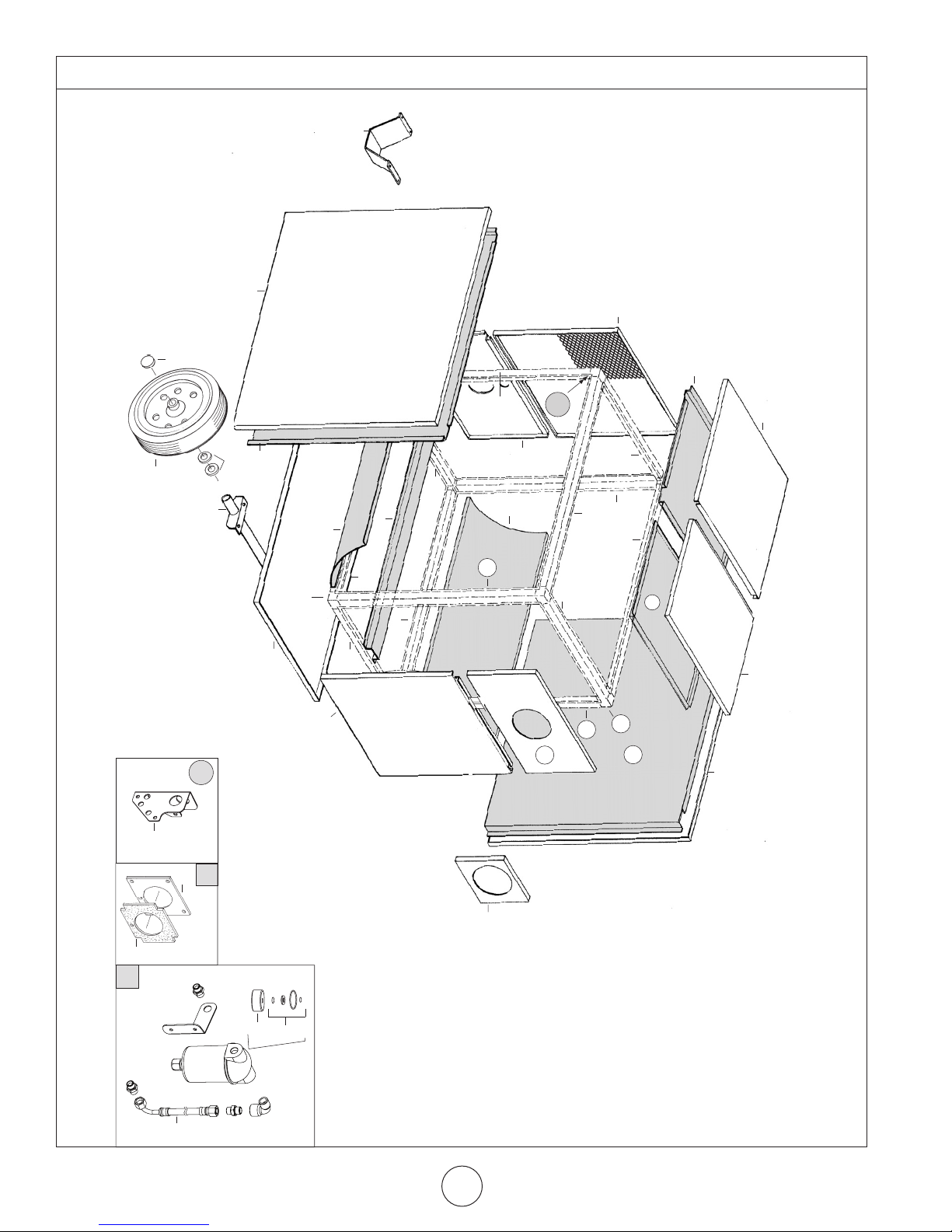

PARTS LIST..................................................................................
WARNING:
READ THE INSTRUCTIONS GIVEN IN THIS
MANUAL BEFORE USING THE APPLIANCE.
FUELS.
IS CONNECTED MUST COMPLY WITH ALL SAFETY
REGULATIONS IN FORCE. A RESIDUAL CURRENT
CIRCUIT BREAKER MUST BE PROVIDED ON THE MAIN
DISTRIBUTION BOARD.
SERVICE OR MAINTENANCE.
USE. IT MUST NOT BE BENT, CRUSHED, OR ANYWAY
DAMAGED.
BY QUALIFIED PERSONNEL.
WITH WATERPROOF PLUG.
OF BURNS!
3Operating Instructions and Owner’s ManualENERCO GROUP, INC. |Indirect Fired Portable Heater
IMPORTANT
Before using the heater, read and understand all instructions and
follow them carefully. The manufacturer is not responsible for
damages to goods or persons due to improper use of units.
GENERAL RECOMMENDATIONS
The heater is designed and approved for use as a construction
Intended use is the temporary heating of buildings or structures
under construction, alteration or repair.
WARNING
CHECK WITH YOUR LOCAL FIRE SAFETY AUTHORITY IF
YOU HAVE QUESTIONS ABOUT APPLICATIONS.
Here are a few general guidelines which should be followed:
of fire or explosion.
the heater (Minimum 6 feet).
sufficiently ventilated so that the heater has enough air to
function properly.
suitable electric switchboard.
annually by a qualified service person.
using any type of space heater it is obligatory: not to
exceed the maximum level of heat output of the furnace
(“TECHNICAL SPECIFICATIONS TABLE”).
supply to the heater and that nothing is obstructing the
aspiration and expulsion of air; movement of air may be
obstructed in various ways including placing covers or other
objects on the heater or positioning the heater too near a
wall or other large object. If the airflow is not adequate, the
combustion chamber will overheat and the overheat safety
thermostat L1 will turn the burner off and on continuously
(“TROUBLESHOOTING”).
TECHNICAL SPECIFICATIONS 4000ID 4000ID 7000ID HD7000ID
Heat input 400 400 700 700
Air flow 4.240 4.240 7.420 7.420
Heat output 340 340 595 595
Oil N”2 Max fuel
consumption 20.4 20.4 35.8 35.8
Natural gas fuel
consumption 391.4 391.4 684.9 684.9
Propane fuel consumption 157.0 157.0 274.7 274.7
Power supply
Phase 1 1 1 1
Voltage 120 220 220 220
Frequency 60 60 60 60
Electric consumption 1.240 1.760 2.120 2.300
13.5 14.5/5.8 7.0 14.8
Diesel burner model Riello 40 F10 Riello 40 F15
Nozzle 2.25 GPH 600 B 2.25 GPH 60’ B 3.50 GPH 60’ B 3.50 GPH 60’ B
Gas burner model
(nalural gas or propane) Riello 40 G400 Riello 40 G750
Gas supply pressure:
natural gas min 4” w.c. max 10” w.c. min 7” w.c. max 14” w.c.
Gas supply pressure:
propane min 8” w.c. max 13” w.c. min 8” w.c max 14” w.c.
Static pressure 0.4 0.8 0.4 0.8
Flue diameter 5.9 5.9 7.9 7.9
Compulsory flue draft 0.05 0.05 0.05 0.05
Maximum air temperature °F 250.0 250.0 250.0 250.0
Dimensions. L x W x H 72x31x43 82x31x43 85x35x53 101x35x53
Weight 353 364 550 562
832 (HD Version)
4
ENERCO GROUP, INC. |Indirect Fired Portable Heater Operating Instructions and Owner’s Manual
1 CONTROL LAMP
2
3 POWER CORD FASTENER
4 OVERHEAT SAFETY THERMOSTAT, L1
5 FAN THERMOSTAT, F
6
7 THERMOSTAT RESET SWITCH
8 HOUR COUNTER
9
10 FAN STOP CONTROL LAMP
11 HEATED DIESEL FILTER PLUG
12 BURNER PLUG
13 ROOM THERMOSTAT PLUG
Control Board
INSTALLATION
WARNING
THE FOLLOWING OPERATIONS MUST BE CARRIED OUT
BY QUALIFIED PERSONNEL ONLY.
Electrical Connections Settings
Every space heater is supplied along with the safety and control
devices which are indispensable to the correct functioning of
the unit. The electric switchboard, burner, the fan thermostat,
overheat safety thermostat and the overheat thermostat with
manual restart have already been connected.
WARNING
POWER SUPPLY CORD OF PROPER DIMENSION
SHALL BE CONNECTED TO THE MAIN SWITCHBOARD
AND HEATER SHALL BE GROUNDED. ELECTRICAL
GROUNDING SHALL BE IN COMPLIANCE WITH THE
NATIONAL ELECTRICAL CODE ANSI/NFPA 70 OR THE
The following operations must now be carried out:
details electricity supply characteristics.
Instruction Manual).
plug.
the unit’s electric switchboard with the thermostat plug.
electrical connections correspond to the wiring diagram. When
use more current than the maximum permitted limit.
Finally, to regulate the burner, follow the instructions in the Burner
Instruction Manual.
INSTRUCTIONS FOR USE
Switching On
switchboard.
.
The burner starts up, the combustion chamber heats up and
then the fan starts.
: the
heater will now start and stop automatically.
above operations consult the Troubleshooting section of this
manual.
Turning Off
control in automatic operation.
The burner stops while the fan turns itself on and off until the
combustion chamber has completely cooled down.
5Operating Instructions and Owner’s ManualENERCO GROUP, INC. |Indirect Fired Portable Heater
MAINTENANCE
WARNING
THE FOLLOWING OPERATIONS MUST BE CARRIED
OUT BY QUALIFIED PERSONNEL ONLY. BEFORE
CARRYING OUT ANY MAINTENANCE OPERATION THE
HEATER MUST BE DISCONNECTED FROM THE MAINS.
THEREFORE:
switchboard.
Cleaning the Heat Exchanger
and the Combustion Chamber
For the heater to operate efficiently the heat exchanger and
combustion chamber must be cleaned after a period of prolonged
use and more frequently if too much soot builds up. Soot builds
up when there is not enough chimney draft, when the fuel is
of very poor quality, when the burner is regulated incorrectly or
when the heater is switched on and off too frequently. If the
heater starts vibrating when it is turned on there is probably too
baffle plates (7). To get at the combustion chamber (4) remove
the burner (5).
Cleaning the Fan
Remove any dirt or extraneous material from the mesh of the
aspiration grill (6) and if necessary clean the propeller with an
Fig. 3
Cleaning the Burner
regularly by an Authorized Service Technician. All cleaning,
servicing and regulation operations must be carried out as
indicated in the Burner Instruction Manual.
WARNING
AFTER EVERY TYPE OF TECHNICAL MAINTENANCE,
PLEASE VERIFY THAT THE MACHINE STARTING
REGULARLY.
Ventilation
The space heater provides heat by releasing and dispersing hot
air. An air head is supplied with each unit but it can be replaced
by other types of head with two or four openings which allow
for flexible tubes in heat distribution. The screws which hold the
original outlet in place should be removed and the new outlet
should be screwed on in place of the old.
The new head may be connected to new air ducts if the user
wishes to satisfy specific needs. In this case and in particular if
the diameter and length of the ducts have been changed or if
the number of bends has been modified, air output may vary.
when any modification is made to air heads or air ducts. In all
circumstances you must ensure that:
maximum permitted limit;
level. If the heater is equipped with centrifugal fan and if
the volume of hot air differs from preset values proceed as
follows (Fig. 1):
Fig. 1
1) Remove the aspiration grill which is on fan motor side of the
unit.
3) Remove the belt (1).
4) Loosen the bolts (3).
increase or reduce the volume of air.
6) Tighten the bolts (3).
8) Repeat operations from (1) to (7) until the correct volume of
air flow has been achieved.

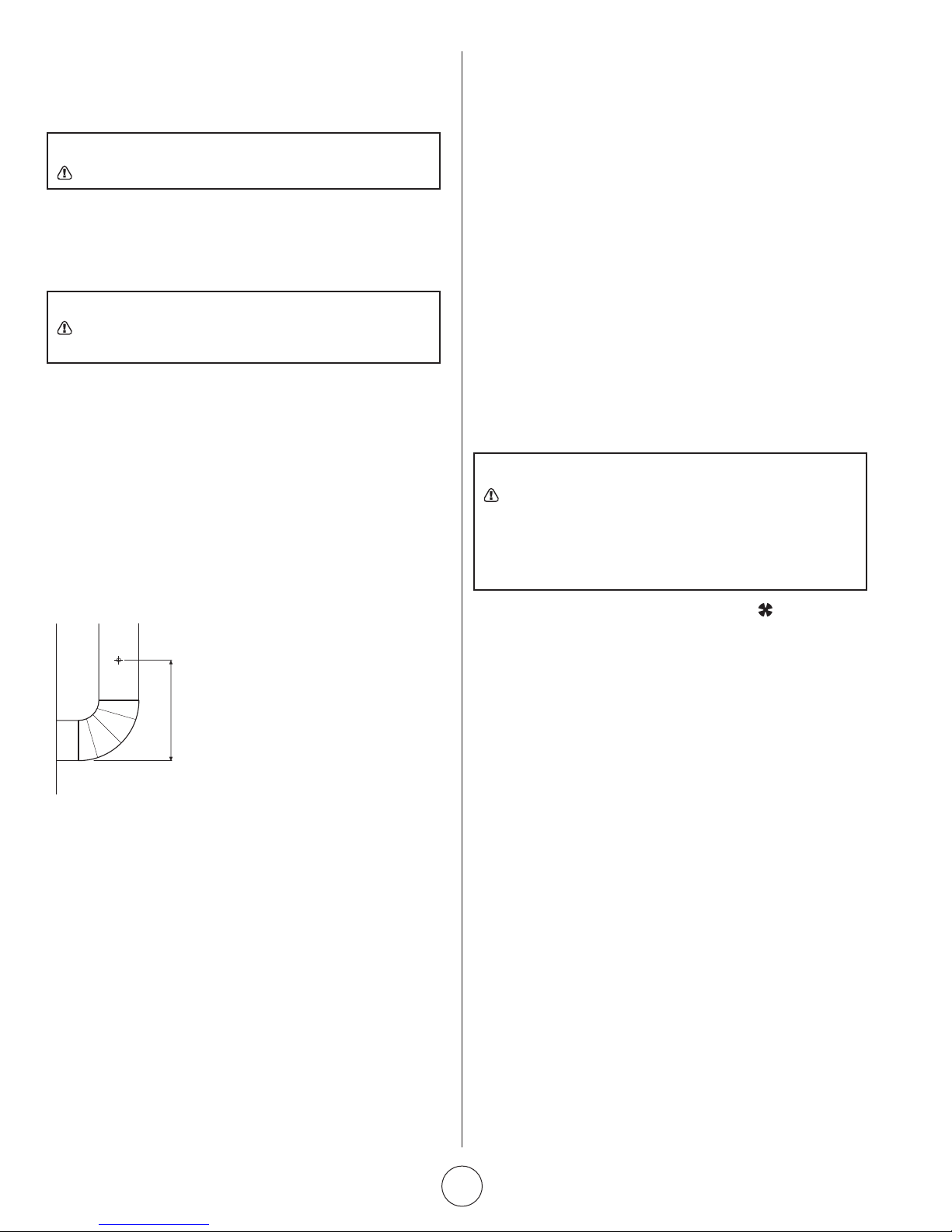

Draft
efficient flue draft. The unit must be connected to the chimney
flue in accordance with current legal regulations and in line with
the following guidelines:
distance as possible and should slant upwards.
diameter of the tubes must never be reduced.
compulsory level in the Technical Specifications.
2
13
7
5
4
6
14
3
6
ENERCO GROUP, INC. |Indirect Fired Portable Heater Operating Instructions and Owner’s Manual
TRANSPORTING AND
MOVING THE HEATER
WARNING
BEFORE MOVING THE UNIT:
Suitable equipment must always be used when moving a unit and
the instructions given above must be scrupulously adhered to.
WARNING
NEVER TRY TO LIFT THE HEATER MANUALLY. DOING SO
COULD RESULT IN PHYSICAL INJURY.
If heater is connected to propane supply cylinder and it is to be
stored indoors, the connection between the propane cylinder and
the heater must be disconnected and the cylinder removed from
the heater and stored in accordance with Standard for the Storage
and Handling of Liquefied Petroleum Gases, ANSI/NFPA 58 and
CSA B149.1, Natural gas and Propane Installation Code.
Analysis of Combustion Waste Products
was drilled for the probe must be sealed with a material which is
resistant to high temperatures and which ensures that the tube
remains airtight.
Connection to Fuel Supply
To connect the burner to the fuel supply follow the instructions in
the Burner Instruction Manual.
The gas burner can use both methane gas or propane. Burners
are predisposed at factory to be used with natural gas. If
propane shall be used, burners shall be adapted according to the
instruction manual of the burner. In case of connection of heater
to natural gas,the installation shall conform with local codes, or, in
the absence of local code, with the National Fuel Gas Code ANSI
CSA B149.1.
In case of connection of heater to propane supply cylinder, the
installation shall conform with local codes or, in the absence of
local code, with tyhe Standard for the Storage and Handling
of Liquefied Petroleum Gases, ANSI/FNPA 548 and the Natural
Gas and Propane Installation Code, CSA B149.1. Heater must
be located at least 6 ft in the U.S. or 10 ft in Canada from
any propane gas container. Propane gas cylinder shall be in
compliance with national standards and shall be arranged to
provide for vapor withdrawal from the operating cylinder.
The gas shall be turned off at the propane supply cylinder when
the heater is not in use. Visually inspect hose assembly prior to
each use of the heater. If it is evident there is excessive abrasion
or wear, or the hose is cut, it must be replaced prior to the heater
being put into operation. After installation, proper instruments
Regulation of Combustion - I° Operation
products line, heater may be operated for the first time.
To perform regulation of combustion correctly, combustion waste
products must be analyzed using appropriate instruments: values
recommended by actual standards must be reached.
The regulation procedure has been on the Burner Instruction
ppm.
WARNING
NEVER STOP THE HEATER BY SIMPLY TURNING OFF
THE DISCONNECTING SWITCH ON THE ELECTRIC
SWITCHBOARD. THE ELECTRICAL SUPPLY MUST ONLY
BE DISCONNECTED WHEN THE FAN HAS COME TO A
COMPLETE STOP.
the heater
operates in continuous fan mode.
200 mm
8 IN
7Operating Instructions and Owner’s ManualENERCO GROUP, INC. |Indirect Fired Portable Heater
TROUBLE CAUSE SOLUTION
• The heater won’t start
thermal relay) not restarted after repairs
burner (button on control device)
thermostat (button (6)
fan thermal relay (button (11)
• Thermostat L1 cuts in
(the lamp (9) light up and then it cuts down)
ventilation grills
• Thermostat L2 cuts in
(Warning lamp (9) lights up)
heating
• Thermal relay RM cuts in
(Warning light (10) lights up)
excessive.
of transmission belt as indicated in chapter
(“CONNECTION TO HOT AIR DUCTS”).
value indicated on motor manufacturer plate
• The burner starts up, the ame doesn’t light
up and the restart light on the control device
comes on
the same problem arises again call an Authorized
Service Technician
• The fan doesn’t start up or starts up late
necessary
• The fan vibrates or makes unusual noise
• Not enough heat
TROUBLESHOOTING
8
ENERCO GROUP, INC. |Indirect Fired Portable Heater Operating Instructions and Owner’s Manual
WIRING DIAGRAM
4000ID SERIES MODELS
M Fan Motor
F Fan Thermostat
L1 Overheat Safety Thermostat
L2 Limit Thermostat
with Manual Restart
RV Control Knob | Ventilation Only
BR Burner
TA Room Thermostat
FB Burner Fuse 6 A
ST Control Lamp
SL Overheat Thermostats
Control Lamp
RF Heated Filter
DRAWING LEGEND
9Operating Instructions and Owner’s ManualENERCO GROUP, INC. |Indirect Fired Portable Heater
WIRING DIAGRAM
4000ID AND 7000ID SERIES MODELS
TS Fans Thermal Relay
TM
C Condenser Motor
PA Room Thermostat Plug
RE
SB Fan Stop Control Lamp
PB
CO
PF Heated Filter Plug
RF Heated Filter
DRAWING LEGEND
10
ENERCO GROUP, INC. |Indirect Fired Portable Heater Operating Instructions and Owner’s Manual
4000ID and 7000ID Series Indirect-Fired Space Heater
04
03
17
22
19
05
20
06
23
21
8
25
07
09
24
10
12
31
29
16
27
32
30
46
15
18
26
26
28
11
91
10
A
A
01
02
03
09
39
40
38
45
41
42
43
44
11 Operating Instructions and Owner’s ManualENERCO GROUP, INC. |Indirect Fired Portable Heater
4000ID and 7000ID Series Indirect-Fired Space Heater
84
88
85
86
87
64
62
58
60
57
63
61
59
R
90
91
95
96
105
94
101
103 101
102
100
99
106
104
92
107
89
97
R
98
93
70
67
69
66
75
74 73
72
79
78
71
76
77
56
65
48
48
82
83
81
80
52
50
49
51
54
53
55
47 41
65
56
64
68
12
ENERCO GROUP, INC. |Indirect Fired Portable Heater Operating Instructions and Owner’s Manual
NO. STOCK NO. 4000 7000 DESCRIPTION
01 G01098 BURNER SUPPORT
G01653
02
T10634
03
BURNER PANEL
04
OUTLET AIR PANEL
05
FRONT UPPER PANEL
06
INNER FRONT UPPER PANEL
07
REAR UPPER PANEL
08
INNER REAR UPPER PANEL
G01718
09
SIDE PANEL
10
INNER SIDE PANEL
11
CHIMNEY FLANGE 0150
12
CHIMNEY PANEL
14
MOTOR SUPPORT PLATE
15
BOTTOM PANEL
16
WHEEL AXLE
17
FRONT SUPPORT
18 ALUMINUM JOINT
19
UPPER FRONT SHORT ANGLE STEEL
20
UPPER LONG SX ANGLE STEEL
21
UPPER LONG OX ANGLE STEEL
22
VERTICAL FRONT SX ANGLE STEEL
NO. STOCK NO. 4000 7000 DESCRIPTION
23
VERTICAL FRONT OX ANGLE STEEL
24
VERTICAL BACK SX ANGLE STEEL
25
VERTICAL BACK OX ANGLE STEEL
26
LOWER SHORT ANGLE STEEL
27
LOWER LONG SX ANGLE STEEL
28
LOWER LONG OX ANGLE STEEL
29
COMB. CHAMBER SUPPORT
G01754
30
G04185
COMB. CHAMBER SX SUPPORT
G01756
31
G04186
COMB. CHAMBER OX SUPPORT
G01758
32 ALUMINUM JOINT
38
39
C10535
C10545
40 WHEEL HOLDER
41
42 OR KITOIL FILTER
43 FILTER CARTRIDGE
44 HOSES
45 FLASK
46
UPPER BACK SHORT ANGLE STEEL
47
HANDLE
48 PLUG
49 WING NUT LOCK
50
CASING FRONT PANEL
51
FLAP DOOR
52
BURNER CASING TOP COVER
4000ID/7000ID Series Indirect-Fired Space Heater Parts List
13 Operating Instructions and Owner’s ManualENERCO GROUP, INC. |Indirect Fired Portable Heater
4000ID/7000ID Series Indirect-Fired Space Heater Parts List
NO. STOCK NO. 4000 7000 DESCRIPTION
53
BURNER CASING SX COVER
54
BURNER CASING DX COVER
55
TANK CASING LOWER PANEL
56 EI. CONTROL BOX
57 ELECTRICAL COMPONENTS BOX
58 P30159 BULBS HOLDER
59 CLIP
60 E50748 THERMOSTAT TY95 30/90 °C CAMPINI
61 E50749
62 E50747 THERMOSTAT TY95 0/60 °C CAMPINI
63 E50750 SAFETY THERMOSTAT PLASTIC PROFILE
64 C30343
65
EI. CONTROL BOX
66
ELECTRICAL COMPONENTS BOX
67 CABLE FASTENER PG 13,5
68 RING NUT PG13,5
69 E10419
70 PLATE FOR ELECTRICAL COMPONENTS
71
72 G04041
73
74 E10109 CONTROL KNOB
75
76 THERMOSTAT PLUG 3P + T
77 PLATE PLUG 3P + T
78 THERMOSTAT PLUG 4P + T
79
PLATE PLUG 4P + T
80 RELAY FINDER 65.31 AC
81 RELAY FLANGE
82 THERMOSTAT PLUG 4P + T
83 DRAIN PLUG
84
G01810
COMBUSTION CHAMBER
G01773
85 G01759 BAFFLE PLATE
NO. STOCK NO. 4000 7000 DESCRIPTION
86
T10659
T10635
87
G01849
CHIMNEY COVER
G01760
88 FEMALE PLUG 1”
89
CENTRIFUGE AIR FAN
90
REINFORCED FRAME
91
FAN PANEL
92
P30143
PROTECTION GRILLE
P30140
93
94
C10931
95
C10904
96
PROTECTION GRILLE
P30141
97 C30401 SEAL3X15
98
99
MOUNTING PLATE ON FAN CASE
100 G01998 MOTOR SUPPORT PLATE
101
102 M10714
103
104
CRANKCASE
105
C10917 BELT B43
BELT B50
106
FAN AT 15/15
107 EI. COMPONENTS BOX 80X80
14
ENERCO GROUP, INC. |Indirect Fired Portable Heater Operating Instructions and Owner’s Manual
READ INSTRUCTIONS CAREFULLY: Read and follow all instructions.
Place instructions in a safe place for future reference. Do not allow
anyone who has not read these instructions to assemble, light, adjust or
operate the heater.
OPERATING INSTRUCTIONS AND OWNER’S MANUAL
MODELS
4000ID 7000ID
HEATSTAR
BY ENERCO
WARNING:
USE ONLY MANUFACTURER’S REPLACEMENT PARTS. USE OF ANY OTHER PARTS
COULD CAUSE INJURY OR DEATH. REPLACEMENT PARTS ARE ONLY AVAILABLE
DIRECT FROM THE FACTORY AND MUST BE INSTALLED BY A QUALIFIED SERVICE
AGENCY.
PARTS ORDERING INFORMATION:
PURCHASING: Accessories may be purchased at any Mr. Heater/HeatStar local dealer
or direct from the factory
FOR INFORMATION REGARDING SERVICE
Our office hours are 8:30 AM – 5:00 PM, EST, Monday through Friday.
Please include the model number, date of purchase, and description of problem in all
communication.
LIMITED WARRANTY
under normal and proper use in accordance with instructions of The Company, for a period
of one year from the date of delivery to the buyer. The Company, at its option, will repair or
replace products returned by the buyer to the factory, transportation prepaid within said one
Address any Warranty Claims to the Service Department, Enerco Group, Inc., 4560 W. 160TH
ST., Cleveland, Ohio 44135. Include your name, address and telephone number and include
details concerning the claim. Also, supply us with the purchase date and the name and address
of the dealer from whom you purchased our product.
The foregoing is the full extent of the responsibility of the Company. There are no other
warranties, express or implied. Specifically there is no warranty of fitness for a particular
purpose and there is no warranty of merchantability. In no event shall the Company be liable for
delay caused by imperfections, for consequential damages, or for any charges of the expense
of any nature incurred without its written consent. The cost of repair or replacement shall be
the exclusive remedy for any breach of warranty. There is no warranty against infringement of
will not apply to any product which has been repaired or altered outside of the factory in any
respect which in our judgment affects its condition or operation.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so
the above limitation or exclusion may not apply to you. This Warranty gives you specific legal
rights, and you may have other rights which vary from state to state.
in colors, specifications, accessories, materials and models.
08/08 # xxxxx
14
ENERCO GROUP, INC. |Générateur d'air chaud portable à combustion indirecte Guide d'utilisation et instructions de fonctionnement
LISEZ SOIGNEUSEMENT LES INSTRUCTIONS. Lisez et observez toutes
les instructions. Conservez les instructions pour vous y référer ultérieu-
rement. Interdisez à quiconque n'ayant pas lu les présentes instructions
d'assembler, d'allumer, de régler ou de faire fonctionner cet appareil de
chauffage.
GUIDE D'UTILISATION ET INSTRUCTIONS
DE FONCTIONNEMENT
MODÈLES
4000ID 7000ID
HEATSTAR
D'ENERCO
ENERCO GROUP, INC., 4560 W. 160TH ST., CLEVELAND, OHIO 44135 USA • (800) 251-0001
Mr. Heater est une marque déposée d'Enerco Group Inc.
© Enerco Group, Inc., 2004. Tous droits réservés.
AVERTISSEMENT :
N'UTILISEZ QUE LES PIÈCES DE REMPLACEMENT DU FABRICANT. L'UTILISATION
D'AUTRES PIÈCES RISQUE DE CAUSER DES BLESSURES OU LA MORT. LES PIÈCES DE
REMPLACEMENT NE SONT OFFERTES QUE PAR LE FABRICANT ET DOIVENT ÊTRE INS-
TALLÉES PAR UNE ENTREPRISE SPÉCIALISÉE.
INFORMATIONS SUR LA COMMANDE DE PIÈCES :
ACHAT : on peut se procurer des accessoires auprès de tous les détaillants locaux Mr.
Heater/HeatStar ou directement du fabricant
POUR OBTENIR DES INFORMATIONS SUR LE SERVICE
Appelez sans frais au 800-251-0001 • www.enerco-mrheater.com
Nos heures d'ouverture sont de 8 h 30 à 17 h HNE, du lundi au vendredi.
Adressez vos courriels à : techservice@enerco-mrheater.com
Veuillez indiquer le numéro du modèle, la date d'achat et la description du problème
dans toutes vos communications avec nous.
GARANTIE LIMITÉE
L'entreprise garantit ce produit contre tout défaut de matériel ou de main-d'œuvre, dans des conditions
d'utilisation normales et adéquates, conformément aux instructions de l'entreprise, pour une période
de un an à compter de la date de livraison à l'acheteur. L'entreprise réparera ou remplacera, à sa
discrétion, les produits retournés port payé par l'acheteur au fabricant dans la période de un an et
jugés par l'entreprise comme présentant des défauts de matériel ou de main-d'œuvre.
Si une pièce est endommagée ou manquante, composez le 1 800 251-0001.
Adressez toute réclamation relative à la garantie à Service Department, Enerco Group, Inc., 4560 W.
160TH ST., Cleveland, Ohio 44135 États-Unis. Indiquez vos nom, adresse et numéro de téléphone ainsi
que les détails de la réclamation. Indiquez-nous également la date d'achat et le nom et l'adresse du
détaillant de qui vous avez acheté le produit.
Ce qui est énoncé ci-dessus constitue la responsabilité totale de l'entreprise. Il n'existe aucune autre
garantie, expresse ou tacite. Plus précisément, il n'y a aucune garantie concernant l'adéquation à une
utilisation particulière ni aucune garantie concernant la qualité marchande. En aucun cas l'entreprise
ne sera tenue responsable des retards causés par des défectuosités, ni des dommages indirects, ni des
dépenses encourues sans son consentement écrit, quelle que soit leur nature. Le coût de la réparation
ou du remplacement sera le seul recours possible en cas de violation de garantie. Il n'y a aucune
garantie contre une transgression de ce genre ni aucune garantie tacite découlant des usages du
commerce ou de la façon habituelle d'échanger. La présente garantie ne s'applique à aucun produit
qui a été réparé ou modifié par d'autres que le fabricant si cela influe de quelque façon que ce soit sur
l'état de l'appareil ou son fonctionnement, selon notre jugement.
Certains États ou provinces ne permettent pas d'exclure ou de limiter les dommages indirects ou
subséquents. Par conséquent, les limitations ou exclusions ci-dessus mentionnées ne vous concernent
peut-être pas. La présente garantie vous accorde des droits juridiques précis, mais vous pourriez avoir
d'autres droits qui varient selon la province ou l'État.
Enerco Group Inc. se réserve le droit d'effectuer des modifications en tout temps, sans préavis ni
obligation, aux couleurs, aux spécifications, aux accessoires, aux matériaux et aux modèles.
08/08 Nº xxxxx
13 Guide d'utilisation et instructions de fonctionnementENERCO GROUP, INC. |Générateur d'air chaud portable à combustion indirecte
Liste de pièces des générateurs d'air chaud portables à combustion indirecte, modèles 4000ID et 7000ID
Nº Nº DE 4000 7000 DESCRIPTION
53
G04198-9010 • COUVERCLE GAUCHE DE CAISSON DU
BRÛLEUR
G04199-9010 •
54
G04201-9010 • COUVERCLE DROIT DE CAISSON DU
BRÛLEUR
G04202-9010 •
55
G04204-9010 • PANNEAU INFÉRIEUR DE CAISSON DE
RÉSERVOIR
G04205-9010 •
56 G00218 • • BOÎTIER DE COMMANDE
57 E20719-02 • • BOÎTIER ÉLECTRIQUE
58 P30159 • • PORTE-BULBES
59 C30712 • • COLLIER
60 E50748 • • THERMOSTAT TY95 30/90 °C CAMPINI
61 E50749 • • THERMOSTAT TY95H 120 °C CAMPINI
62 E50747 • • THERMOSTAT TY95 0/60 °C CAMPINI
63 E50750 • • PROTECTION POUR THERMOSTAT DE
64 C30343 • • PROTECTION PLASTIQUE 12’ 19
65
G00220 •
BOÎTIER DE COMMANDE
G00222 •
66
E20712 •
BOÎTIER ÉLECTRIQUE
E20712 •
67 E20949 • • PRESSE-ÉTOUPE PG 13,5
68 E20950 • • ÉCROU À ŒILLET PG 13,5
69 E10419 • • CONTACTEUR WIMEX KN16-10 V230
70 G04042 • • PLAQUE DE COMPOSANTES ÉLECTRIQUES
71 E20301 • • BARRETTE DE CONNEXION 12 EL. MMQ 10
72 G04041 • • PLAQUE DE SUPPORT DE COMPTEUR
73 DR205 • • COMPTEUR D'HEURES
74 E10109 • • COMMUTATEUR
75 E11021 • • LAMPE TÉMOIN ROUGE 12’ 12 V230
76 E20626 • • FICHE DE THERMOSTAT 3P + T
77 E20627 • • PLAQUE DE PRISE 3P + T
78 E20629 • • FICHE DE THERMOSTAT 4P + T
79
G00216 •
PLAQUE DE PRISE 4P + T
G00217 •
80 E11120 • • RELAIS FINDER 65.31 AC
81 G04207 • • BRIDE DE RELAIS
82 E20639 • • FICHE DE THERMOSTAT 4P + T
83 E20665 • • BOUCHON DE DRAIN
84
G01810 •
CHAMBRE DE COMBUSTION
G01773 •
85 G01759 • • DÉFLECTEUR
Nº Nº DE 4000 7000 DESCRIPTION
86
T10659 • JOINT ISOLANT DE CHEMINÉE 438 X 248 X 5
T10635 • JOINT ISOLANT DE CHEMINÉE 551 X 248 X 5
87
G01849 •
COUVERCLE DE CHEMINÉE
G01760 •
88 125001 • • BOUCHON 1 PO
89
G04208 •
VENTILATEUR CENTRIFUGE
G04209 •
90
G04211-9010 •
CHÂSSIS RENFORCÉ
G01767-9010 •
91
G04212-9010 •
PANNEAU DE VENTILATEUR
G01769-9010 •
92
P30143 •
GRILLE DE PROTECTION
P30140 •
93
E10682-220 • MOTEUR 2 HP 220/60 MONOPHASÉ
E10683-220 • MOTEUR 3 HP 220/60 MONOPHASÉ
94
C10931 • RÉA 0105 VAR. 024
C10929 • RÉA 0105 VAR. 028
95
C10912 • RÉA 0160 1B 025
C10904 • RÉA 0200 1B 025
96
P30142 •
GRILLE DE PROTECTION
P30141 •
97 C30401 • • JOINT 3 X 15
98
E11235 • CONDENSATEUR 25 ~F
E11236 • CONDENSATEUR 50 ~F
99
G02000 • PLAQUE DE MONTAGE DE BOÎTIER DE
VENTILATEUR
G02001 •
100 G01998 • • PLAQUE DE SUPPORT DE MOTEUR
101 M10234 • • VIS TE M12 X 55
102 M10714 • • ÉCROU M12
103
M10234 • VIS TE M12 X 55
M10221 • VIS TE M12 X 70
104
G04213-9005 •
CARTER
G04214-9005 •
105
C10917 • COURROIE B43
C10923 • COURROIE B50
106
AN006-1 • VENTILATEUR AT 12/12
AN007-1 • VENTILATEUR AT 15/15
107 E20712 • • BOÎTIER ÉLECTRIQUE 80 X 80
12
ENERCO GROUP, INC. |Générateur d'air chaud portable à combustion indirecte Guide d'utilisation et instructions de fonctionnement
Nº Nº DE 4000 7000 DESCRIPTION
01 G01098 • SUPPORT DE BRÛLEUR
G01653 •
02
T10602 • JOINT DE BRIDE 210 X 210 X 5
T10634 • JOINT DE BRIDE 250 X 250 X 5
03
G04017-9010 •
PANNEAU DE BRÛLEUR
G04018-9010 •
04
G04174-9010 •
PANNEAU DE SORTIE D'AIR
G04175-9010 •
05
G01819-9010 •
PANNEAU SUPÉRIEUR ANTÉRIEUR
G01086-9010 •
06
G01826 •
PANNEAU INTÉRIEUR POUR G01819
G01235 •
07
G01818-9010 •
PANNEAU SUPÉRIEUR POSTÉRIEUR
G01716-9001 •
08
G01825 •
PANNEAU INTÉRIEUR POUR G01818
G01718 •
09
G01816-9010 •
PANNEAU LATÉRAL
G01720-9010 •
10
G01824 •
PANNEAU INTÉRIEUR POUR G01816
G01722 •
11
G01814-9010 • BRIDE DE CHEMINÉE 0150
G01687-9010 • BRIDE DE CHEMINÉE 0200
12
G01813-9010 •
PANNEAU DE CHEMINÉE
G01724-9010 •
14
G01821 •
PLAQUE DE SUPPORT DE MOTEUR
G01728 •
15
G01817-9010 •
PANNEAU INFÉRIEUR
G01730-9010 •
16
G04179-9010 •
AXE DE ROUES
G01732-9010 •
17
G04039-9010 •
BÉQUILLE
G01692-9010 •
18 U10103-9010 • ENTRETOISE D'ALUMINIUM
19
G01832-9010 • CORNIÈRE SUPÉRIEURE COURTE CÔTÉ
BRÛLEUR
G01734-9010 •
20
G01831-9010 •
CORNIÈRE SUPÉRIEURE LONGUE GAUCHE
G01736-9010 •
21
G01831-9010 •
CORNIÈRE SUPÉRIEURE LONGUE DROITE
G01738-9010 •
22
G01833-9010 • CORNIÈRE VERTICALE CÔTÉ BRÛLEUR
GAUCHE
G01740-9010 •
Nº Nº DE 4000 7000 DESCRIPTION
23
G01834-9010 • CORNIÈRE VERTICALE CÔTÉ BRÛLEUR
DROITE
G01742-9010 •
24
G01835-9010 •
CORNIÈRE VERTICALE ARRIÈRE GAUCHE
G01744-9010 •
25
G01852-9010 •
CORNIÈRE VERTICALE ARRIÈRE DROITE
G01746-9010 •
26
G04183-9010 •
CORNIÈRE INFÉRIEURE COURTE
G04184-9010 •
27
G01829-9010 •
CORNIÈRE INFÉRIEURE LONGUE GAUCHE
G01750-9010 •
28
G01830-9010 •
CORNIÈRE INFÉRIEURE LONGUE DROITE
G01752-9010 •
29
G01822 •
SUPPORT DE CHAMBRE À COMBUSTION
G01754 •
30
G04185 • PROTECTION GAUCHE DE CHAMBRE À
COMBUSTION
G01756 •
31
G04186 • PROTECTION DROITE DE CHAMBRE À
COMBUSTION
G01758 •
32 U10101-9010 • • ENTRETOISE D'ALUMINIUM
38 M20111 • • RONDELLE 12’ 26 X 12’ 44 X 4
39
C10535 • ROUE 12’ 300 - 12’ 25
C10545 • ROUE 12’ 400 - 12’ 25
40 M20202 • • CLIPS DE FIXATION
41 02AC550 • • ENSEMBLE DE FILTRE DE PRÉCHAUFFAGE
42 T20241 • • ENSEMBLE DE FILTRE À HUILE OR
43 T20242 • • CARTOUCHE DE FILTRE
44 898012 • • TUYAUX FLEXIBLES
45 G04187-9010 • • CHÂSSIS
46
G04180-3001 • CORNIÈRE SUPÉRIEURE COURTE CÔTÉ
ARRIÈRE
G04181-3001 •
47
G04048-9010 •
POIGNÉE
G04050-9010 •
48 C30328 • • PRISE
49 M20418 • • CONTRE-ÉCROU
50
G04189-9010 •
PANNEAU ANTÉRIEUR DU CAISSON
G04190-9010 •
51
G04192-9010 •
TRAPPE
G04193-9010 •
52
G04195-9010 •
COUVERCLE DE CAISSON DU BRÛLEUR
G04196-9010 •
Liste de pièces des générateurs d'air chaud portables à combustion indirecte, modèles 4000ID et 7000ID
11 Guide d'utilisation et instructions de fonctionnementENERCO GROUP, INC. |Générateur d'air chaud portable à combustion indirecte
Générateurs d'air chaud portables à combustion indirecte, modèles 4000ID et 7000ID
84
88
85
86
87
64
62
58
60
57
63
61
59
R
90
91
95
96
105
94
101
103 101
102
100
99
106
104
92
107
89
97
R
98
93
70
67
69
66
75
74 73
72
79
78
71
76
77
56
65
48
48
82
83
81
80
52
50
49
51
54
53
55
47 41
65
56
64
68
10
ENERCO GROUP, INC. |Générateur d'air chaud portable à combustion indirecte Guide d'utilisation et instructions de fonctionnement
Générateurs d'air chaud portables à combustion indirecte, modèles 4000ID et 7000ID
04
03
17
22
19
05
20
06
23
21
8
25
07
09
24
10
12
31
29
16
27
32
30
46
15
18
26
26
28
11
91
10
A
A
01
02
03
09
39
40
38
45
41
42
43
44
9Guide d'utilisation et instructions de fonctionnementENERCO GROUP, INC. |Générateur d'air chaud portable à combustion indirecte
SCHÉMA ÉLECTRIQUE
MODÈLES 4000ID ET 7000ID
TS Relais thermique des ventilateurs
TM Télérupteur de ventilateur
C Moteur du condenseur
PA Prise thermostat d’ambiance
RE Relais 220 V/60 Hz
SB Témoin d'arrêt du ventilateur
PB Prise de brûleur Steckdose
CO Compteur d'heures
PF Fiche de filtre réchauffeur
RF Filtre réchauffeur
LÉGENDE DU SCHÉMA
This manual suits for next models
3
Table of contents
Other ENERCORP Heater manuals
ENERCORP
ENERCORP Heatstar HS2000ID User manual
ENERCORP
ENERCORP MR. HEATER 3500DF Assembly instructions
ENERCORP
ENERCORP Heatstar HS50K User manual
ENERCORP
ENERCORP HEATSTAR HS4000 NG Assembly instructions
ENERCORP
ENERCORP MH125 Assembly instructions
ENERCORP
ENERCORP MH400FAVT Assembly instructions
ENERCORP
ENERCORP HeatStar HS170FAVT User manual
ENERCORP
ENERCORP HEATSTAR HS1000ID User manual
ENERCORP
ENERCORP HEATSTAR HS22LP Assembly instructions
ENERCORP
ENERCORP HS155IR Heatstat User manual
ENERCORP
ENERCORP HeatStar HS170FAVT Quick start guide
ENERCORP
ENERCORP HEATSTAR HST 45 Assembly instructions
ENERCORP
ENERCORP MHBF30LPT Quick start guide
ENERCORP
ENERCORP HeatStart HS80CV Assembly instructions
ENERCORP
ENERCORP HEATSTAR HS200CV Assembly instructions
ENERCORP
ENERCORP HEATSTAR HSU 45 User manual
ENERCORP
ENERCORP HeatStar HSU80 Assembly instructions
ENERCORP
ENERCORP MR. HEATER MH40NG Assembly instructions
ENERCORP
ENERCORP HeatStar HS35FA Assembly instructions
ENERCORP
ENERCORP MR. HEATER MH35FA User manual
Popular Heater manuals by other brands
HUUM
HUUM HIVE Mini 6 Installation and operation manual
S&P
S&P COR-PRO V W instructions
Burda
Burda SMART TOWER Assembly and operating instructions
Pinnacle International
Pinnacle International MASTER MH-45-KFA User's manual & operating instructions
BIEMMEDUE
BIEMMEDUE BH 50 instruction manual
Thermofilm
Thermofilm ELEX eco 2400 user manual
Stelpro
Stelpro DR series user guide
COZY
COZY HEDV25 Installation and operating instruction
Frost Fighter
Frost Fighter IDH1000 Operation manual
Dimplex
Dimplex QSH-70 owner's manual
Webasto
Webasto Air Top 5000 operating instructions
Williams
Williams Slim Tech Series Installation, operating and maintenance instructions
Orbegozo
Orbegozo LO 7000 instruction manual
Vermont Castings
Vermont Castings Non-Catalytic Convection Heater 2477CE Installation and operating manual
Stelpro
Stelpro ASILVC2060 Series user guide
Detroit Radiant Products
Detroit Radiant Products DST-60N installation manual
ECG
ECG TK 2010 T instruction manual
Consort
Consort Heatsream PHRX Series quick start guide
