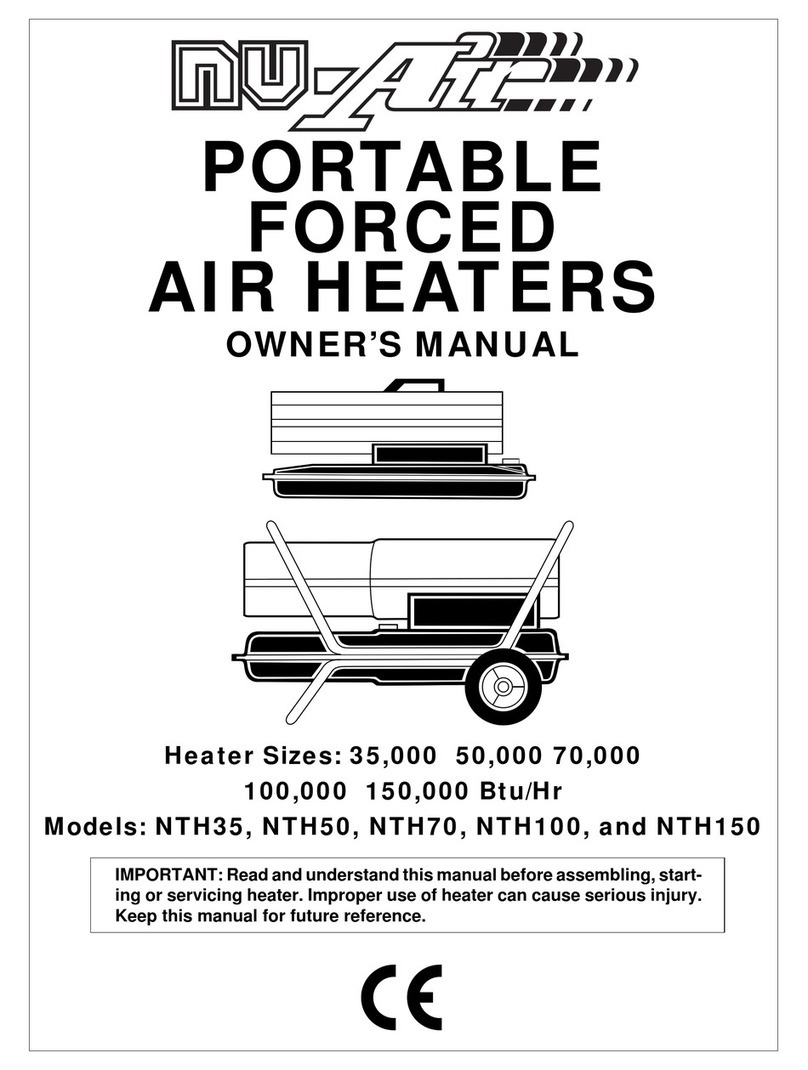

NUTOOL Nu-Air NTH100-2 User manual

IMPORTANT:Readandunderstandthismanualbeforeassembling,start-
ing or servicing heater. Improper use of heater can cause serious injury.
Keep this manual for future reference.
Heater Sizes: 35,000 50,000 70,000
100,000 150,000 Btu/Hr
Models: NTH35-2, NTH50-2, NTH70-2, NTH100-2,
and NTH150-2
PORTABLE
FORCED
AIR HEATERS
OWNER’S MANUAL

2
105787
PORTABLE FORCED AIR HEATERS
SAFETY
INFORMATION
WARNINGS
IMPORTANT: Read this owner’s
manual carefully and completely
before trying to assemble, oper-
ate, or service this heater. Im-
proper use of this heater can
causeseriousinjuryordeathfrom
burns, fire, explosion, electrical
shock, and carbon monoxide
poisoning.
DANGER: Carbon monoxide
poisoning may lead to death!
Carbon Monoxide Poisoning: Early signs
ofcarbonmonoxidepoisoningresemblethe
flu, with headaches, dizziness, and/or nau-
sea. If you have these signs, the heater may
not be working properly. Get fresh air at
once! Have heater serviced. Some people
are more affected by carbon monoxide than
others.Theseincludepregnantwomen,per-
sons with heart or lung disease or anemia,
those under the influence of alcohol, and
those at high altitudes.
Make certain you read and understand all
warnings.Keepthismanualforreference.It
isyourguidetosafeandproperoperationof
this heater.
• Use only kerosene or No. 1 fuel oil to
avoid risk of fire or explosion. Never use
gasoline,naphtha, paintthinners, alcohol,
or other highly flammable fuels.
• Fueling
a) Personnel involved with fueling shall
be qualified and thoroughly familiar
with the manufacturer's instructions
and applicable regulations regarding
the safe fueling of heating units.
b) Only the type of fuel specified on the
heater's data plate shall be used.
c) All flame, including the pilot light, if
any, shall be extinguished and the
heater allowed to cool, prior to
fueling.
d) During fueling,all fuel linesand fuel-
lineconnections shallbe inspectedfor
leaks. Any leaks shall be repaired
priorto returningthe heaterto service.
e) At no time shall more than one day's
supply of heater fuel be stored inside
abuilding in thevicinity of theheater.
Bulk fuel storage shall be outside the
structure.
f) All fuel storage shall be located a
minimum of 762cm (25 feet) from
heaters, torches, welding equipment,
and similar sources of ignition
(exception: the fuel reservoir integral
with the heater unit).
g) Whenever possible, fuel storage shall
be confined to areas where floor
penetrationsdo not permitfuel to drip
onto or be ignited by a fire at lower
elevation.
h) Fuel storage shall be in accordance
withthe authority havingjurisdiction.
• Never use heater where gasoline, paint
thinner,or otherhighly flammablevapors
are present.
• Follow all local ordinances and codes
when using heater.
• Heaters used in the vicinity of tarpaulins,
canvas, or similar enclosure materials
shallbe located a safedistance from such
materials. The recommended minimum
safe distance is 304.8cm (10 feet). It is
further recommended that these enclo-
sure materials be of a fire retardant na-
ture. These enclosure materials shall be
securely fastened to prevent them from
igniting or from upsetting the heater due
to wind action.
• Use only in well-vented areas. Before
using heater, provide at least a 2800
square cm (three-square-foot) opening
of fresh, outside air for each 30 kw
(100,000 Btu/Hr) of rating.
• Use only in places free of flammable va-
pors or high dust content.
• Use only the electrical voltage and fre-
quency specified on model plate.
• Use only a three-prong, grounded exten-
sion cord.
• Minimum heater clearances from com-
bustibles:
Outlet: 250 cm (8 Ft.)
Sides, Top, and Rear: 125 cm (4 Ft.)
• Locate heater on a stable and level sur-
face if heater is hot or running or a fire
may occur.
• When moving or storing heater, keep
heater in a level position or fuel spillage
may occur.
• Keep children and animals away from
heater.
• Unplug heater when not in use.
• When used with thermostat, heater may
start anytime.
• Never use heater in living or sleeping
areas.
• Never block air inlet (rear) or air outlet
(front) of heater.
• Never move, handle, refuel, or service a
hot, operating, or plugged-in heater.
• Never attach duct work to front or rear
of heater.

3
105787
OWNER’S MANUAL
Side Cover
Lower
Shell
Fuel Cap
Hot Air Outlet
Upper Shell
Power Cord
Fuel Tank
Fan Guard
Lower Shell
Side Cover
Fuel Tank
Upper Shell
Hot Air Outlet Handle
Fan Guard
Air Filter
End Cover
Fuel Cap
Power
Cord
ON/OFF Switch
with Light
ON/OFF Switch
with Light
PRODUCT
IDENTIFICATION
Figure 1 - 35/50/70,000 Btu/Hr Models
Figure 2 - 100/150,000 Btu/Hr Models
UNPACKING
1. Remove all packing items applied to
heater for shipment.
2. Remove all items from carton.
3. Check items for any shipping damage.
If heater is damaged, promptly inform
dealer where you bought heater.
FUELS
WARNING:Useonlykerosene
orNo.1fueloiltoavoidriskoffire
orexplosion.Never usegasoline,
naphtha, paint thinners, alcohol
or other highly flammable fuels.
Donotuseheavyfuelssuchas No.2fueloil
or No. 2 Diesel. Using heavy fuels will
result in:
• clogged fuel filter and nozzle
• use of non-toxic anti-icer in fuel during
very cold weather
IMPORTANT: Use a KEROSENE ONLY
container.Besurestoragecontainerisclean.
Foreign matter such as rust, dirt, or water
will cause the flame-out control to shut
down heater. Foreign matter may also re-
quire you to clean fuel system often.

4
105787
PORTABLE FORCED AIR HEATERS
Screw
Wheel
Support
Frame
Wheel
Cap Nut
Nut
Extended
Hub
Front Handle
Axle
Rear
Handle
Air
Inlet
Fuel Tank
Flange
Hot Air
Outlet
ASSEMBLY
(FOR 100,000 AND 150,000
BTU/HR MODELS ONLY)
Thesemodelsarefurnishedwithwheelsand
handles.Wheels,handles,andthemounting
hardware are found in the shipping carton.
Tools Needed
• Medium Phillips Screwdriver
• 3/8" Open or Adjustable Wrench
• Hammer
1. Slide axle through wheel support
frame. Install wheels on axle.
IMPORTANT: Wheninstalling wheels,
point extended hub of wheels toward
wheel support frame (see Figure 3).
Figure 3 - Wheel and Handle Assembly
2. Place cap nuts on axle ends. Gently tap
with hammer to secure.
3. Place heater on wheel support frame.
Make sure air inlet end (rear) of heater
is over wheels. Line up holes on fuel
tank flange with holes on wheel sup-
port frame.
4. Place front handle and rear handle on
top of fuel tank flange. Insert screws
through handles, fuel tank flange, and
wheel support frame.Attach nut finger
tight after each screw is inserted.
5. After all screws are inserted, tighten
nuts firmly.
VENTILATION
WARNING: Follow the mini-
mum fresh, outside air ventila-
tionrequirements.Ifproperfresh,
outside air ventilation is not pro-
vided, carbon monoxide poison-
ing can occur. Provide proper
fresh, outside air ventilation be-
fore running heater.
Provide a fresh air opening of at least 2800
squarecm (threesquare feet)foreach 30kw
(100,000Btu/Hr)rating.Provideextrafresh
air if more heaters are being used.
Example: A44kw(150,000Btu/Hr)heater
requires one of the following:
• atwo-car garagedoor [4.9 meter(16 feet)
opening] raised 9 cm (3.5 inches)
• a single-car garage door [2.75 meter (9
feet) opening] raised 15.25 cm (6 inches)
• two, 76 cm (30 inch) windows raised 28
cm (11 inches)

5
105787
OWNER’S MANUAL
OPERATION
WARNING: Review and un-
derstand the warnings in the
Safety Information section, page
2. They are needed to safely op-
erate this heater. Follow all local
codes when using this heater.
TO START HEATER
1. Follow all ventilation and safety infor-
mation.
2. Fill fuel tank with kerosene or No. 1
fuel oil.
3. Attach fuel cap.
4. Plug powercord of heaterinto standard
240 volt/50 hertz, grounded (earthed)
outlet.Use an extension cordif needed.
Use only a three-prong, grounded
(earthed) extension cord.
Figure 5 - ON/OFF Switch, 35/50/70,000
Btu/Hr Models
Figure 6 - ON/OFF Switch, 100/150,000
Btu/Hr Models
THEORY OF
OPERATION
The Fuel System: The air pump forces
air through the air line. The air is then
pushedthroughtheburnerheadnozzle.This
air causes fuel to lift from the tank. A fine
mist of fuel is sprayed into the combustion
chamber.
The Air System: The motor turns the fan.
The fan pushes air into and around the
combustion chamber. This air is heated and
provides a stream of clean, hot air.
The Ignition System: The ignition con-
trolassembly provides power to theignitor.
This ignites the fuel/air mixture in the com-
bustion chamber.
TheFlame-OutControlSystem: Thissys-
tem causes the heater to shut down if the
flame goes out.
EXTENSION CORD WIRE
SIZE REQUIREMENTS
Up to 30.5 meters (100 feet) long, use 1.0
mm2 (16 AWG) conductor
30.6to 61 meters(101 to200feet) long,use
1.5 mm2 (14 AWG) conductor
PushON/OFFswitch toON(|)position and
heater should start in 5 seconds. IfON/OFF
switch light does not come on or heater does
notstart,seeTroubleshooting(pages6and7).
TO STOP HEATER
Push ON/OFF switch to OFF (O)position.
TO RESET HEATER
1. Push ON/OFF switch to OFF (O) posi-
tion and wait 10 seconds (2 minutes if
heater has been running).
2. Repeat steps under To Start Heater.
Figure 4 - Cross Section Operational View
|
O
ON/OFF Switch
with Light
|
O
ON/OFF Switch
with Light
Clean
Heated
Air Out
Fuel
Filter Air Line
To Burner
Air
Output
Filter
Air Pump
Air Intake
Filter
Cool
Air
In
Fan
Combustion ChamberIgnitor Motor
Ignition Control
Assembly
Air For Fuel System Air For Combustion
And Heating Fuel
Nozzle
Fuel
Tank

6
105787
PORTABLE FORCED AIR HEATERS
STORING,
TRANSPORTING,
OR SHIPPING
Note: If shipping, transport companies re-
quire fuel tanks to be empty.
1. Drain fuel tank.
Note: Some models have drain plug on
underside of fuel tank. If so, remove
drain plug to drain all fuel. If heater
does not have drain plug, drain fuel
through fuel cap opening. Be sure all
fuel is removed.
2. Replace drain plug if provided.
3. If any debris is noted in old fuel, add 1
or 2 quarts of clean kerosene to tank,
stir, and drain again. This will prevent
excess debris from clogging filters dur-
ing future use.
4. Replace fuel cap or drain plug. Prop-
erlydispose ofold anddirty fuel. Check
with local automotive service stations
that recycle oil.
5. If storing, store heater in dry place.
Make sure storage place is free of dust
and corrosive fumes.
IMPORTANT: Do not store kerosene over
summer months for use during next heating
season.Usingoldfuelcoulddamageheater.
PREVENTATIVE
MAINTENANCE
SCHEDULE
How To
SeeStoring,Transporting, orShip-
ping
SeeAirOutput,AirIntake,andLint
Filters, page 10
SeeAirOutput,AirIntake,andLint
Filters, page 10
See Fuel Filter, page 8
See Fan, page 13
WARNING: Never service heater
while it is plugged in, operating, or hot.
Severe burns and electrical shock can
occur.
Item
Fuel tank
Air output and
lint filters
Air intake filter
Fuel filter
Ignitor
Fan blades
Motor
How Often
Flushevery 150-200 hours of
operation or as needed
Replace every 500 hours of
operation or once a year
Wash and dry with soap and
water every 500 hours of op-
eration or as needed
Clean twice a heating season
or as needed
No maintenance required
Clean every season or as
needed
Notrequired/permanently lu-
bricated
REMEDY
1. Check all electrical connections. See
Wiring Diagram, page 25
2. If fan does not turn freely, see Pump
Rotor, page 12
3. Replace ignition control assembly
4. Replace motor
POSSIBLE CAUSE
1. Bad electricalconnection betweenmotor
andignition control assemblyor ignition
control assembly and power cord
2. Binding pump rotor
3. Defective ignition control assembly
4. Defective motor
TROUBLESHOOTING WARNING: Never service heater while it is plugged in, operating, or
hot. Severe burns and electrical shock can occur.
WARNING: High voltage!
FAULT CONDITION
Motordoesnotstartfivesecondsafterheater
ispluggedin(ON/OFFswitchlightremains
on)
ATTENTION: The ignition control has built-in protection against current overloads. Use
the light in the ON/OFF switch to troubleshoot the fault condition.

7
105787
OWNER’S MANUAL
REMEDY
1. Fill tank with kerosene
2. See Pump PressureAdjustment, page 10
3. See Fuel Filter, page 8
4. See Nozzle Assembly, page 11
5. Drain and flush fuel tank with clean
kerosene. See Storing, Transporting, or
Shipping, page 6
6. Check electricalconnections. SeeWiring
Diagram, page 25
7. Replace ignitor, see page 9
8. Replace ignition control assembly
1. See Pump PressureAdjustment, page 10
2. See Air Output, Air Intake, and Lint
Filters, page 10
3. See Fuel Filter, page 8
4. See Nozzle Assembly, page 11
5. Make sure photocell boot is properly
seated in bracket
6. Clean photocell lens
7. Check electricalconnections. SeeWiring
Diagram, page 25
8. Replace photocell
9. Replace ignition control assembly
1. Verify that power cord is plugged into
an electrical outlet and that the circuit
breaker in the electral panel is reset
2. Check electricalwiring andconnections.
See Wiring Diagram, page 25
3. Check ignitor wiring. If no problems are
found, replace ignitor (see page 9)
1. Check motor wiring. If no problems are
found, replace motor
POSSIBLE CAUSE
1. No fuel in tank
2. Pump pressure incorrect
3. Dirty fuel filter
4. Obstruction in nozzle assembly
5. Water in fuel tank
6. Bad electrical connection between
ignitor and ignition control assembly
7. Defective ignitor
8. Defective ignition control assembly
1. Pump pressure incorrect
2. Dirty air intake, air output, and/or lint
filter
3. Dirty fuel filter
4. Obstruction in nozzle assembly
5. Photocell assembly not properly
installed (not seeing the flame)
6. Dirty photocell lens
7. Bad electrical connection between
photocell and ignition control assembly
8. Defective photocell
9. Defective ignition control assembly
1. No power to heater
2. Bad electrical connections
3. Electrical short in ignitor
1. Electrical short in motor
TROUBLESHOOTING
Continued
WARNING: High voltage!
FAULT CONDITION
Motor starts and runs but heater does not
ignite (ON/OFF switch light remains on)
Heaterignitesbutignitioncontrolassembly
shuts heater off after a short period of time
(ON/OFF switch light remains on)
ON/OFF switch light does not come on
when switch is turned to the ON (|) position
and heater does not start
ON/OFFswitchlightcomesonwhenswitch
is turned to the ON (|) position but turns off
after five seconds
WARNING: High voltage!
WARNING: High voltage!
WARNING: High voltage!

8
105787
PORTABLE FORCED AIR HEATERS
Figure 9 - Fuel Filter Removal, 35/50/70,000 Btu/Hr Models
UPPER SHELL REMOVAL
1. Remove screwsand lockwashers along
each side of heater using 5/16" nut-
driver. These screws attach upper and
lower shells together.
2. Lift upper shell off.
3. Remove fan guard.
FUEL FILTER
(35/50/70,000 Btu/Hr Models)
1. Remove side cover screws using 5/16"
nut-driver.
2. Remove side cover.
3. Pull rubber fuel line off fuel filter neck.
4. Carefully prybushing andfuel filter out
of fuel tank.
5. Wash fuel filter with clean fuel and re-
place in tank.
6. Attach rubber fuel line to fuel filter
neck.
7. Replace side cover.
FUEL FILTER
(100/150,000 Btu/Hr Models)
1. Remove side cover screws using 5/16"
nut-driver.
2. Remove side cover.
3. Pull upper fuel line off fuel filter neck.
4. Carefully pry bushing, lower fuel line,
and fuel filter out of fuel tank.
5. Wash fuel filter with clean fuel and re-
place in tank.
6. Attach upperfuel lineto fuelfilter neck.
7. Replace side cover.
SERVICE
PROCEDURES
WARNING: Never service
heater while it is plugged in, op-
erating,orhot.Severeburnsand
electrical shock can occur.
Upper Shell
Fan
Guard
Figure 7 - Upper Shell Removal, 35/50/
70,000 Btu/Hr Models Figure 8 - Upper Shell Removal, 100/
150,000 Btu/Hr Models
Fuel Filter
Side Cover
Fuel Line
Fan
Guard
Upper
Shell
Fuel Filter, Bushing,
and Lower Fuel Line
Upper Fuel
Line
Side Cover
Figure 10 - Fuel Filter Removal, 100/150,000 Btu/Hr Models

9
105787
OWNER’S MANUAL
SERVICE
PROCEDURES
Continued
Continued
IGNITOR
1. Remove upper shell and fan guard (see
page 8).
2. Remove fan (see page 13).
3. Remove 4 side cover screws with a
5/16" nut driver. Remove side cover
(see Figure 9 or 10, page 8).
4. Disconnect ignitor wires (black) from
ignition control assembly (see Figure
11). Pull the ignitor wires up through
the hole in the lower shell.
5. Disconnect fuel line hose and air line
hose.Remove photocell fromphotocell
bracket (see Figure 11).
Combustion
Chamber
Photocell
Bracket
Photocell
Assembly
Air
Line
Hose
Fuel
Line
Hose
Combustion
Chamber
Photocell
Bracket
Ignitor
Wires
Ignitor
Nozzle
Adapter
Bracket
Ignition
Control
Assembly
Side Cover
Figure 11 - Disconnecting Ignitor Wires
from Ignition Control Assembly
Ignitor
Ignitor Screw/Washer
Assembly
Nozzle
Adapter
Bracket
Nozzle Adapter
Bracket Opening
Ignitor
Element
Figure 12 - Ignitor Replacement
CAUTION:Donotbendorstrike
ignitor element. Handle with care.
6. Remove combustion chamber. Stand
combustion chamber on end with
nozzle adapter bracket on top (see Fig-
ure 12).
7. Remove ignitor screw with a 1/4" nut
driver. Carefully remove ignitor from
nozzle adapter bracket.
10. Replace combustion chamber.
11. Route the ignitor wires back down
through the hole in the lower shell.
Connect wires to the ignition control
assembly.
12. Replace side cover (see Figure 9 or 10,
page 8).
13. Connect and route fuel line hose and
air line hose to burner head. See Fuel
and Air Line Replacement and Proper
Routing, page 11.
14. Replace photocell in photocell bracket.
Route wires as shown in either Figure
17, 18, or 19, page 11.
15. Replace fan (see page 13).
16. Replace fan guard and upper shell (see
page 8).
8. Carefully remove replacement ignitor
from styrofoam packing.
9. Carefully guide ignitor into opening in
nozzle adapter bracket. Do not strike
ignitor element. Attach ignitor to
nozzle adapter bracket with screw us-
ing a 1/4" nut driver (see Figure 12).
Torque .90 to 1.69 N-m (8 to 15 in-lbs).
Do not over torque.

10
105787
PORTABLE FORCED AIR HEATERS
AIR OUTPUT, AIR INTAKE,
AND LINT FILTERS
1. Remove upper shell (see page 8).
2. Remove filter end cover screws using
5/16" nut-driver.
3. Remove filter end cover.
4. Replace air output and lint filters.
5. Wash or replace air intake filter (see
Preventative Maintenance Schedule,
page 6).
6. Replace filter end cover.
7. Replace fan guard and upper shell.
IMPORTANT: Do not oil filters
PUMP PRESSURE
ADJUSTMENT
1. Remove pressure gauge plug and plas-
tic cap (35/50/70,000 Btu/Hr Models
only) from filter end cover.
2. Install accessory pressure gauge (part
number HA1180).
3. Start heater (see Operation, page 5).
Allow motor to reach full speed.
4. Adjust pressure. Turn relief valve to
right to increase pressure. Turn relief
valve to left to decrease pressure. See
specifications below for correct pres-
sure for each model.
5, Remove pressure gauge. Replace pres-
sure gauge plug and plastic cap (35/50/
70,000 Btu/Hr Models only) in filter
end cover.
Figure 13 - Air Output, Air Intake, and Lint Filters, 35/50/70,000 Btu/Hr Models
Figure 15 - Pressure Gauge Plug and
Plastic Cap Removal
Pressure
Gauge
Plug
Pressure
Gauge
Figure 16 - Adjusting Pump Pressure
Pump
Pressure
Model (PSI/Bar)
NTH35-2 2.9/0.200
NTH50-2 3.9/0.270
NTH70-2 4.9/0.338
NTH100-2 4.9/0.338
NTH150-2 5.5/0.380
(35/50/70,000 Btu/Hr Models Shown)
Relief
Valve
SERVICE
PROCEDURES
Continued
Air Intake Filter
Lint Filter
Filter End
Cover
Air Output
Filter
Fan Guard
Air Intake Filter
Filter End
Cover
Lint Filter Air Output
Filter
Figure 14 - Air Output, Air Intake, and Lint Filters, 100/150,000 Btu/Hr Models
Fan Guard
Plastic Cap

11
105787
OWNER’S MANUAL
Continued
SERVICE
PROCEDURES
Continued
Figure 18 - Removing Air and Fuel Line
Hoses (100,000 Btu/Hr Model Only)
Figure 20 - Removing Nozzle/Adapter
Assembly
Figure 21 - Nozzle and Nozzle Adapter
NOZZLE ASSEMBLY
1. Remove upper shell (see page 8).
2. Remove fan (see page 13).
3. Removefuelandairlinehosesfromnozzle
assembly (see Figure 17, 18, or 19).
4. Turn nozzle assembly 1/4 turn to left
and pull toward motor to remove (see
Figure 20).
5. Place plastic hex-body into vise and
lightly tighten.
6. Carefully remove nozzle from the
nozzle adapter using 5/8" socket
wrench (see Figure 21).
7. Blow compressed air through face of
nozzle. This will free any dirt in nozzle
area.
8. Inspect nozzle seal for damage.
9. Replace nozzle into nozzle adapter un-
til nozzle seats. Tighten 1/3 turn more
using 5/8" socket wrench 4.5 to 5.1 N-
m (40 to 45 in-lbs). See Figure 21.
10. Attach nozzle assembly to burnerstrap.
11. Attach fuel and airline hoses to nozzle
assembly. See Fuel and Airline Re-
placement and Proper Routing.
12. Replace fan (see page 13).
13. Replace fan guard and upper shell (see
page 8).
Continued
Figure 19 - Removing Air and Fuel Line
Hoses (150,000 Btu/Hr Model Only)
FUEL AND AIR LINE
REPLACEMENT AND
PROPER ROUTING
1. Remove upper shell (see page 8).
2. Remove side cover screws using 5/16"
nut driver.
3. Remove side cover.
4. Inspect fuel and air line hoses for cracks
and/orholes.Iffuellinehoseisdamaged,
disconnectfrom nozzleadapter (seeFig-
ure17,18, or 19)andfromfuel filter(see
page 8). If air line hose is damaged, dis-
connect from nozzle adapter (see Figure
17, 18, or 19) and from barb fitting on
pump end cover (see Figure 22).
5. Install new air and/or fuel line. Attach
one end of air line hose to barb fitting
on pump end cover (see Figure 22) and
the other end to nozzle adapter (see
Figure 17, 18, or 19). Attach one end
of fuel line hose to fuel filter (see page
8) and the other end to nozzle adapter
(see Figure 17, 18, or 19).
For 35/50/70,000 Btu/Hr model heat-
ers, route air and fuel lines approxi-
mately as shown in Figure 17.
Note: Hoses arenot tobe touchingpho-
tocell bracket.
For100,000 Btu/Hr modelheater,route
air and fuel lines approximately as
shown in Figure 18.
Note: Hoses arenot tobe touchingpho-
tocell bracket.
For150,000 Btu/Hr modelheater,route
air and fuel lines approximately as
shown in Figure 19.
Note: Hoses arenot tobe touchingpho-
tocell bracket
6. Replace side cover.
7. Replace upper shell and fan guard (see
page 8).
Figure 22 - Air Hose to Barb FItting
Nozzle Face
Nozzle
Nozzle Seal
Nozzle Adapter
Air Line Fitting Fuel Line Fitting
Nozzle/
Adapter
Assembly
Combustion
Chamber
Fuel Line Hose
Nozzle/
Adapter
Assembly
Combustion
Chamber
Photocell
Bracket
Air Line
Hose
Fuel Line
Hose
Nozzle/
Adapter
Assembly
Combustion
Chamber
Air Line
Hose
Photocell Bracket
Figure 17 - Removing Air and Fuel Line
Hoses(35/50/70,000Btu/HrModelsOnly)
Fuel Line Hose
Nozzle/
Adapter
Assembly
Combustion
Chamber
Photocell
Bracket
Air Line
Hose
Barb Fitting
Air Hose
Pump End Cover
Nozzle
Adapter
Bracket
Nozzle Adapter
Bracket
Nozzle Adapter
Bracket

12
105787
PORTABLE FORCED AIR HEATERS
PUMP ROTOR
(Procedure if Rotor is Binding)
1. Remove upper shell (see page 8).
2. Remove filter end cover screws using
5/16" nut-driver.
3. Remove filter end cover and air filters.
4. Remove pumpplate screwsusing 5/16"
nut-driver.
5. Remove pump plate.
6. Remove rotor, insert, and blades.
7. Check for debris in pump. If debris is
found, blow out with compressed air.
8. Install insert and rotor.
9. Checkgaponrotor.Adjustto.076/.101mm
(.003"/.004") if needed (see Figure 25).
Note: Rotate rotor one full turn to ensure
the gap is .076/.101 mm (.003"/.004") at
tightest position. Adjust if needed.
10. Install blades, pump plate, air filters,
and filter end cover.
11. Replace fan guard and upper shell.
12. Adjust pump pressure (see page 10).
Note: If rotor is still binding, proceed as
follows.
13. Perform steps 1 through 6 above.
14. Place fine grade sandpaper (600 grit)
on flat surface. Sand rotor lightly in
“figure 8” motion four times (see Fig-
ure 26).
15. Reinstall insert and rotor.
16. Perform steps 10 through 12 above.
Figure 23 - Rotor Location, 35/50/70,000 Btu/Hr Models
Figure 24 - Rotor Location, 100/150,000 Btu/Hr Models
Insert
Blade
Rotor
Pump
Plate Air Intake Filter
Air Output
Filter
Pump
Plate
Insert Rotor
Blade
Filter End
Cover
Air
Intake
Filter
Air Output
Filter
Fan Guard
Fan Guard
Filter End
Cover
Figure 26 - Sanding Rotor
Figure25-GapAdjustingScrewLocations
SERVICE
PROCEDURES
Continued
Gap Adjusting
Screw
Gap Adjusting
Screw
Blade .076/.101 mm (.003"/.004") Gap
Measured With Feeler Gauge
Rotor Sandpaper

13
105787
OWNER’S MANUAL
Unacceptable Acceptable
FAN
IMPORTANT: Remove fan from motor
shaft before removing motor from heater.
The weight of the motor resting on the fan
could damage the fan pitch.
1. Remove upper shell (see page 8).
2. Use 1/8" allen wrench to loosen set-
screw which holds fan to motor shaft.
3. Slip fan off motor shaft.
4. Clean fan using a soft cloth moistened
with kerosene or solvent.
5. Dry fan thoroughly.
6. Replace fan on motor shaft. Place fan
hub flush with end of motor shaft (see
Figure 28).
7. Place setscrew on flat of shaft. Tighten
setscrew firmly 4.5 to 5.6 N-m (40 to
50 in-lbs).
8. Replace fan guard and upper shell.
Motor
Shaft
Setscrew
Figure27-Fan,MotorShaft,andSetscrew
Location
Motor
Shaft
Fan
Setscrew
Figure 28 - Fan Cross Section
Fan
Flush
SERVICE
PROCEDURES
Continued
IGNITION CONTROL
ASSEMBLY
WARNING: Unplug heater
before servicing.
Remove Old Assembly
1. Using the 5/16" nut driver or socket
wrench, remove the four side cover
screws (see Figure 29).
2. Disconnect the nine wires from the
ignition control assembly.
3. Usingneedlenosepliers,squeezethetab
on the printed circuit board support and
lift up on the edge of the ignition control
assembly(seeFigure30).Repeatthisfor
the other four printed circuit board sup-
ports then remove the assembly.
CAUTION: Ignition control
assembly contains electrostatic
components. Handle the assem-
bly by the edges of the printed
circuitboard.Donottouchanyof
the quick connect terminals or
electronic components.
Figure 29 - Removing Cover
Side
Cover
Figure 30 - Removing Circuit Board
Side Cover
Ignition
Control
Assembly Printed Circuit
Board Supports (5)
Installing the New Assembly
1. Align the five holes in the assembly
with the five printed circuit board sup-
ports in the side cover.
2. Holding theassemblybytheedges ofthe
printed circuit board, apply downward
pressure until all five tabs on the printed
circuit board supports springlock into
place. Pull up on assembly to verify this
(see Figure 31).
3. Connect the nine wire leads to the ig-
nition control assembly as shown in
the wiring diagram on page 25.
Figure 31 - Attaching Circuit Board to
Tabs
CAUTION: Double check
connections. Connecting igni-
tion control assembly wrong
could result in damage to the
ignition control assembly and/
or other components in the
heater assembly.
4. Using the 5/16" nut driver or socket
wrench reinstall side cover to heater.
Tighten screws until snug. Do not over
torque!
Unacceptable Acceptable

14
105787
PORTABLE FORCED AIR HEATERS
1
2
3
4
5
6
7
8
9
10
11
12
13
16
9-2
9-1
9-3
9-4
9-5
17
18
19
20
21
22
23
24
26
27
28
29
30
34
35
36
32 33
9-6
15 14
31
42
4143
40
38
37
39
25
ILLUSTRATED
PARTS
BREAKDOWN
NTH35-2
35,000 BTU/HR MODEL
Motor and Pump Assembly
12-11
12-18
12-17
12-16
12-1512-14 12-13
12-12
12-10
12-1
12-3 12-4 12-5
12-6
12-7
12-8
12-9
12-2
12-19

15
105787
OWNER’S MANUAL
PARTS LIST
NTH35-2
35,000 BTU/HR MODEL
This list contains replaceable parts used in your heater. When ordering parts, be sure to
provide the correct model and serial numbers (from the model plate), then the part number
and description of the desired part.
KEY PART
NO. NUMBER DESCRIPTION QTY.
1 M51104-01 Handle 1
2 098511-256 Upper Shell 1
3 M11084-29 Screw, #10-16 x 3/4" 2
4 102432-01 Screw/Lockwasher, 1/2" 6
5 098512-63 Combustion Chamber 1
6 M10908-2 Screw, #6-32 x 3/8" 2
7 103154-03 Photocell Bracket 1
8 M16656-24 Photocell Assembly 1
9 ∗∗ Burner Strap Assembly 1
9-1 HA3006 Nozzle Assembly 1
9-2 102548-05 Ignitor Kit 1
9-3 104056-01 Nozzle Adapter 1
9-4 102336-01 Nozzle Adapter Bracket 1
9-5 M10908-75 Screw, #6-32 x 7/8" 1
9-6 103347-01 Belleville Washer 1
10 102431-01 Screw/Lockwasher, 1/2" 2
11 103684-01 Fan 1
12 ∗∗ Motor and Pump Assembly 1
12-1 102001-25 Motor 1
12-2 079975-03 Pump Body 1
12-3 M22009 Insert 1
12-4 M22456-2 Rotor 1
12-5 M29608 Pump End Cover 1
12-6 M29632 Lint Filter 1
12-7 M29633 Intake Filter 1
12-8 M29609 Filter End Cover 1
12-9 M12461-31 Screw, #10-32 x 1" 3
12-10 M27694 Adjusting Screw 1
12-11 M10993-1 Pressure Relief Spring 1
12-12 M22997 Plug 1
12-13 M8940 Steel Ball, 1/4" Diameter 1
12-14 M29612-01 Output Filter 1
12-15 M12461-32 Screw #10-32 x 1 1/8"6
12-16 103676-01 Nylon Elbow, 90°1
12-17 M8643-2 Blade 4
12-18 FHPF3-6C Screw, #10-32 x 3/4" 2
12-19 105780-01 Plastic Cap 1
13 M51105-01 Fan Guard 1
KEY PART
NO. NUMBER DESCRIPTION QTY.
∗∗ Not available as an assembly; order parts separately
14 098872-04 Power Cord 1
15 M50400 Strain Relief Bushing 1
16 NTC-4C Hex Lock Nut, 1/4-20 2
17 102431-01 Screw/Lockwasher, 1/2" 4
18 M50631 Rubber Bumper 2
19 097461-09 Side Cover 1
20 101205-01 Motor Bracket 1
21 M30865-02 Bushing 1
22 M11271-8 Clip Nut 6
23 M50104-02 Bushing 1
24 102431-01 Screw/Lockwasher, 1/2" 6
25 RF3-4B Screw, #10-32 x 1/2" 1
26 098511-237 Lower Shell 1
27 M50814-06 Rubber Airline 1
28 M29652-05 Fuel Line 1
29 108060-01 Fuel Filter 1
30 M10990-3 Rubber Bushing 1
31 102861-01 Nylon Locknut 1
32 102349-01 PCB Support 5
33 104068-04 Ignition Control Assembly 1
34 097702-01 Fuel Cap (Includes Gasket) 1
35 108088-01 Fuel Tank 1
36 M51108-01 Shell Heat-Shield 1
37 NPF-3B Nut, #10-32 3
38 097785-01 Vinyl Foam Gasket 1
39 WLE-3 Lockwasher, #10 1
40 079010-39 Wire Assembly (Brown/White) 1
41 105793-01 ON/OFF Switch 1
42 079919-01 Switch Cover 1
43 079010-40 Wire Assembly (White) 1
PARTS AVAILABLE - NOT SHOWN
HA2210 Filler Neck Screen 1
103814-01 Wire Tie 1
104974-01 Tradename Decal 2
106013-01 Decal Package 1
105880-01 Ignition Control Assembly Fuse 1

16
105787
PORTABLE FORCED AIR HEATERS
1
2
3
4
5
6
7
8
9
10
11
12
13
16
9-2
9-1
9-3
9-4
9-5
17
18
19
20
21
22
23
24
26
27
28
29
30
34
35
36
32 33
9-6
15 14
31
42
4143
40
38
37
39
25
ILLUSTRATED
PARTS
BREAKDOWN
NTH50-2
50,000 BTU/HR MODEL
Motor and Pump Assembly
12-11
12-18
12-17
12-16
12-1512-14 12-13
12-12
12-10
12-1
12-3 12-4 12-5
12-6
12-7
12-8
12-9
12-2
12-19

17
105787
OWNER’S MANUAL
PARTS LIST
NTH50-2
50,000 BTU/HR MODEL
This list contains replaceable parts used in your heater. When ordering parts, be sure to
provide the correct model and serial numbers (from the model plate), then the part number
and description of the desired part.
KEY PART
NO. NUMBER DESCRIPTION QTY.
1 M51104-01 Handle 1
2 098511-256 Upper Shell 1
3 M11084-29 Screw, #10-16 x 3/4" 2
4 102432-01 Screw/Lockwasher, 1/2" 6
5 098512-67 Combustion Chamber 1
6 M10908-2 Screw, #6-32 x 3/8" 2
7 103154-03 Photocell Bracket 1
8 M16656-24 Photocell Assembly 1
9 ∗∗ Burner Strap Assembly 1
9-1 100735-27 Nozzle Assembly 1
9-2 102548-05 Ignitor Kit 1
9-3 104056-01 Nozzle Adapter 1
9-4 102336-01 Nozzle Adapter Bracket 1
9-5 M10908-75 Screw, #6-32 x 7/8" 1
9-6 103347-01 Belleville Washer 1
10 102431-01 Screw/Lockwasher, 1/2" 2
11 103684-01 Fan 1
12 ∗∗ Motor and Pump Assembly 1
12-1 102001-23 Motor 1
12-2 079975-02 Pump Body 1
12-3 M22009 Insert 1
12-4 M22456-1 Rotor 1
12-5 M29608 Pump End Cover 1
12-6 M29632 Lint Filter 1
12-7 M29633 Intake Filter 1
12-8 M29609 Filter End Cover 1
12-9 M12461-31 Screw, #10-32 x 1" 3
12-10 M27694 Adjusting Screw 1
12-11 M10993-1 Pressure Relief Spring 1
12-12 M22997 Plug 1
12-13 M8940 Steel Ball, 1/4" Diameter 1
12-14 M29612-01 Output Filter 1
12-15 M12461-31 Screw #10-32 x 1" 6
12-16 103676-01 Nylon Elbow, 90°1
12-17 M8643 Blade 4
12-18 FHPF3-5C Screw, #10-32 x 5/8" 2
12-19 105780-01 Plastic Cap 1
13 M51105-01 Fan Guard 1
KEY PART
NO. NUMBER DESCRIPTION QTY.
∗∗ Not available as an assembly; order parts separately
14 098872-04 Power Cord 1
15 M50400 Strain Relief Bushing 1
16 NTC-4C Hex Lock Nut, 1/4-20 2
17 102431-01 Screw/Lockwasher, 1/2" 4
18 M50631 Rubber Bumper 2
19 097461-09 Side Cover 1
20 101205-01 Motor Bracket 1
21 M30865-02 Bushing 1
22 M11271-8 Clip Nut 6
23 M50104-02 Bushing 1
24 102431-01 Screw/Lockwasher, 1/2" 6
25 RF3-4B Screw, #10-32 x 1/2" 1
26 098511-237 Lower Shell 1
27 M50814-06 Rubber Airline 1
28 M29652-05 Fuel Line 1
29 108060-03 Fuel Filter 1
30 M10990-3 Rubber Bushing 1
31 102861-01 Nylon Locknut 1
32 102349-01 PCB Support 5
33 104068-04 Ignition Control Assembly 1
34 097702-01 Fuel Cap (Includes Gasket) 1
35 108088-03 Fuel Tank 1
36 M51108-01 Shell Heat-Shield 1
37 NPF-3B Nut, #10-32 3
38 097785-01 Vinyl Foam Gasket 1
39 WLE-3 Lockwasher, #10 1
40 079010-39 Wire Assembly (Brown/White) 1
41 105793-01 ON/OFF Switch 1
42 079919-01 Switch Cover 1
43 079010-40 Wire Assembly (White) 1
PARTS AVAILABLE - NOT SHOWN
HA2210 Filler Neck Screen 1
103814-01 Wire Tie 1
104974-01 Tradename Decal 2
106013-05 Decal Package 1
105880-01 Ignition Control Assembly Fuse 1

18
105787
PORTABLE FORCED AIR HEATERS
1
2
3
4
5
6
7
8
9
10
11
12
13
16
9-2
9-1
9-3
9-4
9-5
17
18
19
20
21
22
23
24
26
27
28
29
30
34
35
36
32 33
9-6
15 14
31
42
4143
40
38
37
39
25
ILLUSTRATED
PARTS
BREAKDOWN
NTH70-2
70,000 BTU/HR MODEL
Motor and Pump Assembly
12-11
12-18
12-17
12-16
12-1512-14 12-13
12-12
12-10
12-1
12-3 12-4 12-5
12-6
12-7
12-8
12-9
12-2
12-19

19
105787
OWNER’S MANUAL
PARTS LIST
NTH70-2
70,000 BTU/HR MODEL
This list contains replaceable parts used in your heater. When ordering parts, be sure to
provide the correct model and serial numbers (from the model plate), then the part number
and description of the desired part.
KEY PART
NO. NUMBER DESCRIPTION QTY.
1 M51104-01 Handle 1
2 098511-256 Upper Shell 1
3 M11084-29 Screw, #10-16 x 3/4" 2
4 102432-01 Screw/Lockwasher, 1/2" 6
5 098512-64 Combustion Chamber 1
6 M10908-2 Screw, #6-32 x 3/8" 2
7 103154-03 Photocell Bracket 1
8 M16656-24 Photocell Assembly 1
9 ∗∗ Burner Strap Assembly 1
9-1 HA3026 Nozzle Assembly 1
9-2 102548-05 Ignitor Kit 1
9-3 104056-01 Nozzle Adapter 1
9-4 102336-01 Nozzle Adapter Bracket 1
9-5 M10908-75 Screw, #6-32 x 7/8" 1
9-6 103347-01 Belleville Washer 1
10 102431-01 Screw/Lockwasher, 1/2" 2
11 103684-01 Fan 1
12 ∗∗ Motor and Pump Assembly 1
12-1 102001-23 Motor 1
12-2 079975-02 Pump Body 1
12-3 M22009 Insert 1
12-4 M22456-1 Rotor 1
12-5 M29608 Pump End Cover 1
12-6 M29632 Lint Filter 1
12-7 M29633 Intake Filter 1
12-8 M29609 Filter End Cover 1
12-9 M12461-31 Screw, #10-32 x 1" 3
12-10 M27694 Adjusting Screw 1
12-11 M10993-1 Pressure Relief Spring 1
12-12 M22997 Plug 1
12-13 M8940 Steel Ball, 1/4" Diameter 1
12-14 M29612-01 Output Filter 1
12-15 M12461-31 Screw #10-32 x 1" 6
12-16 103676-01 Nylon Elbow, 90°1
12-17 M8643 Blade 4
12-18 FHPF3-5C Screw, #10-32 x 5/8" 2
12-19 105780-01 Plastic Cap 1
13 M51105-01 Fan Guard 1
KEY PART
NO. NUMBER DESCRIPTION QTY.
∗∗ Not available as an assembly; order parts separately
14 098872-04 Power Cord 1
15 M50400 Strain Relief Bushing 1
16 NTC-4C Hex Lock Nut, 1/4-20 2
17 102431-01 Screw/Lockwasher, 1/2" 4
18 M50631 Rubber Bumper 2
19 097461-09 Side Cover 1
20 101205-01 Motor Bracket 1
21 M30865-02 Bushing 1
22 M11271-8 Clip Nut 6
23 M50104-02 Bushing 1
24 102431-01 Screw/Lockwasher, 1/2" 6
25 RF3-4B Screw, #10-32 x 1/2" 1
26 098511-237 Lower Shell 1
27 M50814-06 Rubber Airline 1
28 M29652-05 Fuel Line 1
29 108060-03 Fuel Filter 1
30 M10990-3 Rubber Bushing 1
31 102861-01 Nylon Locknut 1
32 102349-01 PCB Support 5
33 104068-04 Ignition Control Assembly 1
34 097702-01 Fuel Cap (Includes Gasket) 1
35 108088-03 Fuel Tank 1
36 M51108-01 Shell Heat-Shield 1
37 NPF-3B Nut, #10-32 3
38 097785-01 Vinyl Foam Gasket 1
39 WLE-3 Lockwasher, #10 1
40 079010-39 Wire Assembly (Brown/White) 1
41 105793-01 ON/OFF Switch 1
42 079919-01 Switch Cover 1
43 079010-40 Wire Assembly (White) 1
PARTS AVAILABLE - NOT SHOWN
HA2210 Filler Neck Screen 1
103814-01 Wire Tie 1
104974-01 Tradename Decal 2
106013-02 Decal Package 1
105880-01 Ignition Control Assembly Fuse 1

20
105787
PORTABLE FORCED AIR HEATERS
1
2
3
23 19
910
16
11
12
15
25
27
24
28
20
22
21
30
31
17
14
14
35
36 32
26
13
18
5
46
7
8
7-2
7-1
7-5
7-4
7-3
7-6
43
4241
33 34
37
40
39 44
38
29
ILLUSTRATED
PARTS
BREAKDOWN
NTH100-2
100,000 BTU/HR MODEL
Motor and Pump Assembly
10-1
10-2
10-3
10-4 10-5
10-6
10-7 10-8
10-9 10-10
10-11
10-12
10-13 10-14
10-15
10-16
10-17
10-13
