Energenics 8000 User manual

1
www.energenics.com
1470 Don Street •Naples, Florida 34104 Telephone: [phone]
Fax: [phone]
Customer Service: [phone]
Installation & Operation Manual for Energenics
AALF Lint Scrubber-8000
Table of Contents Page 1
Description of Lint Scrubber Operation Page 2
Receiving and Installation Page 3
Important Installation Considerations Page 4

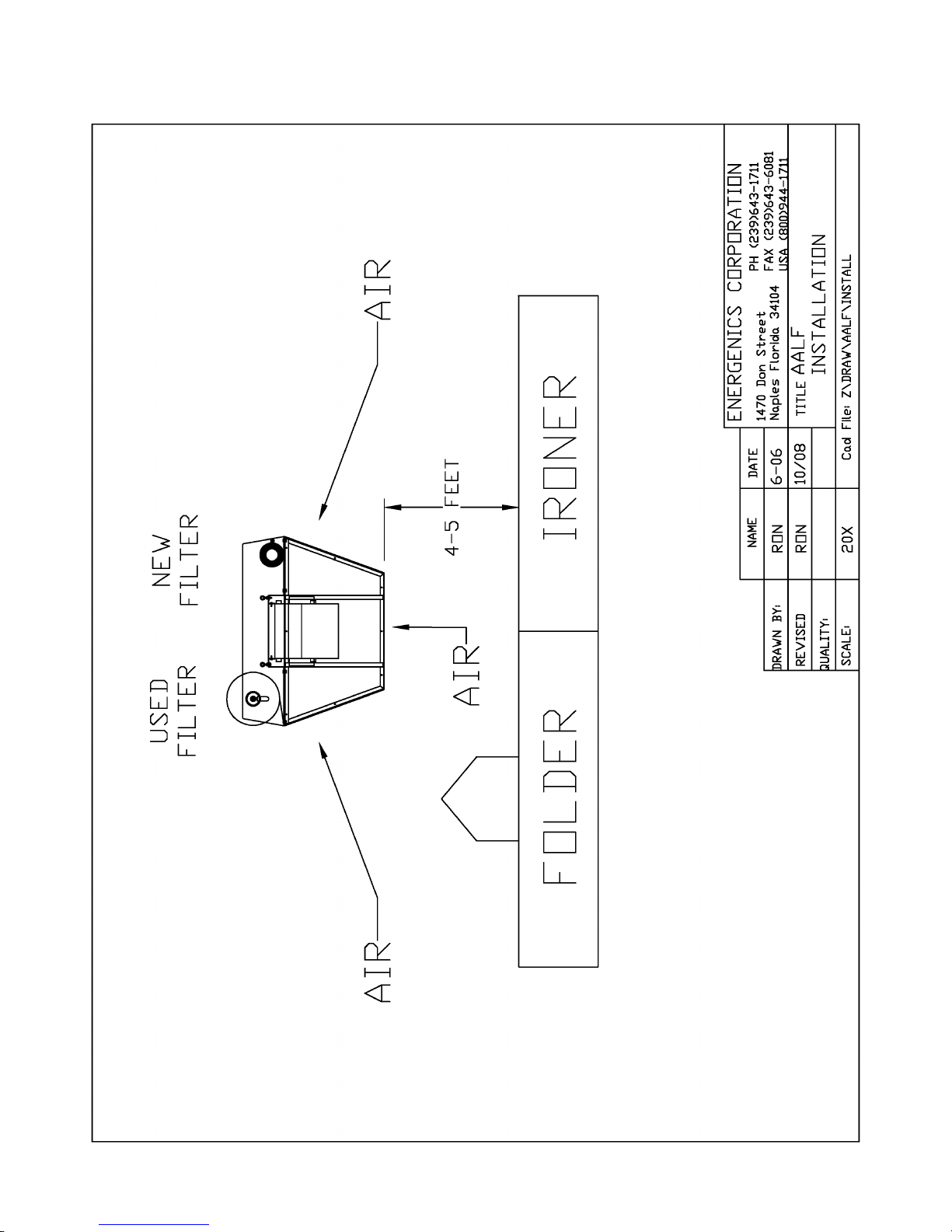

Typical Installation over Ironer/Folder Page 5

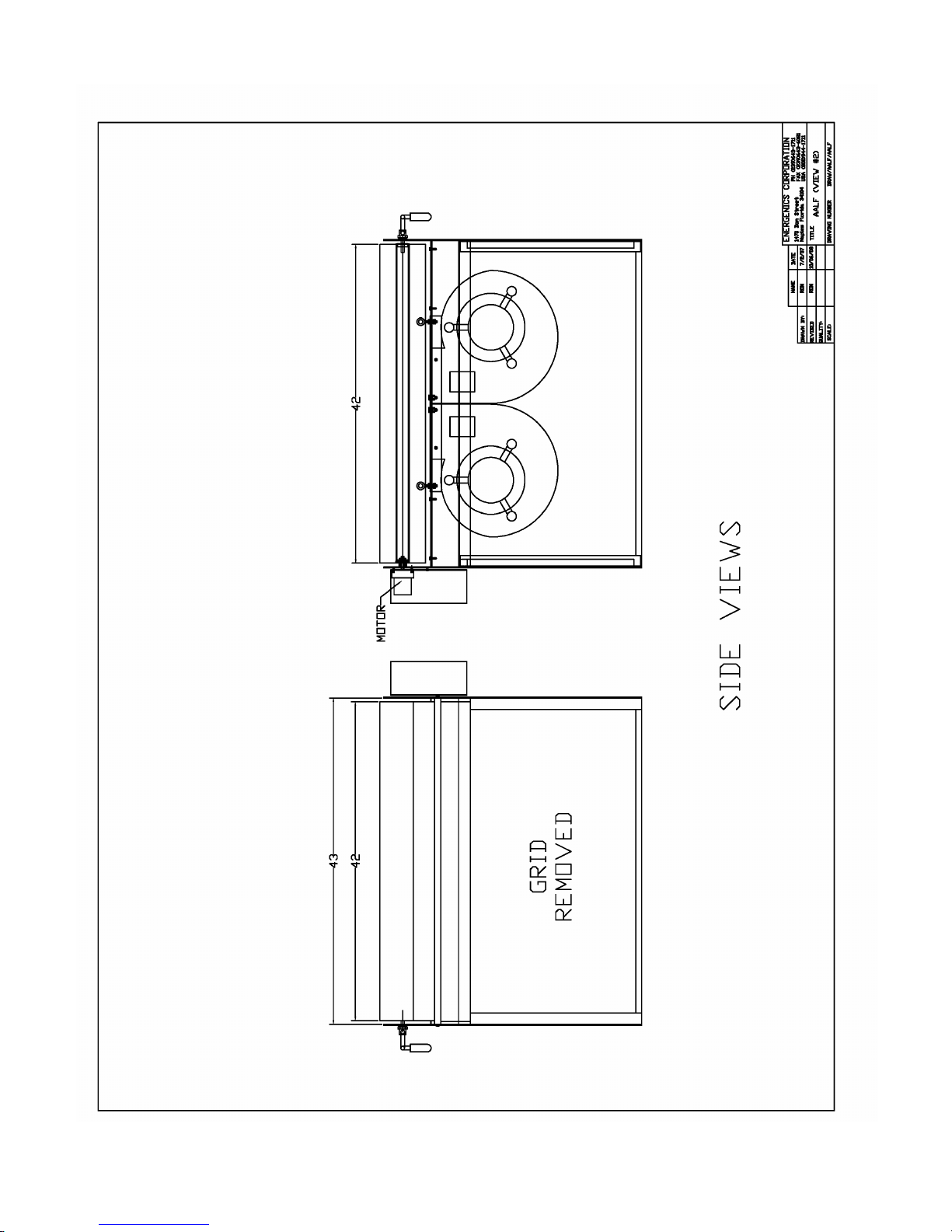

Dimensions – Side View Page 6
Dimensions – End Views Page 7

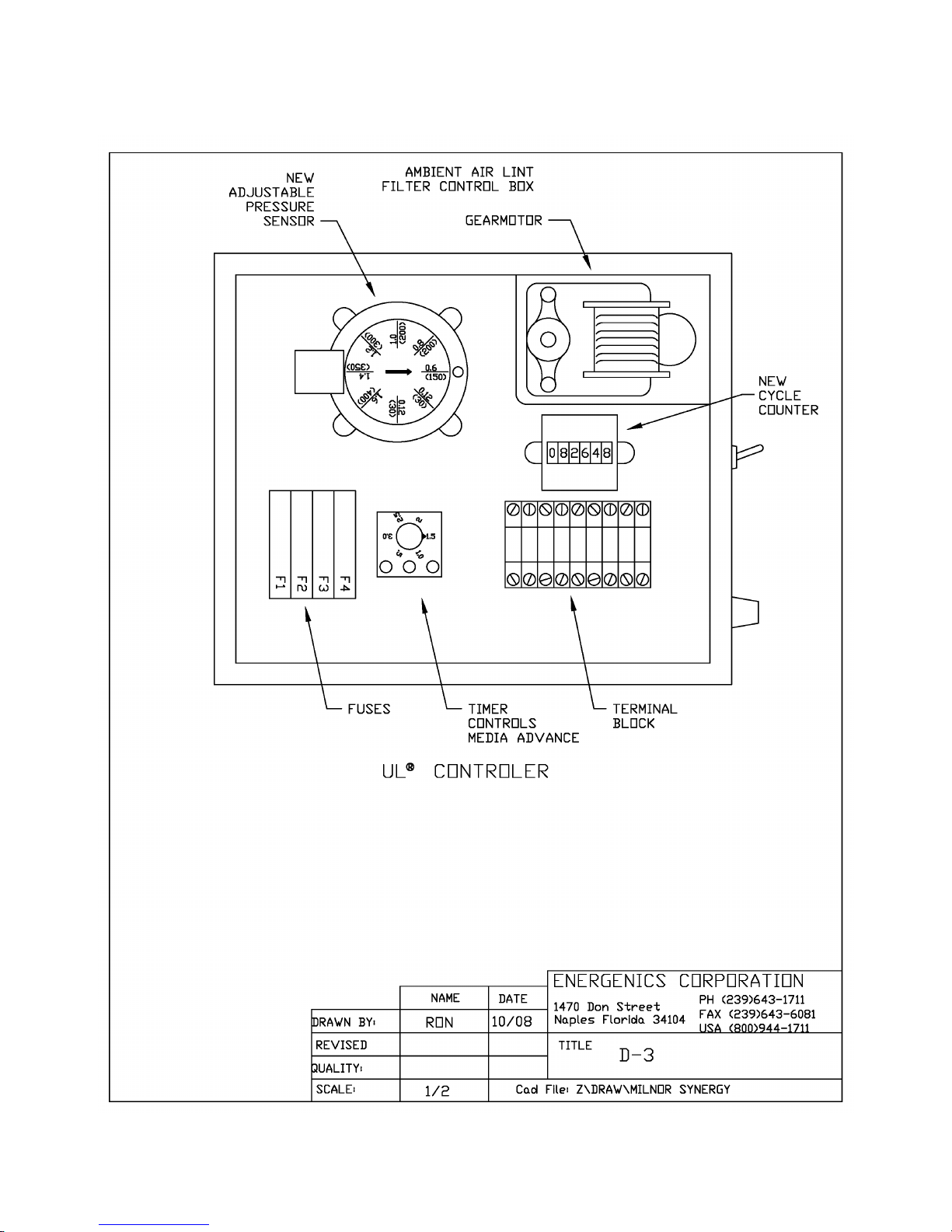

Operation of UL® Control Page 8
Changing the Filter Media Page 9

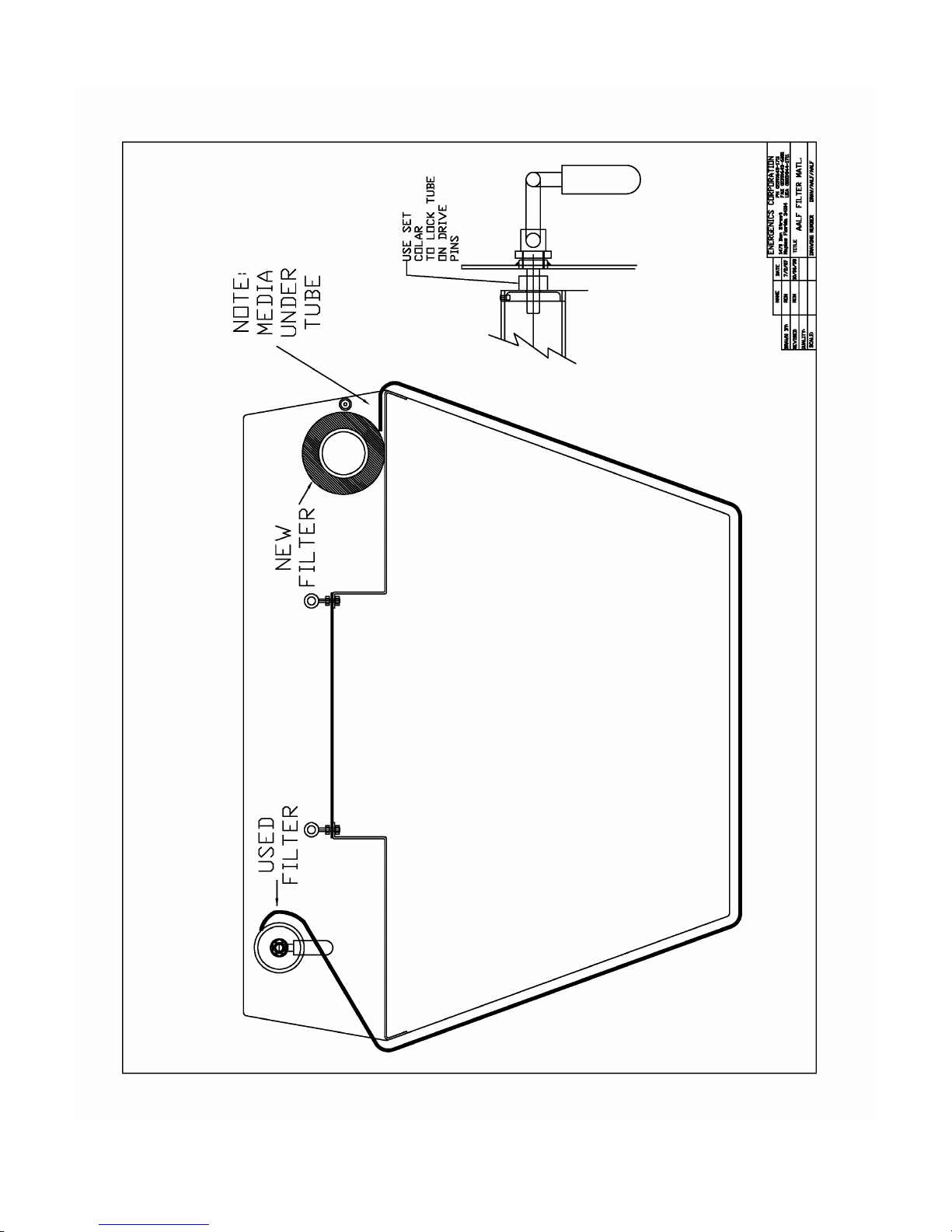

Filter Media Routing Diagram Page 10
Warranty Statement Page 11

2
Description of Lint Scrubber 8000 Operation
Your new Lint Scrubber 8000 has a UL® listed control. The Energenics control
represents state of the art in the Laundry Industry for operations and safety.
The Lint Scrubber 8000 utilizes two ¾ HP vacuum blowers to draw the lint filled
air past filter media of 200 micron that layers the lint onto the surface of the
media.
The filter media of flat bonded polyester is specifically designed to collect lint and
dust particles created by laundry textile handling operation.
When turned on the machine suctions the air-borne lint onto the screen. When
the screen loads with lint and optimum air flow is being limited by the lint buildup,
the pressure transducer signals the filter control and advances the filter material
until enough clean screen allows the air flow to return to satisfactory levels. The
unit has an adjustable timer should the user want a greater amount of clean
media after the pressure set point is achieved. As the media is used the user
should adjust the timer so that only the loaded media is drawn by the take-up reel
leaving clean media on the collecting surface. If the Lint Scrubber is equipped
with the optional Lint Sensor, the media will travel until the whole inlet has clean
media for maximum lint removal. This will not require manual adjustment of the
timer.
The Lint Scrubber also has a counter built in to indicate the amount of cycles for
media advance. This feature allows management to track longevity of filter
media life. In essence full frame indexing will allow 50 cycles per roll of filter
media.
The exhaust from the Lint Scrubber is directed vertically to assist in cleaning
pipes, lights, and other devices overhead. Vertical exhaust will prevent the
operators from being blown upon also.
The Lint Scrubber media will last approximately 6 months in normal operation. It
is important to have a spare roll ready for immediate replacement.
Proper operation is noted when the green light is illuminated. During media
advance the yellow light will also illuminate.

3
Receiving and Installation
1. Before you sign delivery documentation, please inspect all packaging
to assure there is no freight damage. It is your responsibility because
all shipments are FOB Factory. Once freight is on board, Energenics
is released from all liability for damage caused in transit. Energenics
will assist in the process of claims to the carrier for damages.
2. All packaging should be kept intact in the unlikely situation where the
items have to be returned to the factory for warranty reasons. Some of
the components are manufactured by others and they stipulate that all
warranty items be packaged in the original materials. In the event that
packaging is non-standard a 20% restocking fee shall be imposed as
we will be expected to pay the manufacturer for non-compliance of
their terms.
3. After removing 2 pads and wrap, place unit horizontally on flat surface.
Do not lay unit on either end or in the upside down position.
4. After inspecting the unit for damage, feel free to sign delivery receipt.

4
Important Installation Considerations
1. Hang the Filter approximately 4-5 feet over the ironer folder, midway as
the folding machinery starts.
2. Suspend the filter with chain or cable capable of supporting 300 lbs at the
4 eye bolt connection points. Level the filter.
3. Complete the electrical connection, either by utilizing the attached plug or
by rewiring to meet other local codes. Electrical 208-230/60/1 VAC
11.5 AMPS
4. Note that the media is installed on the machine. The first three feet or so
of the media may be damaged in shipment. Check for any holes or tears.
If damage is noted, simply push the Manual Advance button and expose a
new area of media and tighten the media on the filter.
5. It is important that the unit be accessible to a service tech to replace the
media without removing the entire unit.
6. Turn the filter on high and operate. Proper operation is indicated with the
green light illuminated. During media advance the yellow light will also
illuminate also.

5

6

7

8

9
Changing the Filter Material Roll
The filter material roll has 100 yards of material. The roll needs to be changed in
two instances:
1. The entire roll of clean media is rolled up with lint on the lint take-up tube,
filled with lint.
2. The lint blanket being rolled up by the lint take-up tube is too large and
rubs against the filter side and can no longer advance. Cut the media
along the clean part for reattachment using one of the extra rolls supplied
with the Lint Scrubber.
To Change the Media Roll:
1. Follow the Diagram on Page 10 for illustration.
2. Open the red handle, pulling the pin out of the roll.
3. Slide the roll toward the red handle end and off the drive. Discard the full
lint take-up roll in an environmentally acceptable manner.
4. Put the new take up roll in place of the discarded roll. Slide onto the three
pin drive end. Align the other end with the red handle pin, add the spacers
to the red handle pin and insert in the roll.
5. If the take up roll was too large and discarded before all the clean media
was expended, re-attach the clean media to the two sided tape on the
take-up roll.
6. Manually advance the media until tight.

10

11
LIMITED WARRANTY & DISCLAIMER STANDARD CONDITIONS OF SALES
Energenics Corporation (herein called Energenics) warrants to the original
purchaser, & to the original purchaser alone, its products to be free from defects in
material and workmanship under normal use & service for a period of twenty-four
(24) months from the date of shipment. Energenics’ obligations under this
warranty shall be limited solely to the repair or replacement of such parts, which
Energenics examination shall disclose to Energenics satisfaction to have been
thus defective & to the shipment of the repaired or replacement part or parts to the
original purchaser F.O.B. point of shipment. In no event shall Energenics be liable
for any consequential, incidental or special damages of any kind caused by the
defect. The Warranty set forth shall not apply to & Energenics shall not be
responsible for any equipment or part, which has been repaired or altered in any
way, regardless of how or why the part was altered or repaired nor for any
equipment or part, which has been subjected to the negligence or accident,
improper use or care, nor for equipment or part with respect to which Energenics
instructions relating to installation, maintenance, or use have not been followed.
This limited warranty is expressly made in lieu of all other warranties, expressed or
implied, and in lieu of all other obligations or liabilities on the part of Energenics.
The purchaser by acceptance of the delivery of any part or product from
Energenics agrees to indemnify Energenics & to hold it harmless against any
liability, which may arise if the part or product received is mis-applied, improperly
installed, improperly maintained, misused or abused, altered or rendered partially
or totally inoperative due to any cause.
RETURNS: Merchandise may not be returned unless an RMA is obtained from
Energenics.
A copy of the RMA must accompany the returned item as the packing Slip.
Energenics will assume no responsibility for merchandise returned neither without
such prior approval nor for any charges or expenses incurred therewith.
CANCELLATIONS: Any order may be cancelled by the purchaser only upon
written notice
& upon payment to Energenics of reasonable & proper cancellation charges.
SALES & SIMILAR TAXES: Energenics prices do not include sales, use, gross
receipts, excise or similar taxes, license fees & export or import duties. All taxes
or other charges assessed to Energenics by reason of a transaction with the
Purchaser must be paid by the Purchaser.
PRICE POLICY: All sales are made F.O.B. point of shipment. All prices are
subject to
change without notice.
DESIGN CHANGES: Energenics reserves the right to make changes in the
design & changes or improvements in its products without notice or without
imposing any obligation upon Energenics to install the same upon products
heretofore manufactured.
GENERAL: No alteration, modification or extension of the foregoing
conditions shall be binding upon Energenics unless made in writing & signed
by an officer of Energenics.
