Energie ECOTOP 200esm User manual

EN
IT
TECHNICAL MANUAL
MANUALE TECNICO
Review | Revisione: 0
Version | Versione: 0
Date | Data: 16/05/2017
Directives
Direttive
2006/95/CE
European Certication
Certicazione Europea
EN 60335-1
EN 60335-2-21
EN 60335-2-40
200esm | 250esm | 300esm
200ESMS | 250ESMS | 300esms
200i | 250i | 300i
250is | 300is
200ix | 250ix | 300ix
250isx | 300isx
ECOTOP

3
ECO
Esteemed Client,
We would like to thank you for your choice when you acquired an
equipment for sanitary water heating.
The thermodynamic solar system ECOTOP will surely meet all your ex-
pectations and provide many years of comfort with maximum power
saving.
Our organization dedicates much time, energy and economic resourc-
es in order to develop innovations that will promote power saving in
our products.
Your choice has demonstrated your good sense and concern with pow-
er consumption, a matter that aects the environment.
We have taken on a permanent commitment to conceive innovative
and ecient products so that this rational use of energy can actively
contribute to the preservation of the environment and natural resourc-
es of the planet.
Keep this manual whose objective is to inform, alert and advise about
the use and maintenance of this equipment.
Our services are always at your disposal. Feel free to call upon us!
Technical Manual
English

4
ECO
INDEX
1.IMPORTANT.................................................................................................................
1.1. Symbols .......................................................................................................................
1.2 Pre-installation Information .................................................................................
1.3 Safety information ...................................................................................................
2.PACKAGE .......................................................................................................................
2.1. Contents .......................................................................................................................
2.2. Transpor ......................................................................................................................
3.SPECIFICATIONS ...........................................................................................................
3.1. Running principle ..................................................................................................
3.2.Technicalfeatures(1xPanel)...................................................................................
3.3.Technicalfeatures(2xPanel)..................................................................................
3.4. Main Components ...................................................................................................
3.4.1. General diagram of assembly .................................................................
3.4.2.Dimensions........................................................................................................
3.4.3.Sealwithfeatures.............................................................................................
3.4.4.Thermodynamic Solar Panel.....................................................................
3.4.5.Cylinder + Thermodynamic Block...........................................................
3.4.6.CoolingFluid.....................................................................................................
3.5. Safety and Control Devices ...............................................................................
3.5.1. Pressure gauge of high/low pressure .................................................
3.5.2. Safety Thermostat ......................................................................................
3.5.3. Temperature Sensor ...................................................................................
3.5.4. Protection against corrosion .................................................................
3.5.5. Dielectric Joint (except stainless steel tank)..................................
3.5.6. Expansion Vessel .........................................................................................
3.5.7. Safety Device .................................................................................................
3.5.8. Pressure Reducing Valve .........................................................................
4.INSTALATION ............................................................................................................
4.1. AttachmentofPanel................................................................................................
4.2. Set-upoftheStorageWaterHeater+ThermodynamicBlock..................
4.3.RefrigerantConnections........................................................................................
4.3.1. Connection to the Panel..............................................................................
4.3.2.ConnectionofCopperTubestoEquipment..........................................
4.3.3. LoadofNitrogen..............................................................................................
6
6
6
6
7
7
8
9
9
10
11
12
12
13
15
16
17
18
18
18
18
18
18
18
18
19
19
19
19
21
21
21
23
24
Technical Manual
English

5
ECO
English
4.3.4.CreateVacuum................................................................................................
4.3.5. Checking good running condition........................................................
4.3.6. Load of Complementary Cooling Fluid (if necessary)....................
4.4. Hydraulic Couplings ..............................................................................................
4.5. Electric Connections ............................................................................................
5.FIRST USE .........................................................................................................................
5.1. Filling the tank ..........................................................................................................
5.2. Start-up of the System .........................................................................................
6.SYSTEM OPERATION .................................................................................................
6.1. Control Panel ..............................................................................................................
6.2. Keys (Functions) ....................................................................................................
6.3. Symbols .......................................................................................................................
6.4. Operating Modes......................................................................................................
6.4.1. ECO Operating Mode ................................................................................
6.4.2. AUTO Operating Mode .............................................................................
6.4.3. BOOST Operating Mode .........................................................................
6.5. Extra Functions .......................................................................................................
6.5.1. DISINFECT Function ..................................................................................
6.5.2. HOLIDAYS Function ..................................................................................
6.5.3. TCC Function..................................................................................................
6.5.4.CHRONOFunction.........................................................................................
7.ERRORS..................................................................................................................................
8.PARAMETERS DESCRIPTION .................................................................................
9.GRAPHICOFPROBES.....................................................................................................
10.RESOLUTION OF PROBLEMS ................................................................................
11.SYSTEM MAINTENANCE ...........................................................................................
11.1. General Inspection ..................................................................................................
11.2. Magnesium Anode (if applicable)....................................................................
11.3. Cleaning Filter of Throttle Valve .....................................................................
11.4. Safety Thermostat ................................................................................................
11.5. Empty the Storage Water Heater...................................................................
12.DISPOSAL OF EQUIPMENT......................................................................................
24
25
25
26
26
28
28
28
28
28
29
30
30
31
31
31
31
31
31
32
32
33
33
35
35
37
37
37
37
37
38
38
Technical Manual

6
ECO
1. IMPORTANT
1.1. Symbols
Every process that the suppli-
er believes to be conducive to
harmful danger and/or material
damage, will be signalled with a
danger sign.
For a better characterization of
the danger, the symbol will be
followed by one of these words:
• DANGER: when there is the
possibility of harm to the op-
erator and/or people in the
vicinity of the equipment.
• WARNING: when there is
the possibility of material
damage to the equipment
and/or attached materials.
All the information that the sup-
plier believes to be an asset for
better performance and pres-
ervation of the equipment, will
be signalled together with the
information sign.
1.2 . Pre-installation Information
1.3 . Safety information
WARNING / DANGER
The electrical installation of the equipment
must comply with the national regulations
for electrical installations in eect.
ECOTOP will only operate after receiving
its load of coolant.
The maximum water pressure into the hy-
draulic circuit inlet is 0.3 Mpa and the min-
imum pressure is 0.1 MPa.
The power supply is 230 V, 50 Hz, and the
power supply cable is plugged into a sock-
et with earth wiring.
If the power supply cable is damaged, it
must be replaced by the manufacturer, by
its customer service, or by sta with similar
training in order to avoid any danger.
ECOTOP will only operate if the storage
water heater is lled with water.
This device can be used by 8
year old children and older, or
people with physical, sensorial
or mental handicaps, or lacking
experience / knowledge, if they
received training regarding the
running of the device in a safe
way and are aware of the dan-
gers involved.
Children must not play with the
appliance.
DANGER
When installing:
• The installation of a thermodynamic
equipment for heating sanitary wa-
ter must be carried out by sta with
suitable training and qualied for
this purpose;
• The device should not be installed in
places that present a risk of impact,
shock or explosion;
• Keep the equipment packed until
you reach the place and moment of
installation;
• Make sure all hydraulic couplings are
watertight before connecting the
equipment to the power supply.
Maintenance of the equipment:
• Equipment maintenance should be
carried out by customer service, ex-
cept operations of general and con-
tinuous cleaning which could/should
be carried out by the user;
Technical Manual
English

7
ECO
• Power supply to the equipment
must be disconnected when doing
maintenance operations;
• The supplier recommends at least
one annual inspection to the equip-
ment, by a qualied technician;
• Cleaning and maintenance must not
be carried out by children unless
they are under supervision.
High pressure and temperature:
• The principle for running this equip-
ment is directly linked to high tem-
perature and pressure; thus, the
processes that imply contact with
the equipment must be thought out
with caution to prevent the risk of
burns and projection of material.
Cooling Fluid:
• The cooling uid employed in the
whole process is R134a, CFC-free,
non-inammable and without harm-
ful eects for the ozone layer;
• However, according to the law, the
uid in this equipment cannot be re-
leased into the environment;
• Handling of the uid in the equip-
ment must be carried out by a quali-
ed technician.
Information for the Client:
• The Installer must inform the client
about the running of the equipment,
its dangers, rights and duties of the
client.
2. PACKAGE
2.1. Contents

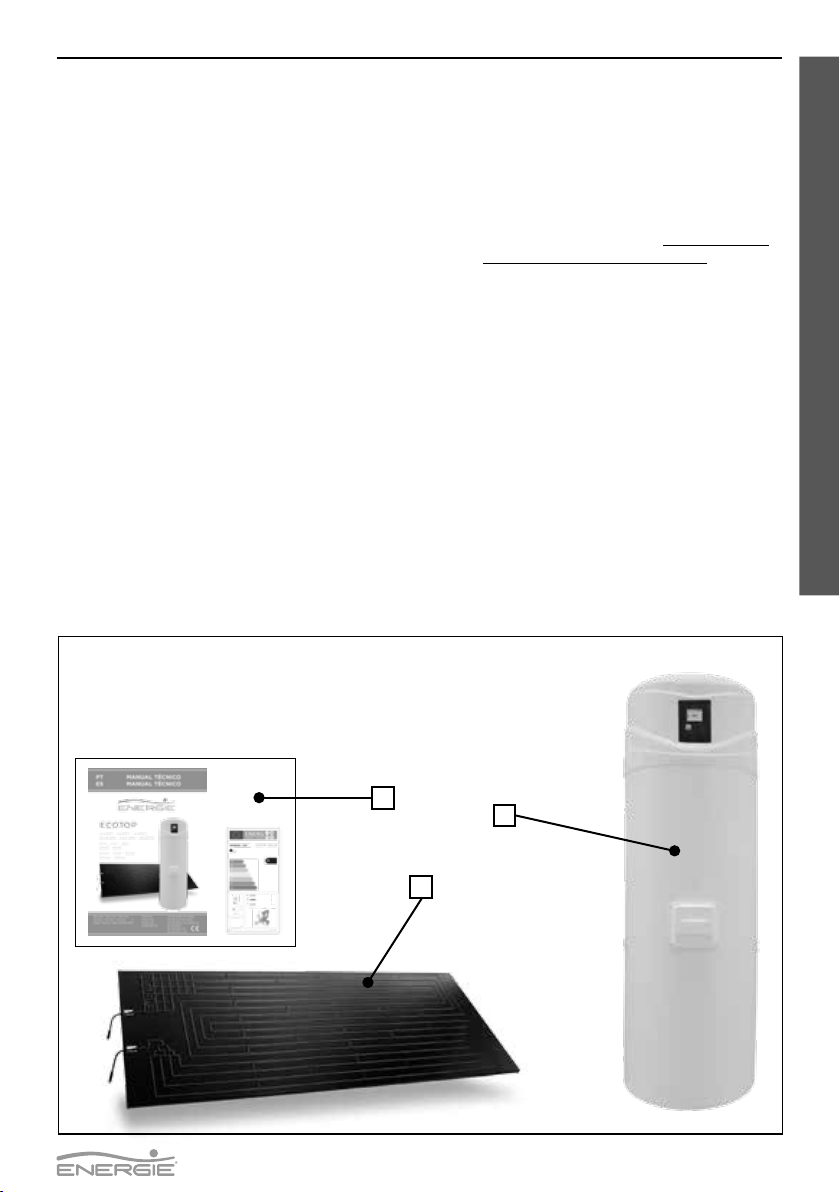

The equipment is supplied in three packages, one for the thermodynamic panel and its
attachment elements, one for the storage water heater and another for the thermodynamic
block together with the hood and elements to attach to the storage water heater.
The packages contain:
I. Thermodynamic panel + its attachment elements
II. Storage Water Heater with thermodynamic block and Hood
III. Installation manual and Warranty
Technical Manual
English
3
1
2

8
ECO

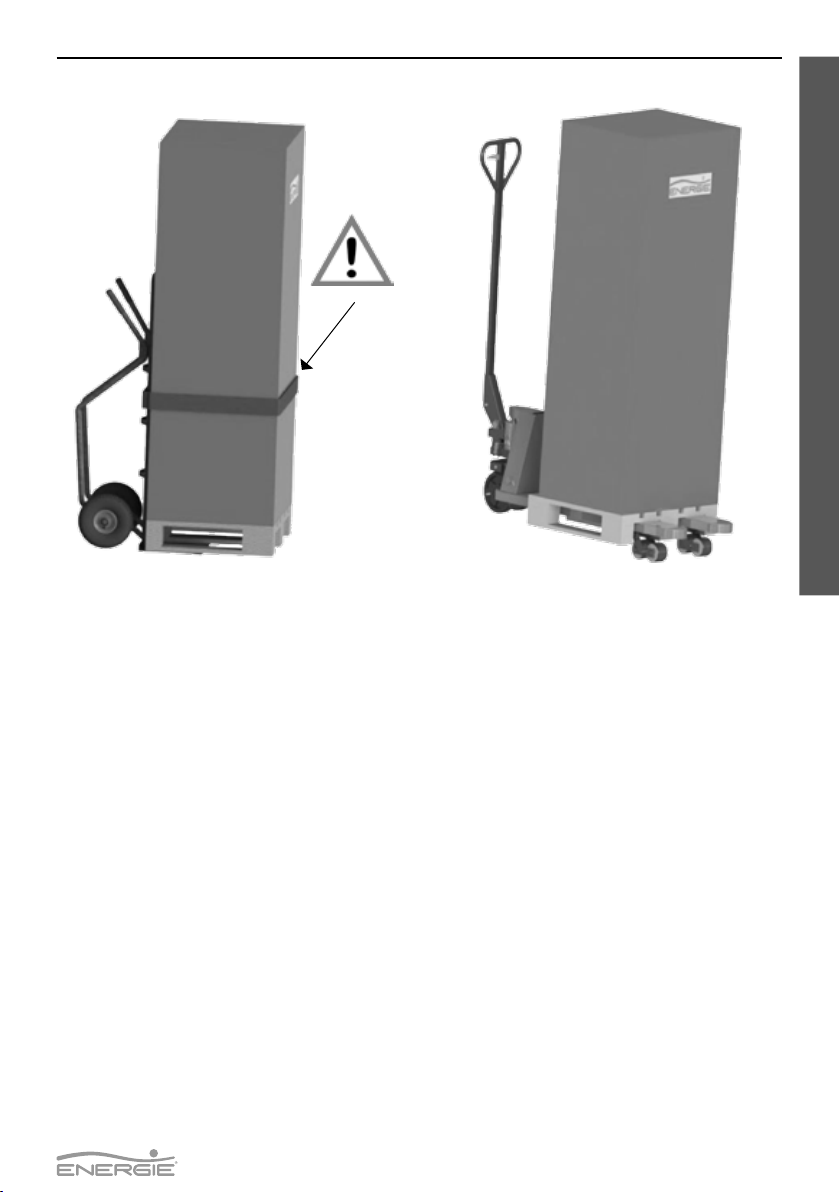

• Transporting the equipment must be carried out with an inclination below
45
0
;
• The equipment must be raised and lowered with extreme care to avoid im-
pact that could damage the material;
• Make sure the belts and/or transportation straps do not damage the ma-
terial;
• Always use means of transportation suitable for the equipment (pallet lift,
forklift, etc…);
WARNING
2.2. Transport
Technical Manual
English
The equipment must be transported in its original package to the place of installation. Check,
before beginning transport of the external unit, if the path you will travel is unobstructed, in
order to prevent collisions that could cause damage to the device.
The packages contain the following information symbols:
Fragile, handle with extreme
caution Keep the package dry
Make sure the arrows are al-
ways up Do not stack packages
ALLOWED NOT ALLOWED

9
ECOTechnical Manual
English
3. SPECIFICATIONS
3.1. Running principle
The thermodynamic solar system ECO, is
an equipment based upon the principle of
cooling by compression – Principle of Car-
not – which we designate Thermodynamic
Solar Systems: solar panel and heat-pump.
The solar panel, the main component,
placed outside, is in charge of collecting the
energy from:
• Diuse and direct solar radiation.
• External air, by natural convection.
• The wind eect (almost invariably
available).
• Rainwater.
The temperature gradient caused by the ex-
ternal agents mentioned, ensures the klea
(ecological cooling uid) will evaporate in-
side the solar panel.
The absence of glass in the panel allows for
an increased thermal exchange by convec-
tion.
After circulation in the panel, the klea is as-
pirated by the system’s mechanical compo-
nent, the compressor, which will increase its
temperature and pressure; it is then trans-
ferred to the water circuit through a heat
exchanger.
Before the Klea returns to the solar panel it
is necessary that there should be a narrow-
ing, that is, reduce the pressure and ensure
that it is again in a liquid state, thus com-
pleting the cycle.
The easy way we combine technology with
a law of Nature (change of state of a u-
id), demonstrates the true potential of the
Thermodynamic Solar System - ECO.

10
ECO
3.2. Technical features (x1 panel)
Technical Manual
English
Unit. 200i 250i 300i 200esm 250esm 300esm 200ix 250ix 300ix
HOT WATER CYLINDER
Dry Weight Kg 94 62 74 73 83 95 101 69 81
Capacity Kg 200 250 300 200 250 300 195 250 300
Internal Protection - Stain. Steel AISI1444 Enamelled Stain. Steel AISI1444
Cathodic Protection - Magnesium Anode
(1”1/4 Female) Impressed Current Anode Magnesium Anode
(1”1/4 Female)
Hydraulic
Joints
Water – Inlet and Outlet
inch
3/4” Male
TP Valve 1/2” Female
Recirculation 3/4” Male 1/2” Female
Coil – Inlet and Outlet Not Applicable 1” Male
Insulation - High density polyurethane 50mm
Maximum Pressure bar 7
Maximum Temperature °C 80
Heat Loss (EN 12897) kWh/24h 0,99 1,01 1,17 1,04 1,11 1,20 0,99 1,01 1,17
Exchanger Output Power1kW Not Applicable 0,72
THERMODYNAMIC
SOLAR PANEL
Material - Solokote Anodized Aluminium
Dimensions (L x W x H) mm 2000 x 800 x 20
Weight kg 8
Max. working pressure bar 12
Max. exposure temp. °C -40 |120
THERMODYNAMIC
BLOCK
Absorbed power (Med/Max) W 350 | 600
Thermal power (Med/Max) W 1250 | 2100
Electrical Backup Power W 1500
Refrigerant / Qt.* - / g R134a / 11002
Piping Material - Copper (DHP ISO1337)
Line (Liq. | Asp.) inch 1/4” | 3/8”
Power Supply V / Hz 220-240 / Monophase / 50
Fuse (Main | Elect. Heater) A 10 | 10
Working Temperature °C -5 | 45
Performance
Tapping Prole - L XL XL L XL XL L XL XL
Performance
Coecient
(COP) 3
Air 20C - 2,8 2,9 2,9 2,8 2,9 2,9 2,8 2,9 2,9
Air 70C - 3,1 3,2 3,3 3,1 3,2 3,3 3,1 3,2 3,3
Air 140C - 3,7 3,7 3,7 3,7 3,8 3,8 3,7 3,7 3,7
Energy
Eciency
ErP
Class
Air 20C - A A A A A A A A A
Air 70C - A+ A+ A+ A+ A+ A+ A+ A+ A+
Air 140C - A+ A+ A+ A+ A+ A+ A+ A+ A+
Energy
Eciency
Air 20C % 103 120 119 106 121 122 102 119 117
Air 70C % 115 130 137 119 132 138 113 127 135
Air 140C % 134 154 151 138 155 153 132 152 150
Annual
Energy Con-
sumption
Air 20C KWh/Year 969 1390 1411 965 1389 1401 970 1392 1410
Air 70C KWh/Year 865 1272 1272 862 1268 1222 868 1274 1230
Air 140C KWh/Year 743 1080 1111 743 1078 1107 747 1081 1112
Amount of water removed at 40°C lts 247 343 389 255 349 395 240 337 380
Factory Setpoint Temperature °C 53 53 53 53 53 53 53 53 53
Inside Sound Level dB 51 51 51 51 51 51 51 51 51
*The amount of uid must be checked by the installer. In some cases it is necessary to add or remove uid in order to ensure the
correct running of the system.
**According to EN16147, Delegated Regulation (EU) Nº 812/2013 and Delegated Regulation (EU) Nº 844/2013, for the three
climatic zones: colder (20C), medium (70C) and warmer (140C).

11
ECO
3.3. Technical features (2x panels)
Technical Manual
English
*The amount of uid must be checked by the installer. In some cases it is necessary to add or remove uid in order to ensure the
correct running of the system.
**According to EN16147, Delegated Regulation (EU) Nº 812/2013 and Delegated Regulation (EU) Nº 844/2013, for the three
climatic zones: colder (20C), medium (70C) and warmer (140C).
Unit. 250is 300is 200esms 250esms 300esms 250ixs 300ixs
HOT WATER CYLINDER
Dry Weight Kg 102 112 101 110 122 107 117
Capacity Kg 250 300 200 250 300 245 295
Internal Protection - Stain. Steel AISI1444 Enamelled Stain. Steel AISI1444
Cathodic Protection - Magnesium Anode
(1”1/4 Female) Impressed Current Anode Magnesium Anode
(1”1/4 Female)
Hydraulic
Joints
Water – Inlet and Outlet
inch
3/4” Male
TP Valve 1/2” Female
Recirculation 3/4” Male 1/2” Female
Coil – Inlet and Outlet Not Applicable 1” Male
Insulation - High density polyurethane 50mm
Maximum Pressure bar 7
Maximum Temperature °C 80
Heat Loss (EN 12897) kWh/24h 1,01 1,17 1,04 1,11 1,20 1,01 1,17
Exchanger Output Power1kW Not Applicable 0,72
THERMODYNAMIC
SOLAR PANEL
Material - Solokote Anodized Aluminium
Dimensions (L x W x H) mm 2000 x 800 x 20
Weight kg 8
Max. working pressure bar 12
Max. exposure temp. °C -40 | 120
THERMODYNAMIC
BLOCK
Absorbed power (Med/Max) W 595 | 890
Thermal power (Med/Max) W 2800 | 4550
Electrical Backup Power W 1500
Refrigerant / Qt.* - / g R134a / 11002
Piping Material - Copper (DHP ISO1337)
Line (Liq. | Asp.) inch 3/8” | 1/2”
Power Supply V / Hz 220-240 / Monophase / 50
Fuse (Main | Elect. Heater) A 15 | 15
Working Temperature °C -5 | 45
Performance
Tapping Prole - XL XL L XL XL XL XL
Performance
Coecient
(COP)**
Air 20C - 2,8 2,8 2,7 2,8 2,8 2,8 2,8
Air 70C - 3,1 3,2 3,0 3,1 3,3 3,1 3,2
Air 140C - 3,7 3,6 3,7 3,8 3,8 3,7 3,6
Energy
Eciency
ErP
Class
Air 20C - AAAAAAA
Air 70C - A+ A+ A+ A+ A+ A+ A+
Air 140C - A+ A+ A+ A+ A+ A+ A+
Energy
Eciency
Air 20C % 118 116 104 118 119 117 115
Air 70C % 129 135 117 130 136 128 134
Air 140C % 153 150 137 154 152 151 148
Annual
Energy Con-
sumption
Air 20C KWh/Year 1395 1415 968 1390 1405 1397 1417
Air 70C KWh/Year 1274 1289 864 1270 1225 1275 1291
Air 140C KWh/Year 1083 1112 744 1079 1109 1085 1114
Amount of water removed at 40°C lts 343 389 255 349 395 337 380
Factory Setpoint Temperature °C 53 53 53 53 53 53 53
Inside Sound Level dB 51 51 51 51 51 51 51

12
ECO
3.4. Main Components
3.4.1. General diagram of assembly
[1] Water storage heater
[2] Thermodynamic block
[3] Thermodynamic Solar Panel
[4] 6x Set of bolt (aluminium L-shaped, female, washer and
bushing)
[5] Copper pipes (not included)
[6] Expansion tank
[7] Safety device (7 bar)
[8] Pressure reduction valve
Technical Manual
English
1
3
5
678
2
4

13
ECO

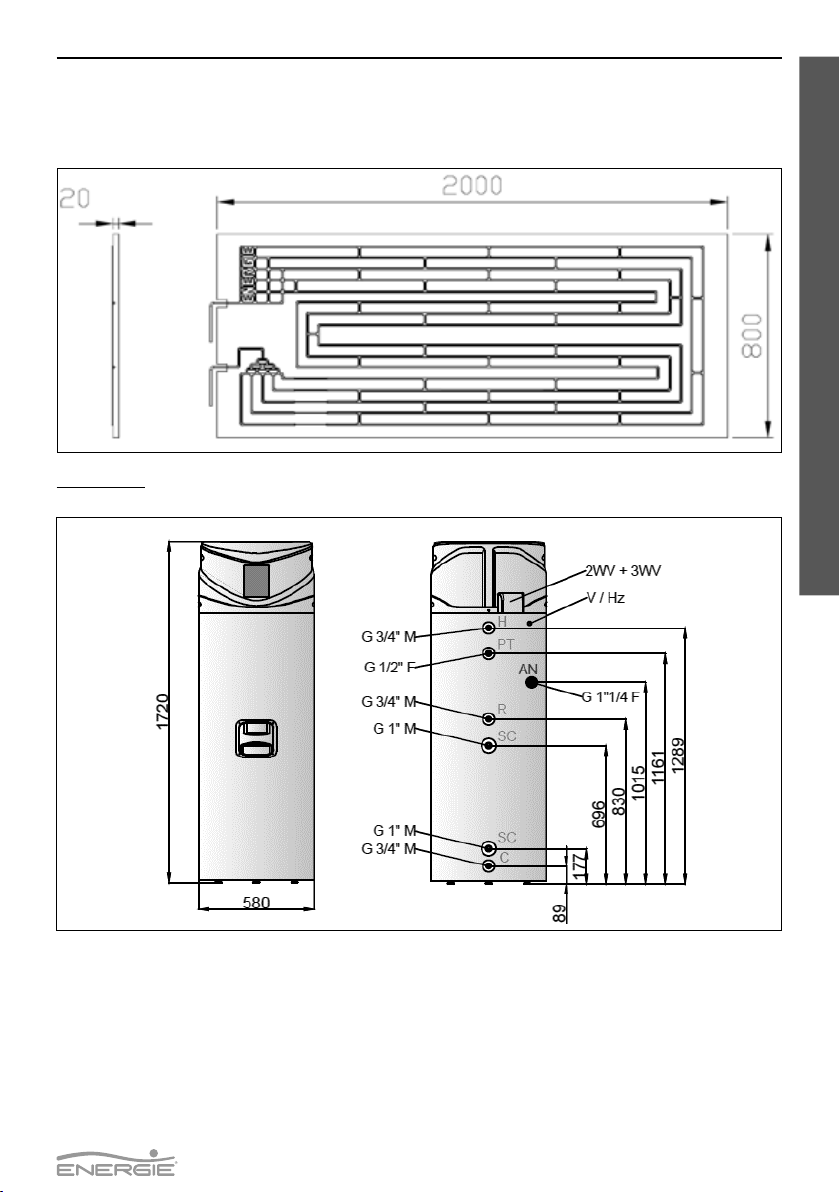

3.4.2. Dimensions
Technical Manual
English
Thermodynamic Solar Panel
Inside Unit
ECOTOP 200
[C] Cold water inlet
[SC] Support coil (model IX / ISX)
[R] Recirculation
[AN] Anode (Impressed Current or Magnesium)
[PT] TPR Valve (optional)
[H] Hot water outlet
[V/Hz] Power supply
[2WV/3WV] 2-way and 3 way valve (refrigerant
uid)

14
ECO Technical Manual
English
ECOTOP 250
ECOTOP 300
[C] Cold water inlet
[SC] Support coil (model IX / ISX)
[R] Recirculation
[AN] Anode (Impressed Current or Magnesium)
[PT] TPR Valve (optional)
[H] Hot water outlet
[V/Hz] Power supply
[2WV/3WV] 2-way and 3 way valve (refrigerant uid)
[C] Cold water inlet
[SC] Support coil (model IX / ISX)
[R] Recirculation
[AN] Anode (Impressed Current or Magnesium)
[PT] TPR Valve (optional)
[H] Hot water outlet
[V/Hz] Power supply
[2WV/3WV] 2-way and 3 way valve (refrigerant uid)

15
ECOTechnical Manual
English
3.4.3. Seal with features
[1] Model
[2] Production number
[3] Serial number
[4] Production date
[5] Volume
[6] Weight
[7] Max. tank pressure
[8] Max. water temperature
[9] Power Supply
[10] Protection index
[11] Liquid (type and quantity))
[12] Maximum power absorbed
Any contact with the installer or manufacturer must be accompanied by:
• Model;
• Serial number;
• Production number;
• Date of production.
The provision of these data will facilitate all communication and consequently a
faster and more correct response.

16
ECO Technical Manual
English
3.4.4. Thermodynamic Solar Panel
Left Panel
The solar panel is a roll-bond type plate
manufactured in double channel pressed
aluminium, with a post-press anodization
oxidation that creates a dark tone aspect.
There are two types of panels available: left
and right (designated according to side of
connections).
The panel has a standard dimension of
2000 mm x 800 mm x 20 mm.
The panel connections are Flare SAE
(threaded) type. These connections are
used only in the equipments with one panel.
• 3/8’’ Aspiration (upper part)
• 1/4’’ Liquid (lower part)
Right Panel
ODS (welded to panel)
3/8” are Male SAE
ODS (welded to panel)
1/4” are Male SAE
[1] Thermodynamic Solar Panel
[2] Aluminium L-shaped fastenings for attachment of Thermodynamic Panel (6x or 12x)
[3] Elements for attachment of Thermodynamic Panel
2
3
1

17
ECO
3.4.5. Cylinder + Thermodynamic Block
Technical Manual
English
1
2
[1] Thermodynamic Block
We call Thermodynamic Block to the equip-
ment set on a galvanized steel structure, that
contains two of the main elements for run-
ning the thermodynamic cycle: compressor
and expansion valve. The back section of the
block has two valves of 2 and 3 ways con-
ceived for connecting to the panel:
• ECOTOP one panel: 3/8’’- Aspiration;
1/4’’- Liquid
• ECOTOP two panels: 1/2’’- Aspiration;
3/8’’- Liquid
01
02
03
04
05
06
07
08
09
10
11
1 Solenoid Valve
2 Low pressure switch
3 Liquid Tank
4 2-Way Valve
5 3-Way Valve
6 Filter dehumidier
7 Unidirectional valve
8 Load / read Valve
9 Compressor
10 Thermostatic Expansion Valve
11 Electric / Electronic circuit box
[2] Storage water
The hot storage water heater is vertical and
rests on the oor. The tank is made of carbon
steel with enamel coating or in stainless steel
AISI444. The thermal insulation is of expand-
ed polyurethane with a thickness of 45 mm..
he storage water heater has a cold water
inlet, hot water outlet, DHW return and an
outlet for the expansion valve. It also comes
equipped with a magnesium anode in the up-
per section.
There is, in the central part of the storage wa-
ter heater, a anged opening for placing the
support resistance, as well as safety thermo-
stat and temperature probe.
12 Anode (Impressed Current or magnesium)
13 Anode cover
14 Immersion resistance
15 Resistance cover
12
13
14
15

18
ECO

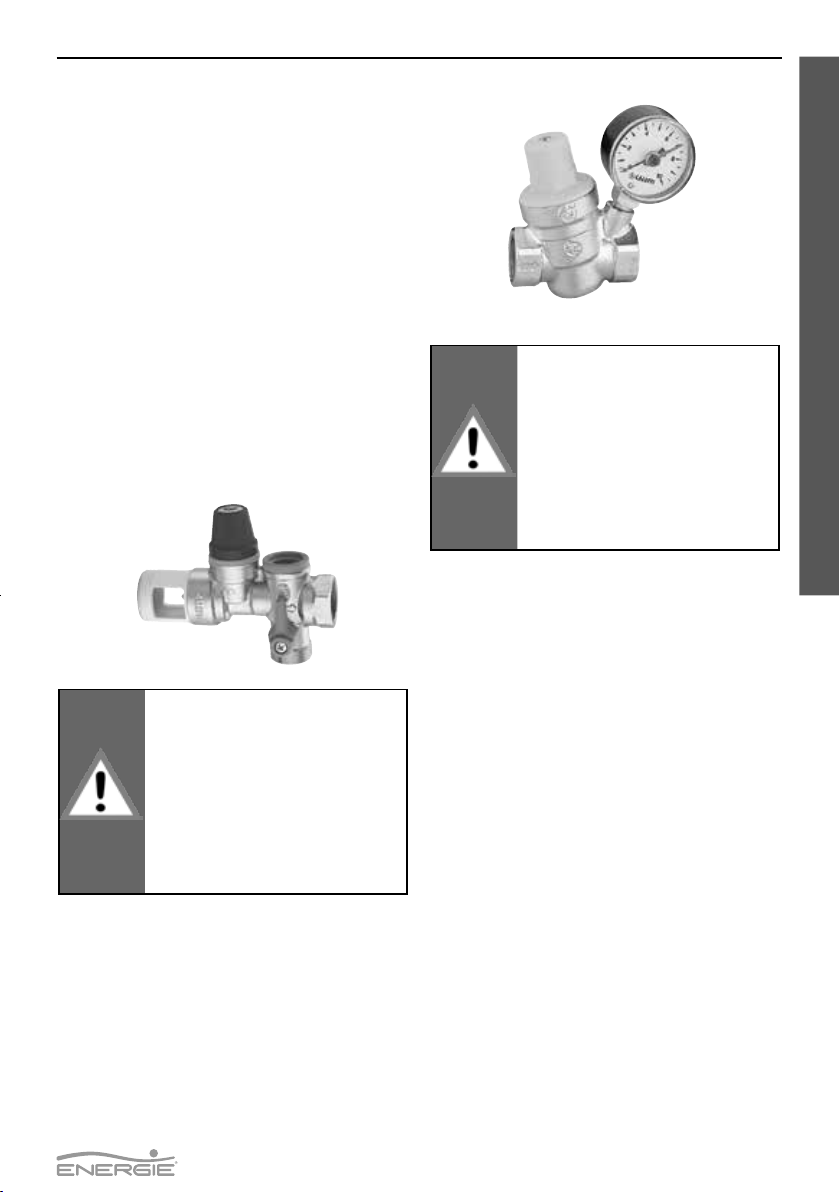

3.5. Safety and Control Devices
3.5.1. Pressure gauge of high/low
pressure
In case of running outside the range of
pressures recommended and dened by
the supplier, the equipment will switch o
and indicate error in the electronic panel.
3.5.2. Safety Thermostat
The safety thermostat is set by the suppli-
er to ensure that the water temperature in
the storage water heater does not exceed
the standard value. Should the temperature
exceed this value, the thermostat switches
o the support resistance. Switching on is
done manually by qualied sta, after ana-
lysing the reasons for the switch o.
3.5.3. Temperature Sensor
The temperature sensor has the purpose
of measuring the values of temperature of
water in the storage water heater in order
to control the thermodynamic solar system.
The R134a is a HFC coolant, thus not harm-
ful to the ozone layer. It has great chemical
and thermal stability, low toxicity, non-in-
ammable, and is compatible with most
materials.
The following graphic depicts the behaviour
of pressure according to temperature vari-
ation.
3.4.6. Cooling Fluid
Technical Manual
English
3.5.4. Protection against corrosion
The storage water heater in this equipment
can be of two types: Stainless steel or Enam-
elled.
Besides being resistant to corrosion, the stor-
age water heater has in addition a magnesi-
um anode that should be checked periodical-
ly according to information by the installer.
3.5.5. Dielectric Joint (except
stainless steel tank)
Your equipment contains two dielectric joint.
These joints prevent electron exchange be-
tween the pipes of water inlet and outlet and
the storage water heater itself. This creates
further protection against corrosion that
could take place between these points.
T(0C) P (bar)
-20 0,33
-15 0,64
-10 1,00
-5 1,43
0 1,92
5 2,49
10 3,13
15 3,90
T(0C) P (bar)
20 4,70
25 5,63
30 6,70
35 7,83
40 9,10
45 10,54
50 12,11
55 13,83
C
B
A
So the installer must tighten the joints (A)
in the water inlet and outlet (B), be fore at-
taching the piping (C).
3.5.6. Expansion Vessel
The expansion vessel is a device whose pur-
pose is to compensate for the increase in
water volume due to temperature rise.
Installing this device is recom-
mended procedure for a correct
installation of the equipment.
Installing this device is the re-
sponsibility of the installer.
As a general rule it is installed in
the cold water pipe.

19
ECO
3.5.7. Safety Device
The safety device allows the system to be
protected against anomaly situations: cold
water supply, hot water owing back, em
tying the storage water heater and high
pressure. The valve is calibrated to activate
at 0.7 Mpa.
In order to drain the water in the storage
water heater, you should close the supply
valve and open the discharge valve.
The safety valve discharge pipe must be
open into the atmosphere, because the va
ve may drip water or even discharge water.
The safety valve must be opened regular-
ly to remove impurities and check that it is
not blocked. The discharge pipe must be in-
stalled in a vertical position.
Technical Manual
English
The installation of the safety
group ought to take into ac-
count the correct direction of
the hydraulic ow.
The correct direction is repre-
sented by an arrow on the com-
ponent itself.
An incorrect installation rep-
resents a danger to both the
equipment and personnel.
DANGER
3.5.8. Pressure Reducing Valve
The pressure reducing valve must always be
installed upstream from the safety device,
and ready to activate in situations when the
pressure in the circuit exceeds 3 bar.
This valve comes with a pressure gauge.
4. INSTALLATION
Assembly sequence:
• Solar panel
• Storage water heater
• Thermodynamic block
• Cooling connection (aspiration, liquid)
• Hydraulic connections
• Electric connections
• Nitrogen load
• Vacuum
• Installation start-up
4.1. Attachment of Panel
The nature of the site and the inclination an-
gle where the panels are installed are impor-
tant factors to take into account. In order to
benet the most from the sunlight exposure,
the panels.
Should have a pitch between 100and 850rel-
ative to the horizontal plane, and preferably
oriented to the south.
The panel already comes with 6 holes for M8
in the lateral skirts. The distance between
holes in the place where the panel rests,
should coincide with the holes made in the
panel.
The installation of the pressure
reducing valve ought to take
into account the correct direc-
tion of the hydraulic ow.
The correct direction is repre-
sented by an arrow on the com-
ponent itself.
An incorrect installation rep-
resents a danger to both the
equipment and personnel.
DANGER

20
ECO Technical Manual
English
The attachment to at least 6
points (3 higher points and 3
lower points) is mandatory!
The lack of at least one of these
points may cause deformations
in the panel and in some cases
the panel’s displacement from
the installation site.
WARNING
A - Liquid inlet
B - Vapour outlet (aspiration)
B
A

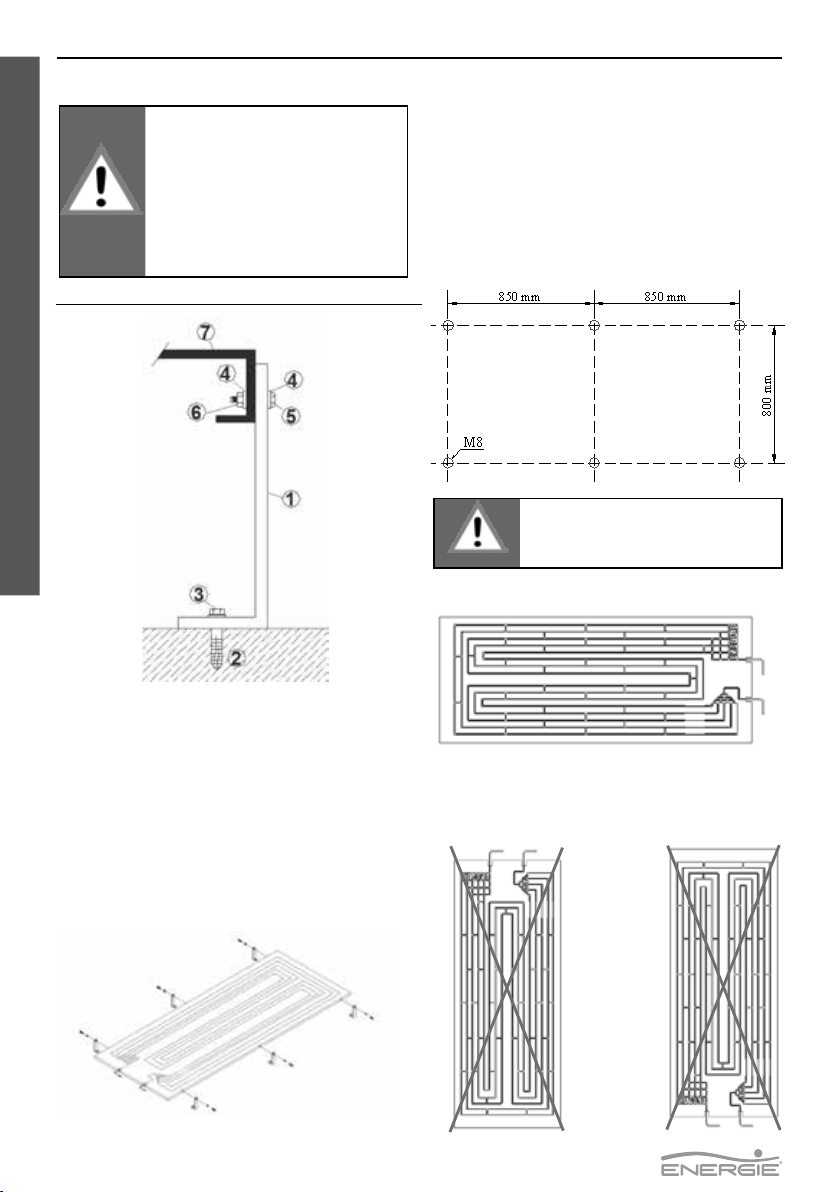

The system comes with 3 small L-shaped fas-
tenings (side A) and 3 large L-shaped fas-
tenings (side B) that should be attached as
depicted in the picture. The desired pitch of
the panel should be adjusted.painel.
The prole should be attached to the base
(e.g. rooftile) through a plastic bushing and
a self-thread M6 bolt which have been sup-
plied.
The attachment of the panel to the L-shaped
fastenings is done through M6 bolts and its
females and washers.
Attachment of L-shaped fastenings and panel:
[1] Aluminium L-shaped fastening
[2] Plastic Bushing
[3] Self-thread bolt M6x40
[4] Washer M6
[5] Bolt M6x20
[6] Nut M6
[7] Panel
The panel must be installed fac-
ing down, the connections must
be turned down.
WARNING
