ENERGY SISTEM Xperience1000 User manual

TABLE OF CONTENT page
Warning & Importance 1
General Information 2
1. Disc information 2
2. Select a DVD disc 3
3. Care of disc 4
Preparation
1. Unpack the unit 5
2. Loading batteries into the Remote Control 5
System Connections
1. Connecting to TV set 6
2. Connecting to TV & Stereo Amplifier 7
3. Connecting to 5.1 channels Amplifier 8
4. Connecting to a AC3 or DTS Decoding Amplifier 9
Panel Description
1. Front Panel 10
2. Rear Panel 10
3. Remote Control 11
Getting Start
1. Play a Disc 12
2. Picture Setup 13
3. General Setup 14
4. Speaker Setup 16
5. Audio Setup 18
6. Preference Setup 20
JPEG, MP3, DIVX Format 22
Basic Operation 25
Function Buttons 27
Troubleshooting 32
Specification 34

WARNING
TO REDUCE THE RISK OF FIRES AND ELECTRIC SHOCKS, DO NOT EXPOSE THIS
UNIT TO RAIN OR MOISTURE
CAUTION: To reduce the risk of fires and
electric shock, do not remove the cover of the unit.
Refer servicing only to qualified person
This lighting flash arrow symbol in a triangle is intended to alert users to
the presence of non-insulated high voltage within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of electric shock
to person
The exclamation point symbol in a triangle is intended to alert users to
the presence of important operating and maintenance instructions in the
literature accompanying the unit
The marking of products using lasers. The marking will be shown at the
rear panel of the unit, means the unit have been classified as Class 1,
and are utilizing laser beams that are of weaker class. There is no
danger of hazardous radiation outside the unit
REFER SERVICING ONLY TO QUALIFIED SERVICE PERSON
IMPORTANCE
 Read through this instruction manual before installation and use.
 Do not touch the power plug with wet hand.
 When disconnecting the power cord from the power outlet, hold the plug, do not pull the wire.
 Switch off the main power when the unit is not in use. (Disconnect the power plug from the power outlet
when you do not intend to use the unit for a prolonged period of time.)
 Before moving the unit, remove the disc from the unit’s tray first.
 Do not open the cover or touch any of the components inside the unit.
 Do not install or operate the unit direct exposed to sunlight or nearby objects radiating heat that may lead to
overheat and dangerous to the unit.
 Do not install or operate the unit to moisture or humidity that may affect the laser head.
 Install the unit on flat surface with good air circulation. Do not cover the ventilation holes on the unit by
any kind. Otherwise, the unit would possibly overheat and malfunction.
 Wipe the panel and case with soft dry cloth only. Do not apply any kind of thinner, alcohol or sprays when
the cleaning of the unit.
1



RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION

GENERAL INFORMATION
This unit can play the following types of disc:
DVD single side / double sides
single layer / double layers
DivX Ver. 3.11 / 4.xx / 5.xx
CD-DA
MP3
CD-R
CD-RW
Photo CD (JPEG)
1. DISC INFORMATION
Disc types DVD VCD DIVX CD
Recording
method
Digital / MPEG II Digital / MPEG I MPEG 4 Digital
Capacity Single layer
Single side
4.7GB = 2 hr
Single layer
Double sides
8.5GB =4 hr
650MB
74min
650MB 650MB
74min
Disc size 12cm / 8cm 12cm 12cm / 8cm
Horizontal
Resolution
500 lines up 240 lines up -
Sub-titles 32 - - -
Sound tracks 8 2 - -
Symbol 
2
COMPACT
DIGITAL AUDIO

2. SELECT A DVD DISC
 DVD discs and DVD players are manufactured under the worldwide agreed DVD Regional Code System that
the player will operate only with corresponding disc of the same Regional Code.
 DVD Regional Code:
Regional Code Region
1Canada, USA
2Europe (incl. Poland, Romania, The Czech republic), Japan,
Middle East (incl. Saudi Arabia, Egypt, Iran, South Africa)
3 East Asia (incl. Hong Kong, Taiwan, South Korea), Southeast
Asia
4 Australia, Caribbean, Central & South America, Mexico, New
Zealand
5 Africa, Former Soviet Union, India, North Korea, Pakistan,
Turkmenistan
6China
 Features of a DVD disc:
Each DVD disc contains different combinations of features depending on the design and production of the
disc. The following symbols representing some DVD features:
Regional Code / Video Output System
Dolby Digital Surround
DTS Digital Surround
Number of audio Tracks
Number of Sub-titles
Screen modes
Child Lock
Number of Angles
3
2
NTSC
DOLBY
D I G I T I A L
2
2
16 : 9
L B
R E STR I C TE D
2

3. CARE OF DISC
 Video disc contains high density compressed data that needs proper handling.
 Hold the disc with fingers, holding the hole at center and the edge, do not touch the disc
surface.
 Do not bend or press the disc, do not explore the disc to direct sunlight or heating source.
 Store discs in cabinet, vertically, in dry condition, prevent moisture or humidity.
 Clean the disc with soft dry cloth only, wipe gently, radically, from center to the edge. Do
not apply thinner, alcohol or sprays when cleaning.
4
REMARK
Some features of this unit are relating to the DVD disc’s software. Some
features of this unit cannot be preformed if the disc does not support
the features, or required special settings. Check the features of the disc
before playing it, or follow the instruction on screen menu of the disc.

PREPARATION
1. UNPACK THE UNIT
The standard packing contains the following items:
 The DVD player unit.
 Infra red remote controller
 AV Cables
 Two AAA batteries
 User’s instruction manual
2. LOADING BATTERIES INTO THE REMOTE CONTROL
 Remove the battery compartment cover.
 Load two AAA batteries into the battery compartment.
 Make sure that the batteries have been inserted in the right polarities matching to the symbols +, - as
indicated in the battery compartment.
 When replacing batteries, replace both batteries. Do not mix new and used batteries operating together;
otherwise, the operation lifetime will be much shorter than normal.
 Do not dispose batteries as normal rubbish. Be environment friendly, dispose batteries according to the
Government’s regulation.
 Remove the batteries if you do not intend to use the unit for a prolonged period of time.
5

SYSTEM CONNECTIONS
1. CONNECTING TO TV SET
6
DO NOT connect the AC power socket
to the wall outlet before the system
connection completed

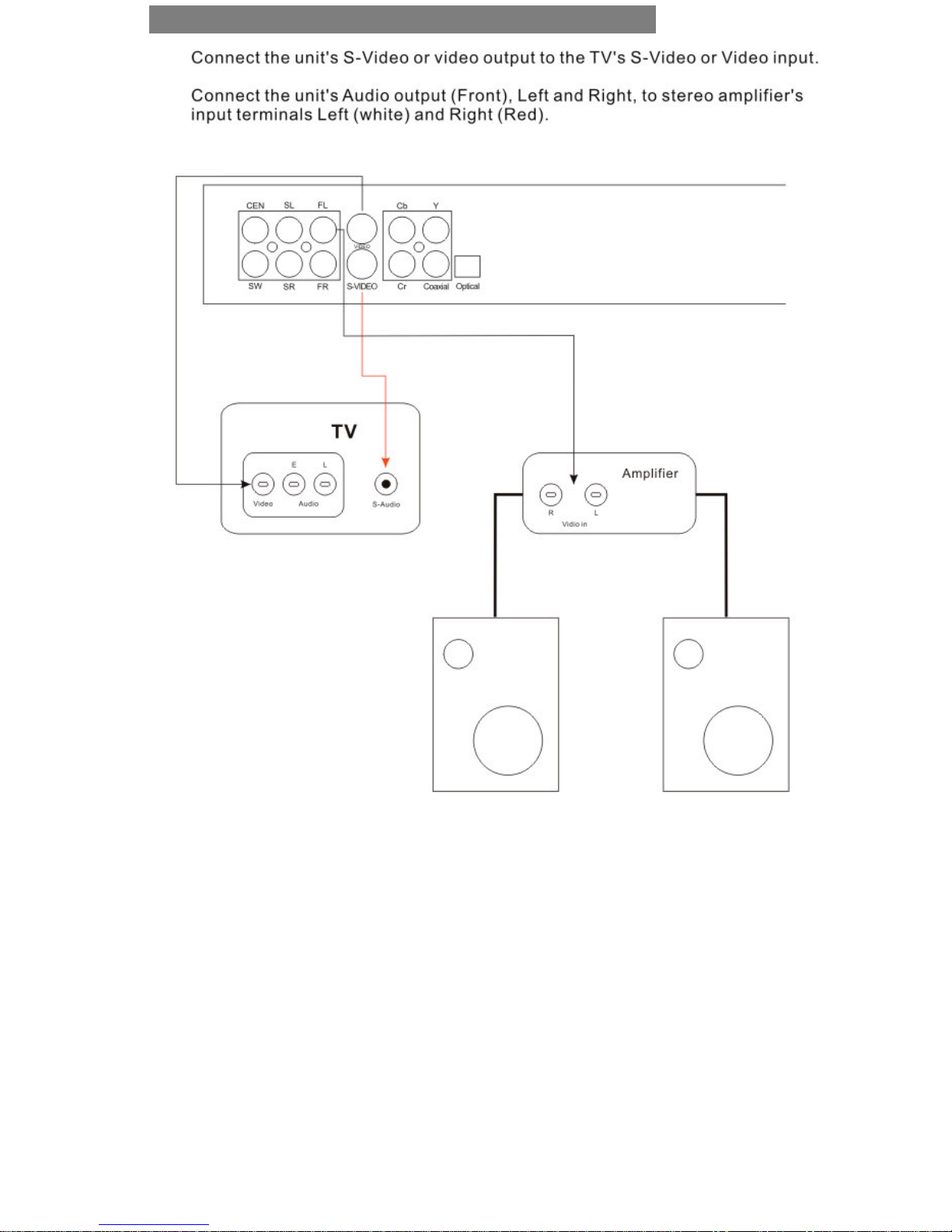

2. CONNECTING TO TV & STEREO AMPLIFIER
7

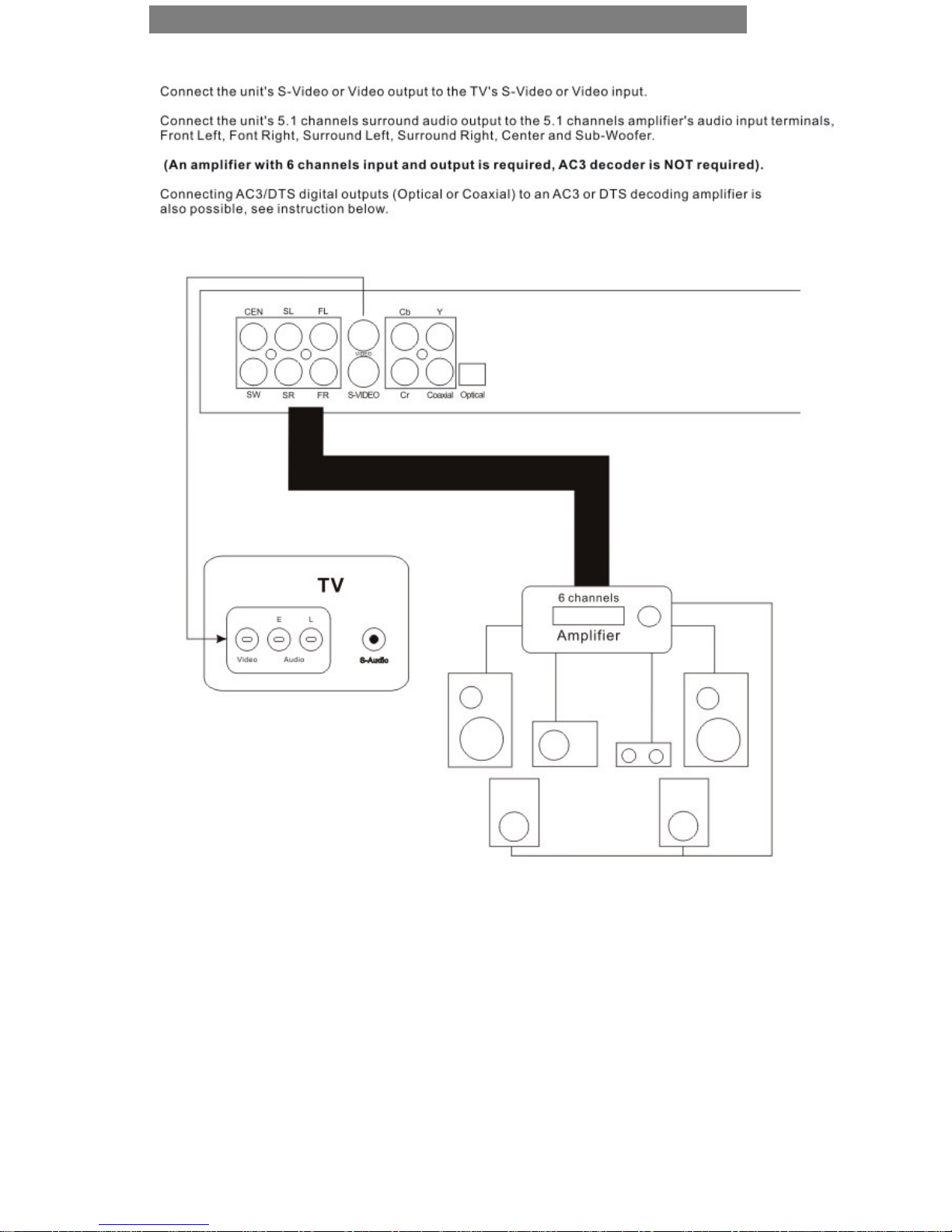

3. CONNECTING TO 5.1 CHANNELS AMPLIFIER
8

4. CONNECTING TO AC3 OR DTS DECODING AMPLIFIER
9

PANEL DESCRIPTION

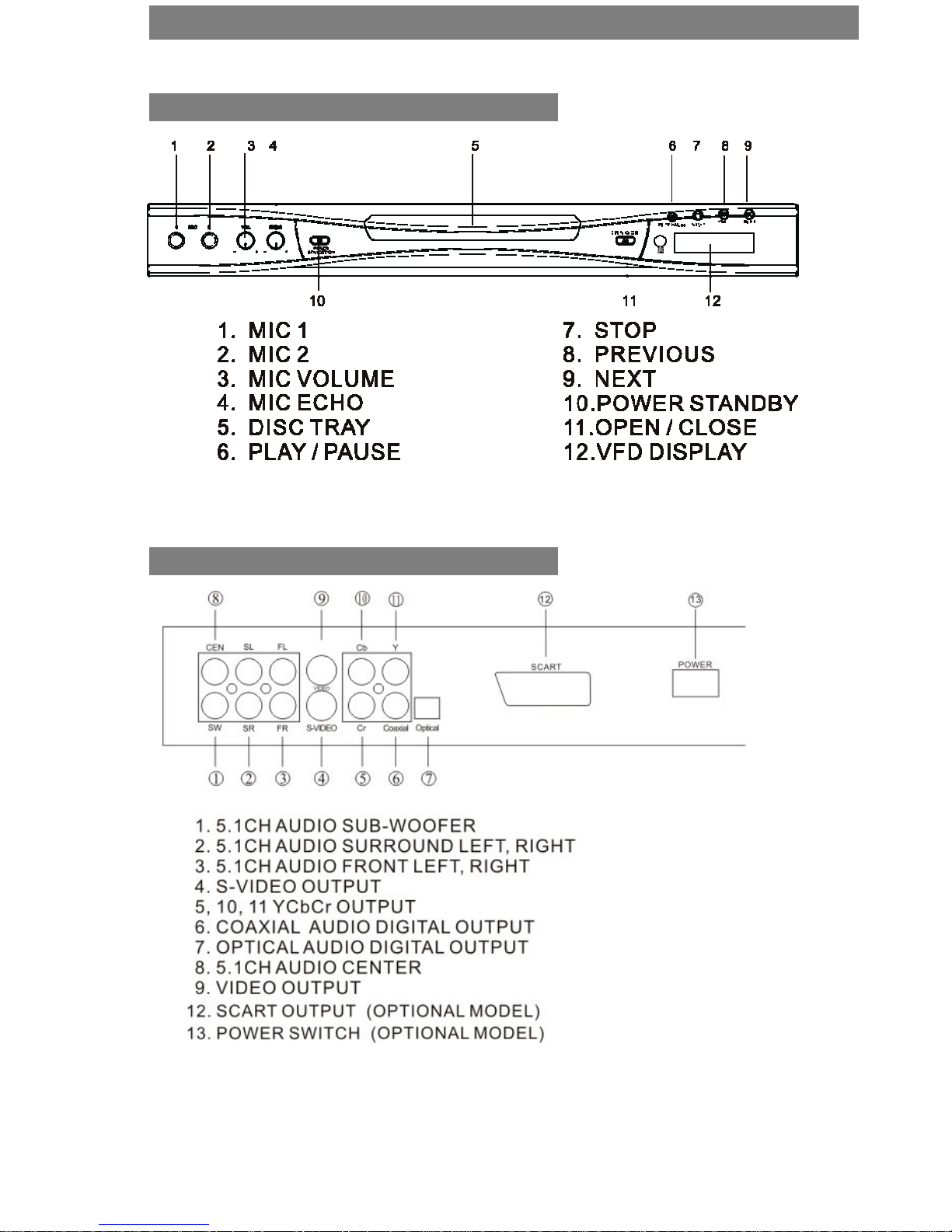

1. FRONT PANEL
2. REAR PANEL
10

3.TELEMANDO
1. POWER 17. OPEN/CLOSE
2. NUMERIC KEYS 18. GOTO
3. PROGRAM 19. STOP
4. PREVIOUS 20. SEARCH FORWARD
5. STEP 21. NEXT
6. PREVIOUS 22. PLAY
7. SETUP 23. SLOW
8. ENTER 24. DISPLAY
9. MENU 25. CURSOR
10. ANGLE 26. ZOOM
11. VIDEO 27. REPEAT
12. PBC 28. REPEAT A – B
13. L/R 29. RETURN
14. AUDIO 30. VOL +
15. SUBTITLE 31. MUTE
16. SHUFFLE (RANDOM) 32. VOL -
11

GETTING START
 Read through this instruction manual.
 Unpack the unit.
 Load batteries into the remote control.
 Connect the unit, make sure the connections are correct.
 Connect the power socket to wall outlet, power on the system.
 Check the setting of the unit, TV and amplifier are correct and matching.
1. PLAY A DISC
 Switch on the power
Switch on the main power switch on the unit’s front panel, and switch on the TV set, and the amplifier if
connected.
 Set the system
Select the corresponding setting of the unit, TV set (AV or S-Video) and the amplifier, until the power on screen
shows.
 Load a disc
Press the “OPEN” button on the front panel or on the remote control, to open the disc tray. Load a disc
into the tray and press the “OPEN” button again to close the disc tray. (Note: place the disc’s label side
up, blank side down. Prevent upside down)
 Automatic Play
The unit will take several seconds to read the disc data, display the disc type logo at the left upper corner of the
TV screen, and start playing automatically.
(Normally, MP3 disc would take longer time to upload the data when loading)
 If a Disc Menu displayed on the screen:
1. Press the  button to start playing, or
2. Press button on the remote control to select the desired item and then press ENTER button to
confirm.
 Different kind of Disc Menu would be displayed on screen depending on the design and production of the disc.
12

2. PICTURE SETUP
13
If the above problem happened:
1. Set the TV set’s system to the proper setting, or
2. Change the DVD unit’s output system “TV Type” settings in ‘Preference’ of ‘General
Setup’ menu
If the above DO NOT fix the problem, see TROUBLESHOOTING or
contact with us in [e-mail]
The unit’s TV output color is selectable to PAL or NTSC
IMPORTANT
If the TV set is NOT multi-system, and the following happened, it could be
a result of wrong color system matching with the TV set:
 Picture is distorted
 Picture is black and white, no color.
 Picture is not full screen, or border part of picture bas been blocked.

3. GENERAL SETUP
1. Pressing the SETUP button on remote control during STOP or PLAY mode to SETUP MENU.
2. Using Cursor to select GENERAL SETUP. Press ENTER to enter GENERAL SETUP page.
TV DISPLAY
Using cursor to move to desired setting and
press ENTER to confirm.
NORMAL/PS – 4 x 3 Pan Scan
Full screen of picture on TV. Normally, left and
right edges cannot be shown.
NORMAL/LB – 4 x 3 Letter Box
Orginal ratio of aspect.
WIDE – 16 : 9 Widescreen
PIC MODE (PICTURE MODE)
( FOR PROGRESSIVE-SCAN MODEL )
ANGLE MARK
This feature is functioned only for the disc, which
has ANGLE function.
 When the ANGLE MARK is set ON, the screen
displays the mark.
 When the ANGLE MARK is set OFF, the mark is
not displayed.
14
SETUP MENU - MAIN PAGE
GENERAL SETUP
SPEAKER SETUP
AUDIO SETUP
PREFERENCE
EXIT SETUP
TV DISPLAY
PIC M O DE
ANG LE M A RK
OSD LANG
CAPTIO NS
SCR SAVER
M AIN PAG E
-- GENERAL PAGE --
TV DISPLY
PIC M ODE
ANGLE M ARK
ON
OSD LANG
OFF
CAPTIONS
SCR SAVER
MAIN PAGE
-- GENERAL PAGE --
TV DISPLAY
NORM AL P/S
PIC M ODE
NORM AL L/B
ANGLE M ARK
W ID E
OSD LANG
CAPTIONS
SCR SAVER
MAIN PAGE
-- GENERAL PAGE --
TV DISPLAY
PIC M ODE
AUTO
ANGLE M ARK
FILM
OSD LANG
VIDEO
CAPTIONS
SMART
SCR SAVER
SUPER SMART
MAIN PAGE
-- GENERAL PAGE --
TV DISPLAY
PIC M ODE
AUTO
ANGLE M ARK
HI-RES
OSD LANG
NON-FLICKER
CAPTIONS
SCR SAVER
MAIN PAGE
-- GENERAL PAGE --

OSD LANG (ON SCREEN DISPLAY LANGUAGE)
 ENGLISH or CHINESE can be selected
CAPTIONS
 The hidden subtitle is shown during ON
 The hidden subtitle is closed during OFF
SCR SAVER (SCREEN SAVER)
 When the unit is stopped, no operation, no function
button is pressed in 1 minute, screen saver appears
for the purpose to protect the TV screen if SCR
SAVER is set ON.
15ISDF
15
TV DISPLAY
PIC M ODE
ANGLE M ARK
OSD LANG
ENGLISH
CAPTIONS
CHINESE
SCR SAVER
MAIN PAGE
-- GENERAL PAGE --
TV DISPLAY
PIC M ODE
ANGLE M ARK
OSD LANG
CAPTIONS
ON
SCR SAVER
OFF
MAIN PAGE
-- GENERAL PAGE --
TV DISPLAY
PIC M ODE
ANGLE M ARK
OSD LANG
CAPTIONS
ON
SCR SAVER
OFF
MAIN PAGE
-- GENERAL PAGE --

4. SPEAKER SETUP
DOWNMIX
 LT/RT : Left and Right output mode
 STEREO : Stereo output mode
 OFF : Turn off the Downmix mode. 5.1 channels can be preformed only if Downmix is set OFF and
the rest of other setup can be activated.
CENTER REAR
SUBWOOFER
16
SETUP MENU - MAIN PAGE
GENERAL SETUP
SPEAKER SETUP
AUDIO SETUP
PREFERENCE
EXIT SETUP
DOW N MIX
LT/RT
CENTER
STEREO
REAR
OFF
SU BW OOFER
CNTR DELAY
REAR DELAY
TEST TONE
MAIN PAGE
-- SPEAKER SETUP PAGE --
DOW NM IX
CENTER
ON
REAR
OFF
SUBW OO FER
CNTR DELAY
REAR DELAY
TEST TO NE
MAIN PAGE
-- SPEAKER SETUP PAGE --
DOW NM IX
CENTER
REAR
ON
SUBW OO FER
OFF
CNTR DELAY
REAR DELAY
TEST TO NE
MAIN PAGE
-- SPEAKER SETUP PAGE --
DOW NM IX
CENTER
REAR
SUBWOO FER
ON
CNTR DELAY
OFF
REAR DELAY
TEST TONE
M AIN PAGE
-- SPEAKER SETUP PAG E --

CNTR DELAY
 Adjust the audio delay from center channel from 0
to 5MS.
REAR DELAY
 Adjust the audio delay from rear channel from 0 to
15MS.
TEST TONE
 ON : open the 5.1 channel test function.
 OFF : turn off the 5.1 channel test function.
17
DOW NM IX
CENTER
REAR
SUBWOO FER
5M S
CNTR DELAY
REAR DELAY
3M S
TEST TONE
1M S
M AIN PAGE
OFF
-- SPEAKER SETUP PAG E --
DOW NM IX
CENTER
REAR
SUBWO O FE R
15M S
CNTR DELAY
REAR DELAY
9M S
TEST TO NE
3M S
M AIN PAGE
O FF
-- SP EA KER S ET UP PAG E --
DOW NM IX
CENTER
REAR
SUBW OO FER
CNTR DELAY
REAR DELAY
ON
TEST TO NE
OFF
MAIN PAGE
-- SPEAKER SETUP PAGE --

5. AUDIO SETUP
 OFF: Audio signal is out from AUDIO OUT (RCA) jacks.
 SPDIF/RAW: The player is connected to a Dolby Digital amplifier through DIGITAL OUT Coaxial or
Optical jack.
 SPDIF/PCM: The player is connected to a 2-channel digital mode or stereo amplifier through Coaxial
or Optical jack.
OP MODE
 LINE OUT : Line out mode with digital dialog
normalization, compress input linear signal.
 RF REMOD : RF remodulation mode with heavy
compression and digital dialog normalization.
DUAL MONO
 Output mode of the L/R signals. Mix-mono can be
functioned only if the DVD is playing in 5.1 channel.
18
SETUP MENU - MAIN PAGE
GENERAL SETUP
SPEAKER SETUP
AUDIO SETUP
PREFERENCE
EXIT SETUP
SPDIF OUTPUT
OFF
OP M ODE
SPDIF/RAW
DUAL MO NO
SPDIF/PCM
COM PRESSION
PRO LOGIC
LPCM OUTPUT
MAIN PAGE
-- AUDIO SETUP PAGE --
SPDIF OUTPUT
OP M ODE
LINE OUT
DUAL MO NO
RF REMO D
COM PRESSION
PRO LOGIC
LPCM OUTPUT
MAIN PAGE
-- AUDIO SETUP --
SPDIF OUTPUT
OP M ODE
DUAL MONO
STEREO
COM PRESSION
L-M ONO
PRO LOGIC
R-M ONO
LPCM OUTPUT
MIX-M ONO
MAIN PAGE
-- AUDIO SETUP --
