Energy TDT HD 3 User manual

Manual de usuario / User manual / Manuel de l’utilisateur
MULTIMEDIA HD DVB-T
ENERGY
TDT HD 3

27
User manual

29
1.INTRODUCTION
Thank you for purchasing this Energy™ TDT HD 3 . First of all, welcome to the Energy HD DVB-T
receivers world. The following sections provide an overview of your new device and its basics
features. Please read everything carefully before start using the product.
2.IMPORTANT SAFETY INSTRUCTIONS
To ensure your safety and the safety of others, please ensure that you read all the safety informa-
tion before operating this product.
Keep this information in a safe place for future reference.
This symbol indicates that this product incorporates double insulation between hazardous
mains voltage and user accessible parts.
WARNING: To reduce the risk of fire or electric shock, do not expose your TDT HD 3 to rain or
moisture.
SAFETY CONSIDERATIONS.
≥Position the cables so that they cannot be walked on or pinched by items placed on or against
them.
≥Do not remove the cover or back. There are no user-serviceable parts inside. Refer servicing to
qualified personnel.
≥Do not expose your TDT HD 3 to water (dripping or splashing).
≥No objects filled with liquids, such as vases, should be placed on the unit.
≥Keep the product away from direct sunlight and heat source such as radiators or stoves.
≥Do not place the product on unstable cart, stand, tripod, bracket or table. The unit may fall,
resultinginpossibledamageorinjury.
≥Do not let the device drop or shock.
≥Only use the AC adapter included with product. Using any other adapter will void your warranty.
≥We recommend you to unplug the power from the outlet when the unit is not in use.

30
VENTILATION
The slots and openings on the set top box are for ventilation. Do not cover or block them as it may
cause overheating. NEVER let children push anything into the holes or slots on the case.
SERVICING
There are no user serviceable parts in this DVB-T receiver.
BATTERY DISPOSAL
Please ensure batteries are disposed of safely.
Never dispose of batteries in a fire or with other household waste.
Check with your local authority for disposal regulations.
CLEANING
ALWAYS turn off your TDT HD 3 before cleaning it.
Do not use liquid or aerosol cleaners.
Clean your TDT HD 3 with a soft, damp (not wet) cloth.
TDT HD 3 handling and care
Place the product in a well-ventilated area Don’t install it in the cold or under direct sunlight
Leave a minimum 10cm gap all around the product Donotdisassemble,repair,
orreorganize the product
Don’t place cups with water or other liquids
on the top of the product Don’t place objects on the top of the product

31
3.GENERAL VIEW
3.1. FRONT PANEL
1. STANDBY INDICATOR: Used to visually show power state of the set top box, the green LED will
be
light if turned on the set top box and the red LED will be light if the set top box entered standby mode.
2. REMOTE CONTROL SENSOR: Used to receive the signal from the remote control.
3.2. SIDE PANEL
3. USB CONNECTOR: Used to connect an external device, play files or make MPEG-2 DVB-T
broadcasting recordings.
3.3. REAR PANEL
1. RF IN: This socket connects to your external aerial.
2. COAXIAL: This output connects to a coaxial socket on your surround sound system.
3. HDMI OUT: This output connects to a HDMI in device.
4. SCART OUT: This output connects to your TV.
Note: There is no video output from SCART if the HDMI output is connected to the TV.
5. DC IN 5V: Used to connect the 5V DC adapter.
1 2 3
3
4 5
1 2
1 2 3
3
4 5
1 2
1 2 3
3
4 5
1 2

32
4.REMOTE CONTROL
BUTTON DESCRIPTIONS
1. MUTE: Mute or restore audio output.
2. INFO:Displaysadditional channel information.
3. TTX: Displays Teletext information.
4. SUBTITLE: Selects subtitleslanguage.
5. EXIT: Exits the current menu or returns to the previous menu.
6. OK: Confirms an entry or selection. Displays the list of
channels.
7. VOL+ / VOL-: Navigates through the menus. Increases or
decreasesvolume.
8. TV/RADIO: Switches from TV function to Radio function and
from Radio to TV.
9. RECALL: Used to switch between the last two viewed
channels.
10. GOTO: Jumps to a desired playback time.
11. PREV: Skips to the previous track during media playback and
skips to the previous channel during DTV playback.
12. NEXT: Skips to the next track during media playback and
skips to the next channel during playing DTV playback.
13. REPEAT: Selects repeat mode or turns it off.
14. STOP: Stops mediaplayback.
15. STANDBY: Switch the device to on or standby mode.
16. EPG (Electronic Program Guide): Turns the program guide on.
17. AUDIO: Selects an audio track or audio mode.
18. CH+ / CH-: Navigates through the menus. Selects the next or
previouschannel.
19. MENU:Displaysthe mainmenu.
20. FAVOURITE: Displaysthefavouriteschannelsmenu.
21. 0-9 (Numeric Buttons): Selects a channel or setting.
22. FWD:Searchesforwardsduring mediaplayback.
23. REV: Searchesbackwards duringmedia playback.
24. PLAY:Startsor resumes mediaplayback.
25. PAUSE: Pauses mediaplayback.
26. COLOUR BUTTONS: Operate different function in TEXT
screen.
27. LIST: Show the recorded programs list.
28. REC: Record the program manually.
OK
MUTE
TTXINFO
FWD
EPG
CH+
CH-
FAVOURITE
GOTO
REV
STANDBY
RECALL
PREV NEXT
TV/RADIO
MENU EXIT
PAUSE STOP REPEAT
SUBTITLE
AUDIO
PLAY
VOL+VOL-
1 2 3
4 5 6
7 8 9 0
REC
PVR
LIST
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
Note:TheTEXT,SUBTITLES, AUDIOavailability
dependson thebroadcastingchannels.

33
INSTALLING THE BATTERIES

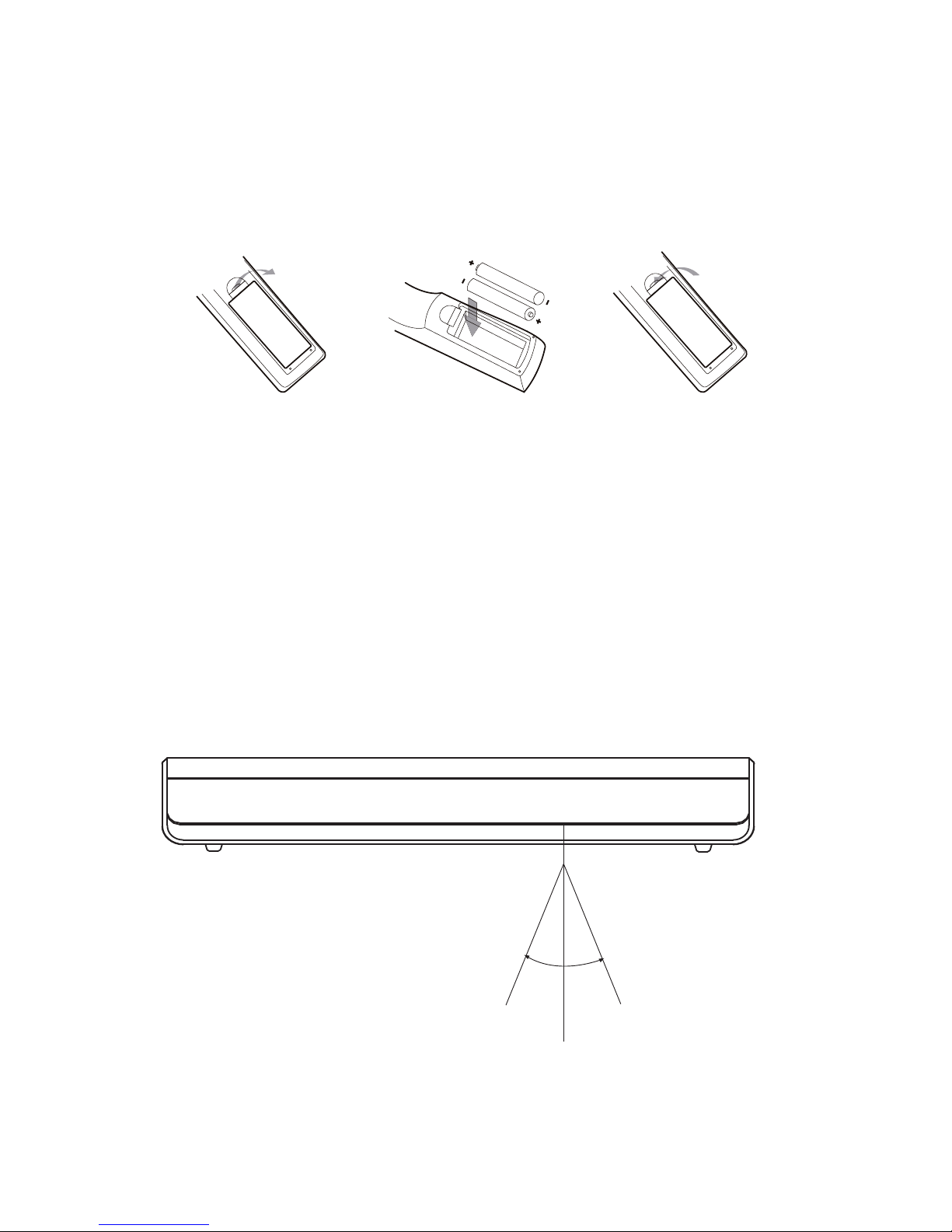

Remove the battery cover from the remote control and put 2xAAA size batteries inside the
compartment. The following diagram shows the correct way to insert batteries.
OP EN
CL OSE
1. Open the cover 2. Install batteries 3. Close the cover
≥Keep batteries out of reach of children. If someone swallows a coin cell or battery must receive
immediate medical attention.
≥Do not attempt to reactivate the batteries using heat, loading, or by other means. Never dispose
of batteries in fire, or disassemble or short circuit. Replace batteries at least once a year to
avoid spillage.
≥Replace both batteries at the same time and replace them with the same type.
≥When not using the remote control for a long time, remove the batteries
USING THE REMOTE CONTROL
To use the remote control, point it towards to the IR receiver.
The remote control has a range of 7 metres from the receiver at an angle of 60 degrees.
The remote control will not work if the way to the receiver is blocked.
Sunlight or other very strong light will decrease the sensitivity of the remote control.
30+30-

34
5.CONNECTIONS
Caution: Make sure to check the voltage specification of the wall outlet is the same rating with the
receiver. To prevent the risk of electric shock, do not open the cover or the back of the receiver.
5.1. CONNECTING TDT HD 3 TO A TV
HDMI
CV BS
ANT IN
LR
5 V
Adapter
RF IN
COAXIAL HDMI OUT SCART OUT
OR

35

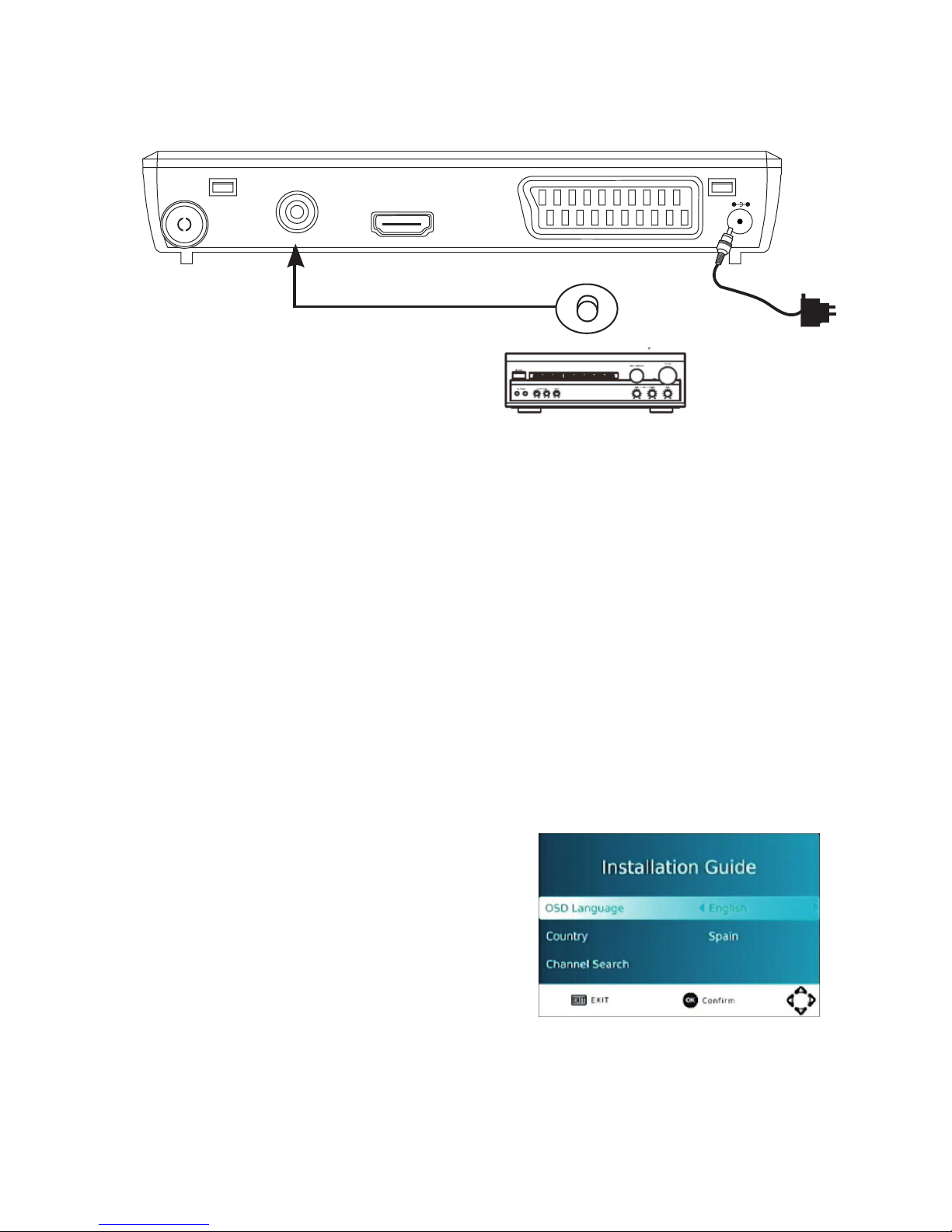

5.2. CONNECTING TDT HD 3 TO AUXILIARY DEVICES
Note: When connecting the receiver to other equipment (e.g. TV, VCR and amplifier), make sure to
refer to relevant user manual for instruction. Also, make sure you disconnect all the equipments
from the mains supply before the connection.
After all connections have been made properly, you are ready to use your TDT HD 3 . Switch on TV
and make sure the receiver is connected to the Main Power. Press STANDBY button to switch the
receiver on.
6.FIRST TIME INSTALLATION
If you are using the receiver for the first time or restored to Factory Default, the Main Menu will
appear on your TV screen.
1.Select [OSD Language] and press RIGHT/LEFT key
to select a language.
2. Select [Country] and press RIGHT/LEFT key to
select your country of residence.
3. Select [Channel Search] and press RIGHT or OK key
tobegin Automaticchannelsearch.
4.Once channel tuning is complete, you are now ready to watch TV.
COAXIAL HDMI OUT SCART OUT 5 V
Adapter
COAXIAL
COAXIAL CABLE
AMPLIFICADOR DIGITAL
RF IN
