Enfora EDG1228UG001 User manual

Enfora ® EDG1228 Quad-Band
SA-EL - User Manual
Revision 1.00
User Guide:
EDG1228UG001

SA-EL User Manual
Ver. 1.00
EDG1228UG001 i Version 1.00 – 3/30/2006
Document Title: Enfora GSM/GPRS/EDGE Quad-Band SA-EL User
Manual
Version: 1.00
Date: 03/30/06
Status: Released
Document Control ID: EDGE1228UG001
General
All efforts have been made to ensure the accuracy of material provided in this
document at the time of release. However, the items described in this document
are subject to continuous development and improvement. All specifications are
subject to change without notice and do not represent a commitment on the part
of Enfora Inc. Enfora Inc. will not be responsible for any loss or damages
incurred related to the use of information contained in this document.
This product is not intended for use in life support appliances, devices or systems
where a malfunction of the product can reasonably be expected to result in
personal injury. Enfora Inc. customers using, integrating, and/or selling this
product for use in such applications do so at their own risk and agree to fully
indemnify Enfora Inc. for any damages resulting from illegal use or resale.
Copyright
©2002, 2003, 2004, 2005 Enfora Inc. All rights reserved.
Enabler are either registered trademarks or trademarks of Enfora Inc. in the
United States.
This manual is copyrighted. All rights reserved. No portion of this document may
be copied, photocopied, reproduced, translated, or reduced to any electronic
medium or machine form without prior consent in writing from Enfora Inc.
© 2002, 2003, 2004, 2005 Enfora Inc. All rights reserved.
The information in this document is subject to change without notice and does
not represent a commitment on the part of Enfora Inc.
All product names mentioned within this document are the trademark of their
respective owners.
Adobe® Acrobat Reader, © 1987-1999 Adobe Systems Inc. All rights reserved.
Adobe and Acrobat are trademarks of Adobe Systems Inc.

SA-EL User Manual
Ver. 1.00
EDG1228UG001 ii Version 1.00 – 3/30/2006
Limited Warranty
ENFORA Inc. 12-MONTH LIMITED WARRANTY
Enfora warrants to the original purchaser of the product that, for a period of one
(1) year from the date of product purchase, the product hardware, when used in
conjunction with any associated software (including any firmware and
applications) supplied by Enfora, will be free from defects in material or
workmanship under normal operation. Enfora further warrants to such original
purchaser that, for a period of ninety (90) days from the date of product
purchase, any software associated with the product will perform substantially in
accordance with the user documentation provided by Enfora, and any software
media provided with the product will be free from defects in material or
workmanship under normal operation. Enfora does not warrant that the product
hardware or any associated software will meet the purchaser’s requirements or
that the operation of the product hardware or software will be uninterrupted or
error-free. This limited warranty is only for the benefit of the original purchaser
and is not transferable.
During the warranty period applicable to the product hardware, Enfora, at its
expense and in its sole discretion, will repair or replace the product if it is
determined to have a covered hardware defect, provided that the purchaser first
notifies Enfora of any such defect, furnishes Enfora with a proof of purchase,
requests and obtains a return merchandize authorization (RMA) number from
Enfora, and returns the product, shipping charges prepaid, to Enfora under that
RMA. If, upon reasonable examination of the returned product, Enfora does not
substantiate the defect claimed by purchaser, or determines that the defect is not
covered under this limited warranty, Enfora will not be required to repair or
replace the product, but may instead reship the product to the purchaser, in
which case purchaser shall be responsible for paying Enfora’s usual charges for
unpacking, testing, and repacking the product for reshipment to purchaser.
Purchaser shall bear the risk of loss or damage in transit to any product returned
by purchaser to Enfora, or any returned product not found to be defective or
covered under this warranty and reshipped by Enfora to purchaser. In the event
Enfora repairs or replaces a defective product, the repaired or replacement
product will be warranted for the remainder of the original warranty period on the
defective product. If Enfora is unable to repair or replace a defective product, the
purchaser’s exclusive remedy shall be a refund of the original purchase price.
Any returned and replaced product, or any product for which Enfora has refunded
the original purchase price, becomes the property of Enfora.
During the warranty period applicable to the software or its media, Enfora, at its
expense, will replace any defective software or media if purchaser gives written
notification of the defect to the technical support department at Enfora during the
applicable warranty period. Enfora shall not have any obligation to provide any
software bug fixes, upgrades or new releases except as necessary to correct any

SA-EL User Manual
Ver. 1.00
EDG1228UG001 iii Version 1.00 – 3/30/2006
covered defect of which purchaser notifies Enfora during the applicable warranty
period.
Enfora shall have no obligation under this limited warranty for (a) normal wear
and tear, (b) the cost of procurement of substitute products or (c) any defect that
is (i) discovered by purchaser during the warranty period but purchaser does not
notify or request an RMA number from Enfora, as required above, until after the
end of the warranty period, (ii) caused by any accident, misuse, abuse, improper
installation, handling or testing, or unauthorized repair or modification of the
product, (iii) caused by use of any software other than any software supplied by
Enfora, or by use of the product other than in accordance with its documentation
or (iv) the result of electrostatic discharge, electrical surge, fire, flood or similar
causes.
ENFORA’S SOLE RESPONSIBILITY AND PURCHASER’S SOLE REMEDY
UNDER THIS LIMITED WARRANTY SHALL BE TO REPAIR OR REPLACE
THE PRODUCT HARDWARE, SOFTWARE OR SOFTWARE MEDIA (OR IF
REPAIR OR REPLACEMENT IS NOT POSSIBLE, OBTAIN A REFUND OF THE
PURCHASE PRICE) AS PROVIDED ABOVE. ENFORA EXPRESSLY
DISCLAIMS ALL OTHER WARRANTIES OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTIES
OF NON-INFRINGEMENT, MERCHANTABILITY, SATISFACTORY
PERFORMANCE AND FITNESS FOR A PARTICULAR PURPOSE. IN NO
EVENT SHALL ENFORA BE LIABLE FOR ANY INDIRECT, SPECIAL,
EXEMPLARY, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING
WITHOUT LIMITATION LOSS OR INTERRUPTION OF USE, DATA,
REVENUES OR PROFITS) RESULTING FROM A BREACH OF THIS
WARRANTY OR BASED ON ANY OTHER LEGAL THEORY, EVEN IF ENFORA
HAS BEEN ADVISED OF THE POSSIBILITY OR LIKELIHOOD OF SUCH
DAMAGES.
Some jurisdictions may require a longer warranty period than specified above
and, accordingly, for products sold in those jurisdictions the applicable warranty
period shall be extended as required under the law of those jurisdictions.
Furthermore, some jurisdictions may not allow the disclaimer of implied
warranties or the exclusion or limitation of incidental or consequential damages,
so the above disclaimer, limitation or exclusion may not apply to products sold in
those jurisdictions. This limited warranty gives the purchaser specific legal rights
and the purchaser may have other legal rights that vary from jurisdiction to
jurisdiction.
In some instances, certain aspects of the product warranty may also be covered
in a separate written agreement between Enfora and the distributor or reseller, if
any, from whom purchaser purchased the product. That agreement may provide,
for example, a longer warranty period or a different product return procedure that

SA-EL User Manual
Ver. 1.00
EDG1228UG001 iv Version 1.00 – 3/30/2006
may also be available to purchaser (e.g., the product may be returned to Enfora
through the distributor or reseller).
This limited warranty shall be governed by the laws of the State of Texas, United
States of America, without regard to conflict of laws principles. This limited
warranty shall not be governed in any respect by the United Nations Convention
on Contracts for the International Sale of Goods.

SA-EL User Manual
Ver. 1.00
EDG1228UG001 v Version 1.00 – 3/30/2006
Revision History
Revision
Number Release Date Description of Changes
1.00 03/30/06 Initial Release

SA-EL User Manual
Ver. 1.00
EDG1228UG001 vi Version 1.00 – 3/30/2006
Table Of Contents
1Introduction....................................................................................................1
1.1 About the SA-EL.....................................................................................1
1.2 About this Manual...................................................................................1
1.3 System Requirements ............................................................................2
1.4 Included in the Package .........................................................................2
1.5 Optional Accessories..............................................................................2
1.6 SA-EL Front and Back View...................................................................2
1.7 Regulatory Compliance FCC..................................................................3
1.7.1 FCC.................................................................................................3
1.7.2 R&TTE - ..................................................................................3
1.7.3 Disclaimer........................................................................................4
2Installation......................................................................................................5
2.1 Subscriber Identity Module (SIM) Card...................................................5
2.2 Connecting the Power Supply ................................................................6
2.3 Connecting the Antenna.........................................................................7
2.4 Attaching a Microphone/Speaker............................................................8
2.5 LED Functions........................................................................................9
2.6 Mounting the SA-EL ...............................................................................9
3mobile PhoneTools Software.......................................................................10
3.1 Windows 2000 Installation Instructions.................................................11
3.2 Windows XP Installation Screens.........................................................13
3.3 mobile PhoneTools – Using the Enfora SA-EL Modem........................15
3.4 Installing mobile PhoneTools................................................................15
4Understanding Persistent Connection Features ..........................................23
4.1 Start mobile PhoneTools on boot .........................................................23
4.2 Automatic Internet Connection .............................................................23
4.3 mobile PhoneTools Internet Connection Wizard:..................................24
4.4 mobile PhoneTools Button Definitions..................................................28
4.5 mobile PhoneTools Display Definitions ................................................28
4.6 Troubleshooting....................................................................................29

SA-EL User Manual
Ver. 1.00
EDG1228UG001 ii Version 1.00 – 3/30/2006
Figures
Figure 1 - Front view of SA-EL modem.................................................................2
Figure 2 - Rear view of SA-EL modem. ................................................................3
Figure 3 - Inserting a SIM Card in a SA-EL Module..............................................5

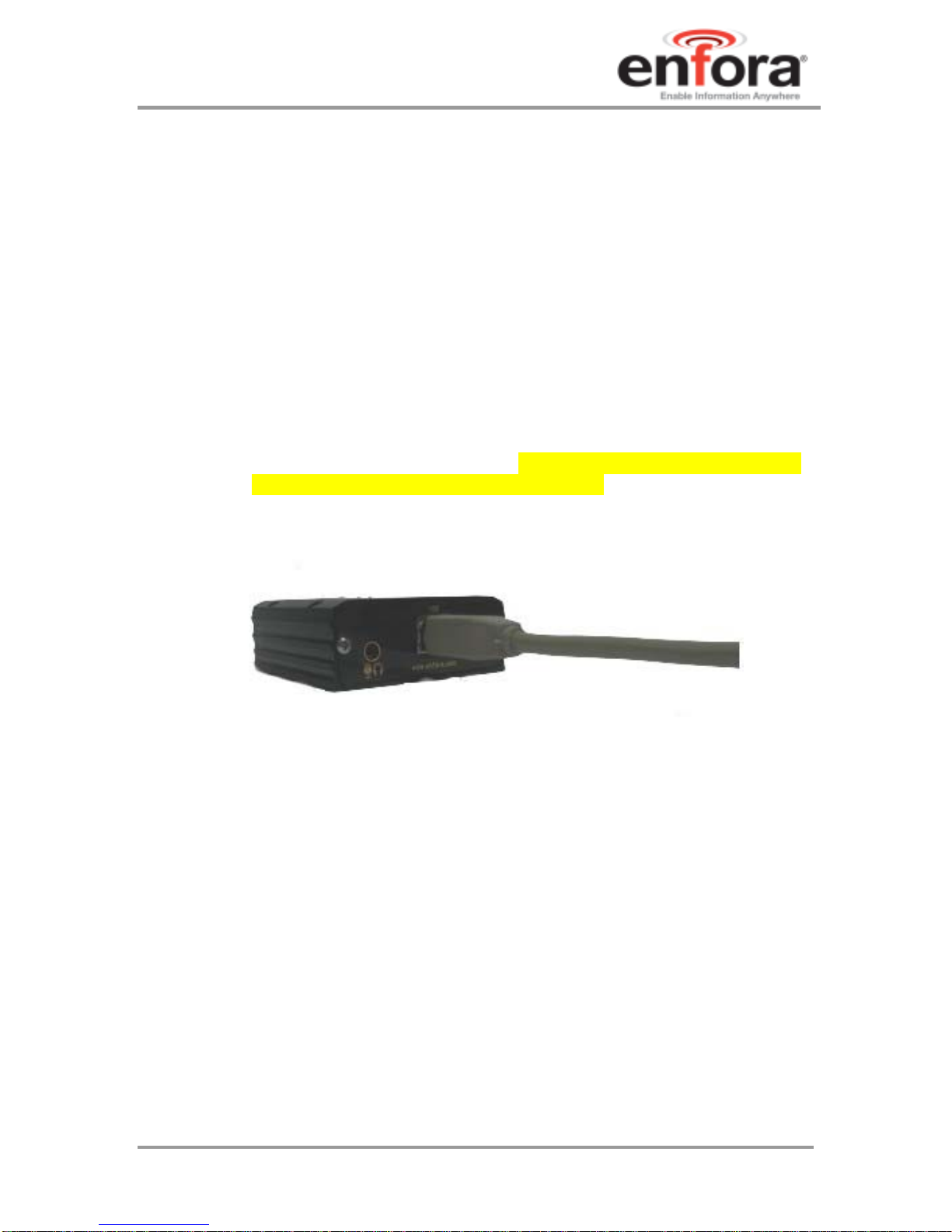

Figure 4 - Connecting The Power Supply To SA-EL.............................................6

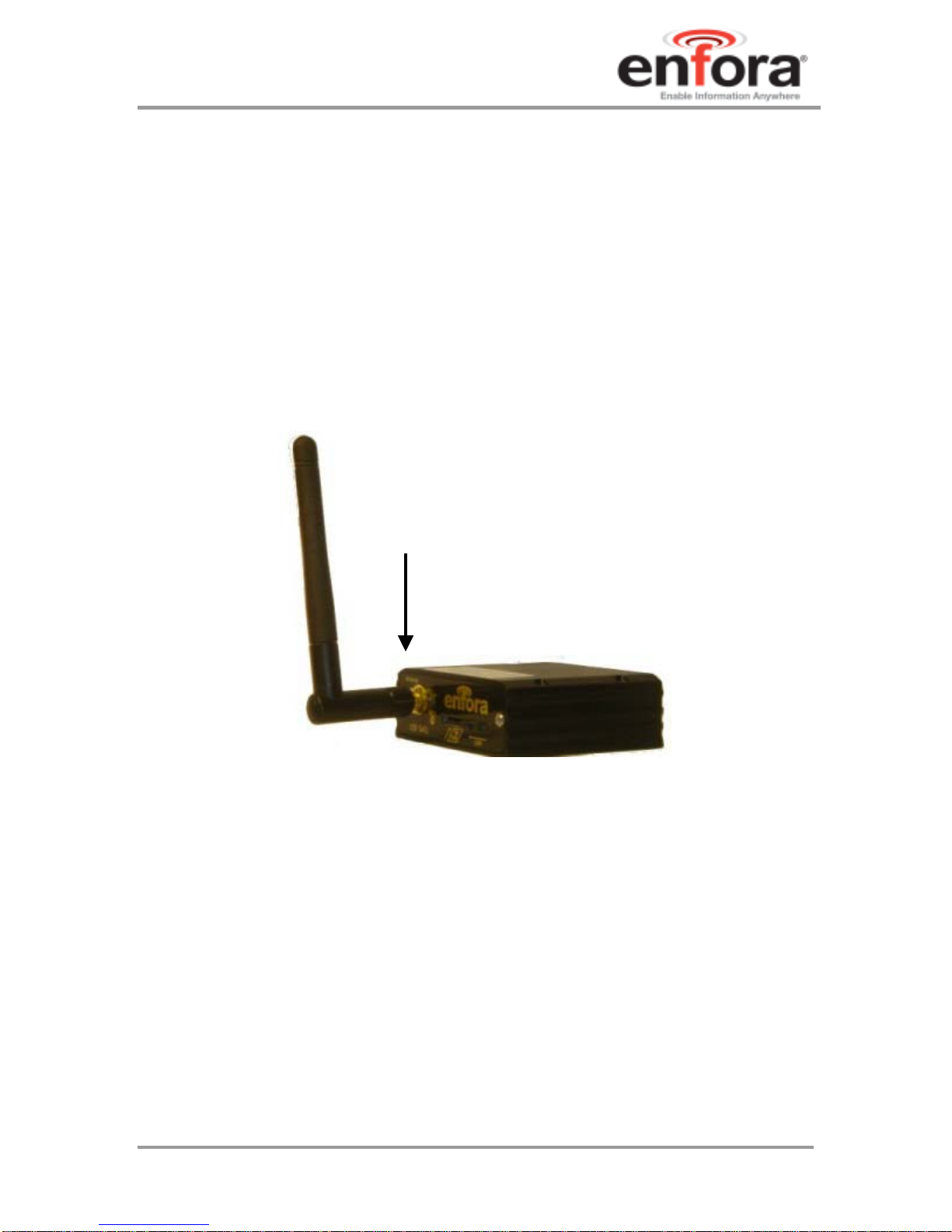

Figure 5 - SA-EL Connecting the Antenna............................................................7
Figure 6 - Microphone/Audio Port on the SA-EL Module......................................8
Figure 7 - Mounting Dimensions...........................................................................9

SA-EL User Manual
Ver. 1.00
EDG1228UG001 1 Version 1.00 – 3/30/2006
1 Introduction
1.1 About the SA-EL
The GSM/GPRS/EDGE SA-EL (hereafter referred to as the “SA-EL”) is a
compact, stand-alone wireless IP (GSM/GPRS/EDGE) modem. The SA-EL is
designed for computing devices operating Windows XP and 2000 Professional.
Enfora’s SA-EL provides maximum versatility in a single affordable device.
1.2 About this Manual
Contained in this manual are instructions on how to install and configure the SA-
EL modem. Please follow the instructions herein closely to avoid damaging the
SA-EL.
The SA-EL modem contains an Enfora Enabler-IIE OEM module. Detailed
information pertaining to the specifications and operation of the module will
pertain, in part, to the SA-EL platform. Additional support documents relevant to
the SA-EL can be found on the Enfora website at:
http://www.enfora.com/support.asp

SA-EL User Manual
Ver. 1.00
EDG1228UG001 2 Version 1.00 – 3/30/2006
1.3 System Requirements
The SA-EL requires the following equipment:
• Windows XP or 2000 operating systems.
• One standard USB port for SA-EL configuration
• One USB cable to connect the SA-EL to your computer.
• One standard 2.5 mm cell phone headset for speaker and microphone*
*not required for stand alone operation
1.4 Included in the Package
The following parts are included in the SA-EL package:
• Enfora SA-EL modem.
• Software/Documentation CD.
1.5 Optional Accessories
• Antenna
• 3 foot USB cable
1.6 SA-EL Front and Back View
Figure 1 - Front view of SA-EL modem.

SA-EL User Manual
Ver. 1.00
EDG1228UG001 3 Version 1.00 – 3/30/2006
Figure 2 - Rear view of SA-EL modem.
1.7 Regulatory Compliance FCC
1.7.1 FCC
The modem was tested and certified to meet FCC Parts 15 in a stand-alone
configuration, which demonstrated that the GSM1208 SA-G complies with Part
15 emission limits. FCC Part 22 & Part 24 is covered by the Enfora Enabler-IIG
"modular approval" process for a transmitter. This approach, described by FCC
Public Notice DA 00-131407 released June 26, 2000, is intended to afford relief
to equipment manufacturers by eliminating the requirement for obtaining a new
equipment authorization for the same transmitter when installed in a new device.
In order to use the GSM1208 SA-G without additional FCC certification
approvals, the installation must meet the following conditions:
For the transmitter to meet the MPE categorical exclusion requirements of
2.1091, the ERP must be less than 1.5 watts for personnel separation distance of
at least 20 cm (7.9 in). Therefore, the maximum antenna gain cannot exceed
+3.3dBi. If greater than 1.5 watts exists, then additional testing and FCC
approval is required.
1.7.2 R&TTE -
The GSM1208 SA-G modem has been fully tested and complies with all the
requirements of EN301 489-1, EN301 489-7 and EN60950-1:2001. Compliance
to EN301 511 has been demonstrated by testing on both the GSM1208 and the
integrated GSM0108 module.

SA-EL User Manual
Ver. 1.00
EDG1228UG001 4 Version 1.00 – 3/30/2006
1.7.3 Disclaimer
The information and instructions contained within this publication comply with all
FCC, GCF, PTCRB, R&TTE, IMEI and other applicable codes that are in effect at
the time of publication. Enfora disclaims all responsibility for any act or
omissions, or for breach of law, code or regulation, including local or state codes,
performed by a third party.
Enfora strongly recommends that all installations, hookups, transmissions, etc.,
be performed by persons who are experienced in the fields of radio frequency
technologies. Enfora acknowledges that the installation, setup and transmission
guidelines contained within this publication are guidelines, and that each
installation may have variables outside of the guidelines contained herein. Said
variables must be taken into consideration when installing or using the product,
and Enfora shall not be responsible for installations or transmissions that fall
outside of the parameters set forth in this publication.
Enfora shall not be liable for consequential or incidental damages, injury to any
person or property, anticipated or lost profits, loss of time, or other losses
incurred by Customer or any third party in connection with the installation of the
Products or Customer's failure to comply with the information and instructions
contained herein.

SA-EL User Manual
Ver. 1.00
EDG1228UG001 5 Version 1.00 – 3/30/2006
2 Installation
2.1 Subscriber Identity Module (SIM) Card
The SIM, an integral part of any GSM terminal device, is a “smart card” that is
programmed with subscriber information. The user information consists of an
International Mobile Subscriber Identity (IMSI) number, which is registered with
the GSM service provider, and an encryption Ki (pronounced “key”). This
information consists of a microprocessor and memory installed on a plastic card.
To install the SIM card into the modem, insert the SIM card in the modem as
shown below in Figure 3.
Note: The SIM is not provided with the SA-EL modem. The SIM must be
obtained from the GSM service provider and must be provisioned by the
operator for data and/or voice. Always take care to protect the SIM: the
GSM terminal will not operate without the SIM installed.
SIM Lock Switch
Figure 3 - Inserting a SIM Card in a SA-EL Module
Note: The SIM lock must be engaged (locked) in order for the SA-EL to
operate properly.

SA-EL User Manual
Ver. 1.00
EDG1228UG001 6 Version 1.00 – 3/30/2006
2.2 Connecting the Power Supply
The SA-EL modem obtains power via the USB cable that connects the modem to
your computer.
To supply power to the SA-EL modem, connect the B connector of your USB
cable to the connector (labeled "USB") on the modem. Connect the A connector
of the USB cable to an USB port on your computer. The user supplies the USB
cable.
Note: Make sure the SIM card is inserted prior to connecting the
USB cable to the SA-EL and your computer.
Also, please make sure that the USB drivers are installed before
connecting the SA-EL to your computer. Please see page nine
(9) for instruction.
Figure 4 - Connecting The Power Supply To SA-EL

SA-EL User Manual
Ver. 1.00
EDG1228UG001 7 Version 1.00 – 3/30/2006
2.3 Connecting the Antenna
The user is responsible for supplying the GSM antenna for the SA-EL modem.
The antenna must have a nominal impedance of 50 Ohms. The VSWR must be
less than 2.0:1. System antenna gain should be 0-2 dB for optimum
performance. See section 1.7 Regulatory Compliance FCC.
The SA-EL operates at the 850/900/1800 and 1900 MHz frequency bands. Care
needs to be taken when connecting the antenna since the right type of antenna
will be required for proper operation of the modem. The antenna connector on
the SA-EL modem is SMA Female. The antenna has to be connected to the
connector labeled “Antenna” as shown below in Figure 5.
Antenna
Connector
Figure 5 - SA-EL Connecting the Antenna

SA-EL User Manual
Ver. 1.00
EDG1228UG001 8 Version 1.00 – 3/30/2006
2.4 Attaching a Microphone/Speaker
To place a voice call from the SA-EL, connect a microphone/speaker to the port
as shown below in Figure 6. The plug is a standard 2.5mm audio connector.
The user must supply the microphone or speaker.
Microphone/Audio
Port
Figure 6 - Microphone/Audio Port on the SA-EL Module

SA-EL User Manual
Ver. 1.00
EDG1228UG001 9 Version 1.00 – 3/30/2006
2.5 LED Functions
The SA-EL modem has one LED on the front panel.
REG: Indicates GSM network registration status. This LED will flash when
attempting to register on a GSM network. The LED will be solid when the
modem is registered with a GSM network.
2.6 Mounting the SA-EL
The SA-EL includes two mounting options. The modem housing contains four
thru holes that can utilize number 2 screws for securing the device. The other
option available is the inclusion of four threaded holes for securing screws to be
used to secure the device.
Figure 7 - Mounting Dimensions

SA-EL User Manual
Ver. 1.00
EDG1228UG001 10 Version 1.00 – 3/30/2006
3 mobile PhoneTools Software
The first step in installing mobile PhoneTools software is installing the SA-EL
USB drivers.
Follow these steps to install the USB drivers.

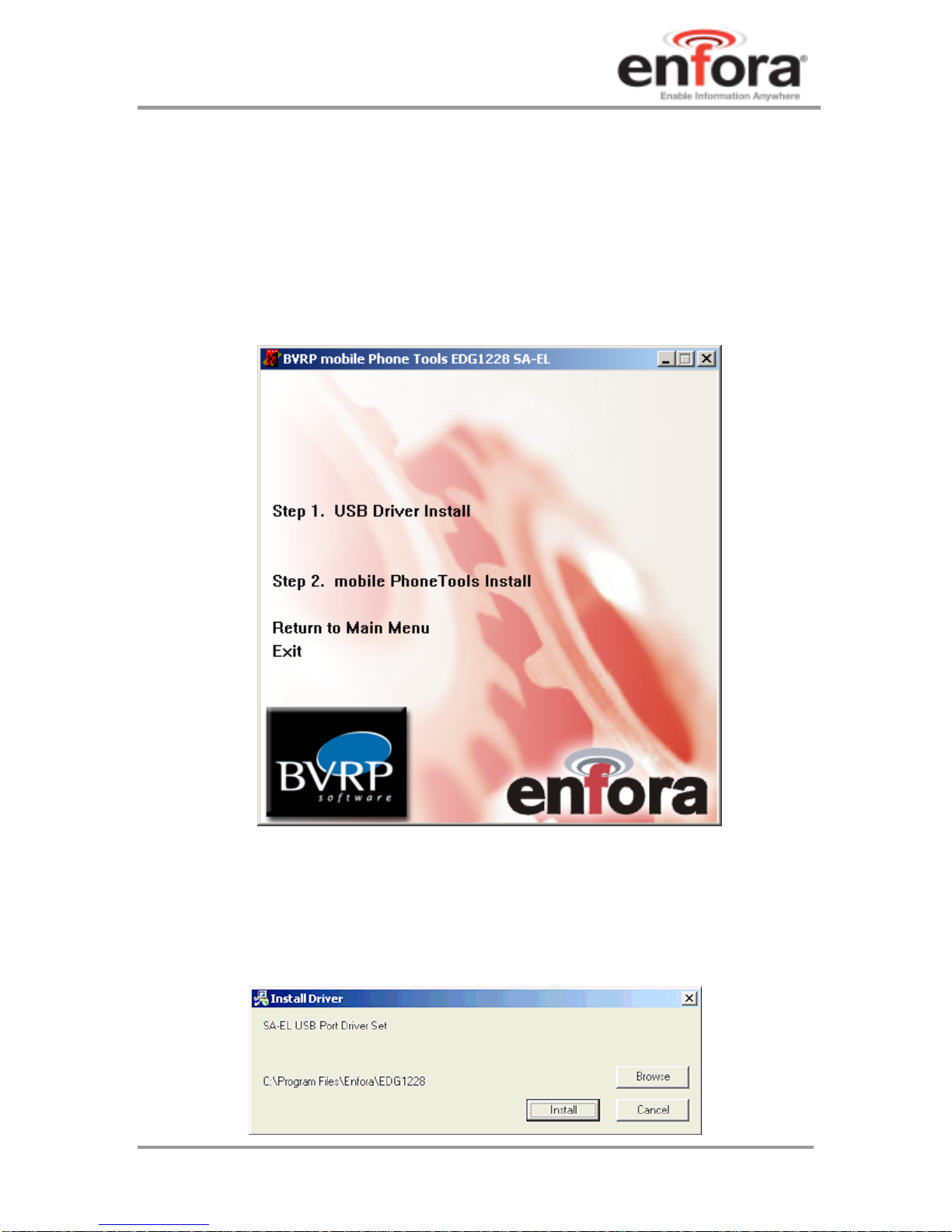

1. Click on Step 1 – USB Driver Install to install the SA-EL USB driver.
DO NOT connect the SA-EL to the
computer at this time.
2. Select Install from the application.

SA-EL User Manual
Ver. 1.00
EDG1228UG001 11 Version 1.00 – 3/30/2006
3. The drivers will be installed. You will then be prompted with the
Installation Successful window.
4. Select OK to exit the install.
5. Now plug in your SA-EL to the computer USB port.
Depending upon the Operating System you are using (Windows XP or Windows
2000) you will see different screens during the installation process. .
3.1 Windows 2000 Installation Instructions
Windows 2000 will display the following screen, indicating that the Operating
System has found new hardware.
Note: Once the SA-EL is installed, you can open Device Manager to
make sure that the installation was successful, and that the modem is
ready for use.

SA-EL User Manual
Ver. 1.00
EDG1228UG001 12 Version 1.00 – 3/30/2006
Device Manager
