Enfora GSM1308 User manual

Enfora GSM1308
Quad-Band SA-G+
User Manual
Revision 1.02
User Guide:
GSM1308UG001

GSM1308 Quad-Band
SA-G+ User Manual
GSM1308UG001 i Version 1.02 – 10/29/08
Document Title: Enfora GSM/GPRS Quad-Band SA-G+ User Manual
Version: 1.02
Date: 10/29/08
Status: Released
Document Control ID: GSM1308UG001
General
All efforts have been made to ensure the accuracy of material provided in this
document at the time of release. However, the items described in this document
are subject to continuous development and improvement. All specifications are
subject to change without notice and do not represent a commitment on the part
of Enfora Inc. Enfora Inc. will not be responsible for any loss or damages
incurred related to the use of information contained in this document.
This product is not intended for use in life support appliances, devices or systems
where a malfunction of the product can reasonably be expected to result in
personal injury. Enfora Inc. customers using, integrating, and/or selling this
product for use in such applications do so at their own risk and agree to fully
indemnify Enfora Inc. for any damages resulting from illegal use or resale.
Copyright
©2002, 2003, 2004, 2005, 2006, 2007, 2008 Enfora, Inc. All rights reserved.
Enabler are either registered trademarks or trademarks of Enfora Inc. in the
United States.
This manual is copyrighted. All rights reserved. No portion of this document may
be copied, photocopied, reproduced, translated, or reduced to any electronic
medium or machine form without prior consent in writing from Enfora Inc.
© 2002, 2003, 2004, 2005, 2006, 2007, 2008 Enfora, Inc. All rights reserved.
The information in this document is subject to change without notice and does
not represent a commitment on the part of Enfora Inc.
All product names mentioned within this document are the trademark of their
respective owners.
Adobe® Acrobat Reader, © 1987-1999 Adobe Systems Inc. All rights reserved.
Adobe and Acrobat are trademarks of Adobe Systems Inc.

GSM1308 Quad-Band
SA-G+ User Manual
GSM1308UG001 ii Version 1.02 – 10/29/08
Limited Warranty
ENFORA, INC. 12-MONTH LIMITED WARRANTY
Enfora warrants to the original purchaser of the product that, for a period of one
(1) year from the date of product purchase, the product hardware, when used in
conjunction with any associated software (including any firmware and
applications) supplied by Enfora, will be free from defects in material or
workmanship under normal operation. Enfora further warrants to such original
purchaser that, for a period of ninety (90) days from the date of product
purchase, any software associated with the product will perform substantially in
accordance with the user documentation provided by Enfora, and any software
media provided with the product will be free from defects in material or
workmanship under normal operation. Enfora does not warrant that the product
hardware or any associated software will meet the purchaser’s requirements or
that the operation of the product hardware or software will be uninterrupted or
error-free. This limited warranty is only for the benefit of the original purchaser
and is not transferable.
During the warranty period applicable to the product hardware, Enfora, at its
expense and in its sole discretion, will repair or replace the product if it is
determined to have a covered hardware defect, provided that the purchaser first
notifies Enfora of any such defect, furnishes Enfora with a proof of purchase,
requests and obtains a return merchandize authorization (RMA) number from
Enfora, and returns the product, shipping charges prepaid, to Enfora under that
RMA. If, upon reasonable examination of the returned product, Enfora does not
substantiate the defect claimed by purchaser, or determines that the defect is not
covered under this limited warranty, Enfora will not be required to repair or
replace the product, but may instead reship the product to the purchaser, in
which case purchaser shall be responsible for paying Enfora’s usual charges for
unpacking, testing, and repacking the product for reshipment to purchaser.
Purchaser shall bear the risk of loss or damage in transit to any product returned
by purchaser to Enfora, or any returned product not found to be defective or
covered under this warranty and reshipped by Enfora to purchaser. In the event
Enfora repairs or replaces a defective product, the repaired or replacement
product will be warranted for the remainder of the original warranty period on the
defective product. If Enfora is unable to repair or replace a defective product, the
purchaser’s exclusive remedy shall be a refund of the original purchase price.
Any returned and replaced product, or any product for which Enfora has refunded
the original purchase price, becomes the property of Enfora.
During the warranty period applicable to the software or its media, Enfora, at its
expense, will replace any defective software or media if purchaser gives written
notification of the defect to the technical support department at Enfora during the
applicable warranty period. Enfora shall not have any obligation to provide any

GSM1308 Quad-Band
SA-G+ User Manual
GSM1308UG001 iii Version 1.02 – 10/29/08
software bug fixes, upgrades or new releases except as necessary to correct any
covered defect of which purchaser notifies Enfora during the applicable warranty
period.
Enfora shall have no obligation under this limited warranty for (a) normal wear
and tear, (b) the cost of procurement of substitute products or (c) any defect that
is (i) discovered by purchaser during the warranty period but purchaser does not
notify or request an RMA number from Enfora, as required above, until after the
end of the warranty period, (ii) caused by any accident, misuse, abuse, improper
installation, handling or testing, or unauthorized repair or modification of the
product, (iii) caused by use of any software other than any software supplied by
Enfora, or by use of the product other than in accordance with its documentation
or (iv) the result of electrostatic discharge, electrical surge, fire, flood or similar
causes.
ENFORA’S SOLE RESPONSIBILITY AND PURCHASER’S SOLE REMEDY
UNDER THIS LIMITED WARRANTY SHALL BE TO REPAIR OR REPLACE
THE PRODUCT HARDWARE, SOFTWARE OR SOFTWARE MEDIA (OR IF
REPAIR OR REPLACEMENT IS NOT POSSIBLE, OBTAIN A REFUND OF THE
PURCHASE PRICE) AS PROVIDED ABOVE. ENFORA EXPRESSLY
DISCLAIMS ALL OTHER WARRANTIES OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTIES
OF NON-INFRINGEMENT, MERCHANTABILITY, SATISFACTORY
PERFORMANCE AND FITNESS FOR A PARTICULAR PURPOSE. IN NO
EVENT SHALL ENFORA BE LIABLE FOR ANY INDIRECT, SPECIAL,
EXEMPLARY, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING
WITHOUT LIMITATION LOSS OR INTERRUPTION OF USE, DATA,
REVENUES OR PROFITS) RESULTING FROM A BREACH OF THIS
WARRANTY OR BASED ON ANY OTHER LEGAL THEORY, EVEN IF ENFORA
HAS BEEN ADVISED OF THE POSSIBILITY OR LIKELIHOOD OF SUCH
DAMAGES.
Some jurisdictions may require a longer warranty period than specified above
and, accordingly, for products sold in those jurisdictions the applicable warranty
period shall be extended as required under the law of those jurisdictions.
Furthermore, some jurisdictions may not allow the disclaimer of implied
warranties or the exclusion or limitation of incidental or consequential damages,
so the above disclaimer, limitation or exclusion may not apply to products sold in
those jurisdictions. This limited warranty gives the purchaser specific legal rights
and the purchaser may have other legal rights that vary from jurisdiction to
jurisdiction.
In some instances, certain aspects of the product warranty may also be covered
in a separate written agreement between Enfora and the distributor or reseller, if
any, from whom purchaser purchased the product. That agreement may provide,

GSM1308 Quad-Band
SA-G+ User Manual
GSM1308UG001 iv Version 1.02 – 10/29/08
for example, a longer warranty period or a different product return procedure that
may also be available to purchaser (e.g., the product may be returned to Enfora
through the distributor or reseller).
This limited warranty shall be governed by the laws of the State of Texas, United
States of America, without regard to conflict of laws principles. This limited
warranty shall not be governed in any respect by the United Nations Convention
on Contracts for the International Sale of Goods.

GSM1308 Quad-Band
SA-G+ User Manual
GSM1308UG001 v Version 1.02 – 10/29/08
Revision History
Revision Number Release Date Description of Changes
1.00 1/22/2008 Initial Release
1.01 4/11/2008 Added new images and mounting dimensions
1.02 10/29/2008
Edited sections 3.2.1 and 3.2.2
Edited Regulatory Section

GSM1308 Quad-Band
SA-G+ User Manual
GSM1308UG001 vi Version 1.02 – 10/29/08
Table Of Contents
1Introduction....................................................................................................1
1.1About the GSM/GPRS SA-G+ ................................................................1
1.2About this Manual...................................................................................1
1.3System Requirements ............................................................................3
1.4SA-G+ Front and Back View...................................................................3
2Regulatory Compliance .................................................................................5
2.1FCC ........................................................................................................5
2.2R&TTE - .........................................................................................5
2.3Disclaimer...............................................................................................6
3Installation......................................................................................................7
3.1Subscriber Identity Module (SIM) Card...................................................7
3.2Eight (8) Pin Connector ..........................................................................8
3.2.1GPIO1 (Input/Output) ....................................................................10
3.2.2GPIO2 (Input/Output) Programmable Pull-Up System ..................10
3.3Connecting the Serial Cable .................................................................12
3.4Connecting the GSM/GPRS Antenna...................................................13
3.5LED Functions ......................................................................................14
3.6Mounting the SA-G+ .............................................................................14
4Firmware Upgrade .......................................................................................15
5Configure the Computer and Verify Correct Communications .....................16
6Configure the SA-G+ to talk to the Enfora Server........................................21
7Verifying Server Connectivity.......................................................................28
8Tech Support ...............................................................................................30
Figures
Figure 1 - Front view of GSM/GPRS SA-G+ modem. ...........................................3
Figure 2 - Rear view of GSM/GPRS SA-G+ modem.............................................4

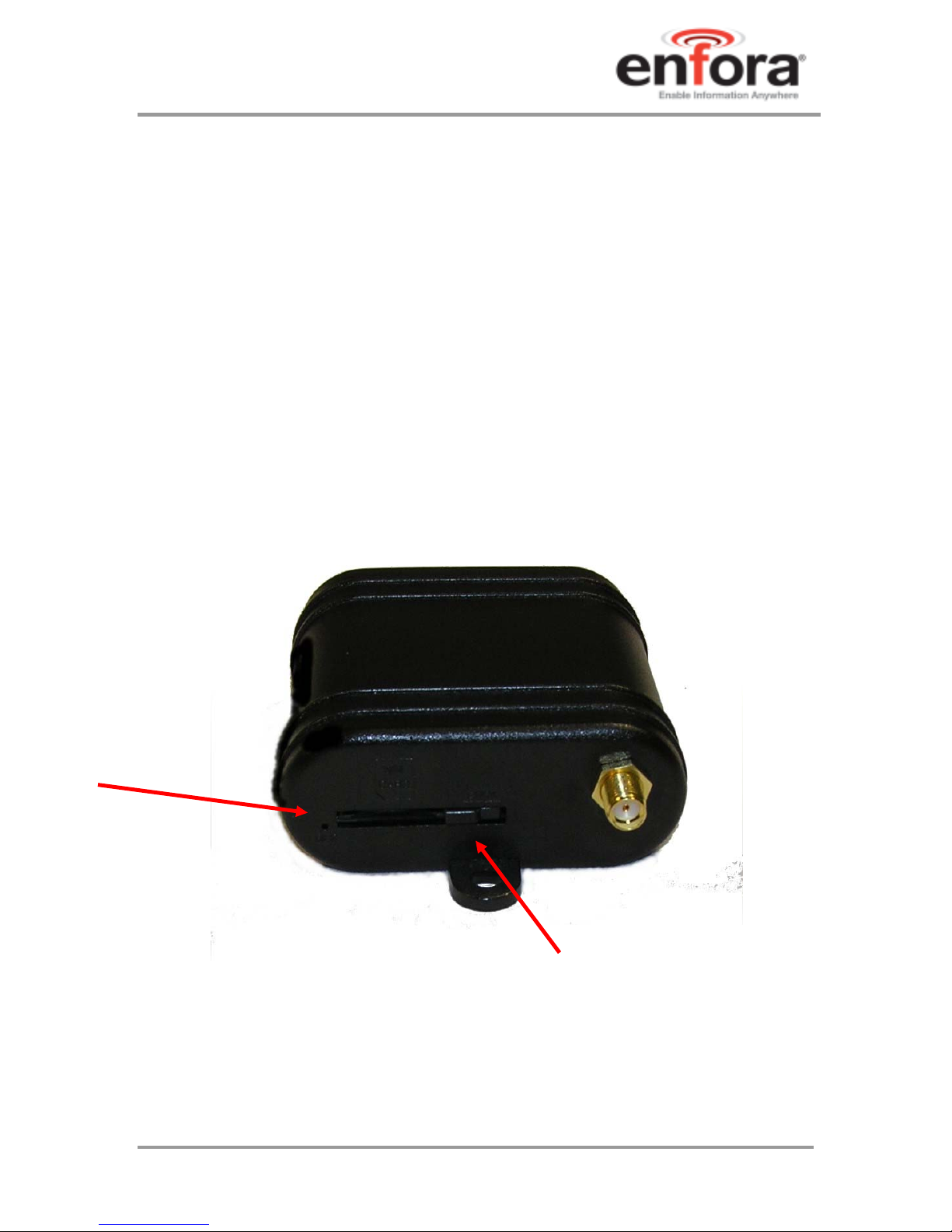

Figure 3 - Inserting a SIM Card in a GSM/GPRS SA-G+ Module .........................7
Figure 4 - Molex Connector and Pins..................................................................10
Figure 5 - Serial Pin-out ......................................................................................12
Figure 6 - GSM/GPRS SA-G+ Connecting the Antenna .....................................13
Figure 7 - Mounting Dimensions .........................................................................14
Tables

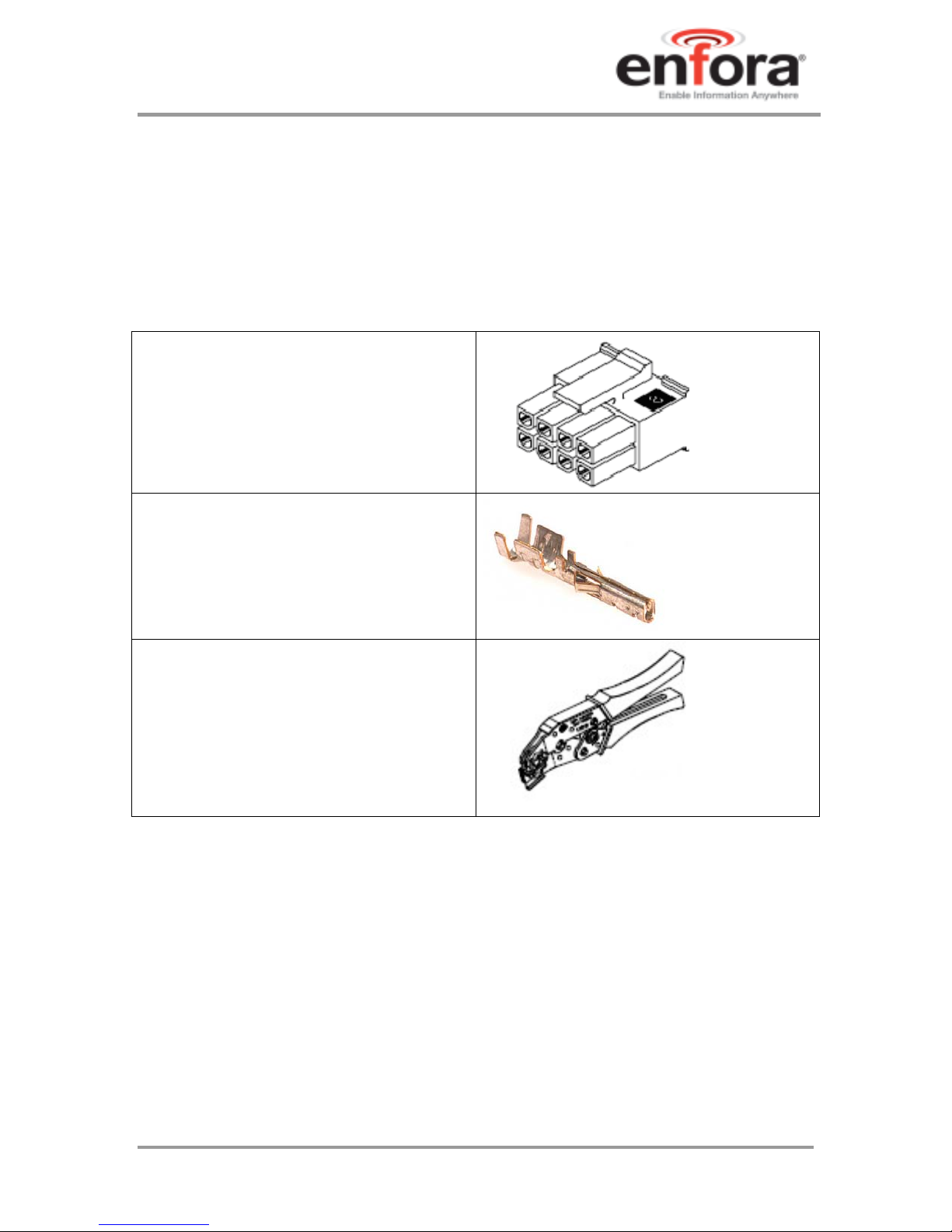

Table 1 – Cable Assembly Parts...........................................................................8
Table 2 - 8 pin I/O Connector Interface.................................................................9
Table 3 – GSM Operating Power........................................................................11
Table 4 – REG LED Behavior During Firmware Upgrade ...................................15

GSM1308 Quad-Band
SA-G+ User Manual
GSM1308UG001 1 Version 1.02 – 10/29/08
1 Introduction
1.1 About the GSM/GPRS SA-G+
The GSM/GPRS SA-G+ is a compact, stand-alone wireless IP (GSM/GPRS)
modem. The GSM/GPRS SA-G+ is designed for computing devices operating
Windows XP and Windows 2000 or any serial-enabled platform. The SA-G+ can
be used as a stand-alone serial device with other vertical applications. Enfora’s
GSM/GPRS SA-G+ provides maximum versatility in a single affordable device
with 2 User-Definable Input/Outputs (I/O) and 1 User-Definable Output.
1.2 About this Manual
Contained in this manual are instructions on how to install and configure the
GSM/GPRS SA-G+ modem. Please follow the instructions herein closely to
avoid damaging the GSM/GPRS SA-G+.
The GSM/GPRS SA-G+ modem contains an Enfora Enabler-IIIG OEM module.
Detailed information pertaining to the specifications and operation of the module
will pertain, in part, to the GSM/GPRS SA-G+ platform.
The information can be accessed at the Enfora website (http://www.enfora.com)
under Support and Resources.
Refer to the following documentation for additional information, if required:
Manuals
GSM0308AT001 - Enfora IIIG Module AT Command Set Reference
GSM0308UG001 - Enfora GSM-GPRS Family API Reference
Application Notes
GSM0000AN002 - Enabler-G PPP Configuration for Windows 2000
GSM0000AN003 - Enabler-G Data Circuit Switched Call Configuration and Use
GSM0000AN004 - Enabler-G SMS Configuration and Use
GSM0000AN005 - Enabler-G Automated Network Connection Configuration and
Use
GSM0000AN006 - Enabler-G Module Status Query
GSM0000AN007 - Enabler-G Status Reporting
GSM0000AN008 - Enabler-G PPP Configuration for Windows XP
GSM0000AN009 - Dynamic IP Assignment Support
GSM0000AN011 - PAD Configuration and Use
GSM0000AN012 - Network Transparency Configuration for PAD
GSM0000AN013 - Enabler-G Sleep Mode Configuration and Use

GSM1308 Quad-Band
SA-G+ User Manual
GSM1308UG001 2 Version 1.02 – 10/29/08
GSM0000AN014 - Anytime PPP API Access
GSM0000AN015 - Event Monitor and Reporting Overview
GSM0000AN016 - How to Send SMS Messages to an E-Mail Address
GSM0000AN017 - SMTP Mail Access via TCP PAD
GSM0000AN018 - USNO NTP Network Time Service TCP PAD
GSM0000AN019 - Network Configuration Worksheet
GSM0000AN020 - Comparison of Modem Power Control Pins in Enfora Modules
GSM0000AN022 - Sending AT Commands over SMS
GSM0000AN023 - Configure the Modem to talk to the Enfora Server
GSM0000AN024 - Enhanced Test Mode Commands
GSM0000AN025 - Enabler IIG Network Personalization
GSM0000AN026 - Using a Terminal Program to Test PAD
GSM0000AN027 - AT$ACTIVE Command Implementation Behavior
Technical Notes
GSM0000TN001 - Enabler-G Firmware Upgrade
GSM0000TN002 - Enabler-G PPP Negotiation Sequence
GSM0000TN006 - UDP Wakeup Message Header Decoding
GSM0000TN007 - Enabler-G 3-Wire Serial Interface Requirements
GSM0000TN009 - Server Application Design Considerations for Dynamic IP
GSM0000TN012 - Engineering Mode Manual

GSM1308 Quad-Band
SA-G+ User Manual
GSM1308UG001 3 Version 1.02 – 10/29/08
1.3 System Requirements
•Windows XP and Windows 2000 operating systems or other serial-
enabled platform.
•One standard RS-232 serial port for GSM/GPRS SA-G+ configuration.
1.4 SA-G+ Front and Back View
Figure 1 - Front view of GSM/GPRS SA-G+ modem.

GSM1308 Quad-Band
SA-G+ User Manual
GSM1308UG001 4 Version 1.02 – 10/29/08
Figure 2 - Rear view of GSM/GPRS SA-G+ modem.

GSM1308 Quad-Band
SA-G+ User Manual
GSM1308UG001 5 Version 1.02 – 10/29/08
2 Regulatory Compliance
2.1 FCC
The modem was tested and certified to meet FCC Parts 15 in a stand-alone
configuration, which demonstrated that the GSM1308 SA-G+ complies with Part
15 emission limits. FCC Part 22 & Part 24 is covered by the Enfora Enabler-IIIG
"modular approval" process for a transmitter. This approach, described by FCC
Public Notice DA 00-131407 released June 26, 2000, is intended to afford relief
to equipment manufacturers by eliminating the requirement for obtaining a new
equipment authorization for the same transmitter when installed in a new device.
In order to use the GSM1308 SA-G+ without additional FCC certification
approvals, the installation must meet the following conditions:
•A separation distance of at least 20 cm (7.87 inches) between the
antenna and the body of the user and other persons must be
maintained at all times.
•GSM 850 mode: With the maximum conducted power at 32 dBm,
the maximum antenna gain is 4.5 dBi (2.35 dBd) in order to meet
maximum 7 watt ERP for mobile transmitters and MPE (Maximum
Permissible Exposure) requirement of General
Population/Uncontrolled exposures.
•GSM 1900 mode: With the maximum conducted power at 31dBm,
the maximum antenna gain is 2 dBi in order to meet maximum 2
watt EIRP for mobile transmitters and MPE (Maximum Permissible
Exposure) requirement of General Population/Uncontrolled
exposures.
2.2 R&TTE -
The GSM1308 SA-G+ modem has been fully tested and complies with all the
requirements of EN301 489-1, EN301 489-7 and EN60950-1:2001. Compliance
to EN 301 511 has been demonstrated by testing on both the GSM1308 and the
integrated GSM0308 module. At the separation distance of at least 20 cm (7.87
inches) between the antenna and the body of the user and other persons, the
product also meet EN50392 MPE requirement.

GSM1308 Quad-Band
SA-G+ User Manual
GSM1308UG001 6 Version 1.02 – 10/29/08
2.3 Disclaimer
The information and instructions contained within this publication comply with all
FCC, GCF, PTCRB, R&TTE, IMEI and other applicable codes that are in effect at
the time of publication. Enfora disclaims all responsibility for any act or
omissions, or for breach of law, code or regulation, including local or state codes,
performed by a third party.
Enfora strongly recommends that all installations, hookups, transmissions, etc.,
be performed by persons who are experienced in the fields of radio frequency
technologies. Enfora acknowledges that the installation, setup and transmission
guidelines contained within this publication are guidelines, and that each
installation may have variables outside of the guidelines contained herein. Said
variables must be taken into consideration when installing or using the product,
and Enfora shall not be responsible for installations or transmissions that fall
outside of the parameters set forth in this publication.
Enfora shall not be liable for consequential or incidental damages, injury to any
person or property, anticipated or lost profits, loss of time, or other losses
incurred by Customer or any third party in connection with the installation of the
Products or Customer's failure to comply with the information and instructions
contained herein.

GSM1308 Quad-Band
SA-G+ User Manual
GSM1308UG001 7 Version 1.02 – 10/29/08
3 Installation
3.1 Subscriber Identity Module (SIM) Card
The SIM, an integral part of any GSM terminal device, is a “smart card” that is
programmed with subscriber information. The user information consists of an
International Mobile Subscriber Identity (IMSI) number, which is registered with
the GSM service provider, and an encryption Ki (pronounced “key”). This
information consists of a microprocessor and memory installed on a plastic card.
To install the SIM card into the modem, insert the SIM card in the modem as
shown below in Figure 3.
Note: The SIM is not provided with the SA-G+ modem. The SIM
must be obtained from the GSM service provider and must be
provisioned by the operator for data and/or voice. Always take care
to protect the SIM: the GSM terminal will not operate without the
SIM installed.
After inserting the SIM card,
you MUST move the SIM lock
switch to the left. If the lock is
open, there will not be power
to the SIM.
Insert the SIM card
here – please note
that the notch
must be in the
upper left hand
corner.
Figure 3 - Inserting a SIM Card in a GSM/GPRS SA-G+ Module

GSM1308 Quad-Band
SA-G+ User Manual
GSM1308UG001 8 Version 1.02 – 10/29/08
3.2 Eight (8) Pin Connector
The GSM/GPRS SA-G+ modem can utilize input power ranging from 6 Vdc to 40
Vdc. If your unit did not include an optional power supply, or if you wish to
configure a separate power interface, the following connector parts are the
Enfora recommended parts that can be used to mate with the existing modem
power connector:
Connector:
Manufacturer: Molex
Part Number: 43025-0800
Pins:
Manufacturer: Molex
Part Number: 43030-0008 20-24 AWG
43030-0011 26-30 AWG
Crimp Tool:
Manufacturer: Molex
Part Number: 63811-2800
Table 1 – Cable Assembly Parts

GSM1308 Quad-Band
SA-G+ User Manual
GSM1308UG001 9 Version 1.02 – 10/29/08
During installation take precautions to help ensure proper operation of the SA-
G+. Do not create loops, sharp bends or crimps in the cables. Use proper
terminations on all power cables.
Note: If the SA-G+ will be used in a vehicle, attach all cables to the
vehicle and equipment in such a way to reduce stress or wear
caused by vibration generated by moving vehicles.
The user can purchase the optional eight (8) pin external I/O connector for the
Enfora SA-G+ that can be used to interface with other devices. Enfora can
provide an optional cable and connector (Part #CAB1308). The user also has
the option of building his/her own cable. Table 2 describes the pin functionality
for this 8 pin I/O connector. Pins that are not planned for usage can be left open
without anything connected to them.
Pin Number Functionality Description
Pin – 1 Microphone +
Pin – 2 Headset +
Pin – 3 Ground
Pin – 4 Ground
Pin – 5 Supply Voltage (6-40V)
Pin – 6 User Controlled IO1 (3.3 – 40V) – Uses GPIO1
of the Enabler IIIG Module
Pin – 7 User Controlled IO2 (3.3 – 40V) – Uses GPIO6
of the Enabler IIIG Module
Pin – 8 User Controlled Output (1.5A sink) – Uses GPIO8 of
the Enabler IIIG Module.
This GPIO’s state is latched
during a reset.
Table 2 - 8 pin I/O Connector Interface

GSM1308 Quad-Band
SA-G+ User Manual
GSM1308UG001 10 Version 1.02 – 10/29/08
Figure 4 - Molex Connector and Pins
3.2.1 GPIO1 (Input/Output)
• GPIO1 as an Input
Set the bus direction to be “input” by using the “AT$IOGP1=1” command. Verify that GPIO1 is
set to be an input by using the “AT$IOCFG?” command.
• GPIO1 as an Output
Change GPIO1 to be an output by using the “AT$IOCFG=xxx” command.
Set the bus direction to be an output by using the “AT$IOGP1=0” command.
3.2.2 GPIO2 (Input/Output) Programmable Pull-Up System
• GPIO2 as Pull-Down System
Set GPIO2 to 0 by using the “AT$IOPULUP=0” command.
• GPIO2 as a Pull-Up System
Set GPIO2 to 1 by using the “AT$IOPULUP=1” command.
*Set the bus direction as described in 3.2.1 using the AT$IOGP2=x command where x is 0 or 1..

GSM1308 Quad-Band
SA-G+ User Manual
GSM1308UG001 11 Version 1.02 – 10/29/08
The following table provides the power characteristics of the GSM/GPRS SA-G+
modem.
Band Mode Avg (mA) Peak
(A@dBm)
GSM 850
EGSM 900
1 TX/1 RX 200 1.30@33
Idle 50 DRX 5
DCS 1800
PCS 1900
1 TX/1 RX 160 0.92@30
Idle 50 DRX 5
Sleep 20
Table 3 – GSM Operating Power
!
Use of the device outside of the specified voltage range may
result in damage to the device and/or undesirable results.

GSM1308 Quad-Band
SA-G+ User Manual
GSM1308UG001 12 Version 1.02 – 10/29/08
3.3 Connecting the Serial Cable
To connect the SA-G+ with a local computing device, connect one end (male
end) of the 9-wire RS232 Serial Cable to the SA-G+ port labeled "Serial" and
connect the other end to a computer.
The following figure provides the SA-G+ serial pin-out information.
Figure 5 - Serial Pin-out

GSM1308 Quad-Band
SA-G+ User Manual
GSM1308UG001 13 Version 1.02 – 10/29/08
3.4 Connecting the GSM/GPRS Antenna
The antenna is supplied by the user. The antenna must have a nominal
impedance of 50 Ohms. The VSWR must be less than 2.0:1. System antenna
gain should be 0-2 dB for optimum performance. See section 2 Regulatory
Compliance
FCC.
The GSM/GPRS SA-G+ operates at the 850/900/1800 and 1900 MHz frequency
bands. Care needs to be taken when connecting the antenna since the right type
of antenna will be required for proper operation of the modem. The antenna
connector on the GSM/GPRS SA-G+ modem is SMA Female. The antenna has
to be connected to the connector labeled “Antenna” as shown below in Figure5.
Connect the
GSM/GPRS
antenna here.
Figure 6 - GSM/GPRS SA-G+ Connecting the Antenna
