EnGenius EDS5115 User manual

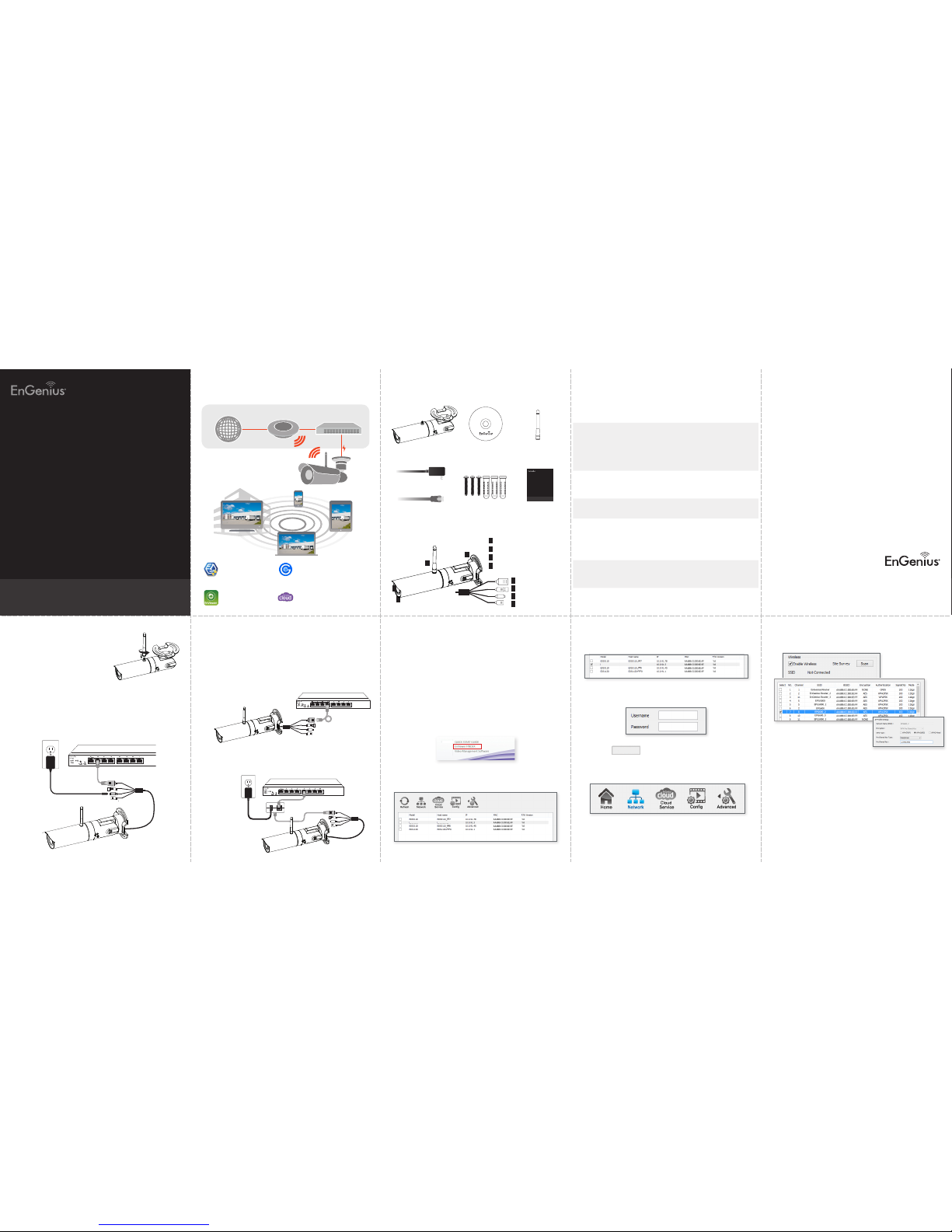

Basic Connection (without PoE)
0Installation
1Connecting to Camera
A
B
Screw the supplied antenna to the camera.
A) Connect the camera to a switch via Ethernet Cable.
B) Connect the supplied power cable from the camera to the power outlet.
EnViewer Finder is the setup wizard assisting you to congure the
camera connected to your network (LAN).
Note: If you do not have DHCP server connected, the camera will change
IP address to 192.168.1.200 automatically 3 minutes after booting up.
2Setup EnViewer Finder and Wi-Fi
The wizard will search all cameras within your home network (LAN).
A) Run the CD on your computer and follow the EnViewer Finder setup
instructions.
(PC-based Wizard for Local Network)
E) The wizard will guide you to complete the camera settings step by step.
F) Click “Finish” to close this utility. Double click the camera in the
Camera List for video live view streaming.
Set up Wi-Fi : Click on the Scan to search the Wi-Fi nearby.
Select the target Wi-Fi, click “Save”,
then enter the Wi-Fi password.
Continue with the process by clicking “Next” to complete the Wi-Fi setup
Cloud Service: You can enable the DDNS Service and create your own
personal Domain name in the DDNS alias eld for remote accessing or
sharing with others later on.
Cong : Set up the Video Resolution, Compression Codec, and Maximum
Frame Rate.
Note: Once you have nished the process, your device is now connected
to Wi-Fi. Please remove the Ethernet Cable for Wi-Fi usage.
Network: Set up IP Address, System Time, Wi-Fi, and Administrator
settings including change of password for the camera.
Note: You can select DHCP mode for default setting, or select Manual
mode to assign a xed IP Address for the camera.
B) Select the target camera from the list.
C) Enter the Username and Password of the camera . The default value of
both username and password is admin.
D) Click on to log in.
admin
admin
Next >
Power over Ethernet (PoE) Connection
Option 1) When connecting to PoE-Enabled Switch:
This is a PoE compliant camera. You can connect the Ethernet Cable from
the camera to a PoE-enabled Switch.
EDS5115
RJ-45 Ethernet Cable Quick Start Guide
Power Adapter
CD with User Manual
and Software
Package Contents
Interface 1
2
IR LEDs
Built-in LENs
Cable Management Bracket
Antenna
RJ-45 (PoE)
Alarm-In/Out
DC Jack (12V/1A)
3 in 1 button : WPS,
Reboot, Reset to Default
3
4
MinimumRequirements
Quick Start Guide
Screws / Plastic Anchors
3
1
4
6
5
7
Before Getting Started
Internet SwitchGateway / Router
For Remote Network
Mobile Viewer (APP)
EnViewer
EnGenius Cloud Services (Web)
EnViewer
Video Management Software
EnGenius VMS
For Local Network
PC-based Wizard
EnViewer Finder
Please ensure your Gateway/Router
has Internet connection to proceed
with the camera setup.
PoE-Enabled Switch
non-PoE Switch
PoE injector
Technical Support
Country of Purchase Service Center Service Information
North America
www.engeniuscanada.com Canada
[email protected]
TollFree: ([phone]
Local: ([phone]
www.engeniustech.com Los Angeles, USA [email protected]
Toll Free: ([phone]
Local: ([phone]
Central & South America
es.engeniustech.com
pg.engeniustech.com
Miami, USA [email protected]
Miami: ([phone]
Sao Paulo, Brazil: ([phone]
D.F, Mexico: ([phone]
Europe
www.engeniusnetworks.eu
Netherlands [email protected]
([phone]
Africa
CIS
Middle East
Russia
www.engenius-me.com
Dubai, UAE [email protected]
Toll Free:
U.A.E.: 800-EnGenius
800-364-364-87
General: ([phone]
Asia
Oceania
www.engeniustech.com.sg
Singapore www.engeniustech.com.sg/e_warranty_form
[email protected]
Toll Free:
Singapore: 1800 364 3648
Others
www.engeniusnetworks.com
Taiwan, R.O.C [email protected]
Quick Start Guide
1 Megapixel Wi-Fi HD Bullet Camera
EnGenius Cloud Services
(EnViewer Finder / EnViewer)
version l.0
EDS5115
In the United States of America, use of video or audio equipment for recording the image of a person without
their knowledge and consent is prohibited in certain states, commonwealths, municipalities or jurisdictions.
The enduser assumes all liability for compliance with applicable state, local and federal laws. End-users in other
countries assume all liability for compliance in their country. Product features,specications, or industrial design
of the camera product are subject to change without notice, and actual product appearance may dier from
what is depicted on product packaging, on websites, or in marketing material. EnGenius Technologies, Inc. is
not responsible or liable for any property loss or damage in any site or deployment where EnGenius camera
products are used. Apple, the Apple logo, iPadand iPhone are trademarks of Apple Inc., registered in the U.S. and
other countries. App Store is a service mark of Apple Inc. Android and Google Play are trademarks of Google Inc.
Trademarks and registered trademarksare the proper ty of their respective owners.For United States of America:
Copyright ©2015 EnGenius Technologies, Inc. All rights reserved.
Notes
2.4 GHz Detachable
Antenna x1
Option 2) When connecting to a non-PoE Switch:
Connect the camera to a non-PoE Switch via PoE Injector (optional).
EDS5115
EDS5115 EDS5115_e9ff
EDS5115 EDS5115_E9FF
2
4

A) Select and run the VMS from the CD. Continue with the installation
process.
C) Go to Conguration and select camera to obtain the camera setting
panel.
F) Select one of the IP cameras that is available and click OK.
H) Repeat Step D) to G) until all desired cameras are added. You can now
monitor all cameras in live view.
D) Go to Camera tab, and click Add on the top right side of the Camera
page.
E) Click on Discovery to detect IP cameras under local area network (LAN).
G) Enter the camera username & password and click Get Camera Set-
tings to verify. Then click Save to add the camera and exit.
B) Run EnGenius VMS to execute live monitor.
EnGenius VMS is a free bundle Video Management Software can sup-
port multiple cameras.
(the PC-based VMS, work with EnGenius IP Camera only)
Option I - Scan QR Code Option II - Auto Search
A) Scan the QR Code with the provided
label.
B) Click “ Yes” to add the device in the Camera List.
B) All cameras within the local network will be listed. Select the device(s)
you would like to add and click on Save.
A) Click on Auto Search.

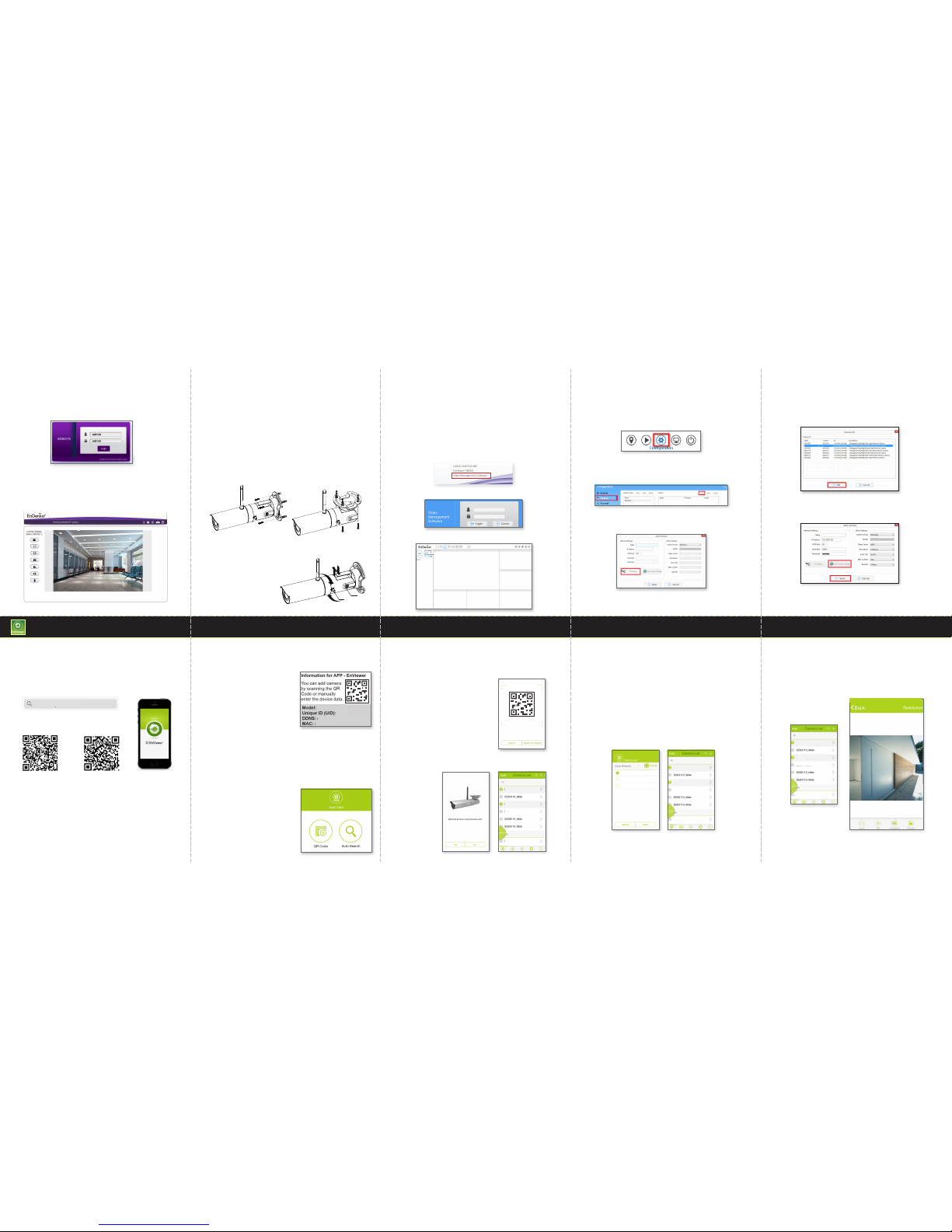

1Get Started
