BEFORE WE
BEGIN
ABOUT YOUR COACH
IDENTIFYING EXTERIOR
COMPONENTS
POWER MANAGEMENT
FRESH WATER MANAGEMENT
ELECTRONIC & MECHANICAL
SWITCHESAND CONTROLS
HEATINGAND COOLING
STORAGEAND LOADING

BEFORE WEBEGIN

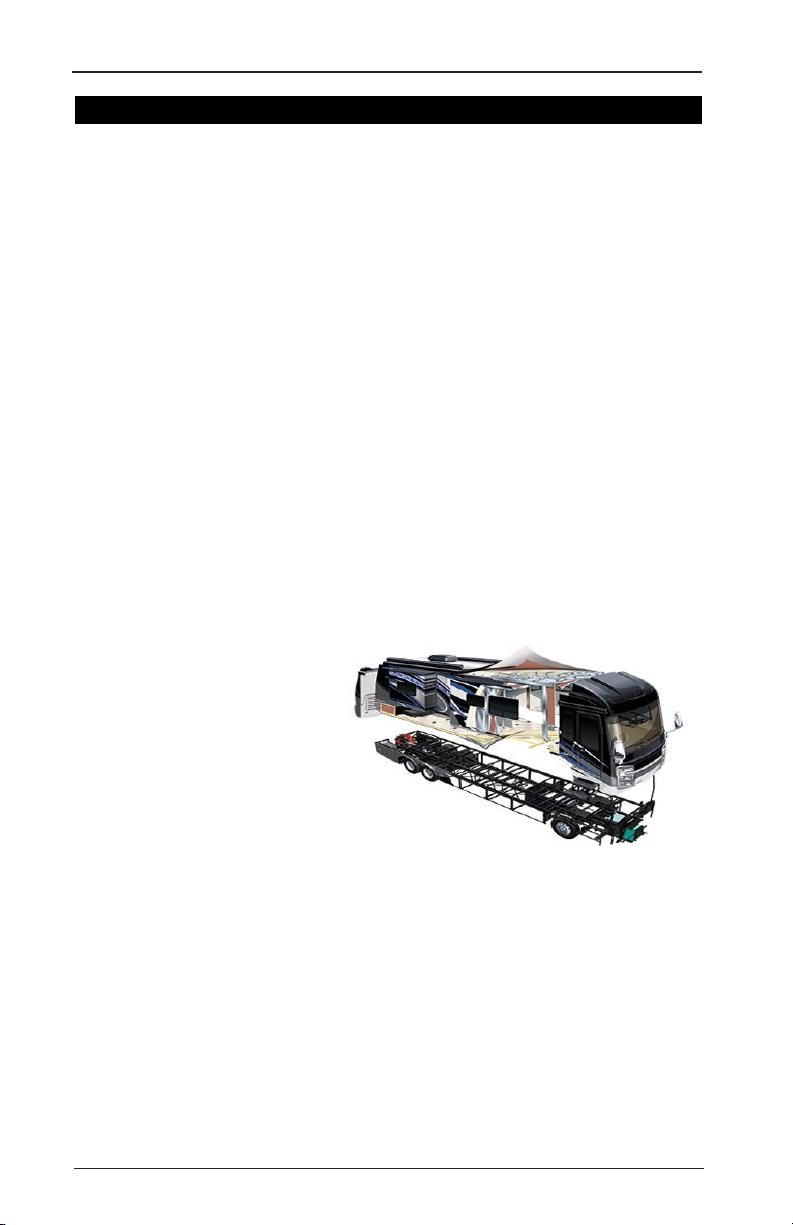

The Sum of Two Parts
The Chassis
•K2 chassis made by Spartan®
•Enhanced by Entegra Coach with stabilizingcross bracing
and other innovations
•Everything“under the floor”
•Outstandingpowertrain and handling
•450 HP 9L Cumminsengine for plenty of power
•Allison 3000 transmission for smooth and efficientdriving
•Smoothest ride in its class
•Six suspension airbags
•60 mm Bilstein front shocks
•Independent front wheel suspension
•Cummins generator provides ample electricity while not
connected to “shore power"
•Safety
•Blind Spot Monitoring
The Living Quarters
•Constructed by Entegra Coach
•Quietest riding, best handlingcoach on the market today. Period.
•Proprietary manufacturing processes
•Woodto wood construction to eliminatesqueaking noises
•Front cap design minimizeswind noise
•Cab forward design with large wrap-around windshield to provide
outstanding visibility
ABOUT YOUR COACH
© ENTEGRACOACH, 2017ALL RIGHTS RESERVED
12

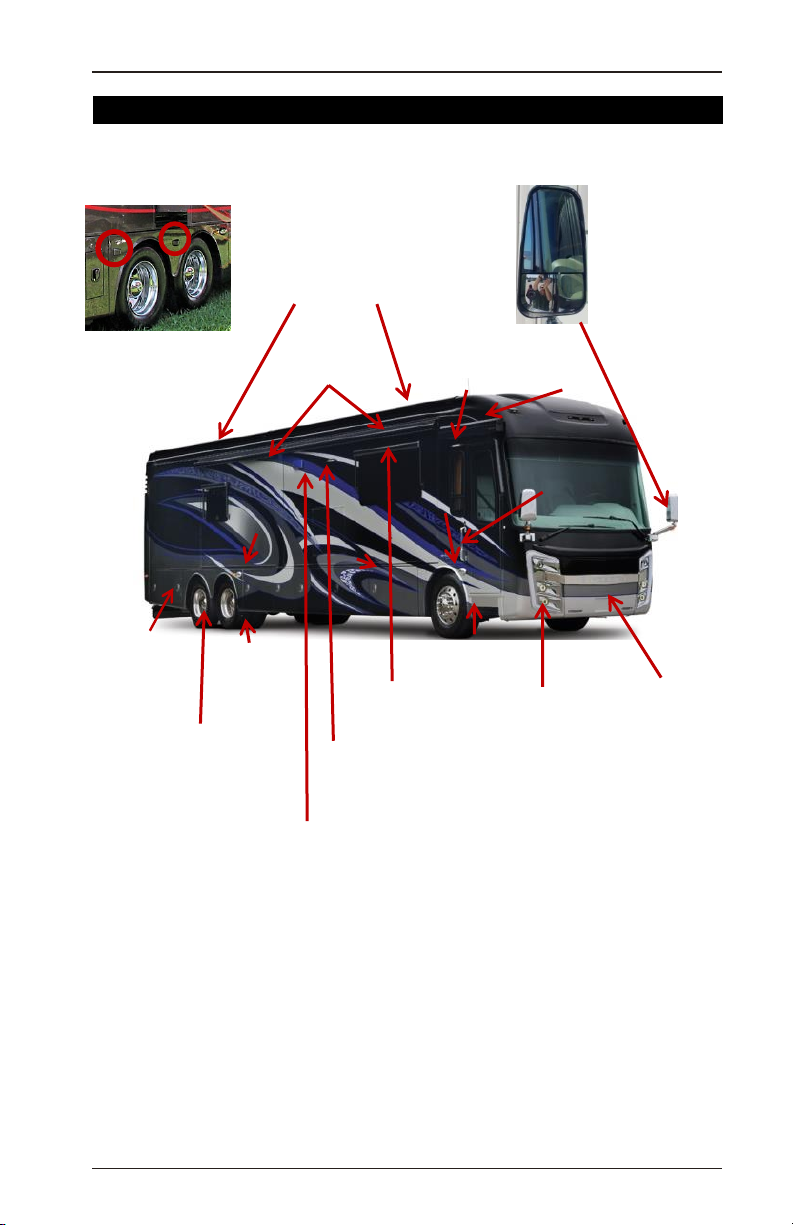

IDENTIFYING EXTERIOR COMPONENTS
Girard Awnings
Motion/Security
Light
Slide Out
Toppers
Window
Awnings
Porch
Light
FEATURES
•Side turning signal lights make other drivers aware of your
intentions.
•Blind spot detectors ensure greater safety to you and other
vehicles.
•Windowawnings contribute to privacyand a comfortableinterior
environmentby blockingunwanted sunlight.
•Girard awnings providea wonderful patio area –they are equipped
with LED lightingto provide light for nighttime activities.
Rear View
Mirrors with
Embedded
Rear View
Cameras
and Blind
Spot LEDs
LED
Headlamps
Drive
Axle
Tag Axle
Retractable
Entry Steps Lighted
Entegra
Badge
Microwave Vent
(WhichSide Depends
on Floor Plan)
Door
Awning
Docking
Light
Key
Pad
Door
Handle
Docking
Light
Marker
Light
DEF Fill
(One on
each side
of coach)
Turn
Signal
Marker
Light
Blind Spot Sensors by Front,
Driveand Tag Wheels
(Drive and Tag Sensors Shown)
BEFORE WEBEGIN 13
© ENTEGRACOACH, 2017ALL RIGHTS RESERVED

Entegra
Badges
Two-Position
Rear Camera
Marker Lights
Front Cap
“C”Lights
Rear
Docking
Lights
Wrap Around
Windshield
Rear Cap
FEATURES
•Distinctive “C” lights and badges offer unique campsite
lighting.
•Wraparoundwindshield is the largest in the industry and
provides unparalleledvisibilityfrom inside.
•Bright docking lights in conjunction with the rear camera
visibility make backing up easier and more precise.
•Marker lights around the coach ensure the coach is visible in
both clear and difficultweather conditions.
BEFORE WEBEGIN
IDENTIFYING EXTERIOR COMPONENTS
14
Pulsing Third-Brake Light
© ENTEGRACOACH, 2017ALL RIGHTS RESERVED

ELECTRICAL POWER
•Make sure the circuit
breaker is turned off at the
pedestal.
•Plug your power cord into
the 50 amp receptacle.
•50 amp plugs have4 prongs
•Flip the circuit breaker to the
ON position.
•The transfer switch and
invertersmay take up to a
minuteto respond.
Pedestal
Circuit
Breakers
50, 30, 20
and 15 amp
Receptacles
•Your running generator
provides50 amps of
service.
•The generator may be
operated manually or set to
start automatically when
pre-set conditions are met.
Sources of Power
Shore Power
Generator Power
Battery Power
•Your coach has 4 AGM
batteries. This battery
option provides plenty of
power and a long life.
WaterNEVER has to be
added.
•The batteries are located
in the middleof the
basement toward the rear
of the coach.
BEFORE WEBEGIN 15
© ENTEGRACOACH, 2017ALL RIGHTS RESERVED

“Types”of Power
There are two electrical systems in your coach: first, there is a 120
voltAC (alternating current) system used to run your major
appliances(heat pumps, refrigerator,etc.); second, there is a 12 volt
DC (direct current) system to power your lights, slides and other
devices.
Basics of electricity
•Voltage is to electricityas pressure is to water. The higher the
number, the greater the “pressure.”
•Amperage is to electricityas volume is to water. The higher the
number, the more water flows through a givensize pipe.
•Your inverters have two functions:
CONVERTING 120 voltAC electricityto 12 volt DC electricity.
•This function enables your batteries to be charged.
INVERTING 12 voltDC electricityto 120 volt AC electricity.
•This functionenables your batteries to power your 120 volt
appliances when you do not have120 volt power available.
Batteries
•Batteries are used for two functions:
-two CHASSIS batteries are primarily used to start the engine.
-four HOUSE batteries are used to power the coach.
120 Volt System
•50 amp Service
-50 amp service actually provides 100 amps of power because your
plug gives you access to two 50 amp circuits. If you look at the plug
at the end of your power cord, you will see it has four prongs
(shown below). You will also notice there are two circuit breakers
(generally connected together) at the electric pedestal at the park.
Each is a 50 amp circuit breaker. When your coach is connected to
50 amp service it actually has 100 amps of electricityavailableto
run the heat pumps, etc.
BEFORE WEBEGIN
ELECTRICAL POWER
16
© ENTEGRACOACH, 2017ALL RIGHTS RESERVED
Circuit
1
Ground
Circuit
2
Neutral

“Types” of Power
12 Volt System
•The power to operate your lights, slides and other 12 volt devices
comes directly from your 12 volt batteries. The batteries need
recharged so they do not go “dead.” This is discussed in more
detail later in the Guide.
•One of the functionsof your inverters is to CONVERT 120 volts
AC to 12 Volts DC so your batteries can be recharged when
needed.
•Part of maintaining your batteries is maintaining a minimal charge
within them. Your coach has a power managementsystem which
is operated through your VegaTouch system but is invisibleto
you.
120 Volt System - continued
•30, 20 and 15 amp Service
-Not all parks or sites in a park have50 amp service. There will
be times when you will haveto connect to other than 50 amp
service. You will need to carry an adapters in order to do this –
you should purchase and always have a 50 amp to 30 amp
adapter and a 30 to 20/15 amp adapter with you.
-Whenhooking up to 30 amp service (the most common
exception to 50 amp service), the coach is only receiving30 amps
of power since there is only one “Hot” line being connected.
-When connected to 30 amp service, your coach is only receiving
30% of the power it receives when connected to 50 amp service –
yes, it can be confusing.
•For this reason, your coach is powered through a
combinationof shore, battery and if installed, solar panel
power.
-If not charged, the batteries will completely discharge – “go dead.”
-The batteries can recharge when using the generator.
-The generator can be started manuallyusing 1) the dash
generator ON/OFF button, or 2) by setting the Energy Command
control.
Neutral
Wire
“Hot” Wire
(30 amps)
Ground Wire
BEFORE WEBEGIN 17
© ENTEGRACOACH, 2017ALL RIGHTS RESERVED
ELECTRICAL POWER

1. Be sure that the water pump is in the OFF position.
2. Connect the coach’s water hose to a potable water source faucet.
Whencompleted,turn on the city/parkwater faucet.
3. Turn the valveshown aboveto the horizontalposition to fillthe
tank.
4. Monitor the amount of water in the tank by pushing the FRESH
button on the tank monitoringsystem.
5. Whenthe desired amount of water is in the fresh water tank, turn
off the water source and return the valveback to the vertical
position.
6. Retract the fresh water hose by pushing the button.
Filling the Fresh Water Tank
USING CITY/PARK WATER
Photo shows the valve in the normal vertical position for using city
water.
1. Connect the coach’s water hose to a potable water source faucet.
Whencompleted,turn on the city/parkwater faucet.
2. Double check that the valve is in the verticalposition.
NOTE
If the tank fill valve is not in the vertical position, water from
either the city or fresh water tank will not flow into the coach.
BEFORE WEBEGIN
FRESH WATER
18
Consider purchasing and using a pressure regulator valve to
protect your coach’s plumbing system. Some water sources have
pressures that could cause damage to your plumbing system.
© ENTEGRACOACH, 2017ALL RIGHTS RESERVED
2
3
1
5
4 6

ELECTRONIC & MECHANICAL SWITCHES AND CONTROLS
MultiPlex Switching System
Individual switchesarecombined in
severalpadslocated throughoutyour
coach. Eachswitch pad contains the
switches relevanttothatlocation:
MultiPlex Switch Color Coding
On/Off Switches: White = Off; Blue = ON
Adjustment Switches (awnings, shades
and designated lights) = Green
Types of Switches
MultiPlex VegaTouch Rocker Switches
These switch systems were chosen to provideyou the easiest way
to control all the devicesand systems in your coach. There are times
when two differenttypes of switches will be used to accomplish the
same outcome –this is for your convenienceand ease of use. Each
of these systems will now be introduced.
Self-Explanatory
BEFORE WEBEGIN 19
© ENTEGRACOACH, 2017ALL RIGHTS RESERVED
