Kamai®510 Series
Hybrid Media Player
IP | OTT | DVB-C | DVB-T
Consumers are expecting more
from their service providers. As
users gain more access to a variety
of content, the demand for a more
seamless digital lifestyle continues
to rise.
High Performance in a Sleek
Compact Design
Stay ahead of the game with the
compact, cost-optimized Kamai 510
series.
You no longer have to sacrifice
performance for cost. With twice
the processing speed and half the
power consumption of previous
generation settops, the Kamai 510
series exceeds both in performance
and energy efficiency.
Continuous Video Delivery with
Adaptive Bit-Rate Streaming
The Kamai 510 series is ideal if you
want to offer video but have a geo-
graphically diverse broadband foot-
print with a range of network infra-
structure capabilities. By leveraging
the advantages of Adaptive Bit-Rate
(ABR) streaming technology, Kamai
510 can reliably deliver HD video
across the Internet and over last
mile networks of varying quality and
bandwidth. ABR streaming encodes
Key Features
•Optimized for digital
video broadcast and
streaming media
services (OTT)
•Easily integrates with
existing in-home
networks and
broadband services
•Digital tuner options
for hybrid IP/DVB
•Whole-home wireless
HD video distribution
with Wi-Fi options
•Energy efficient with
DeepSleep™
technology for
reducing power
consumption up to
99% in standby mode
content at various bitrates and
resolutions, and then dynamically
selects the best quality stream that
can be delivered over the current
network conditions.
If the network conditions change,
like when multiple applications are
sharing a network connection, the
Kamai 510 will automatically adapt
to ensure uninterrupted video
delivery. Now, you can deliver video
to all of your broadband sub-
scribers, not just customers with
fiber (FTTH) or other high-speed
connections.
Digital Tuner Options for Hybrid
Deployments
Kamai 510 series offers optional off-
air and digital cable tuner options to
help reduce retransmission fees and
network bandwidth demand. Kamai
510 supports worldwide terrestrial
broadcast standards (ATSC, DVB-T,
DAB, T-DMB, ISDB-T, CMMB, CTTB)
and is also compatible with world-
wide cable broadcast standards
(DVB-C, ITU-T J.83 Annex A, B, C).
Whole-Home Wireless HD Video
Distribution
The Kamai 510 series offers flexible
networking options to enable
wireless HD video distribution
throughout the home. Reduce
installation time, cost and com-
plexity of wiring a home with
Kamai’s pre-802.11ac (5 GHz) and
802.11n (2.4 GHz) Wi-Fi networking
options.

Based on the latest standard for
advanced wireless communi-
cations, the pre-802.11ac Wi-Fi
option supports dual-band
technology and uses multiple
antennas (MIMO) and beam
forming technologies to provide
better coverage, superior perfor-
mance and high quality of service
(QoS) for distributing video within
the home. When matched with an
accompanying access point, Kamai
enables whole-home Wi-Fi trans-
mission speeds over 600 Mb/s.
Hassle-free installation and easy
distribution of HD video throughout
the home without wires. The Kamai
510 series provides a true video-
grade Wi-Fi client solution and cost-
effective architecture to accelerate
the adoption of IP-based video
services.
Cloud-based Applications for a
Connected Home Experience
Meet subscriber’s demand by
offering the most advanced online
services and applications. Based on
Broadcom’s latest chipset, the
Kamai 510 series supports
streaming video services like VUDU,
YouTube and Amazon On Demand.
With Kamai 510, subscribers can
access popular social media
applications such as Facebook,
Flingo, and Twitter, share photos via
Flickr and Picasa, and enjoy online
music from Pandora, MOG and
Grooveshark.*
Ready-to-Deploy Hybrid TV
Solution
By supporting third-party
middleware and digital rights
management (DRM) solutions such
as Conklin Intracom, Latens,
Microsoft PlayReady, Minerva,
Nordija, SecureMedia, and
Verimatrix, the Kamai 510 enables
you to quickly deploy a video
service that also offers advanced
cloud-based features for Hybrid TV
and over-the-top (OTT) streaming
applications. Kamai also offers
advanced applications such as an
HTML5-compliant browser and
C/C++ SDK to enable an open and
flexible platform for application
development.
Supports Legacy Televisions
Broaden your addressable homes
by supporting the millions of
televisions in subscriber homes that
do not support HDMI. Kamai 510
supports composite and component
video, as well as analog stereo
audio and digital multi-channel
audio outputs.
Kamai 510 Hybrid Media Player | datasheet

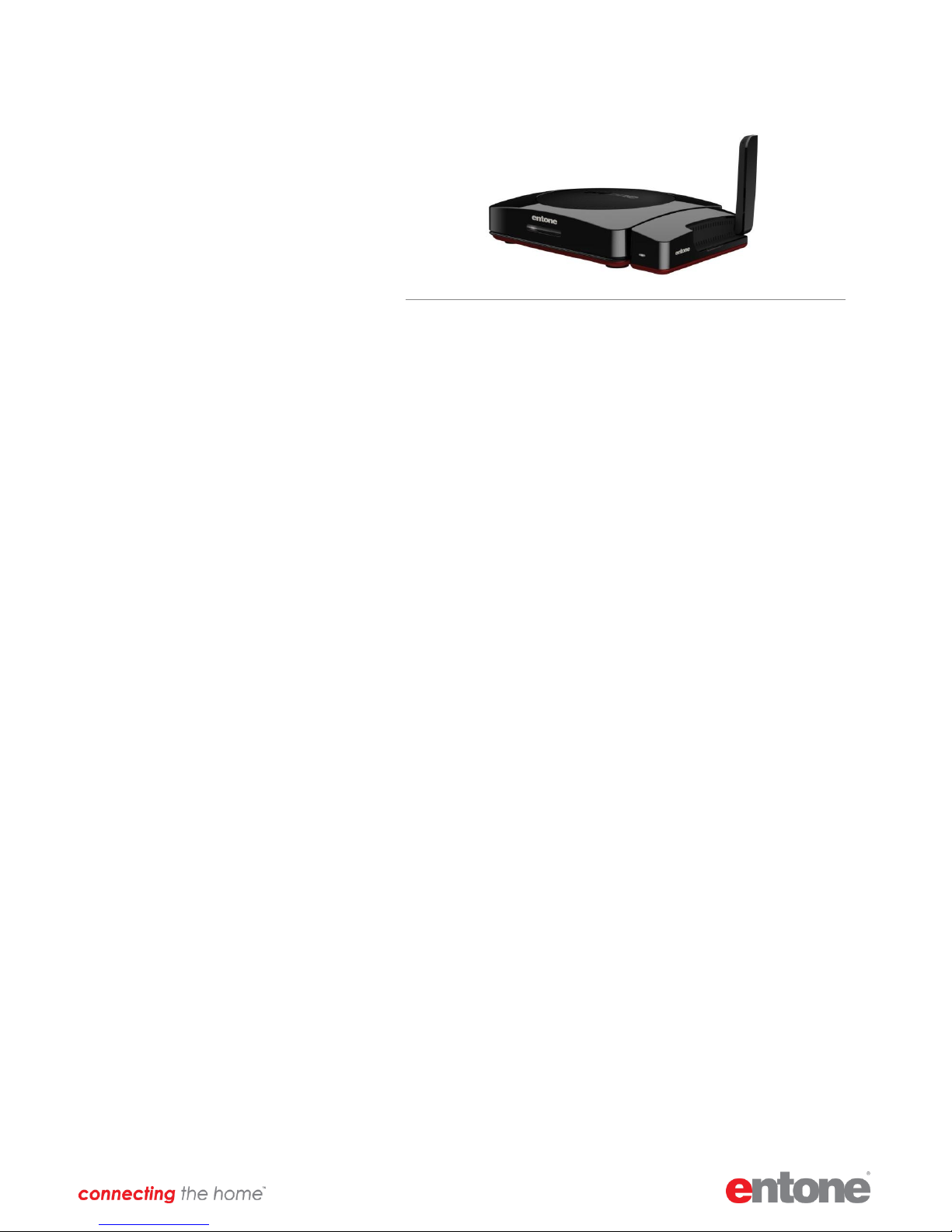

Kamai 510 with external 5 GHz Wi-Fi option
*Online services and applications may vary and are subject to middleware and third-party support.

Kamai 510 Hybrid Media Player | datasheet
Technical Specifications
Video Formats
•VC-1 Advanced Profile @ Level 3
•AVC/H.264 High Profile @ Level 4.1
•MPEG-2 Main Profile @ High Level
•MPEG-4 Part 2 Advanced Simple Profile
•DivX versions 3.11, 4.1, 5.X, and 6.X
•XVID
•MPEG-1/H.261/H.263
•AVS decode with support for AVS1-P2 Jizhun Profile @ Level 6.0
•MPEG still picture decode
•MVC
Audio Formats
•AAC LC, AAC LC+SBR Level 2, AAC HE Level 2, AAC HE Level 4
•Dolby Digital, Dolby Digital Plus
•MPEG I Layer 1, 2
•MPEG I Layer 3 (MP3) encode/decode
•Windows®Media Audio (WMA)
•WMA pro
•AAC HE 5.1 decode plus DTS 5.1 encode SPDIF output
•AAC HE 5.1 decode plus AC3 5.1 encode SPDIF output
Video Outputs
•NTSC-M, NTSC-J, PAL-BDGHIN, PAL-M, PAL-Nc, SECAM analog
outputs
•480i/480p/576i/576p/720p/1080i/1080p output formats
•Component RGB or YPrPb output
•DCS support
•Rovi 7.1 support
•Euro-SCART
•HDMI 1.4a with 3D format support
Security
•AES, 1DES, 3DES, CPRM, CPPM, CSS, and DTCP
copy protection
algorithms and standards
•VB, ARIB, and DC2-compliant transport demux with 1DES,
3DES, DVB, Multi2, and AES descramblers
Wireless Networking
Options
•Internal 802.11n (2.4 GHz) Wi-Fi
•External pre-802.11ac (5.4 GHz) Wi-Fi
‒Real-time Transmit Digital Beam Forming (MIMO)
‒Baseband 3Tx3R, up to 3 spatial streams
‒Client-to-client direct connection (TDLS)
‒Digital beam forming for up to 4.5db gain
‒Standards: pre-802.11ac, 802.11a, 802.11h, 802.11n,
802.11e, 802.11i
‒Wi-Fi Compliant: WMM, WMM-PS, WPA, WPA2, WPS
‒Encryption: AES, TKIP, WEP64/128
‒RF: 2.4GHz, 4.9GHz –5.85GHz
‒Modulations: BPSK, QPSK, 16-QAM, 64-QAM
‒FEC: 1/2, 2/3, 3/4, 5/6
‒Max PHY Rate: 450 Mb/s
Hybrid Tuner Options
•DVB-C
•DVB-T

© 2013 Entone, Inc. | North America | Hong Kong | Belgium
Entone and Kamai are registered trademarks of Entone, Inc. All rights reserved. V3.0413 EU
Kamai 510 Hybrid Media Player | datasheet
Technical Specifications (continued)
Front & Side Panels
•Illuminated standby indicator (on/standby)
•IR receiver
•USB 2.0 Host Type A
•SD memory card
•Reset to factory
Back Panel Connectors
•Optical digital audio
•Mini DIN connector for SCART fan-out cable (included)
•HDMI 1.4a
•RJ-45 10/100 Base-T Ethernet with integrated status LEDs
•DC power
CPU & Memory
•Broadcom BCM7229
•MIPS4380 dual thread core 495MHz
•512MB DDR3-1600
•4MB NOR flash (secure boot ROM)
•256MB NAND flash
Mechanical
•100w x 100d x 25h mm
•5-35°C (40-95°F) operating temperature
•30-95% relative humidity
Energy Management
•Power 7W maximum at 90-264VAC, 48-63Hz
•Compliant with European Union’s Energy using products
directive for standby regulation
Front, side and back panels of Kamai 510
Model Number Description Part Number
Kamai 510 Kamai 510 Hybrid Media Player with Stylus remote 99-890000-02
Kamai 510 Kamai 510 Hybrid Media Player with URC remote 99-890000-02U
Kamai 510 External 5 GHz Wi-Fi adapter for Kamai 510 series 99-970201-00
Kamai 511 Kamai 510 Hybrid Media Player with internal 2.4 GHz Wi-Fi & 99-890400-02
Stylus remote
Kamai 512t Kamai 510 Hybrid Media Player with DVB-T tuner & Stylus remote 99-890020-02
Kamai 512c Kamai 510 Hybrid Media Player with DVB-C tuner & Stylus remote 99-890070-02
Kamai 513t Kamai 510 Hybrid Media Player with DVB-T tuner, internal 2.4 GHz 99-890420-02
Wi-Fi & Stylus remote
Kamai 513c Kamai 510 Hybrid Media Player with DVB-C tuner, internal 2.4 GHz 99-890470-02
Wi-Fi & Stylus remote
