RF RFT-897 User manual

RFT-897
HDMI to IP streamer
User Manual
RF-Tuote Oy, Joensuunkatu 13, 24100 Salo, tel. [phone], fa . [phone], [email protected], www.rf-tuote.fi

1. Purpose of use
RFT-897 is HD compatible IP streamer designed for a processing HDMI signals to data broadcast (IP)
connected to thernet.
Three models are available RFT-897-1 (1 HDMI input), RFT-897-2 (2 HDMI inputs) and RFT-897-3 (3
HDMI inputs).
The programs can be received withVideolan's VLC Media Player (www.videolan.com), Ipad, Iphone,
Android tablets, IP STB or Smart TV.
NOTE If unit is long time without input signal, power will switch OFF. Then The unit will restart with
POW R OFF and POW R ON.
If there is interference in the picture after resolution is changed, then swithc POW R OFF and ON.
2. Installation

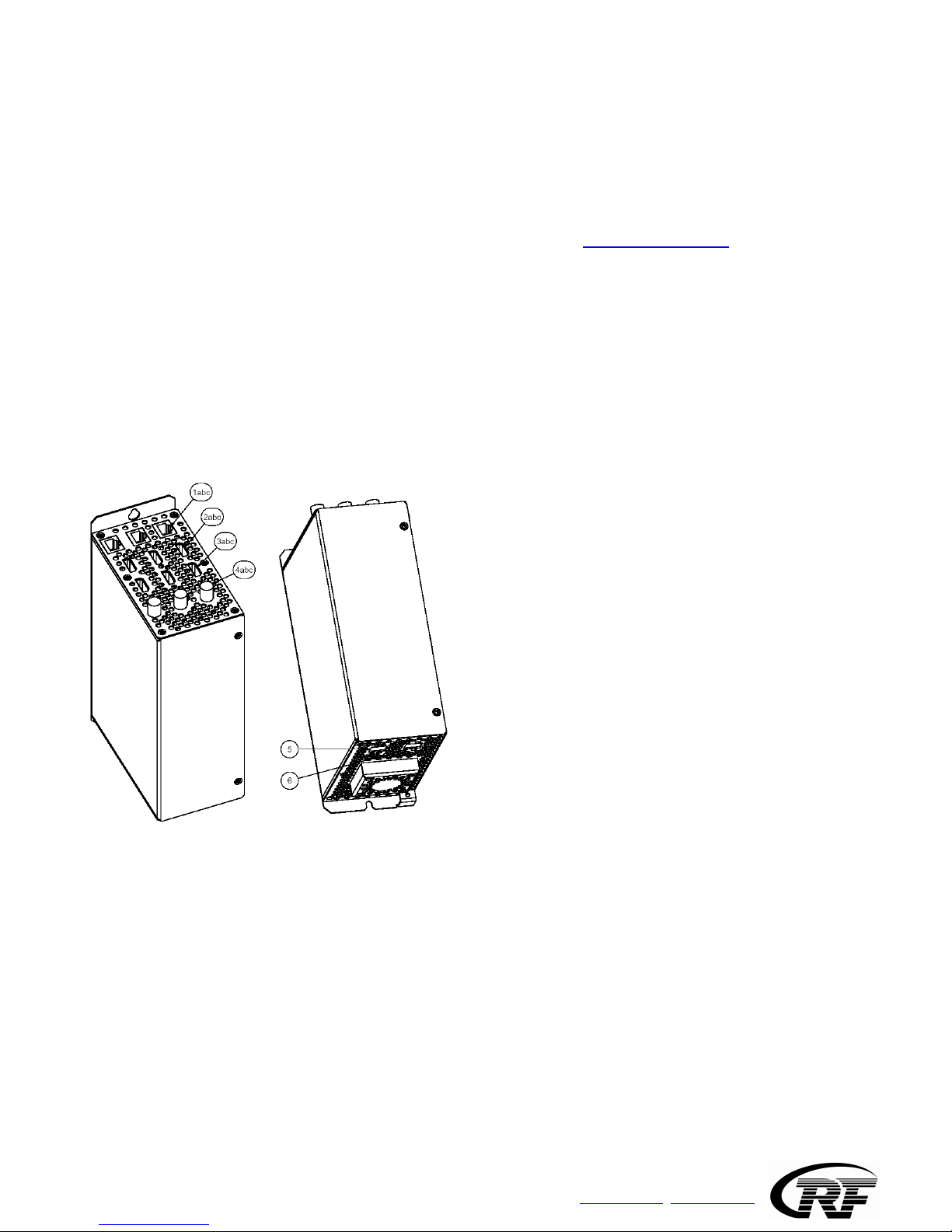

The connections are shown in Fig 1.
1 a (ch1),b (chi2),c (ch3). RJ 45 connector to thernet
2 a (ch1),b (ch2),c (ch3). HDMI input
3 a (ch1),b (ch2),c (ch3). HDMI output for monitoring
4. Not in use
5 a and b. Power supply connectors
6. Alternative power supply connector
7. Led; red = booting or error, green = encoding
RFT-897 is mounted directly on the wall. Do not cover the air passage holes.
HDMI signal(s) are connected to HDMI connector(s). NOT ! Maximum input resolution is 1080i.
Resolution 1080p can not be used.
Power supply unit can be connected either connector 6. (black) or connector 5. (green). Connector 5b. is
for loop-through.
thernet cable from connector 1. is connected to router/switch, which must support IGMP.
3. Setting up the system
The system is programmed with PC via Web browser.
The simplest way to open web browser and type 192.168.0.191.
RF-Tuote Oy, Joensuunkatu 13, 24100 Salo, tel. [phone], fa . [phone], [email protected], www.rf-tuote.fi

When prompted for the login and password, then write “webadmin” .
Another way is to go Control Panel/Network and Internet Connections/ Network and Sharing Center.
Then you get following window:
Select with the mouse secondary button (right) HD Streamer and select Open web page.
When prompted for the login and password, then write “webadmin” .
4. Configuration
4.1 Network setting
RF-Tuote Oy, Joensuunkatu 13, 24100 Salo, tel. [phone], fa . [phone], [email protected], www.rf-tuote.fi

Static IP address 192.168.0.191 is the factory default of RFT-897-1. RFT-897-2 second factory set IP
address is 192.168.0.192 and third factory set IP address of RFT-897-3 is 192.168.0.193. If several RFT-
897 units are used, factory set IP addresses must changed.
4.2 Streaming
This window shows the streaming IP address.
4.3 Software upgrade
Select software and then Upgrade
4.4 Multicast
RF-Tuote Oy, Joensuunkatu 13, 24100 Salo, tel. [phone], fa . [phone], [email protected], www.rf-tuote.fi

Factory set multicast adresses are 224.0.0.1:1234 (ch1), 224.0.0.2:1234 (ch2), 224.0.0.3:1234 (ch3),
Following options are available:
- Video format MP G-2 or MP G-4 (h264)
- Audio format aac
- Resolution 576i, 576p, … 1080i. NOT ! Some displays do not support interlaced resolution. 1080p
resolution is not supported. MP G-4/720p is recommended in IPTV networks.
- Bitrate 1,5 Mbit/s …. 9Mbit/s
- Protocol UPD or RPT. UDP is recommended.
- TS packet per IP packet 1 …7
- PMT Pid
- Video Pid
- Audio Pid
- PCR Pid
- Audio bit rate 192 ….
- Audio level 0 …10 ( 10 is max.)
- TTL (Time To Live) 1 …6
- Multicast address. IP address/port range is from 224.0.0.1:1234 to 238.255.255.255:65353
When any of parameter is changed, press APPLY to store selection.
4.5 System
Following option are available:
- UUID unit ID
- ncryption
- Password
- System reboot
- Logout
RF-Tuote Oy, Joensuunkatu 13, 24100 Salo, tel. [phone], fa . [phone], [email protected], www.rf-tuote.fi

4. Technical specification
VID O NCOD R MP G-2, MP G-4 H.264 AVC
Max. bitrate 9 Mbit/s
AUDIO NCOD R AAC
Max. bitrate 256 kbps
DATAHANDLING AND D -MULTIPL XING
ncapsulation SPTS
Multicast address filters 128
LAN INT RFAC
Connector RJ45
Speed 10/100/1000 autosensing
G N RAL
Power consumption 16VDC/1,1A
Dimensions 71mm*214mm*149mm
This symbol on the product or on its packing means that within the uropean Union the product must be
taken to separate collection at the product-end-of life.
Do not dispose of these products as unsorted municipal waste.
Fore more information about where you can drop off your waste equipment for recycling, please contact
your local city office, your house disposal service or the shop where you purchased the product.
