Entrematic Ditec DAB105 User manual

Ditec DAB105 - DAB205
User manual
(Original instructions)
www.entrematic.com
IP2173EN

2
IP2173EN - 2017-05-05
Instruction for safe operation
• Failure to observe the information in the user manual may re-
sult in personal injury or damage to equipment.
• To reduce the risk of injury to persons - use this operator with
single or double pedestrian swinging or folding doors only.
• Do not use the equipment if repair or adjustment is necessary.
• Disconnect supply when cleaning or other maintenance is to
be carried out.
• The operator can be used by children age 8 and above, and
persons with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, if they have been given
supervision or instruction by a person responsible for their sa-
fety concerning safe operator use and the possible hazards
involved.
This does not however prevent those persons to use the door
where the operator is installed.
• Cleaning and user maintenance shall not be made by children
without supervision.
• Do not let children climb on or play with the door or the fixed/
remote controls.
All the rights concerning this material are the exclusive property of Entrematic Group AB.
Although the contents of this publication have been drawn up with the greatest care, Entrematic Group AB
cannot be held responsible in any way for any damage caused by mistakes or omissions in this publication.
We reserve the right to make changes without prior notice.
Copying, scanning and changing in any way are expressly forbidden unless authorised in writing by Entrematic
Group AB.

3
IP2173EN - 2017-05-05
Electronic equipment reception interference
Environmental requirements
The equipment complies with the European EMC directive (US market FCC Part 15),
provided installed according to Installation and Service manual.
The equipment may generate and use radio frequency energy and if not installed and
used properly, it may cause interference to radio, television reception or other radio
frequency type systems.
If other equipment does not fully comply with immunity requirements interference may
occur.
However, there is no guarantee that interference will not occur in a particular installa-
tion. If this equipment does cause interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Re-orient the receiving antenna.
• Relocate the receiver with respect to the equipment.
• Move the receiver away from the equipment.
• Plug the receiver into a different outlet so that equipment and receiver are on diffe-
rent branch circuits.
• Check that protective earth (PE) is connected.
If necessary, the user should consult the dealer or an experienced electronic techni-
cian for additional suggestions.
Entrematic Group products are equipped with electronics and may also be equipped
with batteries containing materials which are hazardous to the environment. Discon-
nect power before removing electronics and battery and make sure it is disposed of
properly according to local regulations (how and where) as was done done with the
packaging material.

4
IP2173EN - 2017-05-05
Product liability
Service
Intended use
According to regulations, the following are the responsibility of the owner or caretaker
of the equipment
• that the equipment operates correctly, so that it gives sufficient protection in regard
to safety and health
• that the equipment is operated and regularly maintained, inspected and serviced
by someone with documented competence in the equipment and in applicable re-
gulations
• that a journal is kept of inspection, maintenance and service records including the
provider
• that inspection covers the emergency opening function (when applicable)
• that the closing force is appropriate for the door size on fire-approved door systems
(when applicable)
Regular inspections by a trained and qualified person, and the frequency of service
occasions, should at minimum be made according to national regulations or industry
standard, in the absence of a national regulation. This is especially important when
the installation concerns a fire-approved door or a door with an emergency-opening
function. To extend the life of your investment and ensure safe and reliable operation of
the door, we recommend a minimum of 2 visits per year or more, depending on usage
and operating conditions. Environmental aspects shall also be considered.
The Ditec DAB105 / Ditec DAB205 is an automatic swing door operator developed to
make life easier for everyone who can benefit from automatic doors.
The Ditec DAB105 / Ditec DAB205 is a low-energy as well as a full power operator us-
ing a DC motor and a gear-reduction system to drive an arm system, which opens the
door.
It is to be installed indoors where it is suitable for almost all types of external and
internal swing doors.
This widely-used operator can be found on applications ranging from handicappedac-
cess in private homes to high-traffic retail operations.
For installation and maintenance see Installation and Service manual Ditec DAB105
IP2159 / Ditec DAB205 IP2178.
Save these instructions for future reference.

5
IP2173EN - 2017-05-05
How the Ditec DAB105 / Ditec DAB205 works
The swing door operator Ditec DAB105 / Ditec DAB205 uses a DC motor and a gear-
reduction system to drive an arm system which opens the door. Closing power is provi-
ded by a motor and a clock spring. A highly sophisticated electronic control unit uses a
motor encoder and a microprocessor to control the door’s movement.
To activate the operator you can use a manual activator (elbow switch) or an automatic
activator (radar device). It is also possible – where local standards allow – to activate
the operator by just pushing the door, if Push & Go is selected.
After the door has been activated it will open and stay open for a specified Hold Open
Time (HOT).
When the HOT has elapsed the door will close.
The Ditec DAB105 / Ditec DAB205 can be set in three or four different modes, depen-
ding on programme selector type, see table below.
In fully manual use (or in case of a power failure) the Ditec DAB105 / Ditec DAB205 acts
as a normal door closer.
Position Function
AUTO
Normal
position
The door can be opened with the inner and outer manual and/or
automatic activators.
The electric strike, if fitted, is open.
OFF The door is closed. The door cannot be opened with inner and
outer activation units. The door is locked if an electromechanical
locking device has been fitted.
The door can be opened with a key switch (if fitted).
OPEN The door is held permanently open by the motor.
EXIT Passage from inside only. The door is normally locked if an elec-
tromechanical locking device has been fitted. The door can only
be opened with the inner activation unit and with a key switch (if
fitted).
Technical specification
DAB105 DAB205
Manufacturer: Entrematic Group AB
Address: Lodjursgatan 10, SE-261 44 Landskrona, Sweden
Mains power supply: 100-240 V AC +10/-15%, 50/60 Hz
Power consumption: max 75 W max 300 W
Class of protection: IP20
Approvals: Third party approvals from established certification organizations
valid for safety in use, see Declaration of Conformity.

6
IP2173EN - 2017-05-05
Regular safety checks
To help you fulfil the national/international requirements and to avoid malfunction and
risk for injuries, we have provided the following checklist.
Do not use if repair or adjustment is necessary.
Disconnect supply [14] when cleaning or other maintenance is to be carried out.
Daily Action If problems
occurs
Activate your operator and check visually, fastening of
• operator 1
• arm system 2
• cables 3
• programme selectors 4
• hinges 5
• door and glass 6
Also inspect your operator and check visually for
• sharp edges on the door leaf and door frame (if any) 7
• condition of door seals 8
• finger protection 9
• and finally that the complete door runs properly and closes slowly in a smooth
way
Set the programme selector to OFF and check that the operator and electrome-
chanical lock (if fitted) work together.
Also check that the lock 10 really secures the door.
Activate the manual activation units 11 , if any, and walk towards the door.
Check that the door has opened appropriately while you pass the entrance/exit.
Then proceed with the automatic activation units 12 in the same way.
Check the non-monitored safety sensors 13 if any, by standing in the swing path
and activate the operator.
The door must not hit you when opening nor when closing.
If you are unsure of which type of sensor you have, please contact your ENTRE-
MATIC representative.
Escape doors
By law, these tests must be performed regularly by trained person- nel.
Set the programme selector in AUTO
mode. Push the door manually in
escape direction and make sure that
no object or function will prevent the
door from opening. Also make sure the
escape route is free for use.
Fire doors Let the door close after an impulse en-
suring nothing prevents the door from
closing and locking (if regulations re-
quire it).
= take appropriate measures.
= contact the ENTREMATIC Customer Technical Service.

7
IP2173EN - 2017-05-05

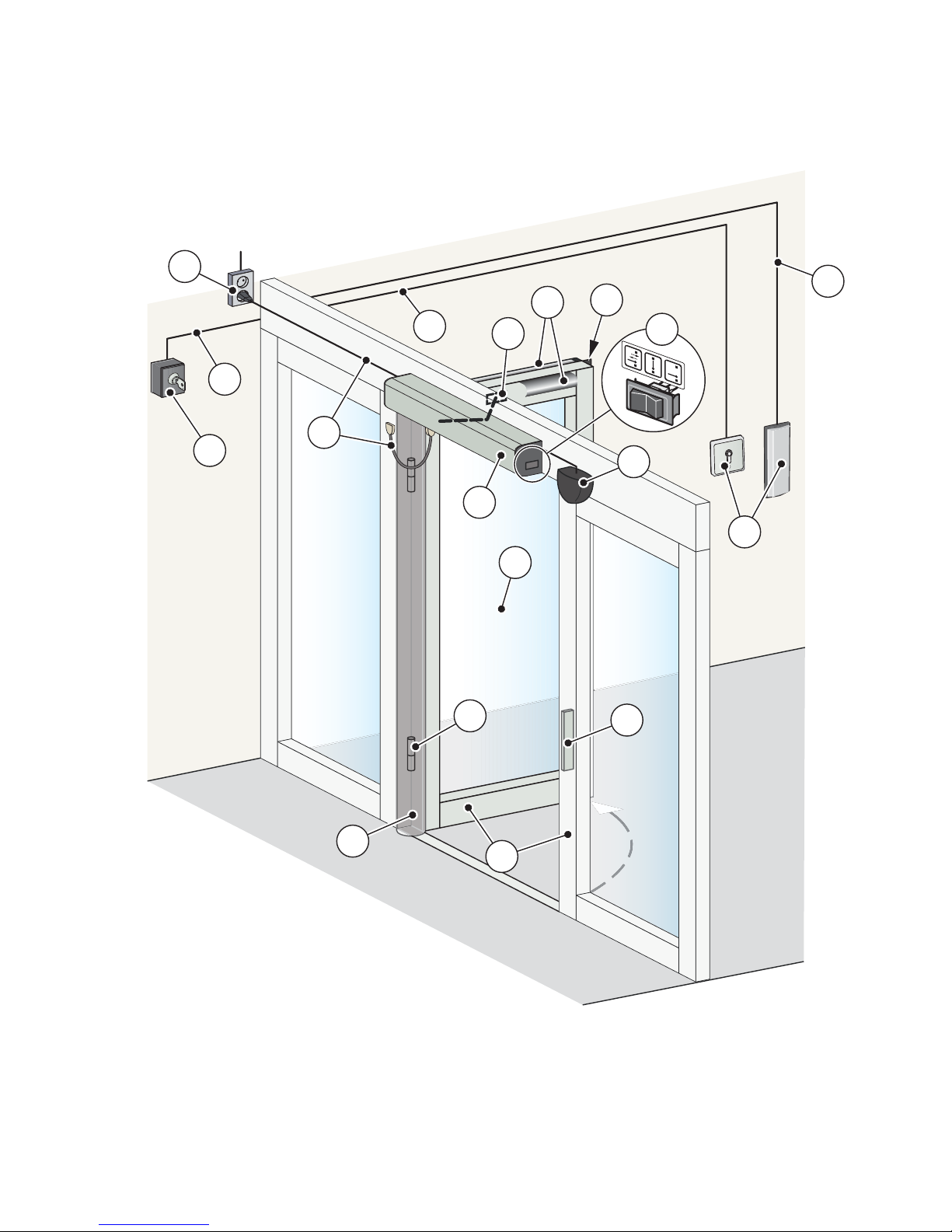

Function and visual inspection
6
7
10
12
8
3
3
3
11
13
9
5
1
2 4
3
14
4

8
IP2173EN - 2017-05-05

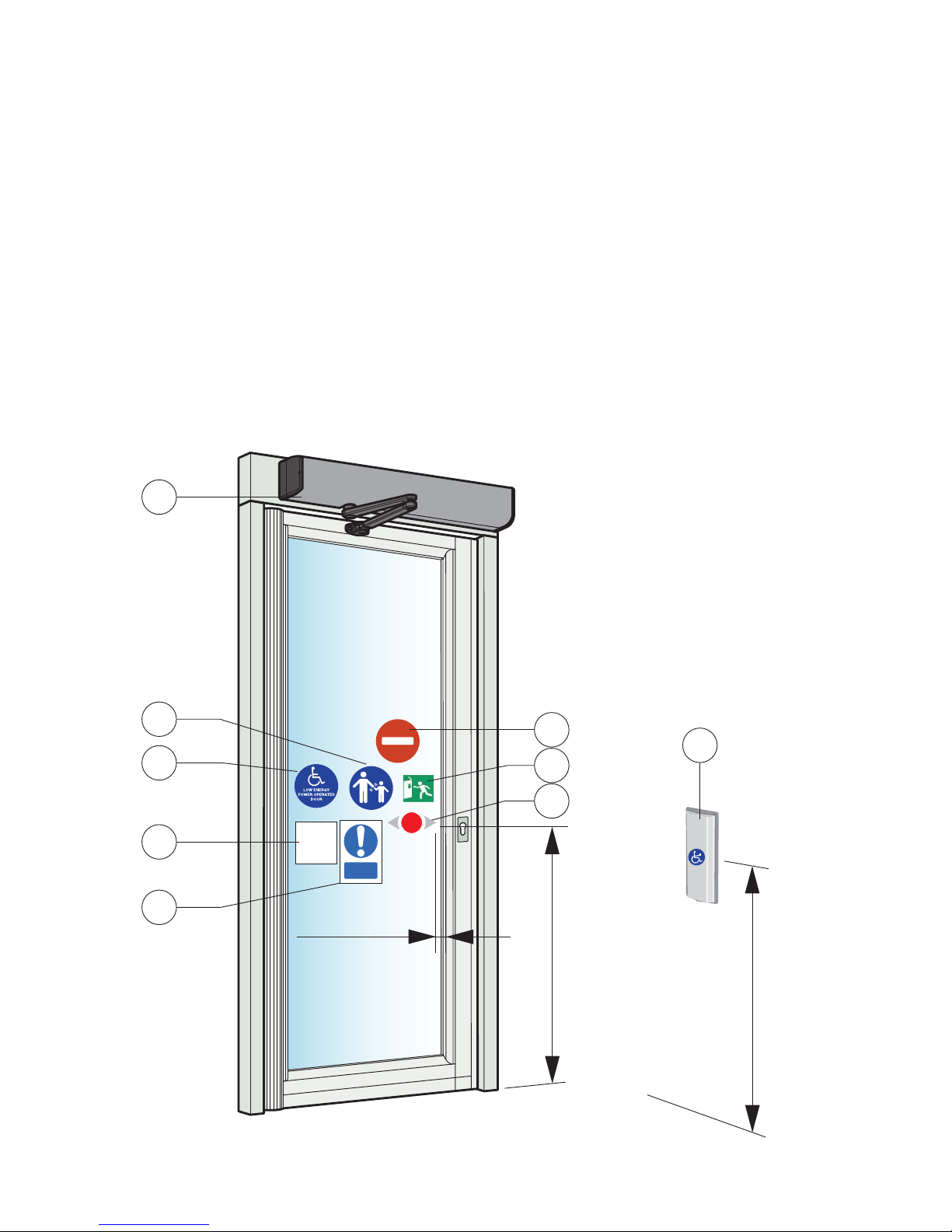

Signage
800 mm
1100 mm
40 mm
A
B
C
D
E
F
GJ
H
Cleaning
The best way to remove dust and dirt from the Ditec DAB105 / Ditec DAB205 is to use
water and a soft cloth or a sponge. A gentle detergent may be used. To maintain the
quality of the enamel layer, the surfaces should be cleaned once/four months period.
The cleaning should be documented. To avoid damages to the profiles the brushes/
weather stripping must be vacuum-cleaned weekly.
• Do not expose windows, doors or profiles to alkalis. Both aluminium and glass are
sensitive to alkalis.
• Do not clean with high pressure water. Operator, programme selector and sensor
may be damaged and water may enter the profiles.
• Do not use polishing detergent.
• Do not scrub with materials like Scotch-brite, as this will cause mechanical damage.

9
IP2173EN - 2017-05-05

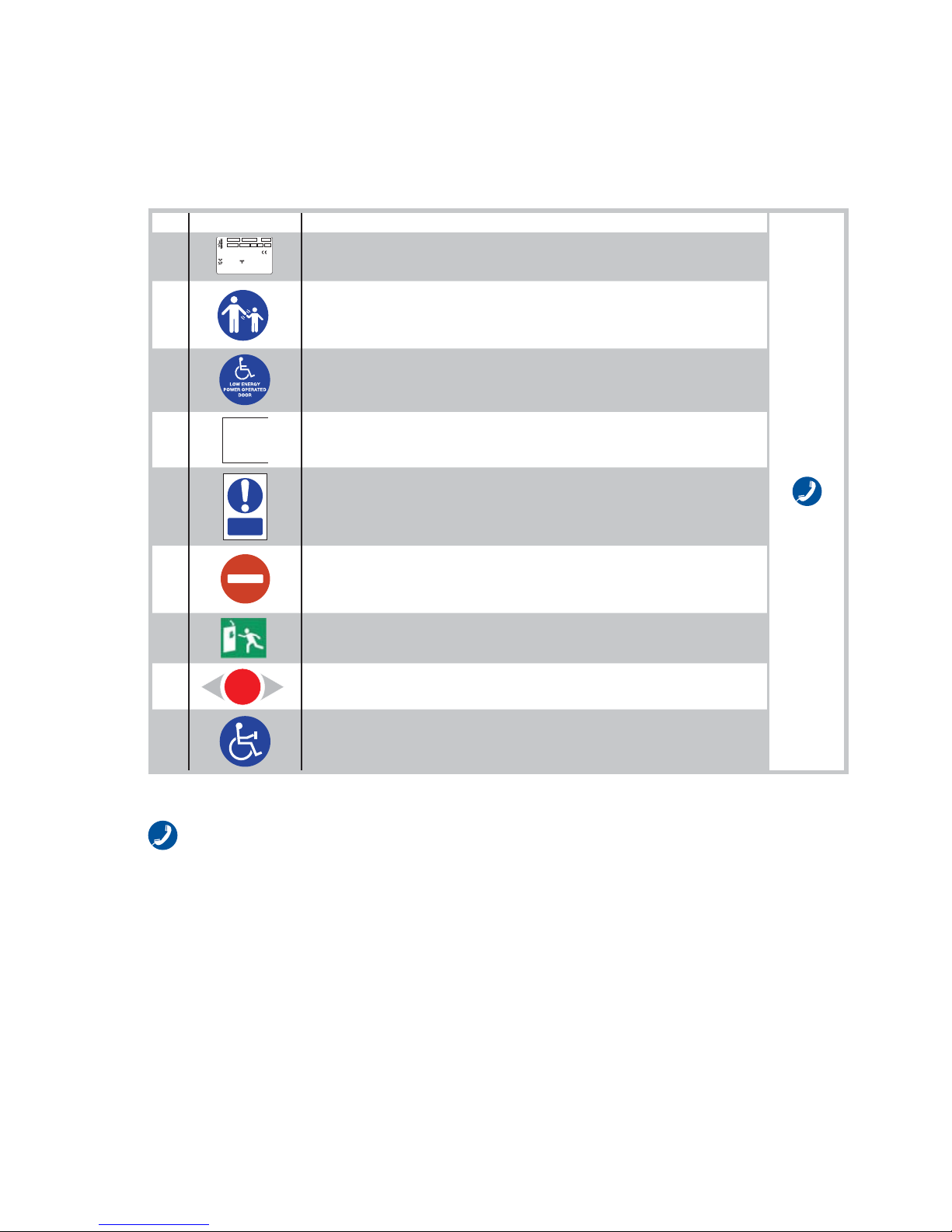

Ref. Description
A
xxxxxxxxxxxxx
xxxxxxxxxxxxx
TYPEART. NO. YEAR+WEEK
XX
ENISO 9001 Certificate No: 911828, 956538
SITAC1422 xxxxxxxxx
1002
XX/XXXXXXXX
Hz PROJECT
SERIAL NO.
XXXXXXXXXX
DAB105
W
XXXX
AVAC Product label. Mandatory.
BSupervision of child. Mandatory, if applicable.
Apply to both side of the door. To be placed on entrances where
risk analysis shows use by children, elderly and disabled.
COperator designed for disabled people.
Raccomended, if applicable (applied to both sides of the door)
D
Automatic
door
Automatic door.
Only mandatory in GB.
E
Keep clear
Keep clear.
Only mandatory in GB.
F
No entry
No entry.
Identifying one-way traffic.
Mandatory in GB and US. If applicable.
GEmergency break-out.
Mandatory, if approved for escape route.
HDoor sticker. Mandatory, if applicable to highlight the presence
of the glass (applied to all glass sections that are moving).
J
Click!
Activation by disabled people.
Recommended, if applicable.
Check that all required signage is applied and intact. Mandatory indicates that the
signage is required by European directives and equivalent national legislation outside
the European Union.
Contact the ENTREMATIC Customer Technical Service.

10
IP2173EN - 2017-05-05
General accessories
Safety accessories
Troubleshooting
Your Ditec DAB105 / Ditec DAB205 can be further improved with the following add-ons
(please contact your local ENTREMATIC Group company for detailed description).
• Position switch 4 , see page 7.
• Electrical lock 10 , see page 7.
• Key switch 11 , see page 7.
• Elbow switch 11 , see page 7.
• Radar 12 , see page 7.
• Wireless transmitters (not illustrated)
• Access control (not illustrated)
• Door stop (not illustrated)
Even though the Ditec DAB105 / Ditec DAB205 is installed to comply with all applicable
safety regulations, it is possible to enhance safety/comfort with the following add-ons
(please contact your local ENTREMATIC representative for detailed description).
• Safety sensors 13 , see page 7.
• Finger protection 9 , see page 7.
What´s wrong? Remedies
The door does not open
The motor does not start Change the setting of the program selector. (See page 5).
Check that there are no objects in the detection zone if a sen-
sor is fitted.
Check the mains switch and fuse in the building.
The motor starts but door(s)
will not open
Unlock the mechanical locks.
Check that nothing is jammed beneath the door.
The door does not close Change the setting of the program selector. (See page 5).
Check that there are no objects in the detection zone if a sen-
sor is fitted.
Check that nothing is jammed beneath the door.
The door opens and closes
continuously
Check that there are no moving objects within 1-1.5 m (39”-
59”) from the door if an automatic activation unit is fitted.
If the problem persists, contact the ENTREMATIC Customer Technical Service.
