Enttec Phero User manual

Product Manual
50824
For latest version visit:
www.enttec.com
1
ID: 226394

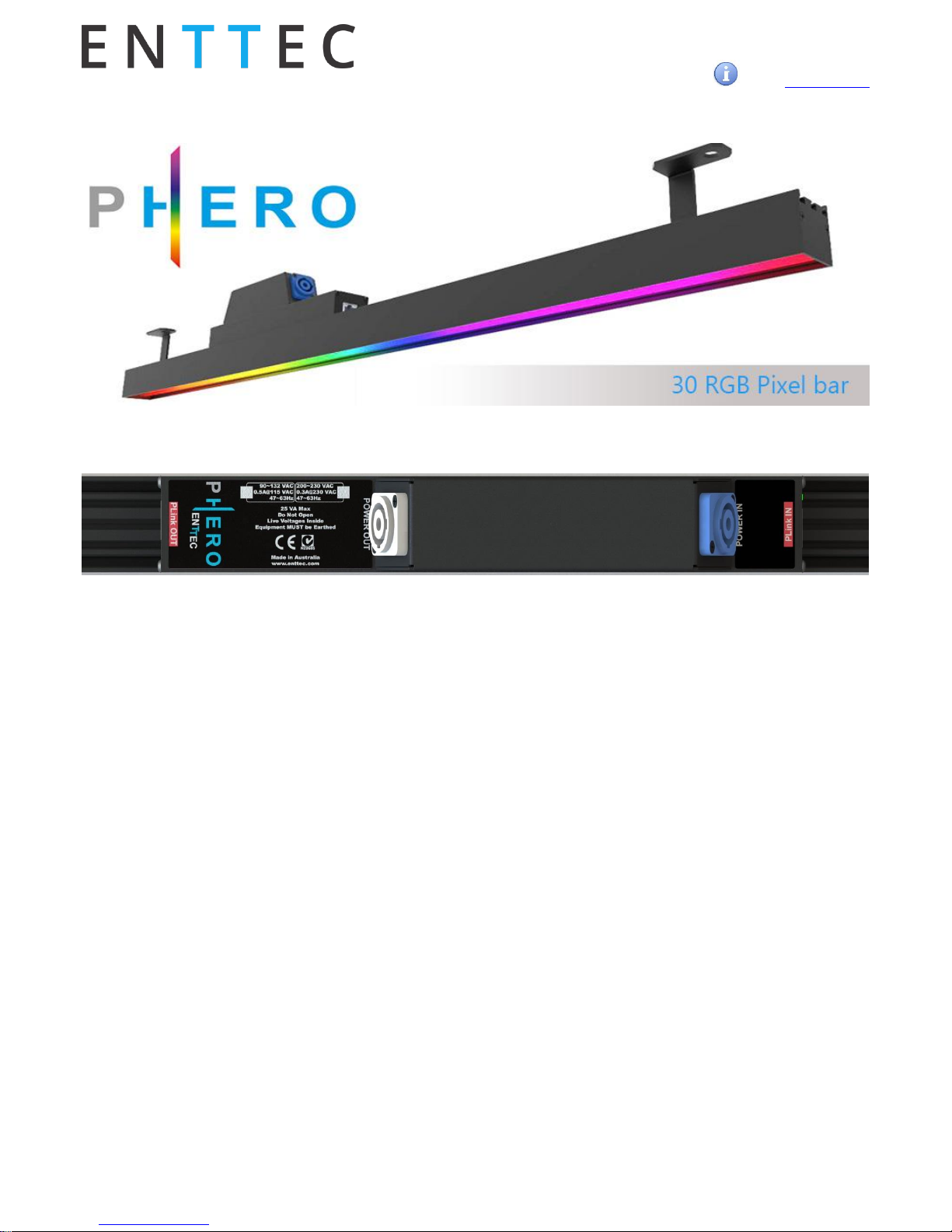

Back Panel
Box Contents
ENTTEC PHERO (73900 or 79001)
Mounting brackets
This user manual
Features
30 independently controllable RGB Pixels
Flexible, light and slick design
In-built Power Supply
Compatible with ENTTEC Pixelator and Pixie driver
Plink data bus allows to daisy-chain up to 11 units
Standard Cat6 wiring allows up to 300m distances
Mains power through Powercon connectors for
convenient installation
50.000+ hours expected LED life
Up to 90 DMX channels through Pixelator
Over voltage input protection
Safety
Mains voltages inside, please never intend to open
it when mains connected
Do not expose the ENTTEC Phero to rain or moisture,
doing this will void the warranty
Do not remove the cover, there are no serviceable
parts inside
This unit is intended for indoor use only
Ensure proper earth connections
Basic Setup
Connect the ENTTEC Phero to a Plink enabled device
such as ENTTEC Pixelator using a cat5/6 cable
Power up the unit using the blue powercon
connector. The power LED should light up
Feed some data through your Plink enabled device

Product Manual
50824
For latest version visit:
www.enttec.com
2
ID: 226394
Typical Installation with Pixelator
Typical Installation with Pixie Driver
Mounting Brackets (included)
Hanging cable with Gripple (sold separately)
End to end Attachment (sold separately)
DMX Addressing
Each Phero counts with 30 RGB Pixels, which means 90 DMX
slots. By default, the first unit connected to the controller will
auto address to DMX channel 1 to 90. Where CH1=Pixel1 Red,
CH2=Pixel1 Green, CH3=Pixel1 Blue, CH4=Pixel2 Red and so
on.

Product Manual
50824
For latest version visit:
www.enttec.com
3
ID: 226394
When Pheros are daisy-chained, the following unit will
automatically take the next consecutive DMX slot, for the
example, the second unit’s DMX start address will be 91.
A maximum number of 11 Pheros can be daisy chained per
Plink port if using 2 universes mode from the controller.
Please refer to Annex 1 to see a full DMX table of 11 daisy-
chained Pheros.
It is possible to change the DMX start address from the
controller and all the other pixels will auto-address to the
following slot. Please refer to Pixelator or Pixie Driver
documentation.

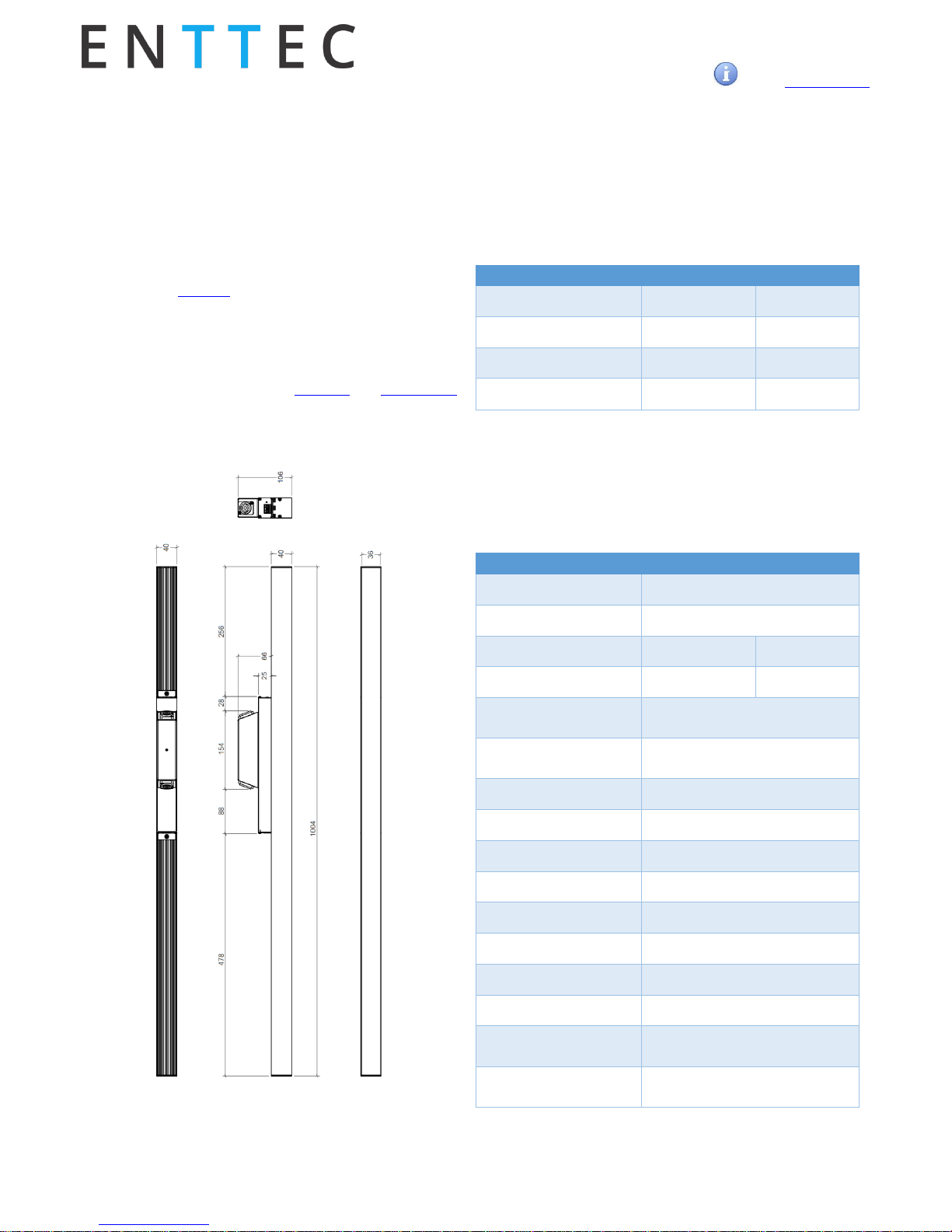

Physical Dimensions
Mains Wiring
A maximum of 11 Phero 30 can be powered in Daisy-Chain.
Please follow this table to select the best circuit breaker to
protect your installation:
Circuit Breaker
Max. 73900
Max. 73901
B10
5
8
B16
8
11
C10
8
11
C16
11
11
Technical Specifications
Due to continuous improvements and innovations of all
ENTTEC products, specifications and features are subject to
change without notice.
Item
73900
73901
Max Input Power
25VA
Max Operating Power
18 Watt
Input Voltage
180~264 VAC
90~132 VAC
Max. input Current
0.3A/230VAC
0.5A/115VAC
Operating Ambient
Temperature
0°~40°C
Max Light output (all
leds 100%)
330 Lumens
Diffuser
Diffused (standard) and Clear
Viewing Angle
120°
Number of Pixels
30
RGB LEDs per Pixel
3
Pitch (pixels)
33.3mm
Pitch (LEDs)
11.1 mm
Number of 5050 LEDs
90 (3xRGB leds per pixel)
IP Rating
IP40
Body
Base: Aluminum extrusion
Color: Sable Black
Connectors
2x RJ45, 1x Blue Powercon, 1x
Grey Powercon

Product Manual
50824
For latest version visit:
www.enttec.com
4
ID: 226394
Ordering Information
Phero and compatible products can be ordered as follows:
PN
Description
73900
PHERO 30 PIXEL - EU (200~240VAC)
73901
PHERO 30 PIXEL - US (90~132VAC)
73903
PHERO END TO END JOINING KIT
73904
PHERO GRIPPLE HANGING (KIT)
70060
PIXELATOR
73541
PIXIE DRIVER
73546
PIXIELINKER
Registration
Please register your ENTTEC product to get latest software
updates and to validate your warranty.
To register, please visit enttec.com/register
www.enttec.com
ENTTEC PTY LTD
7 Macro Court
Rowville Victoria
3178 Australia
T:[phone]
F:[phone]
Email:
[e-mail]
ENTTEC AMERICAS
604A Cornerstone Ct.
Hillsborough NC 27278
USA
T: [phone]
F: [phone]
Email:
sales.americas@enttec.
com
ENTTEC EUROPE
B23 Parkhall Business Centre
40 Martell Road
London SE21 8EN
United Kingdom
T: [phone]
Email:
[e-mail]

Product Manual
50824
For latest version visit:
www.enttec.com
5
ID: 226394
ANNEX 1: Phero30 Recommended DMX Patch/Addressing Table (Daisy-Chain)
PHERO DAISY-CHAIN DMX PATCH/ADDRESSING TABLE
Pixel
#
Function
Phero
# 1
Phero
# 2
Phero
# 3
Phero
# 4
Phero
# 5
Phero
# 6
Phero
# 7
Phero
# 8
Phero
# 9
Phero
# 10
Phero
# 11
1
Red
1
91
181
271
361
451
31
121
211
301
391
Green
2
92
182
272
362
452
32
122
212
302
392
Blue
3
93
183
273
363
453
33
123
213
303
393
2
Red
4
94
184
274
364
454
34
124
214
304
394
Green
5
95
185
275
365
455
35
125
215
305
395
Blue
6
96
186
276
366
456
36
126
216
306
396
3
Red
7
97
187
277
367
457
37
127
217
307
397
Green
8
98
188
278
368
458
38
128
218
308
398
Blue
9
99
189
279
369
459
39
129
219
309
399
4
Red
10
100
190
280
370
460
40
130
220
310
400
Green
11
101
191
281
371
461
41
131
221
311
401
Blue
12
102
192
282
372
462
42
132
222
312
402
5
Red
13
103
193
283
373
463
43
133
223
313
403
Green
14
104
194
284
374
464
44
134
224
314
404
Blue
15
105
195
285
375
465
45
135
225
315
405
6
Red
16
106
196
286
376
466
46
136
226
316
406
Green
17
107
197
287
377
467
47
137
227
317
407
Blue
18
108
198
288
378
468
48
138
228
318
408
7
Red
19
109
199
289
379
469
49
139
229
319
409
Green
20
110
200
290
380
470
50
140
230
320
410
Blue
21
111
201
291
381
471
51
141
231
321
411
8
Red
22
112
202
292
382
472
52
142
232
322
412
Green
23
113
203
293
383
473
53
143
233
323
413
Blue
24
114
204
294
384
474
54
144
234
324
414
9
Red
25
115
205
295
385
475
55
145
235
325
415
Green
26
116
206
296
386
476
56
146
236
326
416
Blue
27
117
207
297
387
477
57
147
237
327
417
10
Red
28
118
208
298
388
478
58
148
238
328
418
Green
29
119
209
299
389
479
59
149
239
329
419
Blue
30
120
210
300
390
480
60
150
240
330
420
11
Red
31
121
211
301
391
481
61
151
241
331
421
Green
32
122
212
302
392
482
62
152
242
332
422
Blue
33
123
213
303
393
483
63
153
243
333
423
12
Red
34
124
214
304
394
484
64
154
244
334
424
Green
35
125
215
305
395
485
65
155
245
335
425
Blue
36
126
216
306
396
486
66
156
246
336
426
13
Red
37
127
217
307
397
487
67
157
247
337
427
Green
38
128
218
308
398
488
68
158
248
338
428
Blue
39
129
219
309
399
489
69
159
249
339
429
14
Red
40
130
220
310
400
490
70
160
250
340
430
Green
41
131
221
311
401
491
71
161
251
341
431
Blue
42
132
222
312
402
492
72
162
252
342
432
15
Red
43
133
223
313
403
493
73
163
253
343
433
Green
44
134
224
314
404
494
74
164
254
344
434
Blue
45
135
225
315
405
495
75
165
255
345
435

Product Manual
50824
For latest version visit:
www.enttec.com
6
ID: 226394
16
Red
46
136
226
316
406
496
76
166
256
346
436
Green
47
137
227
317
407
497
77
167
257
347
437
Blue
48
138
228
318
408
498
78
168
258
348
438
17
Red
49
139
229
319
409
499
79
169
259
349
439
Green
50
140
230
320
410
500
80
170
260
350
440
Blue
51
141
231
321
411
501
81
171
261
351
441
18
Red
52
142
232
322
412
502
82
172
262
352
442
Green
53
143
233
323
413
503
83
173
263
353
443
Blue
54
144
234
324
414
504
84
174
264
354
444
19
Red
55
145
235
325
415
505
85
175
265
355
445
Green
56
146
236
326
416
506
86
176
266
356
446
Blue
57
147
237
327
417
507
87
177
267
357
447
20
Red
58
148
238
328
418
508
88
178
268
358
448
Green
59
149
239
329
419
509
89
179
269
359
449
Blue
60
150
240
330
420
510
90
180
270
360
450
21
Red
61
151
241
331
421
1
91
181
271
361
451
Green
62
152
242
332
422
2
92
182
272
362
452
Blue
63
153
243
333
423
3
93
183
273
363
453
22
Red
64
154
244
334
424
4
94
184
274
364
454
Green
65
155
245
335
425
5
95
185
275
365
455
Blue
66
156
246
336
426
6
96
186
276
366
456
23
Red
67
157
247
337
427
7
97
187
277
367
457
Green
68
158
248
338
428
8
98
188
278
368
458
Blue
69
159
249
339
429
9
99
189
279
369
459
24
Red
70
160
250
340
430
10
100
190
280
370
460
Green
71
161
251
341
431
11
101
191
281
371
461
Blue
72
162
252
342
432
12
102
192
282
372
462
25
Red
73
163
253
343
433
13
103
193
283
373
463
Green
74
164
254
344
434
14
104
194
284
374
464
Blue
75
165
255
345
435
15
105
195
285
375
465
26
Red
76
166
256
346
436
16
106
196
286
376
466
Green
77
167
257
347
437
17
107
197
287
377
467
Blue
78
168
258
348
438
18
108
198
288
378
468
27
Red
79
169
259
349
439
19
109
199
289
379
469
Green
80
170
260
350
440
20
110
200
290
380
470
Blue
81
171
261
351
441
21
111
201
291
381
471
28
Red
82
172
262
352
442
22
112
202
292
382
472
Green
83
173
263
353
443
23
113
203
293
383
473
Blue
84
174
264
354
444
24
114
204
294
384
474
29
Red
85
175
265
355
445
25
115
205
295
385
475
Green
86
176
266
356
446
26
116
206
296
386
476
Blue
87
177
267
357
447
27
117
207
297
387
477
30
Red
88
178
268
358
448
28
118
208
298
388
478
Green
89
179
269
359
449
29
119
209
299
389
479
Blue
90
180
270
360
450
30
120
210
300
390
480
Legend:
Universe 1
Universe 2
