Enttec ALEPH2 ET Mk2 User manual

User Manual
Rev A
Document PN: 50847
For latest version please visit:
www.enttec.com

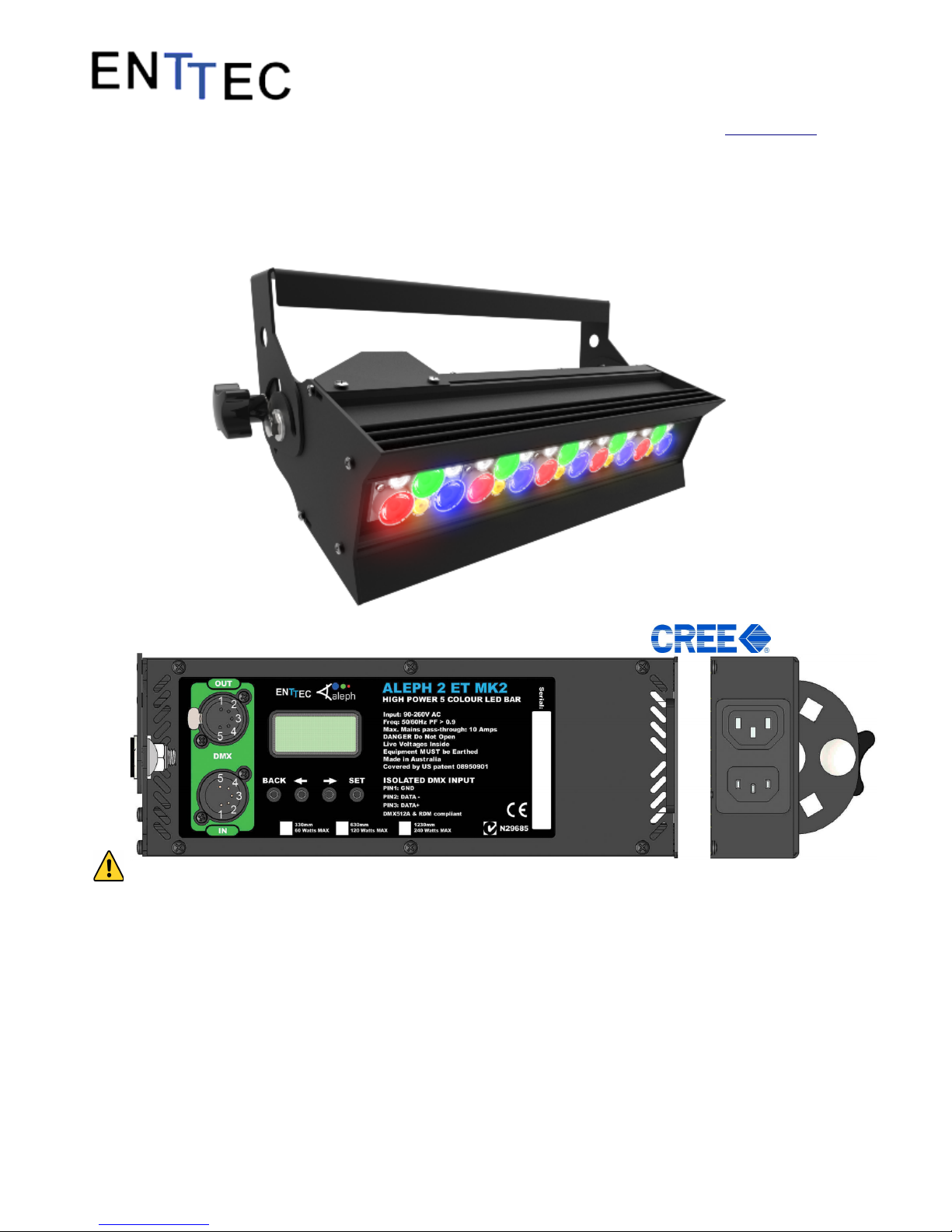

ALEPH2 ET Mk2
5 C O L O U R H I GH P O W E R L E D L I G HT A R
300mm/600mm/1200mm
Back Panel
Please make sure the Power pass-through current does not exceed 0 Amps
Features
•Strong aluminium chassis with small profile
•DMX5 2 Controllable and RDM Configurable
•Can use up to 2 DMX channels, depending on
configuration
•Snapshots: 64 fully user recordable slots, 50
different pre-loaded stand-alone colours
•6-bit or Smart 8-bit LED dimming
•Strobe Mode with controllable frequency from DMX
•Fan-less smart heat management
•Easy addressing and configuration interface
•80° Adjustable mounting bracket
•Changeable diffuser using holder accessory (sold
separately)
Covered by US patent 08950901 1

User Manual
Rev A
Document PN: 50847
For latest version please visit:
www.enttec.com
Cleaning
It is important to clean the ALEPH2 ET Mk2 to maintain a
long service life. Make sure the unit is unplugged before
you attempt any cleaning.
•Surface dust should be removed with an air
compressor, please make sure you do not blow
compressed air directly inside the unit.
•Optics can be cleaned with a glass cleaner or IPA
with a soft cloth
•Make sure the unit is dry and there is no cleaning
fluid residue before powering the unit after
cleaning.
Safety
•Do not expose the ALEPH2 ET Mk2 to rain or
moisture, doing this will void your warranty.
•Do not spill water or other liquids into or onto
your unit.
•Do not look directly into the LEDs, doing so may
damage your eyes.
•Check that the local power outlet matches the
required voltage ( 20 240V AC)→
•Make all the connections before you plug in the
main power.
•Do not remove the cover under any condition.
There are no user serviceable parts inside.
•Never operate this unit when its cover is
removed.
•Never plug this unit in to a dimmer rack.
•Always be sure to mount this unit in an area that
will allow proper ventilation. Allow at least 20 cm
between this device and a wall.
•Make sure ventilation holes are clean and
unobstructed.
•Do not attempt to operate this unit, if it becomes
damaged.
•Always mount this unit in a safe and stable
manner.
•Power-supply cords should be routed carefully.
•The unit should be situated away from heat
sources
Control Panel
After powering up, the current firmware version is displayed,
followed by the DMX Start Address.
The unit can be configured by using the 4 buttons under the
display as follows.
The followin is the menu settin structure:
Covered by US patent 08950901 2
BACK

SET
-If pressed while address is being displayed:
It activates the back-light and goes to Main Menu
-If pressed while setting a menu:
It takes you to the previous level without changing anything
 -Scrolls down when navigating the menu
-Decreases the value displayed when setting a parameter
-Hold the key for a few seconds to fast scroll down
-Scrolls up when navigating the menu
-Increases the value displayed when setting a parameter
-Hold the key for a few seconds to fast scroll up
-Confirms the displayed value
-Activates the displayed function or
-Opens the next menu
Main Menu Level 1 Level 2
DMX Address Value: 00 to 5 2
Personality
– 8bit RGBAW Mode
2 – 8bit RGBW Mode
3 – 8bit 6ch Mode
4 – 6bit 2ch Mode
5 – Extended 9ch Mode
6 – 8bit ch Mode
Pre-sets Value: 0 to 64
Lamp On Mode
OFF
DMX
ON
PWM Frequency
Back-lite
NORMAL
ON
OFF
Factory Defaults YES
NO
Temperature LED TEMP
CPU TEMP
Test
LED
LED 2
LED 3
LED 4
LED 5
LED 6
ALL LEDs
Setup
Value:
500 to 2000
Firmware Version 2.xy

User Manual
Rev A
Document PN: 50847
For latest version please visit:
www.enttec.com
DMX Address Menu
The DMX start address is the most important parameter
to be defined when setting up your lights. By default the
fitting will be set to 00 .
The addressing will depend on the current selected
personality. For example if the light is set to RGBAW
mode (5 channels), the DMX address range will be 00 –
508.
Personality Menu
The ALEPH2 ET Mk2 has six different personalities or
operational modes, which can either be selected remotely
from any standard RDM controller tool or locally using
the control panel. The light behaves differently in each
mode, since the DMX channel distribution changes
according to the desired working personality. Set the
desired personality before patching your lights in any
lighting desk or control system.
– 8BIT RGBAW MODE (5 Channel)
This basic mode will turn the ET into a 5 channel light,
allowing to drive each available colour as an independent
dimmer. Each DMX channel uses 8 bits resolution where
000 is OFF, 255 is Full intensity, as described in the
following chart.
2 – 8BIT RGBW MODE (4 Channel)
As some lighting control systems do not support RGBAW
lights, we have implemented a RGBW mode so the fitting
can be used with any controller. Each DMX channel uses 8
bits resolution where 000 is OFF, 255 is Full intensity, as
described in the following chart.
3 – 8BIT (6CHANNEL) MODE
This basic mode will allow you to drive each colour using
8 bits resolution, setting the values from one of the 6
DMX channels where 000 is OFF, 255 is Full intensity, as
described in the following chart.
Example : to turn all the channels to full intensity, set all the
channels to 255 value:
Example 2: to turn only the red group colour to full intensity,
set the first channel to 255 value:
The smart dimming in this personality follows an “s” curve
resulting in a smooth LED output all along the 8 bits range.
4 - 6BIT ( 2 CHANNEL) MODE
This mode will allow you to drive each colour using 6 bits
resolution; setting the values from one of the 2 DMX
channels from 000 to 255 where the first channel of each
group will be (HIGH) and the following channel the (LOW)
one, as described in the following chart.
This personality gives the user full control on the output
dimming, so any colour combination can be generated.
5 - EXTENDED (9 CHANNEL) MODE
This extended mode offers a wide variety of output effects,
turning the ALEPH2 ET Mk2 into a very versatile unit, using 9
DMX channels, as described in the following chart.
COLOUR GROUP INTENSITY (CH1-CH5) operate as
described in the RGBAW personality plus they can be
modified or affected by the strobe function or master
dimmer channel, as described further in this section.
Covered by US patent 08950901 3
RED GROUP GREEN GROUP BLUE GROUP AMBER GROUP WHITE GROUPS
1s t Channel
2nd Channel
3rd Channel
4th Channel
5t h Channel
6th Channel
7th Channel
8th Channel
9th Channel
STROBE
DURATION
STROBE
FREQUENCY
MASTER
DIMMER
TRUE CCT
MODE
1s t Channel 2nd Channel 3rd Channel 4th Channel 5th Channel 6th Channel
RED GROUP
HIGH)
RED GROUP
LOW)
GREEN GROUP
HIGH)
GREEN GROUP
LOW)
BLUE GROUP
HIGH)
BLUE GROUP
LOW)
7th Channel
8th Channel
9th Channel
10th Channel
11th Channel
12th Channel
AMB ER
HIGH)
AMBER
LOW)
WHITES
(HIGH)
WHITES
(LOW)
WHITES
(HIGH)
WHITES
(LOW)
RED GROUP GREEN GROUP BLUE GROUP AMBER GROUP WHITE GROUPS
1st Channel
2nd Channel
3rd Channel
4th Channel
5th Channel
RED GROUP GREEN GROUP BLUE GROUP WHITE GROUPS
1st Channel
2nd Channel
3rd Channel
4th Channel
RED GR OUP GREEN GROUP BLUE GROUP AMBER GROUP WHITES GROUP1 WHITES GROUP2
1st Channel 2nd Channel 3rd Channel 4th Channel 5th Channel 6th Channel

User Manual
Rev A
Document PN: 50847
For latest version please visit:
www.enttec.com
Although these 6 channels have no effect when the true
CCT mode is activated (9th channel > 0 0)
STRO E DURATION (CH6) this channel works in
conjunction with the strobe frequency from CH7. It will
only take any effect if the channel 7th > 0.
It defines the duration of the ON state and linearly
increases the time from 2.5 milliseconds when 000 to 650
milliseconds when 255.
NOTE: Strobe duration time must be lower than Strobe
frequency for flashing. If duration time is equal or greater
than frequency, the light will be continuously ON.
STRO E FREQUENCY (CH7) will turn the ALEPH2 ET Mk2
bar into a versatile multi-colour strobe with user
adjustable frequency. The strobe feature can be activated
by setting the channel to a value between 0 and 255. In
the same range, the strobe frequency can be adjusted by
varying the channel value, with 0 the lowest frequency
(about 0.3 flashes per second) and 255 the highest one
(25 flashes per second).
The strobe channel can be used in conjunction with all the
other channels, so you can change the current output
colour or the master intensity whilst strobing at the
selected frequency, all at the same time.
MASTER DIMMER (CH8) drives the general intensity,
multiplying with all other current output channels, with 000
the lowest intensity 0% (light will be OFF, regardless of other
channel values) and 255 the highest, allowing 00%
whatever other channels are demanding.
TRUE CCT MODE (CH9) will turn the ALEPH2 ET Mk2 bar
into a true colour temperature adjustable fitting, simulating a
tungsten light behaviour.
The white colour feature can be activated by setting the
channel to a value greater than 0 0. CH9=0 will produce
the warmest white and 255 the coolest one. Values between
000-0 0 will stop the true CCT feature.
The true CCT mode channel can be used in conjunction with
strobe and master dimmer features, so you can strobe
and/or dim the current white output set by this channel.
The ALEPH2 ET Mk2 has been laboratory calibrated to
closely follow the black body Locus curve. With 8 bits
resolution allowing the light to travel from TRUE warm to
cool whites ( 2000K to 800K) keeping a high CRI for natural
colours.
6 – 8BIT CHANNEL MODE
This mode turns the Aleph 2 ET Mk2 into a single colour,
single channel dimmer.
The output colour is not any specific kind of white and this
mode is not tuned up to produce balanced output. It is only
Covered by US patent 08950901 4

User Manual
Rev A
Document PN: 50847
For latest version please visit:
www.enttec.com
meant to produce as much light as possible using only
one control channel.
This mode is often used to control custom built A2 lights
where only white LEDs are populated instead of coloured
LEDs.
Presets Menu
The Aleph2 ET Mk2 has 64 available slots where the user
can record custom colours from DMX. These can later be
activated from the menu. Presets turn the ET into a stand-
alone fitting, where 64 different colours can easily be
triggered on-site, without the need of DMX.
It is also possible to record user personalised presets on
any of the 64 memory slots, overwriting the default ones.
RECORDING CUSTOM PRESETS:
To record your own colours, please scroll to the desired
slot (from 0 to 64), feed the desired data through the
DMX port until you are happy with the look. Then press
the SET key to overwrite the preset.
IMPORTANT NOTES:
When the light is powered on, it will automatically take
preset 0 as the default power on value, if the Lamp On
Mode setting is ON. This feature is handy for the user to set
up the desired colour combination for the fitting to start
every time it is powered up.
Note that the strobe feature is not a supported preset.
Any incoming DMX data will override the presets, so ensure
that there is no DMX data coming in before navigating this
menu intending to playback the different colours.
Running the Factory Defaults RDM command will restore all
the presets to the original values and user recorded presets
will not be recoverable.
Lamp On Mode Menu
This setting instructs the ET about what to do after a power
up sequence.
If DMX or OFF settings are chosen, the ET will stay off and
will wait for DMX instructions.
When Lamp On Mode = ON the ET will power up and then
output whatever drop has been recorded in slot 0 of the
presets. Please notice that any incoming DMX will override
this preset, as DMX takes the highest precedence.
PWM Frequency Menu
The PWM driving frequency can be adjusted. This might
have an impact on the way some cameras respond to the
light emitted by the A2 ET Mk2.
Backlight Menu
The NORMAL setting will turn the display green back light
on after any key operation. It will turn it off after a 5
seconds of in-activity. The ON setting will keep the back light
always on. The OFF setting will keep the back light always
off, regardless of any operation.
Factory Defaults Menu
Running the Factory default sequence will reset all the user
configurable parameters, including DMX address, presets,
Personality, Lamp On mode, Etc.
Covered by US patent 08950901 5
Pre-Set Pre-Set
0 26 Cool Grey
02 Red 27
03 Green 28 Sky Blue
04 Blue 29 Turquoise
05 Amber 30 Aquamarine
06 Cool White 3 Clover
07 RGB Yellow 32 Mint
08 RGB Purple 33 Dark Pastel Green
09 RGB Cyan 34 Pistachio
0 2000K White 35 Lawn Green
2500K White 36 Lime
2 2700K White 37 Pear
3 3000K White 38 Apple Green
4 4000K White 39 Lemon
5 5000K White 40 Corn
6 6000K White 4 Golden Yellow
7 6500K White 42 Pumpkin
8 Bubble Gum 43 Carrot Orange
9 Carmine 44 Khaki
20 Pink 45 Ochre
2 Pink 46 Salmon
22 Pastel Violet 47 Coral
23 Dark Violet 48
24 Lavender 49
25 Lavender Blue 50
Slots 5 to 64 are available for user custom colours
Factory Default
Colour
Factory Default
Colour
All channels OFF
(Default on Start-Up)
Ciel
Coquelicot
High luminance
Cool White
High luminance
Natural White

User Manual
Rev A
Document PN: 50847
For latest version please visit:
www.enttec.com
Temperature Menu
This menu shows the current fixture temperature in
degrees Celsius.
LED and CPU operating temperatures can be monitored
from the control panel as well as RDM.
Test Menu
Using this menu you can test every group of LEDS in the
ET fitting. The LEDs will turn on at full power, so avoid
looking at the light directly when performing the test.
Firmware Version
Indicates the current firmware version installed in the
fitting. Please check ENTTEC website for latest firmware
version.
Firmware Update
Updating the firmware of the ALEPH2 ET Mk2 requires an
ENTTEC USB Pro or a Pro Mk2 usb interface plugged in to
a PC USB port. Connect the USB PRO to the ET through a
standard 5 pin DMX cable.
Please download and install the RDM Controller App from
www.enttec.com website, connect the widget to the unit,
power it up and run the application.
To make sure the process has been successful, please the
firmware version has changed by looking at the “Software
Version ID” RDM field or navigate to the Firmware Version
menu using the control panel.
RDM Capabilities
The ALEPH2 ET Mk2 supports RDM features and any RDM
Controller can be used to configure it using RDM. The
“ENTTEC RDM Controller” free App can be downloaded
from ENTTEC website and be used in combination with a
DMX USB PRO or a PRO MK2 widget.
The supported RDM parameters are:
Read only fields
•Device Info
•Software Version ID
•Supported Parameters
•Parameters Description
•DMX Personality Description
•Sensor Value (temperature x 2)
•Sensor Definition
•Boot Software Version
•Manufacturing Label
•Device Label
•Status Messages
User configurable fields
•Identify Device
•DMX Start Address
•PID_800 : Master faders
•DMX Personality
•Factory Defaults
•Lamp On Mode
•Reset Device
•Capture Preset
•Preset Playback
Please note that DMX Personality, DMX Start Address,
Factory Defaults, Lamp On Mode and Presets fields can also
be configured from the menu interface at the back of the
light.
Specifications
Due to continuous improvements and innovations of all
ENTTEC products, specifications and features are subject to
change without notice.
Covered by US patent 08950901 6
Item 300mm 600mm 1200mm
Input Voltage 0 – 240V AC
Input Frequency 50/60Hz
Maximum Power Consumption
60 Watts 20 Watts 240 Watts
2500 lumen 5000 lumen 0000 lumen
Lumen/Watt 4 .6
CREE XP-E Led Quantity 30 60 20
Colours Red, Green, Blue, Amber, Cool White x 2
Diffuser
Beam Angle 25°
Control Input DMX5 2 & RDM E .20
Smart Dimming 6 bit dimming mapped to 8 bit S curve
Weight (Kg) 3.7 4.9
Weight (Pounds) 8.2 0.8 24
Cooling Method Convection
Ambient Temperature 5° to 50° C
Smart Thermal Management
Protection Rating IP20
Connectors
Light Output (all leds)
Clear Acrylic included,
Additional diffusers sold separately
Surface Operating
Temperature
75°C at steady state
(full intensity output and Ta=45°C)
Output smoothly dims down when over
heated
x 5-Pin Male XLR for DMX input
x 5-Pin Female XLR for DMX output
x IEC C 3/C 4 IN/OUT Socket for mains

User Manual
Rev A
Document PN: 50847
For latest version please visit:
www.enttec.com
Colour Gamut
Orderin Information
Dimensions
Sales enquiries: [email protected]
Support enquiries: [email protected]
Covered by US patent 08950901 7
Item A C D
ETMK2 300 340mm 400mm 00mm 3
ETMK2 600 640mm 700mm 200mm 3
ETMK2 200 240mm 300mm 250mm 5
Item Part Number
A2 ET MK2 LED LIGHT BAR 300mm 73803-300
A2 ET MK2 LED LIGHT BAR 600mm 73803-600
A2 ET MK2 LED LIGHT BAR 200mm 73803- 200
A2 ET 300m Diffuser Holder 79369
A2 ET 600m Diffuser Holder 79370
A2 ET 200m Diffuser Holder 73972
