Episode EA-AMP-2D-150A User manual

OWNER’S MANUAL >>
EA-AMP-2D-150A
Two-Channel, Class D,
150 Watt Amplier
2 CHANNEL

IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of re or electric shock, do not expose this apparatus in or near rain or moisture.
1. Read the following instructions carefully.
2. Keep manual for future reference.
3. Heed all warnings.
4. Follow all instructions in this manual.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install according to manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus
(including ampliers) that produce heat.
9. Do not override the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades -
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade
or the third prong is provided for your safety. If the provided plug does not t into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plug, convenience receptacles, and
the point where it exits from the apparatus.
11. Only use attachments/accessories specied by the manufacturer.
12. Use only with a cart, stand, tripod, bracket or table specied by the manufacturer,
or sold with the apparatus. When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged
in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
15. To completely disconnect this equipment from the AC mains, disconnect the power supply cord plug from
the AC receptacle.
The lightning ash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated dangerous voltage within the product’s enclosure
that may be of sufcient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the appliance.
CAUTION
CAUTION: TO REDUCE THE RISK
OF ELECTRICAL SHOCK, DO
NOT REMOVE COVER. NO USER
SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

© 2012 Episode
pg.3
WELCOME TO EPISODE®
Episode® is one of the most highly-regarded brands of audio products available today. We appreciate your business, and we
stand committed to providing our customers with the highest degree of quality and service in the industry
Episode® Ampliers are built on the latest digital technology and deliver efcient, clean power to every room. Each model is
designed to produce the subtle details of music, while having the exibility to meet a variety of installations. For the best sound
quality, use Episode® Speakers to complete the system.
FEATURES
DURABLE AUDIOPHILE DESIGN
This Episode Amplier utilizes the latest digital technology to deliver cool-running performance from a compact, reliable package.
Plus, it features superior quality components for outstanding sound quality and is up to 90% more efcient than conventional
analog designs.
MULTIPLE STAGES OF PROTECTION
Each channel is individually protected with an operation mode indicated by a bi-color LED on the front of the amplier. This
enables simple troubleshooting. If the circuitry determines that a channel must be shut down for protection due to a short, only
the channel that is affected will be turned off. The LED for the channel with trouble will turn red. The other channel will continue
to play and maintain a blue status LED. Once conditions return to normal for the channel with trouble, the status LED color will
return to blue.
LEVEL GAIN ADJUSTMENTS
The amplier has a global level which adjusts the maximum output to both channels. It can also serve to provide a limit on how
loud the speakers may be allowed to play.
INSTALLATION-FRIENDLY CONNECTIONS
Each speaker channel features a ve-way binding post that accommodates multiple 12-18 gauge stranded speaker wires. The
power cord is removable as well, facilitating fast and simple installations. The Channel Inputs are high-quality RCA connectors.
BRIDGING
The power output of the two channels can be combined to provide extra power when needed in certain areas. This is easily
accomplished by ipping a single switch. Maintain an 8 ohm minimum when using bridge mode.
RACK-MOUNTABLE
Each Episode amplier includes an accessory package of rack ‘ears’ that may be attached to the amplier. The amplier feet
can be easily removed for clean rack mounting. The amplier chassis and rack ears are NOT designed to support anything other
than the amplier. DO NOT stack components on top of the amplier, as it could damage the amplier’s chassis.
POWER MODE
Power state can be toggled using the front Power Button, 12V input, or Audio Sensing. The method for power toggle is set by
using the Power Mode Switch on the rear of the amplier. See Power Mode Switch under Rear Channel Features for information
on the operation of each mode.
Note: The front panel power button is inoperative when the 12V Trigger or Audio Sense power modes are selected.

pg.4

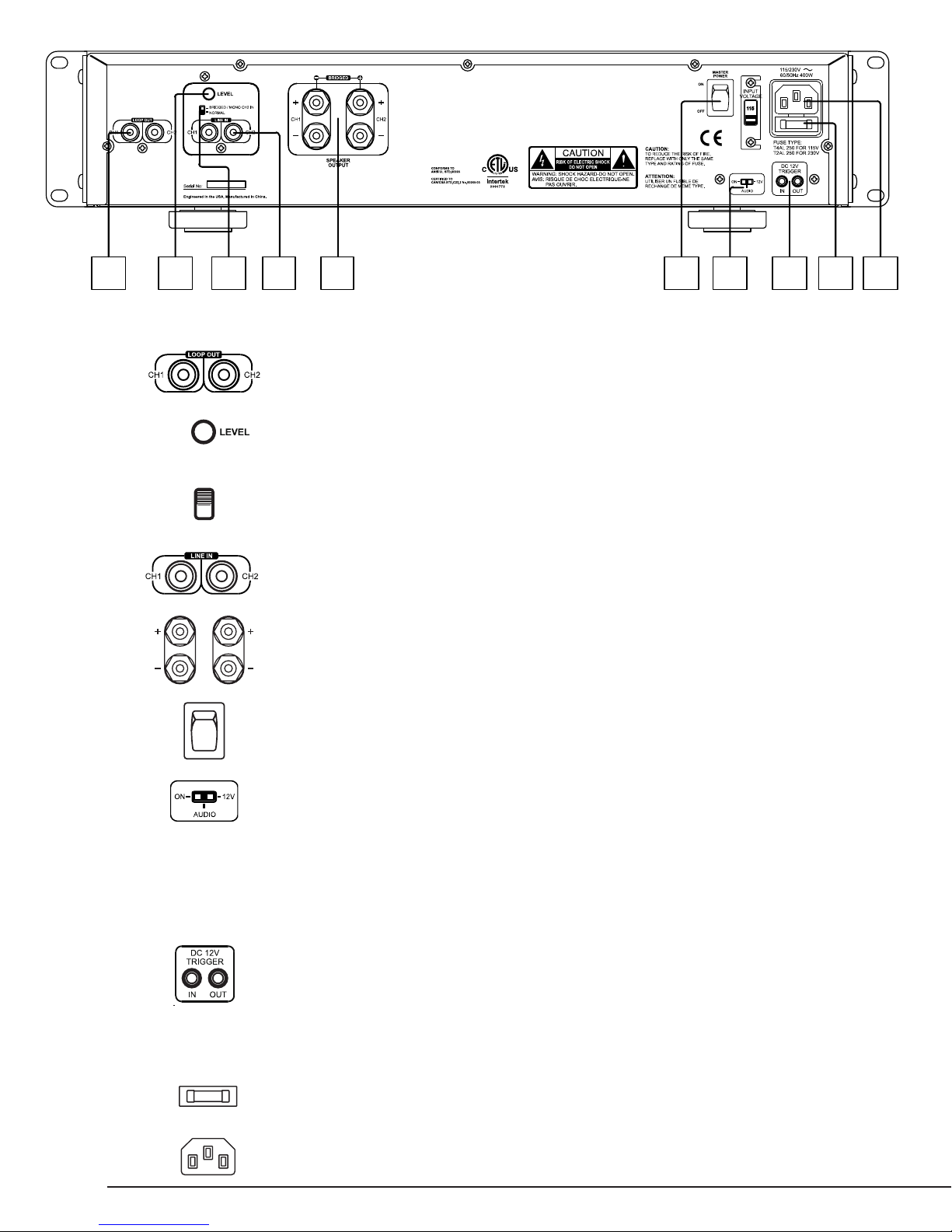

101 2 3 4 5 6 7 8 9
1. LOOP OUT
Allows Line In inputs to be sent to other ampliers
2. LEVEL
Master Gain Control for the amplier
3. BRIDGED SWITCH
Easily couple both channels together for increased power
NOTE: Maintain an 8 ohm minimum when using bridge mode.
4. LINE INPUT
Individual channel inputs
5. SPEAKER OUTPUTS
6. MASTER POWER SWITCH
Disables power to the amplier
7. POWER MODE SWITCH
Sets the ampliers power mode:
On – Turns ON / OFF via front power button
12V – Turns on when +12V is received at Trigger input
AUDIO - Turns on when a minimal amount of audio signal is received at the audio inputs and will
go into standby after 18 minutes of no audio signal.
Note: The front panel power button is inoperative when the 12V Trigger or Audio Sense power modes are
selected.
8. 12V TRIGGER IN/OUT
Turns amplier ON when 12V DC is applied and Power Mode Switch is set to 12V. This 12V signal is
regenerated to the 12V out for triggering additional ampliers.
Note: The front panel power button is inoperative when the 12V Trigger or Audio Sense power modes are
selected.
9. FUSE LOCATION
10. POWER CONNECTOR
REAR PANEL FEATURES

© 2012 Episode
pg.5
POSITIONING YOUR EPISODE AMPLIFIER
Episode ampliers are designed to help deliver a great audio experience that makes your music come alive for years to come.
However, where you place the amplier can have a large effect on the performance that you receive and the life of the unit.
· Be sure that the unit is in a well-ventilated area that provides adequate cooling.
· Do not block the cooling vents located on both sides of the unit.
· Do not place the unit on carpeting or any similar material.
· Do not install the unit near a source of heat, or in an extremely humid or wet location.
· If your installation lacks good air ow (such as solid cabinet doors or wall-mounted racks), it may be necessary to create
ventilation to allow outside air into the space.
· Allow a minimum of 5” of free air space above the unit.
· Allow a minimum of 3” of free air space on either side of the unit. (Does not apply to rack mounting)
VENTILATION
Do not block ventilation holes, or impede air ow by placing objects on or around the amplier. Do not place the amplier on
carpeting or any similar material. Do not install the amplier near a source of heat, or in an extremely humid or wet location.
INSTALLATION – GETTING CONNECTED
CAUTION: All connections and switching must be done with the amplier’s power switch positioned to ‘Off’. Connect the power
cord last to ensure that the amplier is off during all of your connections and set up.
INPUTS
For line level connections, use high-quality RCA cables that feature low impedance, shielding and high-quality connectors.
SPEAKER OUTPUTS
Use 12-18 gauge stranded two-conductor loudspeaker wire for all high level connections. At each loudspeaker-level connection,
ensure that at least 2 inches of each conductor are separated. Strip away 1/4 inch of insulation from each conductor. Connect the
appropriate conductor to each binding post, observing correct polarity.
3"
5" Minimum of 3" free air
space on each side.
Minimum of 5" of free air
space above.
3"
Minimum of 2”of depth behind unit
to accommodate cables and
connectors.
2"

pg.6
VERIFYING PHASE
When proper polarity is not maintained, the speakers play at the opposite ‘time’ from each other, this is known as out of phase.
The result is audio with lack of bass and vocals that sound thin or distant.
If during or after calibrating your receiver you suspect the sound is not right and you cannot see any markings on the wire to
verify polarity is correct, try this simple test:
1. Sit in the normal listening position for the system.
2. Play some music with your receiver set to Mono.
Listen to the music and observe the audio.
- Does the bass sound full and even with the other audio?
- Do the vocals sound centered and even in volume?
If any of the answers are YES, follow steps 3 and 4.
3. Turn off your receiver and reverse the connections for one of the speakers.
4. Repeat your test at the same volume level. When the sound has the loudest and best sounding bass, and vocals are centered
and clear, your connections are correct and in-phase.
LOOP OUTPUT
Any source connected to the Line In Input can be sent to other components or ampliers by connecting them to the Loop output
connector.

© 2012 Episode
pg.7
INSTALLATION – SETUP AND OPTIONS
POWER CONNECTION
Plug the supplied power cord into the amplier and to a polarized wall outlet or appropriate surge protector.
CAUTION: DO NOT plug the amplier’s power cord into a switched outlet, as is featured on some Surround Receivers. If you
wish to have the amplier turn on when the Receiver is powered up, use the 12V trigger jack or Audio Sense mode.
BRIDGING CHANNELS

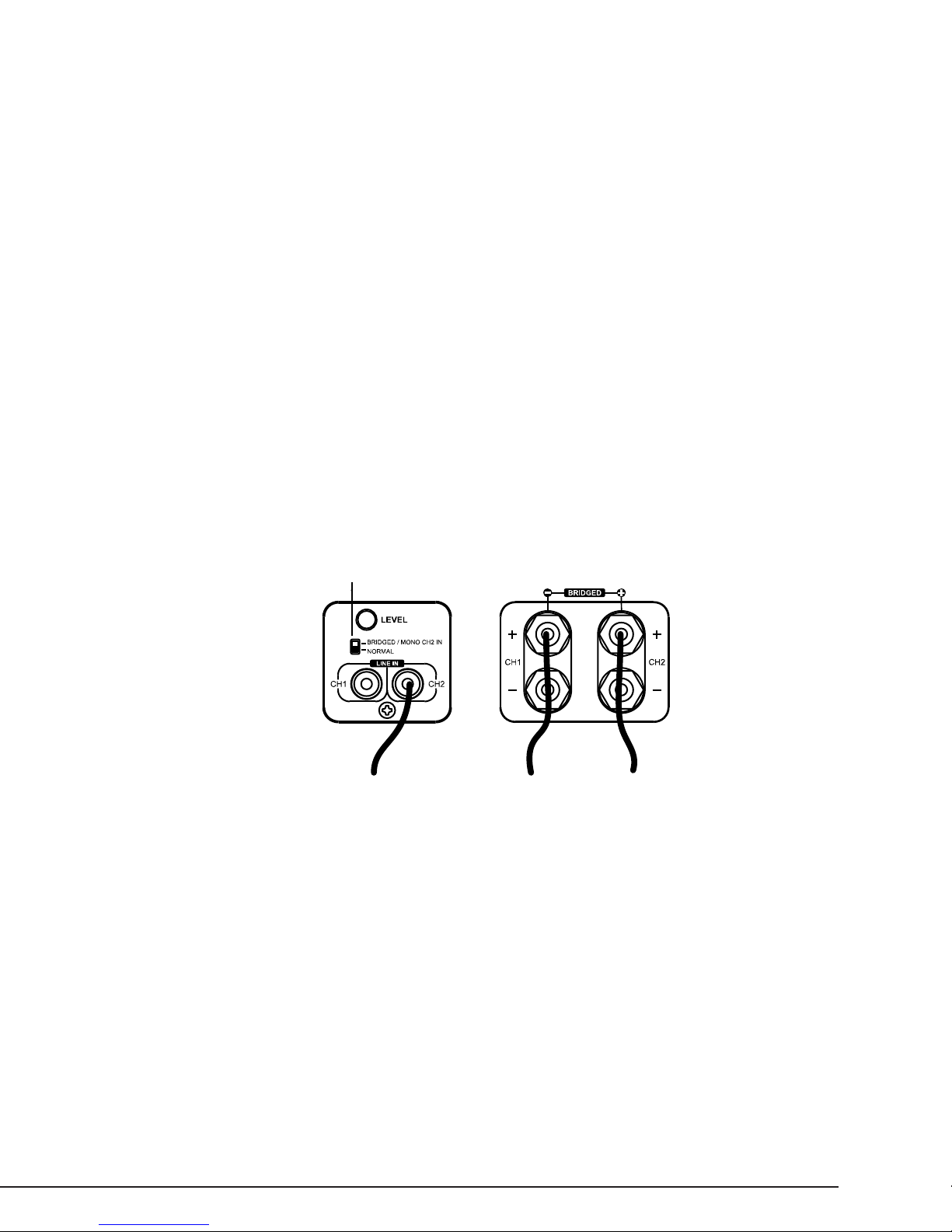

There are situations when you may wish to combine two channels into one, or “bridging”. The output of the two combined channels
can then be used to power one speaker.
To Bridge Two Adjacent Channels:
1. Remove Power from the amplier.
2. Set the channel switch to BRIDGED/MONO.
3. Connect the (+) POSITIVE (RED) lead of the speaker to the (+)POSITIVE (RED) connection of the EVEN numbered channel.
4. Connect the (-) NEGATIVE (BLACK) lead of the speaker to the (+) POSITIVE (RED) connection of the ODD numbered channel.
5. Connect the output from the source to the LINE IN of the EVEN numbered channel.
Note:
• DO NOT connect more than one speaker to the outputs of the bridged channel.
• All input selection and volume settings for bridged channels will be controlled by the RED channel.
• Maintain an 8 ohm minimum when using bridge mode.
OPERATION
POWER SWITCH/ LED
The Power switch on the front panel of the amplier will turn off the amplier when the Power Mode Switch is set to ON.
BLUE – Amplier is ON
RED – Amplier is in STANDBY
Refer to the “Power Mode” section for further information.
ZONE LED INDICATORS
When lit, the LEDs on the front panel indicate the ampliers operating state. Each channel has one bi-color LED, for each zone.
BLUE – Amplier is ON and functioning properly
RED – Amplier is ON and is not functioning properly, check for possible short at Speaker Output
OFF – (When Power LED is BLUE) a channel is not functioning and may require service
LEVEL ADJUSTMENT
The level adjustment on the back panel of the amplier can be used to easily adjust the level of the amplier.
One great use for this feature is to limit the volume level. Be sure to set the volume at a level that does not clip or cause distortion
when the volume is at the maximum level. This can cause damage to the speakers and the amplier.
Switch in bridged mode
Speaker
(+) Positive
Speaker
(-) Negative
Source Output

pg.8
EPISODE®MULTI-ROOM INSTALLATION
ROOM 1
RECEIVER
ROOM 2
OUTPUT
L
R
OUTPUT
L
R
OUTPUT
L
R
CD PLAYER
IPOD
DVD PLAYER
OUTPUT
L
R
L R L RL R
DVD
INPUT
CD
INPUT
AUX
INPUT
Note: Maintain a minimum 4 ohm load when connecting multiple speakers

© 2012 Episode
pg.9
Note: Maintain a minimum 4 ohm load when connecting multiple speakers
RECEIVER
OUTPUT
L
R
EPISODE®BRIDGED MODE APPLICATION
Note: Maintain a minimum 8 ohm load when using Bridged Mode

pg.10
No audio from
any channel.
•Power cable to the amplier is incorrectly connected or plugged into an outlet that does not have power.
Check connections and verify power on the outlet.
•Audio cable to the source component is not connected properly, input or the cable is defective.
Check connections or replace cable with one that has been veried as good.
No audio from
one or more
channels.
•Audio cable to the source component is not connected properly or the cable is defective.
Check connections or replace cable with one that has been veried as good.
•The Bridging switch is positioned incorrectly. Refer to installation instructions for proper settings.
•Check the connections of the speaker wire at both the speaker and amplier.
No audio from
one channel or
one zone only.
•Check the front panel LED for the channel that is not working. If it is red, you may have a short on either one
of the speaker wires for that channel. Check wires and speaker connections for shorts.
•The level adjustment on the channel is turned down. Turn it slowly to the right to raise the volume.
•Test the bad channel by connecting it to a speaker that you know works.
•Audio cable to the source component is not connected properly or the cable is defective.
Check connections or replace cable with one that has been veried as good.
•The Bridging switch is positioned incorrectly. Refer to installation instructions for proper settings.
•Check the connections of the speaker wire at both the speaker and amplier.
Hum or buzzing
sound is heard.
•Check RCA input cables by removing them one at time (powering down the amplier before disconnecting)
and checking to see if a connection or cable is to blame.
Amplier will
not turn on.
•The amplier must be plugged into a live outlet.
•The power switch on the back panel must be on.
•Ensure 12V is present if using the trigger input.
Front Power
Button
Inoperative
•Set the Power Mode Switch to ON.
For Technical Support, call 1.866.838.5052
TROUBLESHOOTING

© 2012 Episode
pg.11
Continuous Power Output
Both channels driven
95 watts RMS at 8 ohms
150 watts RMS at 4 ohms
Bridged Power Output
Both channels driven
280 Watts per channel RMS at 8 ohms
Note: Maintain 8 ohm minimum when using bridge mode
Input Sensitivity 570mV
Input Impedance 20,000 ohms
S/N ratio 95 dB
Frequency Response 20 Hz to 20 kHz
Distortion (Unbridged) 0.2% THD 20 Hz-20 kHz
Distortion (Bridged) 0.2% THD 20 Hz-20 kHz
Dimensions 17”w x 4”h (including feet) x 13” d
Weight 17 lbs.
Certication Meets FCC Part 15, ETL Listed and tested under UL/EN60065
*All specications are subject to change without notice
SPECIFICATIONS
WARRANTY
2-Year Limited Warranty
Episode® Amplier Products have a 2-Year Limited Warranty. This warranty includes parts and labor repairs on all
components found to be defective in material or workmanship under normal conditions of use. This warranty shall
not apply to products which have been abused, modied or disassembled. Products to be repaired under this warranty
must be returned to SnapAV or a designated service center with prior notication and an assigned return
authorization number (RA).

© 2012 Episode
111221
