Epoch Design Dakota 5105 User manual

DAKOTA / JAYDEN / OLIVIA
TWIN TRUNDLE
5105 DA-TW-TD-WH
Congratulations on the purchase of your Dakota / Jayden / Olivia Twin Trundle. This trundle has been crafted to the
highest standards of quality and safety and will give you many years of enjoyment and practical use.
Because this trundle is composed of wood there will be variations in color and grain, and minor checking may occur.
This is normal and does not compromise the integrity of your trundle.
On this insert you will nd a list of hardware and parts necessary for assembly, as well as detailed instructions.
Assembly is quite simple and requires only a Phillips Head screwdriver. The use of a power drill with the torque setting
on low and a Phillips Head attachment is helpful but not necessary. Assembly will be most easily accomplished if you
take the time to carefully sort the hardware and familiarize yourself with the function of each piece.
If you need assistance with assembly, part replacement or any other matter, contact the Toll-Free Epoch Design Service
Center from anywhere in the Continental United States, Monday through Friday, 9AM - 5PM Pacic Standard Time at
1-800-589-7990. You may also fax your request or comments to 425-284-0885 or email inf[email protected]
and a service representative will respond.
Thank you and Enjoy
EPOCH DESIGN, LLC
01-Oct-20181/2
8x 35mm Bolt
4x Trundle Handles1x 4mm Allen Wrench
1x Trundle Front Panel
2x Trundle End Bed Panel1x Trundle Back Panel
2x Plank Brace
2x Planks for Left & Right1x Plank for Center
1x Drawer Divider
5x Wheels
20x 25mm Screws
Used to attach wheels
4x Dowels
Used to connect
panels
6x 30mm Wood Screws
Used to attach plank braces
29x 15mm Wood Screws
Used to attach Planks to
trundle bottom
4x 30mm Machine Screws
Used to attach Trundle Handles
2x Wire Retainers
1x Middle Plank Brace
HARDWARE LIST
TRUNDLE BED PARTS
HAVE QUESTIONS OR CONCERNS? CALL US FIRST: 1-800-589-7990
Copyright © 2018 Epoch Design™ All rights reserved
mm 10 20 30 40

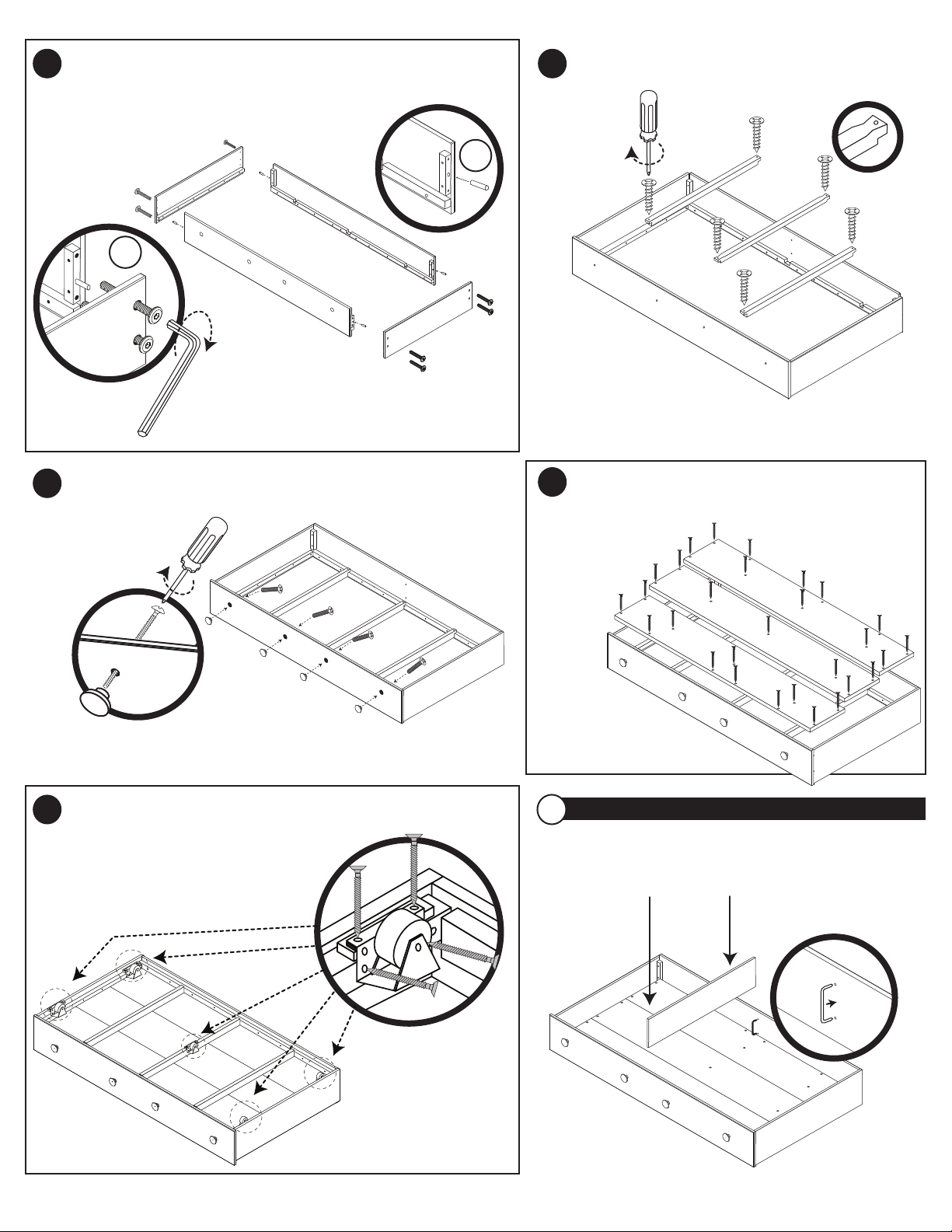

To use the bottom bed as a storage drawer, insert
the wire retainers and slide the drawer dividers into
the wire retainers down the grooves on the dividers.
OPTIONAL STORAGE
Carefully ip trundle over on a soft surface or carpet, to avoid
scratching the nish.
Attach wheels with four 25mm
wood screws per wheel as shown.
Lay the three bottom planks into the trundle.
The top side of the planks will have countersunk
holes for the 15mm wood screws.
Insert and tighten
the 15mm wood screws.
Attach the trundle handles with 30mm machine screws.
Hold the handle tight to the drawer face and use a Phillips Head
screwdriver to secure the handles.
Attach the two plank braces and middle plank brace
to the trundle with 30mm wood screws.
The braces should lay ush with the surrounding ledge.
M
I
D
D
L
E
P
L
A
N
K
Insert wooden dowels into the into the front and back panels.
(See Diagram A) Then attach the two trundle end panels to the
front and back panels with 35mm bolts and tighten with 4mm
Allen Wrench. (Diagram B)
1
3
5
2
6
4
Note: Do not tighten any of the bolts until all of
them have been threaded at least part way.
B
A
Have a question? Need a part ASAP? Please call 1-800-589-7990 (Monday through Friday 9am to 5pm PST).
01-Oct-20182/2
