EPOX 60002MC10 User manual

TRADEMARK
All products and company names are trademarks or registered
trademarks of their respective holders.
These specifications are subject to change without notice.
Manual Revision 1.0
May 24, 2001
User’User’
User’User’
User’ss
ss
s
ManualManual
ManualManual
Manual
A SocA Soc
A SocA Soc
A Sockk
kk
ket 370 Pret 370 Pr
et 370 Pret 370 Pr
et 370 Processor basedocessor based
ocessor basedocessor based
ocessor based
mainboard (100/66 MHz)mainboard (100/66 MHz)
mainboard (100/66 MHz)mainboard (100/66 MHz)
mainboard (100/66 MHz)
SupporSuppor
SupporSuppor
Supports PC100 Memorts PC100 Memor
ts PC100 Memorts PC100 Memor
ts PC100 Memory Modulesy Modules
y Modulesy Modules
y Modules
60002MC10

Table of Contents
Section 1 Introduction
Components Checklist ........................................ 1-1
Form-Factor......................................................... 1-2
I/O hield Connector .......................................... 1-3
Power-On/Off (Remote) ..................................... 1-3
ystem Block Diagram........................................ 1-4
Section 2 Features
Mainboard Features ............................................. 2-1
Section 3 Installation
Mainboard Detailed Layout ................................. 3-2
Easy Installation Procedure
CPU Insertion ...................................................... 3-3
Jumper ettings ................................................... 3-5
ystem Memory Configuration .......................... 3-7
Device Connectors .............................................. 3-9
Section 4 Award BIOS Setup
BIO Instructions ................................................ 4-1
tandard CMO etup ......................................... 4-2
BIO Features etup ........................................... 4-3
Chipset Features etup ........................................ 4-8
Power Management etup ................................... 4-11
PNP/PCI Configuration ...................................... 4-14
Integrated Peripherals ......................................... 4-17
Load etup Defaults ............................................ 4-20
ensor and CPU peed etup .............................. 4-21
Change upervisor or User Password................. 4-23
Page

IDE HDD Auto Detection ..................................... 4-24
ave & Exit etup ................................................ 4-26
Exit Without aving ............................................. 4-26
Appendix
Appendix A
GHO T 5.1/6.03 Quick Users Guide ................ A-1
Appendix B
Update Your ystem BIO .................................. B-1

Introduction
Page 1-1
Section 1
INTRODUCTION
Components Checklist
99
99
9A. (1) One mainboard
99
99
9B. (1) One users manual
99
99
9C. (1) Floppy ribbon cable
99
99
9D. (1) ATA-66 ID ribbon cable
99
99
9. (1) COM Port Connector
99
99
9F. (1) Driver and utility
USERS
MANUAL
B
A
C
D
F
or
E

Introduction
Page 1-2
Mainboard Form Factor
The board is designed with MicroATX form factor - the new industry standard of
chassis. The MicroATX form factor is essentially a Baby-AT baseboard rotated 90
degrees within the chassis enclosure and a new mounting configuration for the
power supply. With these changes the processor is relocated away from the
expansion slots, allowing them all to hold full length add-in cards. MicroATX
defines a double height aperture to the rear of the chassis which can be used to
host a wide range of onboard I/O. Only the size and position of this aperture is
defined, allowing PC manufacturers to add new I/O features (e.g.; TV input, TV
output, joystick, modem, LAN, etc.) to systems. This will help systems integra-
tors differentiate their products in the marketplace, and better meet your needs.
 Smaller size promotes a smaller system size.
 I/O shield does not need to be retooled in an ATX 2.01 or later. Mainboard
could be used in an ATX 2.01-compliant.
 A smaller power supply cam be used. High integration on mainboard reduces
the system costs.
PCI slots
Expandable I/O
5 1/4"
Bay
3 1/2"
Bay

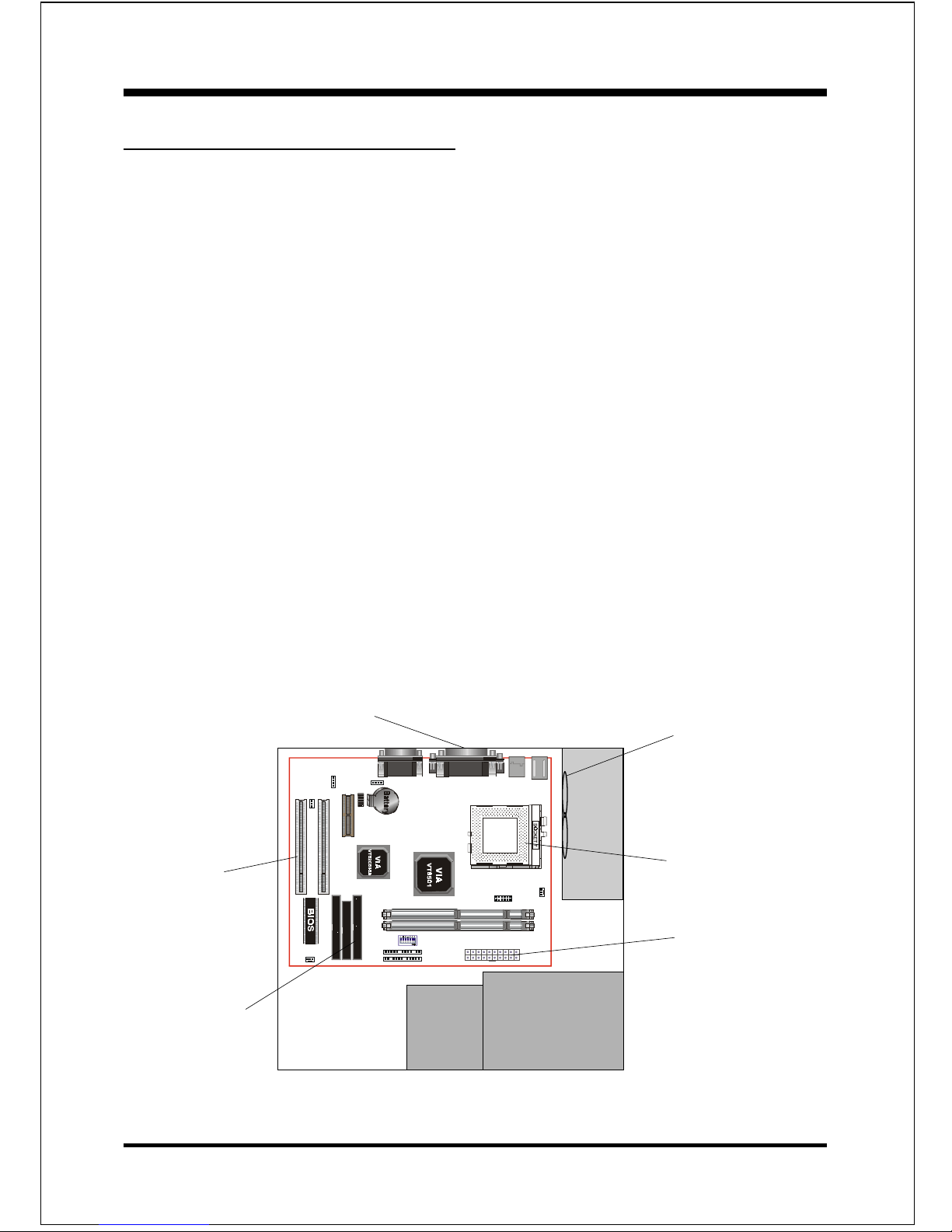

Figure 2: Summary of Micro ATX chassis features
CPU located near
Power S pply
Single chassis
fan for
system
Micro
ATX
Power
Supply
ATX power
connector
Floppy / IDE
connectors

Introduction
Page 1-3
Case (chassis) Power
ON/OFF utton
ATX
POWER SUPPLY
Figure 4: Simple ATX Power
ON/OFF Controller
Power-On/Off (Remote)
The board has a single 20-pin connector for ATX power supplies. For ATX power
supplies that support the Remote On/Off feature, this should be connected to the
systems front panel for system Power On/Off button. The systems power On/Off
button should be a momentary button that is normally open.
The board has been designed with Soft Off" functions. You can turn Off the
system from one of two sources: The first is the front panel Power On/Off
button, and the other is the "Soft Off" function (coming from the onboard circuit
controller) that can be controlled by the operating system such asWindows® 95/
98/S /M or Windows®2000.
I/O Shield Connector

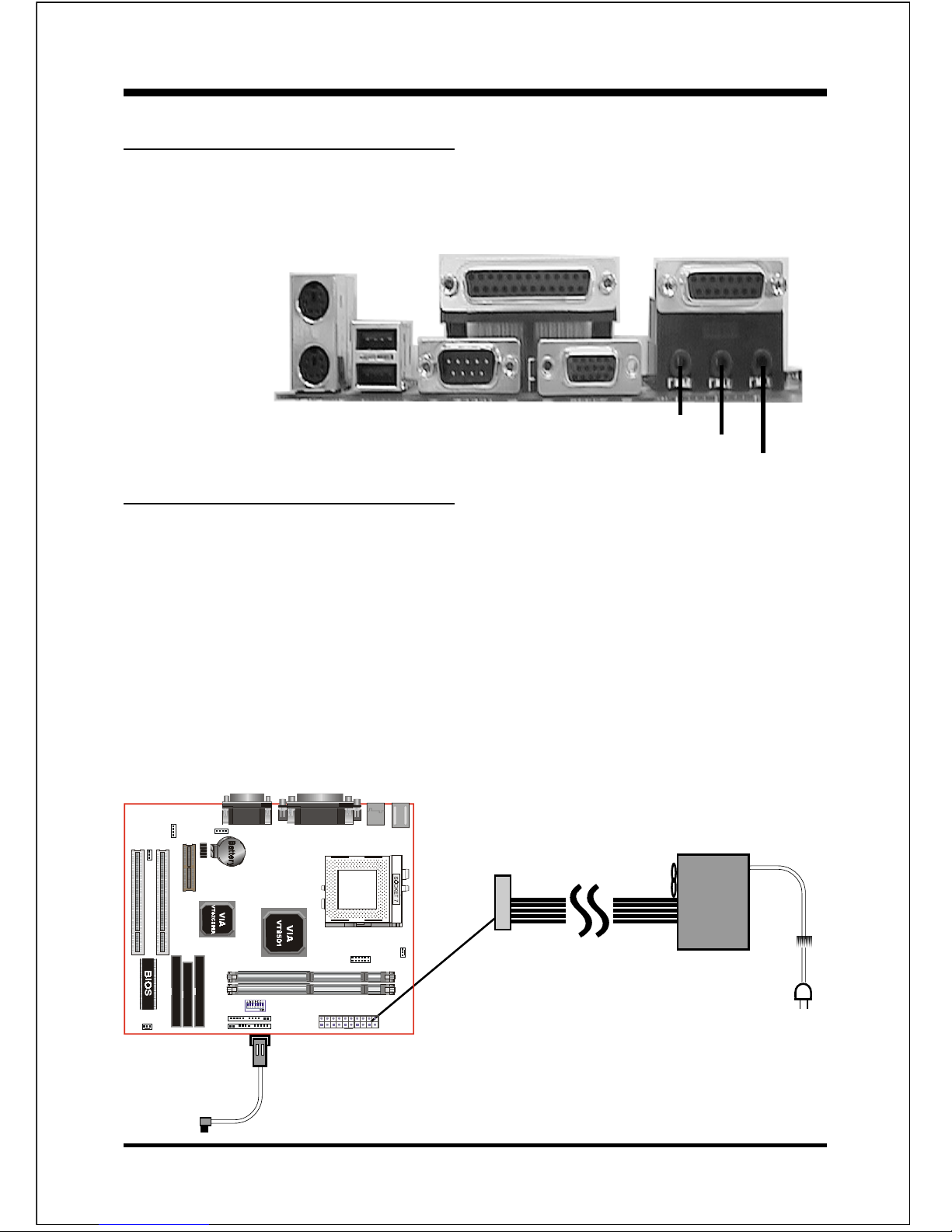

The board is equipped with an I/O back panel.Please use the appropriate I/O shield
(figure 3).
J3
PS/2 Mouse
PS/2
KEYBOARD
COM1 VGA1
parallel port
Speaker
Joystick/Midi
USB port
Line_in
MIC
Figure 3

Introduction
Page 1-4
Figure 5: System Block Diagram
System Block Diagram
PAC
PCI Bridge
and memory
controller
VT8501
socket 7
Processor
100/66 MHz
100/66 MHz
CRT
VT82C686A
I/O Bridge
USB 0 USB 1
AC97
CODEC
~
~
~
AMR Slot

.A=JKHAI
Page 2-1
Section 2
FEATURES
Mainboard Features:


PROCESSOR
- Socket 7 CPUs: Operating at 166-550MHz
- AMD K6- /III, Cyrix M II, Idt C6 / Winchip and Rise mP6 series
- Intel Pentium ®/Pentium ® Processor with MMXTM Technology,


CHIPSET
- VIA Apollo MVP4 AGPset (VT8501 + VT8 C686A)


DRAM MODULE
- 168pin DIMM x for PC100 Memory
- DRAM Size: 3 MB to 56MB


EXPANSION SLOT
- PCI x
- AMR Slot x 1


ONBOARD I/O
- On-Chip Multi I/O integrated with K/B, mouse, FDD, Parallel and Serial,
Fast IR and Power-ON controllers


ONBOARD PCI / IDE
- PCI Bus IDE Port with PIO /Ultra DMA-66x (Up to 4 Devices)


I/O CONNECTOR
- PS/ Mouse and PS/ style Keyboard

.A=JKHAI
Page 2-2


USB
- USB connector x 4 ( for Opt.)


BIOS
- Award Plug & Play BIOS


Built-in AC9 Digital Audio (by VT82C686A)
- Dual full-duplex Direct Sound channels
- H/W Sound Blaster Pro for DOS legacy compatibility
- FM synthesis for legacy compatibility
- Supports game and MIDI port


Built-in Trident AGP Core


EXTENDED FUNCTION
- Supports exclusive USDM(Unified System Diagnostic Manager) and
Hardware Monitoring Function by VT8 C686A
- Supports exclusive KBPO(KeyBoard Power On)
- Supports CPU Clock setting via DIP Switch
- Supports Wake-On-LAN Function


FORM FACTOR
- 35mm x 180mm Micro ATX Size
