POST Port Frequently Asked Questions
Below is a list of some basic POST Codes possible problems and solutions. For
more detailed information about POST Codes refer to Appendix D in this manual.
POST CODE Pro blem Sol uti on
FFh or CFh 1.BIOS chip inserted
incorrectly
2. Incorrect BIOS update
version
3. Mainboard problem
4. dd-on card inserted
incorrectly.
1. Reinsert the BIOS
chip
2. Download the correct
BIOS version update
from the manufacturer's
Web site.
3. Replace mainboard
4. Remove and replace the
add-on card
C1h - C5h 1. Memory module
inserted incorrectly
2. Memory compatibility
problem
3. Memory module
damaged
1. Reinsert memory
module
2. Replace memory
with correct type
3. Replace memory
module
2Dh 1. Error occured in VG
BIOS
2. VG card inserted
incorrectly
1. Replace VG card
2. Reinsert the VG
card
26h Overclock error Clear CMOS or press the insert
key to power on the system
07h - 12h 1. Init keyboard
controller error
2. RTC error
1. Ensure that the keyboard and
mouse are connected
correctly.
2. Replace the RTC battery.

Table of Contents
Section 1 Introduction
Package Contents ................................................ 1-1
Overview
AthlonTM Processors ............................................ 1- 2
Chipset Overview................................................. 1-3
Accelerated Graphics Port .................................. 1-4
Ultra ATA66/100/133 ............................................ 1- 4
LAN (Optional)..................................................... 1- 4
Hardware Monitoring ........................................... 1- 4
IEEE 1394 (Optional) ............................................. 1- 5
Serial ATA (Optional) ........................................... 1- 5
Mainboard Form-Factor ....................................... 1- 6
I/O Shield Connector .......................................... 1-7
Power-On/Off (Remote)..................................... 1-7
System Block Diagram........................................ 1-8
Section 2 Features
Mainboard Features ............................................. 2-1
Section 3 Installation
Mainboard Layout ............................................... 3- 2
Easy Installation Procedure
CPU Insertion ...................................................... 3-3
Jumper Settings ................................................... 3-5
System Memory Configuration ............................ 3- 6
Expansion Slots .................................................... 3- 8
Device Connectors ............................................... 3- 10
STR (Suspend To RAM) Function....................... 3- 17
CPU Overheating Protection ................................ 3- 18
Page

Section 4 Award BIOS Setup
BIOS Instructions................................................. 4-1
Standard CMOS Setup ......................................... 4-2
Advanced BIOS Features..................................... 4-3
Advanced Chipset Features ................................ 4-7
Integrated Peripherals .......................................... 4-11
Power Management Setup ................................... 4-17
PNP/PCI Configuration Setup .............................. 4-20
PC Health Status .................................................. 4-22
Power BIOS Features ............................................ 4-24
Defaults Menu ..................................................... 4-25
Supervisor/User Password Setting ...................... 4-26
Exit Selecting ........................................................ 4-27
Section 5 Driver Installation
Easy Driver Installation ........................................ 5-1
C-Media Audio Configuration Brief Guide........... 5-2
Appendi Appendi A
Update Your System BIOS ................................... A-1
Appendi B
EEPROM BIOS Remover ...................................... B-1
Appendi C
GHOST 7 Quick Users Guide (Optional) ................. C-1
Appendi D
POST Codes (Optional) ......................................... D-1

Page Left Blank

Introduction
Page 1-1
Section 1
INTRODUCTION
Package Contents
A
B
USERS
MANUAL
J
G
F
K
H
CD
E
or
Contents
A. Mainboard
B. Users manual
C. Floppy disk drive cable
D. HDD drive cable or round cable
E. CD and diskette (drivers and
utilities
F. Game & COM port cable
G. I/O Shield
Deluxe Pack Items
H. S-ATA data and power cable
I. IEEE 1394 two ports cable
Other Optional Items
J. USB2.0 port cable
K. S/PDIF Module
If you need the other optional item,
please contact dealer for assistance.
I

Introduction
Page 1-2
AthlonTM Processors
The AMD AthlonTM is a seventh-generation micro architecture with an integrated
L2 cache, which is powerful enough to support the bandwidth requirements of a
large range of applications, hardware, graphics, and memory technologies. These
processors implement advanced design techniques such as:
!"Socket A (PGA 462
!266/333/400MHz system interface based on the Alpha EV6 bus protocol.
!"Three out-of-order, superscalar, pipelined Multimedia Units.
!"Three out-of-order, superscaler, pipelined Integer Units.
!"Fixed-sized internal instruction formats (MacroOPs .
!"72-entry Instruction Control Units.
!"AMD enhanced 3DNow! technology
!"L1 and L2 caches.
!"Dynamic branch prediction.
Socket A is the name for AMDs new socketed interface designed to support AMD
AthlonTM processors. This innovation is made possible by integrating the L2 cache
memory on chip with the processor. Socket A will help enable smaller enclosures,
and ultimately result in a wider variety of solutions in the market.
The AthlonTM processors in the Socket A format continue to deliver the ultimate
performance for cutting-edge applications. Both bring to desktop systems running
industry-standard x86 software superscalar RISC performance. Being provided in
the Socket A format they are the worlds most powerful x86 processors. They easily
deliver the highest integer, floating-point, and 3D multimedia performance for
applications running on x86 platforms around.
It features full-speed, on-chip cache memory, a 266/333/400MHz front side system
bus, and enhanced 3DNow! technology. The AMD AthlonTM processor is
targeted at the performance segment, and as such will have more cache memory and
higher clock speeds.

Introduction
Page 1-3
Chipset Overview
This board is designed with nVidia chipset, nForce2TM SPP as North Bridge and
nForce2TM MCP as South Bridge. NVIDIA® has developed the next generation
System Platform Processor (SPP nForce 2, to provide the highest-
performance, fullest-featured system architecture for the AMD Athlon XP
Processor. The second generation System Platform Processor works together
with the second generation of the NVIDIA Media Communication Processor, the
MCP.
The nForce2 was architected specifically for the AMD AthlonXP Processor.
NVIDIAs patent-pending DASP (Dynamic Adaptive Speculative Pre-Processor
technology intelligently predicts and prefetches requests from the AMD Athlon
XP Processor to boost system performance beyond its nominal speed grade.
The nForce2 SPP delivers twice the bandwidth by implementing the new NVIDIA
DualDDR Memory Architecture speed to DDR 400 memories. This generation
System Platform Processor also implements the AGP 8× interface,
HyperTransport Link, and is fully compliant with industry standard power manage-
ment specifications such as ACPI 2.0 and PCI Power Management Interface (PMI
Spec 1.1.
The NVIDIA® nForce MCP Media and Communications Processor (MCP
provides a highly integrated, high-performance, low-cost PC2001-compliant
peripheral controller that supports NVIDIA processor bridge functionality for
next-generation PCs. No other single-device controller provides all the function-
ality of NVIDIAs MCP.

Introduction
Page 1-4
Accelerated Graphics Port (AGP or A.G.P.)
Typically, 3D graphics rendering requires a tremendous amount of memory, and
demands ever increasing throughput speed as well. As 3D products for the
personal computer become more and more popular, these demands will only
increase. This will cause a rise in costs for both end users and manufacturers.
Lowering these costs as well as improving performance is the primary motivation
behind AGP. By providing a massive increase in the bandwidth available between
the video card and the processor, it will assist in relieving some of these pressures
for quite sometime.
The board provides the AGP 3.0 interface. The AGP interface can support external
AGP slot (1.5V only with AGP 8X/4X and Fast Write Transactions. The AGP
Interface Specification revision 3.0 enhances the functionality of the original AGP
Interface Specification by allowing 8X data transfers (8 data samples per clock and
1.5 volt (Power supply operation. Supports Maximum AGP interface bandwidth 2.
1GB/s. (1.5 volt AGP Card supports only .
Ultra ATA/66/100/133
The MCP provides two independent ATA133 IDE controllers, supporting standard
programmable input/output (PIO and Direct Memory Access (DMA mode
operations, as well as UltraDMA-133/100/66/33 standards for a maximum data
transfer rate of 133MBps per channel.
LAN (Optional)
The motherboard mounts the LAN chipset. It allows the mainboard to connect to a
local area network by means of a network hub.
Hardware Monitoring
Hardware monitoring allows you to monitor various aspects of your system
operations and status. The features include CPU temperature, voltage and RPM of
fan.

Introduction
Page 1-5
IEEE1394 (Optional)
IEEE 1394 is a high-speed serial bus developed by Apple Instruments that allows
users to connect up to 63 devices to the serial bus on a PC. IEEE is sometimes called
the IEEE 1394 standard, the i.Link connector, FireWire, and the High Performance
Serial Bus (HPSB .
IEEE 1394 provides transfer rates up to 400Mbits/sec. IEEE 1394 provides enhanced
PC connectivity for consumer electronics audio/video (A/V appliances, storage
peripherals, portable devices such as digital cameras, and inter-PC communications.
IEEE 1394 supports hot swapping, multiple speeds on the same bus, and isochro-
nous data transfer providing much needed bandwidth for multimedia operations.
Serial ATA (Optional)
The evolutionary serial ATA interface replaces the standard parallel ATA physical
storage interface. The serial ATA specification provides scalability and allows
future enhancements to the computing platform. Serial technology overcomes
performance limits of parallel interface architecture, meeting the escalating need for
faster data throughput in servers and storage devices.
Serial ATA is backward compatible with current software and runs on existing
architecture without modification. The serial ATA interface cable requires lower
voltages and uses smaller cable connectors, providing ease of installation. You can
easily upgrade storage devices that are compatible with the serial ATA interface
specification. Serial ATA supports all ATA and ATAPI devices, including high
capacity removable devices, optical devices, tape storage devices, and zip drives.
Serial ATA is completely software compatible with parallel ATA, requiring no
modification to your operating system.

Introduction
Page 1-6
Mainboard Form-Factor
The board is designed with ATX form factor - the latest industry standard of
chassis. The ATX form factor is essentially a Baby-AT baseboard rotated 90
degrees within the chassis enclosure and a new mounting configuration for the
power supply. With these changes the processor is relocated away from the
expansion slots, allowing them all to hold full length add-in cards. ATX defines
a double height aperture to the rear of the chassis which can be used to host a
wide range of onboard I/O. Only the size and position of this aperture is
defined, allowing PC manufacturers to add new I/O features (e.g.; TV input, TV
output, joystick, modem, LAN, audio, etc. to systems. This will help systems
integrators differentiate their products in the marketplace, and better meet your
needs.
 By integrating more I/O down onto the board and better positioning the
hard drive and floppy connectors material cost of cables and add-in cards is
reduced.
 By reducing the number of cables and components in the system, manufac-
turing time and inventory holding costs are reduced and reliability will
increase.
 By using an optimized power supply, it's possible to reduce cooling costs
and lower acoustical noise. An ATX power supply, which has a side-
mounted fan, allows direct cooling of the processor and add-in cards making
a secondary fan or active heatsink unnecessary in most system applications.
Expandable I/O
Figure 2: Summary of ATX chassis features
CPU
Single chassis fan
for system
loppy / IDE
connectors 5 1/4"
Bay
3 1/2"
Bay
ATX
Power
Supply
PCI slots
AGP slot ATX 12V power
connector
ATX power
connector

Introduction
Page 1-7
I/O Shield Connector
The board is equipped with an I/O back panel. Please use the appropriate I/O shield
(figure 3 .
Power-On/Off (Remote)
The board has 20-pin ATX and 4-pin ATX12V connectors for power supplies
(Figure 4 . For power supplies that support the Remote On/Off feature, this should
be connected to the mainboard front panel PW_ON connector for the computer
power On/Off button.
The board has been designed with Soft Off" function. You can turn off the system
two ways: pressing the front panel power On/Off button, using the "Soft Off"
function (incorporated in the mainboards onboard circuit controller that can be
controlled by an operating system such as Windows®ME/2000/98SE/XP.
Note: For maintaining the DDR SDRAM power during STR (ACPI S3) fun tion, it is
strongly re ommend to use ATX power supplies that have a +5VSB urrent of (>=)
1A (1000mA). Please he k the 5VSBs spe ifi ation that has been printed on the
ATX power supplys outer ase.
Note: The board requires a minimum of 250 Watt ATX power supply to operate. Your
system onfiguration (amount of memory, add-in ards, peripherals, et .) may
ex eed the minimum power requirement but to ensure that adequate power is
provided, use a 300 Watt (or greater) ATX power supply.
Figure 3: I/O back panel layout
USB2.0 ports
Parallel Port
PS/2
Mouse
PS/2
Keyboard
RJ45 LAN
(Optional)
Mi -in/Center&Subwoofer (Pink)
Line-out/Front out (Green)
Line-in/Rear out (Blue)
PW-ON
ase (chassis) Power ON/OFF button (PW-ON)
POWER SUPPLY
12V 4-pin
20-pin
Figure 4: Simple ATX power ON/OFF controller

Introduction
Page 1-8
Figure 5: System Block Diagram
System Block Diagram

.A=JKHAI
Page 2-1
Section 2
FEATURES

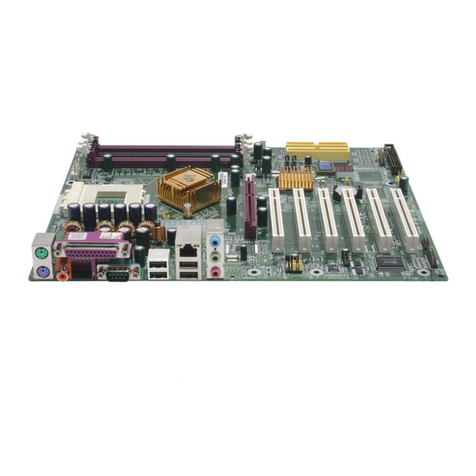

Mainboard Features
Processor
!Supports 462-pin SocketA for AMD Athlon XP and Barton processors
with 266/333/4 MHz Front Side Bus
- Athlon XP (15 + to 28 +) with 266/333MHz Front Side Bus,
- Barton (25 + to 3 +) with 333/4 MHz Front Side Bus
Chipset
!nVidia AGPset (nForce2-128 SPP + MCP)
Main Memory
!Three 184-pin DDR DIMM sockets for 64-bit, Unbuffered, Single/
Double-side and Non-ECC DDR-2 /266/333/4 DIMMs
!Supports 128-bit dual channel memory architecture
!Supports up to 3GB memory size
BIOS
!Flash EEPROM with Award BIOS
- ACPI v2. compliant
- S3 (Suspend to DRAM) sleep-state support
- SMBIOS (System Management BIOS)v2.2 compliant
- Supports Power failure recovery
- Capable to waked the computer up from specific states by LAN, Power
switch, PME#, RTC alarm, USB, PS2 KB&Mouse, Modem ring on COM#1
Onboard PCI Devices
!1394 --> Embedded 1394 controller with Agere FW323 for 3 ports
solution
- IEEE-1394a compliant with up to 4 Mbps bandwidth
(Optional)

.A=JKHAI
Page 2-2
!LAN --> Embedded 1 /1 Mbps Fast Ethernet controller with
RTL82 1BL PHY
Embedded 1 /1 Mbps Fast Ethernet controller with
RTL81 1L chip (for high-level model only)
!S-ATA --> Embedded Serial ATA controller with Silicom Image SIL3112A)
for 2 ports solution, up to 1.5Gbs transfer rate
!IDE --> Embedded IDE controller supports 2 IDE ports for up to 4
IDE devices
- Supports ATA-133 with up to 133Mbps bandwidth
Legacy IO Controller
!Winbond W83627HF LPC IO controller with floppy, printer, game,
serial and CIR/SIR interface
udio
!Six channel audio with analog and digital output using CMI9739A AC97
CODEC
- AC97 v2.2 compliant
- In 2-CH mode, supports Line-In (Blue), Line-Out (Green) and Mic-In
(Pink) at rear panel
- In 6-CH mode, supports Rear out (Blue), Front out (Green) and
Center&Subwoofer (Pink) at rear panel
- Supports CD-In, Aux-In and S/PDIF-In/Out interface
- Supports Line-out and Mic-In for front panel
Peripheral Interfaces
!PS/2 keyboard and mouse ports (at rear panel)
!One Parallel (printer) port (at rear panel)
!Two RJ45 LAN connector (at rear panel)(Optional)
!Six USB2. ports (4 at rear panel)
!One game port
!Two Serial ports
(Optional)
(Optional)

.A=JKHAI
Page 2-3
!One floppy drive interface
!Two IDE interfaces
!Three 1394 interfaces (Optional)
!Two S-ATA interfaces (Optional)
!Three Fan connectors
Front Panel Controller
!Supports Reset & Soft-Off switches
!Supports HDD & Power LEDs
!Supports PC speaker
Expansion Slots
!One AGP slots supporting 1.5v 4X/8X AGP cards
- AGP v3. compliant
!Five PCI bus sockets with Bus Master support
- PCI v2.2 compliant
Other Features
!Magic Health  a H/W monitoring software utility, for voltages, tempera-
tures and fan-speeds sensing
!EZ Boot  An easy way let end-user can choose to boot from hard drive,
CD-ROM, floppy, 
!Excellent Over clocking capabilities by
- subtle voltage tuning on CPU, Memory, AGP
- subtle frequency tuning on FSB
!Supports complete FSB/Memory and FSB/AGP Asynchronous scheme for
over-clocking
!P8 P for system debugging
!CPU Overheating Protection
Form Factor
!3 5 x 245 mm ATX size

.A=JKHAI
Page 2-4
Page Left Blank

Installation
Page 3-1
Section 3
INSTALLATION

Installation
Page 3-2
Mainboard Layout
Figure 1
