ePropulsion TDC-IY-108-12 User manual

 kW
User Manual
2023.06 Version 1.0
Copyright © 2023 ePropulsion. All Rights Reserved

1
Acknowledgement
Thanks for choosing ePropulsion products, your trust and support in our company are sincerely
appreciated. We are dedicated to providing high-performance electric outboards, electric
inboards, sup/kayak motors, reliable lithium batteries and accessories.
Welcome to visit www.epropulsion.com and contact us if you have any concerns.
Using This Manual
Before use of the product, please read this user manual thoroughly to understand the correct
and safe operations. By using this product, you hereby agree that you have fully read and un-
derstood all contents of this manual. ePropulsion accepts no liability for any damage or injury
caused by operations that contradict this manual.
Due to ongoing optimization of our products, ePropulsion reserves the rights of constantly ad-
justing the contents described in the manual. ePropulsion also reserves the intellectual property
rights and industrial property rights including copyrights, patents, logos and designs, etc.
This manual is subject to update without prior notice, please visit our website www.ePropulsion.
com for the latest version. If you nd any discrepancy between your products and this manual,
or should you have any doubts concerning the product or the manual, please visit www.ePropul-
sion.com.
ePropulsion reserves the rights of nal interpretation of this manual.
This manual is multilingual, in case of any discrepancy in the interpretation of different language
versions, the English version shall prevail.
Symbols
ePropulsion considers safety of great importance and recommends that anyone that comes
into close contact with its products, such as those who install, operate, maintain or service ePro-
pulsion products, exercise care, common sense and comply with the safety information in this
manual and on the machine’s safety decals.
The following are the relevant information marks in the user manual or the product labels:
Hazardous or warning signs indicate a potentially hazardous or hazardous situation which, if not
avoided, will result in death or serious injury. Special attention and attention should be paid to
the safety of you or the products involved.
Important warning:
Tips or important informations help quickly grasp the use of the inboard motor and improve e-
ciency.

2
Please read and follow the instructions following the safety warning signs.
Caution:
When installing, operating, maintaining or serving ePropulsion products, there are many safety
risks in the process. You need to be alert, perform relevant operations reasonably, and pay atten-
tion to safety. when installing, operating, maintaining or serving ePropulsion products, there are
many safety risks in the process. You need to be alert, perform relevant operations reasonably,
and pay attention to safety.
Electric shock hazard:
The areas or equipment may be at risk of electric shock. The equipment uses 102.4V DC power.
When operating electricity-related electrical connectors, switches, cables and other electricity-re-
lated items, power off operation to prevent electric shock.
Burn hazard:
Some of the machine surfaces become very hot during operation and shortly after shutdown.
Keep hands and other body parts away from hot machine surfaces.
Do not plug or unplug when the machine is running:
Do not plug or unplug electrical equipment when the machine is running to avoid the risk of elec-
tric shock.
90mm
86mm
60mm
56mm
13mm
110mm
76mm
22mm
100mm
88mm
110mm
76mm
22mm
100mm
88mm
120mm
116mm
80mm
76mm
18mm

3
Product Identification
Serial Number is an important document for product warranty or other after-sales services. The
product serial number label of the TDC-IY-108-12 DCDC is located in the position shown in the
gure below, please nd this label on the product and record the Serial Number shown. Do not
tear off the label, otherwise the product warranty will be void.

4
Table of Contents
Acknowledgement.................................................................................................. 1
Instructions for use ................................................................................................ 1
Safety warning instructions .................................................................................... 1
Product Identification............................................................................................. 3
1 Product Overview ................................................................................................ 5
1.1 In the package.........................................................................................................5
1.2 Basic functions .......................................................................................................6
2 DCDC DC Converter Technical Specification Sheet .............................................. 7
2.1 Input parameter.......................................................................................................7
2.2 Output parameter....................................................................................................7
2.3 Communication.......................................................................................................8
2.4 Protection function .................................................................................................8
2.5 Safety and other......................................................................................................8
2.6 Declaration of Conformity ......................................................................................9
3 Protection function............................................................................................ 11
4 Mechanical installation...................................................................................... 12
4.1 Installation dimension drawing (unit:mm) ......................................................... 12
4.2 Installation method.............................................................................................. 13
4.3 Installation requirements..................................................................................... 14
5 Harness connection........................................................................................... 15
5.1 Interface definition............................................................................................... 15
5.2 Input cable............................................................................................................ 15
5.3 Output cable ......................................................................................................... 16
5.4 Signal cable .......................................................................................................... 16
5.5 After the cable is connected, the DCDC would as follows ................................ 16
6 Notes................................................................................................................. 17
7 Warranty terms.................................................................................................. 18
7.1 Out of Warranty .................................................................................................... 19
7.2 Limited Warranty Claim Procedures ................................................................... 20

5

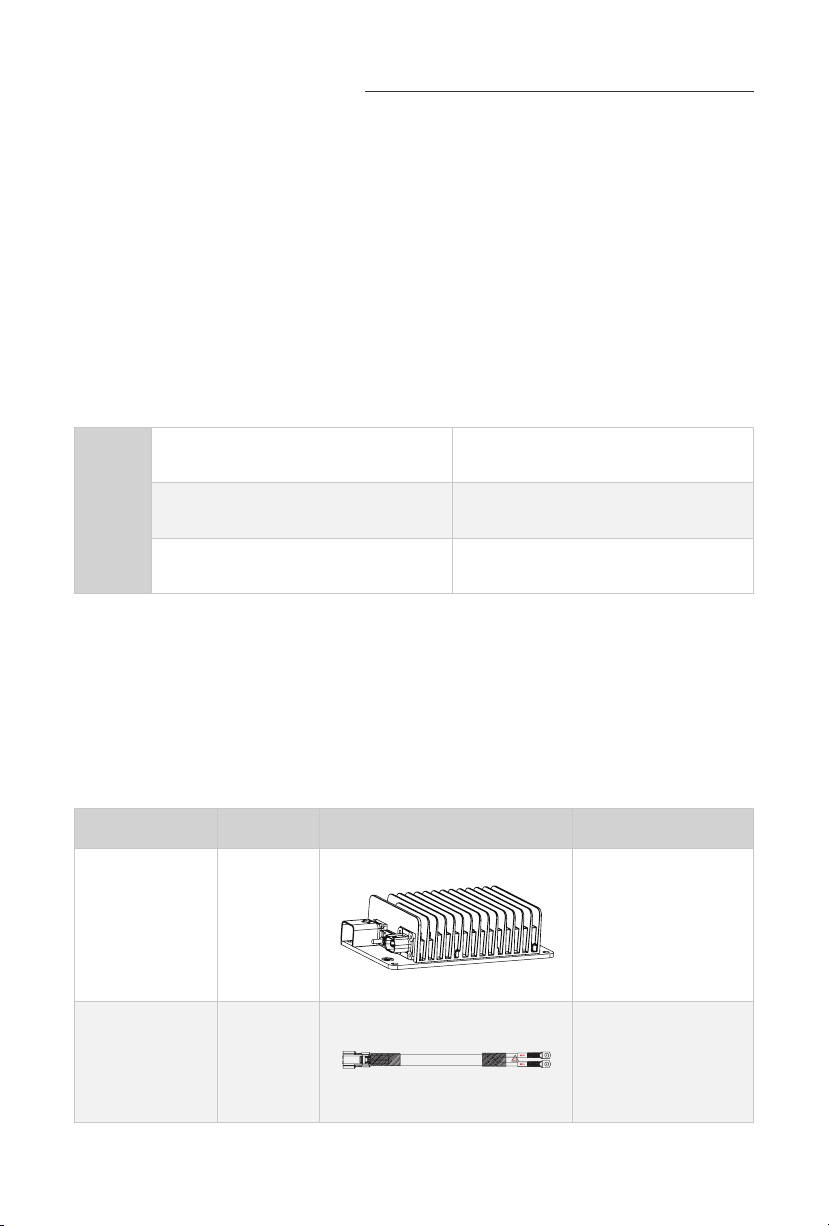

1 Product Overview
TDC-IY-108-12 series DCDC converter can be installed on electric boats , providing 12V
low-voltage DC power supply for boats to supply low-voltage equipment. The output
end can be connected to a 12V backup battery, and the DC/DC converter automatically
manages the charge of the backup battery. This product not only has the advantages of
high efficiency, small size, high stability, long life, etc., but also has the characteristics
of high protection level, high reliability, and complete protection functions. It is an ideal
power source for charging electric boats. The product has built-in thermal induction
device, overheating protection function, and automatic recovery. The fully sealed
process, with a protection rating of up to IP67, can ensure that it can work in any complex
environment without causing failure.
Main
features
fully sealed process, natural convection
heat dissipation can work reliably at -40°C - + 60°C
Built-in temperature sensor output shutdown overheating
conditions (internal 90°C)
Protection class IP67 It can work safely after short-term
immersion without power
1.1 In the Package
When you receive the product, unpack its package and check if all the items below are
included in the package. If there is any loss or transport damage, please contact your
dealer immediately.
Product name Number Icon Function description
96V/12V DCDC 1
It is used to supply
power to 12V low
voltage equipment of
boats and charge 12V
batteries.
DCDC
(TDC-IY-108-12)
_input power cable
1 5M
说明书
SC16-8
SC16-8
SC16-8
SC16-8
DC-DC_OUT+ 12V Battery+
12V Battery-
DC-DC_OUT-
说明书
SC16-8
SC16-8
SC16-8
SC16-8
DC-DC_OUT+ 12V Battery+
12V Battery-
DC-DC_OUT-

6
Product name Number Icon Function description
DCDC
output cable 1 1.5M
DCDC
(TDC-IY-108-12)
_CAN
communication
cable
1 5M
hexagon bolt 1 SS304 M6x14
Fixed DCDC method 1,
after punching, directly
use the bolt nut to fix
Hexagon nut 1 SS316 M6 /
Cross recessed
countersunk head
tapping screws
1 SS304 M6X16
Fixed DCDC Method 2:
Directly use self-tapping
bolts to fix
3-way T-connector 1
Connect the DCDC
to the motor's CAN
communication
network
User Manual 1 /
1.2 Basic functions
1. DC/DC can convert 96V DC power to 12V DC
2. DC/DC can charge the 12V backup battery
3. With input high voltage interlock function
4. Comply with CAN 2.0B communication specification, bus display working status, fault
code, etc
5. Through CAN bus, display working status,remote operation diagnosis, modify working
parameters, programming and other functions can be realized
6. Protection functions include input reverse connection protection, input low voltage,
overvoltage protection, output overvoltage, overcurrent, short circuit protection, over
temperature protection, etc
7. Input precharge function
8. Sealed waterproof structure, natural convection cooling
说明书
SC16-8
SC16-8
SC16-8
SC16-8
DC-DC_OUT+ 12V Battery+
12V Battery-
DC-DC_OUT-
说明书
SC16-8
SC16-8
SC16-8
SC16-8
DC-DC_OUT+ 12V Battery+
12V Battery-
DC-DC_OUT-
说明书
SC16-8
SC16-8
SC16-8
SC16-8
DC-DC_OUT+ 12V Battery+
12V Battery-
DC-DC_OUT-
说明书
SC16-8
SC16-8
SC16-8
SC16-8
DC-DC_OUT+ 12V Battery+
12V Battery-
DC-DC_OUT-

7
2 DCDC Converter Technical Indicators
2.1 Input parameter
Rated voltage DC108V / DC96V
Rated current 10A / 11A
Maximum current ≤18A
Input voltage range 74-162V
Input low voltage protection setting 70V±2V
Input overvoltage protection setting 162±4V
Start-up time ≈0.5S @ VIN=108V
2.2 Output parameter
Rated output voltage 14.0V±1%
Output voltage range 8.0-15V
Rated output current 72A
Peak current 88±2A
Rated power 1000W
Peak power 1200W for 6 minutes
Maximum efficiency ≥93%
Instantaneous response of output voltage ≤50ms
Voltage regulation rate 1%
Load regulation 1%
Voltage stabilization accuracy ≤1%
Steady current accuracy ≤2%
Output leakage current ≤1mA
Output ripple ≤276mV @ 12V

8
2.3 Communication
Communication protocol CAN2.0B
Baud rate 250K
Terminal resistance No
2.4 Protection function
Overcurrent protection Maximum current * 110%
Output overvoltage protection 16-17V @ 12V
Output undervoltage protection 5-6V @ 12V
Over temperature protection
Internal temperature 85 degrees starts
to reduce power, 90 degrees protection
shutdown, self-recovery
Input undervoltage protection Yes, self-recovery
Input overvoltage protection Yes, self-recovery
Short circuit protection Yes, self-recovery
2.5 Safety and other
Withstand voltage Input to ground: 2000VAC ≤ 10mA 1min
Grounding resistance
The resistance between the ground point
and the heat sink is less than 100 milliohms,
and the test current is 25A AC.
Insulation resistance Input to enclosure ≥ 20MΩ, test voltage
1000VDC
Starting impulse current ≤3A
Current rise time ≤ 5S, overshoot ≤ 5%
Close response time 100% to 10% ≤ 50mS, 100% to 0% ≤ 200mS

9
Protection class IP67
Vibration resistance 10-25Hz Amplitude 1.2mm, 25-500Hz 30m/
s2, 8 hours in each direction
Noise ≤ 60dB (Class A)
MTBF 150000H
Working environment Relative temperature 5% -95% no
condensation
Working temperature -40 ~ 60°C
Storage temperature -40°C ~ +105°C
2.6 Declaration of Conformity
Object of the Declaration:
Product: DCDC 96V-12V 1kW
Model: TDC-IY-108-12
We Guangdong ePropulsion Technology Co., Ltd., hereby, declares that this equipment is
in compliance with the applicable Directives and European Norms, and amendments. The
full text of the EU declaration of conformity is available at the following internet address:
http://yachter123.com/sy
The object of the declaration is in conformity with the following directives:
Electromagnetic Compatibility Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
Applied Standards:
EN IEC 62368-1:2020+AC:2020-05
EN IEC 61000-3-2:2019+A1:2021
EN 61000-3-3:2013+A2:2021+AC:2022-01
EN 55032:2015+A11:2020; EN 55035:2017+A11:2020
This device complies with part 15 of the FCC Rules: Operation is subject to the following two
conditions:
1. This device may not cause harmful interference and,

10
2. This device must accept any interference received, including interference that may cause
undesired operation.
Manufacturer
Name: Guangdong ePropulsion Technology Limited
Address: Room 801, Building 1, 11 Daxue Road, Songshan Lake, Dongguan, Guangdong
Province, China
Signature: Date: 2nd of June, 2023
Shizheng Tao, Chief Executive Officer & Cofounder of
Guangdong ePropulsion Technology Limited

11
3 Protection function
Overcurrent protection Output current exceeds peak current to stop output
Output overvoltage
protection See technical parameter
Output undervoltage
protection
After the output voltage is lower than 6V, the output low voltage
fault is reported after 2 seconds of delay, and the output
current is reduced to 30A
Over-temperature
protection Internal 85°C start power drop, 90°C shutdown
Input undervoltage
protection
When the input voltage is lower than the undervoltage point for
more than 1 minute, the output is turned off, and the output is
restored two minutes after the fault is eliminated
Input overvoltage
protection
The input voltage exceeds the overvoltage point, the output
is turned off, and the output is restored after the fault is
eliminated
Short circuit protection
After the output voltage is lower than 6V delay for 10 seconds,
the current drops to a quarter of the rated current ; the short
circuit elimination voltage returns to normal work when it rises
above 6V
Input anti-reverse
connection protection Not working, not damaged, restored after normal wiring
HVIL High Voltage
Interlock
DC-DC stops working when the input plug-in not inserted in
place
Communication
protection
CAN communication is invalid for more than 5 seconds,
automatically stops working (optional)

12
4 Mechanical installation
4.1 Installation dimension drawing (unit: mm)
46.34
290.2
9
30.78
73
278
158.69
131.0
256.0 0.2
10- 4.2 R4.25
R4.25
R3.75
2.5
7. 3
+
-
0.2
+
-
46.34
290.2
9
30.78
73

13
4.2 Installation method
Best installation method:
General installation method:
Prohibited installation method:
Torque shall be 6 N.m when using self tapping bolts fixed the DCDC on the hull.
Torque shall be 7.7 N.m when using bolts and nuts fixed the DCDC on the hull.

14
4.3 Installation requirements
1. The radiator of the natural cooling DC/DC is preferably up, and it is forbidden to go
down. There should be a distance of more than 10cm between the radiator and the
obstruction
2. Natural cooling DC/DC should not be installed in a relatively closed space, and there
should be free air exchange with the external space to prevent overheating
3. Output positive terminal M8 stud, torque force is 14-16N.m
4. The output negative terminal uses an external hexagon M8 flange stud, and the torque
force is 14-16N.m

15
5 Harness connection
5.1 Interface definition
Port name Terminal
definition
Connector
model
Mating
connector model Icon
Input
connector
1-DC +,
2-DC-,
3,4-HVIL
(High Voltage
Interlock)
TE
2103124-4
TE
2103177-4
Signal
connector
1-CANL,
2-CANH,
3-CANGND,
(not used)
4-EN
(not used)
/ /
DC output
positive M8 bolt hole / /
DC output
negative
M8 threaded
hole / /
5.2 Input cable
The input cable input end is used to connect the bus-bar provided by ePropulsion
company. The length is approx. 5 meters. Please be careful not to reverse the positive
and negative terminals.
1
positive negative
2
CANH(red line)
1
CANL(black line)
2
CAN_GND(Gray Line)
3
enable(Brown line)
4
DJ7041-1.5-21
1
positive negative
2
CANH(red line)
1
CANL(black line)
2
CAN_GND(Gray Line)
3
enable(Brown line)
4
DJ7041-1.5-21

16
5.3 Output cable
The output cable is used to connect the DCDC to the customer's 12V system (including
the battery) and is approx. 1.5 meters. Please be careful not to reverse the positive and
negative terminals.
5.4 Signal cable
The signal cable is used to connect the propulsion e-motor CAN network and has a
length of about 5 meters.
5.5 After the cable is connected, the DCDC would as
follows
SC16-8
SC16-8
SC16-8
SC16-8
DC-DC_OUT+ 12V Battery+
12V Battery-
DC-DC_OUT-
1 2 3
4
A
B
3 2 1
B
A
D
C
D
C
材质
机型
g
A3
图样名称
第 页
共 页
比例
重量
完成日期
单位:mm
页 面
加工余量
未注几何公差
未注尺寸公差
Guangdong ePropulsion Technology Limited
广东逸动科技有限公司
4.695
2023/6/16N10024
N10074
DC-DC RSD-300
4

17
6 Notes
1. The equipment of this equipment is metal. Please pay attention to reliable grounding
during installation, and the resistance between the casing and the ground shall not be
greater than 1 ohm.
2. The connection of the battery terminals must be reliable and must not be loose,
otherwise it may cause damage to the DC-DC.
3. If you need to connect multiple DCDCs in the same CAN network, you need to check
the Program Coding on the DCDC label to ensure that the last two digits of the
Program Coding of each DCDC are different, support up to 4 DCDCs working on the
same CAN network.
4. The output capacity of the DCDC is 1kW, the maximum output power can be adjusted
through CAN communication, and the maximum output power is set at 500W by
default. The maximum output power can be adjusted by Smart Display.
5. The DCDC body is IP67 rated, the 12V cable is connected to the enclosure. Please
install the DCDC in a sheltered place such as the engine room, and do not install it in
the weather area.

18
7 Warranty
Guangdong ePropulsion Technology Co., Ltd. (“ePropulsion”), China, warrants its products to
be free of defects in material and workmanship under normal usage with proper installation
and routine maintenance for a period of twenty-four (24) months from date of delivery of
products to end customers (the “Limited Warranty Period”), the I series motor and G battery
will have another extend 36 months warranty period after registration on the official website.
The Limited Warranty is provided to the first end customer of ePropulsion products ONLY.
The Customer is entitled to free repair or replacement of defective or non-conform parts. Any
warranty claim must be made within six (6) months of discovery of issues as provided below.
If the Limited Warranty Period expires, you can still enjoy maintenance services from dealers/
distributors authorized by ePropulsion (the “ePropulsion Service Partners”) with minimum
maintenance charge per occurrence.
In all warranty cases, ePropulsion will only bear the repair cost and other costs (such as those
related to product installation, disassemble, transportation, financing, rental, etc.) as a direct
result forof issues covered by the Limited Warranty only. Any costs irrelevant to or out of the
scope of the Limited Warranty will be born by the Customer alone., which shall NOT include
costs irrelevant such as those related to product installation, disassemble, transportation,
financing, rental, etc.
Beyond the Limited Warranty, the Customer may have statutory rights in your jurisdiction
according to applicable laws. Nothing in this Limited Warranty affects such rights. The
Customer may have warranty claim rights arising from the purchase contract with ePropulsion
Service Partners in addition to the rights granted by this Limited Warranty.
Products for commercial/professional use, even if only temporarily, are not covered by the
Limited Warranty. Instead, the statutory warranty in your jurisdiction shall apply. You are
encouraged to consult with ePropulsion Service Partners for applicable warranty and advice
before engaging in such use.
* Commercial/professional Use refers to application cases that have high use frequency,
high-reliability requirement or aim for money making, etc.
