OPERATION MANUAL
FOR
SODIR
PIZZA OVENS
MODEL PZ-400
765 Westminster Street• Providence, Rhode Island 02903 • U.S.A.
Tel:[phone] Fax: [phone] e -m a i I:[email protected]

IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be followed, including the
following:
1. Read all the instructions before use.
2. Do not touch hot surfaces. Use handles or knobs.
3. To avoid electrical shock, do not immerse the power cord, plug or connection box in water or other
liquid.
4. Close supervision is necessary when any appliance is used or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before installing or removing
parts, and before cleaning.
6. Do not operate any appliance with a damaged cord or plug or after appliance
malfunctions, or after damage of any kind. Return appliance to the nearest authorized service facility
for examination, repair or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injury.
8. Do not use outdoors.
9. Do not allow cord to hang over edge of table or counter. Do not allow cord to touch hot surfaces.
10. Do not place on or near a burner, or in a heated oven.
11. Always attach plug to appliance before plugging cord into the wall outlet. To disconnect, turn
all controls to "OFF" then remove plug from the wall outlet.
12. Do not use appliance other than for its intended use.
13. SAVE THESE INSTRUCTIONS.
765 Westminster Street • Providence, Rhode Island 02903 • U S A
Tel: [phone] Fax: [phone]

PZ-400 PIZZA OVEN
I. Introduction
The Model # PZ400 pizza oven is designed to offer quality food cooking. The unit is constructed of
high quality stainless steel and uses two sheathed heating elements as a heat source. The oven
comes equipped with a door mounted wire baking rack with a heat-resistant handle attached. The
unit features a thermostatic control up to 660 F, lighted on/off switch and an indicator light, as well
as a 15-minute timer.
MODEL SPECIFICATIONS:
ELECTRICAL: 120V, 1300W, 11 Amps
EXTERNAL DIMENSIONS: 21-1/2"W x 20-1/2"D x 8-3/4"H
INTERNAL DIMENSIONS: 15-3/4"Wx 15-3/4" D x 4-1/2"H
SHIPPING WEIGHT: 40 Ibs.
II. Operation
Preheat
To preheat the pizza oven, turn on both heating elements using on/off rocker switch, select the
desired temperature by rotating the thermostat knob clockwise, and set the timer to the
"continuous"setting by turning the knob counter clockwise to C, Preheating will take 8 to 12
minutes.
Cooking
When the temperature indicator light goes out, you can start cooking by sliding baking rack fully
into the baking chamber. Set desired temperature and time by rotating the corresponding knobs
clockwise. The red light indicates that the thermostat is operating and will turn off when the desired
temperature is reached.
765 Westminster Street • Providence, Rhode Island 02903 • U.S.A.
Tel: [phone] Fax; [phone]

The timer may be set to continuous "ON" position by turning the timer knob clockwise to its limit.
This action will lock the timer and allow the oven to run continuously. In that case, the oven must
be manually turned off when not in use. When oven is set to operate for a specific length of time,
at the end of the cycle the elements will turn off when the time is elapsed. Cooking times will vary
depending on product and temperatures.
III. Cleaning
Cleaning is very important in maintaining safe and well working machine. Prior to cleaning or
servicing, the unit MUST BE disconnected from the power source. Let the oven cool down to room
temperature. Remove the wire baking rack/ door assembly and clean it separately using standard
cleaning detergents. The housing, heating elements and frame may be cleaned using a cloth
lightly dampened with a clean soapy solution.
DO NOT use an abrasive sponge
DO NOT wash the oven under running water
DO NOT spray the inside of the oven with any liquid
DO NOT allow water to drip into the oven, especially near the electrical
components
DO NOT spray hot elements with any liquid
All parts of the unit should be in good working order. If a part is damaged, have the unit inspected
and/ or repaired by an authorized EQUIPEX agency. To locate a service agency, please call the
factory at 1-800-649-7885 and ask for service.
765 Westminster Street • Providence, Rhode Island 02903 • U.S.A.
Tel: [phone] Fax: [phone]

SODIR PIZZA OVEN
MODEL PZ400

EQUIPEX, LTD. 25-Aug-00 SPPIZ-400-02
765 Westminster Street, Providence, Rl 02903
tel:(401) 273i-3300 fax: [phone] Toll free: 1-800-649-7885

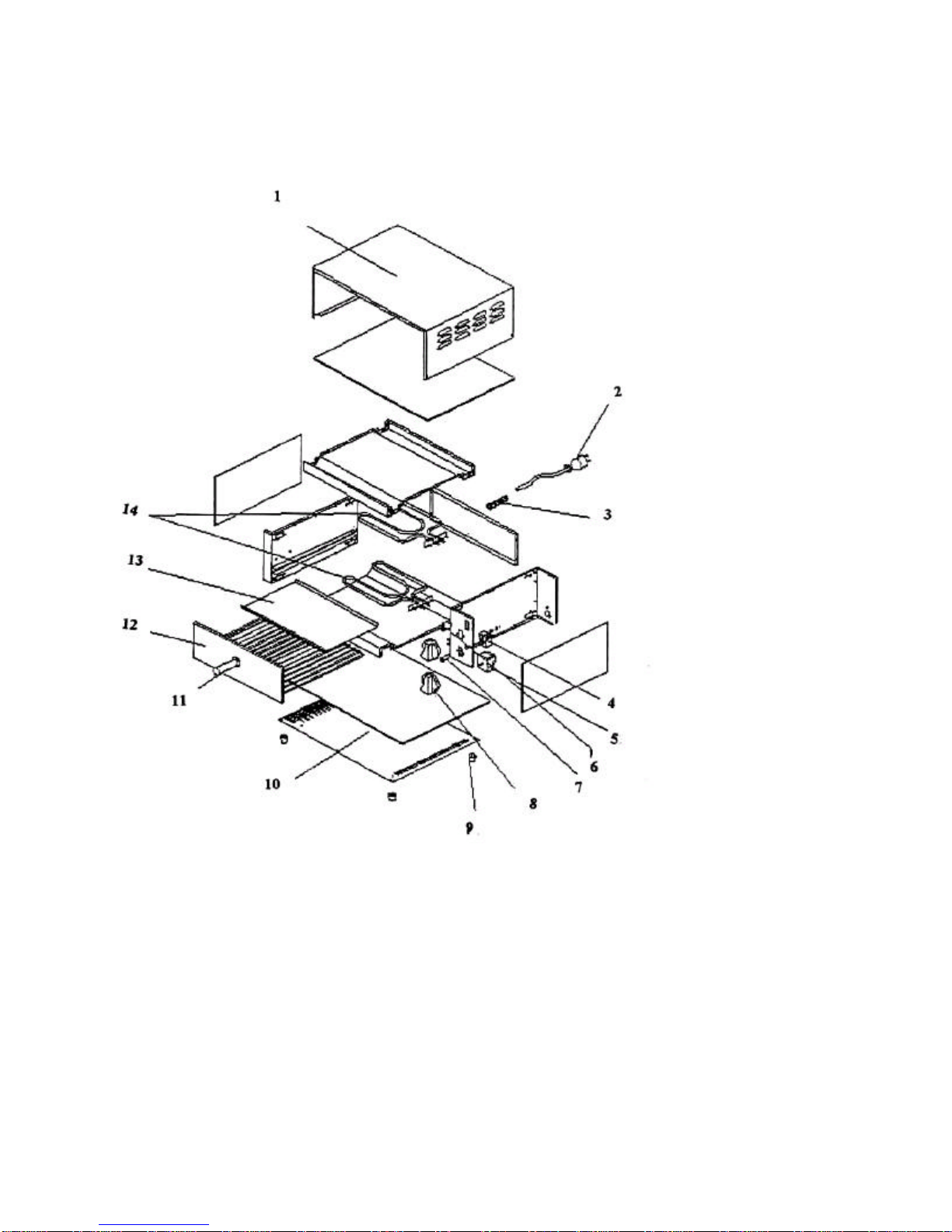

SODIR Model PZ 400 Pizza Oven ([120V)
Drawing # Part Number Quantity Description Old Part Number
1580031308 1Top Enclosure n/a
2OEM0011 1Power Cord n/a
3A10002 1Strain Relief Connector n/a
4A06042 1Regulating Thermostat n/a
5A02016 1Timer n/a
6A07012 1Lighted Switch n/a
7A08002 1Pilot Light, 120V n/a
8A14078 2Knob, Thermostat n/a
9A13003 4Foot n/a
10 58007G010 1Bottom Enclosure n/a
11 A15033 1Handle n/a
12 58006AVA 1Door with Wire Shelf n/a
13 002521106 1Tray n/a
14 D02148-120 2Heating Element, 120V n/a

EQUiPEX LTD., Limited Warranty
Your new Equipex product is warranted to the original purchaser for a period of one year from the date of
purchase.
This limited warranty is against defects in material and/or workmanship and includes labor for replacement of
defective parts, provided repairs are performed by an authorized service agency. The CUSTOMER must inform
the Service Agency of warranty coverage and provide a copy of the dated sales or delivery receipt BEFORE
WARRANTY REPAIRS BEGIN. Replacement parts and accessories are warranted for ninety (90) days from the
date of purchase when purchased separately and will be verified by dated sales receipt or packing slip for that
item. All parts or accessories replaced under warranty must be returned to the Service Agency.
THE FOLLOWING ARE NOT COVERED UNDER WARRANTY:
1. Damage caused by abuse, misuse, dropping or other similar incidental damage caused by or as result of
customer failure to follow assembly, operating, cleaning, user maintenance or storage instructions.
2. Labor to replace inoperative parts such as bulbs, plugs or racks due to normal use or abuse.
3. Materials or labor to renew or repair scratched, stained, chipped, pitted, dented or discolored surfaces,
attachments or accessories.
4. Transportation charges to or from a service agency for repair of your machine. If you should have questions
relating to this issue, please call the factory at 1-800-649-7885.
5. Labor charges to install or test attachments or accessories which are replaced for any reason.
6. SHIPPING DAMAGES. Visible and hidden damages are the responsibility of the freight carrier. The
consignee must file the claim promptly against the carrier. KEEP ALL ORIGINAL CONTAINERS AND
PACKING MATERIALS FOR CARRIER INSPECTION.
Equipex, Ltd., or any of its affiliates, distributors, officers, directors, agents, employees or insurers will not be
obligated for consequential or other damages, losses or expenses in connection with or by reason of or the
inability to use the machine for any purpose.
THIS WARRANTY IS GIVEN EXPRESSLY AND IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR
IMPLIED, FOR MERCHANTABILITY AND FOR FITNESS TOWARD A PARTICULAR PURPOSE AND
CONSTITUTES THE ONLY WARRANTY MADE BY EQUIPEX, LTD.
Please call EQUIPEX for service at 1-800-649-7885
8-1-98
765 Westminster Street• Providence, Rhode Island 02903 • U.S.A.
Tel:[phone] Fax: [phone]

TERMS AND CONDITIONS OF SALE
Terms: NET 30 Days with approved credit.
Acceptance: Orders are subject to acceptance by Home Office.
Price Changes: All prices are subject to change without notice. Orders accepted are subject to prices
in effect on date of shipment.
Shipment: All equipment shipped F.O.B. factory. All weights shown are approximate only.
Damaged Merchandise: Inspect merchandise immediately on receipt and notify carrier if shipment is
damaged. All claims must be filed with carrier.
Cancellation: Cancelled special or custom orders within one week of scheduled shipment are subject to a
cancellation charge of 25%, depending on the specifics of the order.
RETURN POLICY
EQUiPEX will consider the return of equipment under the following terms and conditions:
•Must be pre-approved by customer service department in writing.
•RMA number must be assigned, then noted on me shipping label and
bill of lading.
•This is extremely important.
•Must be new and unused, in the original packaging, freight prepaid.
•Must be returned within 45 days of the original shipment.
•Must be of current design.
•No C.O.D. return shipments will be accepted.
If a return is approved, the following charges will apply:
•A restocking charge of 25% on all products.
•Applicable freight charges.
•Freight damages (if any).
•Refurbishing to new for resale, including testing and re-packaging.
EQUiPEX reserves the right to refuse return of any piece of equipment.
QUOTATION POLICY
Quotations are subject to acceptance within 30 days and for shipment within 3months from the date of the
quotation. For extended price protection beyond 3months, please contact the Home Office. Optional
accessories on equipment shown in photographs are not included in list price.
EOUiPEX pursues a continuous research program of design and product improvement. Therefore,
modification in materials and specifications may be made at any time without notice.
