Equipex Sodir FC-33 120V User manual

Operation Manual
For
Sodir
¼ Size Convection Broiler Oven– FC-33
765 Westminster Street Providence, Rhode Island 02903 U.S.A.
Tel: [phone] Fax: [phone]
www.equipex.com e-mail: [e-mail]
4/30/15

IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be followed, including the
following:
1. Read all the instructions before use.
2. Do not touch hot surfaces; use handles or knobs.
3. To avoid electric shock, do not immerse the power cord, or any part of the unit, in any liquid.
4. Close supervision is necessary when any appliance is used, especially around children.
5. Unplug appliance from the electrical outlet when not in use, and before cleaning. Allow appliance
to cool before installing or removing any parts or accessories, and before cleaning.
6. Do not operate any appliance with a damaged cord or plug, or if appliance should sustain
damage, or malfunction in any way. In this event, return appliance to the nearest authorized
service facility for examination, repair or adjustment.
7. The use of accessories and/or attachments not recommended by the appliance manufacturer
may cause injury or damage to the appliance, and may void your warranty.
8. Do not use outdoors.
9. Do not allow the power cord to hang over the edge of a table or counter, or to be exposed to hot
surfaces, as damage may occur.
10. Do not place appliance on or near a burner, or in a heated oven.
11. To disconnect an appliance, first
12. Do not use appliance other than for its intended use.
turn all controls to the ‘off’ position; then unplug the power cord
from the wall outlet.
13. SAVE THESE INSTRUCTIONS FOR LATER USE!

INTRODUCTION
The SODIR model FC-33 convection/broiler oven is designed to offer quality baking, cooking,
reheating and finishing. The ovens are constructed of food service quality stainless steel, and are
equipped with a rear-mounted blower fan and heating element along with two top-mounted
quartz broiling elements. The units are thermostatically controlled up to 450 F with a 120-minute
timer. A green light indicates the unit is powered on and an orange light shows when the oven is
heating. The mode switch controls the different modes of operation: a) convection, b) broiling
or c) cool down/defrost (fan-only) modes. The oven includes three wire baking racks and a bake
pan, and can accommodate 1/4-size sheet pans or 1/2-size steam table pans. Extra bake pans are
available as an option at additional cost.
Specifications:
Model Electrical Plug Configuration
FC-33 208/240V, 1PH, 3KW, 13/15A NEMA-6-15P
FC-33/1 120V, 1PH, 1.7KW, 15A NEMA-5-15P
INSTALLATION
The SODIR convection oven needs to be connected to a grounded outlet of proper voltage,
208/240V or 120V, depending on the model. DO NOT place the unit in a damp area or near
steam sources. DO NOT place the oven directly over heating elements or burners, unless the
oven is placed on an insulated shelf. Make sure that the exterior rear ventilation panel is not
blocked. Maintain 4” clearance at each side, rear and top of the oven.
OPERATION
Preheating
To preheat the convection oven, select the desired temperature by rotating the thermostat knob
clockwise to desired temperature setting, the mode switch to the desired cooking mode -
convection or broiling - and then turn the timer knob which is also the ON/OFF switch
clockwise to the maximum setting (120 minutes). Two indicator lights (one green and one
orange) will be lit. The orange light will stay on until the oven reaches the desired temperature.
The green light will stay on until the timer reaches the indicated time setting. Allow 10 to 20
minutes for the preheating process.

Cooking in convection mode
After the preheat process is completed, select the desired temperature and mode (unless they
are already set) and turn the timer knob to select the time setting. When the set time is elapsed,
the heating element(s) and the blower fan will be switched off and the green indicator light will
go out.
Broiling or finishing mode
To finish or broil, select the quartz mode, designated on the oven face board by a row of triangles
over the fan. Then turn the timer to the desired time setting. The top-mounted infra-red heaters
and the fan will begin to operate. The elements attain operating temperature in under 30 seconds.
When the set time has elapsed, the oven will turn off.
The SODIR convection/broiler oven can be used for a wide variety of foods. Cooking times will
vary depending on food products, temperature settings and desired results.
Cleaning
WARNING: Disconnect (unplug) electrical power supply before cleaning
Cleaning is very important in maintaining a safe and well working machine. Allow the oven
to cool before cleaning. Remove the baking racks and the bake pan, and clean them separately
using a damp cloth or sponge and mild liquid soap. Use a cloth dampened slightly with a soap
and water mixture to clean all exterior and interior stainless steel surfaces. Use a clean lint-free
cloth to remove the excess water or soap.
DO NOT use an abrasive sponge on exterior or interior surfaces
DO NOT wash the oven under running water
DO NOT spray the exterior motor housing with any liquid
DO NOT allow water to drip into the motor housing or onto electrical
components
You should inspect all parts on a regular basis to ensure that all is in proper working order. If a
part is damaged, have the unit repaired by an authorized service agency prior to returning the
unit to operation. If you have trouble locating a service agency in your area, please consult our
website at http://www.equipex.com/, or call us at 1-800-649-7885 and ask for customer service.
These models must be taken to a service facility; in-store service is not covered.

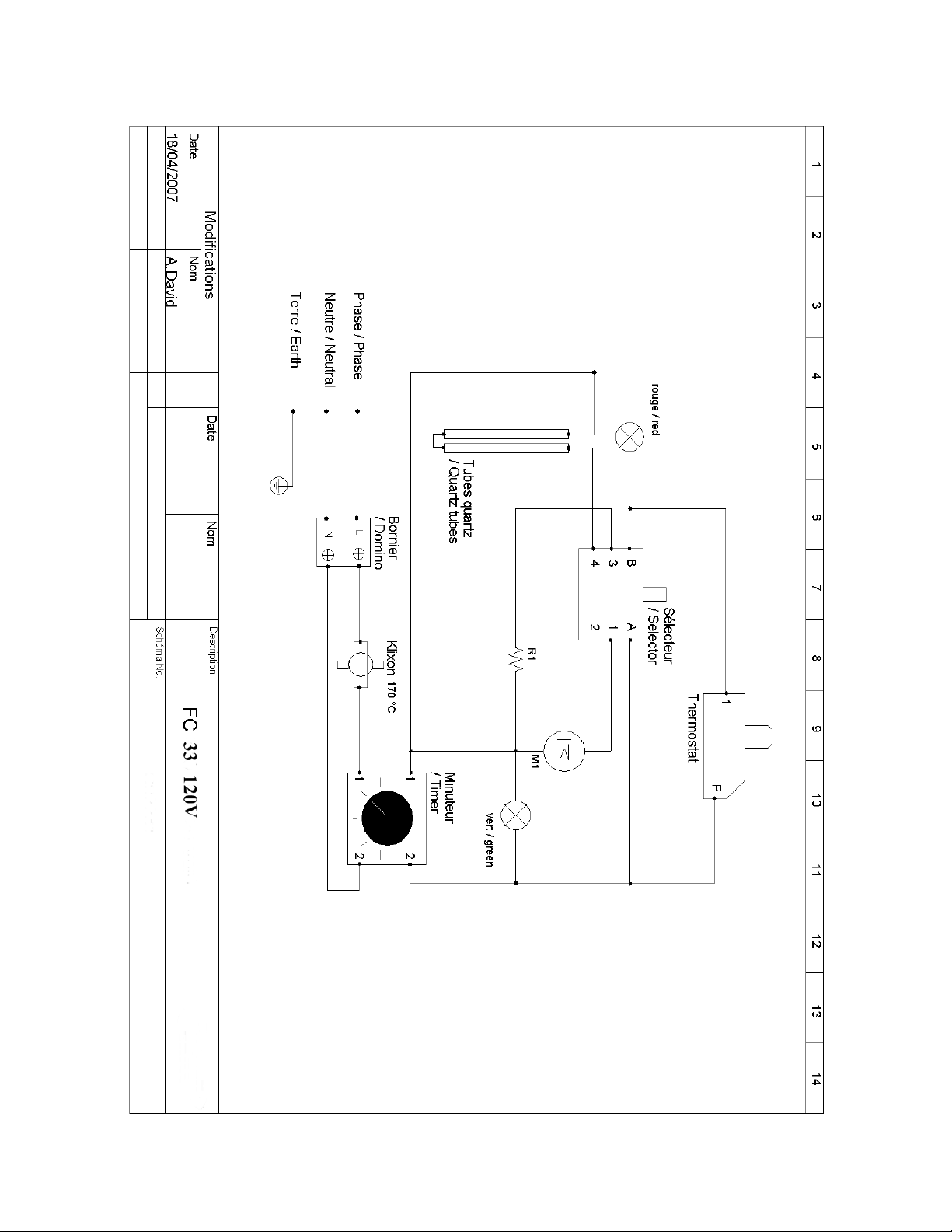

Spare Parts FC-33

Spare Parts FC-33
2H04159 1Top inside casing
3H03010 1Seal
415001GSE 1Left side
515024 1Left panel
615007 1Baking dish
7F01031 3Grid
8B07002 2Spring
9H04109POR 1Door
10 15003 1Inner door
11 A15031 1Handle
12 H01034 1Glass
13 H04083BRO 1Bottomcasing
14 A08009 1Green pilot light 220V
14 A08007 1Green pilot light 120V
15 A14078 3Knob
16 A13009 4Foot
17 H04222BRO 1Right panel
18 A02019 1Timer
19 A08003 1Orange pilot light 220V
19 A08002 1Red pilot light 120V
20 A06042 1Thermostat
20 A06032 1Thermostat (from2015 models up)
21 A01014 1Mode Switch
22 15001DSE 1Right side
23 A06035/1 1High Limit Thermostat
24 D04020 2Element+quartz tube 220V
24 D04020 2Element+quartz tube 120V
24 D04042-120 2
Element+quartz tube 120V (from
2015 models up)
24 D04042-220 2
Element+quartz tube 220V (from
2015 models up)
25 15230 1Fan protection
26 D02158 1Heating element 220V
26 D02035 1Heating element 120V
27 H04146 1Back inside casing
28 15231 1Motor protecting
29 A03044 1Fan motor 220V
29 A03052 1Fan motor 120V
30 15229 1Back rear
31 A10002 1Cord closer
32 C03013 1Cord with plug
H04109COM 1Door Complete
