Equipex Kona User manual

Operation Manual
SA Vent
Models – Kona, Pali and Mistral
765 Westminster Street Providence, Rhode Island 02903 U.S.A.
Tel: [phone] Fax: [phone]
www.equipex.com e-mail: [e-mail]

IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be followed, including the
following:
1. Read all the instructions before use.
2. To avoid electric shock, do not immerse the power cord, or any part of the unit, in any liquid.
3. Unplug appliance from the electrical outlet when not in use, and before cleaning. Allow
appliance to cool before installing or removing any parts or accessories, and before cleaning.
4. Do not operate any appliance with a damaged cord or plug, or if appliance should sustain
damage, or malfunction in any way. In this event, return appliance to the nearest authorized
service facility for examination, repair or adjustment.
5. The use of accessories and/or attachments not recommended by the appliance manufacturer
may cause injury or damage to the appliance, and may void your warranty.
6. Do not use outdoors.
7. Do not allow the power cord to hang over the edge of a table or counter, or to be exposed to
hot surfaces, as damage may occur.
8. Do not place appliance on or near a burner, or in a heated oven.
9. To disconnect an appliance, first turn all controls to the ‘off’ position then unplug the power
cord from the wall outlet.
10. Do not use appliance other than for its intended use.
11. SAVE THESE INSTRUCTIONS FOR LATER USE!

H311/4”
D183/8”
W 26” D 29 3/4”
H307/8”
D183/8”
W 26” D 29 3/4”
H 29”
D183/8”
W 26”
D293/4”

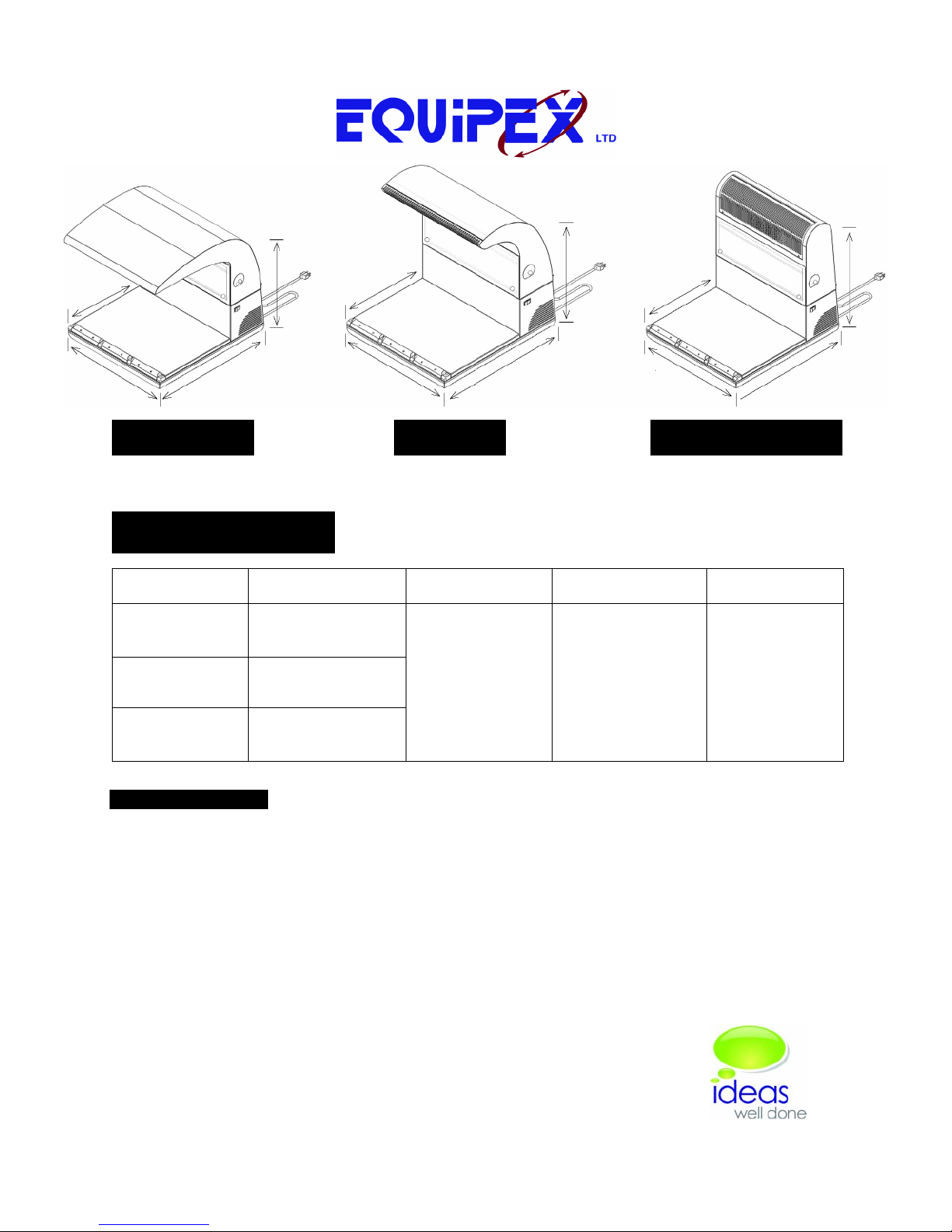

SAV-O MISTRAL SAV-G PALI SAV-U KONA
SPECIFICATIONS
Patent Pending
MODEL DIMENSIONS (HWD) ELECTRICAL NEMA PLUG CAPACITY
SAV-O Mistral
29” x 26” x 29 3/4”
Base 26”W x 20 3/16”D 115 VAC, 5.5 amps,
single phase. 6 foot
power cord with
strain relief
mounting, UL listed,
grounded.
5-15P plug end. Holds up to 150 lbs
& dimensions up to
25 1/2” W by 18” D
SAV-G Pali 31 1/4” x 26” x 29 3/4”
Base 26”W x 20 3/16”D
SAV-U Kona
30 7/8” x 26” x 29 3/4”
Base 26”W x 20 3/16”D
CONSTRUCTION
O 304 Stainless Steel, #4 finish
O Filters removable from the front of the equipment:
1. Angled baffle grease filter, cleanable and reusable
2. Electrostatic material particulate filter to remove smaller particles in the air – disposable
3. Activated charcoal filter to treat odors – disposable
O Removable grease collection cup Designed & developed by
Ideas Well Done TM
Installation: Unit must be installed on level surface.
Warranty: One year parts and labor (except filters)

SA Vent Operating Instructions
General:
The SA Vent is designed to improve the environment for kitchen staff and patrons by removing smoke,
odors, moisture and grease laden vapors from the ambient air. It works with compact countertop
cooking appliances such as convection ovens, toasters, Panini grills and griddles. The SA Vent unit
operates from a standard 120V outlet, and draws 3.5A. It comes with a preinstalled NEMA 5-15P cord.
The platform will hold equipment up to 150 lbs. and 25 ½” W x 18” D. The unit is equipped with
interlock switches to insure that three all filters, and the front filter panel, are installed and correctly
positioned in order to operate.
The air filtering system consists of the following three filters.
•Washable grease filter
•Disposable electrostatic particulate filter
•Disposable activated charcoal smoke filter
The Grease impinges upon the baffles and drains downward. Holes in the frame bottom divert the
grease into a trough and to a container away from the fire danger area.
Installation:
The SA Vent is shipped assembled, except for the grease filter. Remove from packing materials and
make sure the unit is complete and undamaged. The SA Vent must be installed on a level surface, away
from sources of excessive heat and moisture. Insure that nothing is blocking the air intake cutouts that
provide cooling of the motor, or the air exhaust ports.
The grease filter is installed at a 45-degree angle, to allow grease to flow freely down the baffles and
through the drain holes.The grease channel below the filter is at a slight angle to allow the grease to
run into the trap without pooling.

Operation:

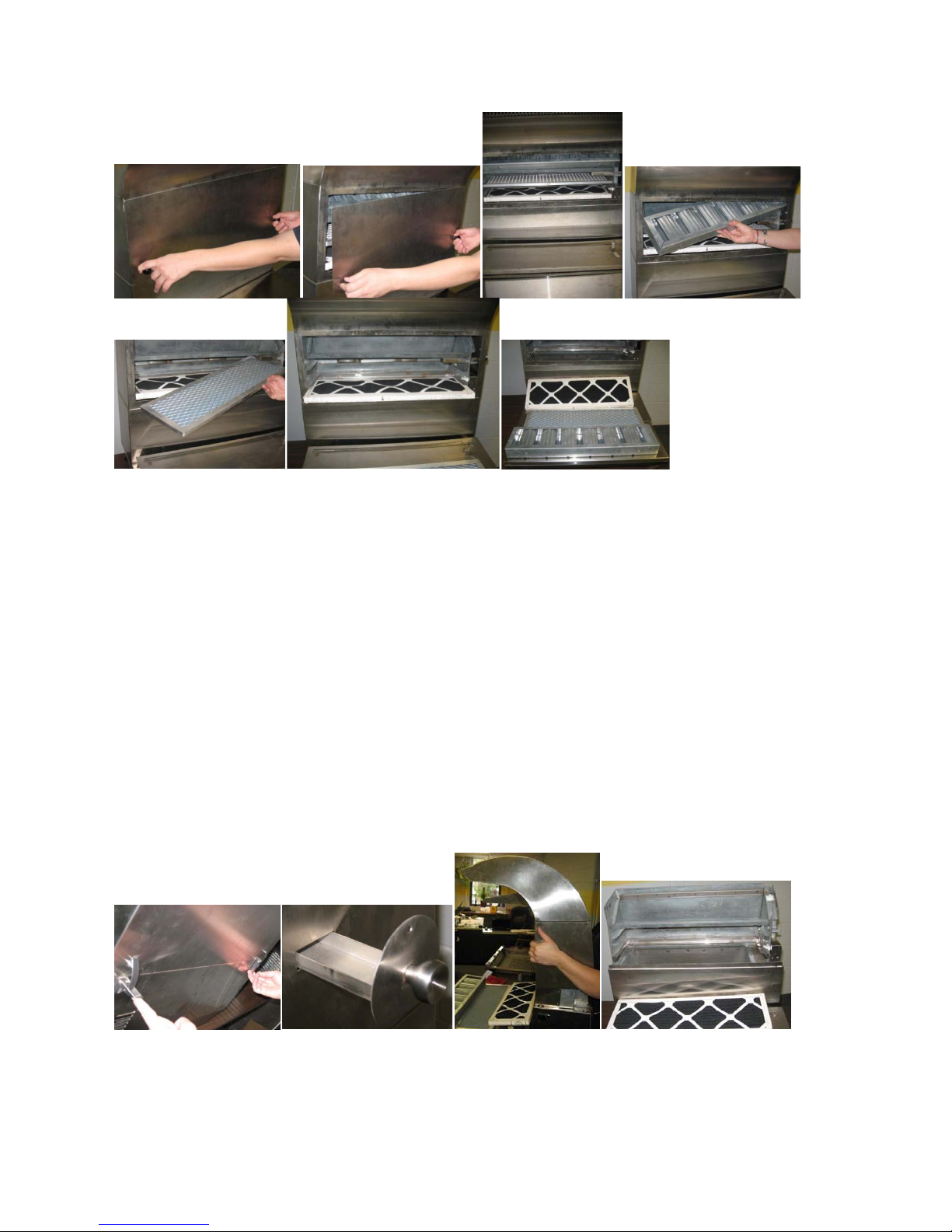

First, make sure that the filters are correctly installed in the unit. Remove the front panel by unscrewing
the two thumbscrews at the top of the panel and then grasping the knobs and sliding the panel top
outward and then upward until the bottom is free. Insure that the filters are all in place, and fully
seated. The bottom filter is the activated charcoal filter, the center is the particulate filter, and the large
metal filter on the top is the grease filter. The grease filter should be installed with the holes that are
punched in one side facing toward the bottom of the unit, over the grease channel. Holes in the frame
bottom divert the grease into a trough and to a container away from the fire danger area. Please note
that the removable grease drawer must be in place. Reinstall the front panel by reversing the removal
procedure. Plug the unit into an appropriate outlet, and flip the power switch, located on the right side
of the unit, to the on position. Unit is now ready to filter grease-laden vapors.
Filter Cleaning:
For moderate-use applications, run the grease filter through the dishwasher daily. For heavy use
applications, presoaking in a detergent solution prior to dishwasher cleaning is commended. The
electrostatic and carbon pleated filters are disposable.
DO NOT spray the unit with any cleaning liquid before unplugging it
DO NOT allow water to drip into the housing or around the electrical components
DO NOT immerse in water for cleaning

SA Vent Cleaning Procedure
Daily Maintenance:
1. Inspect grease cup; empty and wash with soap and water as necessary; reinstall.
2. Clean exterior of Vent with soap and water or equivalent.
Weekly:
1. Remove the front panel by unscrewing the two thumbscrews at the top of the panel and then
grasping the knobs and sliding the panel top outward and then upward until the bottom is free.
2. Visually inspect filters.
3. If grease filter has accumulated grease, remove it and wash in pot sink or dishwasher.
4. Never expose the carbon filter to water!
5. Wipe any visible residue from the filter area, with a cloth dampened with soap and water or
equivalent.
6. Be sure filters are dry before replacing them in the unit.
7. Reinstall front panel by reversing the above procedure.

Periodically:
1. Unplug unit from power source.
2. Remove front panel and filters as explained above.
3. Replace carbon and particulate filters when contaminant level impairs efficiency.
4. Remove top air intake assembly, by unclipping both rear retaining clasps and removing grease
cup, then lift straight off.
5. Wipe any contaminants from inside unit with a cloth dampened with soap and water or
equivalent.
6. Replace top, filters, front panel, reinsert grease cup, and remember to refasten rear clips.

LIMITED WARRANTY
Your new EQUIPEX product is warranted to the original purchaser for a period of one year from the date
of purchase.
This limited warranty is against defects from original factory imperfections in material and/or
workmanship and includes labor for replacement of defective parts, provided repairs are performed by
an authorized service agency. Our obligation under this warranty is limited to repairing or replacing
any part or parts thereof. The CUSTOMER must inform the Service Agency of warranty coverage and
provide a copy of the dated sales or delivery receipt BEFORE WARRANTY REPAIRS BEGIN.
Replacement parts and accessories are warranted for ninety (90) days from the date of purchase when
purchased separately and will be verified by dated sales receipt or packing slip for that item. All parts or
accessories replaced under warranty must be returned to the Service Agency.
This warranty applies only to equipment under normal use and service in the U.S.A. and Canada. It
does not apply to any item which has been repaired or altered in any way so as, in the judgment of
EQUIPEX, to affect its reliability.
THE FOLLOWING ARE NOT COVERED UNDER WARRANTY:
1. Damage caused by abuse, misuse or dropping or other similar incidental damage caused by,
or as a result of, customer failure to follow assembly, operation, cleaning, user maintenance
or storage instructions.
2. Labor to replace inoperative parts such as bulbs, plugs or racks due to normal wear and tear or
abuse.
3. Materials or labor to repair scratched, stained, chipped, pitted, dented or discolored surfaces,
attachments or accessories.
4. Transportation charges to or from a service agency for repair of your machine. If you should
have questions relating to this issue, please call Equipex at 1-800-649-7885.
5. Labor charges to install or test attachments or accessories, which are replaced for any reason.
6. SHIPPING DAMAGES. Visible and hidden damages are the responsibility of the freight
carrier. The consignee must file the claim promptly against the carrier. KEEP ALL
ORIGINAL CONTAINERS AND PACKAGING MATERIAL FOR CARRIER INSPECTION.
7. Products placed or stored in the equipment are not subject to this warranty and no responsibility
is assumed thereof.
THIS WARRANTY IS GIVEN EXPRESSLY AND IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR
IMPLIED, FOR MERCHANTABILITY AND FOR FITNESS TOWARD A PARTICULAR PURPOSE AND CONSTITUTES
THE ONLY WARRANTY MADE BY EQUIPEX, LLC. IT NEITHER ASSUMES, NOR AUTHORIZES ANY PERSON TO ASSUME
FOR US, ANY OTHER LIABILI TY IN CONNECTION WITH THE SALE OF THE SUBJECT EQUIPMENT.
For service, please call EQUIPEX at 1-800-649-7885, menu option # 3
