Erbauer EHTP22 User manual

Petrol Hedge
Trimmer (22.2 cm3)
Original Instructions – EHTP22__V10322
EHTP22
EAN: 5059340256498
WARNING: Read the instruction handbook thoroughly before
using the machine. First time operators should receive
practical use instructions of the machine and protective
equipment from an experienced operator.
BX220IM/B3

2
EHTP22
Let’s
get started...
These instructions are for your safety. Please read through
them thoroughly before use and retain them for future
reference.
Getting Started... 02
Safety information 03
Technical specications 11

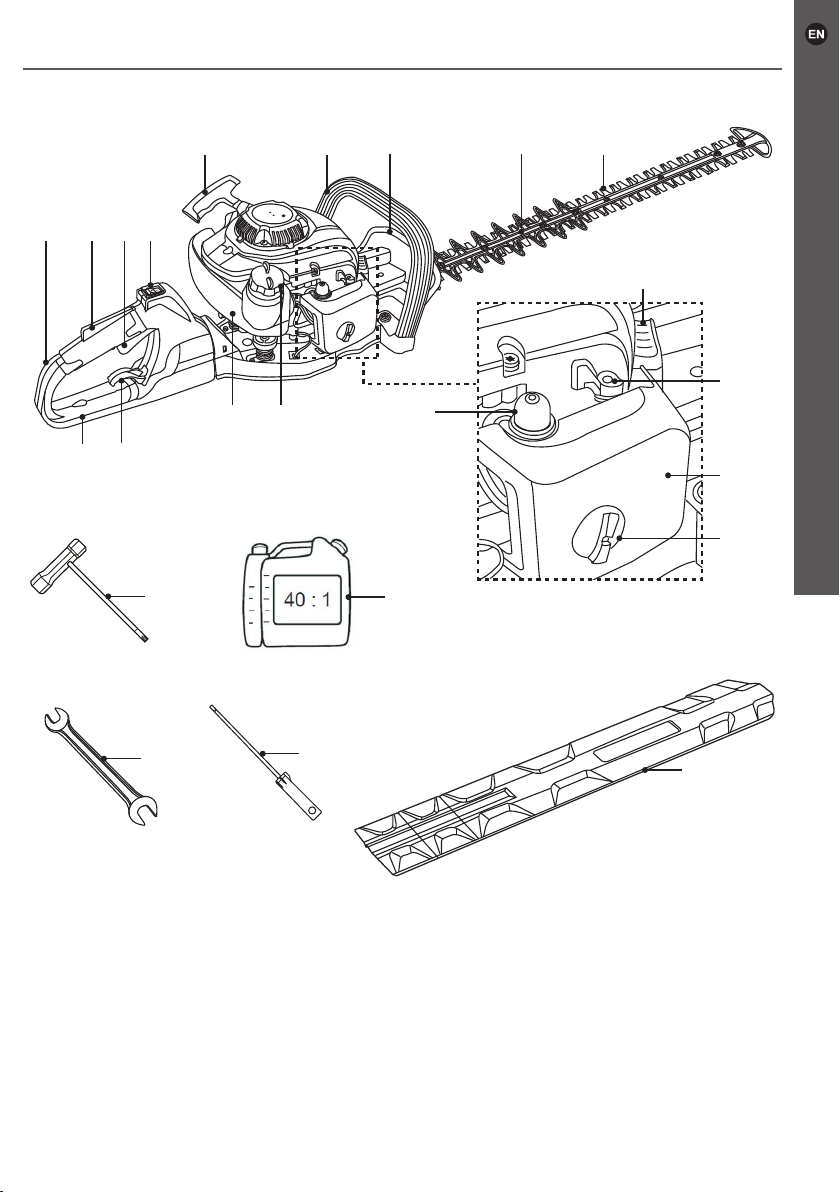

Your equipment 13
Before you start 14
Quick start 20
In more detail... 22
Equipment functions 22
Operation 24
Care and maintenance 30
Troubleshooting 39
Recycling and disposal 40
Guarantee 41
UK declaration of conformity 42
EC declaration of conformity 43

3
EHTP22
Getting Started . . .
Safety warnings
IMPORTANT
READ CAREFULLY BEFORE USE
KEEP FOR FUTURE REFERENCE
> This equipment is not intended for use by children and persons with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge.
> Children should be supervised to ensure that they do not play with the equipment.
WARNING! Your safety and the safety of others is very important. Of
course, it is not practical or possible to warn you about all the hazards
associated with operating or maintaining this equipment. At all times you
must use your own good judgment.
Training
Read the instructions carefully. Become familiar with the instructions before
attempting to operate the equipment.
Preparation
> THIS HEDGE TRIMMER CAN CAUSE SERIOUS INJURIES. Read the instructions
carefully for the correct handling, preparation, maintenance, starting and stopping
of the hedge trimmer. Become familiar with all controls and the proper use of the
hedge trimmer.
> Never allow children to use the hedge trimmer.
> Beware of overhead power lines.
> Avoid operating while people, especially children, are nearby.
> Dress properly! Do not wear loose clothing or jewellery, which can be caught in moving
parts. Use of sturdy gloves, non-slip footwear and safety glasses is recommended.
> Use the following personal protective equipment (PPE) when operating the equipment:
• Wear hearing/ear protection (compliant to EN 352-1)
• Wear eye protection (compliant to EN 166)
• Wear protective gloves (compliant to EN ISO 21420 Class 0)
• First Aid Kit in case of injury
• Dry powder re extinguisher readily available
Safety information

4
EHTP22
Getting Started . . .
> Use extra care when handling fuels. Fuel is ammable and the vapours are explosive.
The following points should be observed.
• Use only an approved container.
• Never remove the fuel cap or add fuel with the power source running. Allow
engine and exhaust components to cool down before refuelling.
• Do not smoke.
• Never refuel indoors.
• Never store the hedge trimmer or fuel container inside where there is an open
ame, such as near a water heater.
• If fuel is spilled, do not attempt to start the power source, but move the hedge
trimmer away from the spillage before starting.
• Always replace and securely tighten the fuel cap after refuelling.
• If the fuel tank is drained, this should be done outdoors.
> If the cutting mechanism strikes any foreign object or the hedge trimmer starts
making any unusual noise or vibration, shut off the power source and allow the
hedge trimmer to stop. Disconnect the spark plug connector from the spark plug
and take the following steps.
• Inspect for damage.
• Check for, and tighten, any loose parts.
• Have any damaged parts replaced or repaired with parts having equivalent
specications.
> In an emergency: stop the engine by immediately releasing the throttle control and
push the stop switch to Oposition.
Operation
> Stop the engine before:
• cleaning or when clearing a blockage;
• checking, carrying out maintenance or working on the hedge trimmer;
• adjusting the working position of the cutting device;
• leaving the hedge trimmer unattended.
> Ensure that the hedge trimmer is correctly located in a designated working position
before starting the engine.
> While operating the hedge trimmer, always ensure that the operating position is safe
and secure, especially when using steps or a ladder.
> Do not operate the hedge trimmer with a damaged or excessively worn cutting device.
> To reduce re hazards, keep the engine and silencer free of debris, leaves and
excessive lubricant.
> Always ensure that all handles and guards are tted when using the hedge trimmer.
Never attempt to use an incomplete hedge trimmer or one tted with an unauthorized
modication.
> Always use two hands to operate a hedge trimmer.
Safety information

5
EHTP22
Getting Started . . .
> Always be aware of your surroundings and stay alert for possible hazards of which
you might not be aware due to the noise of the hedge trimmer.
> Keep all parts of the body away from the cutting blade. A moment of inattention while
operating the hedge trimmer may result in serious personal injury.
Maintenance and storage
> When the hedge trimmer is stopped for servicing, inspection or storage, shut off the
power source, make sure all moving parts have come to a stop and disconnect the
spark plug connector from the spark plug. Allow the hedge trimmer to cool before
making any inspections, adjustments, etc.
> Store the hedge trimmer where the fuel vapour will not reach an open ame or spark.
Always allow the hedge trimmer to cool down before storing.
> When transporting or storing the hedge trimmer, always t the cutting device transport
> guard.
> Empty the fuel tank after every use. Run the product dry of fuel in idle before storage.
> Dispose of waste oil and fuel at a local petrol station, local authority centre or where
facilities exist.
Fuel handling
> Always switch the equipment off, disconnect the spark plug connector and let the
equipment cool down before refuelling it.
> Fuel and fuel vapour are highly ammable. Take care when handling fuel.
> Do not smoke while operating the equipment, handling fuel or near fuel.
> Always use suitable aids such as funnels and ller necks. Do not spill any fuel on
the equipment or its exhaust system. There is a risk of ignition. Remove spilled fuel
carefully from all parts of the equipment. Any residue which may be present must
have completely volatilised, before the equipment is put into operation!
> Never refuel indoors.
> Never use the equipment in environments where there is a risk of explosion. Exhaust
gases and fuel fumes are noxious. Fuel fumes can ignite.
> Avoid skin contact with petrol.
> Do not eat or drink, while you are refuelling the equipment. If you have swallowed
petrol or oil, or if petrol or oil has got into your eyes, then seek the advice of a doctor
immediately.
> Tighten the fuel tank cap thoroughly after relling the fuel tank.
> Fuel vapour pressure may build up inside the fuel tank depending on the fuel used,
weather conditions and the tank venting system. To reduce the risk of burns and
other personal injuries, remove the fuel tank cap carefully to allow any pressure
build up to release slowly.
> Ensure the spark plug connector is secure after relling the fuel tank. Loose connector
may cause electrical arcing that could ignite combustible fumes and cause a re
or explosion.
Safety information

6
EHTP22
Getting Started . . .
> Use caution when handling fuel. To avoid any accidental res, move the equipment
at least 3 metres from the fuelling point before starting the engine.
> Do not operate the equipment if it is leaking fuel.
> Do not remove the fuel tank cap while the engine is running.
> Do not store cans of fuel or rell the fuel tank in any place where there is a boiler,
stove, wood re, electrical sparks, welding sparks, or other sources of heat or re
which might ignite the fuel.
> If any fuel spillage occurs during refuelling, use a dry rag to wipe up spills and allow
remaining fuel to evaporate before starting the engine on again.
> If you have spilt fuel on yourself or on your clothes, change your clothes and wash
any part of your body that has come in contact with fuel before turning the engine
on again.
> If fuel has ignited, put out the re with a dry powder re extinguisher.
> Never breathe in any fuel fumes, when you are refuelling the equipment.
> Keep fuel fresh (less than 30 days) or add fuel stabiliser.
Vibration and noise reduction
To reduce the impact of noise and vibration emission, limit the time of operation, use
low-vibration and low-noise operating modes as well as wear personal protective
equipment.
Take the following points into account to minimise the vibration and noise exposure risks:
> Only use the equipment as intended by its design and these instructions.
> Ensure that the equipment is in good condition and well maintained.
> Use correct attachments for the equipment and ensure they are in good condition.
> Keep a tight grip on the handles/gripping surfaces.
> Maintain this equipment in accordance with these instructions and keep it well
lubricated (where appropriate).
> Plan your work schedule to spread any high vibration tool use across a longer period
of time.
Safety information

7
EHTP22
Getting Started . . .
Emergency
Familiarise yourself with the use of this equipment by means of this instruction
manual. Memorise the safety directions and follow them to the letter. This will help
to prevent risks and hazards.
> Always be alert when using this equipment, so that you can recognise and
handle risks early. Fast intervention can prevent serious injury and damage to
property.
> Stop the engine and disconnect the spark plug connector if there are
malfunctions. Have the equipment checked by a qualied professional and repaired,
if necessary, before you operate it again.
> In case of re stop the engine and disconnect the spark plug connector. Take re-
extinguishing measures immediately if the equipment switch is no longer accessible.
WARNING! Never use water to extinguish the equipment on re. Burning
fuel must be extinguished with special extinguishing agents! We recommend
that you keep a suitable re extinguisher within reach in your work area! We
recommend to have dry powder re extinguisher always available.
Residual risks
Even if you are operating this equipment in accordance with all the safety
requirements, potential risks of injury and damage remain. The following dangers
can arise in connection with the structure and design of this equipment:
> Health defects resulting from vibration emission if the equipment is used over long
periods of time or not adequately managed and properly maintained.
> Injuries and damage to property due to broken application tools or the sudden impact
of hidden objects during use.
> Danger of injury and property damage caused by ying objects.
> Burns, if touching hot surfaces.
WARNING! This equipment produces an electromagnetic eld during operation!
This eld may under some circumstances interfere with active or passive
medical implants! To reduce the risk of serious or fatal injury, we recommend
persons with medical implants to consult their doctor and the medical implant
manufacturer before operating this equipment!
Safety information

8
EHTP22
Getting Started . . .
Symbols
On the equipment, the rating label and within these instructions you will nd among
others the following symbols and abbreviations. Familiarise yourself with them to reduce
hazards like personal injuries and damage to property.
kW Kilowatt l Litre
cm3Cubic centimetre ml Millilitre
min-1 Per minute °C Degree Celsius
m Metre dB(A) Decibel (A-rated)
mm Millimetre m/s2Metres per second squared
cm Centimetre kg/h Kilogram per hour
kg Kilogram g/kWh Gram per kilowatt per hour
yyWxx
Manufacturing date code; year of manufacturing (20yy) and week of
manufacturing (Wxx)
Description of signal words:
DANGER! The signal word that indicates a hazard with a high level of risk
which, if not avoided, will result in death or serious injury.
WARNING! The signal word that indicates a hazard with a medium level of
risk which, if not avoided, could result in death or serious injury.
CAUTION! The signal word that indicates a hazard with a low level of risk
which, if not avoided, could result in minor or moderate injury.
NOTE! Indicates a practical tip, advice or practice not related to personal
injury.
Caution/Warning.
Read the instruction
manual.
Note/Remark.
Wear ear protection (compliant to EN 352-1)
Wear eye protection (compliant to EN 166)
Do not expose the equipment to rain or wet conditions.
Safety information

9
EHTP22
Getting Started . . .
Open ames in the work area, around the equipment and in the vicinity
of ammable materials are prohibited!
Do not smoke in the work area, around the equipment and in the
vicinity of ammable materials!
Risk of re/ammable materials.
Hot surface, do not touch! High temperatures on the equipment’s
surfaces and structural parts that could cause burns, if they are touched.
The equipment can also stay hot for a longer period of time after the
operation!
Petrol engines produce toxic carbon monoxide exhaust fumes.
Breathing carbon monoxide can cause nausea, fainting or even death.
Do not operate the engine indoors!
Stop the engine before refuelling. Never refuel the equipment while
the engine is running.
Only refuel unleaded petrol and oil mixture in ratio 40:1. Do not use
any other mixture ratio.
Stop the engine and disconnect the spark plug connector before
assembly, cleaning, adjustments, maintenance, storage and
transportation.
Blades are sharp. Risk of cuts. Keep ngers away from the moving
cutting device.
Push the rear handle adjustment lever to adjust the angle of the rear
handle.
Press the primer 7 times until the fuel is visible in the fuel line before
starting the cold engine.
Choke – CLOSE position.
Choke – OPEN position.
Safety information

10
EHTP22
Getting Started . . .
Safety information
Pull the recoil starter handle 3 times.
Pull the recoil starter handle until the engine starts.
Guaranteed sound power level value in dB.
The equipment complies with the applicable European directives and
an evaluation method of conformity for these directives was done.
The equipment complies with the conformity requirements of the
applicable UK regulations.
EHTP22 Designation of the tool
(E_Brand Name; HTP_Petrol Hedge Trimmer; 22_Engine size in cc)
1E33F Engine brand logo and model number
SHA1/P V-0136 EU type-approval for the engine

11
EHTP22
Getting Started . . .
Technical specications
General
> Dimensions: approx. 1270 x 265 x 210 cm
> Weight: approx. 5.84 kg
> Fuel tank capacity: 440 cm3(ml)
> Petrol type: Octane rating of at least 90,
unleaded, Maximum 10%
renewable ethanol (E10 or below)
> Engine oil type: Top quality synthetic oil specically
for two-stroke engines, of JASO
FC minimum.
> Fuel-oil ratio: 40:1
> Max. cutting length: 690 mm
> Max. cutting capacity 28 mm
> Handle adjustment 3 positions (90°/ 0°/ -90°)
Engine
> Engine model: 1E33F
> Engine displacement: 22.2 cm3
> Maximum engine power
(in accordance with ISO 8893): 0.68 kW
> Maximum speed at maximum power
(rotational frequency): 8500 min-1
> Maximum operating engine speed
(rotational frequency): 10000 min-1
> Idle speed: 3100 ±400 min-1
> Clutch engagement speed: Min. 4500 min-1
> Fuel consumption (in accordance with
ISO 8893) at max. engine performance: 0.34 kg/h
> Specic fuel consumption (in accordance
with to ISO 8893) at max. engine
performance: 500 g/kWh
> Spark plug type: NGK CMR6A
> Spark plug gap: 0.6 – 0.7 mm0.6 – 0.7 mm
Technical specications

12
EHTP22
Getting Started . . .
Technical specications
Sound emission level
> Sound pressure level LpA:94.2 dB(A)
> Uncertainty K: 3.0 dB(A)
> Measured sound power level LWA:104.3 dB(A)
> Uncertainty K: 3.0 dB(A)
> Guaranteed sound power level LWA:107 dB(A)
Vibration emission level
> Hand-arm vibration ahw:2.53 m/s2(front handle)
2.97 m/s2(rear handle)
> Uncertainty K: 1.5 m/s2
The sound values have been determined according to noise test code given in
ISO 10517, using the basic standards ISO 11201 and ISO 3744.
Wear hearing protection, especially when sound pressure is over 80 dB(A).
The declared vibration value has been measured in accordance with a standard test
method (according to EN ISO 10517) and may be used for comparing one equipment
with another. The declared vibration value may also be used to evaluate the exposure
for the user caused by vibration in advance.
WARNING! Depending on the actual use of the equipment the vibration values
can differ from the declared total. Adopt proper measures to protect yourself
against vibration exposures. Take the whole work process including times
the equipment is running under no load or switched off into consideration!
Proper measures include among others regular maintenance and care of the
equipment and accessories, keeping hands warm, periodical breaks and proper
planning of work processes!

13
EHTP22
Getting Started . . .
12 4 3
567 8 9
10
11
12
15
13
14
16
17
18
19 20
21 22 23
Your equipment

14
EHTP22
Getting Started . . .
Your equipment / Before you start
1. Rear handle
2. Throttle control lock-out
3. Throttle control
4. Stop switch
5. Recoil starter handle
6. Front handle
7. Front handle barrier
8. Cutting device
9. Cutter blade
10. Spark plug connector
11. Choke lever
12. Air lter case
13. Locking screw
14. Primer
15. Fuel tank cap
16. Fuel tank
17. Rear handle adjustment lever
18. Rear hand barrier
19. Multi-tool (Socket wrench/torx-head
screwdriver)
20. Fuel mixing bottle
21. Spanner
22. Flat-head screwdriver
23. Cutting device transport guard
Unpacking
1. Unpack all parts and lay them on a at, stable surface.
2. Remove all packing materials and protective shipping materials, if applicable.
3. Make sure the delivery contents are complete and free of any damage. If you nd
that parts are missing or show damage do not use the equipment and contact your
dealer. Using an incomplete or damaged equipment represents a hazard to operators
and property.
4. Ensure that you have all the accessories and tools needed for assembly and operation.
This also includes suitable personal protective equipment.
WARNING! The equipment and the packaging are not children’s toys! Children
must not play with plastic bags, sheets and small parts! There is a danger of
choking and suffocation!
You will need
(items not supplied)
> Suitable personal protective equipment
> Sharpening set
> Fuel funnel with lter
> Suitable 2-stroke motor oil
> Suitable fuel
> Container to collect fuel
> Lubricating gun and lubricant for cutting
device
> First aid kit
> Dry powder re extinguisher readily
available
(items supplied)
> Multi-tool (Socket wrench/torx-head
screwdriver) (19)
> Fuel mixing bottle (20)
> Spanner (21)
> Flat-head screwdriver (22)

15
EHTP22
Getting Started . . .
Before you start
Set up
Removing the cutting device transport guard
CAUTION! Risk of cuts! Cutter blades (9) are very sharp. Wear protective
gloves when handling cutter blades (9).
Remove the cutting device transport guard (23) carefully from the cutting device (8) (Fig. 1).
1
23
8
NOTE: Always attach the cutting device transport guard (23) back onto
the cutting device (8) when the equipment is not in use, and for storage or
transportation.
Adjusting the rear handle
CAUTION! Risk of loss of balance! Only adjust the handle position when
the engine is switched off.
1. Press and hold the rear handle adjustment lever (17), then rotate the rear handle (1)
to the desired position (90°/ 0°/ -90°) (Fig. 2, 3, 4 and 5).
2
1
17

16
EHTP22
Getting Started . . .
Before you start

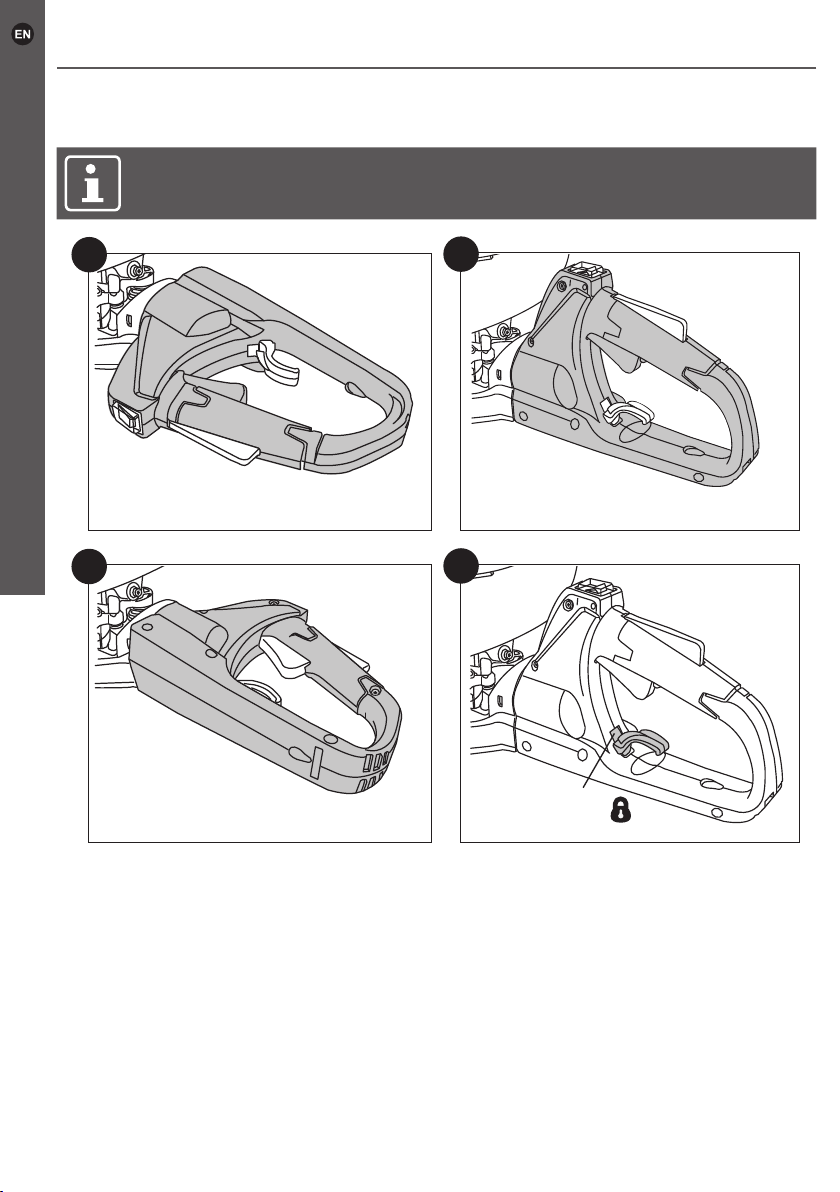

2. Release the rear handle adjustment lever (17) to lock the position in place (Fig. 6).
NOTE: The rear handle (1) can only be locked at 3 positions. Make sure it
snaps securely into place before operating the equipment.
34
Left position (90°)Initial position (0°)
56
Right position (-90°)17

17
EHTP22
Getting Started . . .
Before you start
Filling up fuel and oil
WARNING! This equipment is not supplied with petrol-oil mixture in the engine!
Before operating this equipment it is essential to ll it with petrol-oil mixture!
This equipment is equipped with a 2-stroke engine. The fuel and oil tank are combined
and it is essential to ll a fuel-oil mixture before operating this equipment. Observe the
technical specications for suitable fuel and engine oil.
WARNING! Fuel and oil are highly inammable! Fumes will explode if lit!
Ensure that there are no naked ames around the equipment! Do not smoke
while lling fuel and oil!
NOTE: To avoid spillage and to lter out debris, use a funnel with lter to ll
the fuel mixing bottle (20) and the fuel tank (16).
1. Place the equipment on a stable, level surface with the fuel tank cap (15) facing
upwards. We recommend laying a non-ammable sheet under the equipment.
2. Pour a regular-grade unleaded petrol and a quality engine oil for air cooled 2-stroke
engines in the supplied fuel mixing bottle (20) respectively via the 2 openings. Use
the scale markings on different sides for the desired ratio for petrol:oil. For example,
ll petrol to scale marking “10” rst, and then ll 2-stroke oil to scale marking “10”.
This indicates a correct ratio of 40:1 when using the scale 40:1.
3. Tilt and shake the bottle thoroughly to mix the fuel.
NOTE: Use an anti-oxidant added quality oil expressly labelled for air-cooledUse an anti-oxidant added quality oil expressly labelled for air-cooled
2 stroke engine use (JASO FC GRADE OIL or ISO EGC GRADE). Do not use2 stroke engine use (JASO FC GRADE OIL or ISO EGC GRADE). Do not use
BIA or TWC (2 stroke water-cooling type) mixed oil.BIA or TWC (2 stroke water-cooling type) mixed oil. The recommended mixing
ratio for petrol:oil is 40:1 which means the mixture consisting of 40 parts of
petrol and 1 part of oil.
CAUTION! Risk of equipment damage. Never mix fuel and oil directly in the
fuel tank (16).

18
EHTP22
Getting Started . . .
=
100 ml + 2.5 ml =
40:1
200 ml + 5 ml =
300 ml + 7.5 ml =
400 ml + 10 ml =
4. Unscrew and remove the fuel tank cap (15) (Fig. 7).
5. Fill the fuel into the fuel tank (16). Leave approximately 5 mm of space between
the top of the fuel and the inside edge of the tank to allow for expansion. Do not
overll (Fig. 8).
6. Wipe up spilled fuel with a soft cloth. Ret and screw the fuel tank cap (15) rmly
(Fig. 7).
7
15
8
5 mm
16
NOTE: Fuel and oil deteriorate over time. It may be difcult to start the engine
if you use fuel which has been kept for more than 30 days. Towards the end of
the season, it is advisable to put only as much fuel in the tank as you need for
each use, since it should be completely used up before storing the equipment.
Empty remaining fuel from the tank after each use.
Before you start

19
EHTP22
Getting Started . . .
Before you start

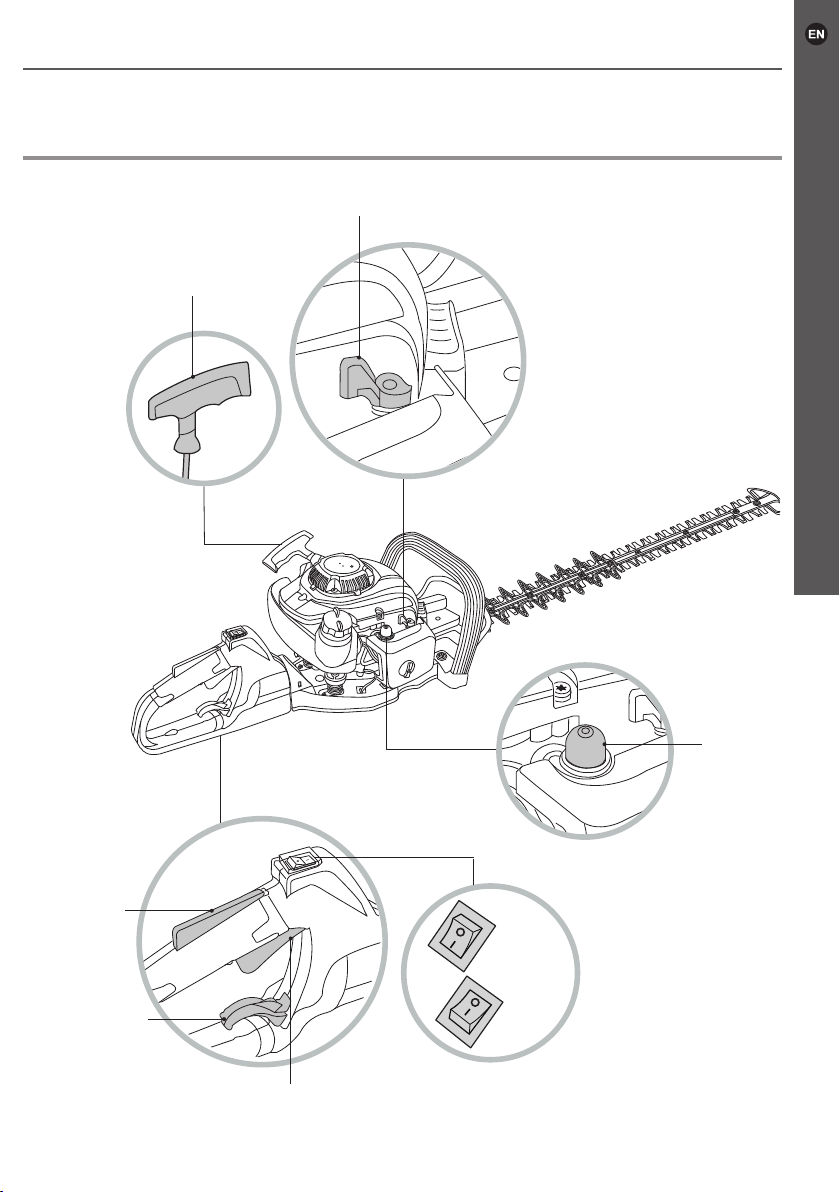

Operating controls
Primer
ON
OFF
Stop switch
Choke lever
Recoil starter handle
ThrottleThrottle
controlcontrol
lock-outlock-out
Throttle control
Rear handle
adjustment
lever

20
EHTP22
Getting Started . . .
Preparation
Assemble Adjust Add fuel and oil mixture
Starting (Cold engine)
1 2 3 4
Press primer
7 times
Set the choke to
CLOSE
Pull recoil starter
handle
3 times
(If engine already
started, skip step 5)
Set the choke to
OPEN
5 6 2
1
7 8
Pull recoil starter
handle until the
engine starts
Squeeze throttle
control lock-out and
throttle control and
release them
Run idle for
1-2 minutes
Operate
Quick start
