Ergonomic products R1 Series User manual

Specication and Installation Guide
Product ID: R1
950-098 Manual version: A
R1 Series: Rapid Carts
Mobile Storage
Rapid Deployment
Doctor Specialty

950-098 R1 manual ver Aergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
Rapid Deployment Carts
Model R1
PAGE 2
Thank you for purchasing the Ergonomic Products R1 Series Deployment Carts
Years of research by dentists, engineers and designers have made this a uniquely effective
product in the industry. We stand behind our equipment, and genuinely believe it to be the
best available on the market.
Should you have any questions regarding the product’s installation or use, please don’t
hesitate to call our customer service specialists at 1-866-ERGO-4-US. We may also be
reached via email at [e-mail].
We hope you enjoy the benets and quality of your new equipment and look forward to
handling your future needs as you and your practice continue to grow!
- The Ergonomic Products Team
CONTENTS:
1. Specications.................................................................... 3
2. Required Tools / Unpacking and Installation........................ 5
3. Installation ................................................................................. 6
4. Maintenance............................................................................... 9
5. Warrenty Information ............................................................... 10
QUESTIONS?
Call our Customer Service Specialists at:
1-866-ERGO-4-US.

950-098 R1 manual ver Aergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
Rapid Deployment Carts
Model R1
PAGE 3

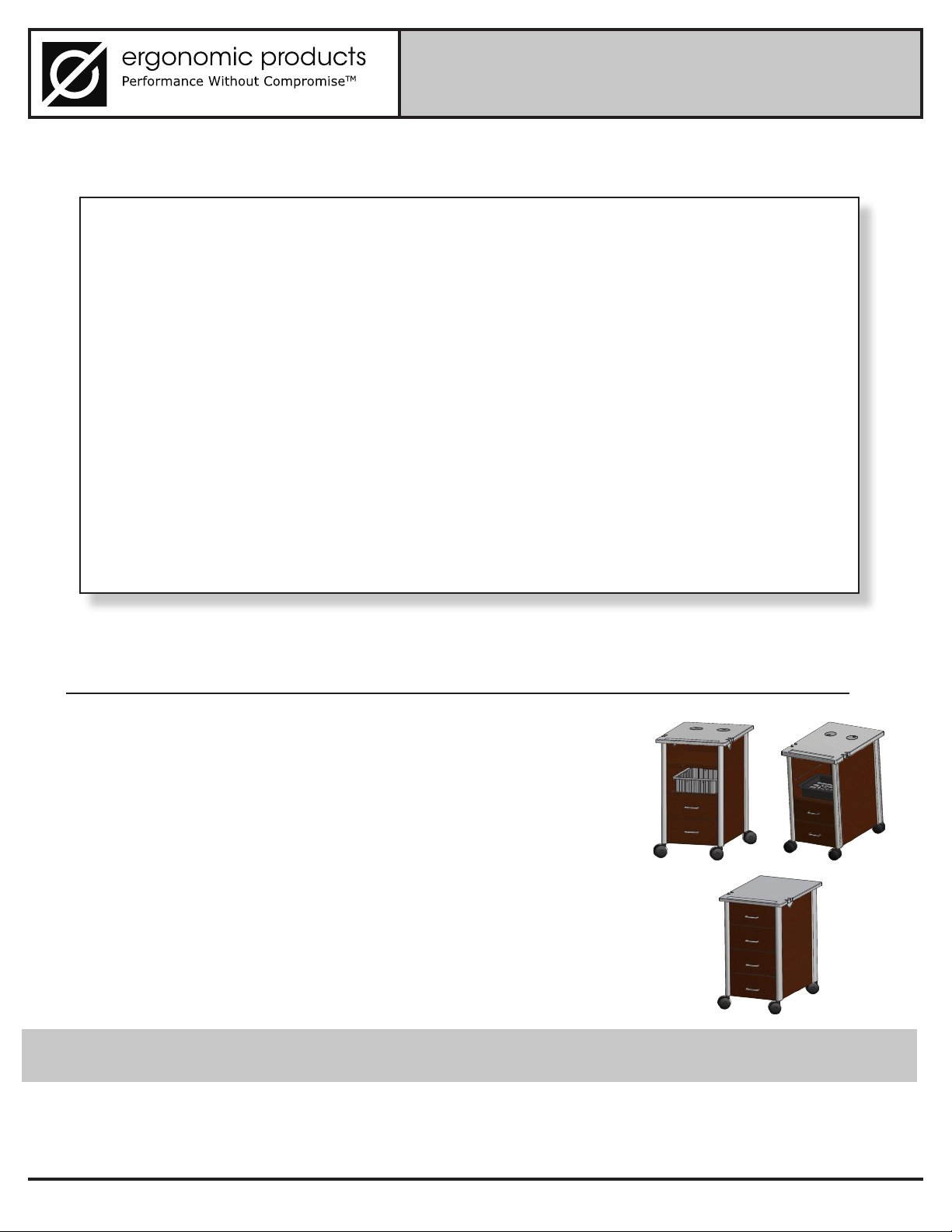

1 - SPECIFICATIONS
DOCTOR SPECIALTY FEATURES
- Wiring apertures on work surface, with stainless steel cover plates
- 5 outlet power strip mounted on rear
- Velcro cord management loop
- 2 side apature wiring openings
- Adjustable shelf
- Milled dentent on work surface for small items
- Two deep drawers
RAPID DEPLOYMENT CART FEATURES
- 2 sided aperture wiring openings
- Fixed slide brackets to receive Standard Zirc or other supply tubs
- Two deep drawers
- Wiring apertures on work surface, with stainless steel cover plates
MOBILE STORAGE CART FEATURES
- Four deep drawers
- Soft-touch drawer close for secure transport
STANDARD FEATURES
- Aircraft aluminum corner-framing / 4 milled hand-piece holders
- High-impact plastic casters / Precision bearing drawer Slides

950-098 R1 manual ver Aergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
Rapid Deployment Carts
Model R1
PAGE 4
1 - SPECIFICATIONS CONT’D
IDEAL LOCATION CONFIGURATION
RapidCarts allow instantaneous deployment and set up of less frequently used treatment instruments
such as those in endodontics, surgery and advanced diagnosis. Distributing technology from room to
room – rather than targeting treatment to individual rooms – creates a more exible and responsive
clinical environments and is one of Ergonomic Products core efciency principles:
Any Procedure, Any Room, Any Time.
PRODUCT DIMENSIONS
- Height, width, and depth dimensions
are standard for all three carts.
1' - 4 3/4"
2' - 0"
1' - 4 1/2"
1"
2' - 3 7/8"
2'

950-098 R1 manual ver Aergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
Rapid Deployment Carts
Model R1
PAGE 5
2 - REQUIRED TOOLS / UNPACKING and INSPECTING
Unpacking
Open each shipping carton and carefully remove the contents. Remove all packaging material from the contents of the
shipping cartons. Arrange the contents on a bench or table in preparation for the inspection described in the next section
Inspection
After unpacking your Rapid Deployment Cart™ carefully check that the conguration/options for your application are
correct. Inspect the shipping cartons immediately for evidence of in-transit damage. If you see any indication of external
damage, call us at the toll-free number listed below. This will simplify making a claim against the shipping company.

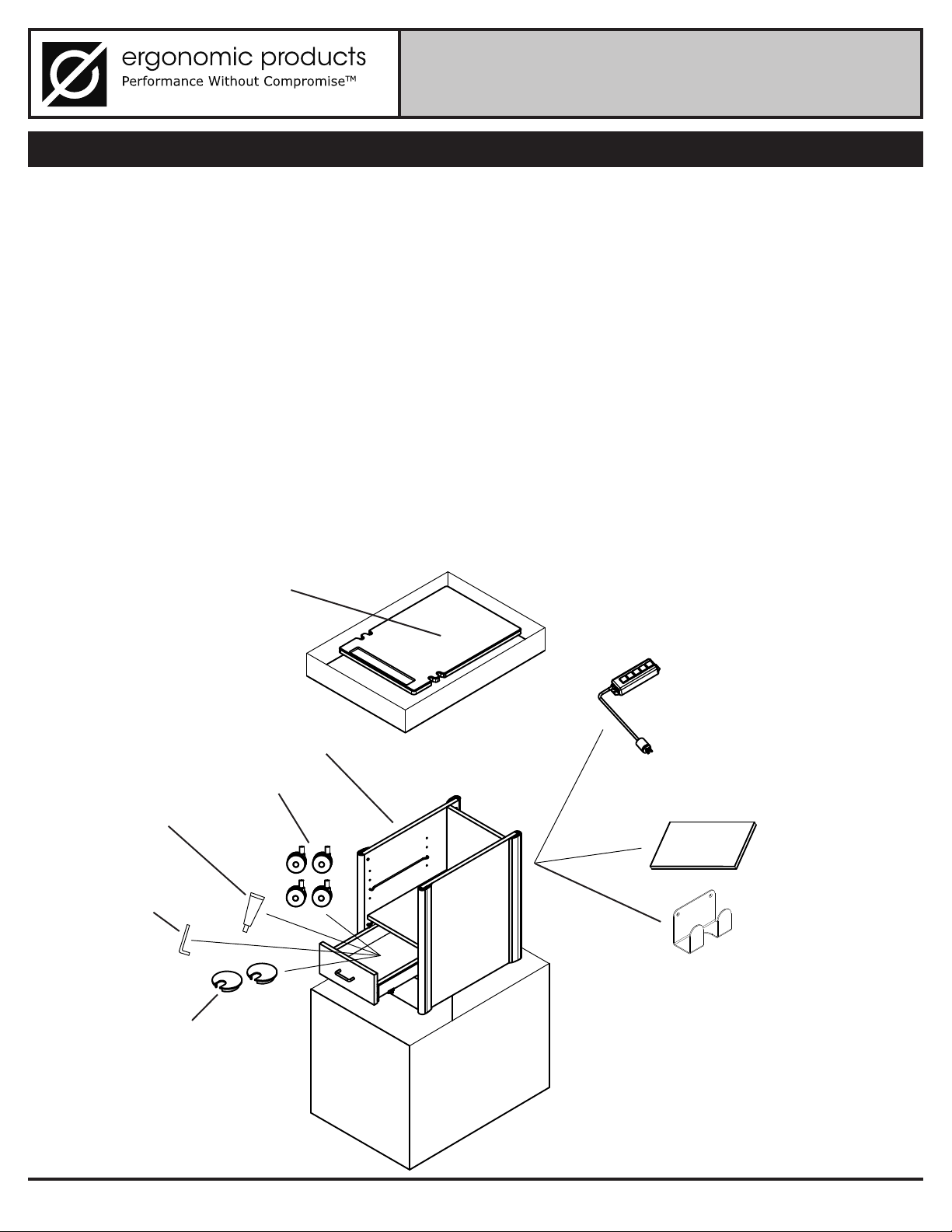

Please make sure your Rapidcart™ is complete before you begin assembly. The package will include:
Box 1. Cart body (1), Casters (4), Tube of silicone (1), 1/16” Allen wrench (1). If ordering a Dr. Specialty Cart
this will include Aluminum Cover plates (2).
If ordering a Dr. Specialty Cart this box will also include: (1) Power strip, (1) Adj. Shelf
Box 2. Corian® Worksurface (1)
If anything is missing, contact Ergonomic Products customer service at 1-866-ERGO-4-US.
We make every effort to assure that shipments are complete. However, if anything is missing, Please call us
immediately and we will send the item(s) out to you promptly.
Silicone Tube
Adjustable Shelf
Power Strip
Worksurface
Cover Plates
Allen Wrench
Casters
Cart body
Foot Pedal
(Optional)

950-098 R1 manual ver Aergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
Rapid Deployment Carts
Model R1
PAGE 6
3 - INSTALLATION
Proceed as follows to assemble:
1. Remove all packaging.

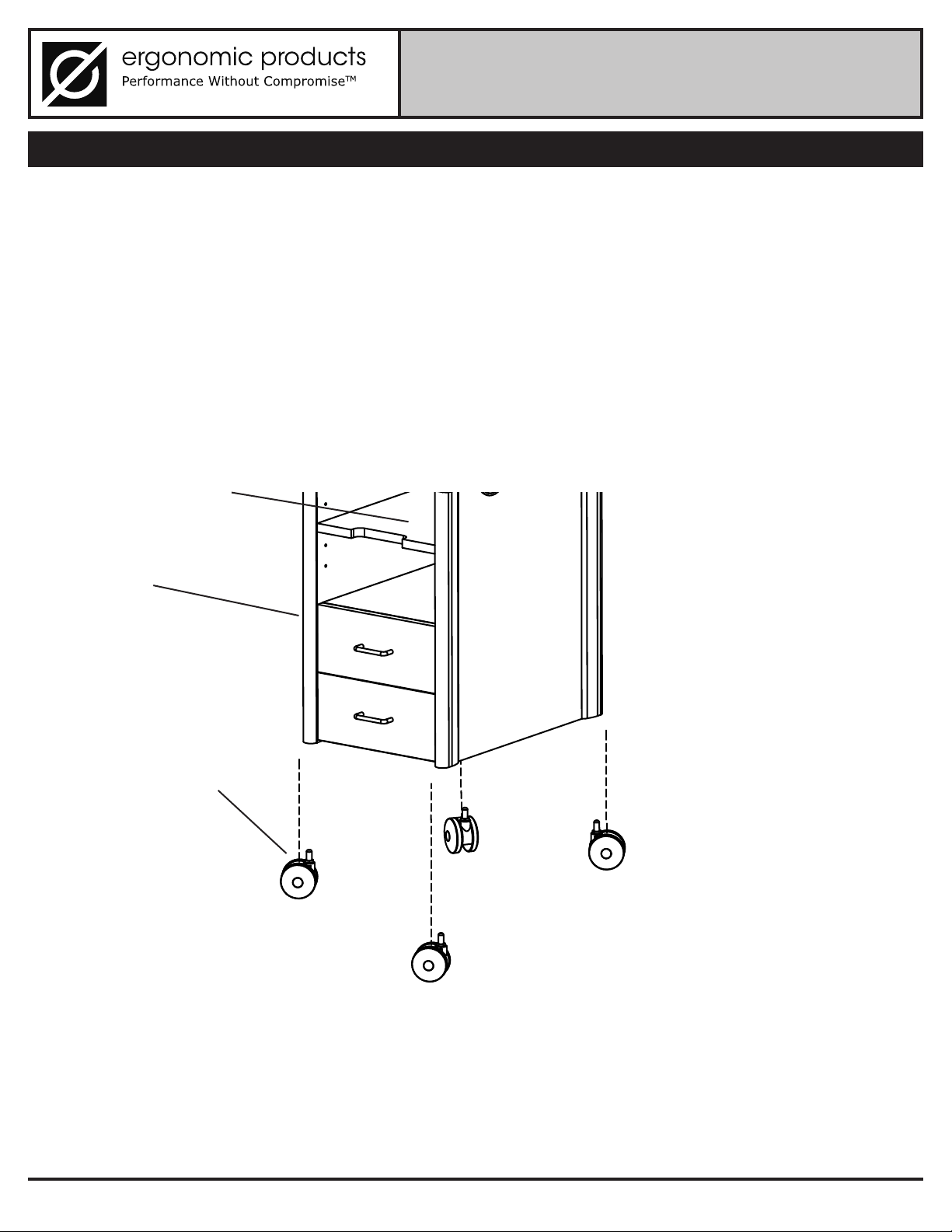

2. Install Casters into bottom of Cart body (packaged in one of the drawers). See g 1
3. Install Adjustable shelf in desired position.
Cart Body
Caster Wheels
Adjustable Shelf
Fig. 1

950-098 R1 manual ver Aergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
Rapid Deployment Carts
Model R1
PAGE 7
3 - INSTALLATION CONT’D
Install Corian Worksurface
a.) Squeeze a 1/8” bead of silicone (supplied) onto the top edges of the Cart Body. See Fig 2.
Apply Silicone on these edges
Fig. 2
b.) Align 4 Dowel Pins on Corian worksurface with holes on the top of the Cart Body. See g. 3
c.) Push Corian worksurface down, making full contact with silicone.
Fig. 3
Dowel Pin

950-098 R1 manual ver Aergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
Rapid Deployment Carts
Model R1
PAGE 8
3 - INSTALLATION CONT’D
Installing the Rear Cover Plate. (only applicable to Dr. Specialty carts)
a.) Secure any accessory power cords from the power strip with the Velcro straps provided. (g.4)
b.) Place Rear Cover Plate in position to engage Rear Plate Clips and slide down until secure. (g.5)
c.) Place power strip cord in tool cutout when not in use.
d.) If you purchased a Foot Pedal, secure it as shown in g. 6.
Fig 6
Rear Cover
Clips
Velcro Strap
Power Strip
Rear Cover Plate
Fig 5
Fig 4
B
Center of Cart Body
6” from bottom
of Worktop Pre-Drill holes, Then
secure with #10 x 1/8”
Flat Head wood screw

950-098 R1 manual ver Aergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
Rapid Deployment Carts
Model R1
PAGE 9
4 - MAINTENANCE
Cleaning instrucons
Painted and Anodized Aluminum Surfaces
Clean with mild detergent, damp cloth and dry thoroughly aer cleaning.
Do NOT use alcohol or solvent based cleaners, ScotchBrite or other abrasive pads.
CORIAN® Surfaces
Clean with warm, soapy water or any non-abrasive ammonia based cleaner or disinfectant. Dry
thoroughly aer cleaning. For tougher stains, use Clean EnCounters® from DuPont.
Do NOT use window-cleaning soluons (they will leave a waxy build-up), ScotchBrite or other
abrasive pads.
For more informaon on cleaning CORIAN surfaces, go to:
hp://www.dupont.com/products-and-services/construcon-materials/surface-design-materials/
brands/corian-sol¬id-surfaces/arcles/how-to-clean-corian.html

950-098 R1 manual ver Aergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
Rapid Deployment Carts
Model R1
PAGE 10
5 - WARRANTY INFORMATION
Ergonomic Products offers the following warranty on our products.
• 5-year limited warranty on all Corian® surfaces*
• 3-year warranty on all RapidCarts®**
• 5-year warranty on all EP 3 Series® Patient Chairs***
• 3-year warranty on all Workstations®
• 3-year warranty on all EP Lighting****
• 1-year warranty on all cabinetry, laminates and components
• 1-year warranty on all storage tubs and bins
• 3rd party components carry the original manufacturer’s warranty:
- 1-year warranty on scalers
- 1-year warranty on cure lights
- 1-year warranty on Ultraleather upholstery
- 1-year warranty on BienAir Electric Motors
* Limited to manufacturer’s defects only
** Excludes powder coated RapidCarts® tops (1 year warranty)
*** Excludes upholstery (1 year warranty)
**** Excludes bulbs
Discontinued parts or components cannot be serviced once the warranty has expired. Additional 3rd party sources may
be available.
We promise to oer you prompt, inexpensive repairs. Products under warranty will be xed as quickly as possible and
service will be done on site if feasible. If it must be returned to our technical center, it will be returned to you without
additional shipping charges. If the time needed to repair it will aect your practice schedule, we will try to provide a
loaner so as to not interrupt your service to your patients. In an emergency, our Doctor Delivery Power Channels® will
ship overnight.
Should your oce damage equipment, due to improper use or inadequate installation or maintenance, we’ll still make
sure to x your problem, promptly and without complaint. e warranty will not apply, nor is there a warranty for fabric
damaged by infection control products.
We promise to continuously satisfy you with our products and services. We want to hear from you and help you im-
prove your practice.
Sincerely,
e Sta at Ergonomic Products, Inc.
1-866-ERGO-4-US
EXTRACT FROM 950-029 REV: D
