Erhardt Markisen KD User manual

Folding arm awning
KD, KD-double
Assembly instructions
Read the instructions prior to performing any task!

Montage_Erhardt-KD_2017_V1_de, 2, en_GB
Translation of the original assembly instructions
© Erhardt Markisenbau GmbH 2018
Erhardt Markisenbau GmbH
Feuerhausgasse 10
89349 Burtenbach
GERMANY
Telephone: [phone]
Fax: [phone]
Email: [email protected]
Internet: www.markisen-erhardt.de
22.03.2021 Folding arm awning KD, KD-double2

These instructions contain important information on correct and
safe assembly of the awning. Make sure to read them in their
entirety before installing the awning. Failure to do so may other-
wise result in injury or damage to the awning. When passing on the
awning to a third party, make sure that these instructions are also
included.
Illustrations in these instructions are intended to convey a general
understanding and may differ from the actual design.
nInstruction manual for folding arm awning type KD, KD-double
nMotor operating manual:
– Optional: Radio remote control instruction manual
– Optional: Automatic controller instruction manual
– Optional: WEP transmitter/receiver module instruction
manual
nIf ambient lighting is included in the scope of supply:
– Instruction manual of the radio receiver
– Instruction manual of the handheld radio transmitter
– Instruction manual of the dimmer module
Address Erhardt Markisenbau GmbH
Feuerhausgasse 10
89349 Burtenbach
GERMANY
Phone [phone]
Fax [phone]
e-mail [email protected]
The manufacturer cannot accept any liability in the following cases:
nFailure to observe these instructions
nImproper use
nExecution of work and repairs by non-qualified persons
nTechnical modifications
nDamage to the device resulting from the use of unsuitable
cleaning agents
About these instructions
Other applicable documents
Support
Limitation of liability
Supplemental directives
22.03.2021 Folding arm awning KD, KD-double 3

Table of contents
1 KD and KD-double folding arm awning............................ 5
2 Safety................................................................................... 7
2.1 Symbols in these instructions....................................... 7
2.2 Intended use................................................................. 8
2.3 Residual risks............................................................... 9
3 Preparing for assembly.................................................... 15
4 Mounting the awning........................................................ 19
5 Coupling the awning......................................................... 23
6 Adjusting the awning........................................................ 24
7 Troubleshooting................................................................ 29
8 Technical data................................................................... 31
9 Index................................................................................... 32
Table of contents
22.03.2021 Folding arm awning KD, KD-double4

1 KD and KD-double folding arm awning
Variants
The Erhardt KD folding arm awning is the KD-
series standard version with a single shading ele-
ment (canopy).
The Erhardt KD-double folding arm awning
( Ä “Erhardt KD-double folding arm awning”
on page 6) is an expanded version of the
standard awning and includes an additional vertical
shading element (valance).

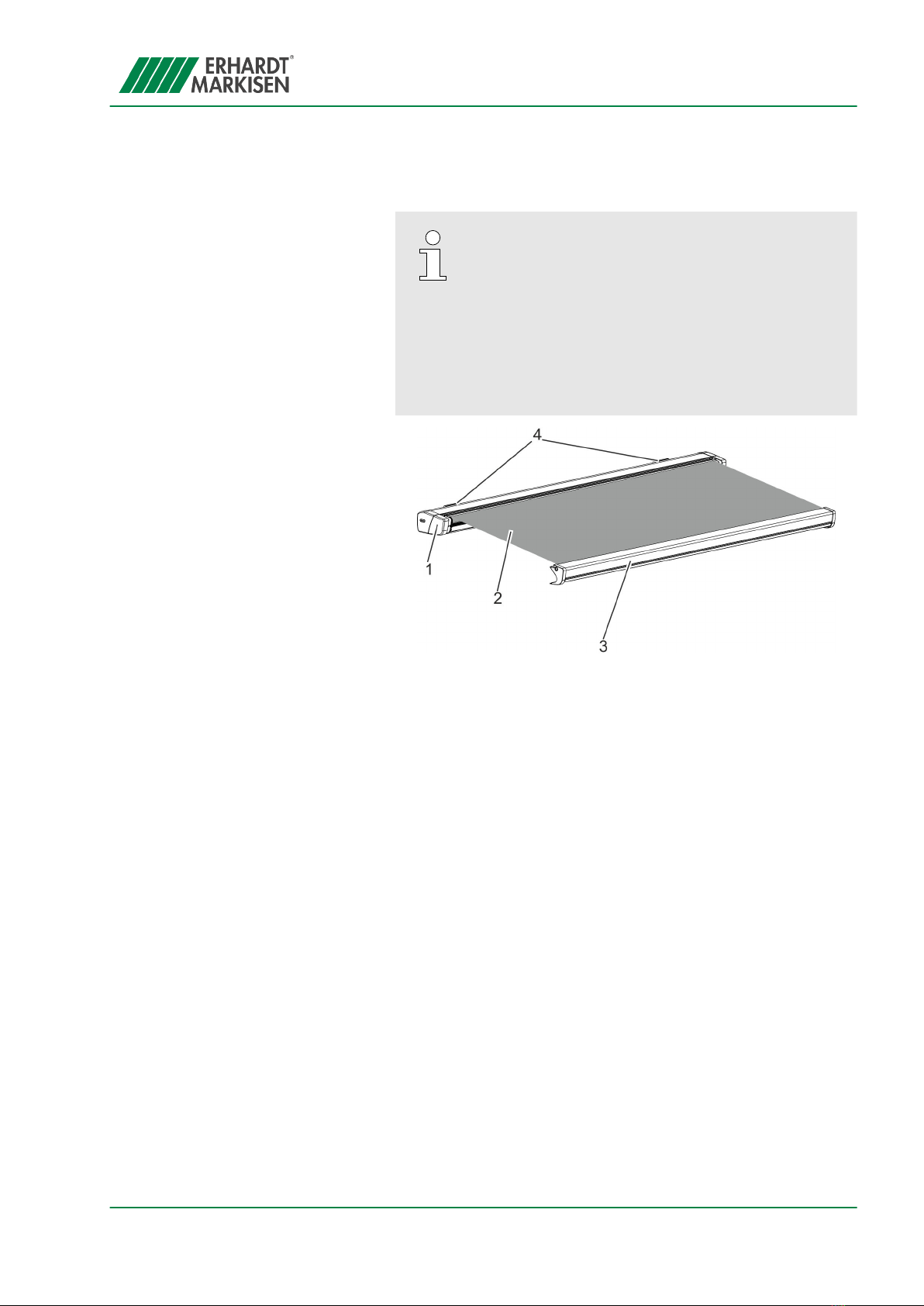

Fig. 1: Type KD
1 Cassette
2 Canopy
3 Drop bar
4 Consoles
The cassette (Fig. 1/1) is attached to the bearing surface by the
consoles (Fig. 1/4). The drop bar (Fig. 1/3) is connected to the
folding arms (below the canopy) and the canopy (Fig. 1/2).
Pressing a directional button causes the drop bar and the canopy
to extend or retract.
The electric drive can optionally be controlled through permanent
wiring with directional buttons, through a switch knob, by radio
remote control or by an automatic controller.
Erhardt KD folding arm awning
KD and KD-double folding arm awning
22.03.2021 Folding arm awning KD, KD-double 5

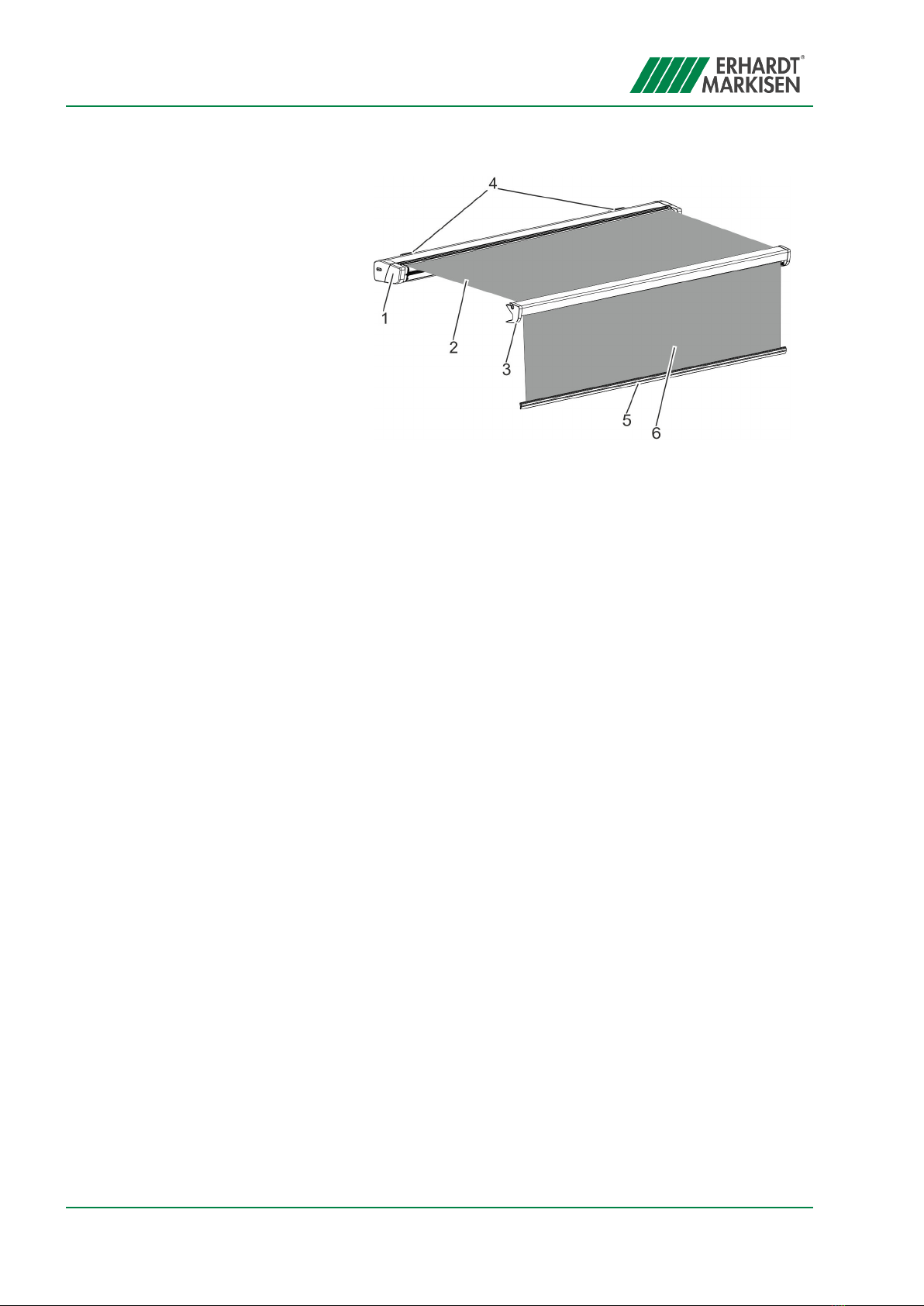

Fig. 2: Type KD-double
1 Cassette
2 Canopy
3 Drop bar
4 Consoles
5 Weighting bar
6 Valance
The cassette (Fig. 2/1) is attached to the bearing surface by the
consoles (Fig. 2/4). The drop bar (Fig. 2/3) is connected to the
folding arms (below the canopy) and the canopy (Fig. 2/2).
Pressing a directional button causes the end rail and the canopy to
extend or retract. If required, the valance (Fig. 2/6) can be lowered
for additional shading in any position. The weighting bar (Fig. 2/5)
pulls the valance downwards and ensures that it does not flap.
The electric drive can optionally be controlled by radio remote con-
trol or by an automatic controller.
The valance’s electric drive is controlled through the WEP trans-
mitter/receiver module.
Optional ambient lighting for the awning is available in the form of
LED strips that are installed permanently in the cassette; these can
be dimmable. The ambient lighting is operated using a radio
remote control.
Erhardt KD-double folding arm
awning
Lighting
KD and KD-double folding arm awning
22.03.2021 Folding arm awning KD, KD-double6

2 Safety
2.1 Symbols in these instructions
Safety notes in these instructions are indicated by symbols. The
safety notes begin with signal words that indicate the magnitude of
the hazard.
DANGER!
This combination of symbol and signal word indi-
cates an imminently hazardous situation that will
result in death or serious injury if it is not avoided.
WARNING!
This combination of symbol and signal word indi-
cates a potentially hazardous situation that can
result in death or serious injury if it is not avoided.
NOTICE!
This combination of symbol and signal word indi-
cates a potentially hazardous situation that can
result in property damage if it is not avoided.
ENVIRONMENT!
This combination of symbol and signal word indi-
cates possible hazards for the environment.
This symbol highlights useful tips and recommen-
dations as well as information designed to ensure
efficient and smooth operation.
Safety instructions may refer to specific, individual instructions.
Such safety instructions are integrated into the instruction so that
they do not interrupt the flow of reading when carrying out the task.
The signal words described above are used.
Safety note design
Tips and recommendations
Safety instructions in specific
instructions
Safety
Symbols in these instructions
22.03.2021 Folding arm awning KD, KD-double 7

Example:
1. Loosen the screw.
2.
CAUTION!
Risk of pinching by cover!
Close the cover carefully.
3. Tighten the screw.
The following symbols are used in this manual to highlight instruc-
tions, results, lists, references and other elements:
Symbol Explanation
Step-for-step instructions
ðResults of instruction steps
References to sections in this manual and
to other applicable documents
Lists without a specified sequence
2.2 Intended use
The awning is an outdoor shading system and may be used only
as such. The awning can be optionally fitted with ambient
lighting.
Intended use includes following all the information in this manual
and the other applicable documents.
Improper use of the awning can result in dangerous situations.
Additional symbols
Improper use
Safety
Intended use
22.03.2021 Folding arm awning KD, KD-double8

WARNING!
Hazard posed by improper use!
Improper use of the awning and the optional LED
stripes can result in dangerous situations.
– Applying additional loads to the awning by sus-
pending objects from or leaning objects against
the awning or by tying ropes to it may cause
damage to the awning or cause it to collapse.
– Any modification or conversion not approved by
the manufacturer shall be deemed improper
use.
– Disassembling the optional ambient lighting and
connection components shall be deemed
improper use.
Any use that goes beyond intended use or that is not covered by
intended use is considered improper use.
The awning may be operated by children eight
years or older as well as by persons with physical,
sensory or mental disabilities or with a lack of
experience and knowledge, provided they do so
under supervision or have been instructed in han-
dling the awning safely and have understood the
corresponding risks.
nMake sure that children never play with the awning.
nKeep the radio remote control out of children’s reach.
nCleaning may never be performed by children.
2.3 Residual risks
DANGER!
Risk of injury due to electrical current!
Work performed improperly on the awning’s elec-
trical components can result in serious or fatal
injury.
– Work on the electrical components must be per-
formed by qualified electricians only.
– Electrical components may only be connected if
the specifications on the type plate match the
power supply voltage.
– Observe the enclosed documentation for the
electrical components.
Children
Electrical current
Safety
Residual risks
22.03.2021 Folding arm awning KD, KD-double 9

WARNING!
Risk of injury due to static charge!
The awning fabric can accumulate a strong
charge. Skin contact may result in static discharge,
in turn posing a consequential risk, e.g. through
falling.
– Equalise potentials by touching non-conductive
materials.
WARNING!
Risk of damage to eyes due to direct eye con-
tact with the lamp
Longer eye contact with a switched-on lamp can
damage the eyes.
– Avoid direct eye contact with the lamp.
WARNING!
Danger due to failure to heed warnings in other
applicable documents!
These instructions deal exclusively with the
awning. In combination with the various options,
hazards that are not described in these operating
instructions may arise.
– Adhere to the other applicable documents as
well ( Ä “Other applicable documents”
on page 3).
WARNING!
Risk of crushing through moving parts!
The awning’s moving parts pose a risk of crushing.
– Secure the support arms and the end rail during
assembly.
Static charge
Risk of damage to eyes
Disregarding other applicable
documents
Moving parts
Safety
Residual risks
22.03.2021 Folding arm awning KD, KD-double10

WARNING!
Risk of falling and injury when working at
heights!
Working at heights and on climbing aids poses a
risk of injury due to falling.
– Use suitable safety gear.
– Never fasten or lean climbing aids on the
awning.
– Use climbing aids that stand firmly and offer suf-
ficient handholds.
– Never hold on to the awning.
WARNING!
Hazard posed by lifting the awning!
When lifting the awning, e.g. using ropes, there is
a risk of fatal injury through crushing.
– Securely attach the ropes to the awning.
– Make sure that the awning cannot slip free of
the ropes.
– Keep the awning horizontal when lifting it.
– Do not enter the danger zone beneath the load.
Working at heights
Lifting using ropes
Safety
Residual risks
22.03.2021 Folding arm awning KD, KD-double 11

WARNING!
Risk of injury due to improper disassembly or
reassembly!
Improper disassembly or reassembly poses an
increased risk of injury due to moving parts or
working at height.
– Have disassembly/reassembly be performed
only by a qualified fitter.
– If reassembly is planned, make sure that all of
the awning’s documentation is available.
Request any missing documents from Erhardt.
– Make sure sufficient space is available before
beginning work.
– Handle exposed, sharp-edged components with
care.
– Keep the workspace tidy and clean! Loosely
stacked or scattered components and tools
pose a risk of accident.
– Disassemble components properly. Note that
some of the components are heavy. If neces-
sary, use lifting gear.
– Secure components to prevent them from falling
or toppling over.
– Consult Erhardt in any cases of doubt.
Disassembling or reassembling old
systems
Safety
Residual risks
22.03.2021 Folding arm awning KD, KD-double12

WARNING!
Risk of injury if wind class is exceeded!
When the wind class is exceeded, the awning may
tear free and cause serious injury. The awning’s
wind class depends decisively on the type and
quantity of fastening elements and the properties
of the bearing surface.
– Only use the awning up to the wind class speci-
fied by the manufacturer.
– In windy regions subject to frequent power grid
failure, install a back-up power supply.
NOTICE!
Property damage due to deep discharge of the
battery pack!
The drive motor for the Erhardt KD-double awning
valance is fitted with an inductive battery pack. If
the awning is disconnected from the power supply
for a long period, and especially at low tempera-
tures, there is a risk of deep discharge.
– Only disconnect the awning from the power
supply in an emergency.
NOTICE!
Risk of property damage when extending the
awning!
When extending the awning, there is a risk of it
falling or becoming damaged.
– Remove fallen leaves and other foreign objects
from the awning.
– Do not extend the awning in freezing weather or
when it is snowing.
– Remove any obstacles.
Hearing protection
Hearing protection is used to protect from damage to hearing from
noise.
Weather hazards
Extending the awning
Personal protective equipment
Safety
Residual risks
22.03.2021 Folding arm awning KD, KD-double 13

Industrial helmet
Industrial helmets protect the head against falling objects, swinging
loads and impacts with fixed objects.
Protective goggles
Protective goggles serve to protect the eyes from flying debris and
splashes of liquid.
Safety shoes
Safety shoes protect the feet from crushing, from dropping parts,
and from slipping on slippery floors.
Qualified fitter
A qualified fitter has the technical skills and experience as well as
knowledge of the applicable standards and regulations required to
perform work on awnings and to recognise and avoid potential haz-
ards.
A qualified fitter has training and experience in the following fields:
nWork health and safety, industrial safety and accident preven-
tion regulations
nHandling ladders and scaffolds
nHandling and transport of long, heavy components
nHandling tools and machines
nInstalling attachment elements
nAssessment of building fabric
nCommissioning and operating the product
The permanent electrical wiring may be installed by an officially
qualified electrician only.
Qualified persons
Safety
Residual risks
22.03.2021 Folding arm awning KD, KD-double14

3 Preparing for assembly
ESD protection
Observe the ESD protection during awning
assembly! This can be done by wearing ESD
gloves, for example.
At least two people are required to assemble the
awning.
Personnel: nQualified fitter
Protective equipment: nHearing protection
nIndustrial helmet
nSafety shoes
nProtective goggles
1. Check that the scope of delivery is complete.
2. Check the bearing surface’s load bearing capacity.
3.
Suitable fastening materials
–When installing outdoors, use stainless
steel bolts.
–In the vicinity of swimming pools, use
galvanised steel bolts to counter the risk
of corrosion posed by higher chlorine con-
tent in the air.
–To prevent contact corrosion, do not use
steel and stainless steel parts together.
Keep suitable fastening materials to hand (not included in
scope of supply).
Preparing for assembly
22.03.2021 Folding arm awning KD, KD-double 15

Fig. 3: Console for wall mounting
The ceiling console consists of the ceiling angle
bracket and the wall console.
Fig. 4: Console for ceiling mounting
Wall mounting
Ceiling mounting
Preparing for assembly
22.03.2021 Folding arm awning KD, KD-double16

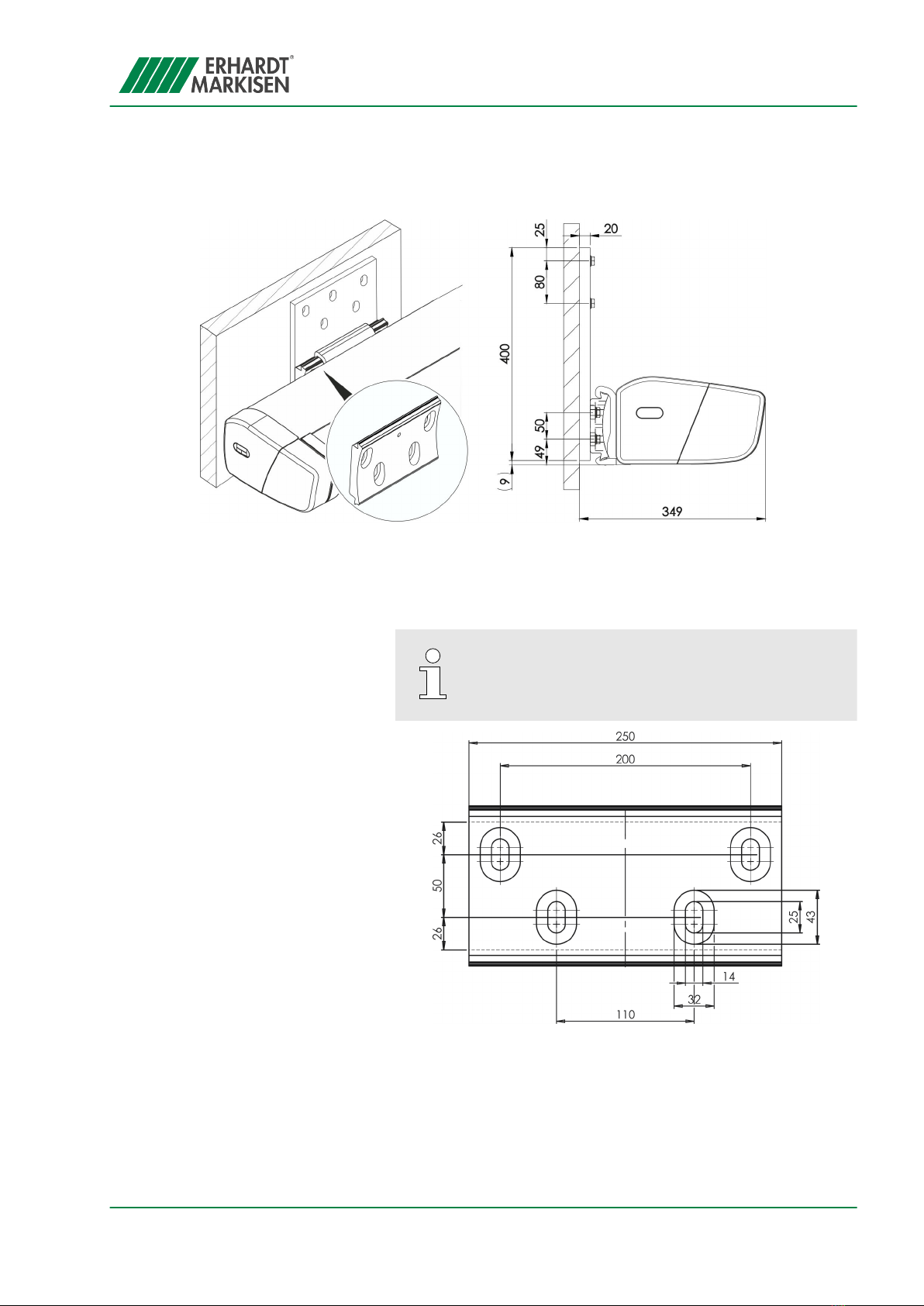

Fig. 5: Console extension for wall mounting
The consoles for wall mounting can also be used
as drilling templates.
Fig. 6: Drilling template/console
Wall mounting with console exten-
sion
Drilling templates
Preparing for assembly
22.03.2021 Folding arm awning KD, KD-double 17

Fig. 7: Drilling template/console enlargement
The procedures for fastening the ceiling console
and the console are identical.
Preparing for assembly
22.03.2021 Folding arm awning KD, KD-double18

4 Mounting the awning
Personnel: nQualified fitter
Protective equipment: nHearing protection
nIndustrial helmet
nSafety shoes
nProtective goggles
1. Determine the mounting height of the console.
Positioning
–Make sure a sufficient distance remains to
other objects when the awning is fully
extended (Fig. 8/X).
–Make sure there is sufficient headroom
beneath the awning (Fig. 8/Y). In public
spaces, observe the applicable regula-
tions.
2. Align the consoles horizontally.
The wall console enlargement (six fastening
screws) can be used if the mounting surface
does not offer enough support with four fas-
tening screws per console or if an element of
the building has to be bridged (e.g. expan-
sion joint).
Use a spirit level or a drawstring for hori-
zontal alignment of the fastening holes.
Mounting consoles

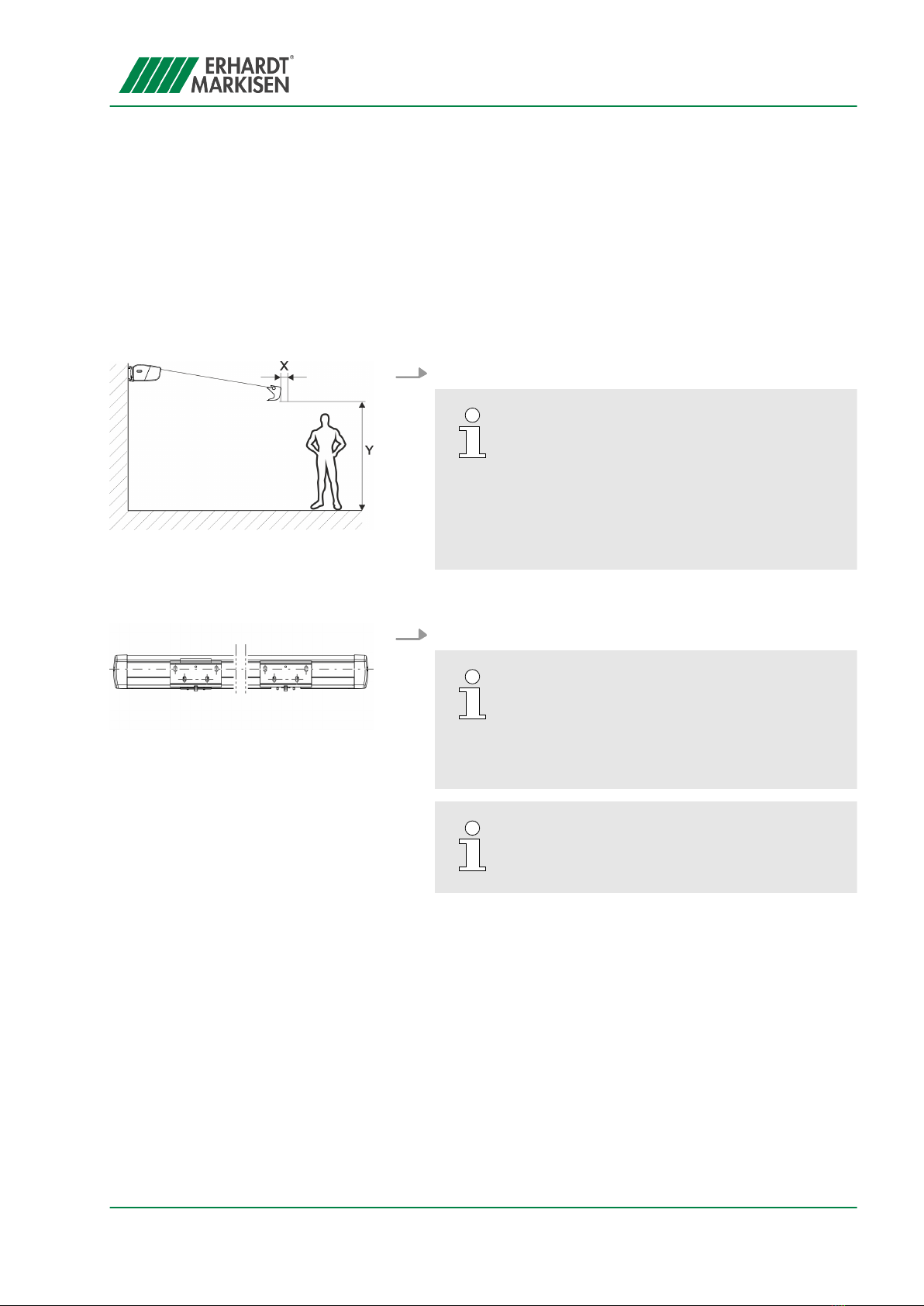

Fig. 8: Awning’s projection range
X 40 cm
Y 180 cm
Fig. 9: Aligning the consoles
Mounting the awning
22.03.2021 Folding arm awning KD, KD-double 19

3. Transfer the hole pattern (Fig. 10).
4. Drill the holes for attaching the console (Fig. 11).
5. Screw the consoles to the bearing surface (Fig. 12).
Fig. 10: Console markings
Fig. 11: Drilling the holes
Fig. 12: Screwing on the console
(example representation)
Mounting the awning
22.03.2021 Folding arm awning KD, KD-double20
