ESCALADE Atomic G01342W User manual

888-996-2729-1
1353-378-668-1:XAF
moc.stropsedalacse@gameroom
ytilauqtsehgihehtfoerastcudorpruotahterusneotevirtseW
fi,revewoH.strapgnissimrostcefedgnirutcafunamfoe
erfdna
,tcudorpwenruoyhtiwsmelborpynaevahuoy
EROTSEHTOTTINRUTERTONOD ,
:@eerfllotsutcatnocesaelp
:otetirwrO
stropSedalacsE
tnemtrapeDecivreSremotsuC
988xoB.O.P
60774NI,ellivsnavE
date code (if,rebmunledomruoyedivorpesaelpstropSedalacsEgnitcatnocnehW
erasrebmunesehT.traptnemecalp
eragnitseuqerfirebmuntrapdna,)elbacilppa
.launamsrenwosihtnidna,gnigakcap,tcudorpehtnodetacol
rebmuNledoMruoY
.straptuobagniriuqninehwdate coderuoyevahesaelP
G01342W/F
888-996-2729-1llaCecivreSremotsuCroF1stropSedalacsE2016©
Date Code: 2 - G01342W/F - 0416 - WJ
All Rights Reserved
Purchase Date:
PLEASE RETAIN THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

Make sure you understand the following tips before you begin to assemble your soccer table.
1. Start all bolts by hand before tightening.
2. Some drawings or images in this manual may not look exactly like your product. Please
read and understand the text before starting each assembly step.
TWO ADULTS ARE REQUIRED TO ASSEMBLE
THIS ATOMIC PROFORCE SOCCER TABLE
Assembly Tips
Tools Required:
READ AND FOLLOW ALL ASSEMBLY, OPERATION, AND
SAFETY INSTRUCTIONS CAREFULLY. AT LEAST TWO
ADULTS ARE NEEDED TO PUT THIS SOCCER TABLE
TOGETHER.
T1 - Allen Wrench (Included)
IMPORTANT! READ EACH STEP
IN THIS MANUAL BEFORE YOU
BEGIN THE ASSEMBLY.
© 2016 Escalade Sports For Customer Service Call 1-888-996-2729
Phillips Screwdriver
Furniture Polish and Cloth
2
All Rights Reserved.

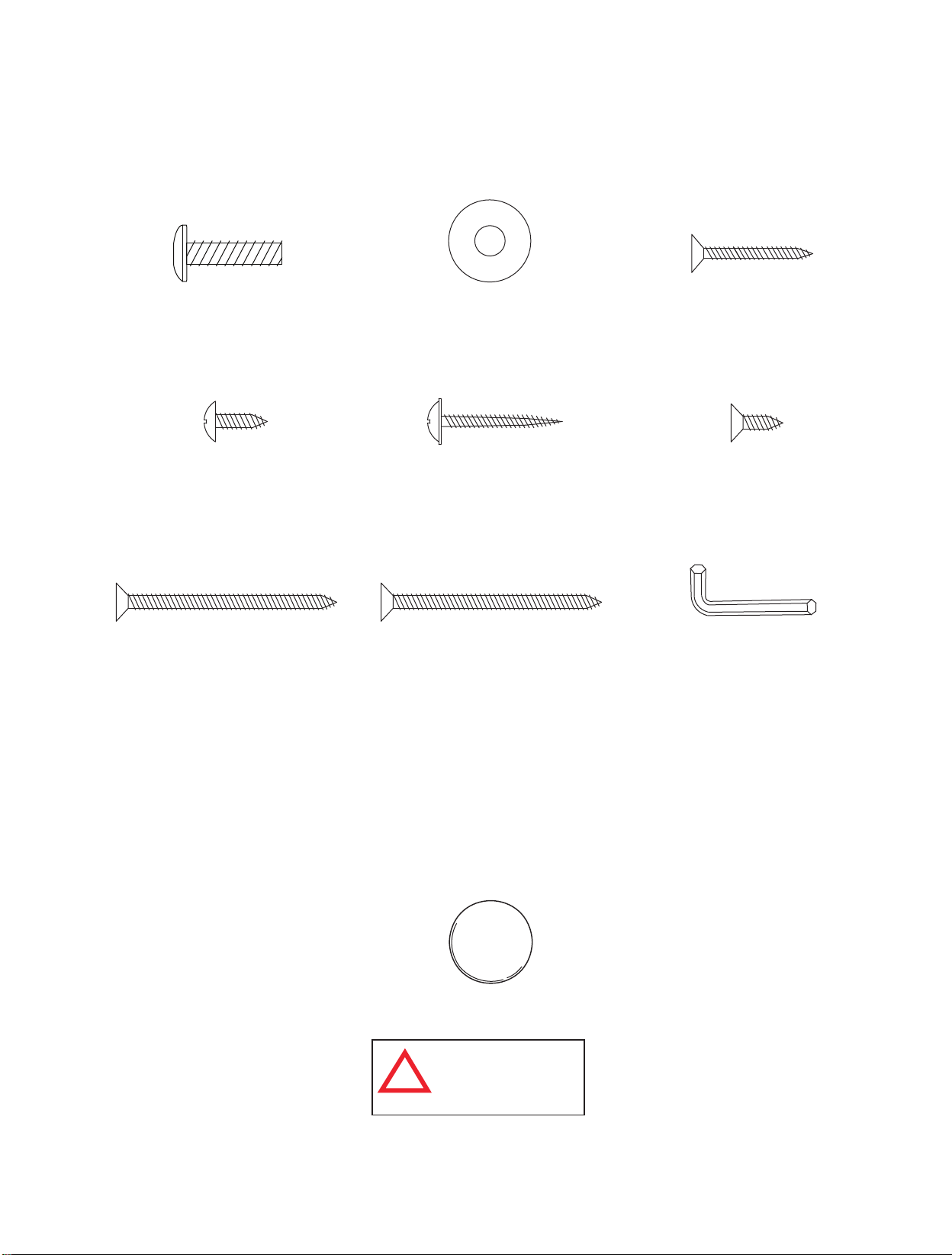

HARDWARE IDENTIFIER
( To Scale)
©2016 Escalade Sports For Customer Service Call 1-888-996-2729
3
All Rights Reserved.
H1 - 6mm x 22mm
Allen Head Bolt
(16 pcs)
H2 - 6mm x 19mm
Flat Washer (16 pcs)
H3 - 3mm x 28mm
Phillips Flat Head
Screw (8 pcs)
H4 - 4mm x 12mm
Phillips Round Head
Screw (84 pcs)
H5 - 3mm x 28mm
Phillips Washer Head
Screw (18 pcs)
(Not to Scale)
H6 - 4mm x 12mm
Phillips Flat Head
Screw (6 pcs)
H7 - 4mm x 51mm
Phillips Flat Head
Screw (12 pcs)
H8 - 4mm x 51mm
Zinc - Phillips Flat Head
Screw (4 pcs)
T1 - Allen Wrench
(1 pc)
ACCESSORIES IDENTIFIER
( Not to Scale)
A1- Soccer Ball (4 pcs)
!WARNING:
CHOKING HAZARD
Small parts.
Not for children under 3 yrs.

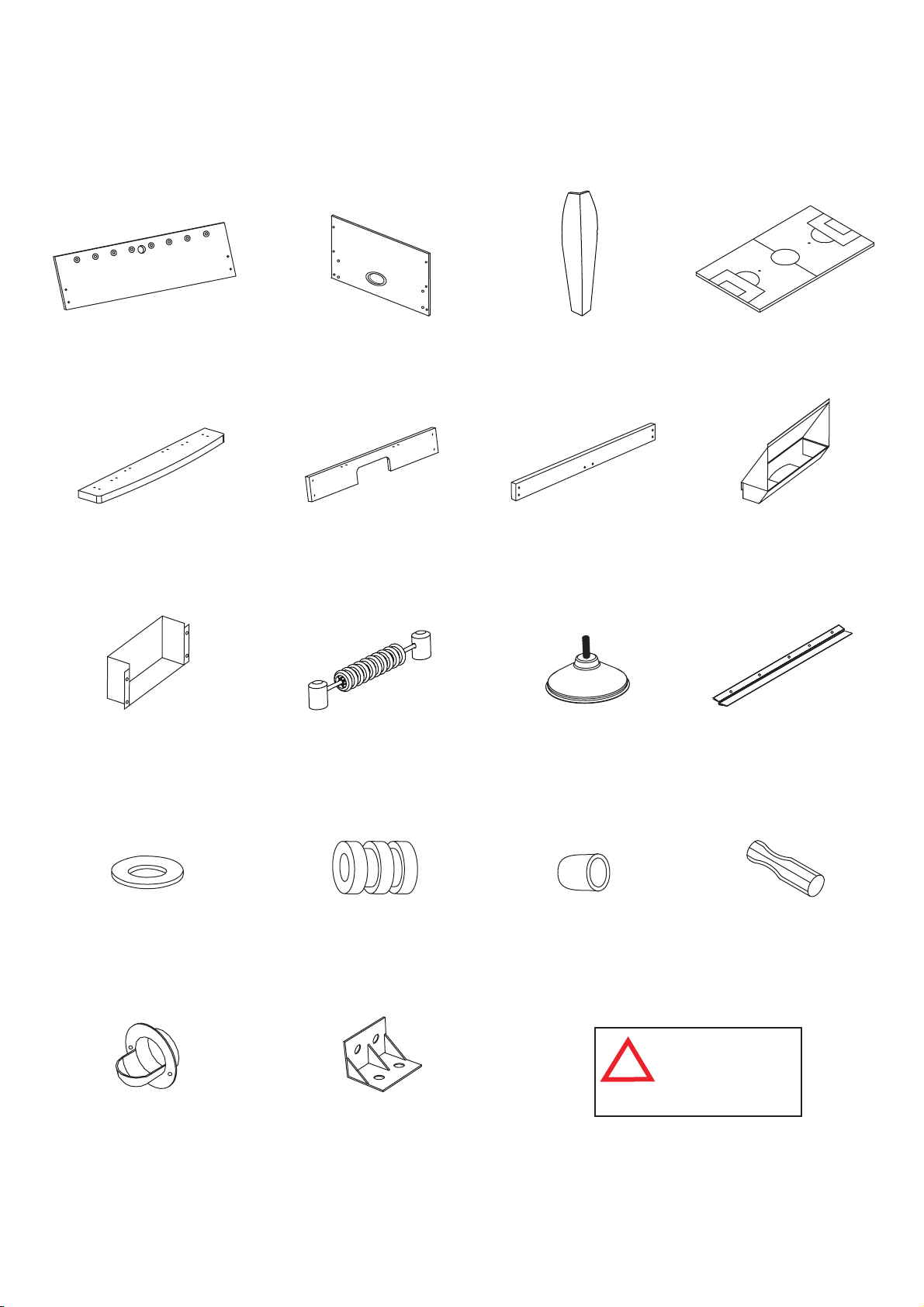

PARTS IDENTIFIER
( Not to Scale)
© 2016 Escalade Sports For Customer Service Call 1-888-996-2729
4
All Rights Reserved.
P1 - Side Apron
(2 pcs)
P2 - End Apron
(2 pcs)
P3 - Leg (4 pcs)
P5 - End Top Rail
(2 pcs)
P6 - Goal End
Board (2 pcs)
P4 - Playfield (1 pc)
P7 - Playfield Support
Brace (2 pcs)
P8 - Top Goal
Box (2 pcs)
P9 - Bottom Goal
Box (2 pcs)
P10 - Scorer (2 pcs) P11 - Leg Leveler
(4 pcs)
P12 - Playfield
Trim (2 pcs)
P13 - Plastic Rod
Washer (16 pcs)
P14 - Rod Bumper
(16 pcs)
P15 - Rod End
Cap (8 pcs)
P16 - Rod Handle
(8 pcs)
P17 - Outside Ball
Entry Cup (2 pcs)
!WARNING:
CHOKING HAZARD
Small parts.
Not for children under
3 yrs.
P18 - Plastic
Bracket (18 pcs)

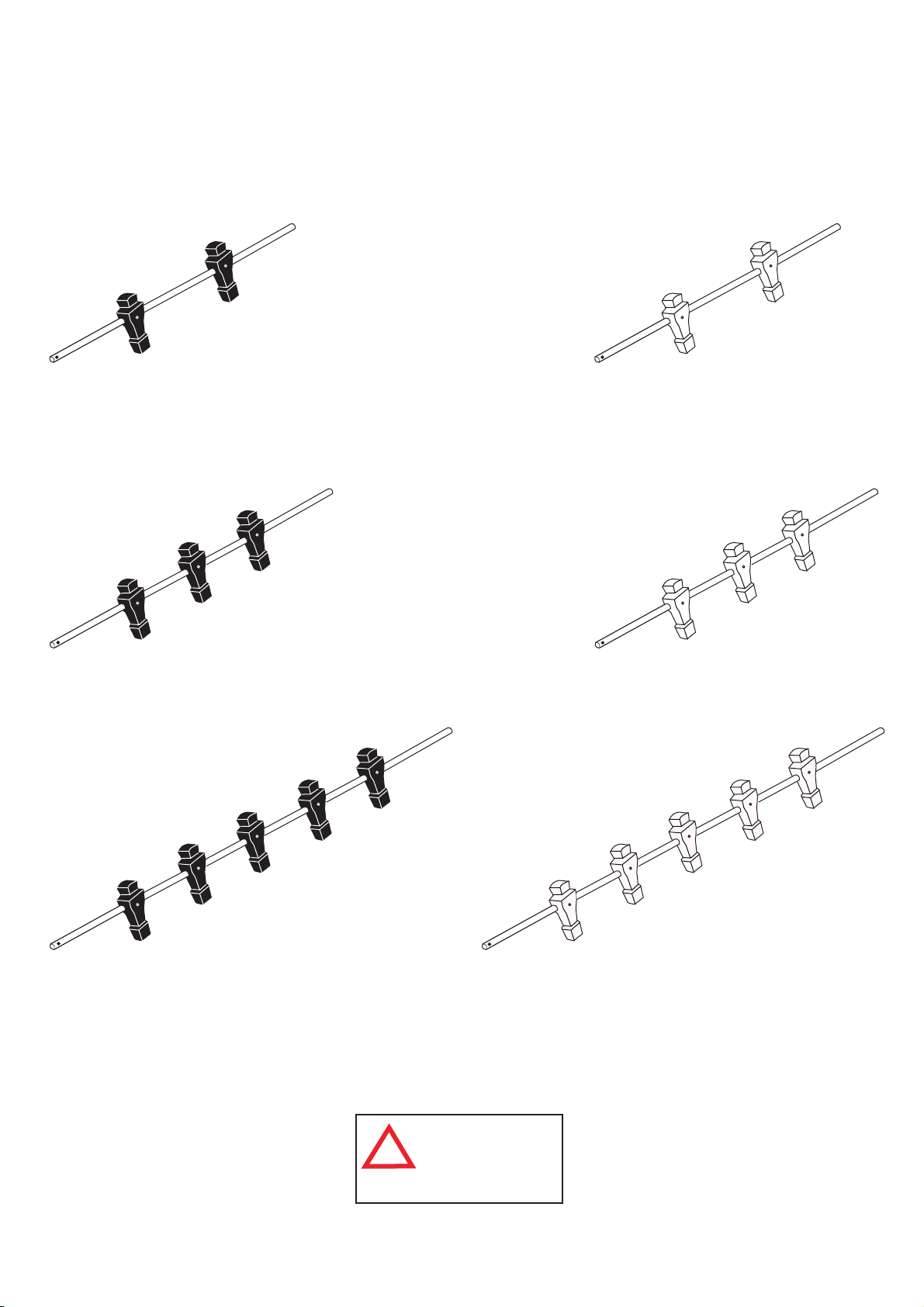

ROD IDENTIFIER
( Not to Scale)
© 2016 Escalade Sports For Customer Service Call 1-888-996-2729
5
All Rights Reserved.
!WARNING:
CHOKING HAZARD
Small parts.
Not for children under
3 yrs.
R1 - 2 Player Rod
Assembly Black (1 pc)
R2 - 3 Player Rod
Assembly Black (2 pcs)
R3 - 5 Player Rod
Assembly Black (1 pc)
R4 - 2 Player Rod
Assembly Ivory (1 pc)
R5 - 3 Player Rod
Assembly Ivory (2 pcs)
R6 - 5 Player Rod
Assembly Ivory (1 pc)

© 2016 Escalade Sports For Customer Service Call 1-888-996-2729
6
All Rights Reserved.

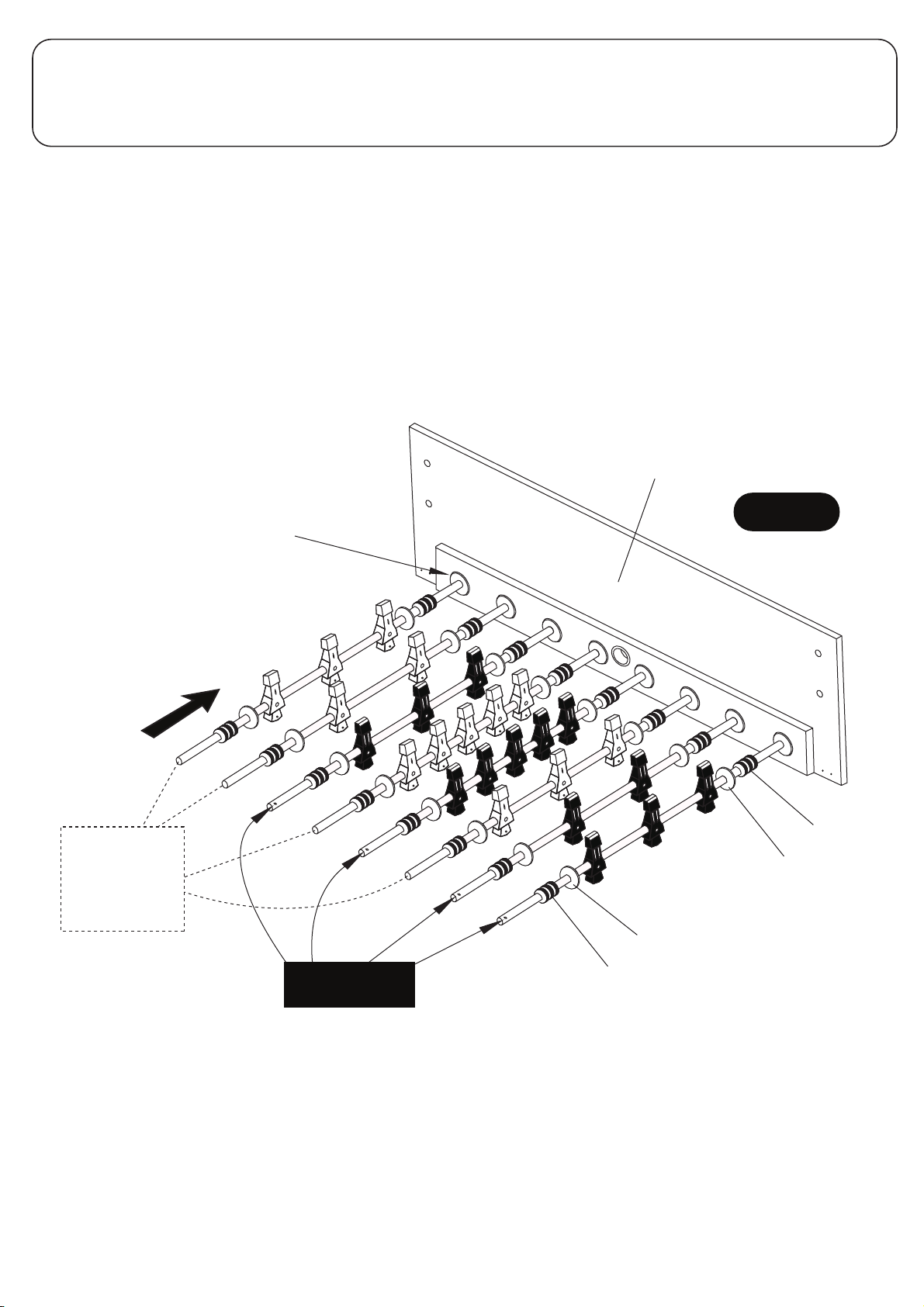

STEP 1:
Find a clean, level place to begin the assembly of your soccer table. We recommend building the table on the
box top to protect the parts during assembly.
Attach P13 Plastic Rod Washer and P14 Rod Bumper to the rods as shown in FIGURE 1. Place one P1 Side
Apron UPSIDE DOWN with the laminated side facing out as shown in FIGURE 1.
Align the rods as shown in FIGURE 1.
Please note the location of the hole that is near one end of each rod. This is the handle end of the rod.
There will be four handles on each side of the table. It is critical that you set the rods as shown below so
the table will be correct when flipped over.
PARTS REQUIRED:
1 pc - P1 Side Apron 1 pc - R1 2 Player Rod Assembly Black 1 pc - R4 2 Player Rod Assembly Ivory
16 pcs - P13 Plastic Rod Washer 2 pcs - R2 3 Player Rod Assembly Black 2 pcs - R5 3 Player Rod Assembly Ivory
16 pcs - P14 Rod Bumper 1 pc - R3 5 Player Rod Assembly Black 1 pc - R6 5 Player Rod Assembly Ivory
FIGURE 1
P1
P14
P13
P13
P14
R2
R1
R3
R6
R2
R5
R4
R5
R1, R2 and R3
Hole/Handle End
R4, R5 and R6
Hole/Handle
goes on the
other end of
these rods
C1 Rod Bushing
Note: C1 Rod Bushings
are already attached
onto P1 Side Apron

© 2016 Escalade Sports For Customer Service Call 1-888-996-2729
7
All Rights Reserved.

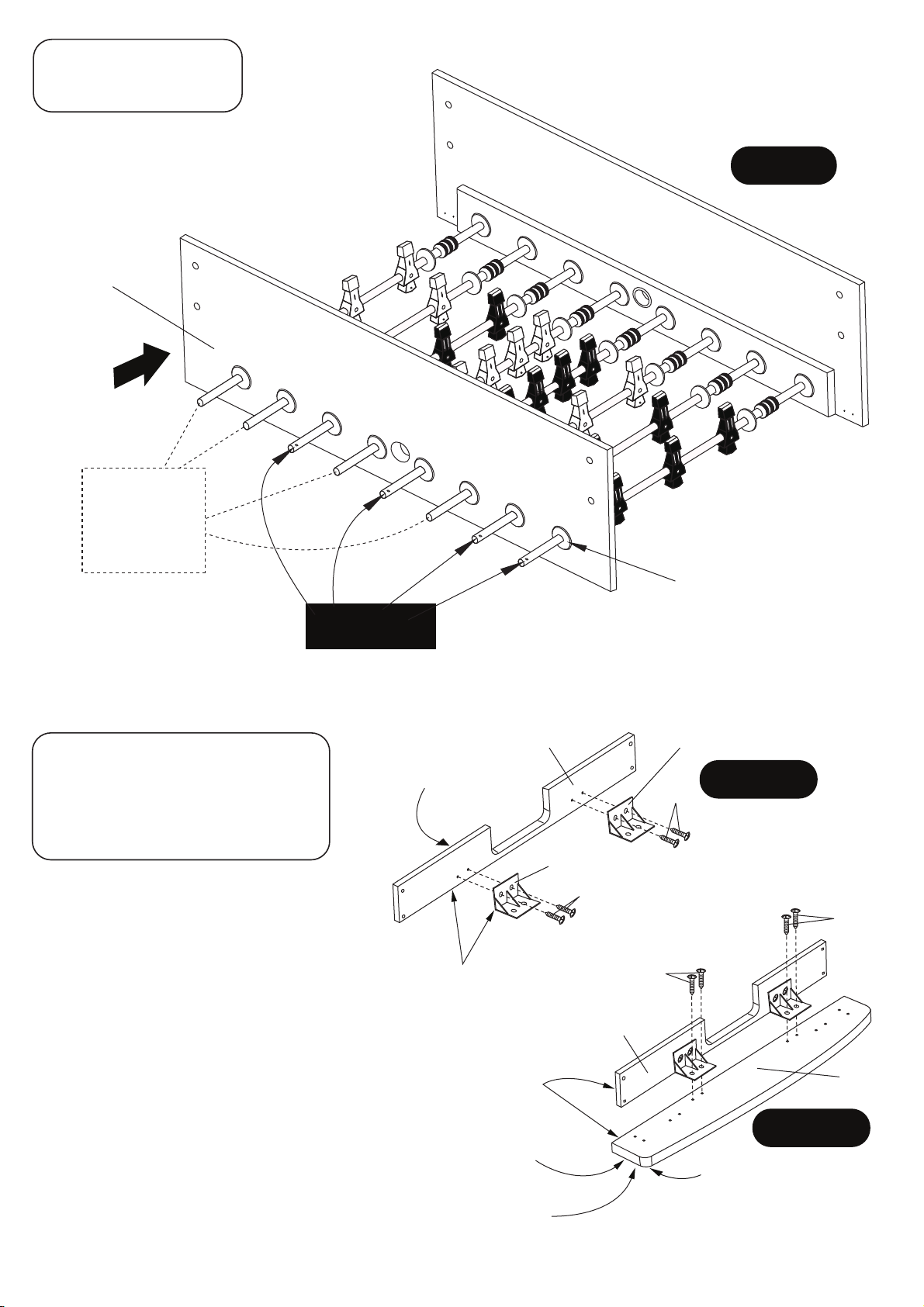

STEP 2:
Once your are sure you have the rods set
correctly, slide the other P1 Side Apron on
the rods as shown in FIGURE 2.
PARTS REQUIRED:
1 pc - P1 Side Apron
FIGURE 2
R1, R2 and R3
Hole/Handle End
R4, R5 and R6
Hole/Handle
goes on the
other end of
these rods
R2
R1
R3
R6
R2
R5
R4
R5
P1
C1 Rod Bushing
Note: C1 Rod Bushings
are already attached
onto P1 Side Apron
PARTS REQUIRED:
16 pcs - H4 Phillips Round Head Screw
2 pcs - P5 End Top Rail
2 pcs - P6 Goal End Board
4 pcs - P18 Plastic Bracket
STEP 3:
Place two P18 Plastic Brackets onto each inside
end of P6 Goal End Board as shown and attach
using the pre-drilled pilot holes with H4 Screws
as shown in FIGURE 3A.
Tighten, but do not strip out H4 screws.
NOTE: Be sure bottom edge of P18 Plastic
Brackets is flush with bottom edge of board.
Next, attach this assembly to P5 End Top Rail
using pre-drilled pilot holes with H4 Screws as
shown in FIGURE 3B.
Tighten, but do not strip out H4 screws.
NOTE: Be sure bottom edge of P6 Goal End
Board is flush with bottom edge of P5 Top Rail.
Repeat procedure for second assembly.
P6
White laminate
this side
P18
H4
H4
P18
FIGURE 3A
Black laminate
on bottom side
Round Corner
this position
FIGURE 3B
H4
H4
P6
P5
Edge must be
flush for correct
assembly
Edge must be
flush for correct
assembly
NOTE: See STEP 4 to look at
correct assembly P5 and P6.

© 2016 Escalade Sports For Customer Service Call 1-888-996-2729
8
All Rights Reserved.
STEP 4:
Attach P5/P6 assemblies from STEP 3 to P1 Side Apron using pre-drilled pilot holes with H3 Screws as shown
in FIGURE 4. Tighten, but do not strip out H3 Screws.
IMPORTANT NOTE: The holes are pre-drilled at an ANGLE on purpose, be sure to allow H3 Screws to follow
pre-drilled holes.
PARTS REQUIRED:
8 pcs - H3 Phillips Flat Head Screw
FIGURE 4
P5/P6
Assembly
H3
P5/P6
Assembly H3 P1
P1
STEP 5:
Install one piece P18 Plastic Bracket
into each inside corner of P1 Side Apron
using pre-drilled pilot holes and H4
screws as per FIGURE 5 and DETAIL A.
Tighten, but do not strip out H4 screws.
PARTS REQUIRED:
16 pcs - H4 Phillips Round Head Screw
4 pcs - P18 Plastic Bracket
H4
H4
P18
DETAIL A
FIGURE 5
IMPORTANT NOTE:
Be sure to keep this assembly
square during P5/P6 assembly.
H3
H3

© 2016 Escalade Sports For Customer Service Call 1-888-996-2729
9
All Rights Reserved.
STEP 6:
Carefully peel the protective film strips off of the 3 pieces of adhesive tape on the underside of both P12 Playfield
Trims. Turn them over and carefully place them along P1 Side Aprons as shown in DETAIL B and FIGURE 6.
PARTS REQUIRED:
2 pcs - P12 Playfield Trim
FIGURE 6
DETAIL B
Peel and Turn Over
STEP 7:
Place P4 Playfield with graphics
facing down onto the main cabinet.
Align P4 Playfield holes with P12
Playfield Trims holes and attach
using H5 Screws as shown in
FIGURE 7.
Tighten, but do not strip out H5
Screws.
PARTS REQUIRED:
18 pcs - H5 Phillips Washer
Head Screw
1 pc - P4 Playfield
P12
P12
P1
FIGURE 7
Graphic
facing down
H5
IMPORTANT NOTE:
P4 Playfield must be evenly
spaced on top of both ends
of P6 Goal End Board - at each
end of cabinet assembly.
P1 Side Aprons may be slightly
warped. Please keep P1 Side
Aprons pushed in tight against
the P4 Playfield for correct assembly.
All screws must be screwed
STRAIGHT down.
P4
P6
P6
NOTE: Adhesive
strip this side.

© 2016 Escalade Sports For Customer Service Call 1-888-996-2729
10
All Rights Reserved.

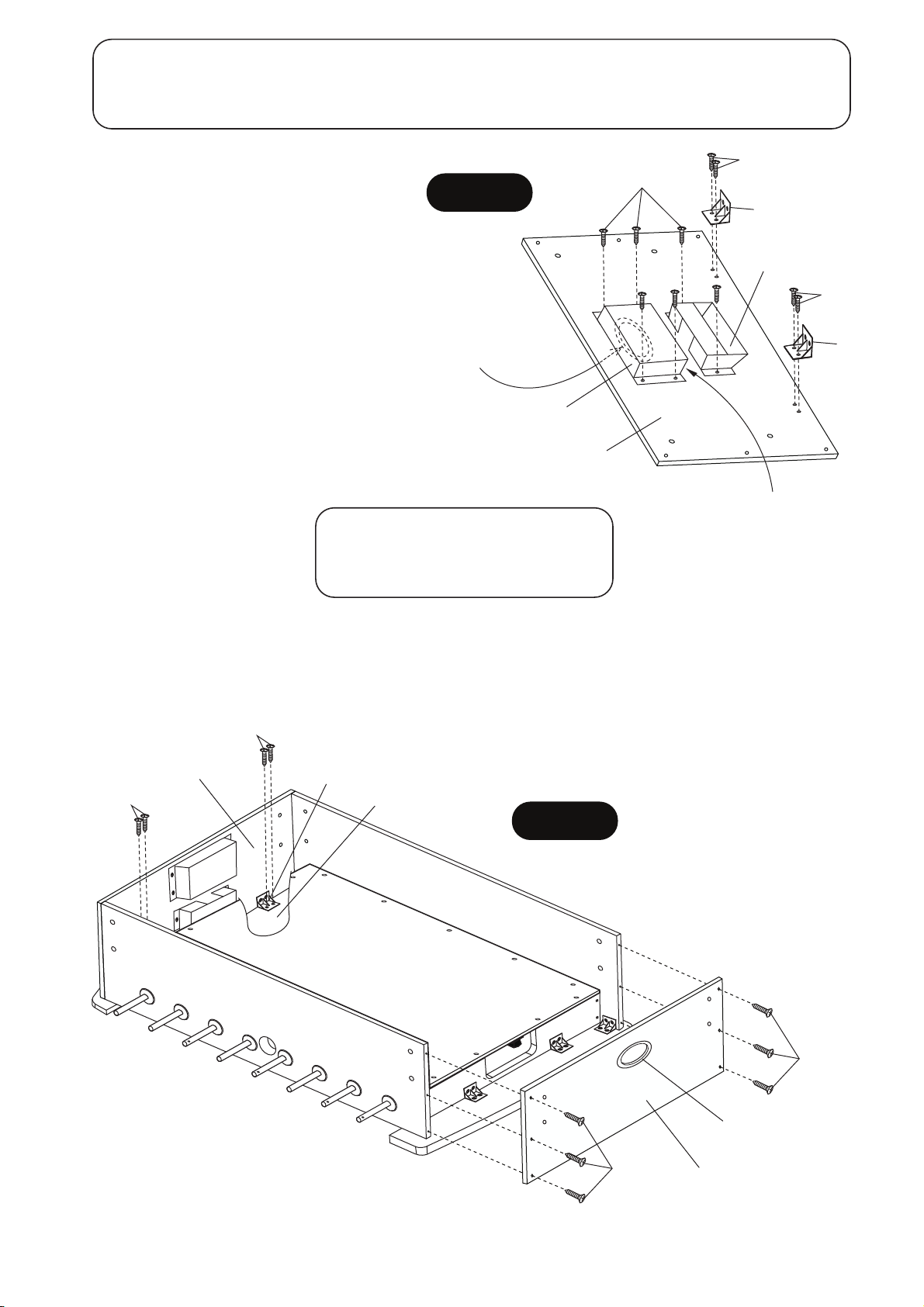

STEP 8:
Attach P18 Plastic Brackets onto the back side
of P2 End Apron using pre-drilled pilot holes
with H4 Screws as shown in FIGURE 8.
Tighten, but do not strip out H4 screws.
NOTE: Be sure bottom edge of P18 Plastic
Brackets is flush with bottom edge of apron.
Attach P8 Top Goal Box and P9 Bottom Goal
Box onto the back side of P2 End Apron using
pre-drilled holes with H4 Screws as shown in
FIGURE 8.
Tighten, but do not strip out H4 screws.
Repeat procedure for second assembly.
PARTS REQUIRED:
20 pcs - H4 Phillips Round Head Screw 2 pcs - P8 Top Goal Box 4 pcs - P18 Plastic Bracket
2 pcs - P2 End Apron 2 pcs - P9 Bottom Goal Box
FIGURE 8
P18
P18
H4
H4
H4
P2
P9
P8
STEP 9:
Attach previous assemblies from STEP 8 to the end of table cabinet using pre-drilled pilot holes with H7 Screws
as shown in FIGURE 9. Tighten, but do not strip out H7 screws.
Install H4 Screws into previously installed P18 Plastic Brackets as shown in FIGURE 9.
Tighten, but do not strip out H4 screws.
PARTS REQUIRED:
8 pcs - H4 Phillips Round Head Screw
12 pcs - H7 Phillips Flat Head Screw
H7
H7 STEP 8
Assembly
C2
H4
H4
STEP 8
Assembly
P5
P18
FIGURE 9
NOTE:
Ball Opening
in P2 End Apron
must be in this
position.
NOTE:
Opening of P9 Bottom Goal
Box must be in this position.

© 2016 Escalade Sports For Customer Service Call 1-888-996-2729
11
All Rights Reserved.

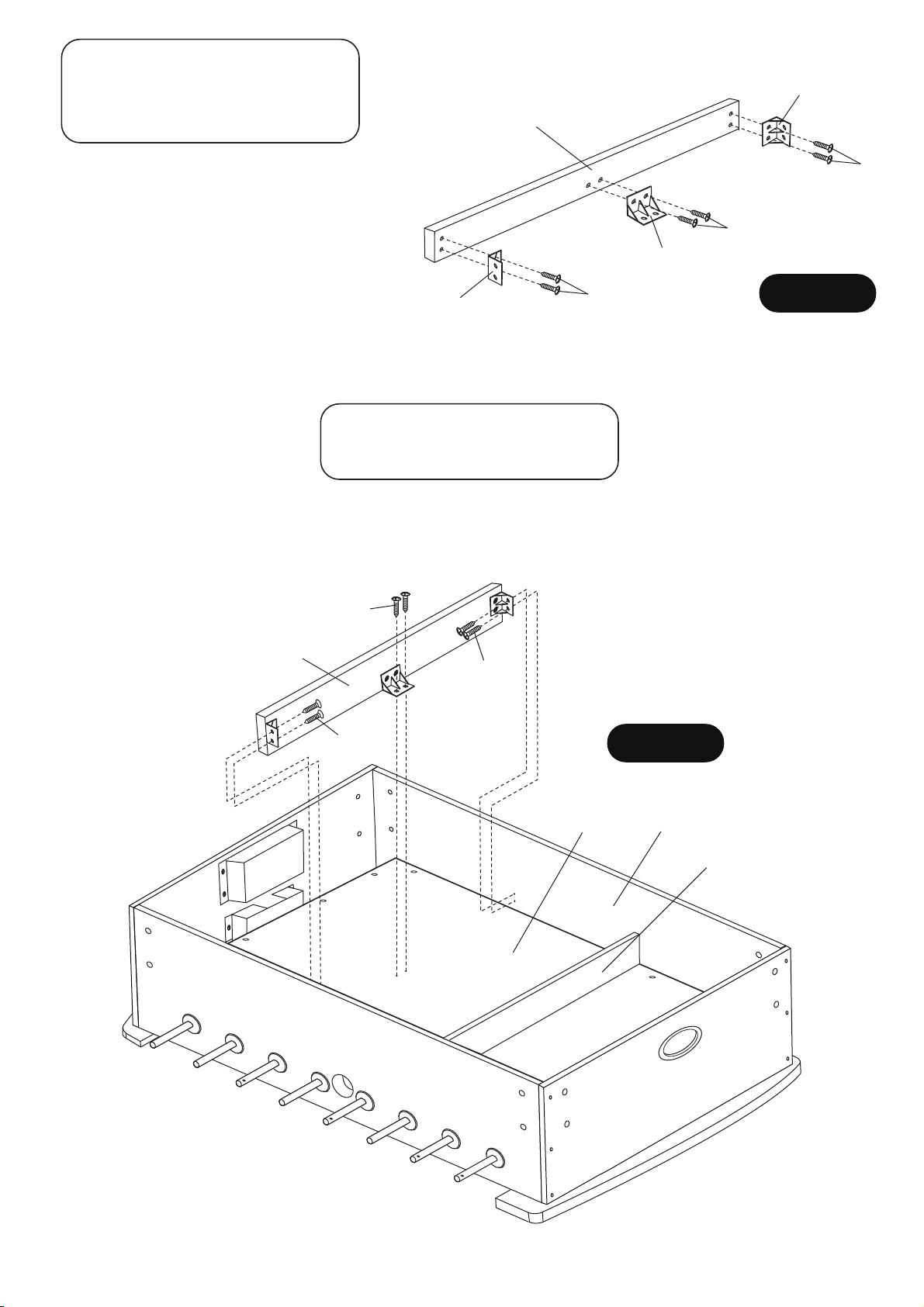

STEP 10:
Attach P18 Plastic Brackets onto P7 Playfield
Support Braces using pre-drilled pilot holes
with H4 Screws as shown in FIGURE 10.
Tighten, but do not strip out H4 screws.
NOTE: Be sure bottom edge of all P18 Plastic
Brackets are flush with the edge of P7 Support
Braces.
PARTS REQUIRED:
12 pcs - H4 Phillips Round Head Screw
2 pcs - P7 Playfield Support Brace
6 pcs - P18 Plastic Bracket
FIGURE 10
H4
H4
H4
P18
P18
P18
P7
PARTS REQUIRED:
12 pcs - H4 Phillips Round Head Screw
STEP 11:
Attach previous assembly STEP 10 onto P3 Playfield and P1 Side Aprons using pre-drilled pilot holes with H4
Screws as shown in FIGURE 11. Tighten, but do not strip out H4 screws.
NOTE: Be sure plastic brackets are facing each other for correct assembly.
FIGURE 11
H4
H4
H4
STEP 10
Assembly
STEP 10
Assembly
P3 P1

© 2016 Escalade Sports For Customer Service Call 1-888-996-2729
12
All Rights Reserved.
PARTS REQUIRED:
16 pcs - H1 Allen Head Bolt 4 pcs - P3 Leg 1 pc - T1 Allen Wrench
16 pcs - H2 Flat Washer 4 pcs - P11 Leg Leveler
STEP 12:
Attach P3 Legs using H1 Allen Head Bolts with H2 Flat Washers as shown in FIGURE 12.
Use T1 Allen Wrench to tighten all bolts.
Thread P11 Leg Levelers to each P3 Leg as shown in FIGURE 12.
FIGURE 12
H1
H2
H2
H2
H1
H1
P3
P11

© 2016 Escalade Sports For Customer Service Call 1-888-996-2729
13
All Rights Reserved.
PARTS REQUIRED:
6 pcs - H6 Phillips Flat Head Screw 2 pcs - P10 Scorer 8 pcs - P16 Rod Handle
4 pcs - H8 Zinc-Phillips Flat Head Screw 8 pcs - P15 Rod End Cap 2 pcs - P17 Ball Entry Cup
STEP 13:
Attach P10 Scorers onto the top of P5 End Top Rails using H8 Screws as shown in FIGURE 13.
Tighten, but do not strip out H8 screws.
Attach P15 Rod End Caps to the rod as shown in FIGURE 13.
Slide P16 Rod Handle onto each rod end with the small hole shown in FIGURE 13.
IMPORTANT NOTE: A small amount of liquid soap applied inside each P16 Rod Handle will allow them to
slip onto rod easier.
Attach P17 Ball Entry Cups onto P1 Side Aprons using H6 Screws as shown in FIGURE 13.
Tighten, but do not strip out H6 screws.

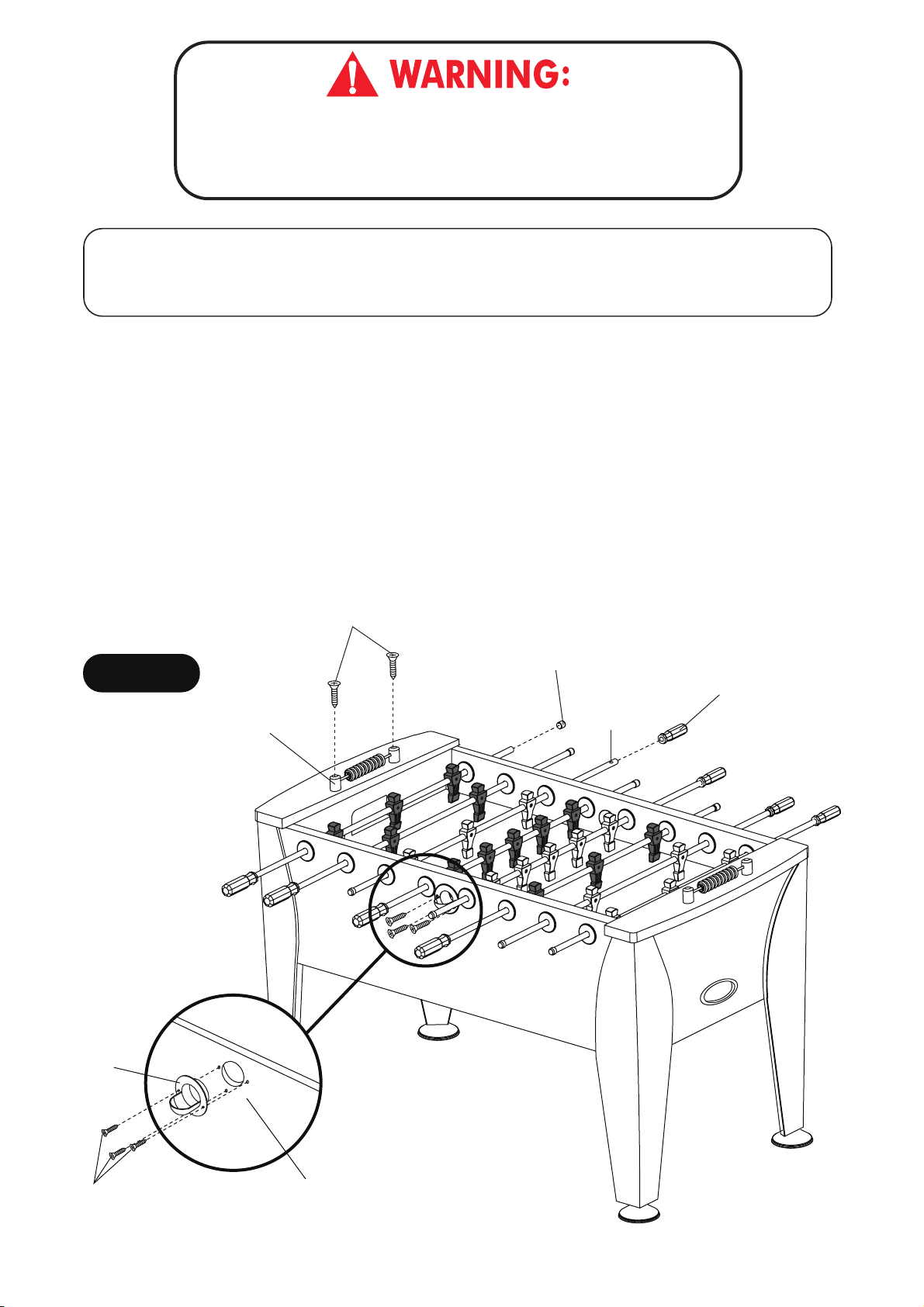

FIGURE 13
H8
P10
P15
P16
H6
P17
P1
THIS STEP REQUIRES FOUR OR MORE ADULTS.
VERY CAREFULLY TURN THE TABLE OVER AND SET IT ON
ITS LEGS. BE CAREFUL. THE TABLE IS VERY HEAVY.
Note:
Small
Hole

© 2016 Escalade Sports For Customer Service Call 1-888-996-2729
All Rights Reserved.
14
Congratulations! You have now assembled your soccer table. Please note the Care and Use
instructions below to insure many years of trouble free use of your soccer table.
CARE AND USE OF YOUR ATOMIC PROFORCE SOCCER TABLE
1. Apply spray furniture polish to a clean cloth and wipe down the rods to make them slide
easier in the rod bushings.
2. Use spray furniture polish to clean all exterior surfaces of your soccer table.
3. Use a carpenters level to properly level table using the leg levelers.
4. This product is intended for INDOOR use only.
5. DO NOT sit, climb or lean on the table.
6. DO NOT drag the table when moving it. This will damage the legs.
7. DO NOT set drinks on the table.
Description Qty.
H1
H2
H3
H4
H5
H6
H7
H8
T1
A1
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
P16
P17
P18
C1
C2
C3
C4
C5
C6
C7
C8
C9
K1
M1
Key # Part #
PRODUCT PARTS LIST FOR MODEL # G01342W
01342WJH1
01342WJH2
01342WJH3
01342WJH4
01342WJH5
01342WJH6
01342WJH7
01342WJH8
01342WJT1
01342WJA1
01342WJP1
01342WJP2
01342WJP3
01342WJP4
01342WJP5
01342WJP6
01342WJP7
01342WJP8
01342WJP9
01342WJP10
01342WJP11
01342WJP12
01342WJP13
01342WJP14
01342WJP15
01342WJP16
01342WJP17
01342WJP18
01342WJC1
01342WJC2
01342WJC3
01342WJC4
01342WJC5
01342WJC6
01342WJC7
01342WJC8
01342WJC9
01342WJK1
01342WJM1
6mm x 22mm Allen Head Bolt
6mm x 19mm Flat Washer
3mm x 28mm Phillips Flat Head Screw
4mm x 12mm Phillips Round Head Screw
3mm x 28mm Phillips Washer Head Screw
4mm x 12mm Phillips Flat Head Screw
4mm x 51mm Phillips Flat Head Screw
4mm x 51mm Zinc - Phillips Flat Head Screw
Allen Wrench
Soccer Ball
Side Apron
End Apron
Leg
Playfield
End Top Rail
Goal End Board
Playfield Support Brace
Top Goal Box
Bottom Goal Box
Scorer
Leg Leveler
Playfield Trim
Plastic Rod Washer
Rod Bumper
Rod End Cap
Rod Handle
Outside Ball Entry Cup
Plastic Bracket
Rod Bushing
Ball Return Trim
Black Player
Ivory Player
2 Player Rod
3 Player Rod
5 Player Rod
4mm x 21mm Phillips Round Head Bolt
4mm Lock Nut
Hardware Kit
Owner Manual
16
16
8
84
18
6
12
4
1
4
2
2
4
1
2
2
2
2
2
2
4
2
16
16
8
8
2
18
16
2
13
13
2
4
2
26
26
1
1

© 2016 Escalade Sports For Customer Service Call 1-888-996-2729
15
All Rights Reserved.
This consumer warranty extends to the original consumer purchase of any ESCALADESPORTS
Product (hereinafter referred as the "Product").
WARRANTY DURATION: This Product is warranted to the original consumer purchase of a pe-
riod of 90 days from the original purchase.
WARRANTY COVERAGE: ESCALADE SPORTS warrants to the original Consumer Purchaser
that any Product of its manufacture is free from defects in material and workmanship when used
for the intended purpose under normal use and conditions. THIS WARRANTY IS VOID IF THE
PRODUCT HAS BEEN DAMAGED BY ACCIDENT, UNREASONABLE USE, NEGLIGENCE,
IMPROPER SERVICE, FAILURE TO FOLLOW INSTRUCTIONS PROVIDED WITH THE PROD-
UCT OR OTHER CAUSES NOT ARISING OUT OF DEFECTS IN MATERIAL AND WORKMAN-
SHIP.
WARRANTY PERFORMANCE: During the above 90 day warranty period, ESCALADESPORTS
shall repair or replace with a comparable model, and Product, or component thereof, which may
prove defective under normal use and proper care, and which our examination shall disclose to
our satisfaction to be thus defective, please contact our Warranty Dept.
1-888-996-2729 / Warranty Dept.
Or Write us at:
Escalade® Sports, Inc. - P.O. Box 889, Evansville, IN 47706
Attn: Warranty Dept.
Or E-mail us at:
[email protected]
Other than shipping requirements no charge will be made for such repair or replacement of in-
warranty Products. ESCALADE SPORTS strongly recommends that the Product is insured for
value prior to mailing.
WARRANTY DISCLAIMERS: ANY IMPLIED WARRANTIES ARISING OUT OF
THIS SALE, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIM-
ITED IN DURATION TO THE ABOVE 90 DAY PERIOD. ESCALADE SPORTS
SHALL NOT BE LIABLE FOR LOSS OF USE OF THE PRODUCT OR OTHER
CONSEQUENTIAL OR INCIDENTAL COSTS, EXPENSES OR DAMAGES IN-
CURRED BY THE CONSUMER OF ANY OTHER USE.
Some states do not allow the exclusion or limitation of implied warranties or consequential or
incidental damages, so the above limitations or exclusions may not apply to you.
LEGAL REMEDIES: This warranty gives you specific legal rights and you may also have other
rights which may vary from state to state.
90 DAY LIMITED WARRANTY

G01342W/F
2 - G01342W/F - 0416 - WJ
1-888 -996-2729
FAX: [phone]
[email protected]
Nosotros tratamos de asegurarnos que nuestros productos sean
de la más alta calidad y libre de problemas, como defectos de
fabricación ó partes incompletas. Sin embargo, Si usted tiene
algún problema con su producto, por favor
NO LO REGRESE A LA TIENDA
pongase en contacto con nosotros llamando gratis al:
O escriba a:
EscaladeSports
Departamento de Atención al
Cliente
P.O.Bo x 889
Evansville IN 47706
Visite nuestro sitio Web en:
Por favor tenga el número de modelo cuando solicite partes.
Al contactar a Escalade Sports, por favor incluya su número de modelo, código
de fecha (si lo hubiera) y el número de parte en caso de solicitar una parte. Estos
números se ubican en el producto, en el empaque y en el manual del usuario.
Número de modelo:
Código de fecha:
Fecha de Compra:
CONSERVE ESTE MANUAL DE INSTRUCCIONES PARA REFERENCIA.
16
Para Servicio al cliente llame 1-888-996-2729
stropSedalacsE2016©
Todos los derechos reservados.

©2016 Escalade Sports Para Servicio al cliente llame1-888-996-2729
17
Todos los derechos reservados.
IMPORTANTE! LEA TODOS LOS
PASOS DE ESTE MANUAL ANTES
DE COMENZAR A ARMAR.
LOS DIBUJOS DE ESTE MANUAL
PUEDEN HABERSE EXAGERADO
O MODIFICADO PARA
MOSTRAR LOS DE
TALLE S .
IMPORTANTE!
SE REQUIEREN DOS ADULTOS PARA
ENSAMBLAR ESTA MESA “ATOMIC PROFORCE”.
Herramientas Necesarias:
T1 - Llave Allen (Incluida)
Desarmador Phillips
Abrillantador para muebles y un paño
Un desarmador eléctrico, puede resultarle muy útil para armar la mesa. Sin embargo,
debe usarlo en baja potencia y tener mucho cuidado de no ajustar en exceso y
dañar los tornillos.
Asegúrese de que comprende los siguientes consejos antes de comenzar a armar la mesa.
1. Coloque todos los tornillos manualmente antes de apretarlos.
2. Algunos dibujos o imágenes de este manual puede que no se vean exactamente igual
a su producto. Asegúrese de leer y comprender el texto antes de comenzar
cada paso.
Consejos de ensamblamiento
LEA Y SIGA LAS INSTRUCCIONES DE ENSAMBLAR,
EL FUNCIONAMIENTO Y SEGURIDAD ATENTAMENTE.
SE REQUIEREN POR LO MENOS DOS ADULTOS
PARA ARMAR ESTA MESA
PRECAUCIÓN:

IDENTIFICADOR DE TORNILLOS
( A Escala)
©2016 Escalade Sports Para Servicio al cliente llame1-888-996-2729
18
Todos los derechos reservados.
H1 - 6mm x 22mm
Tornillo Allen
(16 pzas.)
H2 - 6mm x 19mm
Rondana (16 pzas.)
H3 - 3mm x 28mm
Tornillo Phillips (cabeza plana)
(8 pzas.)
H4 - 4mm x 12mm
Tornillo Phillips (Cabeza redonda)
(84 pzas.)
H5 - 3mm x 28mm
Tornillo Phillips (cabeza tipo arandela)
(18 pzas.)
(No a Escala)
H6 - 4mm x 12mm
Tornillo Phillips (cabeza plana)
(6 pzas.)
H7 - 4mm x 51mm
Tornillo Phillips (cabeza plana)
(12 pzas.)
H8 - 4mm x 51mm
Zinc - Tornillo Phillips (cabeza plana)
(4 pzas.)
T1 - Llave Allen
(1 pza.)
IDENTIFICADOR DE ACCESORIOS
( No a Escala)
A1- Balón de Fútbol (4 pzas.)
!ADVERTENCIA:
PELIGRO DE ASFIXIA
Piezas pequeñas.
No adecuadas para niños
menores de 3 años.

IDENTIFICADOR DE LAS PARTES
( No a Escala)
©2016 Escalade Sports Para Servicio al cliente llame1-888-996-2729
19
Todos los derechos reservados.
P1 - Panel
Lateral
(2 pzas.)
P2 - Panel del
Extremo
(2 pzas.)
P3 - Pata (4 pzas.)
P5 - Riel
Superior
(2 pzas.)
P6 - Tabla del
Extremo
(2 pzas.)
P4 - Superficie de
Juego (1 pza.)
P7 - Soporte de la
Superficie de Juego
(2 pzas.) P8 - Porteria (Parte Superior)
(2 pzas.)
P9 - Porteria
(Parte Inferior) (2
pzas.)
P10 - Marcador (2 pzas.) P11 - Nivelador
de las patas
(4 pzas.)
P12 - Borde de la
Superficie de
juego (2 pzas.)
P13 - Rondana de
Plástico
(16 pzas.)
P14 - Tope de la barra
(16 pzas.)
P15 - Tapón
para la barra
(8 pzas.)
P16 - Mango de
la barra
(8 pzas.)
P17 - Entrada de
pelotas (2 pzas.)
P18 - Soporte
de Plástico (18
pzas.)
!ADVERTENCIA:
PELIGRO DE ASFIXIA
Piezas pequeñas.
No adecuadas para niños
menores de 3 años.

IDENTIFICADOR DE LAS BARRAS
( No a Escala)
©2016 Escalade Sports Para Servicio al cliente llame1-888-996-2729
20
Todos los derechos reservados.
R1 - Barra con 2 jugadores
Negros (1 pza.)
R2 - Barra con 3 jugadores
Negros (2 pzas.)
R3 - Barra con 5 jugadores
Negros (1 pza.)
R4 - Barra con 2 jugadores
color Marfil (1 pza.)
R5 - Barra con 3 jugadores
color Marfil (2 pzas.)
R6 - Barra con 5 jugadores
color Marfil (1 pza.)
!ADVERTENCIA:
PELIGRO DE ASFIXIA
Piezas pequeñas.
No adecuadas para niños
menores de 3 años.
